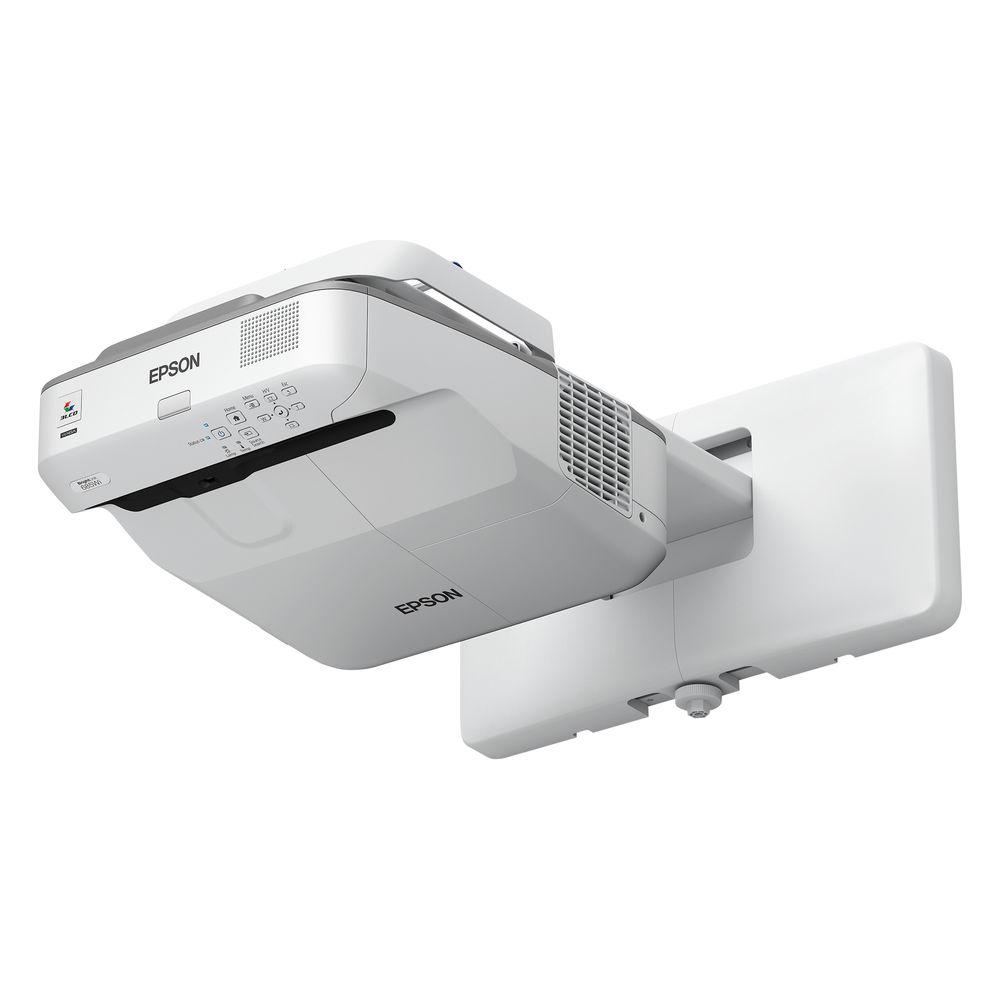

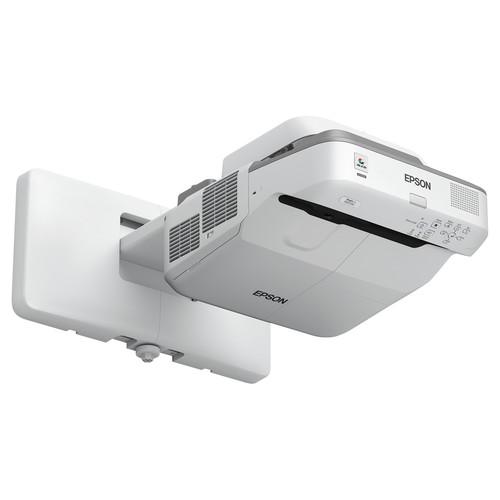

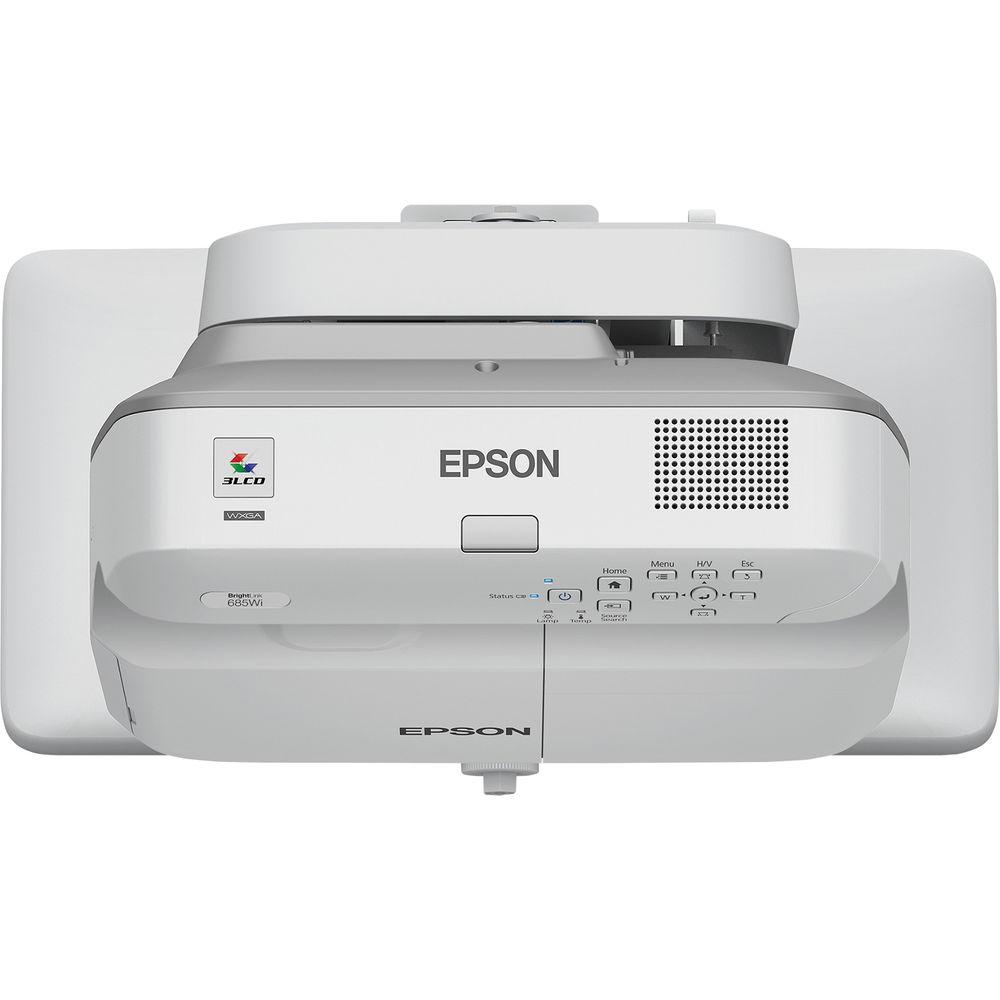

Product description The BrightLink 685Wi WXGA 3LCD Ultra Short-Throw Interactive Display from Epson is the wireless display solution for today’s BYOD classrooms. With true multi-platform support, students can wirelessly display content from Chromebooks, Windows and Mac computers, as well as iOS and Android devices.
When used in conjunction with Epson Multi-PC projection plus Moderator device management software, up to 50 users can connect to the projector simultaneously, displaying content from as many as four at a time. It’s the perfect tool for displaying a variety of content or for comparing students’ work side by side. - Widescreen Performance
- Ideal for use with widescreen computers or to display HD video content, this display features widescreen WXGA (1280 x 800) resolution. Its 16:10 aspect ratio allows you to fully utilize the capabilities of your widescreen notebook, giving you 30 percent more usable area than a regular 4:3 image and 10 percent more than a 16:9 image. The display still offers the flexibility of displaying 4:3 and 16:9 images, as needed.
- Built-In Closed Captioning
- Built-in closed captioning helps educational institutions meet Section 508 requirements for students with hearing impairments. And, it eliminates the need to pay for an additional decoder and its installation.
- Long-Life Lamps
- Lamp design saves energy and lasts up to 10,000 hours. It maximizes viewing time while minimizing the total cost of ownership.
- Eco Features
- RoHS compliant
Recyclable product
Epson America, Inc. is a SmartWay Transport Partner - Wireless Support
- Display Chromebook, iOS, Android, Mac, and Windows screens
- Versatile Connectivity
- Three HDMI supports multiple high-definition A/V devices, with MHL support
UPC: 010343928602 In the Box Epson BrightLink 685Wi WXGA 3LCD Ultra Short-Throw Interactive Display 15' Power Cord Remote Control with Batteries Software CDs Limited 90-Day Warranty for Lamp Limited 2-Year Warranty More info from Epson tqvztqswsaywxfff Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson BrightLink 685Wi WXGA 3LCD Ultra Short-Throw Interactive Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson 685WI Specs | | | Display System | 3-Chip LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Max Brightness | 3500 Lumens | | Aspect Ratio | 16:10 | | | | Focus | Manual | | Lens | f/0 - 1.6 (f = 0 - 3.7 mm) | | Throw Ratio | 0.28 - 0.37:1 | | Projection Size | 60 - 100" / 152.40 - 254.00 cm | | | | Keystone Correction | Vertical: ± 3°

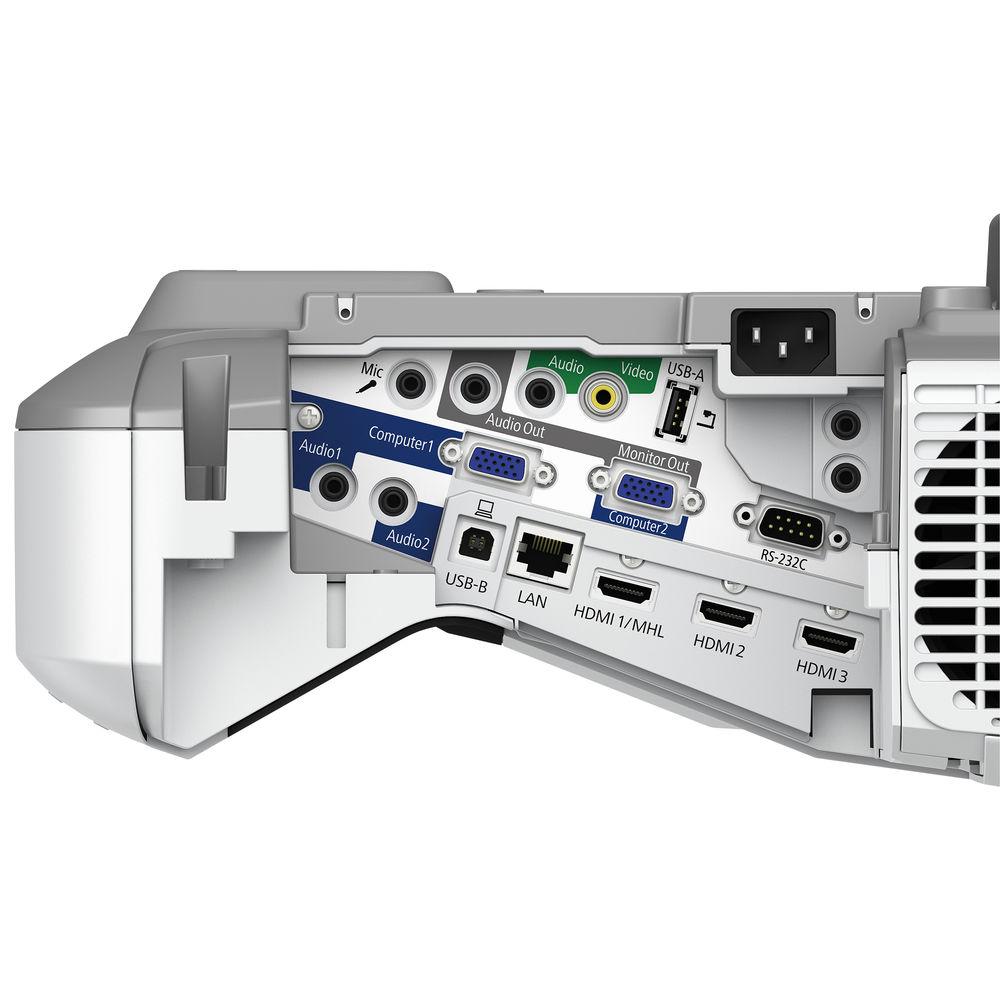

Horizontal: ± 3° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Closed Captioning | Yes | | | | Inputs/Outputs | 3 x HDMI with MHL Support Video (Input)
1 x RS-232C (Unspecified Connector) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x USB Type-B Female (Input/Output)
1 x USB Type-A Male (Input/Output) | | | | Lamp Power | 250 W | | Expected Lamp Life | Medium Brightness: 5000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Medium Brightness: 35 dB
Low Brightness: 29 dB | | Security | Padlock
Password Protection | | Power Consumption | Medium Brightness: 373 W
Low Brightness: 324 W
Medium Brightness: 2.2 W
Low Brightness: 0.23 W | | Temperature | 41 to 104°F (5 to 40°C) | | Dimensions (W x H x D) | 14.5 x 15.8 x 7.4" / 36.8 x 40.1 x 18.8 cm Including Feet
14.5 x 15.8 x 5.9" / 36.8 x 40.1 x 15.0 cm Excluding Feet | | Weight | 12.6 lb / 5.7 kg | | | | Package Weight | 21.45 lb | | Box Dimensions (LxWxH) | 21.1 x 19.2 x 9.9" |
