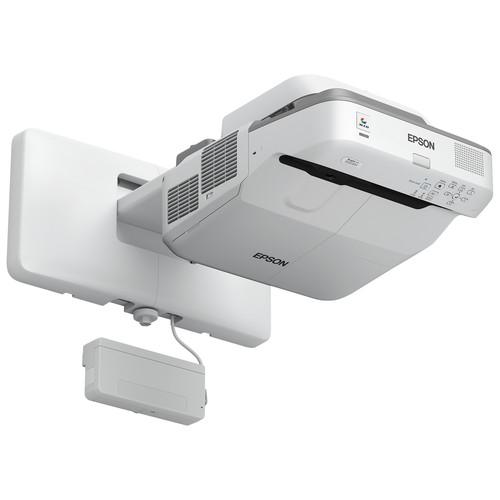

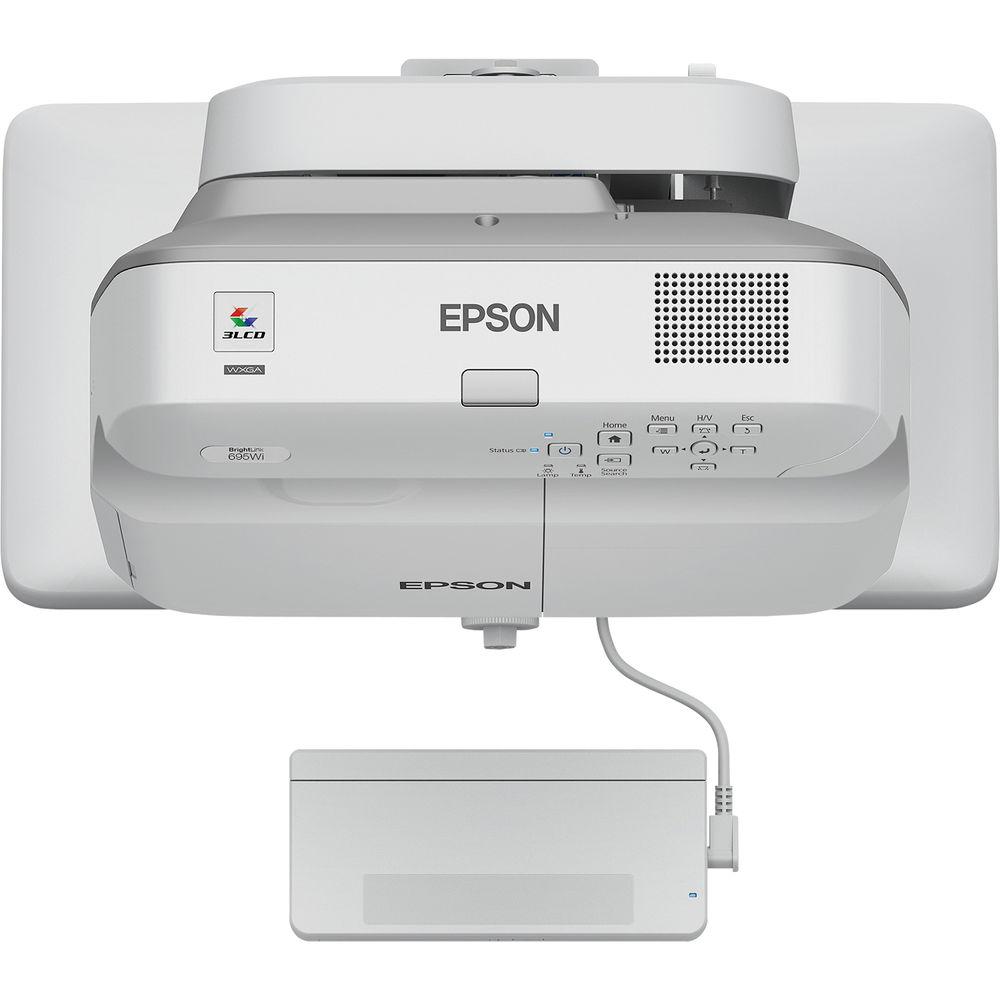

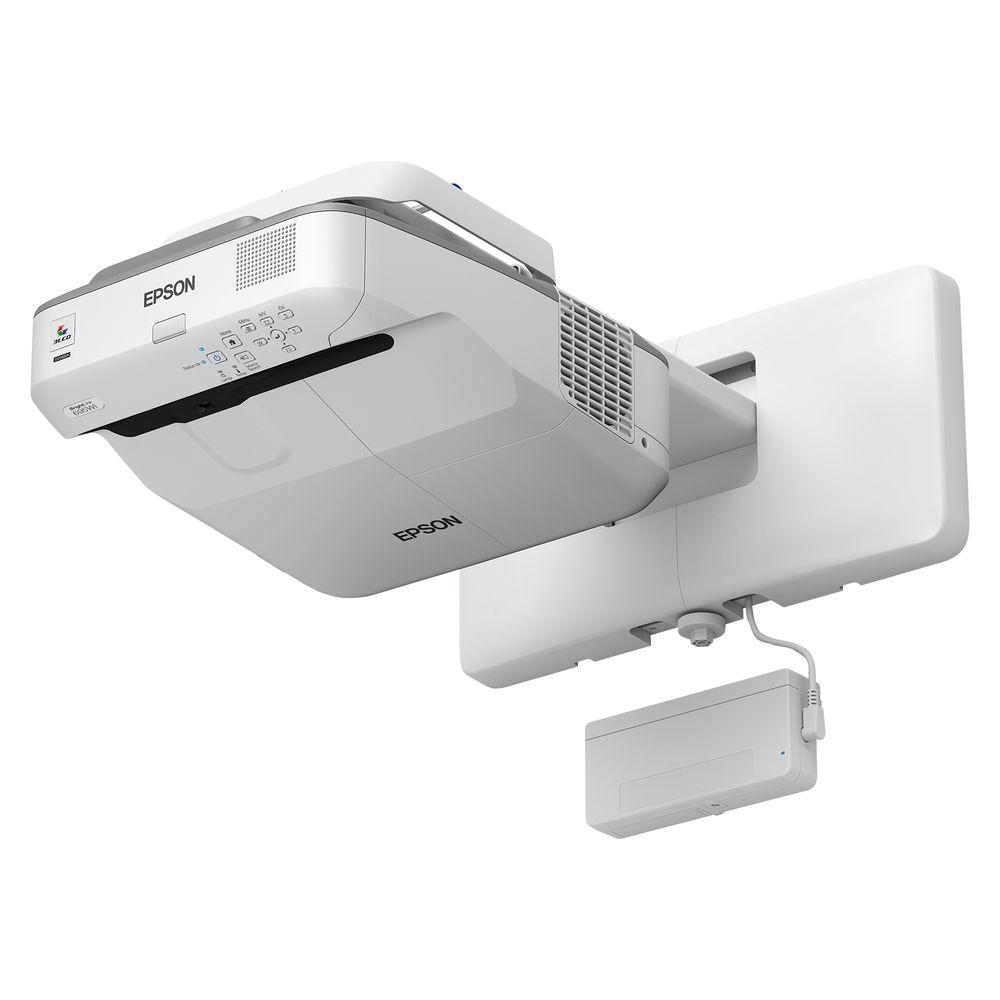

User Manual for Epson BrightLink 695Wi 3500-Lumen WXGA Ultra-Short Throw 3LCD Interactive Projector Click to enlarge the picture
Contents of the user manual for the Epson BrightLink 695Wi 3500-Lumen WXGA Ultra-Short
- Product category: Multimedia Projectors Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Multimedia Projectors
 |
User manual for the Epson BrightLink 695Wi 3500-Lumen WXGA Ultra-Short contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|
Product description Enjoy out-of-the-box interactivity with the Epson BrightLink 695Wi 3500-Lumen WXGA Ultra-Short Throw 3LCD Interactive Projector. It includes an interactive module and two interactive pens, and supports interactivity with up to two users at once. It features support for wireless sharing to and from the projector for up to 50 compatible devices with an optional wireless module. Its 3500 lumens of brightness and 14,000:1 dynamic contrast ratio help images remain clear and detailed in well-lit rooms.
The BrightLink 695Wi sports an ultra-short 0.28 to 0.45:1 throw ratio to virtually eliminate on-screen shadows and minimize the risk of shining in a presenter's eyes. It has VGA, composite video, and three HDMI inputs to support a variety of source types. One HDMI input is MHL-compatible for wired mirroring of your compatible smartphone or tablet. -
- 3500 lumens of color/white brightness with 3LCD technology
- Make nearly any wall or whiteboard interactive; pen-based interactivity allows up to two users to write and draw at once anywhere on the image area
- Simultaneously share and control content from up to four Chromebook, Windows, Mac, iOS, or Android devices at once using Moderator software; up to a total of 50 devices can be connected
- Share images between the big screen and wirelessly connected mobile devices for individualize learning
- Includes a trial subscription of the SMART Learning Suite, which includes SMART Notebook, SMART amp, SMART lab, SMART Learning Suite Online, and more
- Get a 100" image from as little as 11" away with virtually no shadow interference thanks to the ultra-short throw ratio
- Lasts up to 10,000 hours in ECO Mode
- DuoLink allows you to install two BrightLink displays side by side to create one seamless interactive surface
- USB plug-and-play for Windows Vista, 7, 8, and 10, and Mac OS 10.7, 10.8, 10.9, 10.10, 10.11, and 10.12.x
- 850 nm IR interactive technology
- 60 to 100" interactive area
- Up to six points of touch
UPC: 010343928589 In the Box Epson BrightLink 695Wi 3500-Lumen WXGA Ultra-Short Throw 3LCD Interactive Projector Remote Control 2 x Interactive Pen Finger-Touch Module 4 x AA Battery Touch Module Cable USB Type-A to USB Type-B Cable USB Extender Cable Software Disc Touch Module Mounting Bracket Battery Charger Power Cable Limited 2-Year Warranty on Projector Limited 90-Day Warranty on Lamp More info from Epson czvqrsbfzzcvwtxvcdscyvzxzsywub Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson BrightLink 695Wi 3500-Lumen WXGA Ultra-Short Throw 3LCD Interactive Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

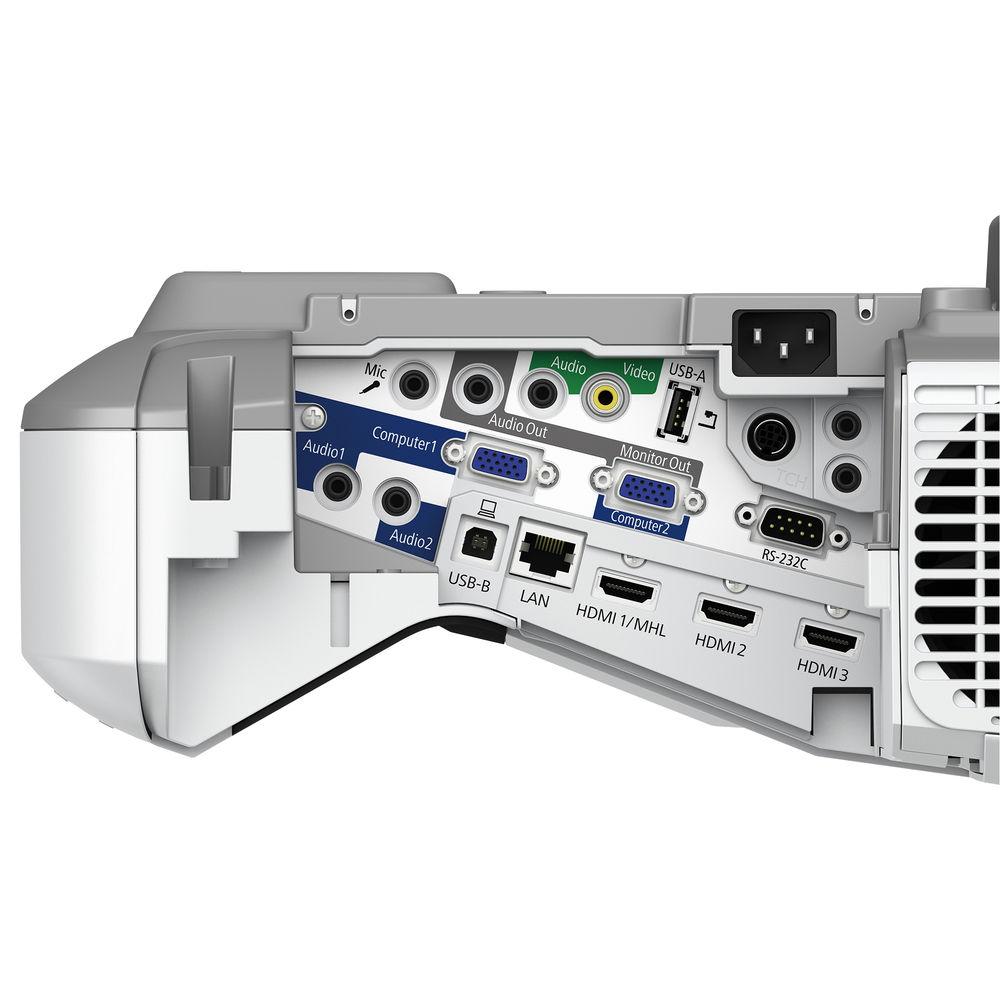

Technical parametersEpson 695WI Specs | | | Display System | 3-Chip Polysilicon TFT LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Max Brightness | White: 3500 Lumens
Color: 3500 Lumens | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 14,000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | | | Focus | Manual | | Lens | f/1.6 (f = 3.7 mm) | | Optical Zoom | None | | Throw Ratio | 0.28 - 0.45:1 | | Projection Size | 53 - 100" / 134.62 - 254.00 cm | | | | Keystone Correction | Horizontal: ± 3°
Vertical: ± 3° | | Digital Zoom | 1.35x | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 16W | | | | Inputs/Outputs | 2 x HDMI (HDMI Type-A) Audio, Video Input
1 x HDMI with MHL Support (HDMI Type-A) Audio, Video Input
1 x VGA (DE-15) Video Input
1 x VGA (DE-15) Video Input/Output
1 x Composite (RCA) Video Input
3 x 1/8" (3.5 mm) Mini Audio Input
1 x 1/8" (3.5 mm) Mini Microphone Input
1 x 1/8" (3.5 mm) Mini Audio Output
1 x USB 2.0 (USB Type-A) Audio, Video Input
1 x USB 2.0 (USB Type-B) Audio, Control, Video Input
1 x Ethernet (RJ45) LAN Input/Output
1 x RS-232 (DE-9) Control
2 x Proprietary Data Input
1 x Proprietary Data Output | | Memory Card Slot | None | | | | Light Source | Lamp (1 x UHE) | | Lamp Power | 250 W | | Expected Lamp Life | Full Brightness: 5000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Full Brightness: 35 dB
Low Brightness: 29 dB | | Security | Cable Lock Slot
Password Protection
Security Bar | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 373 W
Standby Mode (Lamp Off): 2.2 W | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Dimensions (W x H x D) | 14.5 x 5.9 x 15.8" / 36.8 x 15.0 x 40.1 cm
6.3 x 0.9 x 0.9" / 16.0 x 2.4 x 2.4 cm Interactive pen | | Weight | 12.8 lb / 5.8 kg
1.1 oz / 31 g Interactive pen, without battery | | | | Package Weight | 25.0 lb | | Box Dimensions (LxWxH) | 21.1 x 19.2 x 9.9" |
