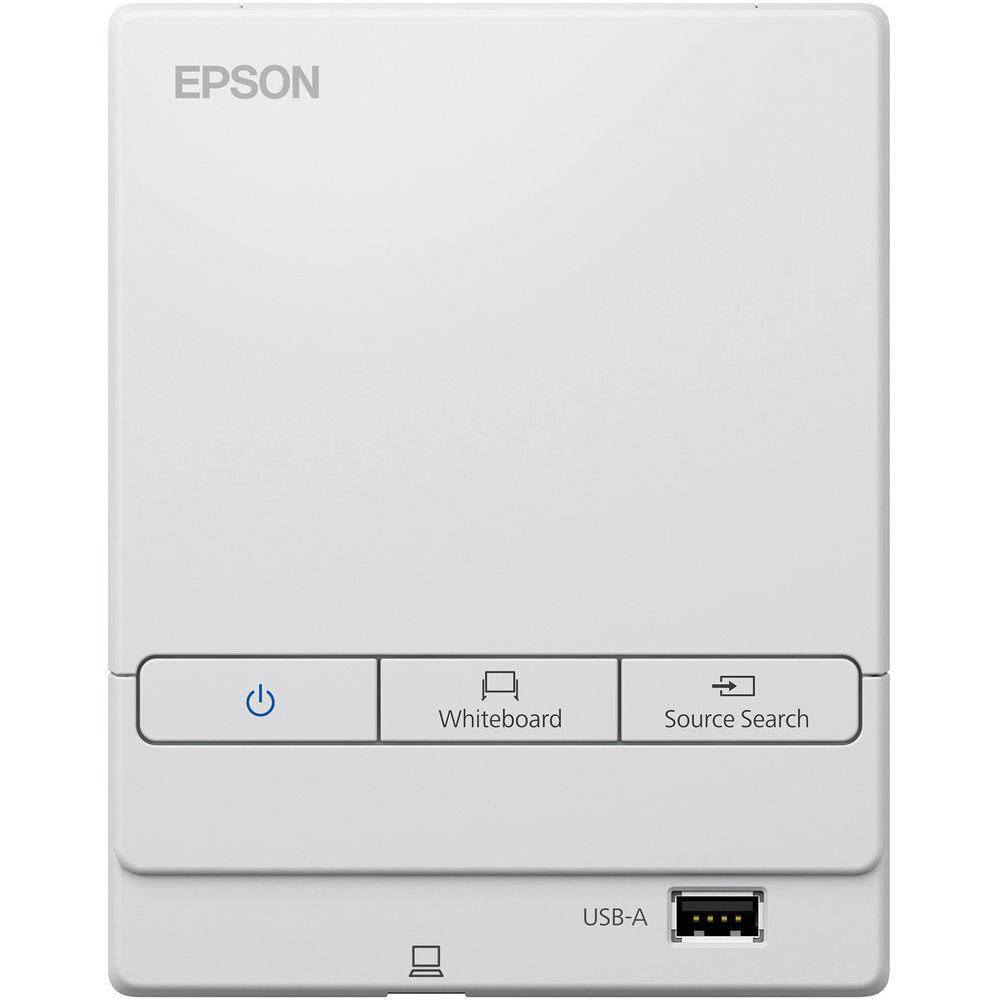

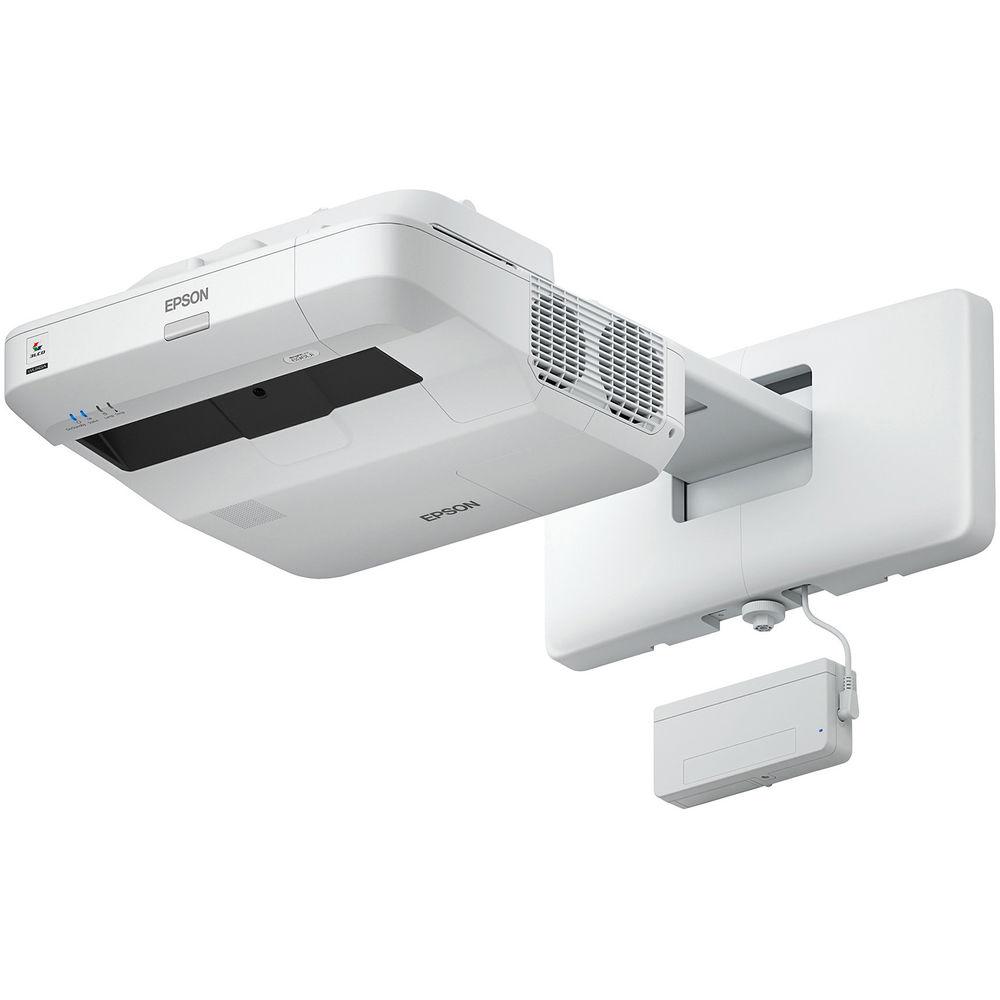

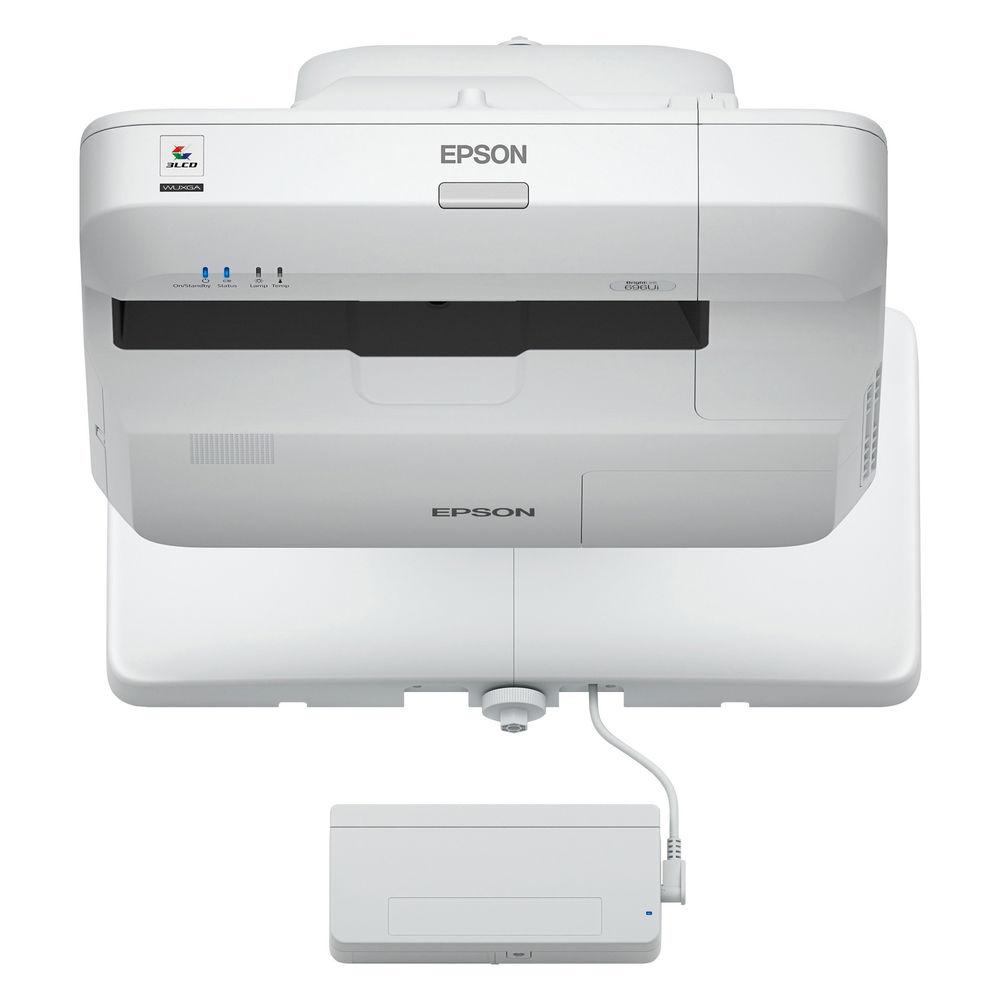

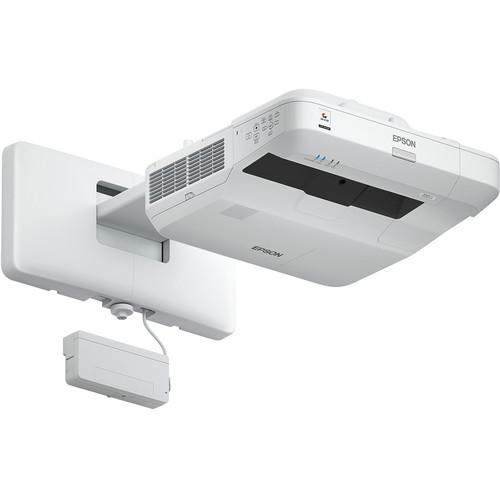

User Manual for Epson BrightLink 696Ui Full HD 3LCD Ultra Short-Throw Interactive Projector Click to enlarge the picture
Contents of the user manual for the Epson BrightLink 696Ui Full HD 3LCD
- Product category: Multimedia Projectors Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Multimedia Projectors
 |
User manual for the Epson BrightLink 696Ui Full HD 3LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|
Product description The BrightLink 696Ui Full HD 3LCD Ultra Short-Throw Interactive Projector from Epson features a Full HD WUXGA display and 3800 lumens of color and white brightness. The 696Ui delivers dynamic images up to 100" from as close as 10" away. Turn almost any wall or existing whiteboard into an interactive workspace with pen and touch-based interactivity, up to two pens or six users at one time. You can wirelessly display content from a variety of devices including Chromebooks using the Epson iProjection App with Moderator device management software. In addition, it includes a 1-year subscription to SMART Notebook. - 3LCD, 3-chip technology with 3,800 lumens color/white brightness
- Up to 100" display for clear legibility and visibility from anywhere in the room
- Pen- and touch-based interactivity allows up to six users to draw, share, and collaborate at once using familiar gestures
- Wirelessly connect up to 50 devices, simultaneously share and control content from up to four screens at once using Moderator software, including Chromebook, Windows, Mac, iOS, and Android devices
- Easy content sharing between the big screen and wirelessly connected mobile devices, for individualized learning
- Seamless integration with curriculum software, includes 1-year subscription and support for SMART Notebook
- Ultra short-throw interactive 100" display image from as little as 11" away with virtually no shadow interference
- Lamps lasts up to 10,000 hours in ECO mode
- Install two BrightLink displays side-by-side to create one seamless interactive surface
UPC: 010343928572 In the Box Epson BrightLink 696Ui Full HD 3LCD Ultra Short-Throw Interactive Projector Power Cable USB A/B Cable USB Extender Cable Interactive Driver for Mac and Windows Epson Easy Interactive Tools Network Management Software Remote Control 2 x Interactive Pen Pen Tray 2 x AA Battery for Interactive Pens 2 x AA Battery for Remote Charger Limited 2-Year Warranty for Projecor Limited 90-Day Warranty for Lamp More info from Epson cdxfcruydsdabccsxbfvzybfrx Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson BrightLink 696Ui Full HD 3LCD Ultra Short-Throw Interactive Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson 696UI Specs | | | Display System | 3-Chip LCD | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Max Brightness | 3800 Lumens | | Aspect Ratio | 16:10 | | Contrast Ratio | 16000:1 | | | | Focus | Manual | | Lens | f/0 - 1.6 (f = 0 - 4.2 mm) | | Throw Ratio | 0.28 - 0.37:1 | | Projection Size | 70.4 - 100" / 178.82 - 254.00 cm | | | | Keystone Correction | Horizontal: ± 3°

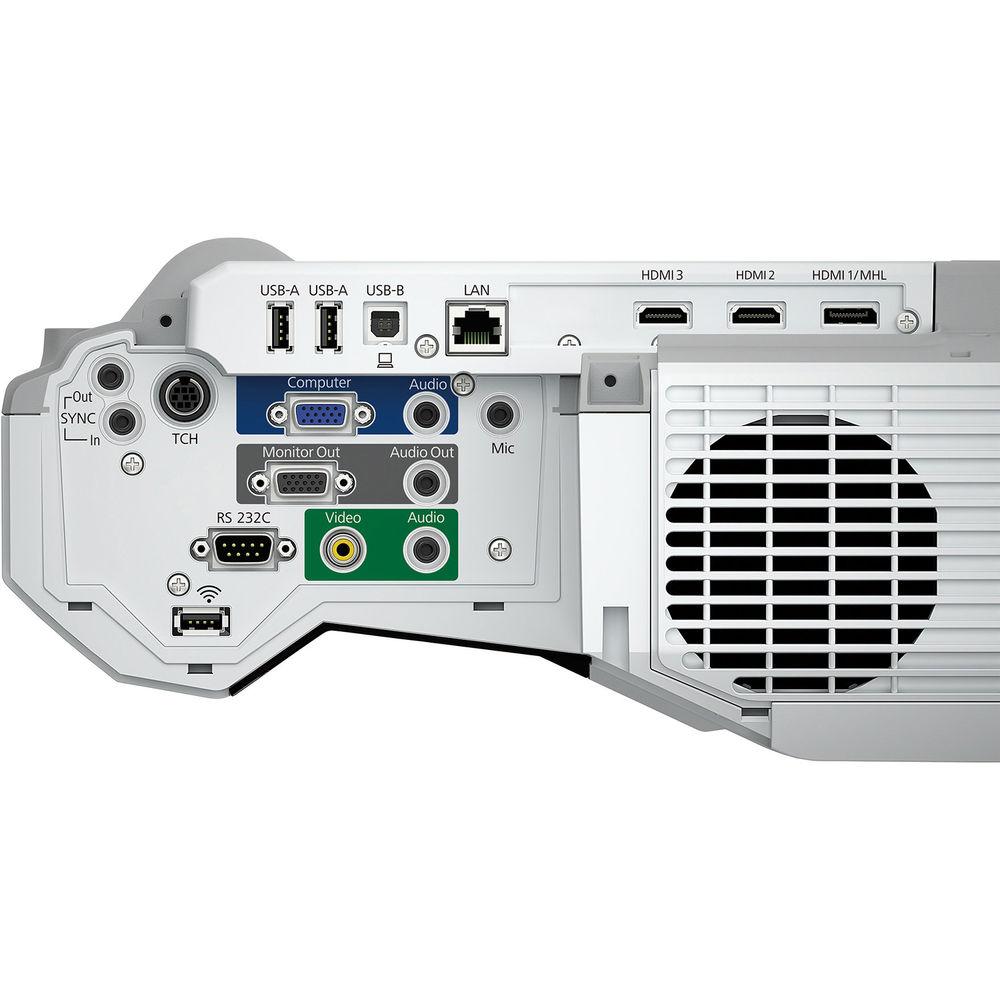

Vertical: ± 3° | | | | Inputs/Outputs | 2 x HDMI Video (Input)
1 x HDMI with MHL Support Video (Input)
1 x VGA (DE-15) Video (Output)
1 x Composite (RCA) Video (Input)
2 x 1/8" (3.5 mm) Mini Audio (Output)
1 x USB Type-B Female (Input)
2 x USB Type-A Male (Input)
1 x RS-232C (Unspecified Connector) Service (Input/Output)
1 x VGA (DE-15) Video (Input) | | | | Lamp Power | 267 W | | Expected Lamp Life | Medium Brightness: 5000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Medium Brightness: 37 dB
Low Brightness: 30 dB | | Security | Password Protection
Security Bar | | Power Consumption | Medium Brightness: 425 W
Medium Brightness: 2.9 W | | Max Operating Altitude | 20' / 6 m | | Temperature | Operating
41 to 104°F (5 to 40°C) | | Dimensions (W x H x D) | 18.7 x 17.6 x 5.1" / 47.5 x 44.7 x 13.0 cm | | Weight | 18.3 lb / 8.3 kg | | | | Package Weight | 54.6 lb | | Box Dimensions (LxWxH) | 31.0 x 22.5 x 13.0" |
