User Manual for Epson BrightLink 697Ui Wireless Full HD 3LCD Ultra Short-Throw Interactive Projector Click to enlarge the picture
Contents of the user manual for the Epson BrightLink 697Ui Wireless Full HD
- Product category: Multimedia Projectors Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Multimedia Projectors
 |
User manual for the Epson BrightLink 697Ui Wireless Full HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|

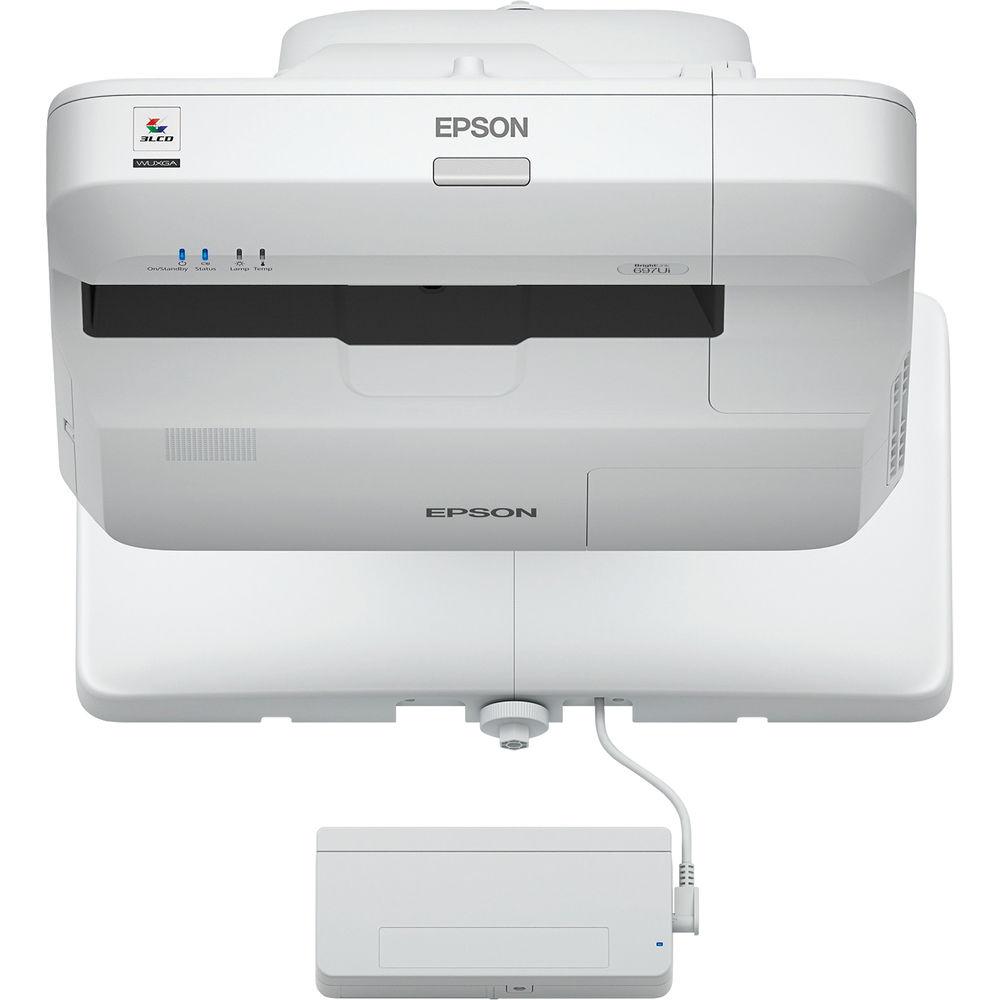

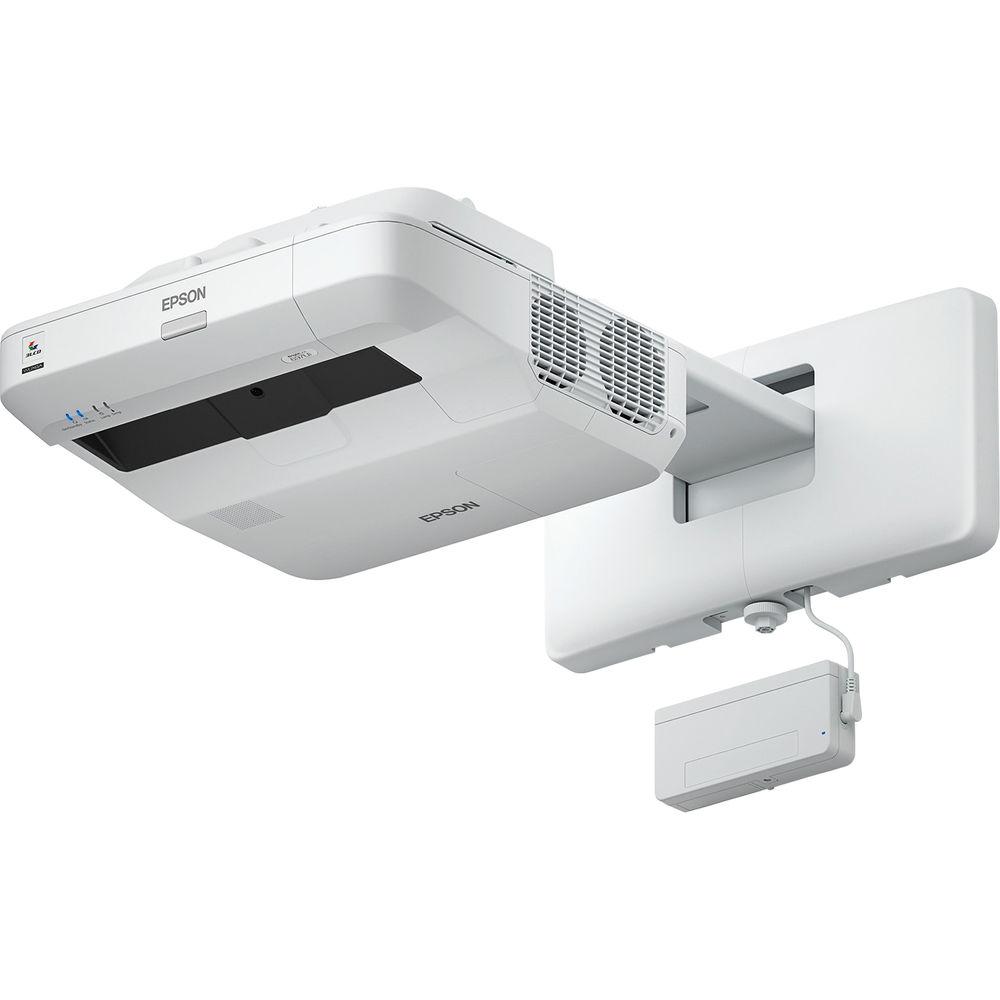

Product description The BrightLink 697Ui Wireless Full HD 3LCD Ultra Short-Throw Interactive Projector from Epson features a Full HD WUXGA display and 4400 lumens of color and white brightness. The 696Ui delivers dynamic images up to 100" from as close as 10" away. Turn almost any wall or existing whiteboard into an interactive workspace with pen and touch-based interactivity. Furthermore, the projector offers encrypted enterprise-level security, wireless support, and content sharing for a variety of devices including Chromebooks, which can be used for BYOD classrooms. In addition, computer-free whiteboard sharing enables remote collaboration with offsite participants. It also includes a 1-year subscription to SMART Notebook. - 3LCD, 3-chip technology with 4400 lumens of color/white brightness
- View from anywhere in the room, up to 100" away for clear legibility and visibility
- Pen- and touch-based interactivity allows up to six users to draw, share, and collaborate at once using familiar gestures
- Encrypted enterprise-level security compatible with WPA, WPA2-PSK and WPA2-EAP security protocols
- Wirelessly connect up to 50 devices, simultaneously share and control content from up to four screens at once using Moderator software, including Chromebook, PC, Mac, iOS, and Android devices
- Easy content sharing between the big screen and wirelessly connected mobile devices, for individualized learning
- Whiteboard sharing remote collaboration allows others to see and write to the whiteboard, even when they're not in the room

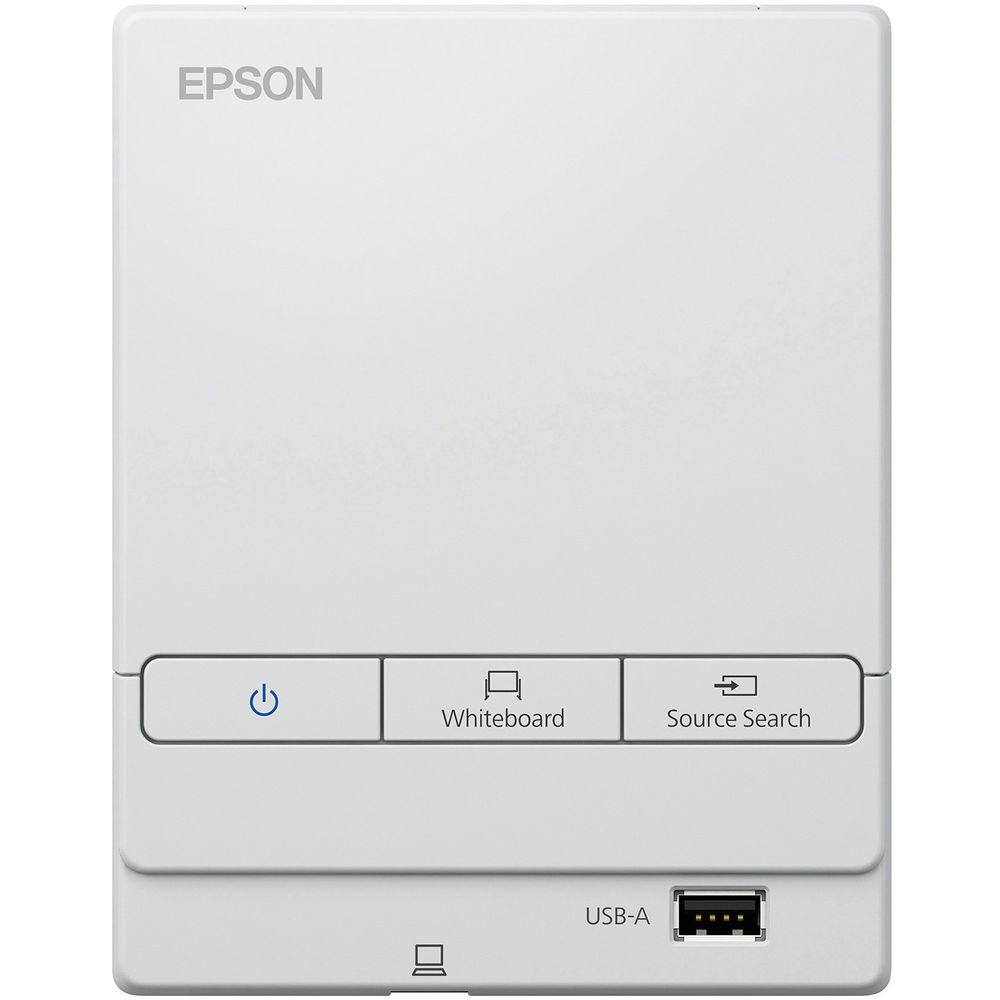

- Wall-mounted control panel for easy projector control at your fingertips with access to on/off, source selection, and computer-free whiteboarding
- Seamless integration with curriculum software, includes 1-year subscription and support for SMART Notebook
UPC: 010343930940 In the Box Epson BrightLink 697Ui Wireless Full HD 3LCD Ultra Short-Throw Interactive Projector Power Cable USB Type-A Cable USB Type-B Cable USB Extender Cable Interactive Driver for Mac and Windows Epson Easy Interactive Tools Network Management Software Remote Control 2 x Interactive Pen Pen Tray 2 x AA Battery for Interactive Pens 2 x AA Battery for Remote Charger Limited 2-Year Warranty for Projecor Limited 90-Day Warranty for Lamp More info from Epson Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson BrightLink 697Ui Wireless Full HD 3LCD Ultra Short-Throw Interactive Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson 697UI Specs | | | Display System | 3-Chip LCD | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Max Brightness | White: 4400 Lumens
Color: 4400 Lumens | | Aspect Ratio | 16:10 | | Contrast Ratio | 16000:1 | | | | Focus | Manual | | Lens | f/0 - 1.6 (f = 0 - 4.2 mm) | | Throw Ratio | 0.22 - 0.37:1 | | Projection Size | 70.4 - 100" / 178.82 - 254.00 cm | | | | Keystone Correction | Horizontal: ± 3°

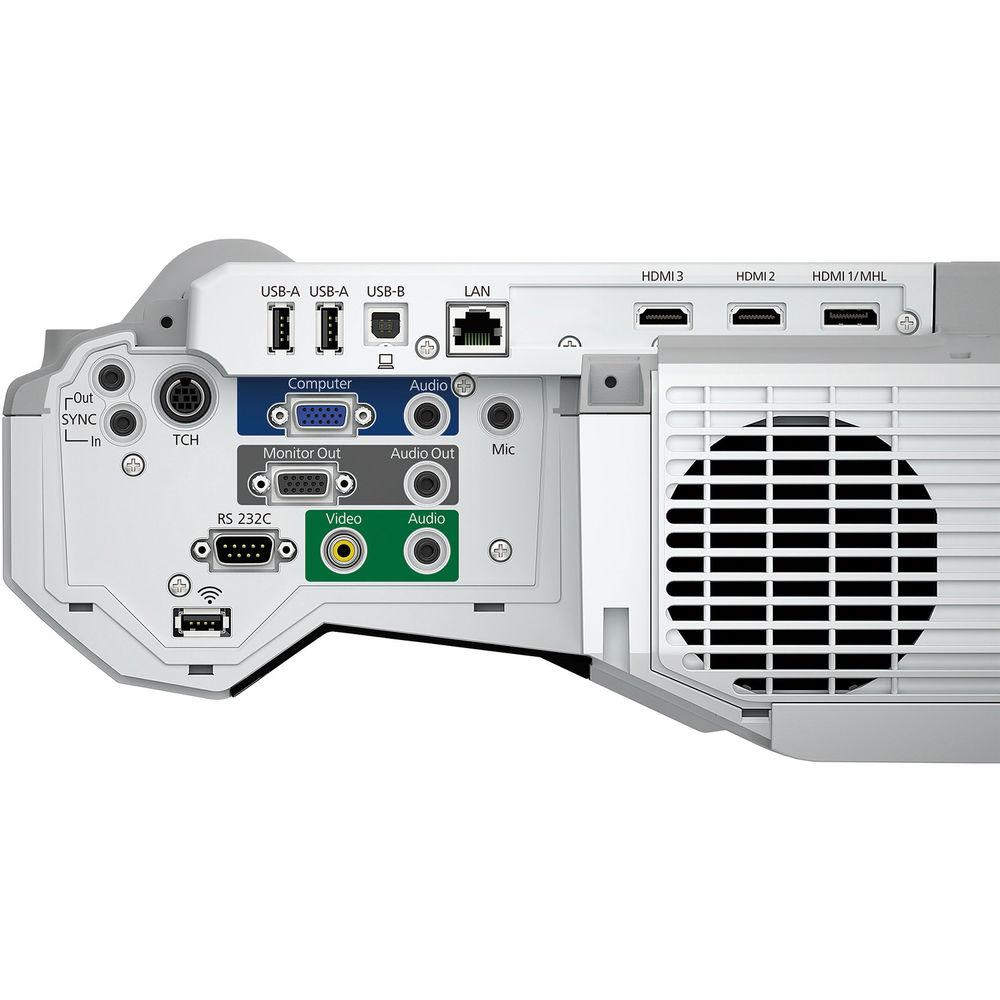

Vertical: ± 3° | | | | Inputs/Outputs | 1 x HDMI Video (Input)
1 x HDMI with MHL Support Video (Input)
1 x VGA (DE-15) Video (Output)
1 x Composite (RCA) Video (Input)
2 x 1/8" (3.5 mm) Mini Audio (Output)
1 x USB Type-B Female (Input)
2 x USB Type-A Male (Input)
1 x RS-232C (Unspecified Connector) Service (Input/Output)
1 x VGA (DE-15) Video (Input) | | | | Lamp Power | 3000 W | | Expected Lamp Life | Medium Brightness: 5000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Medium Brightness: 38 dB
Low Brightness: 30 dB | | Security | Password Protection
Security Bar | | Power Consumption | Medium Brightness: 477 W
Medium Brightness: 0.22 W | | Max Operating Altitude | 20' / 6 m | | Temperature | Operating
41 to 104°F (5 to 40°C) | | Dimensions (W x H x D) | 18.7 x 17.6 x 5.1" / 47.5 x 44.7 x 13.0 cm | | Weight | 18.7 lb / 8.5 kg | | | | Package Weight | 56.0 lb | | Box Dimensions (LxWxH) | 30.65 x 22.5 x 13.0" |
