User Manual for Epson BrightLink 710Ui 4000-Lumen WUXGA Ultra-Short Throw 3LCD Laser Interactive Projector Click to enlarge the picture
Contents of the user manual for the Epson BrightLink 710Ui 4000-Lumen WUXGA Ultra-Short
- Product category: Multimedia Projectors Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Multimedia Projectors
 |
User manual for the Epson BrightLink 710Ui 4000-Lumen WUXGA Ultra-Short contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|

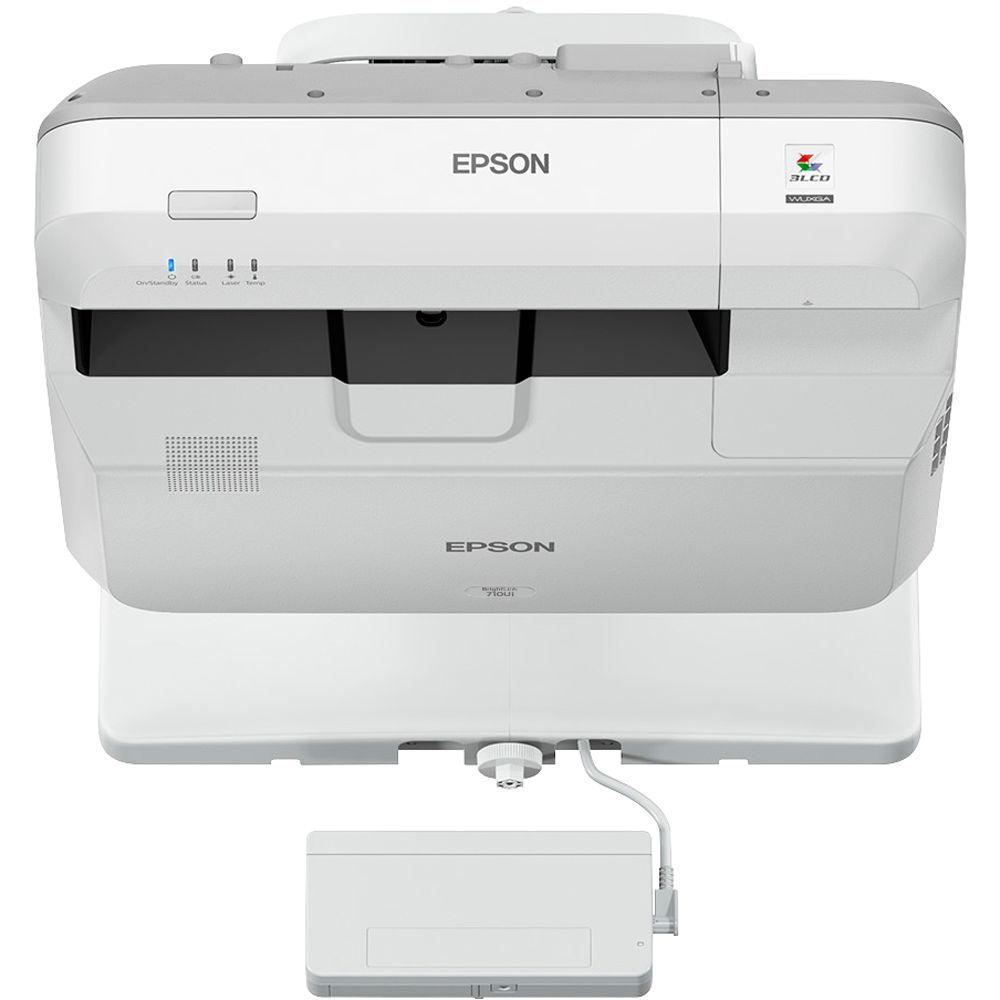

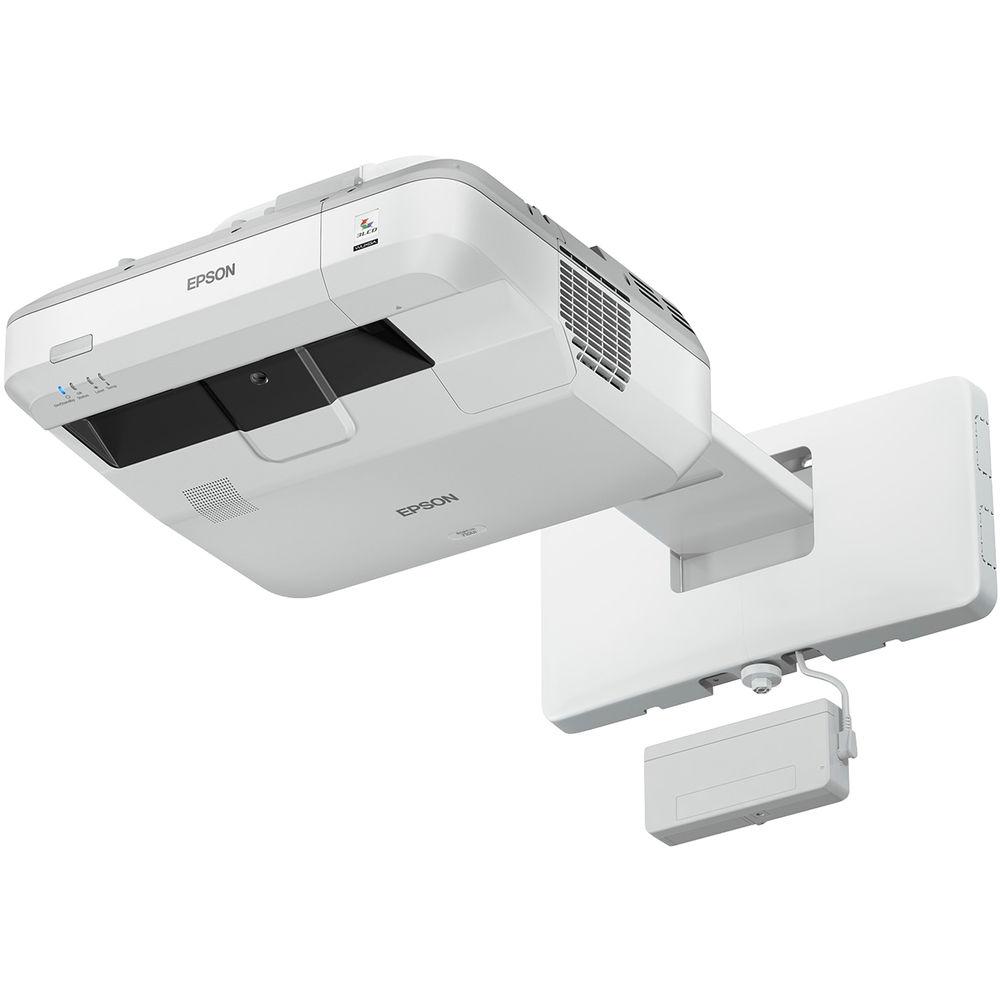

Product description Enjoy out-of-the-box interactivity with the Epson BrightLink 710Ui 4000-Lumen WUXGA Ultra-Short Throw 3LCD Laser Interactive Projector. It includes an interactive module and two interactive pens and supports interactivity with up to eight users at once. It features support for wireless sharing to and from the projector for up to 50 compatible devices with an optional wireless module. Its 4000 lumens of brightness and 2,500,000:1 dynamic contrast ratio help images remain clear and detailed in well-lit rooms.
The BrightLink 710Ui sports an ultra-short 0.22 to 0.37:1 throw ratio (for 16:10) to virtually eliminate on-screen shadows and minimize the risk of shining in a presenter's eyes. It has VGA, composite video, and three HDMI inputs to support a variety of source types. One HDMI input is MHL-compatible for wired mirroring of your compatible smartphone or tablet. The projector also includes a wall mount for instant installation. -
- Designed for accurate, vivid color, even in well-lit rooms with up to 4000 lumens of color and white brightness
- Laser light source provides up to 20,000 hours of virtually maintenance-free operation, enhanced image contrast, and instant on/off
- Full HD / WUXGA images up to 100" diagonal for augmented readability from nearly anywhere in the room, with double the interactive space of a 70" display
- Pen- and touch-based interactivity allows up to eight users to draw, share, and collaborate at once, with six points of touch plus two pens
- Two-way content sharing allows teachers to push content from the projector to wirelessly connected devices and to control which device screens to display; students can make notes and send their work back to the projector
- Designed for seamless integration with popular curriculum software, the BrightLink 710Ui includes a 1-year subscription to and support for SMART Notebook
- DuoLink allows you to install two BrightLink displays side-by-side to create one seamless interactive up to 177" diagonal
- The 3-chip design helps enhance color brightness and broaden the available color gamut
- With an optional wireless module and Epson iProjection, you can connect up to 50 Chromebook, Mac, Windows, iOS, and Android devices and simultaneously display up to four screens
UPC: 010343937871 In the Box Epson BrightLink 710Ui 4000-Lumen WUXGA Ultra-Short Throw 3LCD Laser Interactive Projector Remote Control 2 x Interactive Pens 4 x AA Batteries Wall Mount Finger-Touch Module Touch-Module Cable USB Type-A to Type-B Cable Battery Charger Touch-Module Mounting Bracket Mount Template SMART Notebook Redemption Code Power Cable Limited 3-Year Warranty More info from Epson ywevebqytzbwducf Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson BrightLink 710Ui 4000-Lumen WUXGA Ultra-Short Throw 3LCD Laser Interactive Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

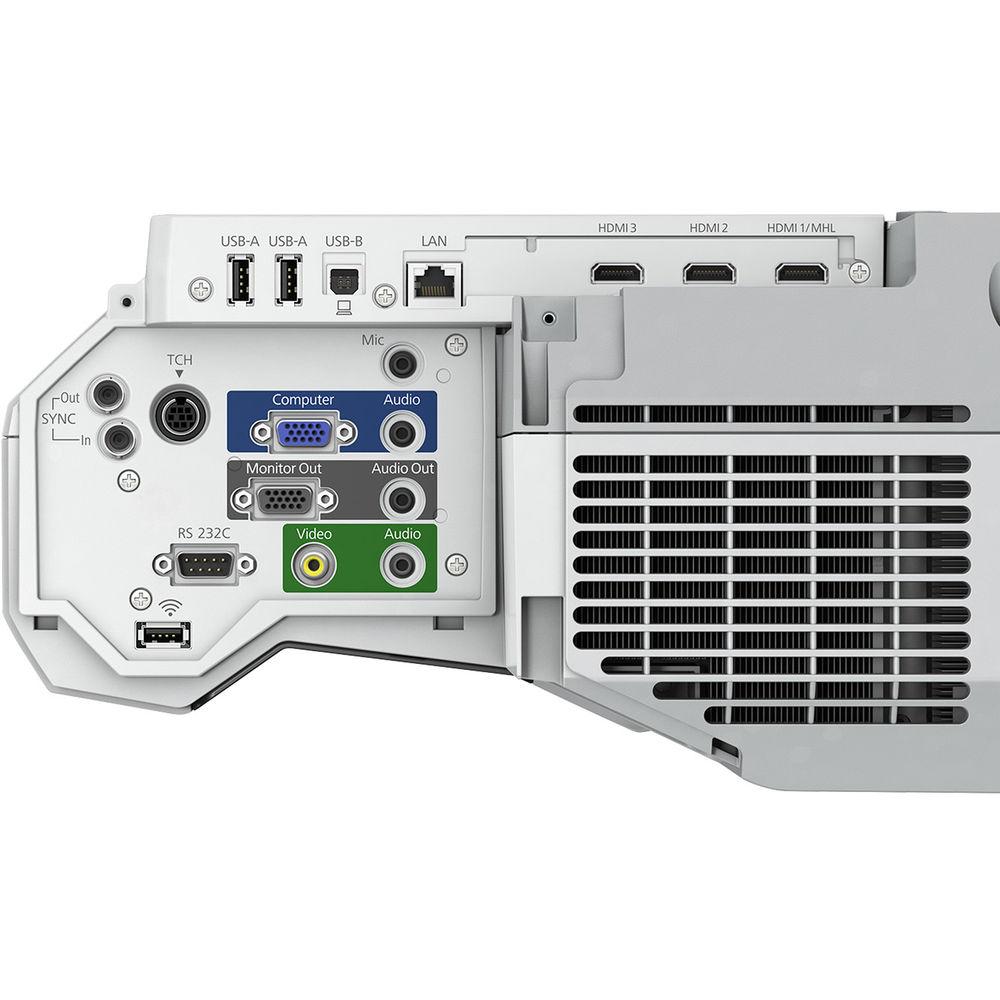

Technical parametersEpson 710Ui Specs | | | Display System | 3-Chip Polysilicon TFT LCD | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Max Brightness | 4000 Lumens | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 2,500,000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | | | Focus | Manual | | Lens | f/1.6 (f = 4.2 mm) | | Optical Zoom | None | | Throw Ratio | 0.22 - 0.44:1 | | Projection Size | 70.4 - 100" / 178.82 - 254.00 cm | | | | Keystone Correction | Manual-Horizontal: ± 3°
Manual-Vertical: ± 3° | | Digital Zoom | 1.35x | | Ceiling Mountable | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 16W | | | | Inputs/Outputs | 2 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x Composite (RCA) Video (Input)
2 x 1/8" (3.5 mm) Mini Audio (Input)
2 x USB Type-A Female (Input)
1 x USB Control (Input)
1 x RS-232C (Unspecified Connector) Control
1 x Ethernet (RJ45) LAN (Input)
1 x Proprietary Type-A Female (Input)
3 x Proprietary Control (Input)
1 x 1/8" (3.5 mm) Mini Microphone (Input)
1 x VGA (DE-15) Video (Output)
1 x 1/8" (3.5 mm) Mini Audio (Output) | | Memory Card Slot | None | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | Laser Phosphor | | Expected Lamp Life | Full Brightness: 20,000 Hours
Low Brightness: 30,000 Hours | | Fan Noise | Full Brightness: 38 dB
Low Brightness: 27 dB | | Security | Cable Lock Slot
Password Protection
Security Bar | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 448 W
Low Brightness: 348 W
Standby Mode (Lamp Off): 2 W | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Dimensions (W x H x D) | 19.5 x 6.8 x 17.3" / 49.5 x 17.3 x 43.9 cm Projector
0.9 x 6.3 x 0.9" / 2.3 x 16.0 x 2.3 cm Interactive pen | | Weight | 24.7 lb / 11.2 kg Projector
1.1 oz / 31.2 g Interactive pen, without battery | | | | Package Weight | 63.1 lb | | Box Dimensions (LxWxH) | 31.0 x 23.0 x 10.0" |
