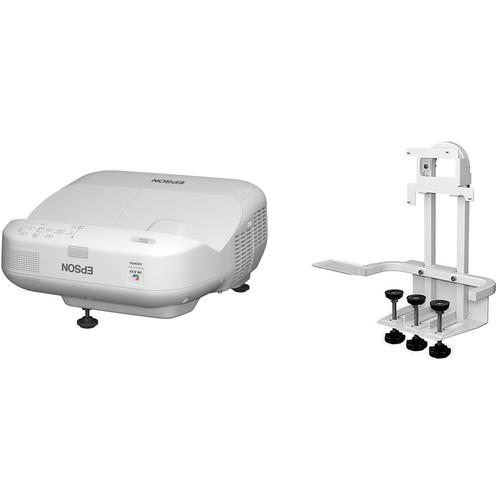

User Manual for Epson BrightLink Pro 1410Wi Interactive Projector with Table Mount Kit Click to enlarge the picture
Contents of the user manual for the Epson BrightLink Pro 1410Wi Interactive Projector
- Product category: Multimedia Projectors Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Multimedia Projectors
|
User manual for the Epson BrightLink Pro 1410Wi Interactive Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|
Product description The Epson BrightLink Pro 1410Wi Interactive Projector with Table Mount Kit by works like an appliance, and does not require a computer. Using Epson's free application, connect your iPad, iPhone, iPod, Android devices wirelessly, or via HDMI, DisplayPort and other inputs to present. This free application allows you to travel light and present from their mobile devices. Project your content, annotate on it and capture all your notes. If you prefer to interact with your PC or Mac, you have the option to use the interactive pens as wireless mice. This will give you the flexibility to run any application on your computer, surf the web, and edit your documents on the go. The BrightLink Pro 1410Wi works on almost any surface - an existing dry-erase board, a whiteboard, a flat wall, or a table. Interactive capabilities are built into the projector, so it's perfect in virtually any setting. BrightLink Pro 1410Wi's ultra-short-throw design eliminates many of the common problems of interactive systems, such as shadowing and eye glare. With a 0.27 throw ratio, BrightLink Pro 1410Wi allows you to project extra-large interactive images up to 100" (2.54 m) with the projector less than 12.5" (0.3 m) away from the image surface. The mount is designed for mounting the BrightLink 1410Wi projector on to tables. The hand-adjustable clamp design easily attaches to 0.6 to 3.1" (15.2 to 78.7mm) thick tables. Also, it allows you to adjust the projector position to create large size (40 to 65" (diagonal)) images without causing any damage to the table surface. - Epson BrightLink Pro 1410Wi Interactive Projector The BrightLink Pro 1410Wi Interactive Projector from Epson works like an appliance, and does not require a computer. Using Epson's free iProjection app, connect your iPad, iPhone, iPod, and Android devices wirelessly, or via HDMI, DisplayPort and other inputs to present. This free application allows you to travel light and present from your mobile device. Project your content, annotate on it and capture all your notes. If you prefer to interact with your PC or Mac, you have the option to use the interactive pens as wireless mice. This will give you the flexibility to run any application on your computer, surf the web, and edit your documents on the go. BrightLink Pro 1410Wi works on almost any surface - an existing dry-erase board, a whiteboard, a flat wall, or a table. Interactive capabilities are built into the projector, so it works in virtually any setting. BrightLink Pro 1410Wi's ultra-short-throw design eliminates many of the common problems of interactive systems, such as shadowing and eye glare. With a 0.27 throw ratio, BrightLink Pro 1410Wi allows you to project extra-large interactive images up to 100" (2.54 m) with the projector less than 12.5" (0.3 m) away from the image surface. Lastly, you can project two images (video or still) side-by-side from two different sources. Choose from three layout options. You can swap the images, choose the source for the audio and even display closed captioning, if the source signal includes it.
- Brightness of 3100 Lumens
- Epson 3LCD projectors have 3x brighter colors than leading competitive projectors, according to Epson. Delivering 3100 lumens of color brightness and 3100 lumens of white brightness, the BrightLink 1410Wi uses 3LCD, 3-chip technology for true-to-life images
- WXGA
- High-definition 1280 x 800 widescreen resolution
- Wireless Ready
- High-speed LAN module for easy connection to notebooks or mobile devices
- Videoconference Tools
- Share ideas with remote participants and work together in real time; includes Split Screen functionality
- Remote Collaboration
- Share content and invite comments with annotation tools that work simultaneously for both local and remote participants
- iProjection App Compatible
- Wirelessly project from your iPhone, iPad, iPod Touch or Android mobile device
- Digital Whiteboard Not Necessary
- Why use a flip chart or traditional whiteboard in your next meeting? Use any wall as an interactive surface to insert images or templates, add new pages to your notes or presentations
- Present, Annotate and Edit
- Display an existing presentation, annotate on content and make any edits - all with a host of innovative, user-friendly tools. Then save, print or email your notes and content
- PC-Free Annotation
- PC-free annotation tools: Yes
PC-free annotation sources: Document cameras, DVD/Blu-ray player, iPod / iPad devices (devices not included) - Interactive Specifications
- Interactive technology: infrared, 940 nm
Interactive area: 60-100" (1524-2540mm) diagonal (16:10, WXGA) Interactive modes: Computer interactivity/input: Interactive and whiteboard modes, Dual user Calibration method: Automatic or manual System compatibility: Connection to the computer: USB Wireless LAN connection: Software Epson Easy Interactive driver Windows and Linux: No driver required Macintosh: Mac OS X 10.3.9, 10.4.x, 10.5.x, 10.6.x, 10.7.x, 10.8.x - Interactive Software
- Easy Interactive Tools compatibility:
System compatibility: Microsoft Windows XP SP2, Windows XP SP3 (Home Edition/Professional), Windows Vista, Windows Vista SP1, Windows Vista SP2 (All editions except for Starter), Windows 7, Windows 7 SP1, Windows 8 (All editions except for Starter) Macintosh OS X 10.4.x, Mac OS X 10.5.x, Mac OS X 10.6.x, Mac OS X 10.7.x, Mac OS X 10.8.x - Interactive Input Device
- Type of interactive input device: Digital pen (two included)
Interactive pen functions: Mouse functions (left and right click), Electronic pen, LED battery status indicator Interactive pen power: AA battery, rechargeable Compatible pen battery types: SANYO eneloop:HR-3UTG / HR-3UTGA), Manganese dry cell, alkaline dry cell Interactive pen dimensions: 6.5 x 1" (165.1 x 25.4 mm) Interactive pen weight (without battery): 1.2 oz (34 g) - Remote Control
- Features: Source search, power, aspect, color mode, volume, e-zoom, A/V mute, freeze, menu, help, auto, enter, esc, pointer, user, print, save, capture, whiteboard, pen mode, split page up or down
Operating angle: Front Right / Left: ±30 degrees Upper / Lower: 0 to +60 degrees Operating distance: 19.7' (6 m) - Additional Specs and Features
- USB Plug 'n Play: Mac 10.5 or later
USB Plug 'n Play for Windows 2000 Display performance: NTSC: 480 lines / PAL: 576 lines (Depends on observation of the multi-burst pattern) - Eco Features
- Recyclable product
Energy-efficient lamp RoHS compliant Epson America, Inc. is a SmartWay Transport Partner UPC: 010343908246 - Epson V12H516020 Ultra-Short Throw Table Mount for BL Series Projectors The Epson V12H516020 Ultra-Short Throw Table Mount for BL Series Projectors is specifically designed for mounting BrightLink 475Wi, 480i, and 485Wi projectors on to tables. The hand-adjustable clamp design easily attaches to 0.6 to 3.1” (15.2 to 78.7mm) thick tables. Also, it allows you to adjust the projector position to create large size (40 to 65" (diagonal)) images without causing any damage to the table surface.
- For BrightLink 475Wi, 480i, and 485Wi projectors
- Flexible installation - hand-adjustable clamp design easily attaches to 0.6 to 3.1" (15.2 to 78.7mm) thick tables
- Easily adjustable - 2 position mounting arm for projecting 16:10 content from 45 to 65" (114.3 to 152.4 cm) (BrightLink 475Wi/485Wi) or 4:3 content from 40 to 57" (101.6 to 144.9 cm) (BrightLink 480i)
- Includes all necessary tools and screws required for assembly
UPC: 010343888685 In the Box - BrightLink Pro 1410Wi Interactive Projector xfrbfwsevsvwxubufwcerzdqssswfxseyr
- 802.11 b/g/n Wireless Module
- Power Cable
- 3 x USB A/B Cable
- Interactive Driver for Mac
- Epson Easy Interactive Tools
- Network Management Software
- Projector Remote Control
- Control Pad
- Pen Case
- 2 x Interactive Pens
- 2 x AA Batteries (for Interactive Pens and Battery Charger)
- 2 x AA Batteries (for Remote)
- 2 x AA Batteries (for Control Pad)
- Epson Road Service Program
- 90-Day Limited Lamp Warranty
- 2-Year Projector Limited Warranty
- V12H516020 Ultra-Short Throw Table Mount for BL Series Projectors xfrbfwsevsvwxubufwcerzdqssswfxseyr
Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson BrightLink Pro 1410Wi Interactive Projector with Table Mount Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Epson BrightLink Pro 1410Wi Interactive Projector
| Display System | 3-Chip Polysilicon TFT LCD | Native Chip Resolution | 1280 x 800 (WXGA) | Max Brightness | 3100 Lumens | Aspect Ratio | Native: 16:10 Supported: 4:3 Supported: 16:9 | Contrast Ratio | 3000:1 | DLP Link 3D | None | | Focus | Manual | Lens | f/1.8 (f = 3.71 mm) | Throw Ratio | 0.27 - 0.37:1 | Projection Size | 60 - 100" / 1524.00 - 2540.00 mm | | Keystone Correction | Vertical: ± 3° Horizontal: ± 3° | Digital Zoom | 1.35x | Picture-in-Picture | None | Ceiling Mountable | Yes | Rear Screen Projection | Yes | Built-In Speaker | Yes (Mono) | Speaker Power | 10W | | Inputs/Outputs | 1 x DisplayPort Video (Input) 1 x HDMI Audio/Video (Input) 1 x VGA (DE-15) Video (Input) 1 x Composite (RCA) Audio/Video (Input) 2 x 1/8" (3.5 mm) Mini Audio 1 x RCA Stereo (L/R) Audio (Input) 1 x 1/8" (3.5 mm) Mini Audio (Output) 1 x Ethernet (RJ45) LAN 1 x RS-232C (Unspecified Connector) Control 1 x VGA (DE-15) Video (Output) 1 x USB Type-B Female 2 x Mini-USB Type-A Female | Wireless LAN / Wi-Fi | Yes, Built-in | | Light Source | Lamp (1 x UHE) | Lamp Power | 215 W | Expected Lamp Life | Medium Brightness: 3500 Hours Low Brightness: 5000 Hours | Fan Noise | Low Brightness: 28 dB Medium Brightness: 35 dB | Security | Cable Lock Slot Password Protection Security Bar | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | Power Consumption | Low Brightness: 231 W Medium Brightness: 322 W Standby Mode (Lamp Off): 0.2 W Standby Mode (Lamp Off): 4.6 W | Temperature | Operating 41 to 95°F (5 to 35°C) | Dimensions (W x H x D) | 14.5 x 7.5 x 14.8" / 368.3 x 190.5 x 375.9 mm Excluding feet | Weight | 13.00 lb / 5.90 kg Without slide plate 14.8 lb / 6.7 kg With slide plate | | Box Dimensions (LxWxH) | 20.0 x 18.2 x 10.4" | - Epson V12H516020 Ultra-Short Throw Table Mount for BL Series Projectors
Adjustment Range | Forward / backward (adjuster bolt): 3.1" (80 mm) Distance between the edge of the table and the center of the bolt is 1.4 to 4.5" (35 to 115 mm). | Maximum Load Capacity | 14.3 lb (6.5 kg) | Weight | Approximately 16.5 lb (7.5 kg) | | Box Dimensions (LxWxH) | 24.1 x 17.5 x 9.5" |
