User Manual for Epson BrightLink Pro 1450Ui Full HD Interactive Projector Click to enlarge the picture
Contents of the user manual for the Epson BrightLink Pro 1450Ui Full HD
- Product category: Multimedia Projectors Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Multimedia Projectors
 |
User manual for the Epson BrightLink Pro 1450Ui Full HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|

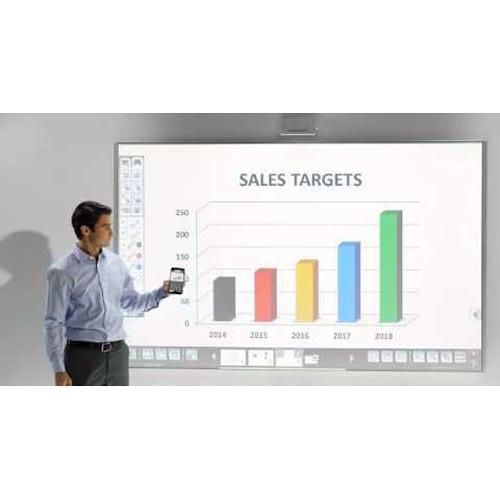

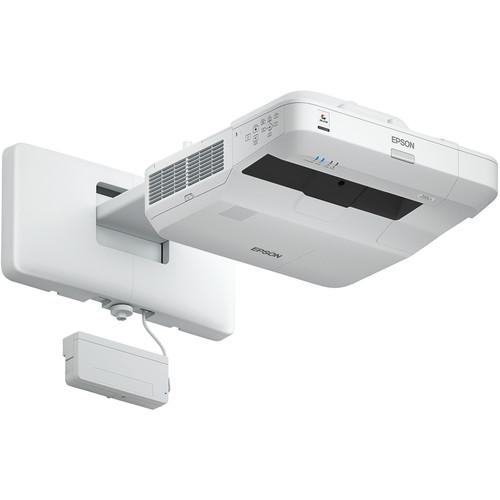

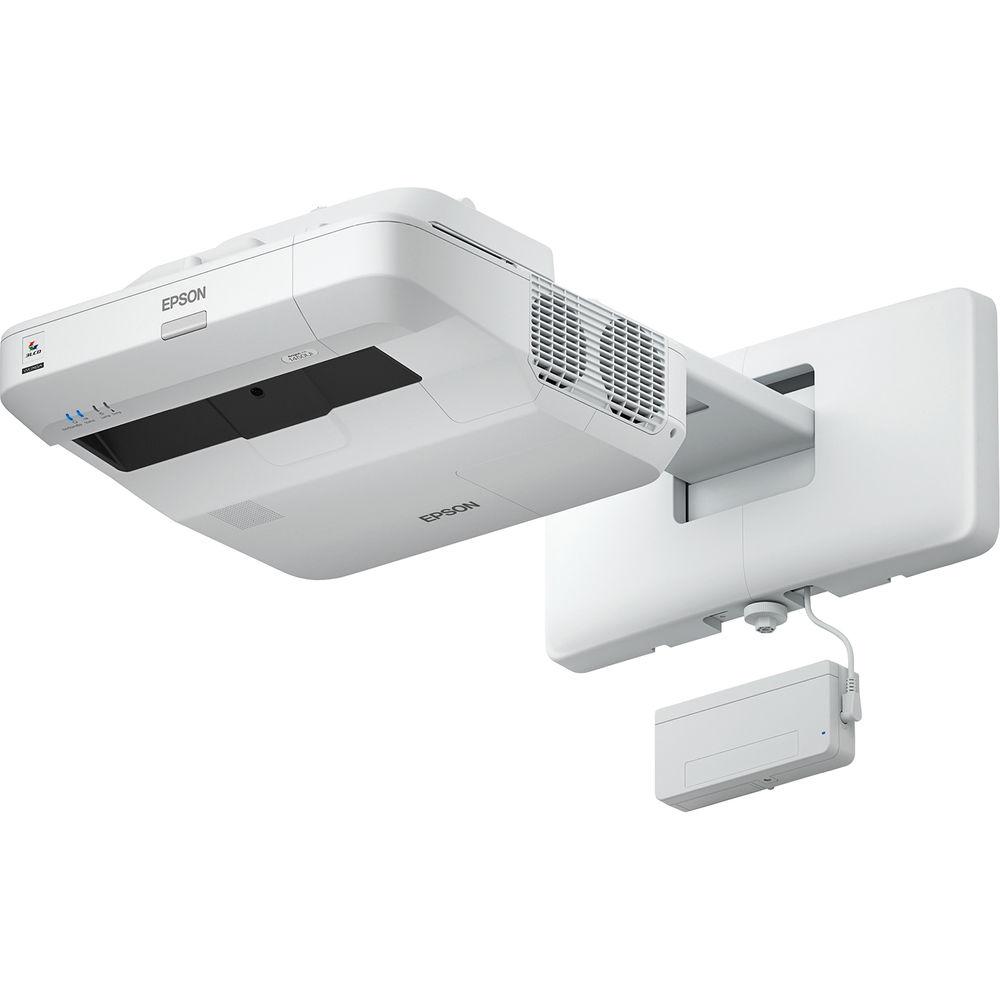

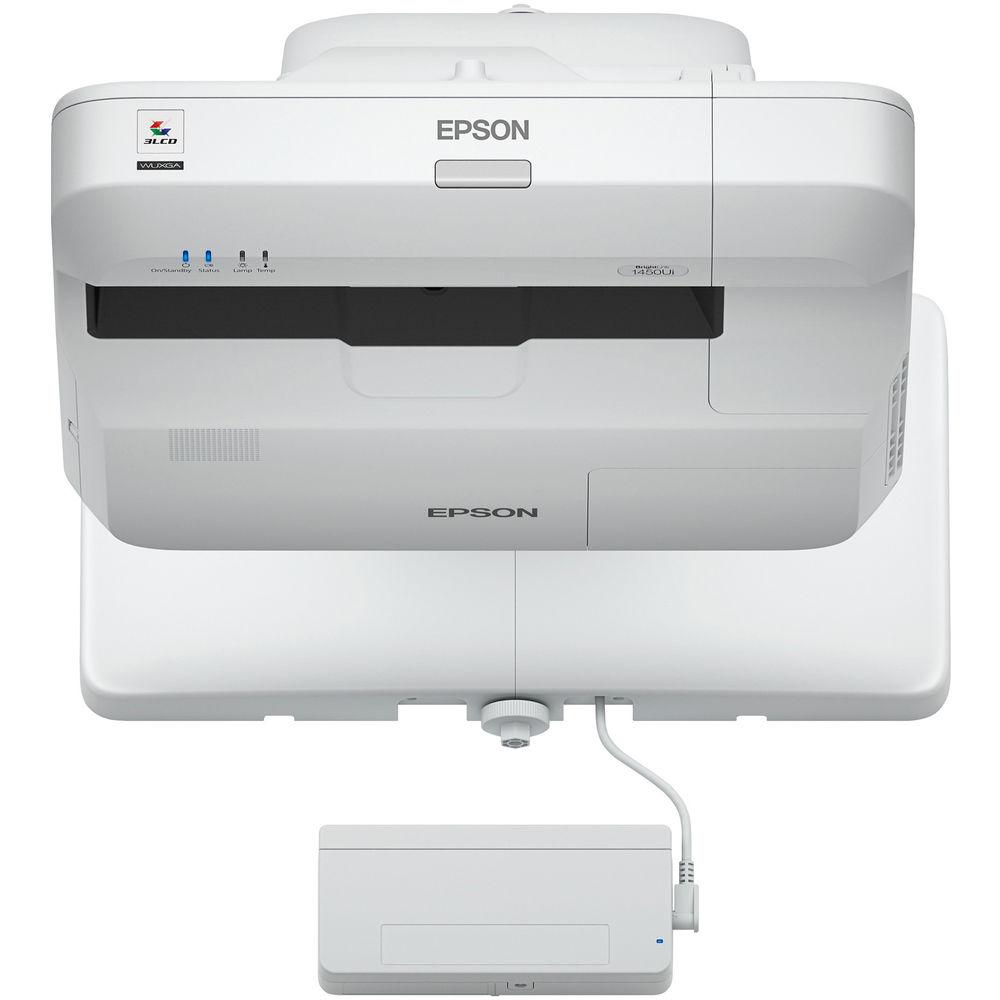

Product description The BrightLink Pro 1450Ui Full HD Interactive Projector from Epson offers full HD WUXGA resolution, a projection size of up to 100", and brightness rating of 3,800 lumens (color and white brightness). You can display and annotate content using a finger touch or via gestures. You can also easily collaborate with local or remote participants and capture, save, print, or email information without the need for a computer.With the Split Screen functionality, it is possible to simultaneously display content side by side from two inputs on a single screen. Using the MHL and HDMI connectivity options, you can stream 1080p content and mirror your mobile device. You can also get instant access to movies, games, and more from MHL-enabled devices. - Finger-touch enabled—touch, draw, select, and interact using intuitive and familiar gestures
- 1920 x 1200 full HD widescreen resolution
- Annotate without a computer using only the built-in computer-free tools
- Turn any wall or existing dry-erase board into a 100" interactive display for more efficient meetings and collaboration
- Easily save, print, or email directly from your BrightLink Pro
- Whiteboard sharing—both local and remote participants can simultaneously annotate content from mobile devices, computers, and other BrightLink Pros
- Wireless device compatibility—wirelessly display documents, files, and photos from your iPad, iPhone, and Android mobile devices with the Epson iProjection App
- Convenient DVI-out connectivity—share whiteboard content to a larger display, videoconferencing system, or recording device
- Continuous display mode—install two interactive displays side-by-side to achieve a larger interactive display area

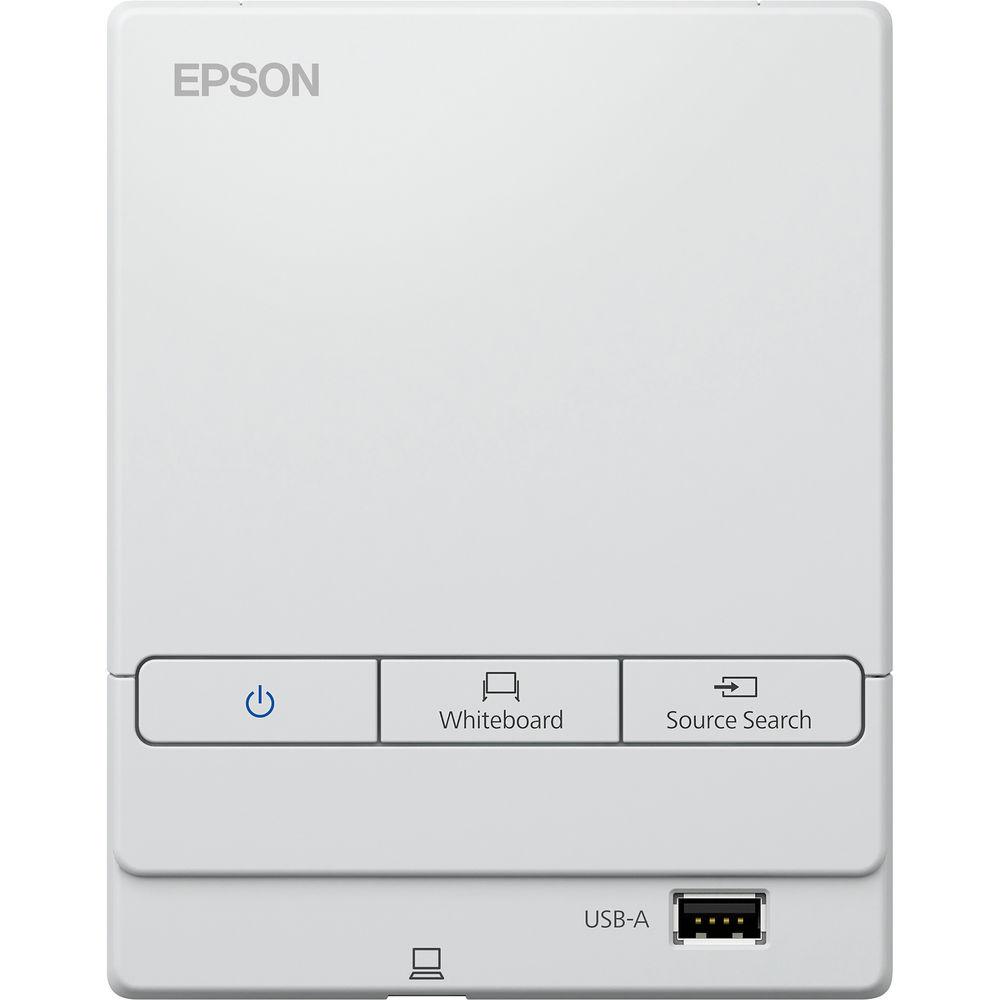

UPC: 010343924697 In the Box Epson BrightLink Pro 1450Ui Full HD Interactive Projector 802.11 b/g/n Wireless Module Power Cable Multi-Projection Driver for Windows Network Management Software Projector Remote Control Control Pad Pen Holder 2 x Interactive Pen 2 x AA Battery (for Interactive Pens) 2 x AA Battery (for Control Pad) 4 x Soft Pen Tip 2 x Hard Pen Tip Touch Module Touch Module Cable Touch Module Mounting Bracket Mini Audio Cable 2 x 16' USB Cable 6' USB Cable Limited 2-Year Warranty on Projector Limited 90-Day Warranty on Lamp More info from Epson Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson BrightLink Pro 1450Ui Full HD Interactive Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson 1450Ui Specs | | | Display System | 3-Chip Polysilicon TFT LCD | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Supported Resolutions | WUXGA - 1920 x 1200 | | Max Brightness | 3800 Lumens
3800 Lumens | | Aspect Ratio | 16:10 | | Contrast Ratio | 16000:1 | | | | Focus | Manual | | Lens | f/1.6 (f = 0 - 4.2 mm) | | Throw Distance | 15.9 - 23.3" / 0.404 - 0.592 m | | Throw Ratio | 0.27 - 0.37:1 | | Projection Size | 70 - 100" / 1778.00 - 2540.00 mm | | | | Keystone Correction | Manual-Vertical: ± 3°

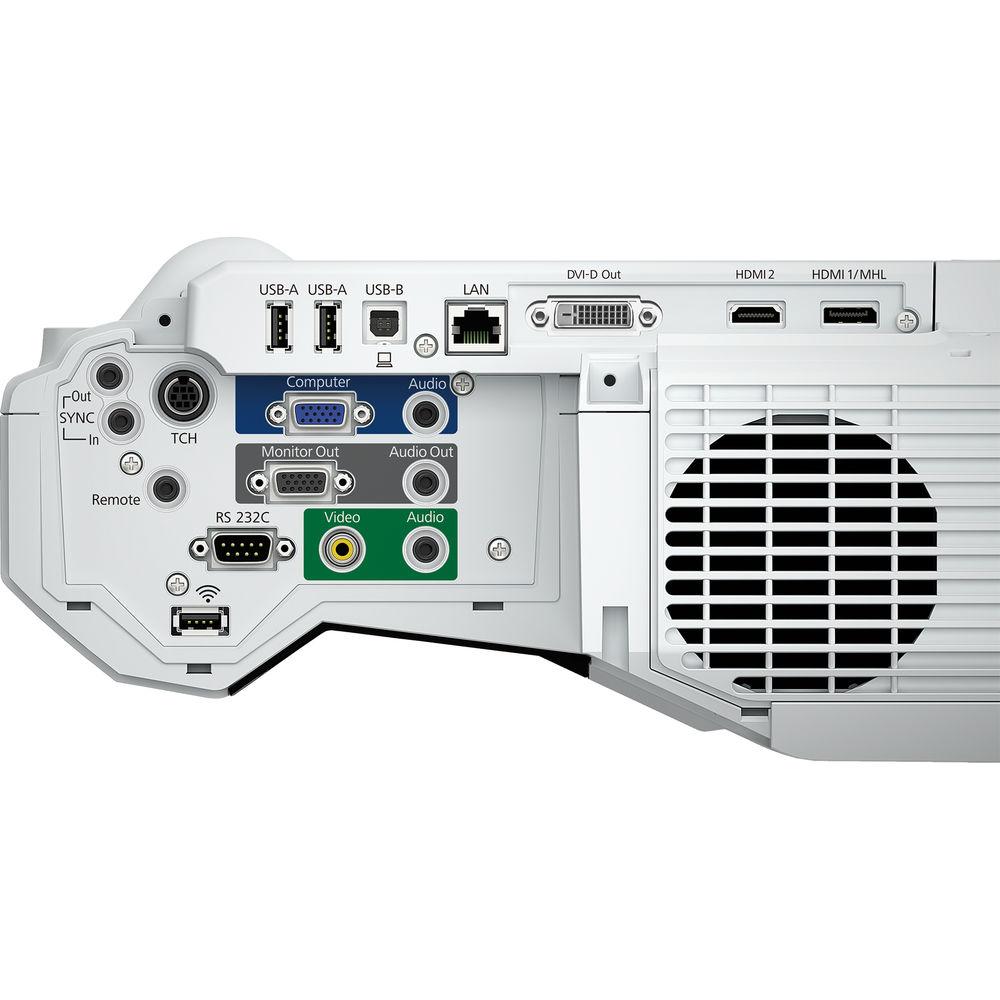

Manual-Horizontal: ± 3° | | | | Inputs/Outputs | 1 x RS-232C (DE-9) Control
1 x VGA (DE-15) Video
1 x HDMI Audio/Video
1 x HDMI with MHL Support Audio/Video
1 x DVI-D Video
2 x USB Type-A Female
1 x USB Type-B Female
1 x Ethernet (RJ45) Control
1 x 1/8" (3.5 mm) Mini Audio (Output)
2 x 1/8" (3.5 mm) Mini Audio (Input)
2 x VESA 3D Sync Video (Input/Output)
1 x 1/8" (3.5 mm) Mini Control (Input) | | | | Lamp Power | 267 W | | Expected Lamp Life | Low Brightness: 5000 Hours
Medium Brightness: 10,000 Hours | | Fan Noise | Low Brightness: 30 dB
Medium Brightness: 38 dB | | Power Consumption | Low Brightness: 325 W
Medium Brightness: 425 W | | Max Operating Altitude | 9843' / 3000 m | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 20 - 80% | | Dimensions (W x H x D) | 18.7 x 6.3 x 17.6" / 475.0 x 160.0 x 447.0 mm | | Weight | 18.5 lb / 8.4 kg | | | | Package Weight | 34.0 lb | | Box Dimensions (LxWxH) | 27.5 x 22.5 x 9.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 38 owners. Add your rating and experience with the product.
