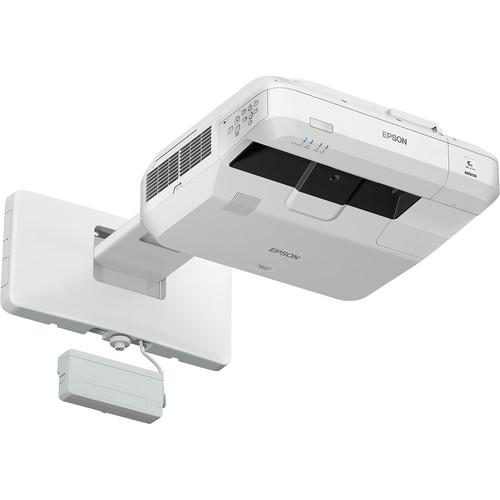

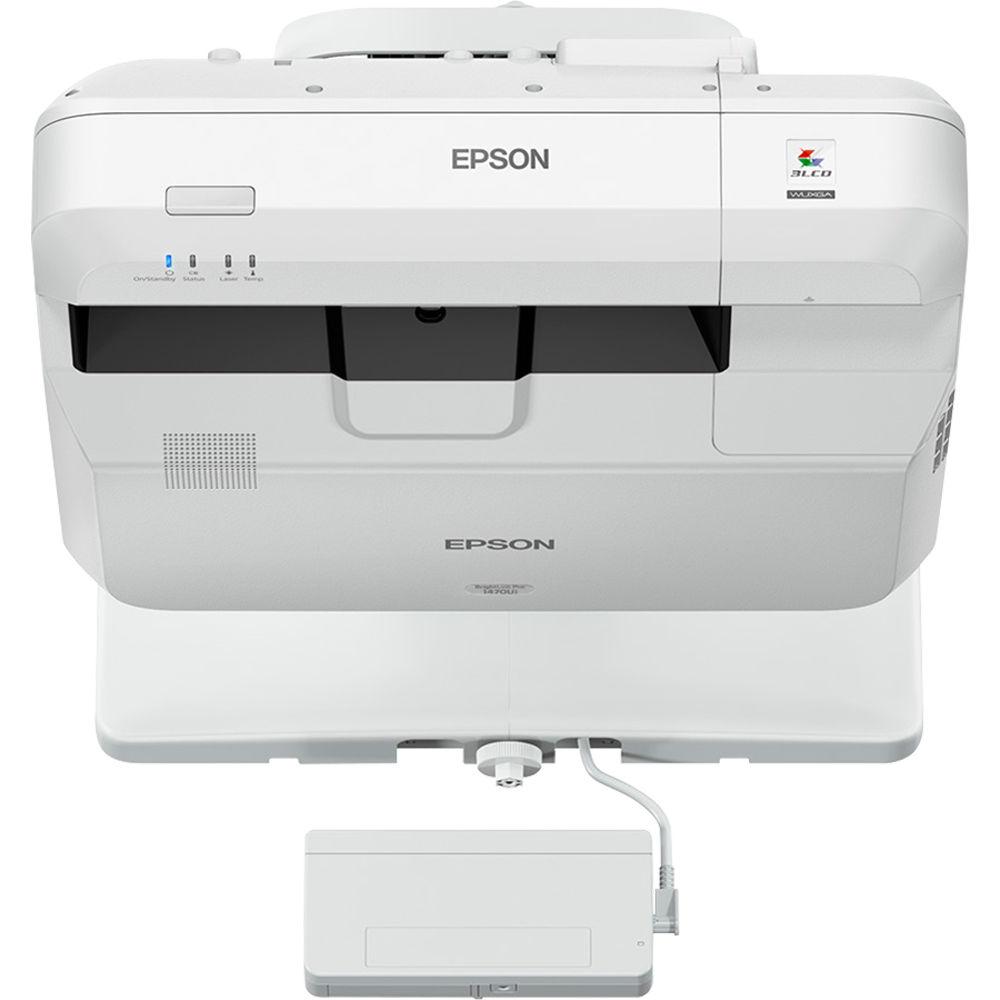

User Manual for Epson Brightlink Pro 1470Ui Projector with Interactive Motorized Table Click to enlarge the picture
Contents of the user manual for the Epson Brightlink Pro 1470Ui Projector with
- Product category: Multimedia Projectors Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Multimedia Projectors
 |
User manual for the Epson Brightlink Pro 1470Ui Projector with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|
Product description The V12H893020B5 Bundle from Epson includes a BrightLink Pro 1470Ui Full HD Interactive Projector and the V12H893020 Interactive Motorized Table. The BrightLink Pro 1470Ui offers full HD WUXGA resolution, a projection size of up to 100", and brightness rating of 4000 lumens (color and white brightness). You can display and annotate content using a finger touch or digital pens. The projector includes a high-speed LAN module for wireless connectivity and lets you connect up to 50 Mac, PC, iOS, and Android devices for local and remote collaboration.
The Interactive Motorized Table features a mobile, motorized work surface to increase versatility and application around the office. You can move the BrightLink Pro projector from room to room and easily project presentations, designs, drafts, illustrations, and animations onto the sleek desktop table. - BrightLink Pro 1470Ui WUXGA Interactive Projector The BrightLink Pro 1470Ui WUXGA Interactive Projector from Epson offers Full HD WUXGA resolution, a projection size of up to 100", and a brightness rating of 4000 lumens (color and white brightness). The laser light source can operate for up to 20,000 hours maintenance free. The projector includes a high-speed LAN module for wireless connectivity and lets you connect up to 50 Mac, PC, iOS, and Android devices for local and remote collaboration.
- Touch, draw, select, and interact using your finger or included digital pens
- Annotate without a computer, using only the built-in, PC-free tools
- Both local and remote participants can simultaneously annotate content from mobile devices, computers, and other BrightLink Pros
- Install two displays side-by-side to create one larger seamless interactive surface
- Simultaneously display up to four screens with Epson iProjection
- Remote control works up to 19.7'
- Compatible with WEP, WPA, WPA2-PSK, and WPA2-EAP security protocols
- Recyclable product, RoHS compliant
UPC: 010343937567 - Interactive Motorized Table for BrightLink Pro 1460Ui and 1450Ui Projectors The Interactive Motorized Table from Epson is for use with the BrightLink Pro 1460Ui and 1450Ui Projectors. It features a mobile, motorized work surface to increase versatility and application around the office. You can move the BrightLink Pro projectors from room to room and easily project presentations, designs, drafts, illustrations, and animations onto the sleek desktop table. UPC: 010343933378
In the Box Bundle Items BrightLink Pro 1470Ui WUXGA Interactive Projector - 802.11 b/g/n Wireless Module
- Remote Control and Batteries
- 2 x Interactive Pen and Batteries
- Finger Touch Unit with Bracket and Cable
- Limited 2-Year Warranty on Projector
- Limited 90-Day Warranty on Lamp
Interactive Motorized Table for BrightLink Pro 1460Ui and 1450Ui Projectors Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson Brightlink Pro 1470Ui Projector with Interactive Motorized Table in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - BrightLink Pro 1470Ui WUXGA Interactive Projector
| | | Display System | 3-Chip Polysilicon TFT LCD | | Native Chip Resolution | 1920 x 1080 (WUXGA) | | Max Brightness | White: 4000 Lumens
Color: 4000 Lumens | | Aspect Ratio | 16:10 | | Contrast Ratio | 2500000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | | | Focus | Manual | | Lens | f/1.6 (f = 4.2 mm) | | Throw Ratio | 0.22 - 0.37:1 | | Projection Size | 70 - 100" / 1.78 - 2.54 m | | | | Keystone Correction | Manual-Horizontal: ± 3°
Manual-Vertical: ± 3° | | Digital Zoom | 1.35x | | Ceiling Mountable | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 16W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
1 x DVI-D Video (Output)
1 x USB Type-B Female
2 x USB Type-A Female
1 x Ethernet (RJ45) Control
1 x RS-232C (DE-9) Control
1 x VGA (DE-15) Video (Output)
1 x 1/8" (3.5 mm) Mini Audio (Output)
2 x 1/8" (3.5 mm) Mini Audio (Input)
1 x VESA 3D Sync Video (Input)
1 x VESA 3D Sync Video (Output)
1 x 1/8" (3.5 mm) Mini Control (Input) | | Inputs/Outputs | 1 x Component (DE-15) Video
1 x Composite (RCA) Video | | Memory Card Slot | None | | | | Expected Lamp Life | Full Brightness: 20,000 Hours
Low Brightness: 30,000 Hours | | Fan Noise | Full Brightness: 38 dB
Low Brightness: 27 dB | | Security | Cable Lock Slot
Password Protection
Security Bar | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 448 W
Low Brightness: 348 W
Standby Mode (Lamp Off): 0.5 W | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Dimensions (W x H x D) | 19.5 x 6.8 x 17.2" / 49.5 x 17.3 x 43.7 cm with feet | | Weight | 25.1 lb / 11.39 kg | | | | Box Dimensions (LxWxH) | 25.0 x 22.0 x 10.0" | - Interactive Motorized Table for BrightLink Pro 1460Ui and 1450Ui Projectors
| | | Box Dimensions (LxWxH) | 71.0 x 51.5 x 4.5" |
