Epson BrightLink Pro 1470Ui WUXGA Interactive

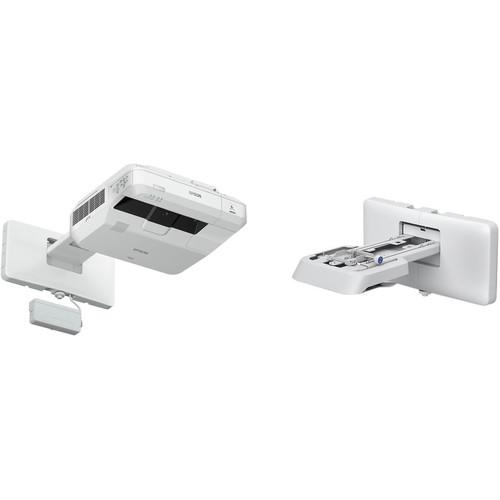

User Manual for Epson BrightLink Pro 1470Ui WUXGA Interactive Projector and Wall Mount Kit

• Product category: Multimedia Projectors Epson
• Brand: Epson
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Epson Multimedia Projectors

Product description

• Epson BrightLink Pro 1470Ui WUXGA Interactive Projector The BrightLink Pro 1470Ui WUXGA Interactive Projector from Epson offers Full HD WUXGA resolution, a projection size of up to 100", and a brightness rating of 4000 lumens (color and white brightness). The laser light source can operate for up to 20,000 hours maintenance free. The projector includes a high-speed LAN module for wireless connectivity and lets you connect up to 50 Mac, PC, iOS, and Android devices for local and remote collaboration.
  • Touch, draw, select, and interact using your finger or included digital pens
  • Annotate without a computer, using only the built-in, PC-free tools
  • Both local and remote participants can simultaneously annotate content from mobile devices, computers, and other BrightLink Pros
  • Install two displays side-by-side to create one larger seamless interactive surface
  • Simultaneously display up to four screens with Epson iProjection
  • Remote control works up to 19.7'
  • Compatible with WEP, WPA, WPA2-PSK, and WPA2-EAP security protocols
  • Recyclable product, RoHS compliant
  UPC: 010343937567
• Epson Adjustable Wall Mount for Select Ultra-Short Throw Laser Displays The Adjustable Wall Mount from Epson is designed for use with the PowerLite 700U and BrightLink 710Ui/1470Ui series ultra-short throw laser displays. It consists of a wall plate, a telescopic mount arm, and a 3-point axis. The wide mounting plate and telescopic extension arm offer convenient and flexible installation between 70 to 100" for BrightLink models and up to 130" for PowerLite 700U. It's ultra-short throw design assures there is less shadow interference and glare, which ensures a more optimal presenting and viewing experience.
  • Two-position mount arm for projecting 16:10 content from 45-65" (BrightLink 475Wi/485Wi) or 4:3 content from 40-57" (BrightLink 480i)
  • Includes all necessary tools and screws for assembly
  UPC: 010343937611

• BrightLink Pro 1470Ui WUXGA Interactive Projector
• 802.11 b/g/n Wireless Module
• Power Cable
• 3 x USB A/B Cable
• Remote Control and Batteries
• Control Pad
• Pen Holder
• 2 x Interactive Pen and Batteries
• Finger Touch Unit with Bracket and Cable
• Limited 2-Year Warranty on Projector
• Limited 90-Day Warranty on Lamp

• Adjustable Wall Mount for Select Ultra-Short Throw Laser Displays evyauxffcffevybzwdwwvsqyveqcscrrybyv

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Epson BrightLink Pro 1470Ui WUXGA Interactive Projector

  Display System	3-Chip Polysilicon TFT LCD
  Native Chip Resolution	1920 x 1080 (WUXGA)
  Max Brightness	White: 4000 Lumens Color: 4000 Lumens
  Aspect Ratio	16:10
  Contrast Ratio	2500000:1
  Color Depth	10-Bit (1.07 Billion Colors)

  Focus	Manual
  Lens	f/1.6 (f = 4.2 mm)
  Throw Ratio	0.22 - 0.37:1
  Projection Size	70 - 100" / 1.78 - 2.54 m

  Keystone Correction	Manual-Horizontal: ± 3° Manual-Vertical: ± 3°
  Digital Zoom	1.35x
  Ceiling Mountable	Yes
  Built-In Speaker	Yes (Mono)
  Speaker Power	16W

  Inputs/Outputs	1 x HDMI Audio/Video (Input) 1 x HDMI with MHL Support Audio/Video (Input) 1 x DVI-D Video (Output) 1 x USB Type-B Female 2 x USB Type-A Female 1 x Ethernet (RJ45) Control 1 x RS-232C (DE-9) Control 1 x VGA (DE-15) Video (Output) 1 x 1/8" (3.5 mm) Mini Audio (Output) 2 x 1/8" (3.5 mm) Mini Audio (Input) 1 x VESA 3D Sync Video (Input) 1 x VESA 3D Sync Video (Output) 1 x 1/8" (3.5 mm) Mini Control (Input)
  Inputs/Outputs	1 x Component (DE-15) Video 1 x Composite (RCA) Video
  Memory Card Slot	None

  Expected Lamp Life	Full Brightness: 20,000 Hours Low Brightness: 30,000 Hours
  Fan Noise	Full Brightness: 38 dB Low Brightness: 27 dB
  Security	Cable Lock Slot Password Protection Security Bar
  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  Power Consumption	Full Brightness: 448 W Low Brightness: 348 W Standby Mode (Lamp Off): 0.5 W
  Operating Temperature	32 to 113°F / 0 to 45°C
  Dimensions (W x H x D)	19.5 x 6.8 x 17.2" / 49.5 x 17.3 x 43.7 cm with feet
  Weight	25.1 lb / 11.39 kg

  Box Dimensions (LxWxH)	25.0 x 22.0 x 10.0"

• Epson Adjustable Wall Mount for Select Ultra-Short Throw Laser Displays

  Compatibility

  BrightLink 710Ui WUXGA Ultra-Short Throw Interactive Laser Display BrightLink Pro 1470Ui WUXGA Ultra-Short Throw Interactive Laser Display PowerLite 700U Ultra-Short Throw Laser Display

  Box Dimensions (LxWxH)	20.0 x 12.0 x 11.0"
