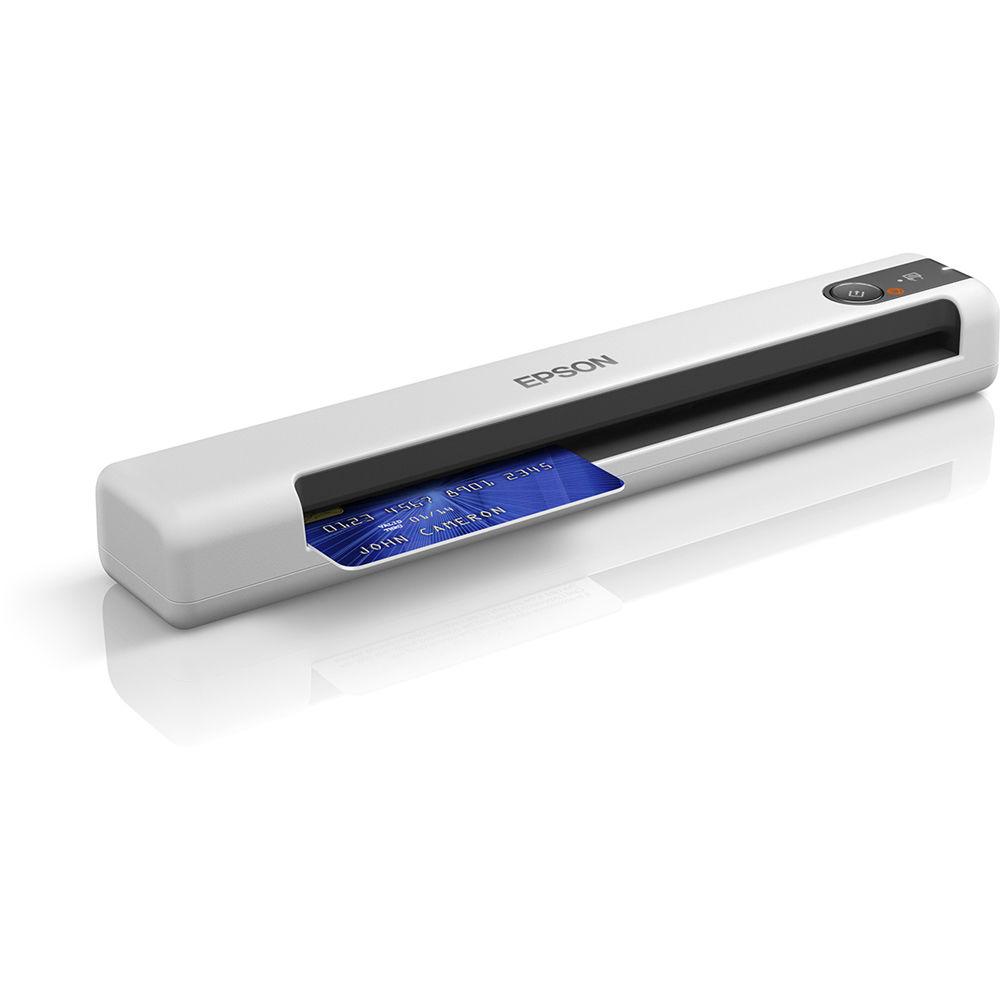

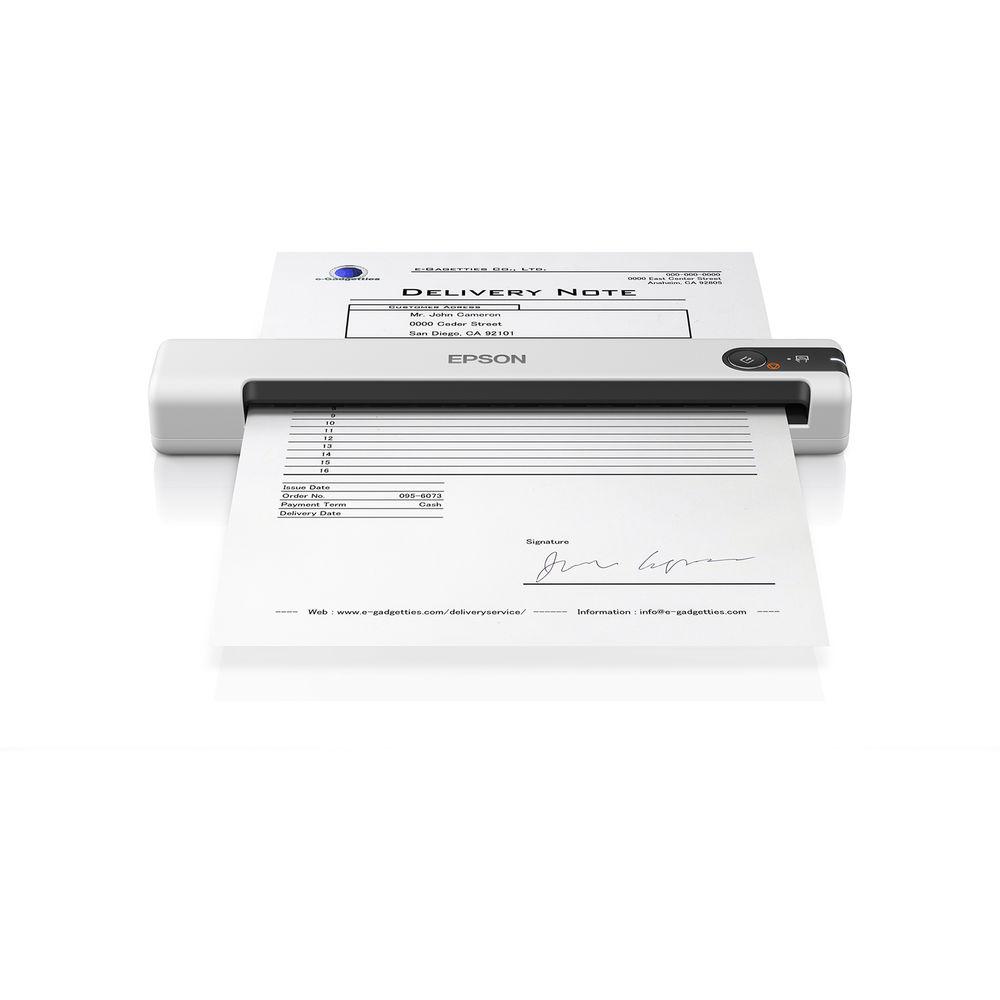

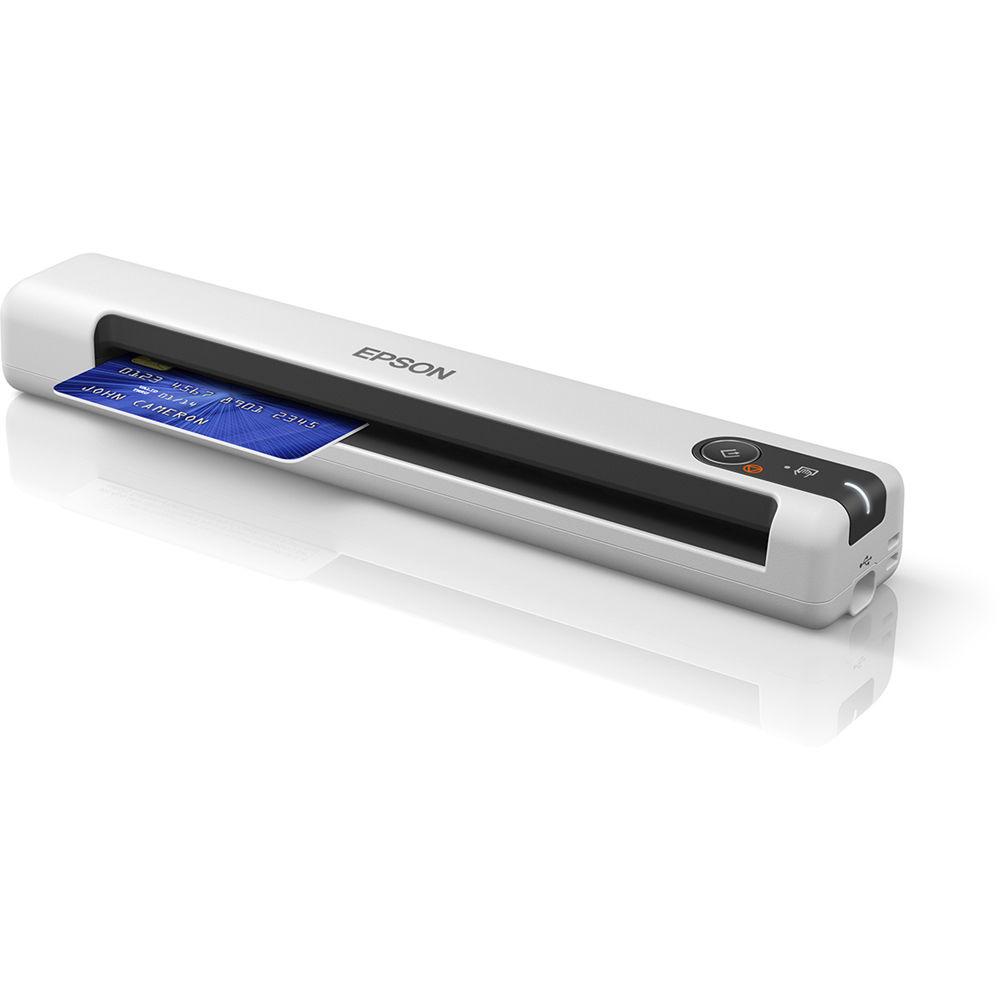

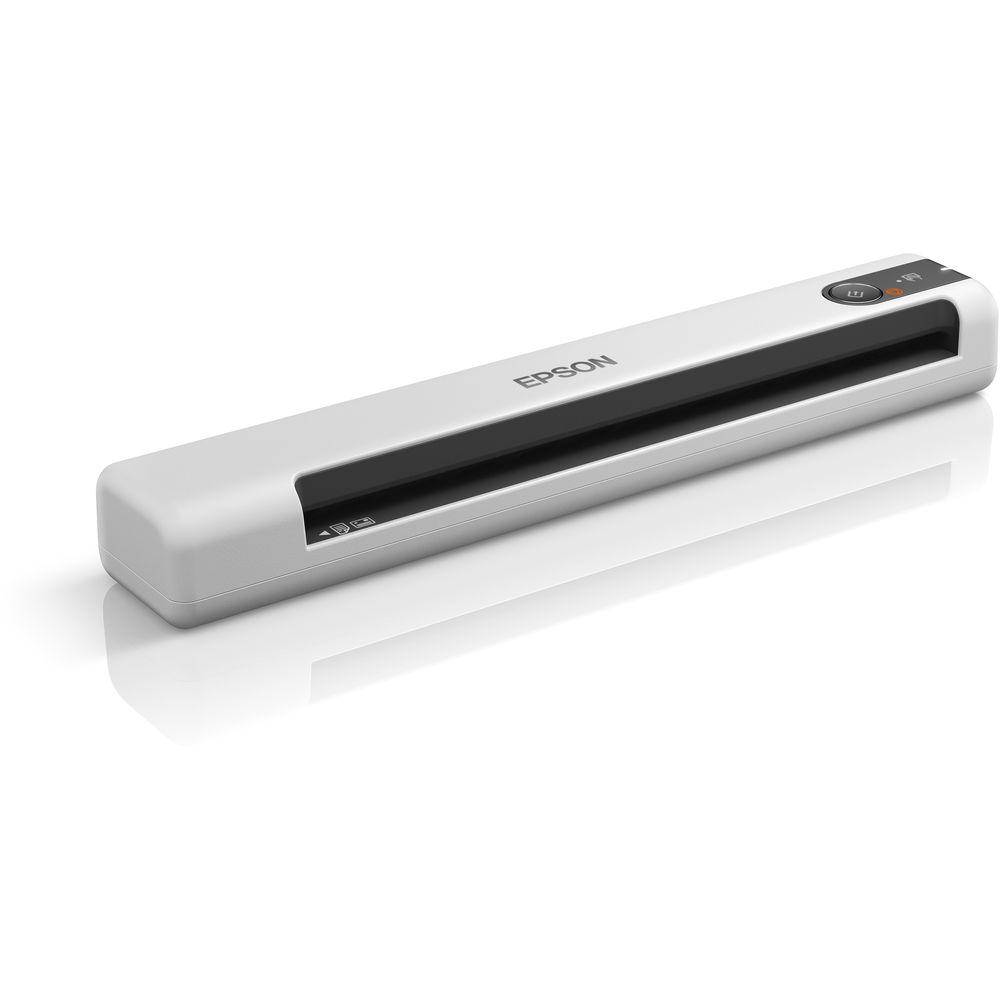

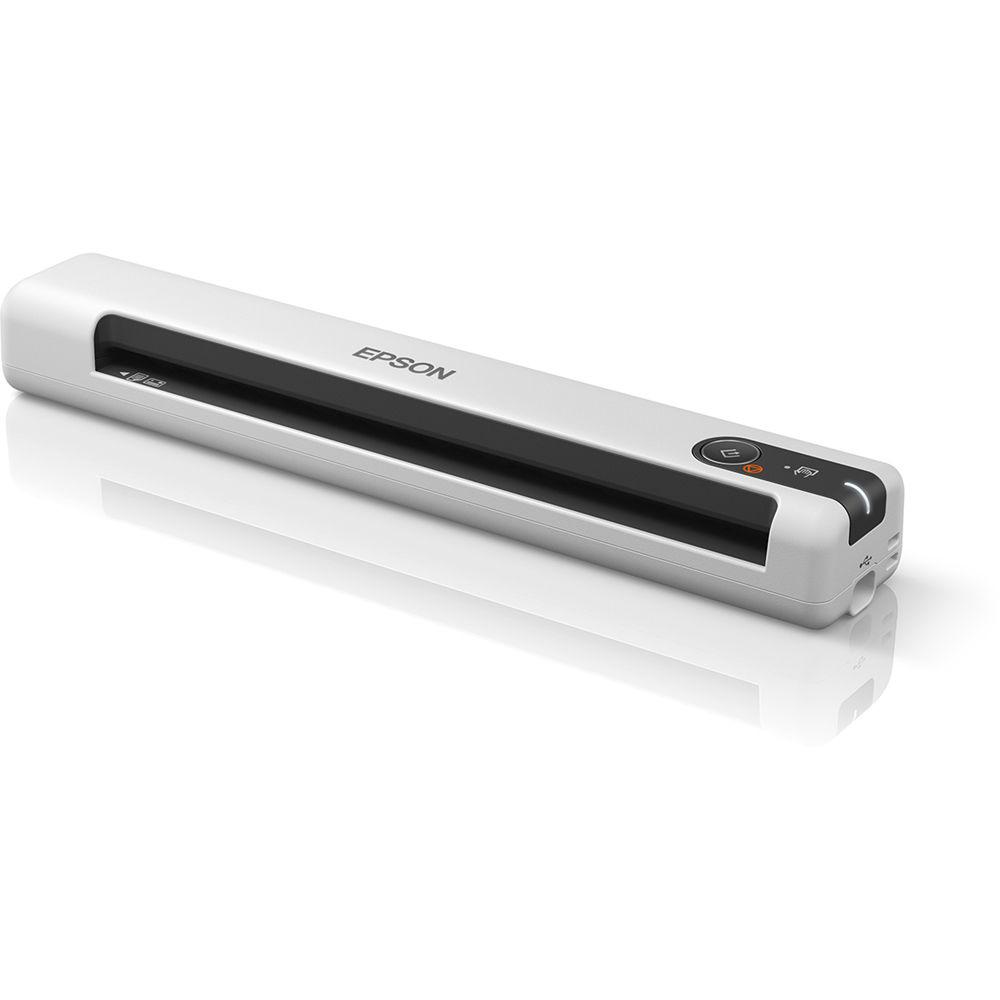

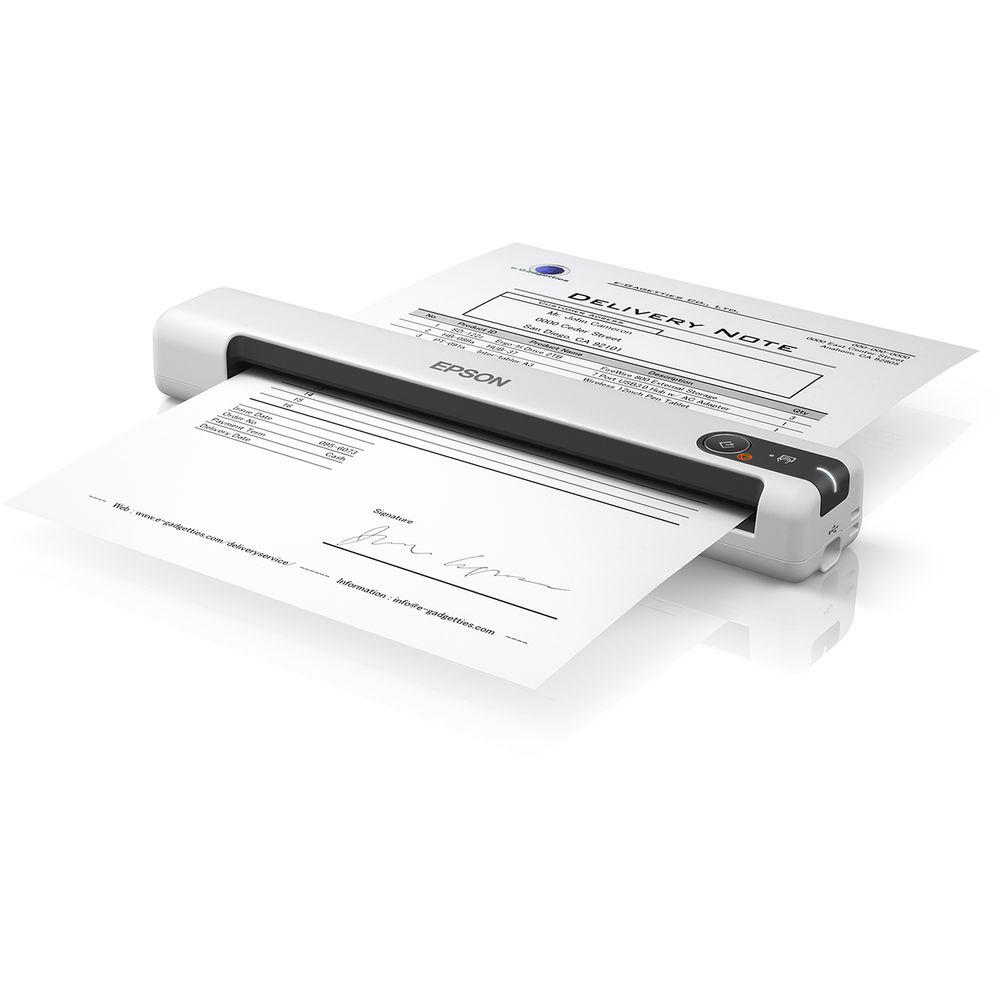

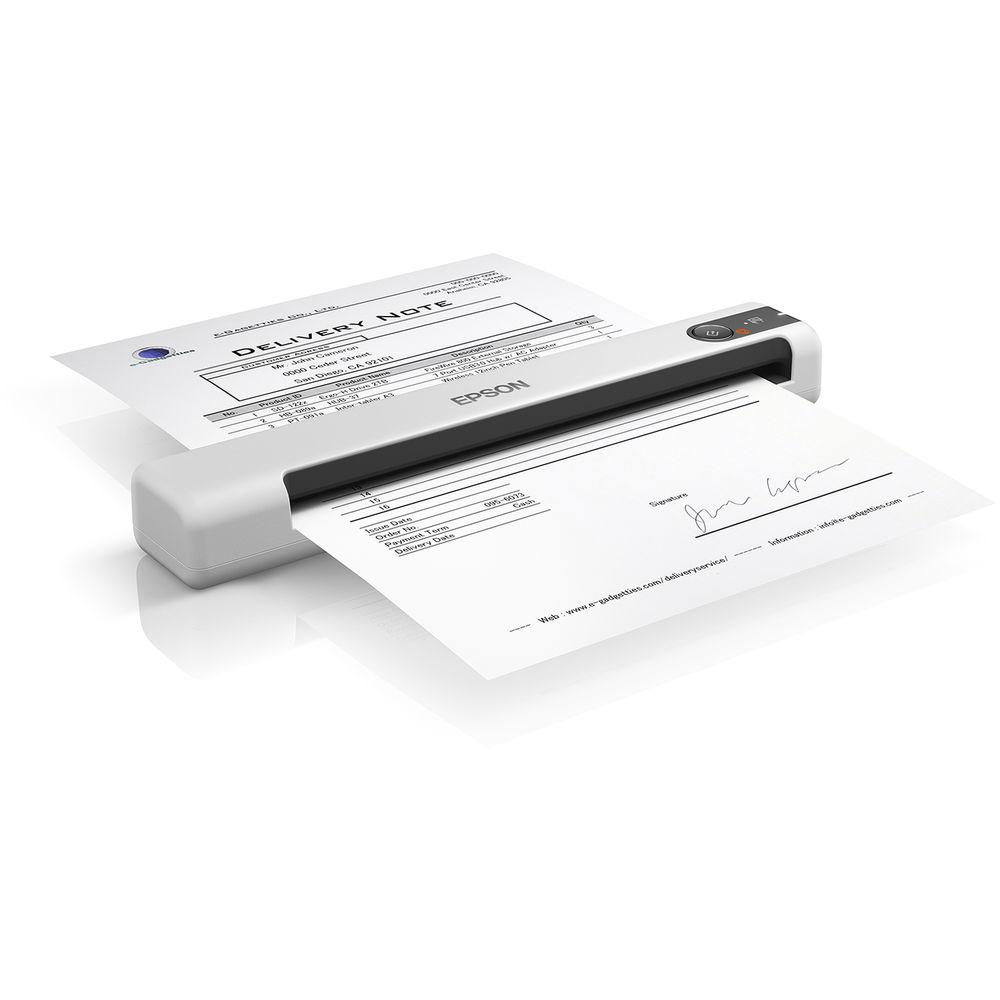

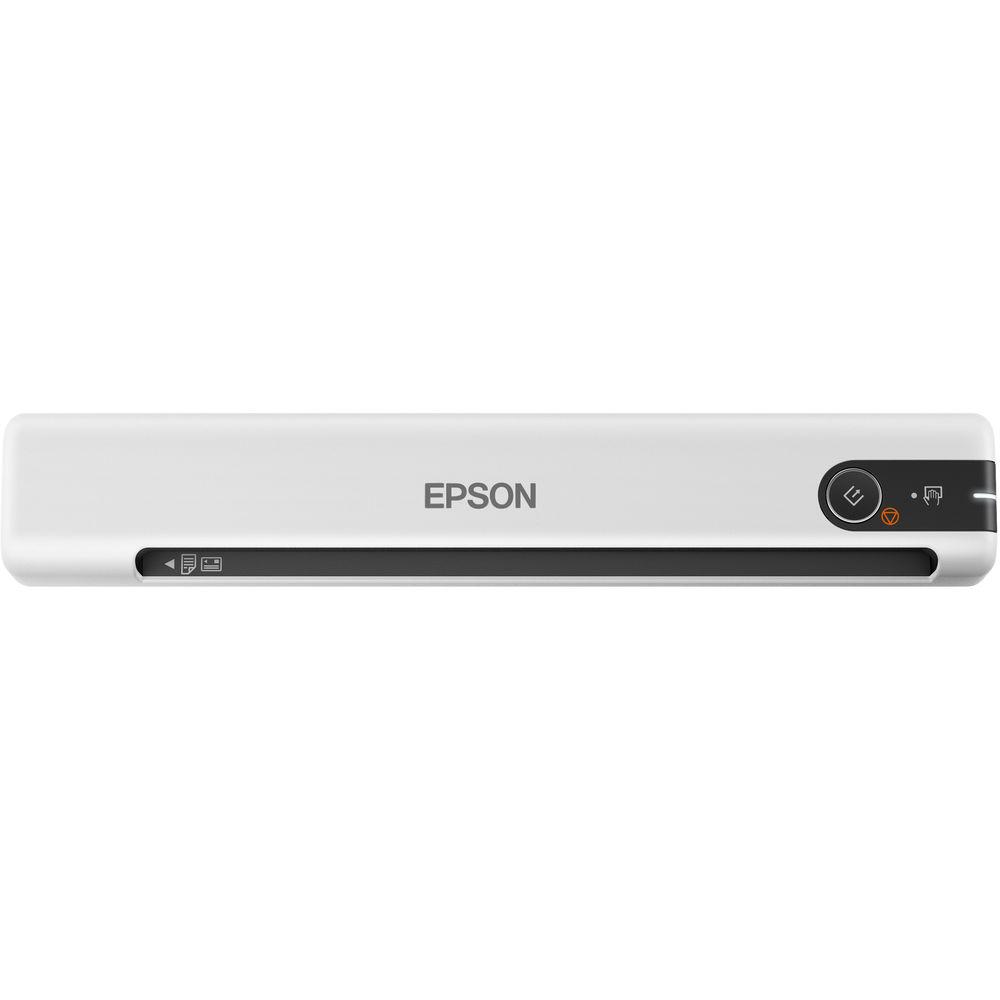

User Manual for Epson DS-70 Portable Document Scanner Click to enlarge the picture
Contents of the user manual for the Epson DS-70 Portable Document Scanner
- Product category: Portable Scanners Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Portable Scanners
|
User manual for the Epson DS-70 Portable Document Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|
Product description With the DS-70 Portable Document Scanner from Epson you can scan important documents and papers on the go. The unit features an optical resolution of 600 dpi for detailed image capture and can work with documents from 2 x 2" to 8.5 x 72" with a scan area of 8.5 x 14". It can scan business cards, ID cards, and receipts, and it has a fast scan speed of 10 ppm at 300 dpi when working with 8.5 x 11" sheets of paper. The automatic feeding mode combines multi-page scans into one file and automatically accepts each new sheet as it's inserted. OCR and document management software is also included, and together they allow you to create editable text and searchable PDFs. A single USB cord connects to your computer for powering the scanner, eliminating the need for a power cord or batteries and making the unit suitable for most workspaces. -
- Optical resolution of 600 dpi
- Scans letter-size documents at 10 ppm
- Scans documents, business cards, ID cards, and receipts
- Automatic feeding mode accepts each new sheet as it's inserted and combines multi-page scans into one file
- Included OCR and document management software converts scans into editable text and searchable PDFs
- Powered via USB cable, no wall outlet required
UPC: 010343945043 In the Box Epson DS-70 Portable Document Scanner USB Cable Start Here Poster Maintenance Sheets Epson Scan 2 Software Document Capture Pro (Windows) Document Capture (Mac) TWAIN Driver Limited 3-Year Warranty More info from Epson devtbyqtvvcvssfyrrs Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson DS-70 Portable Document Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson DS-70 Specs | Scan Sensor | Contact Image Scanner (CIS) | Optical Outputs | 600 dpi | Hardware Resolution | 1200 dpi | Color Depth | 16-Bit Input / 8-Bit Output | | Scan Area | 8.5 x 14" / 21.6 x 35.6 cm | | Paper Capacity | 1 Sheet | Media Sizes | 2 x 2" to 8.5 x 72" / 5.1 x 5.1 cm to 21.6 x 182.9 cm | Media Weight | 35-270 gsm | | Scan Speed | 10 ppm at 300 dpi | | Computer Interface | Hi-Speed USB 2.0 | System & Software Requirements | Windows (32-/64-Bit): 10, 8, 7 SP1 Mac: OSX v.10.11.x to 10.13.x Internet Connection Required for Download and Installation | | Buttons | Start/Stop | Light Source | 3-Color RGB LED | Power Requirements | 5 VDC (USB Bus) | Power Consumption | Operation: 2.5 W Ready: 1.3 W Sleep: 1 W | Temperature | Operating: 41 to 95°F / 5 to 35°C Storage: -13 to 140°F / -25 to 60°C | Operating Humidity | 10 to 85% | Dimensions (W x D x H) | 10.7 x 1.8 x 1.3" / 27.2 x 4.6 x 3.3 cm | Weight | 9.2 oz / 260 g | | Package Weight | 1.1 lb | Box Dimensions (LxWxH) | 13.0 x 5.6 x 2.9" |
