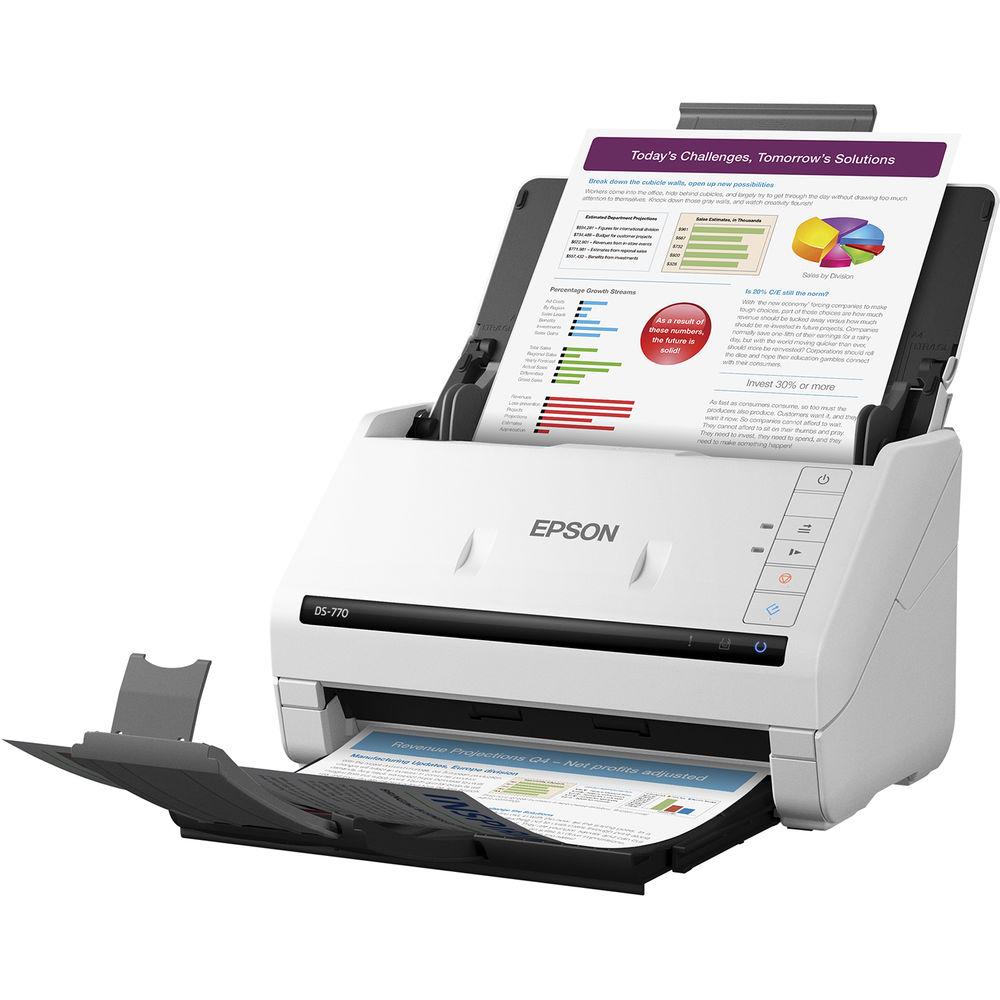

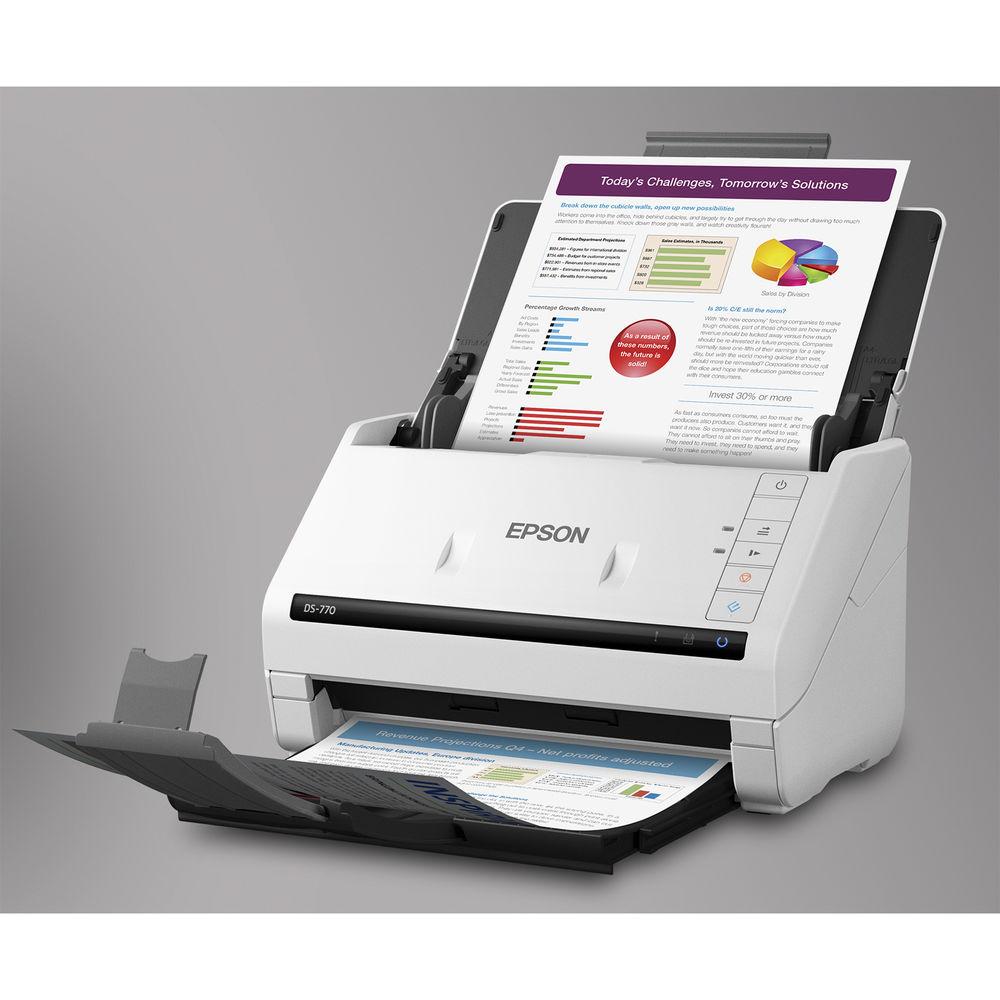

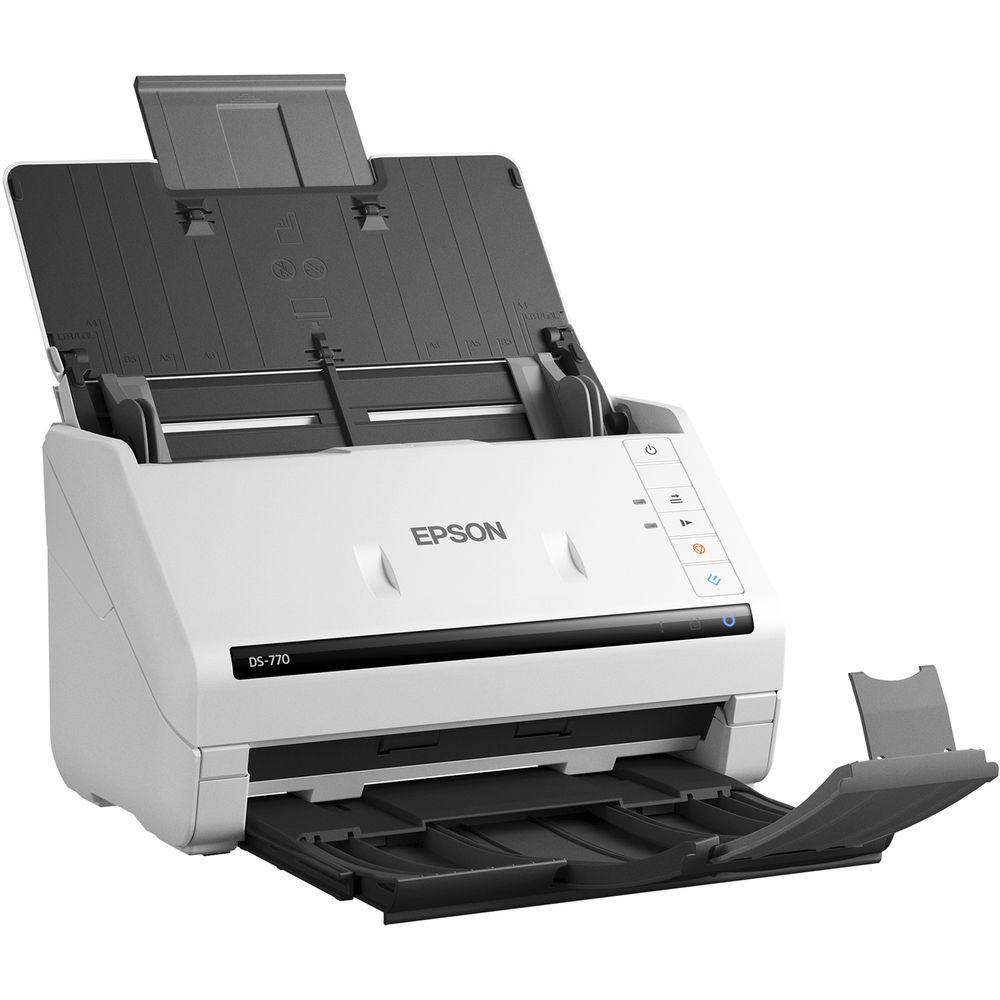

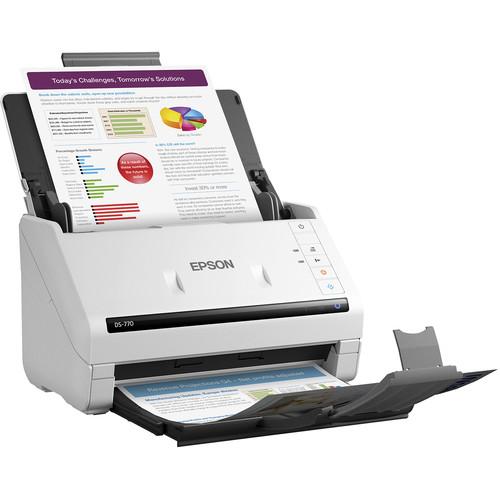

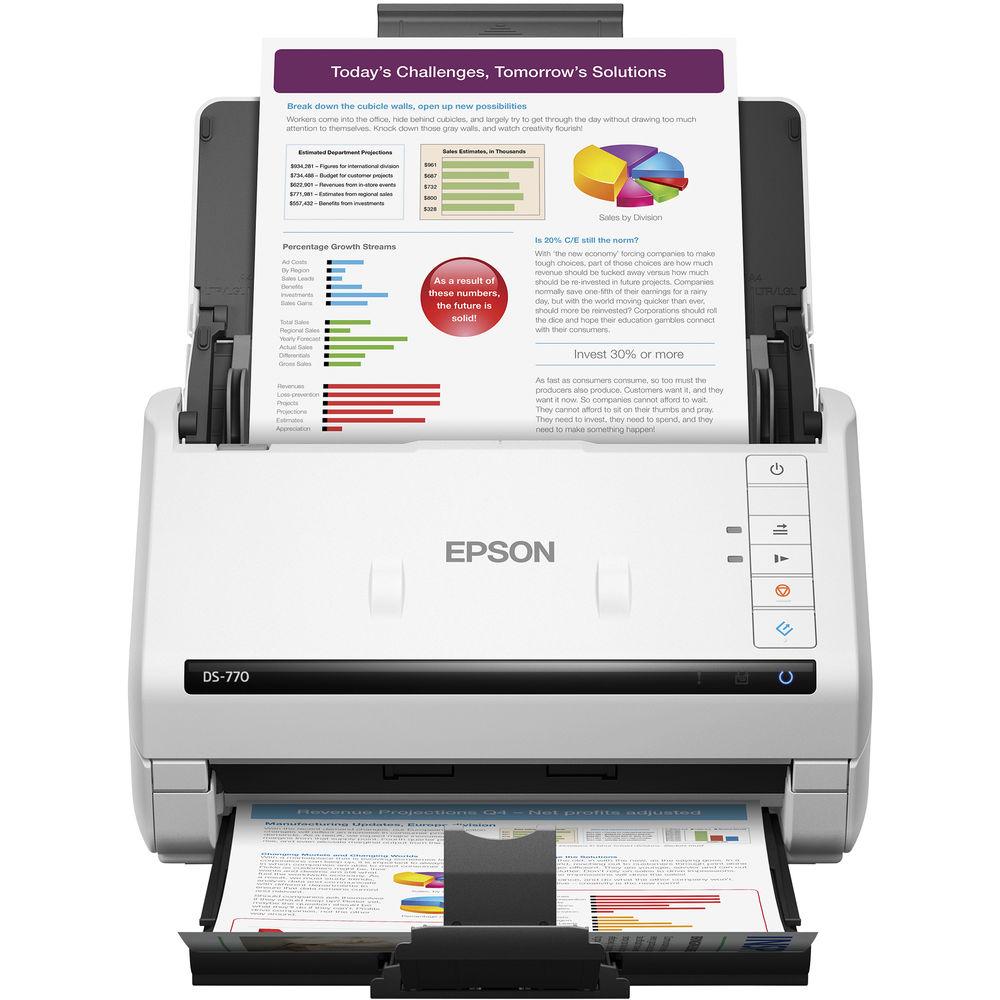

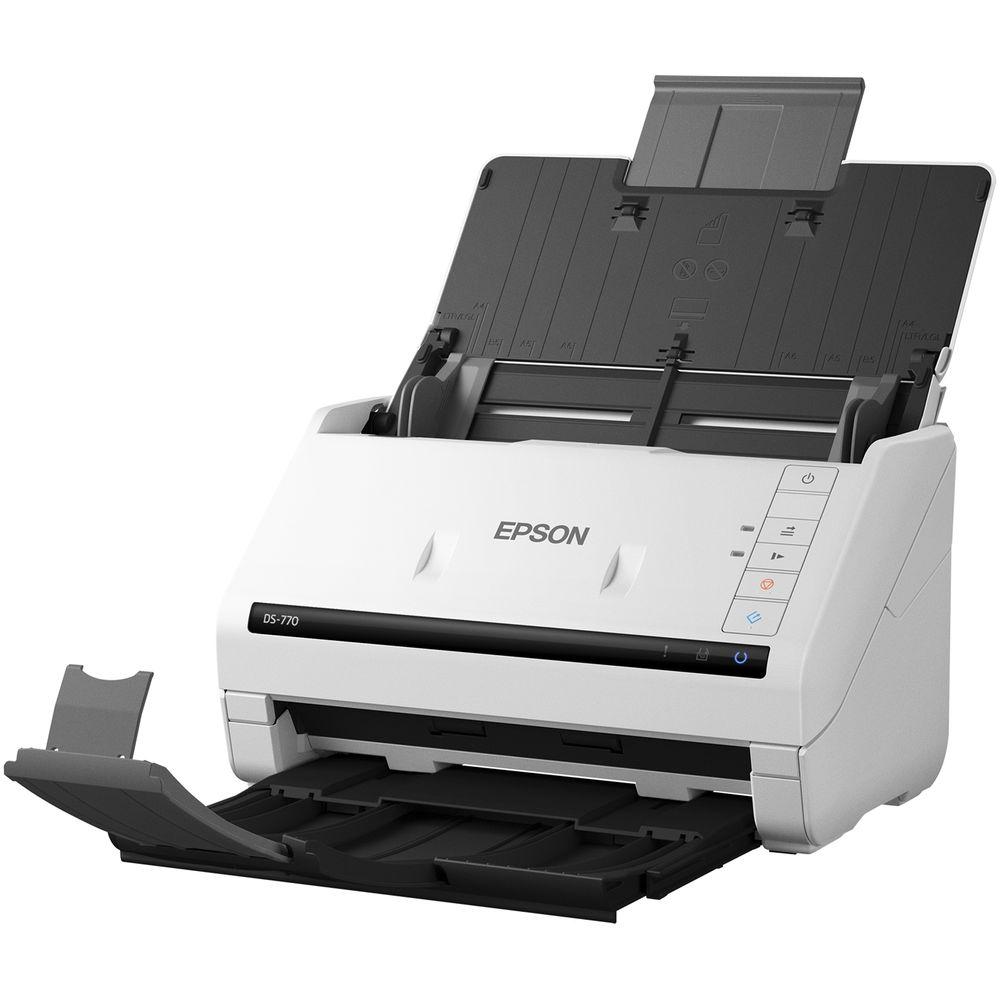

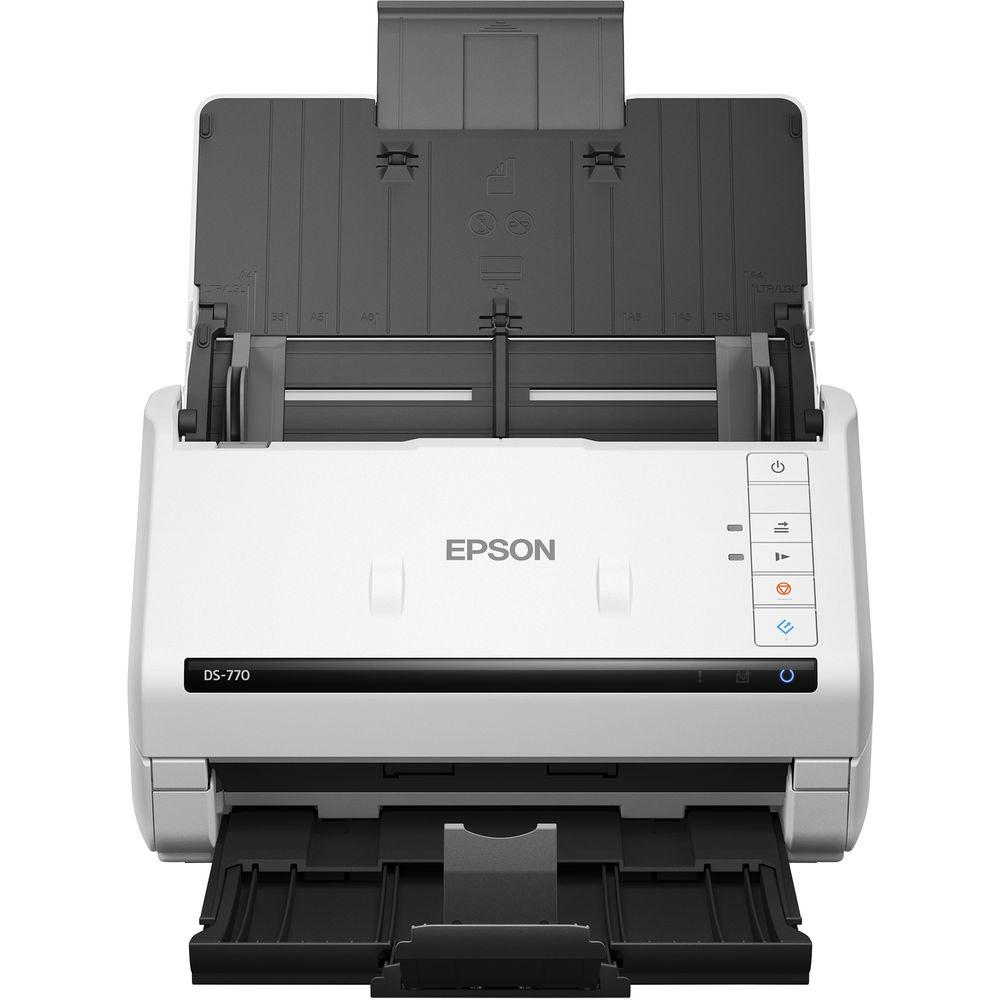

User Manual for Epson DS-770 Color Document Scanner Click to enlarge the picture
Contents of the user manual for the Epson DS-770 Color Document Scanner
- Product category: Flatbed & Document Scanners Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Flatbed & Document Scanners
 |
User manual for the Epson DS-770 Color Document Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|
Product description Enjoy speed and reliability with the DS-770 Network Color Document Scanner from Epson. Featuring a 100-sheet single-pass duplexing ADF, this unit will quickly and easily process your documents at speeds up to 45 ppm or 90 ipm and send them to a computer over a USB 3.0 connection. It is also quite versatile, as it can work with documents ranging from 2 x 2" up to 8.5 x 240" in size and can scan business and ID cards with ease. On top of this, it has an internal color depth of 30-bit for accurate color and scans. Users will be able to enjoy automatic corrections as well as use document capture and OCR software to create and organize your files. Additionally, the DS-770 is designed to last with a rated daily duty cycle of 5000 pages. - The DS-770 features an optical resolution of 600 dpi and a selectable output resolution of between 50-1200 dpi. The unit also has a 5100 x 9300 effective pixel array.
- Scans can be performed at up to 45 ppm / 90 ipm at 200 and 300 dpi or at 11 ppm / 22 ipm at 400 and 600 dpi.
- The 100-sheet single-pass duplexing ADF can work with documents as small as 2 x 2" or as large as 8.5 x 240". It also supports media with a weight of 27-413 gsm and can scan rigid plastic ID cards and business cards, including embossed cards, up to 48.8 mil thick. Users can also scan folded oversized 11 x 17" documents using an optional carrier sheet.
- Dynamic Skew Correction and Double-feed Detection help prevent misfeeds for accurate, sharp scans.
- The unit has a rated daily duty cycle of 5000 sheets with a roller assembly kit that has a yield of about 200,000 pages.
- Advanced image adjustments include auto crop, skew correction, black page and background removal.
- Built-in TWAIN and ISIS driver support for integration into existing workflows.
- Epson Scan 2, Document Capture Pro, and EMC Captiva ISIS software is included.
- The DS-770 is ENERGY STAR certified, RoHS compliant, and recyclable.
- Limited 3-year warranty with Advanced Exchange program, including Next-Business Day shipping.
UPC: 010343934245 In the Box Epson DS-770 Color Document Scanner USB 3.0 Cable AC Adapter and Power Cable Start Here Poster Limited 3-Year Warranty More info from Epson ucaytcudqwbrbrw Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson DS-770 Color Document Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson DS-770 Specs | Maximum dpi Resolution | 1200 dpi | | Optical Resolution | 600 dpi | | Duplex Speed | 45 ipm (Color) | | Simplex Speed | 90 ppm (Color) | | Maximum Document Width | 8.5" / 21.6 cm | | Maximum Document Length | 240" / 609.6 cm | | Color Depth | 30-Bit (Internal)
24-Bit (External) | | Grayscale Bit-Depth | 10-Bit (Internal)
8-Bit (External) | | Duplex Scanning | Yes | | Single Pass Duplex | Yes | | Multi-Feed Detection | Yes | | Scan Modes | Color, Grayscale, Monochrome | | Document Feeding | ADF | | Life Expectancy | 5000 Sheets per Day | | Connectivity | USB 3.0 | | Wireless Connectivity | None | | File Formats | BMP, JPEG, Multi-Page TIFF, PDF, TIFF | | Media Types | Business Card, ID Card, Plain Paper | | Paper Weight | 7 to 110 lb / 27 to 413 gsm | | Maximum Paper Thickness | 48.8 mil / 1.24 mm | | Operating System Compatibility | macOS/OS X, Windows | | Light Source | LED | | Image Sensor | 2 x Contact Image Sensor (CIS) | | Control Panel | 6 Buttons | | Drivers | TWAIN, ISIS | | Duty Cycle | 5000 Scans | | Maximum Sheet Capacity | 100 | | Automatic Image Corrections | Yes | | Environmental Compliance | ENERGY STAR, RoHS | | Operating Humidity | 15 to 80% | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Humidity | 15 to 85% | | Storage Temperature | -13 to 140°F / -25 to 60°C | | Maximum Power Consumption | 17 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1 A | | DC Input Power | 24 VDC at 2 A | | Power Source | AC Adapter | | Dimensions | 8.5 x 11.7 x 8.3" / 217.0 x 296.0 x 212.0 mm | | Weight | 8.2 lb / 3.7 kg | | | | Package Weight | 10.235 lb | | Box Dimensions (LxWxH) | 14.4 x 11.2 x 9.7" |
