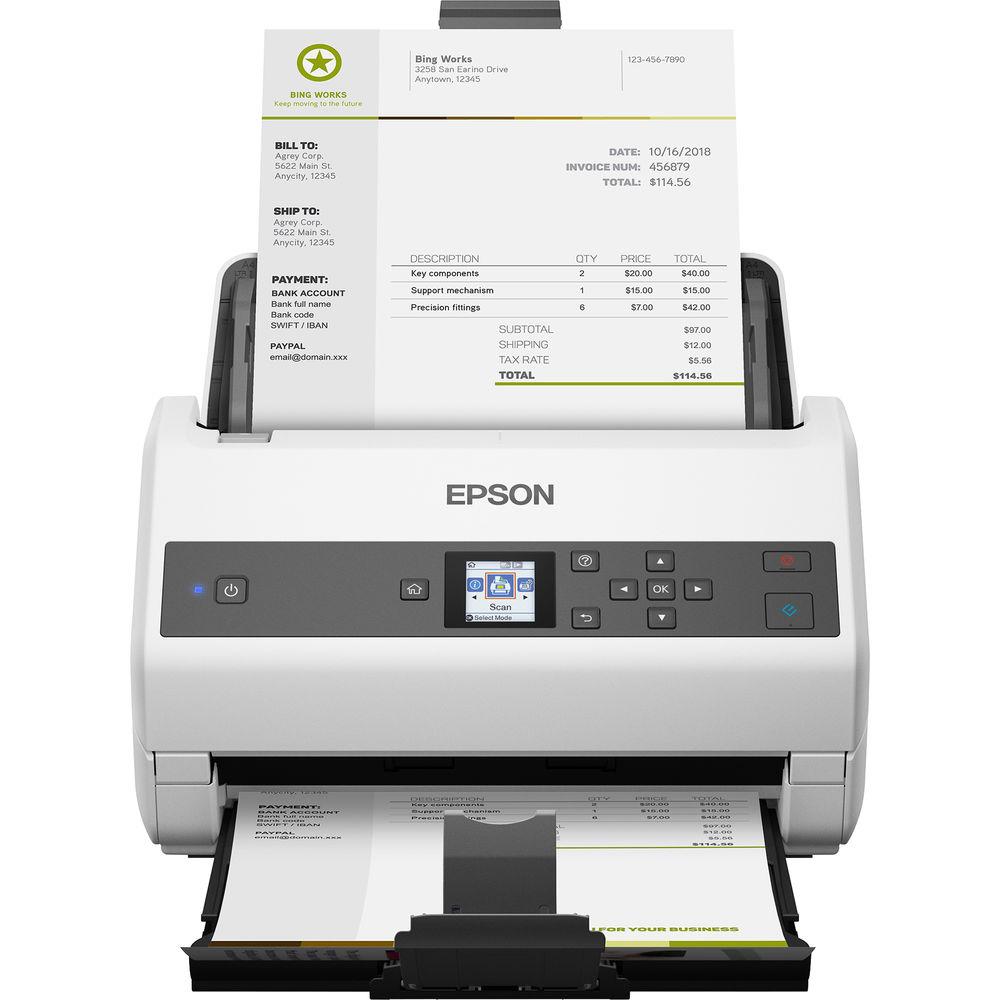

User Manual for Epson DS-870 Color Duplex Workgroup Document Scanner Click to enlarge the picture
Contents of the user manual for the Epson DS-870 Color Duplex Workgroup Document
- Product category: Flatbed & Document Scanners Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Flatbed & Document Scanners
|
User manual for the Epson DS-870 Color Duplex Workgroup Document contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|
Product description Designed for efficient, high-volume scanning, the DS-870 Color Duplex Workgroup Document Scanner from Epson is a duplex ADF scanner that holds up to 100 letter-size sheets at a time. Producing files at optical resolutions of 600 dpi and accepting documents as small as 2 x 2" and as large as 8.5 x 240," the DS-870 digitizes letter-sized documents at a rate of 65 ppm in simplex mode and 130 ipm in duplex mode. Additionally, the scanner has an impressive daily duty cycle of 7000 pages per day. For streamlining workflow, the unit comes with Epson Document Capture Software, which lets you create searchable PDFs and scan to online storage accounts such as Evernote, SharePoint, and Google Drive. -
- Duplex ADF Scanner with an optical resolution of 600 dpi and 24-bit external color depth for crisp imaging and sharp scans
- 100-sheet ADF scans documents from 2 x 2" up to 8.5 x 240"
- Impressive scanning speeds of 65 in simplex mode and 130 in duplex mode for both black-and-white and color documents
- Slow speed mode for delicate sheets
- Epson Document Capture software creates searchable PDFs
- Scans to online storage accounts including Evernote, SharePoint, and Google Drive
- Daily duty cycle of 7000 pages a day
In the Box Epson DS-870 Color Duplex Workgroup Document Scanner SuperSpeed USB 3.0 Cable Power Cable Limited 3-Year Warranty More info from Epson Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson DS-870 Color Duplex Workgroup Document Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson DS-870 Specs Maximum dpi Resolution | 1200 dpi | Optical Resolution | 600 dpi | Duplex Speed | 130 ipm (Color, Grayscale) | Simplex Speed | 65 ppm (Color) 65 ppm (Grayscale) | Maximum Document Width | 8.5" / 21.6 cm | Maximum Document Length | 240" / 609.6 cm | Color Depth | 30-Bit (Internal) 24-Bit (External) | Grayscale Bit-Depth | 30-Bit (Internal) 24-Bit (External) | Duplex Scanning | Yes | Single Pass Duplex | Yes | Multi-Feed Detection | Yes | Scan Modes | Color, Grayscale, Monochrome | Document Feeding | ADF | Life Expectancy | 7000 Sheets per Day | Connectivity | USB 3.0 | Wireless Connectivity | None | Media Types | Business Card, ID Card, Plain Paper, Plastic ID Card | Paper Weight | 17 to 250 lb / 27 to 413 gsm | Maximum Paper Thickness | 0.3 mil / 1.24 mm | Operating System Compatibility | macOS/OS X, Windows | Image Sensor | 2 x Contact Image Sensor (CIS) | Control Panel | LCD Touchscreen | Drivers | TWAIN, ISIS | Duty Cycle | 200000 Scans | Maximum Sheet Capacity | 100 | Environmental Compliance | RoHS | Operating Humidity | 15 to 80% | Operating Temperature | 41 to 95°F / 5 to 35°C | Storage Humidity | 15 to 85% | Storage Temperature | -13 to 140°F / -25 to 60°C | Maximum Power Consumption | 18 W | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | DC Input Power | 24 VDC at 2 A | Power Source | AC Adapter | Dimensions | 11.6 x 8.5 x 8.3" / 29.5 x 21.6 x 21.1 cm | Weight | 7.9 lb / 3.58 kg |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 85 owners. Add your rating and experience with the product.
