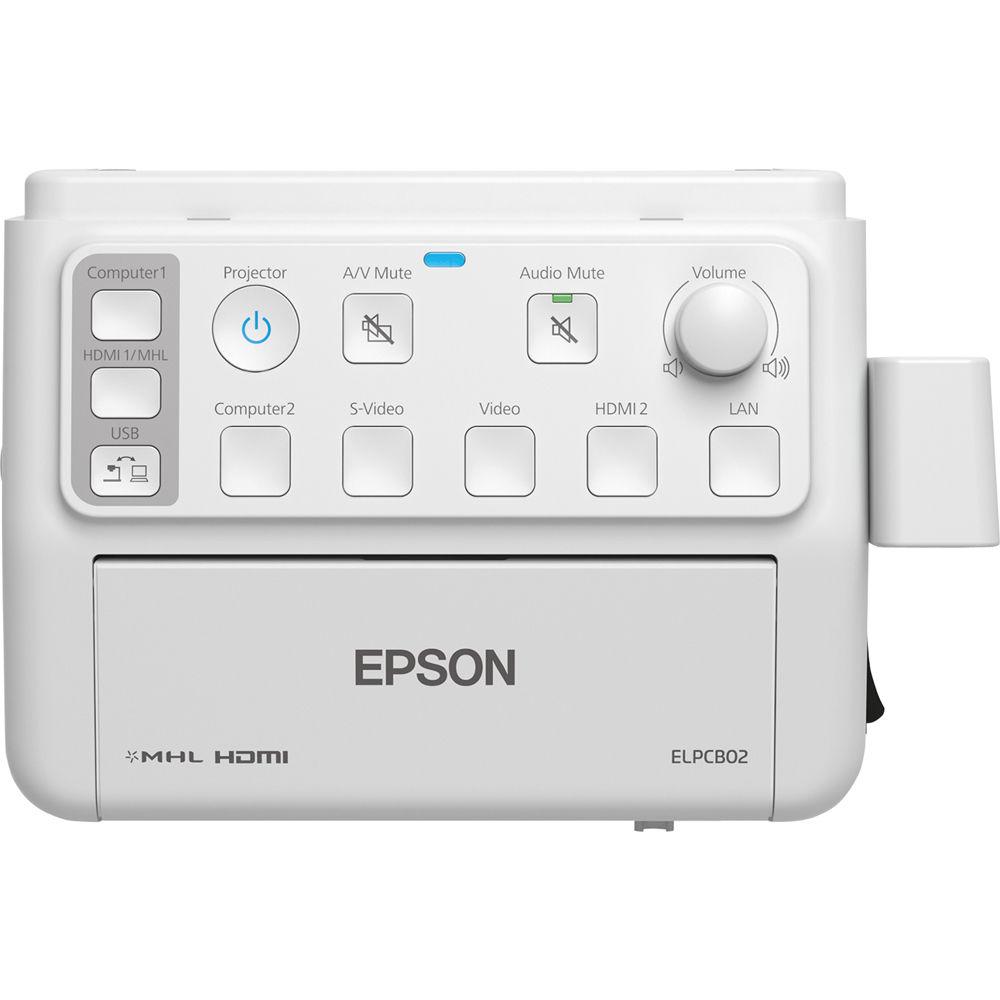

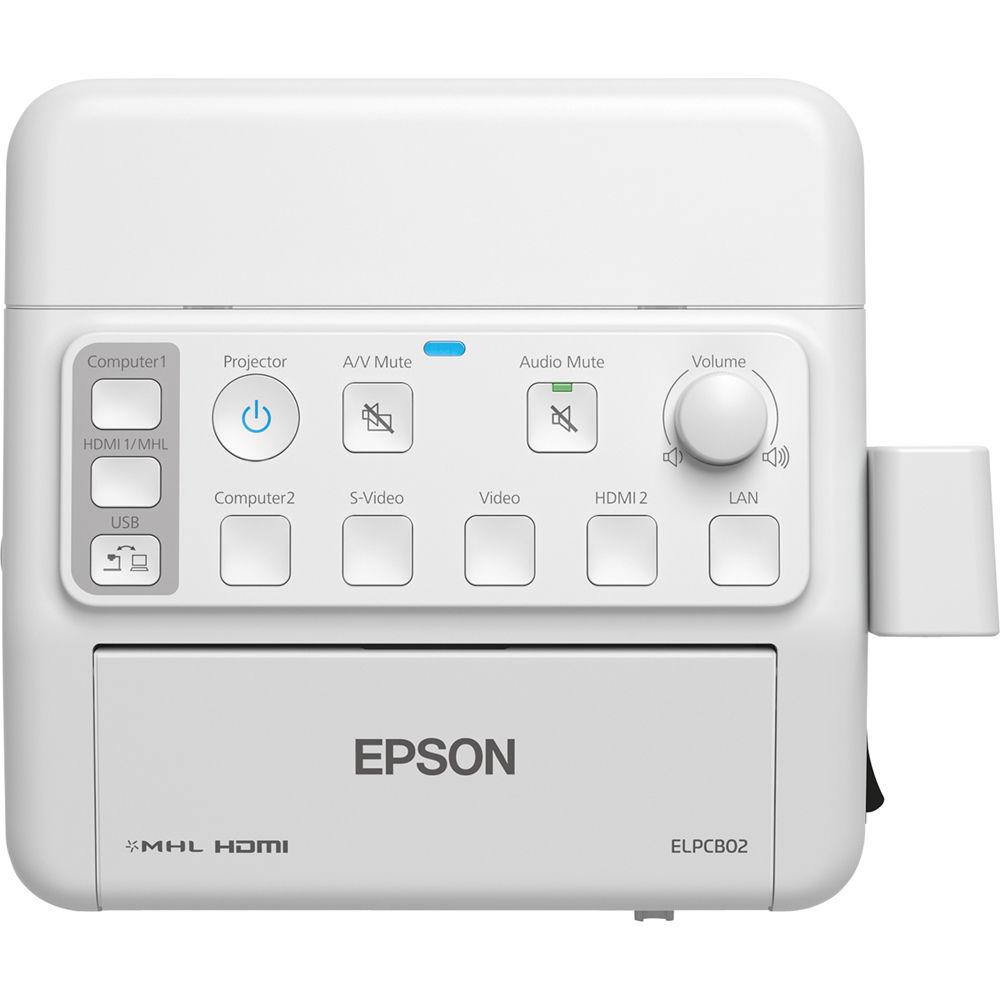

Product description The Epson ELPCB02 PowerLite Pilot 2 is a convenient wall-mounted AV control box for Epson short-throw and ultra-short-throw projectors. It supports an array of devices, and makes it easy to operate your audio/video sources, computer, iPod, and more. It also supports display of content from high-definition and popular MHL-enabled mobile devices. And, with greater flexibility, consolidated cable management, and intuitive buttons, it is suitable for simple, streamlined control of classroom multimedia devices. - Centralized AV Control Box: Manage your Epson short-throw or ultra-short-throw projector (power, AV mute, volume, sources)
- Wall-mounted, no remote control needed
- Seamless Integration: Compatible with PowerLite 420/430 series, PowerLite 570/580 series and BrightLink 570/580/590 series

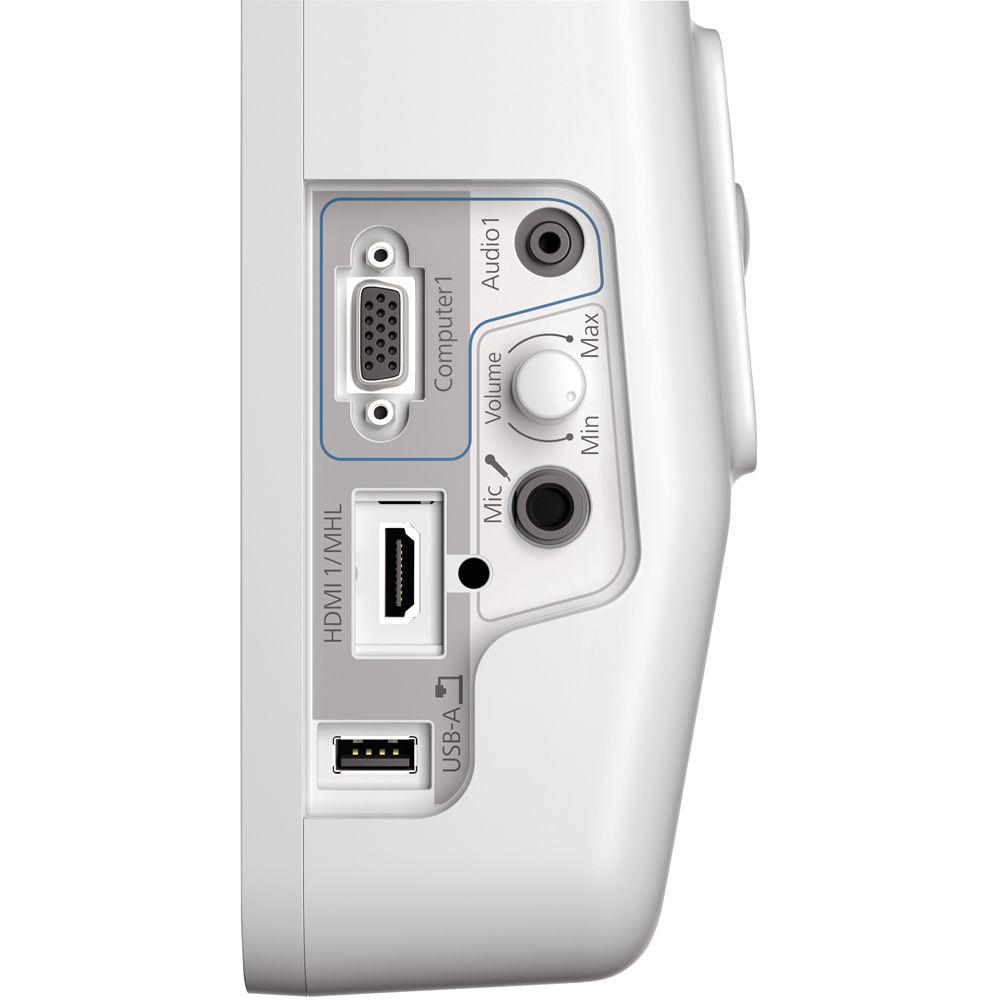

- Optimized for Connectivity: Supports an array of sources, including 2 HDMI inputs for displaying content from high-definition AV devices; you can connect an MHL-enabled smartphone or tablet via MHL/HDMI cable

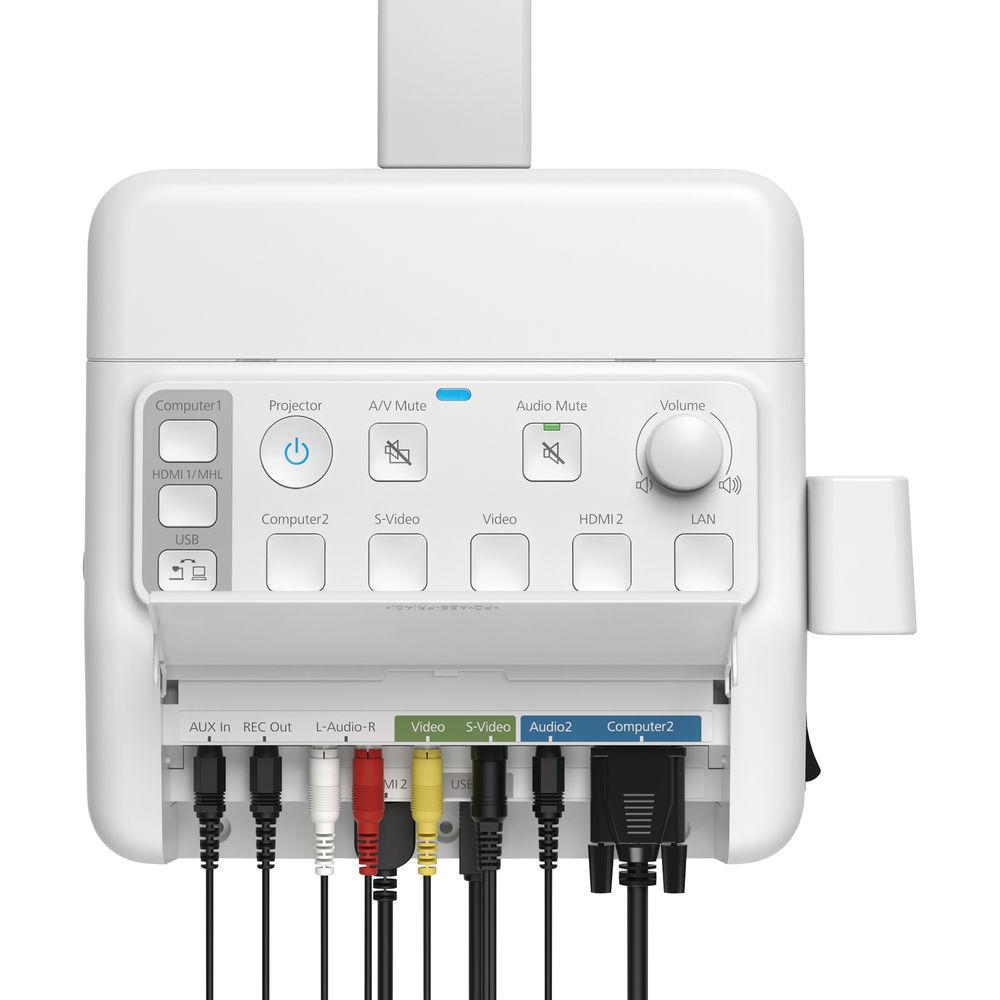

- Increased Flexibility: Use as an extension box to expand the range of your cables

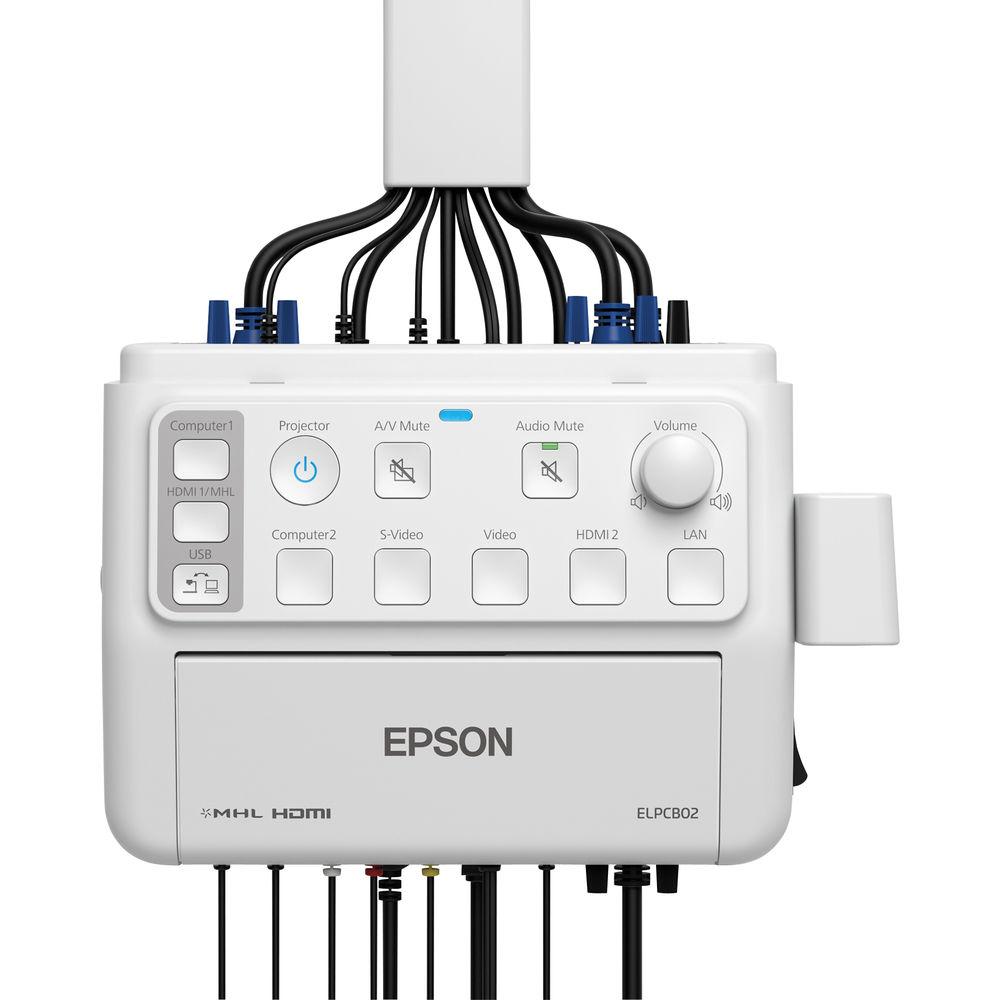

- Consolidated Cable Management: Convenient wall placement helps avoid potential hazards due to cable mismanagement
- Optional speakers (available separately) can be used to boost sound and ensure that the entire class can hear the lesson
- Easy Operation: Large, individual source buttons intuitively match Epson projector inputs

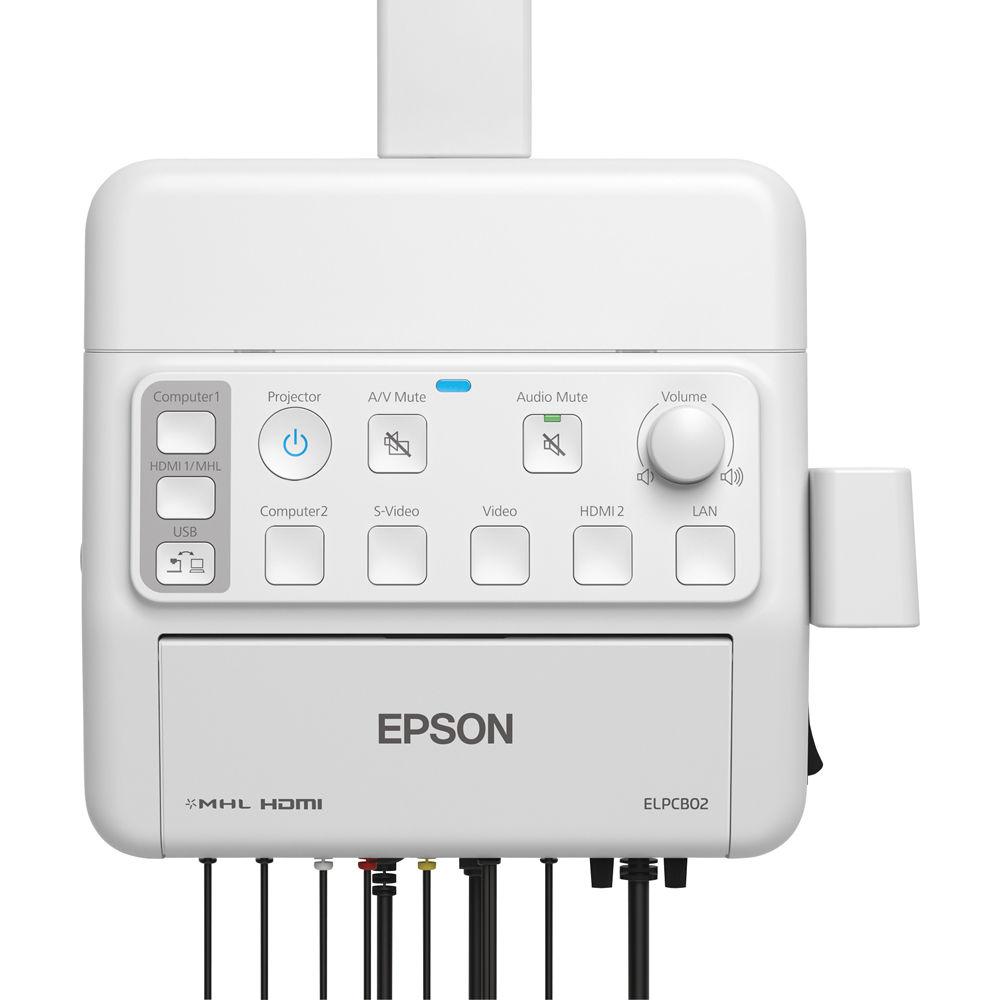

- Simple Installation: Attaches to the wall with a few screws (screws not included)
- Sleek design; protective cable cover and pen/iPod holder included
- Connects to iPod, iPhone, and other portable audio devices to play music from your device
UPC: 010343911819 In the Box Epson ELPCB02 PowerLite Pilot 2 Projector AV Connection and Control Box External AC Power Adapter with Power Cord Cable Cover iPod/Interactive Pen Holder HDMI Cable Clamp Template Sheet Limited 2-Year Warranty More info from Epson Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson ELPCB02 PowerLite Pilot 2 Projector AV Connection and Control Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

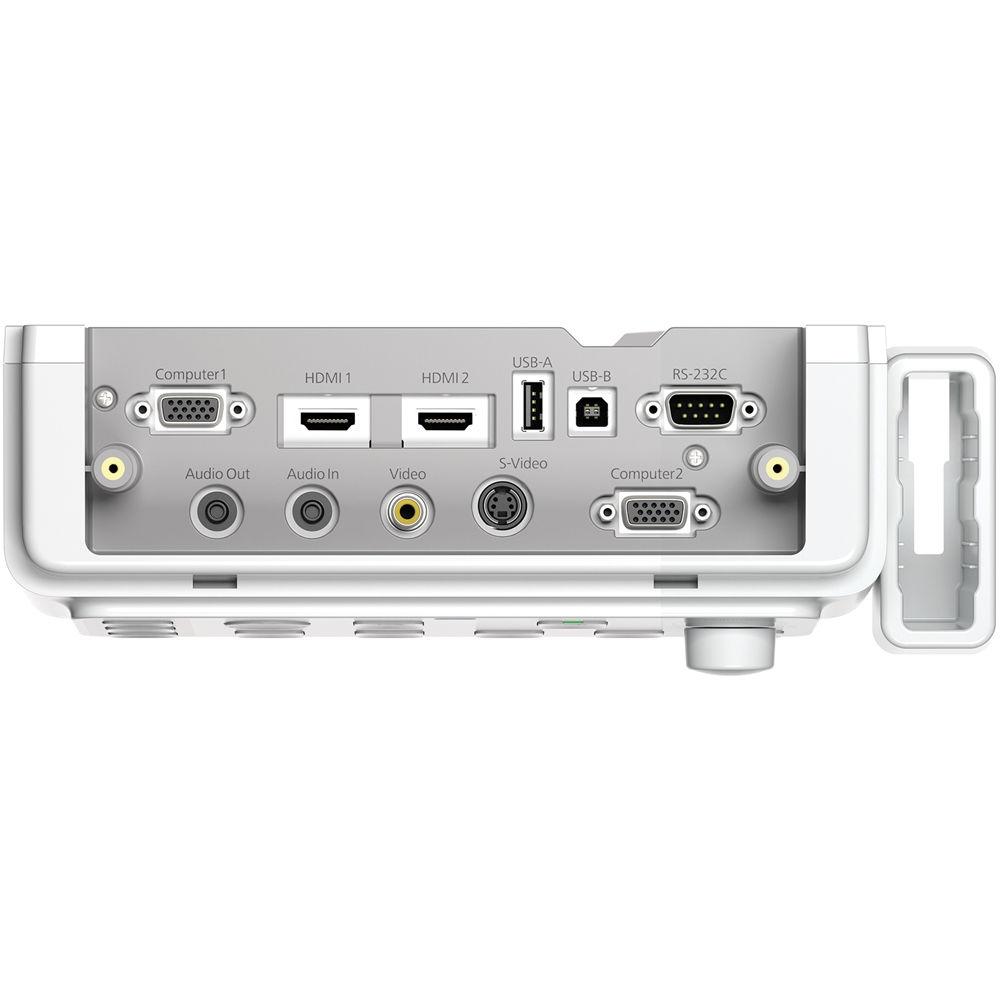

Technical parametersEpson Pilot 2 Specs | | | Video Input | 2 x VGA
1 x Composite video
1 x S-Video
2 x HDMI
1 x USB-A
1 x USB-B | | Video Output | 2 x VGA
1 x Composite video
1 x S-Video
2 x HDMI
1 x USB-A
1 x USB-B | | Audio Input | 4 x Stereo mini jack (3.5 mm)
RCA connector (L & R)
1 x Mic in (6.3 mm) | | Audio Output | 2 x Stereo mini jack (3.5 mm) | | Control | 1 x RS-232C (9-pin crossover/null modem type) | | | | Compatible Projectors | BrightLink Series: 575Wi, 585Wi, and 595Wi Interactive WXGA 3LCD projectors
PowerLite Series: 420 XGA, 425W WXGA, 430 XGA, 435W WXGA, 570 XGA, 575W WXGA, 580 XGA, 585W WXGA projectors | | Speakers | ELPSP02 Active Speakers | | Accessories | ELPCK01 On Wall Cable Management Kit | | | | Controls | Projector: Power on/off, Source selection (computer 1/computer 2/video/S-Video/USB[A/B]/HDMI1/HDMI2/LAN), A/V mute
Audio: Audio mute (for all sources), Volume adjustments (except for AUX in/Mic Input/Rec out), Mic volume control | | | | Supply Voltage | 100 to 240 VAC | | AC Adapter Output | 12 VDC; adapter included | | | | Compliance | RoHS | | Recycle / Disposal | Recyclable | | Operating Temperature | 41 to 95°F (5 to 35°C) | | Operating Humidity | 20 to 80% RH | | | | Dimensions (W x D x H) | 9.1 x 3.6 x 8.9" (23.1 x 9.1 x 22.6 cm) with cover
9.1 x 3.6 x 7.1" (23.1 x 9.1 x 18.0 cm) without cover | | Weight | 2.7 lb (1.2 kg) | | | | Package Weight | 5.85 lb | | Box Dimensions (LxWxH) | 12.284 x 11.26 x 6.221" |
