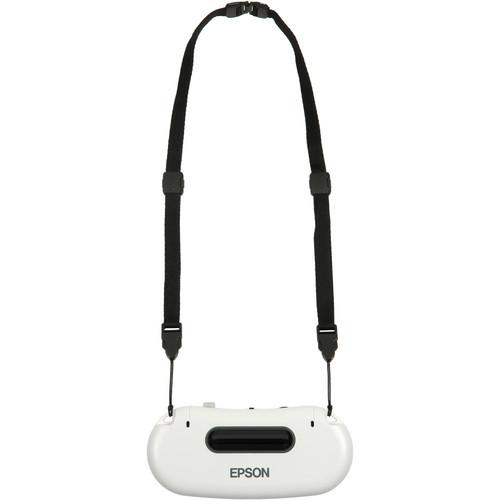

User Manual for Epson ELPMC02 Wireless Pendant Microphone Click to enlarge the picture
Contents of the user manual for the Epson ELPMC02 Wireless Pendant Microphone
- Product category: Projector Accessories Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Projector Accessories
|
User manual for the Epson ELPMC02 Wireless Pendant Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|
Product description The ELPMC02 Wireless Pendant Microphone from Epson is an optional accessory that is used with the wall mountable connection, control box (ELPCB01) and speakers to add functionality to your Epson projector. UPC: 010343884281 In the Box Epson ELPMC02 Wireless Pendant Microphone Neck Strap 2 x AA Alkaline Batteries IR Receiver Module IR Dome Sensor Coaxial Cable 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson ELPMC02 Wireless Pendant Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson V12H4430M2 Specs | Type | Single directivity electrets capacitor | | Compatibility | PowerLite 420 Multimedia Projector/PowerLite 425W Multimedia Projector/PowerLite 430 Multimedia Projector/PowerLite 435W Multimedia Projector/Active Speakers (ELPSP02)/PowerLite Pilot (ELPCB01) | | Controls | Gain adjustment thumbwheel power button mic channel switch (1/2) | | Battery | AA alkaline (LR6) x 2 | | Audio Connectors | 3.5mm stereo mini jack (AUX in) | | Frequency | Channel 1 = 2.06MHz | | Freq. Response (Rec/Repro) | 100-10,000Hz | | Input Voltage | IR dome sensor: DC 24 V (draws power from IR receiver)
IR receiver module: DC 24 V | | Temperature | IR dome sensor: 41-95°F (5-35°C)
IR receiver module: 41-95°F (5-35°C) | | Humidity | IR dome sensor: 20-80%
IR receiver module: 20-80% | | Temperature | Operating: 41-95°F (5-35°C)
Storage: 14-140°F (-10-60°C) | | Cable | IR dome sensor: 3.3' (3 m) | | Luminance | Wavelength: 870 nm
Transmitting Frequency: 2.06MHz | | Certifications | United States: UL60065
Canada: CAN/CSA-C22.2 No.60065-03 | | Dimensions | Pendant microphone: 5.1 x 2.3 x 0.7" (129.5 x 58.4 x 17.8mm)
IR dome sensor (not including connector): 4 x 1.2" (99.1 x 48.3mm)
IR receiver unit: 4.9 x 3.5 x 1.1" (124.5 x 88.9 x 27.9mm) | | Weight | Pendant microphone: 2.2 oz (62 g)
IR dome sensor: 6.2 oz. (175 g)
IR receiver unit: Not specified by manufacturer | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 9.6 x 8.8 x 4.9" |
