Epson Expression 12000XL Photo Scanner

Search your instruction manual in PDF to download

User Manual for Epson Expression 12000XL Photo Scanner

Click to enlarge the picture
Epson Expression 12000XL Photo Scanner Contents of the user manual for the Epson Expression 12000XL Photo Scanner
  • Product category: Flatbed & Document Scanners Epson
  • Brand: Epson
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Epson Flatbed & Document Scanners

Epson Expression 12000XL Photo Scanner Epson Expression 12000XL Photo Scanner Epson Expression 12000XL Photo Scanner Epson Expression 12000XL Photo Scanner Epson Expression 12000XL Photo Scanner Epson Expression 12000XL Photo Scanner Epson Expression 12000XL Photo Scanner
User manual for the Epson Expression 12000XL Photo Scanner contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Epson product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!



Product description

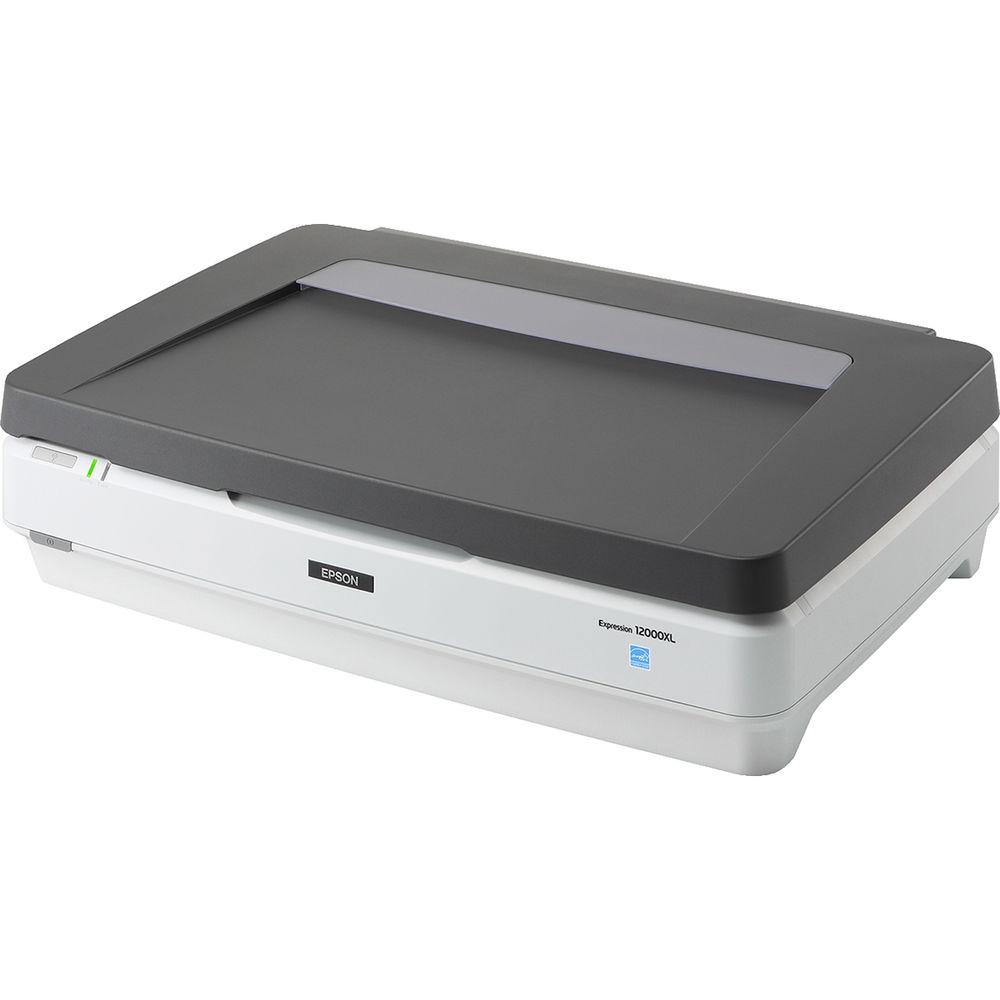

Scan everything large and small, including your everyday documents, 35mm negatives, and even 4 x 5" film with the Expression 12000XL Photo Scanner from Epson. Equipped with a large 12.2 x 17.2" scanning area, this unit will accept a wide range of document types. Combine this with the included transparency unit to open the door for outstanding scanning for 35mm negatives, 35mm slides, medium format, and 4 x 5" film. The scanner itself features numerous Epson technologies, such as the ColorTrue II imaging system and Easy Photo Fix, each of which helps to create sharp, vivid, and clean files. Also, the 12000XL boasts an optical resolution of 2400 dpi and a hardware resolution of 2400 x 4800 dpi along with an optical density of 3.8 Dmax and a color depth of 48-bit. Additionally, the USB-connected scanner comes with advanced SilverFast AI software from LaserSoft Imaging and two IT8 targets for calibration.

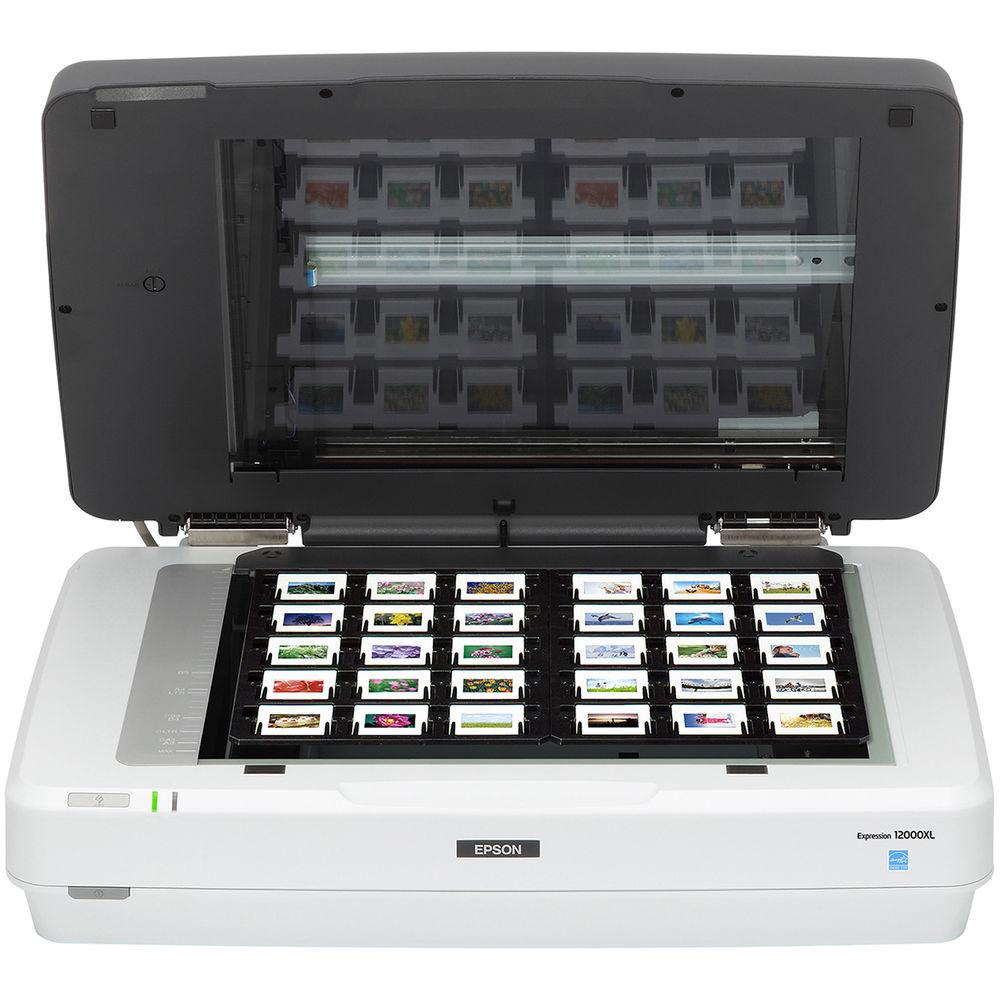

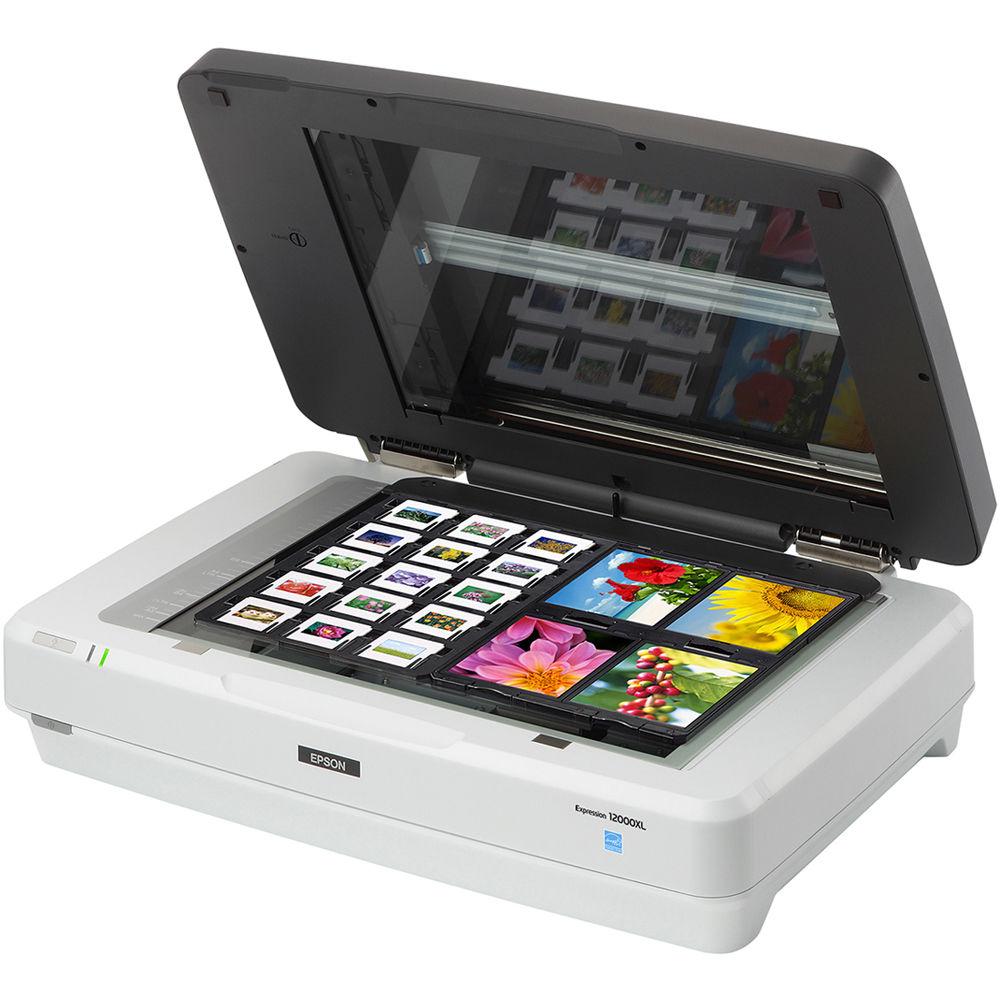

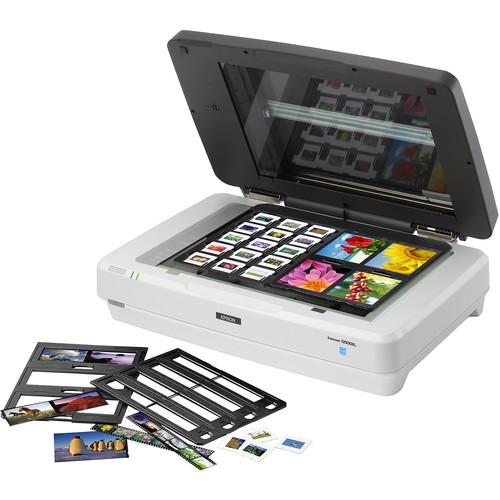

  • Comes with two of each type of film holder (35mm strip, 35mm slide, medium format, and 4 x 5"), which allows it to scan up to 48 frames of 35mm negatives, 30 slides, eight 4 x 5" frames, or six medium format strips up to 7" long in a single batch
  • Optical resolution of 2400 dpi along with a hardware resolution of 2400 x 4800 dpi using Micro Step Drive technology
  • Scanning speeds in speed priority mode of 16 ms per line in color and 5.3 ms per line in grayscale or line art settings
  • Optical density of 3.8 Dmax as well as a color bit depth of 48-bit both internally and externally
  • Reflective documents can still be scanned while transparency unit is installed
  • Focus can be set automatically or manually
  • ColorTrue II imaging system uses a ReadyScan LED lamp and a MatrixCCD sensor along with image processing technology to create sharp, colorful scans
  • Easy Photo Fix technology will automatically restore photographs and remove dust and grain at the touch of a button
  • Designed to operate for over 100,000 cycles
  • LaserSoft Imaging SilverFast Ai software is provided to help users maximize the quality of their scans, allowing them to perform basic edits and advanced processing to their scans with ease. Also, the scanner comes with reflective 5 x 7" and transparent 4 x 5" IT8 targets for calibration
UPC: 010343934405 In the Box Epson Expression 12000XL Photo Scanner
  • A3 Transparency Unit for Expression 12000XL Scanner
  • LaserSoft Imaging SilverFast Ai Software
  • Reflective 5 x 7" IT8 Target
  • Transparency 4 x 5" IT8 Target
  • 2 x 35mm Film Strip Film Holders
  • 2 x 35mm Mounted Slide Film Holders
  • 2 x Medium Format Film Holders
  • 2 x 4 x 5" Film Holders
  • USB Cable
  • Power Cord
  • Start Here Poster
  • Limited 1-Year Warranty
  • More info from Epson Table of Contents




    Upload User Manual

    Have you got an user manual for the Epson Expression 12000XL Photo Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Epson 12000XL-PH Specs

    Optical Density 3.8 Dmax
    Maximum Document Width 12.2" / 31 cm
    Maximum Document Length 17.2" / 43.7 cm
    Maximum Transparency Scan Area 17.2" x 12.2" / 31 cm x 43.7 cm
    Duplex Scanning No
    Single Pass Duplex No
    Scan Modes Color, Grayscale, Monochrome
    Document Feeding Flatbed
    Film Formats 35mm Film, Medium Format Film, 4 x 5" Film, Custom Sizes
    Operating System Compatibility Windows, macOS/OS X,
    Light Source LED

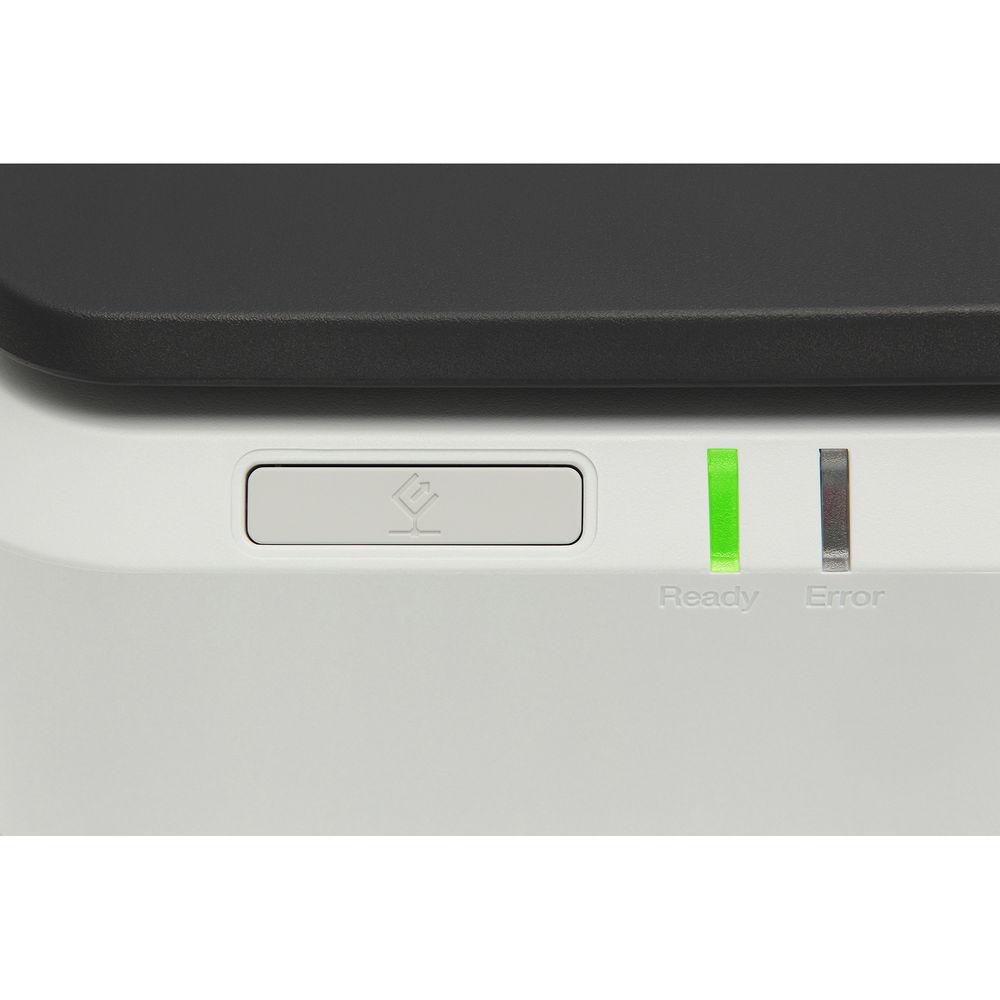

    Control Panel 1 Button
    Maximum Sheet Capacity 1
    Automatic Image Corrections Yes
    Environmental Compliance ENERGY STAR, RoHS
    Operating Humidity 10 to 80%
    Operating Temperature 41 to 95°F / 5 to 35°C
    Storage Humidity 10 to 85%
    Storage Temperature -13 to 140°F / -25 to 60°C
    Maximum Power Consumption 50 W
    Power Source AC Adapter
    Dimensions 25.8 x 18.0 x 8.5" / 65.6 x 45.8 x 21.6 cm
    Weight 45.2 lb / 20.50 kg with transparency unit
    Package Weight 71.0 lb
    Box Dimensions (LxWxH) 31.2 x 25.2 x 21.5"

    Rating

    80% users recommend this product to others. And what about you?
    Rating: 4.0 of 5

    This product has already been rated by 12 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to Epson Expression 12000XL Photo Scanner

    Subject: enlarging images with scanner
    Date: 22.09.2021 18:26:09Name: Ray-Mel Cornelius
    I need to enlarge an image being scanned. I don't see any indication of how to do that. For example, I want to enlarge an image 200%. How do I find that setting in the scanner window?
