User Manual for Epson Home Cinema 3100 Full HD 3LCD Home Theater Projector Click to enlarge the picture
Contents of the user manual for the Epson Home Cinema 3100 Full HD
- Product category: Home Theater Projectors Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Home Theater Projectors
 |
User manual for the Epson Home Cinema 3100 Full HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|

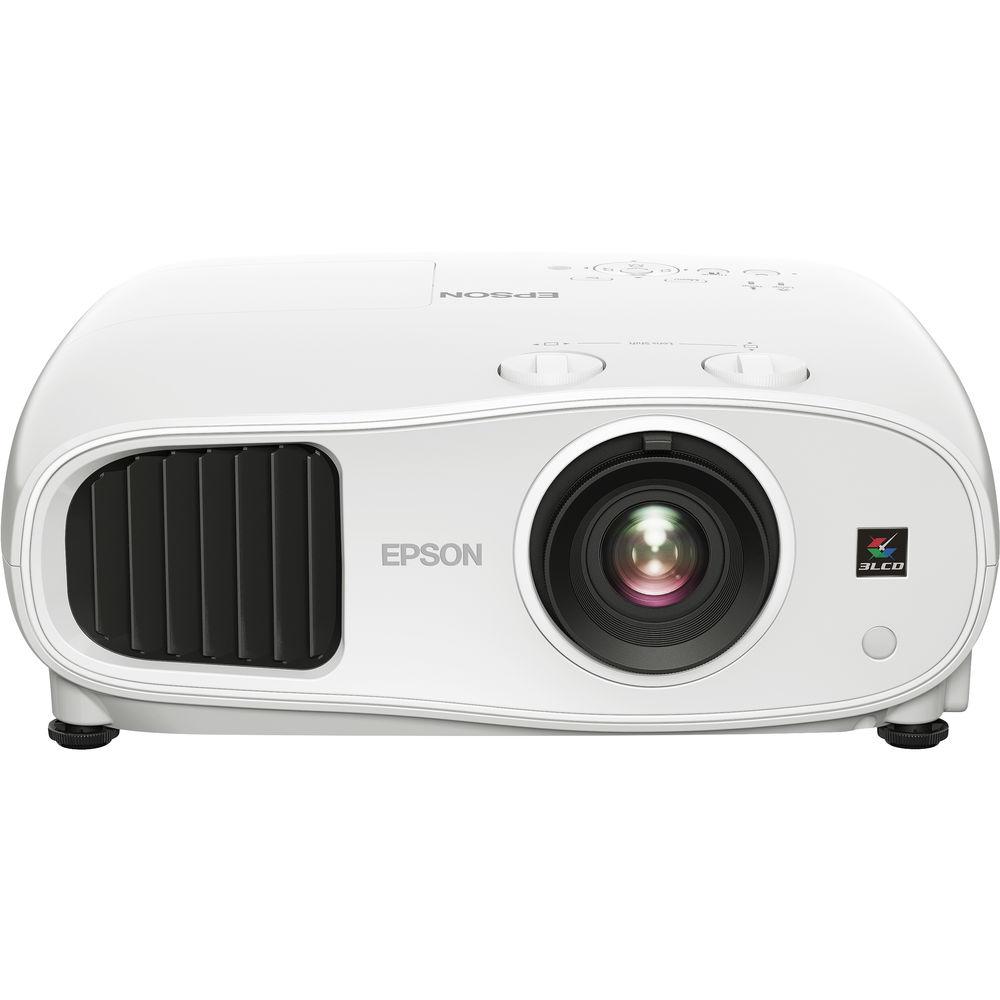

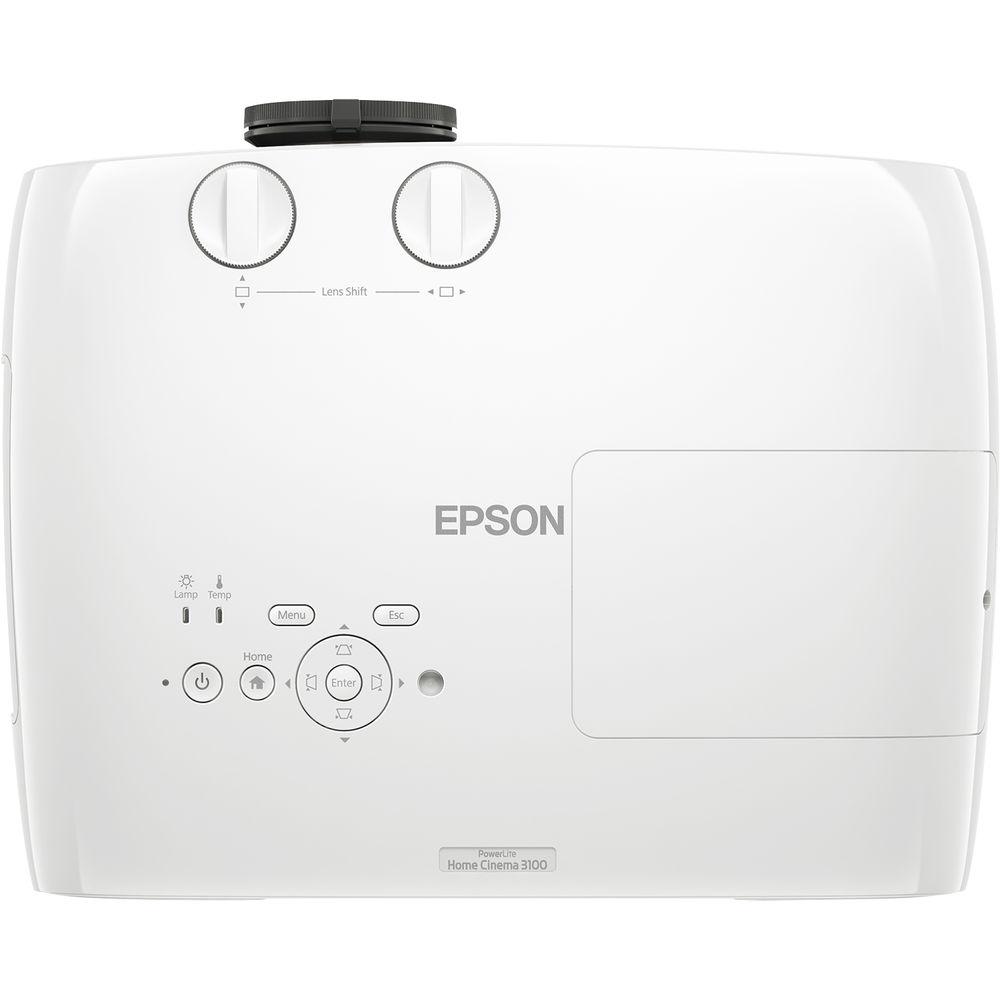

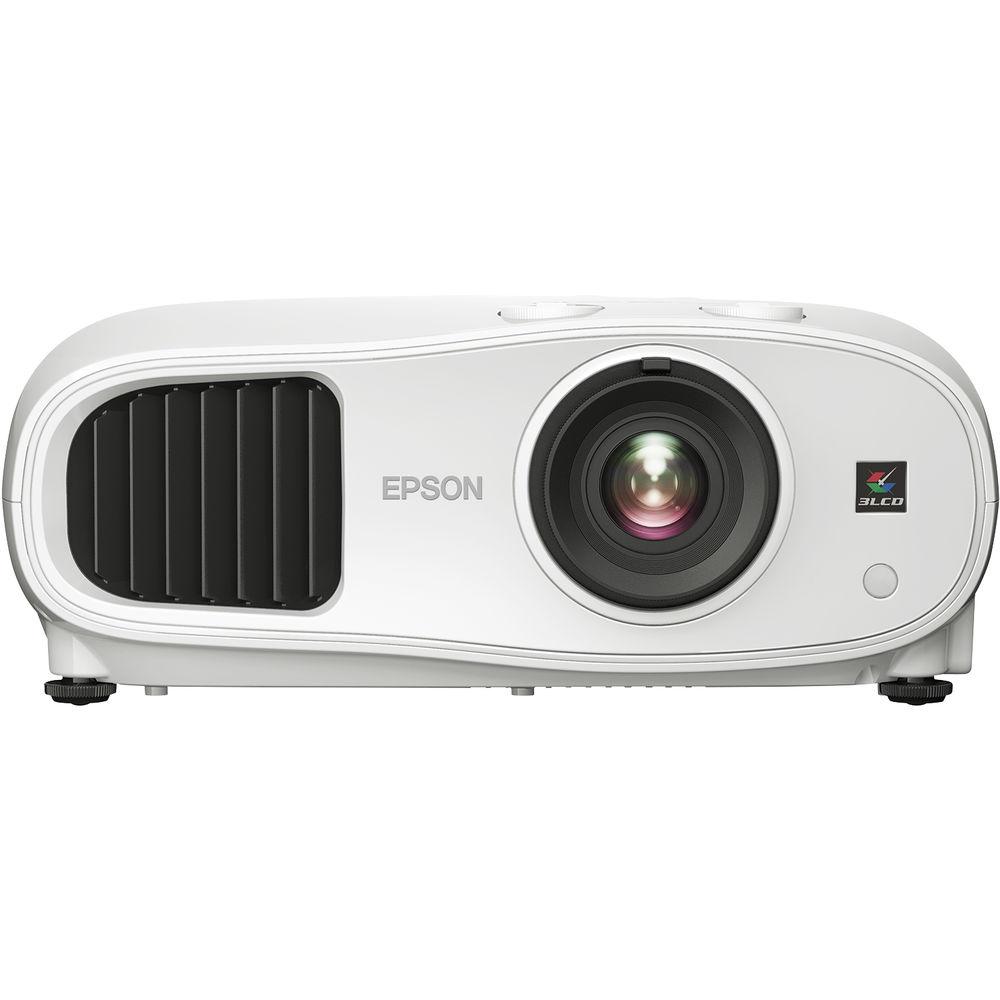

Product description Buying Guide to Projectors Read More tfsryaxqwxfw Enjoy your favorite content in nearly any home setting with the Epson Home Cinema 3100 Full HD 3LCD Home Theater Projector. Its 2600 lumens of color and white brightness are suitable for a variety of lighting conditions, while its 60,000:1 dynamic contrast ratio will enhance detail when viewing dark images. The projector delivers Full HD 1920 x 1080 native resolution with its 3LCD optical engine and 250W lamp that provides up to 5000 hours of life in ECO Mode.
The Home Cinema 3100 offers a variety of placement options with features such as ±30° horizontal and vertical keystone correction, 1.6x zoom, a 1.32 to 2.15:1 throw ratio, and ±60% vertical and ±24% horizontal lens shift. It provides VGA and two HDMI inputs to connect both standard definition and HD sources, plus one HDMI input is MHL-compatible for connecting devices such as smartphones and tablets. Its USB port supports JPEG slideshows from compatible drives or an optional wireless LAN module. - 2600 lumens of white and color brightness, suitable for a variety of lighting conditions
- Full HD 1080p 3D performance for movies, games, and more up to 300"
- Deep black levels with a dynamic contrast ratio up to 60,000:1 for enhanced detail in dark scenes
- Projects a 110" image from just 10.5' away, and its ±60% vertical and ±24% horizontal lens shift plus 1.6x zoom allow for flexible positioning and easy setup
- Super-resolution and Detail Enhancement technologies are designed to sharpen and refine images for enhanced smoothness and clarity
- Stream HD videos with your favorite streaming device, including MHL-enabled devices
- The 3LCD design enhances color brightness while reducing the rainbow effect
- Frame Interpolation Technology is designed to help motion appear smoother, sharper, and more realistic
UPC: 010343929388 In the Box Epson Home Cinema 3100 Full HD 3LCD Home Theater Projector Remote Control with Batteries Power Cord Limited 2-Year Warranty Limited 90-Day Warranty More info from Epson Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson Home Cinema 3100 Full HD 3LCD Home Theater Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson 3100 Specs | | | Display System | 3-Chip 0.6" Polysilicon TFT LCD | | Native Chip Resolution | 1920 x 1080 | | Max Brightness | White: 2600 Lumens
Color: 2600 Lumens | | Aspect Ratio | 4:3
16:9
16:10 | | Dynamic Contrast Ratio | 60,000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | | | Focus | Manual | | Lens | f/1.5 - 1.9 (f = 18 - 29 mm) | | Lens Shift | Horizontal: ± 24%
Vertical: ± 60% | | Optical Zoom | Manual: | | Throw Distance | 29 - 47.3' / 8.8 - 14.4 m | | Throw Ratio | 1.32 - 2.15:1 | | Projection Size | 30 - 300" / 76.2 - 762 cm | | | | Keystone Correction | Horizontal: ± 30°

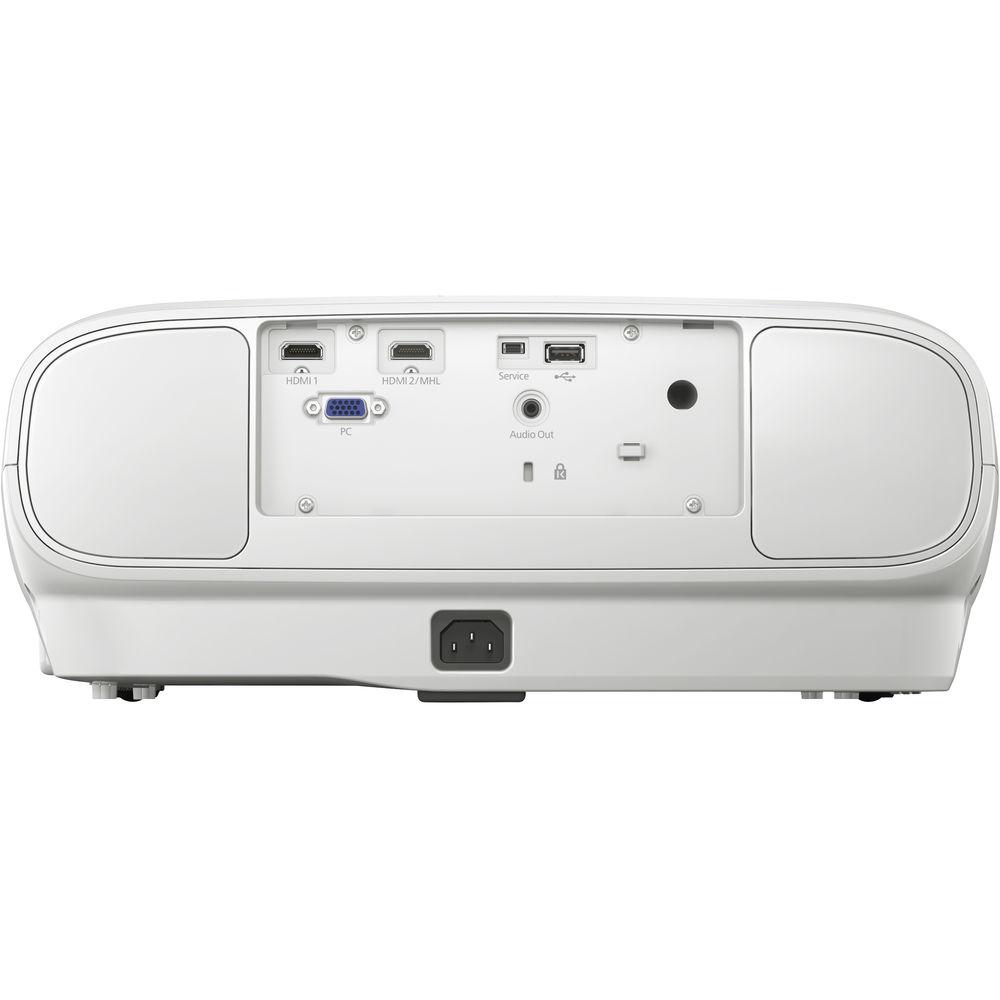

Vertical: ± 30° | | Digital Zoom | 1.6x | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | | | Inputs/Outputs | 1 x Mini-USB Service
1 x 1/8" (3.5 mm) Mini Audio Output
1 x VGA (DE-15) Video Input
2 x HDMI with MHL Support (HDMI Type-A) Audio, Video Input
1 x USB Type-A Data | | Memory Card Slot | None | | | | Light Source | Lamp ( x UHE) | | Lamp Power | 250 W | | Expected Lamp Life | Low Brightness: 5000 Hours
Full Brightness: 3500 Hours | | Fan Noise | Full Brightness: 35 dB
Low Brightness: 24 dB | | Security | Cable Lock Slot | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.7 to 3.8 A | | Power Consumption | Standby Mode (Lamp Off): 0.3 W
Full Brightness: 356 W
Low Brightness: 265 W | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Dimensions (W x H x D) | 16.1 x 6.4 x 12.0" / 408.9 x 162.5 x 304.8 mm | | Weight | 14.6 lb / 6.6 kg | | | | Package Weight | 21.5 lb | | Box Dimensions (LxWxH) | 19.4 x 18.6 x 9.3" |
