User Manual for Epson Home Cinema 4000 HDR Full HD 3LCD Home Theater Projector Click to enlarge the picture
Contents of the user manual for the Epson Home Cinema 4000 HDR Full
- Product category: Home Theater Projectors Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Home Theater Projectors
 |
User manual for the Epson Home Cinema 4000 HDR Full contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|

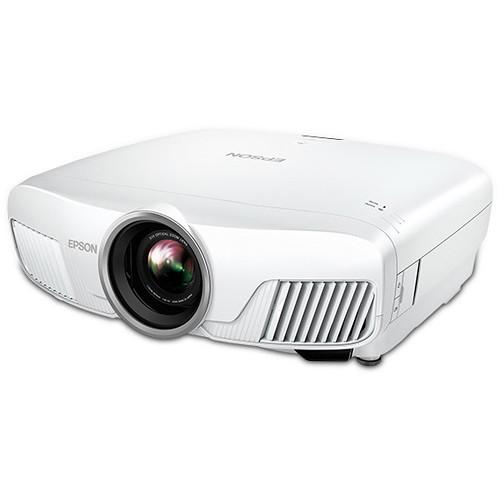

Product description Buying Guide to Projectors Read More zcuqftzbywtxrq Enjoy HDR and UHD content with the Epson Home Cinema 4000 HDR Full HD 3LCD Home Theater Projector. Its 2200 lumens of color and white brightness is suitable for a variety of lighting conditions, while its 140,000:1 dynamic contrast ratio will enhance detail when viewing dark images. The projector delivers Full HD 1920 x 1080 native resolution and will upscale 1080p sources to near-4K with its 4K Enhancement Technology.
The Home Cinema 4000 offers a variety of placement options with features such as horizontal and vertical keystone correction, 1 to 2.1x zoom, and a 1.35 to 2.84:1 throw ratio. It features VGA and two HDMI inputs to connect both standard definition and HD sources. An IR remote control and two HDMI cable clamps are included for added convenience. - 4K Enhancement Technology
- The Home Cinema 4000 accepts native 4K UHD content, and also up-scales 1080p sources for resolution that exceeds Full HD. 4K Enhancement Technology shifts each pixel diagonally by 0.5 pixels to virtually double the resolution and surpass Full HD image quality.
- HDR10 Compatible
- This projector features High Dynamic Range support for full 10-bit color output with an enhanced range of brightness.
- 100% Pure Color Brightness
- The projector's brightness level of 2200 lumens is designed to provide equal color and white brightness for vibrant color in every mode.
- UltraBlack Contrast
- The dynamic contrast ratio of up to 140,000:1 helps provide rich detail in both bright and dark scenes.
- Smart Motorized Lens
- Preset up to 10 positions for powered focus, zoom, and lens shift. The projector also features 2.1x zoom and a wide lens shift.
- L*a*b* Ultra Wide Color Gamut
- This feature offers 100% coverage of the DCI-P3 color space, the digital cinema standard, in Digital Cinema Mode.
- Delta Level Color Accuracy
- The low Delta E rate is designed to provide accurate color reproduction for true-to-life images.
- Tri-Stimulus Motion Technology
- This feature is fashioned to help the 3-chip engine reproduce fast-moving scenes with no rainbow effect.
- Epson Image Enhancement Technology
- Super-Resolution and Detail Enhancement sharpen and refine images for enhanced smoothness and clarity.
- Eco Features
-
- RoHS compliant
- Recyclable
UPC: 010343937932 In the Box Epson Home Cinema 4000 HDR Full HD 3LCD Home Theater Projector Remote Control with Batteries 2 x HDMI Cable Clamps Power Cord More info from Epson Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson Home Cinema 4000 HDR Full HD 3LCD Home Theater Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson 4000 Specs | Projection System | 3LCD | | Driving Method | 3 x 0.74" (1.88 cm) poly-silicon TFT active matrix | | Projection Method | Front, rear, ceiling | | Brightness | White: 2200 lumens
Color: 2200 lumens | | Dynamic Contrast Ratio | Up to 140,000:1 | | Native Resolution | Full HD (1920 x 1080) | | Pixel Count | 6,220,800 | | Aspect Ratio | Native: 16:9
Supported: 16:10, 4:3 | | Color Systems | NTSC, NTSC 4.43
PAL, PAL-M, PAL-N, PAL60
SECAM | | Color Processing | Full 10-bit (partial 12-bit) | | Color Reproduction | Up to 1.07 billion colors | | Projection Lens | Type: Powered focus, optical zoom, and lens position
F-Number: 2 to 3
Focal Length: 22.5 to 46.7mm
Zoom Ratio: 1 to 2.1 | | Lens Shift | Vertical: ±96%
Horizontal: ±47% | | Lamp Type | 250 W UHE | | Lamp Life | Normal Mode: Up to 3500 hours
Medium Mode: Up to 4000 hours

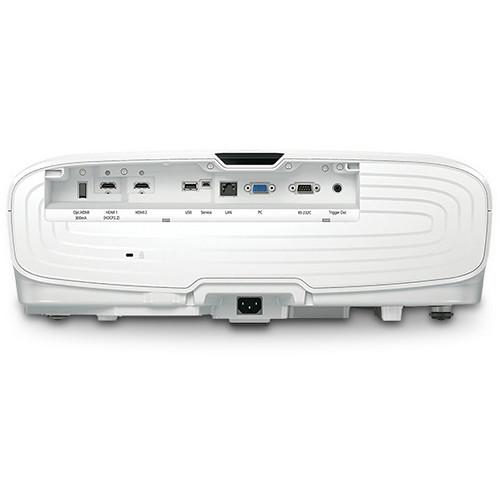

ECO Mode: Up to 5000 hours | | Throw Ratio | 1.35 to 2.84:1 | | Projection Size | 50 to 300" (127 to 762 cm) | | Projection Distance | Not specified by manufacturer | | Keystone Correction | Vertical, Manual: ±30° | | Inputs | 2 x HDMI
1 x 15-pin VGA
1 x USB Type-A
1 x Ethernet LAN
1 x RS-232C
1 x mini-USB (service only) | | Outputs | 1 x 1/8" (3.5 mm) 12 VDC, 200 mA trigger
1 x USB Type-A (for optical HDMI cable 300 mA power supply only) | | HDCP Versions Supported | 1 x HDCP 2.2
1 x HDCP 1.4 | | 3D Compatibility | Yes | | Fan Noise | 20 to 31 dB | | Security | Cable lock slot
Power button lock | | Remote Control | Operating Distance: 32' (10 m)
Front Operating Angle, Right/Left/Up/Down: ±30°
Rear Operating Angle, Right/Left: ±30°
Rear Operating Angle, Up/Down: 10 to 70° | | Replacement Lamp | Not specified by manufacturer | | Operating Temperature | 41 to 95°F (5 to 35°C) | | Power Supply Voltage | 100 to 240 VAC ±10%, 50/60 Hz | | Power Consumption | High Mode: 373 W
ECO Mode: 283 W | | Dimensions (W x H x D) | 20.5 x 6.7 x 17.7" (52.07 x 17.02 x 44.96 cm) including feet | | Weight | 24.3 lb (11.02 kg) | | | | Package Weight | 32.0 lb | | Box Dimensions (LxWxH) | 25.5 x 20.0 x 10.5" |
