User Manual for Epson Home Cinema 4010 Pixel-Shifted UHD 3LCD Home Theater Projector Click to enlarge the picture
Contents of the user manual for the Epson Home Cinema 4010 Pixel-Shifted UHD
- Product category: Home Theater Projectors Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Home Theater Projectors
 |
User manual for the Epson Home Cinema 4010 Pixel-Shifted UHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|

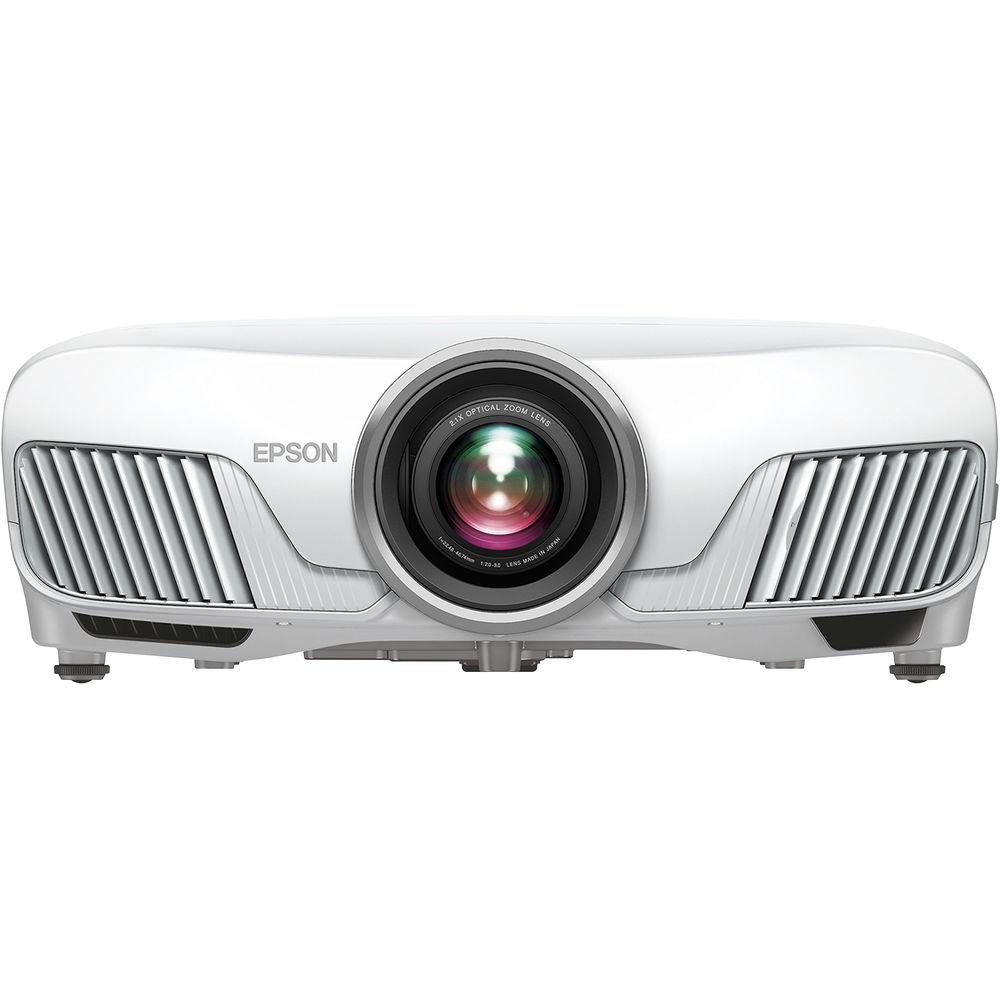

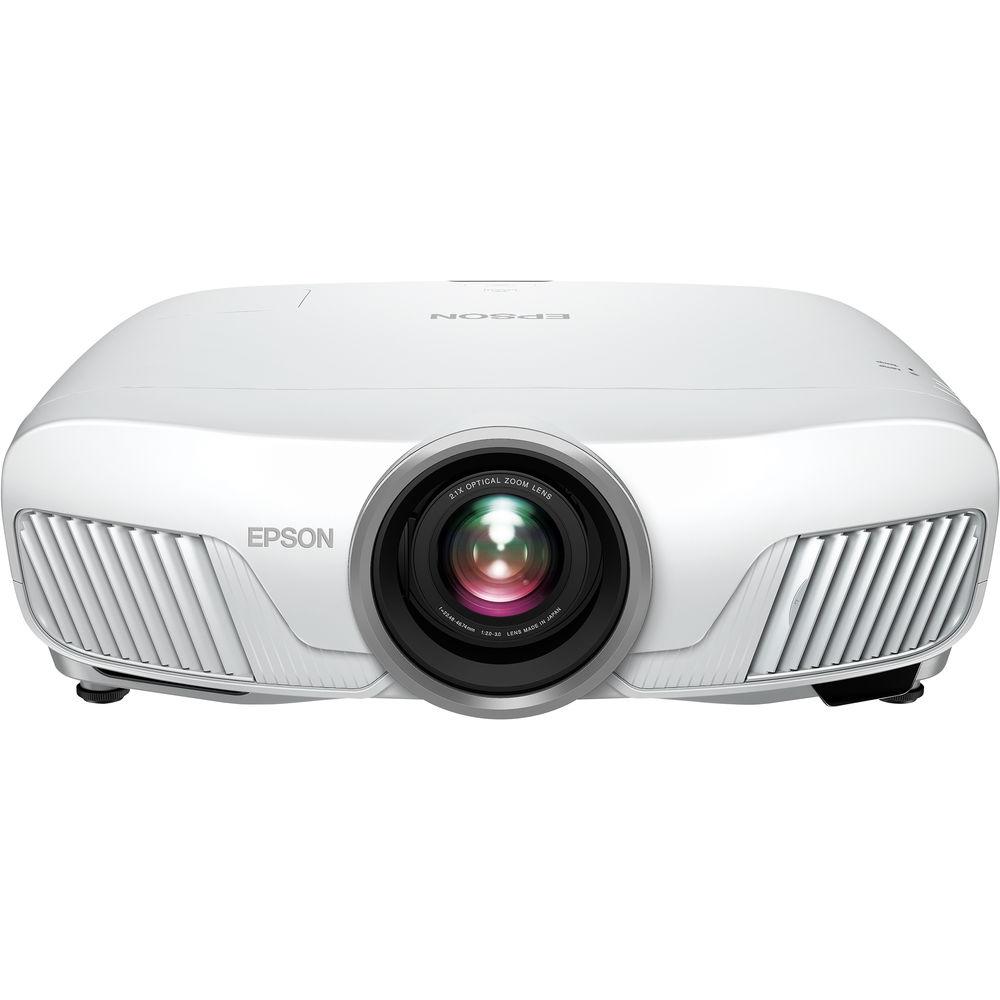

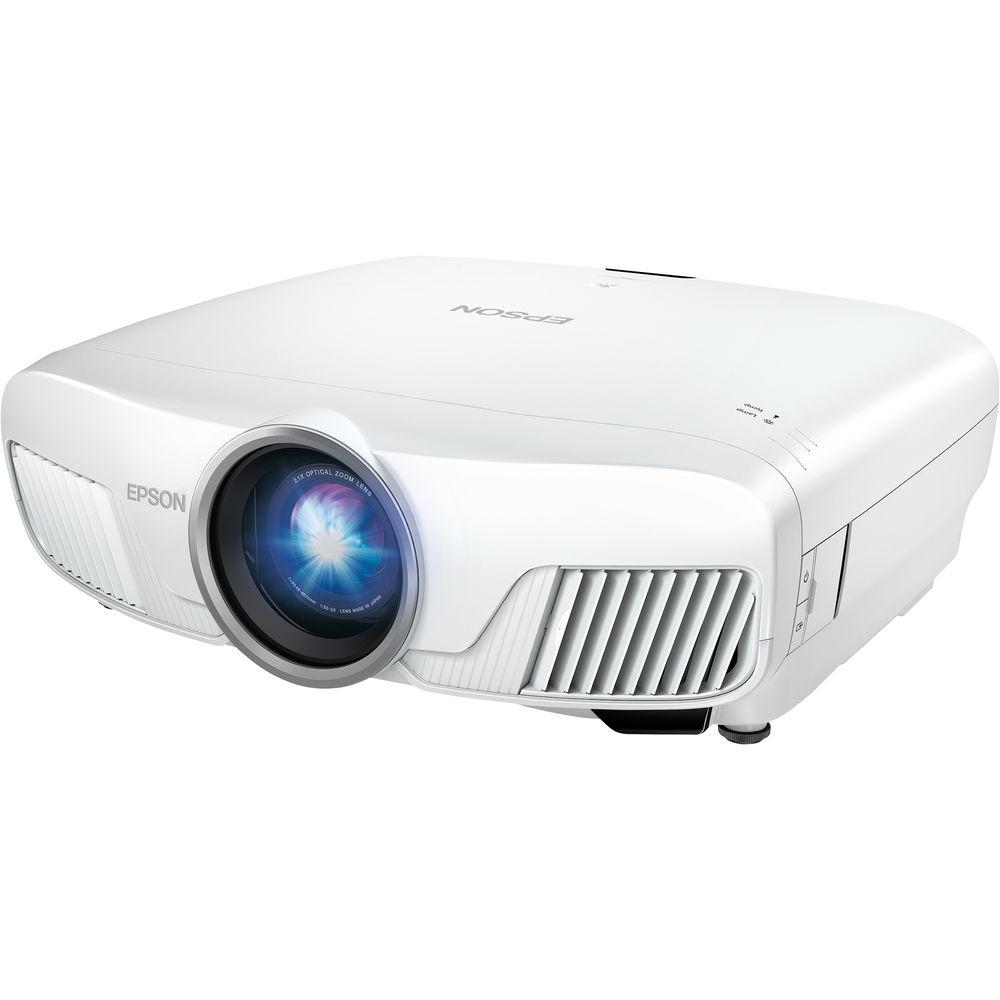

Product description Buying Guide to Projectors Read More Enjoy your video games and multimedia content on a big screen with the Epson Home Cinema 4010 Pixel-Shifted UHD 3LCD Home Theater Projector. It uses pixel-shifting technology to project UHD 4K resolution onto the screen with compatible content and features HDR10 compatibility to produce a wide color gamut. It outputs up to 2400 lumens of color and white brightness and has a 200,000:1 dynamic contrast ratio to help produce details even in dark areas of the image. The projector has two HDMI inputs for connecting your digital HD devices such as a gaming console, Blu-ray player, or cable/satellite box. The Home Cinema 4010 includes an IR remote control for additional convenience. -
- Delivers a UHD on-screen experience with pixel-shifting resolution-enhancement technology
- HDR compatibility, 10-bit color output, and the 200,000:1 dynamic contrast ratio help provide an enhanced range of color and detail in both bright and dark scenes
- Parallel pixel processing and a 3-chip architecture deliver enhanced color accuracy, brightness, and gamut
- 2400 lumens of color and white brightness help produce vibrant, rich color
- A 3-axis motor enables powered focus, 2.1x zoom, up to ±96% horizontal and ±47% vertical lens shift, plus 10 preset positions
- L*a*b Wide Color Gamut is designed to deliver 100% of the 3-dimensional DCI-P3 color gamut, with a 50% wider color gamut than Rec.709
- The 12-bit digital color processing chip with frame interpolation and advanced motion control helps provide smooth, crisp images and transitions
- Lens engineered to provide a bright, uniform image with virtually no hot spots or chromatic aberration
- Low Delta E helps enhance color accuracy
- No color wheel means images free from a distracting rainbow effect
- Powered sliding lens cover
- Auto iris automatically adjusts to your video source in both 2D and 3D
- USB Type-A power output can be used with optical HDMI cable to power long cable runs
- RoHS compliant
UPC: 010343943933 In the Box Epson Home Cinema 4010 Pixel-Shifted UHD 3LCD Home Theater Projector Remote Control with Batteries 2 x HDMI Cable Clamps Limited 2-Year Warranty Limited 90-Day Warranty More info from Epson tvbqadafdr Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson Home Cinema 4010 Pixel-Shifted UHD 3LCD Home Theater Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson 4010 Specs | | | Display System | 3-Chip 0.74" Polysilicon TFT LCD | | Native Chip Resolution | 1920 x 1080 (Full HD) | | On-Screen Resolution | Up to UHD 4K (3840 x 2160) via Pixel-Shift Technology | | Max Brightness | White: 2400 Lumens
Color: 2400 Lumens | | Aspect Ratio | Native: 16:9
Supported: 16:10
Supported: 4:3 | | Dynamic Contrast Ratio | 200,000:1 | | DLP Link 3D | Yes | | Color Depth | 10-Bit Dithering (1.07 Billion Colors) | | | | Focus | Manual Powered | | Lens | f/2 - 3 (f = 22.5 - 46.7 mm) | | Lens Shift | Vertical: ± 96%

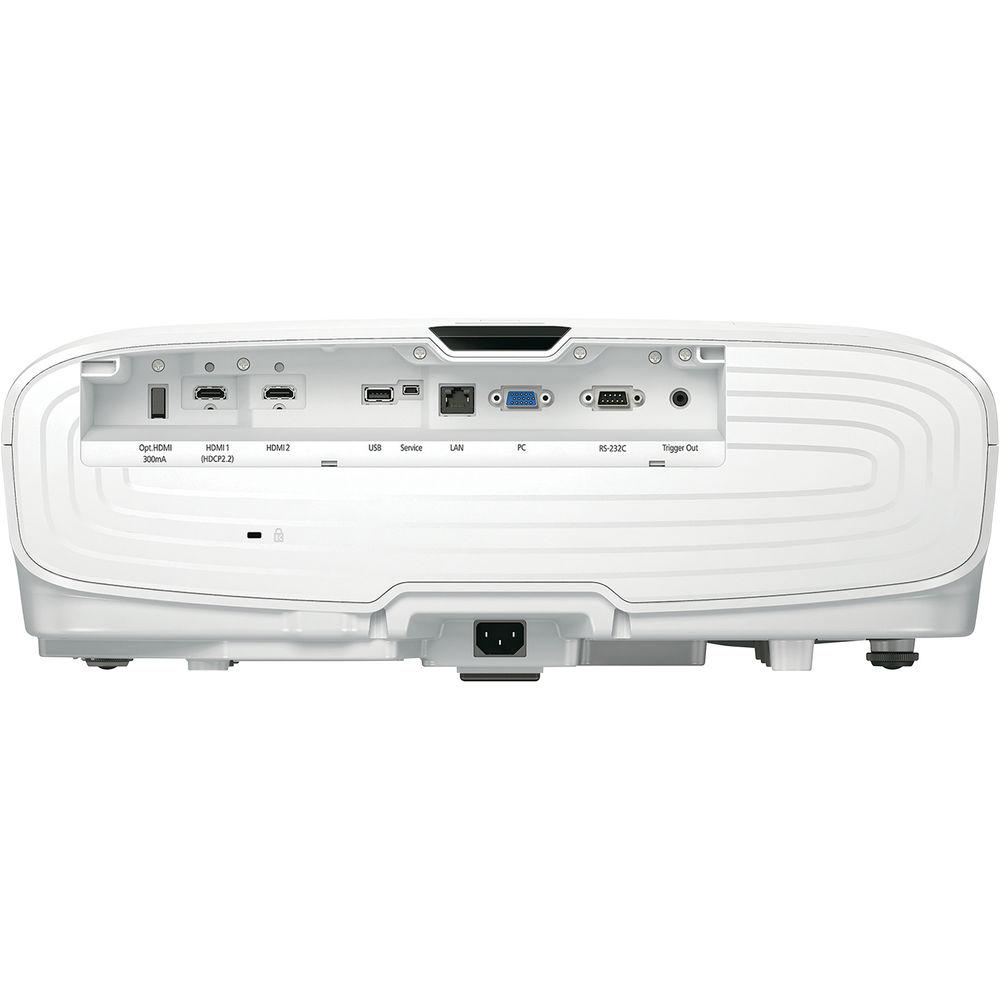

Horizontal: ± 47% | | Optical Zoom | Powered: 2.1x | | Throw Ratio | 1.35 - 2.84:1 | | Projection Size | 50 - 300" / 127.00 - 762.00 cm | | | | Keystone Correction | Manual-Vertical: ± 30° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | | | Inputs/Outputs | 2 x HDMI (HDMI Type-A) Audio, Video Input
1 x VGA (DE-15) Video Input
1 x USB 2.0 (USB Type-A) Power Output
1 x USB 2.0 (Mini-USB) Service Input
1 x USB 2.0 (USB Type-A) LAN, Service Input
1 x Ethernet (RJ45) LAN
1 x RS-232 (DE-9) Control
1 x 12 V Trigger Control Output | | Memory Card Slot | None | | | | Light Source | Lamp (1 x UHE) | | Lamp Power | 250 W | | Expected Lamp Life | Full Brightness: 3500 Hours
Medium Brightness: 4000 Hours
Low Brightness: 5000 Hours | | Fan Noise | Full Brightness: 31 dB
Low Brightness: 20 dB | | Security | Cable Lock Slot | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 373 W

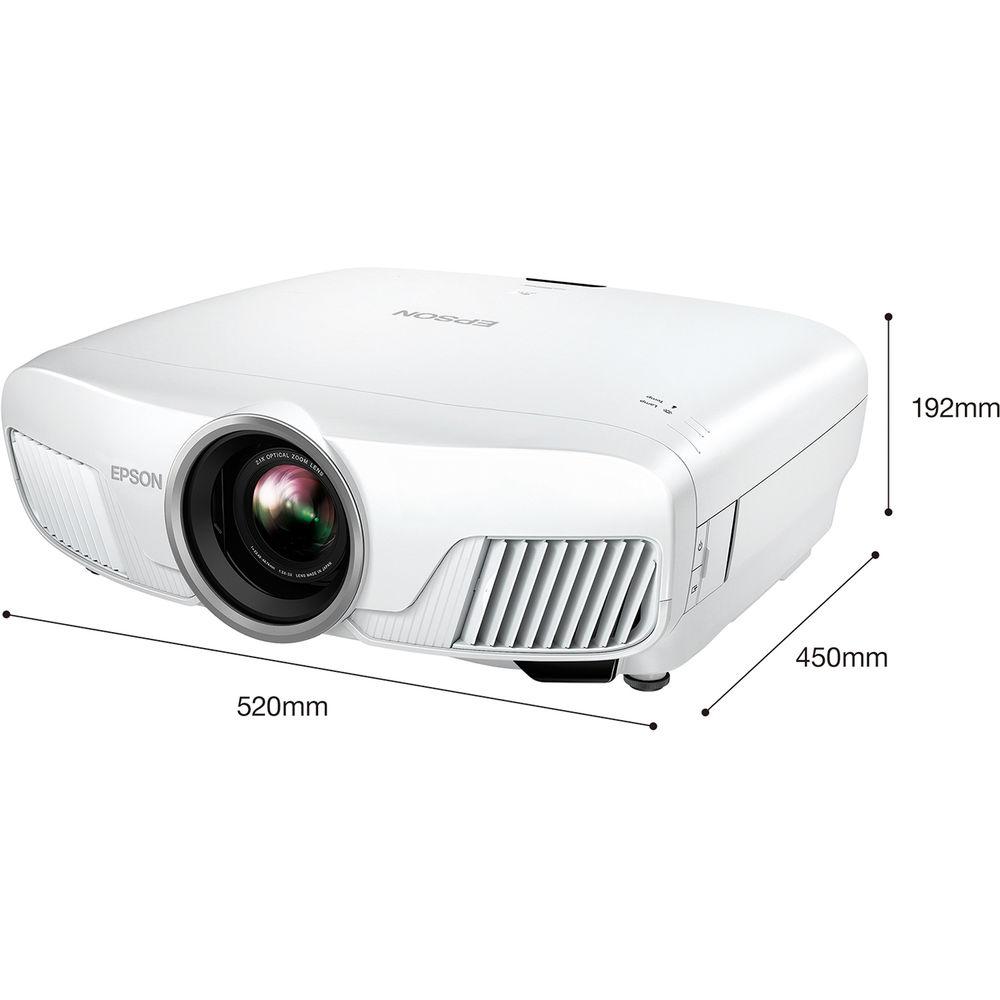

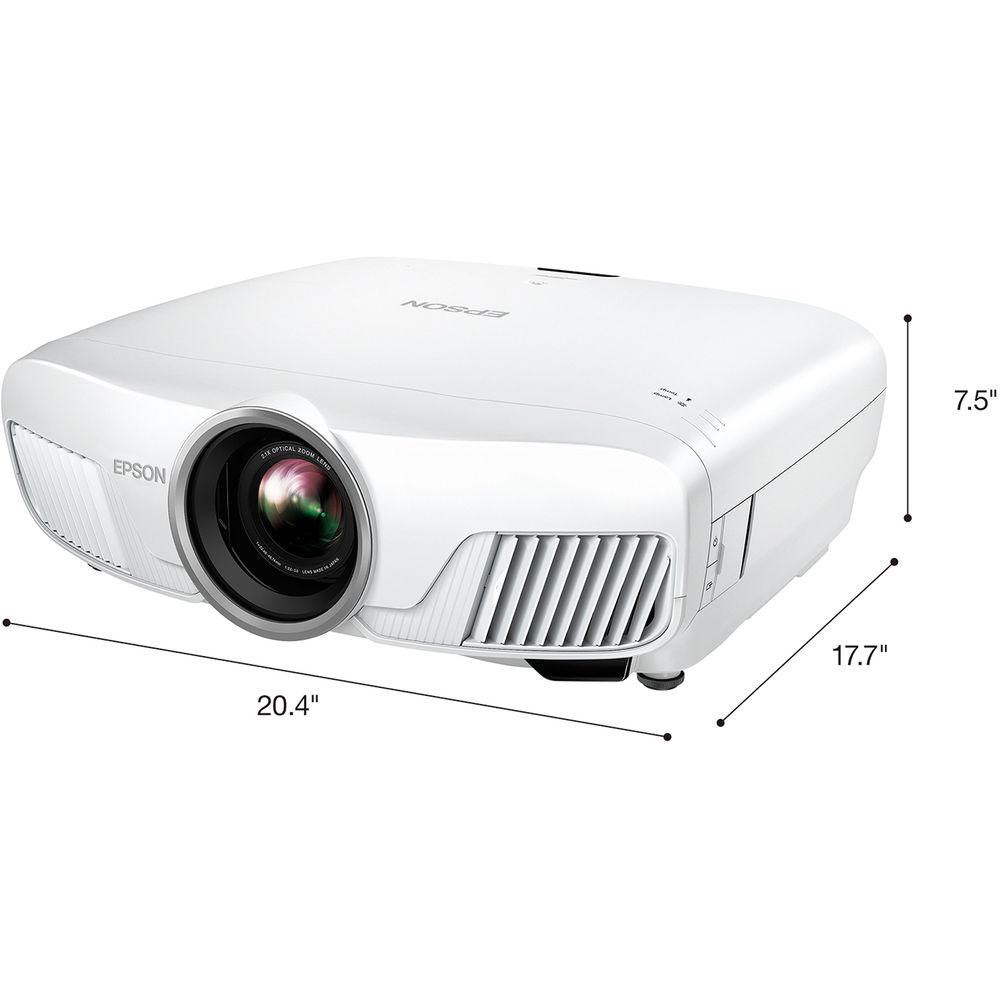

Low Brightness: 283 W | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Dimensions (W x H x D) | 20.5 x 7.6 x 17.7" / 52.1 x 19.3 x 45.0 cm Including feet | | Weight | 24.7 lb / 11.20 kg | | | | Package Weight | 31.75 lb | | Box Dimensions (LxWxH) | 25.8 x 20.3 x 10.3" |
