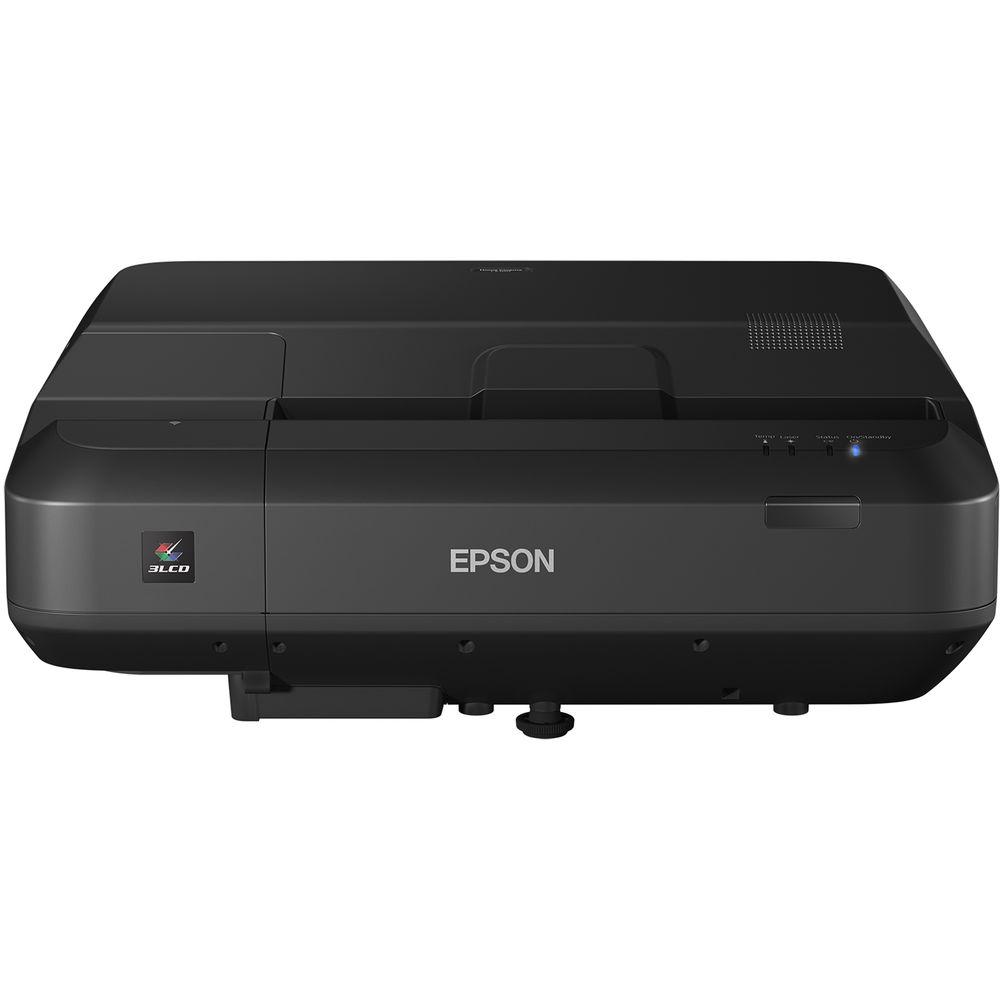

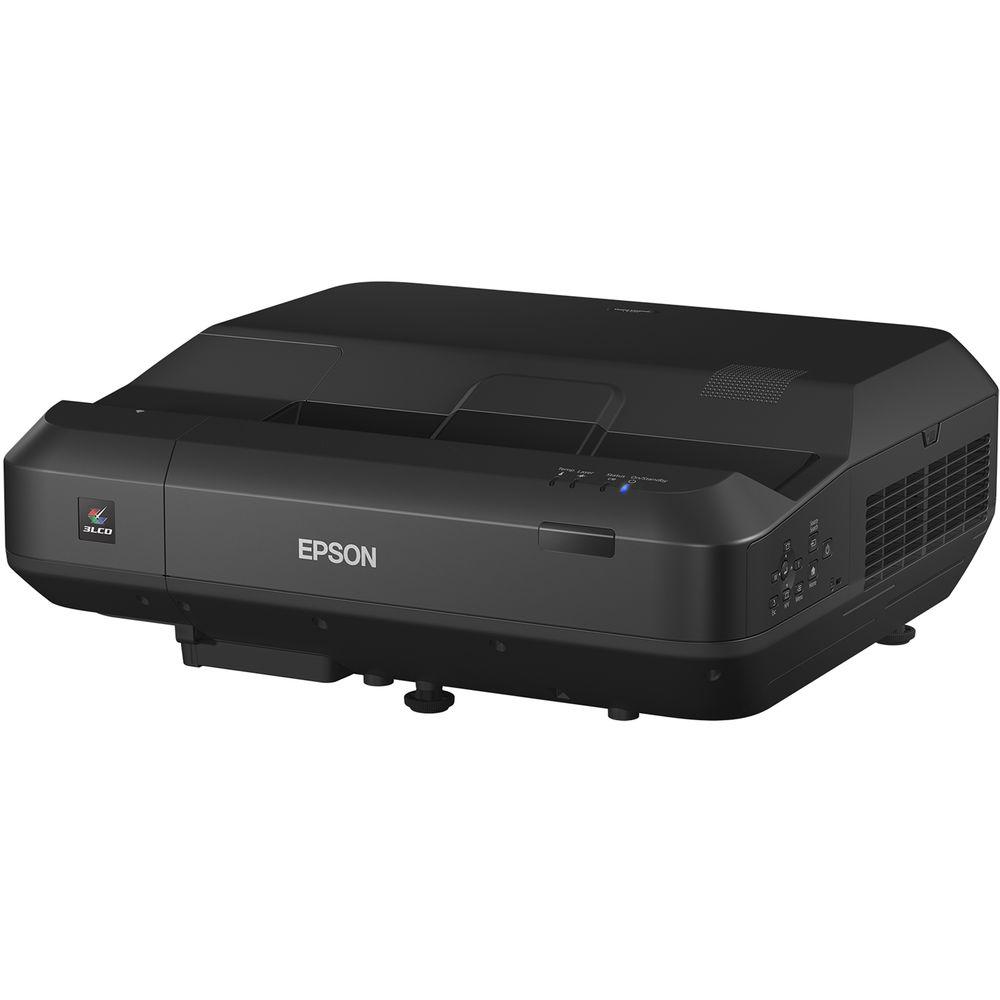

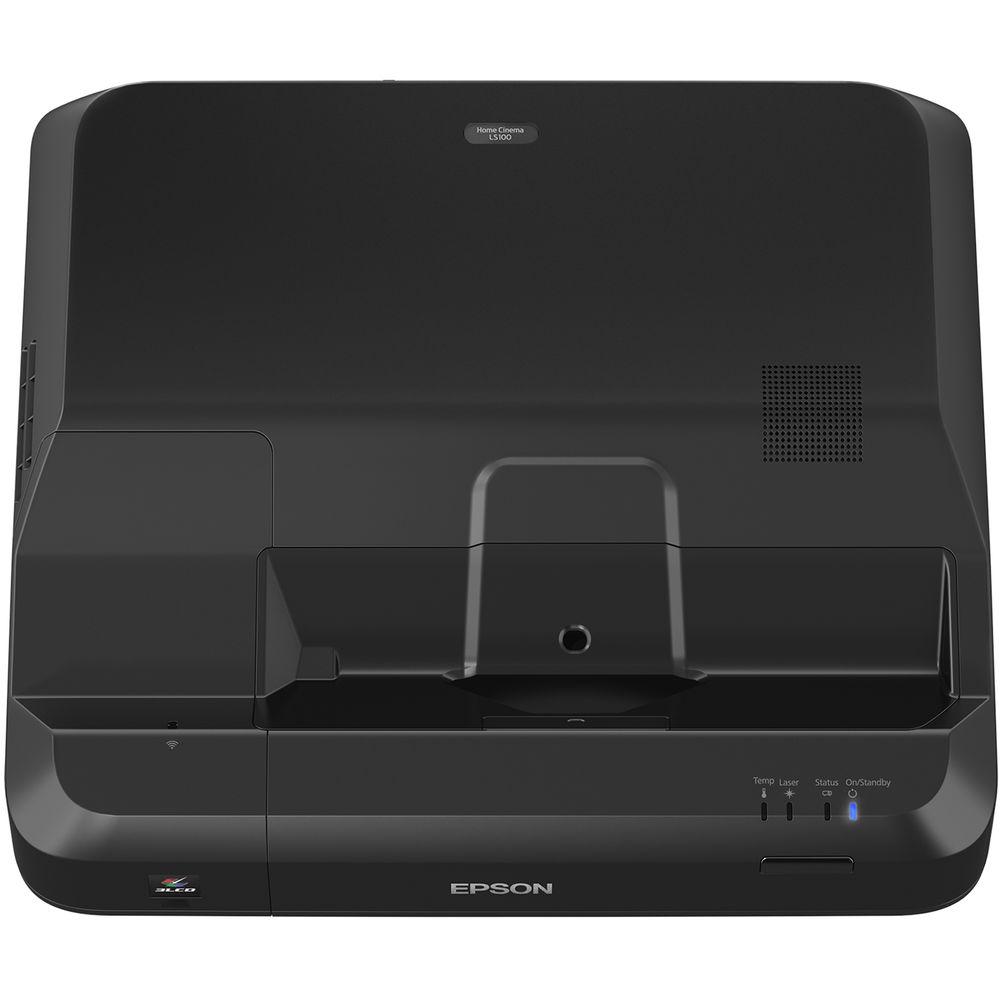

User Manual for Epson Home Cinema LS100 WUXGA Laser 3LCD Home Theater Projector Click to enlarge the picture
Contents of the user manual for the Epson Home Cinema LS100 WUXGA Laser
- Product category: Home Theater Projectors Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Home Theater Projectors
 |
User manual for the Epson Home Cinema LS100 WUXGA Laser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|
Product description Buying Guide to Projectors Read More xstbwtzusuxu Enjoy bright, WUXGA content with the Epson Home Cinema LS100 Full HD Laser 3LCD Home Theater Projector. Its 4000 lumens of color and white brightness is suitable for a variety of lighting conditions, while its 2,500,000:1 dynamic contrast ratio enhances detail when viewing dark images. The projector delivers WUXGA 1920 x 1200 native resolution for clear images at most viewing distances.

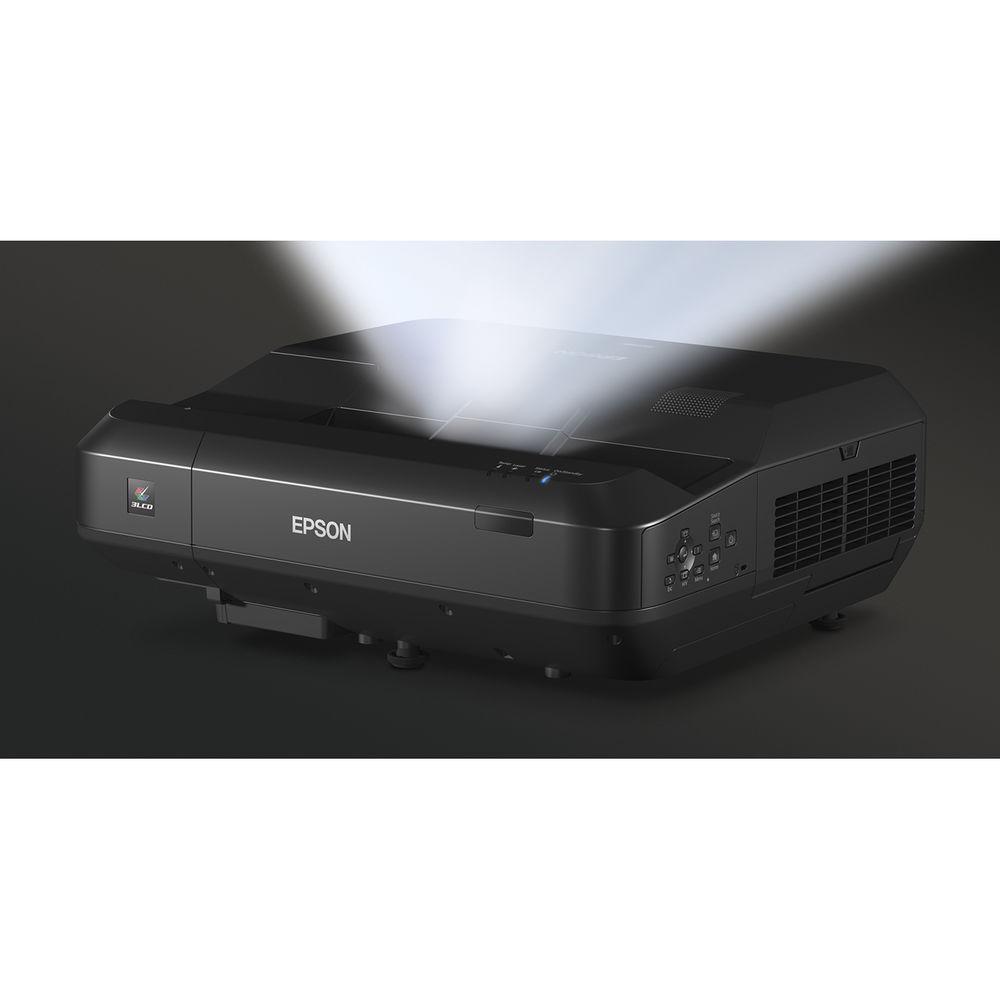

The Home Cinema LS100 features an ultra-short 0.27 to 0.37:1 throw ratio, allowing you to place it very close to your screen or wall to prevent shadows from people passing between the projector and a wall or screen. It features one VGA and three HDMI inputs to connect both standard definition and HD sources. Additionally, one HDMI input is MHL-compatible for connecting compatible smart devices. An IR remote control is included for added convenience. - Ultra-Short-Throw Projection
- Place the projector just inches from your wall or screen to get sharp, large images in WUXGA resolution up to 10' diagonal.
- Laser Light Source
- Projectors using a laser light source can run up to 10 years virtually maintenance-free.
- Bright, Colorful Output
- The projector features 4000 lumens of color and white brightness for enhanced vibrancy.
- WUXGA Resolution
- WUXGA resolution allows the projector to display WUXGA content for enhanced image quality and detail.
- High Dynamic Contrast Ratio
- The LS100 features up to a 2,500,000:1 dynamic contrast ratio for deep blacks and bright, vivid colors.
- HDMI Connectivity
- The LS100 has three HDMI ports, allowing you to connect up to three sources, such as cable/satellite boxes, gaming consoles, and streaming media players, directly to the projector.
- 3-Chip Design
- 3LCD technology doesn't require a color wheel, so there is no rainbow effect.
- Eco Features
-
- RoHS compliant
- Recyclable design
UPC: 010343937604 In the Box Epson Home Cinema LS100 WUXGA Laser 3LCD Home Theater Projector Remote Control with Batteries Power Cord Limited 2-Year Warranty More info from Epson Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson Home Cinema LS100 WUXGA Laser 3LCD Home Theater Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson LS100 Specs | Projection System | 3LCD | | Driving Method | Poly-silicon TFT active matrix, 3x 0.74" (18.8 mm) panels (reflective HTPS) | | Projection Method | Front, rear, ceiling | | Brightness | White: 4000 lumens
Color: 4000 lumens | | Dynamic Contrast Ratio | 2,500,000:1 | | Native Resolution | 1920 x 1200 (WUXGA) | | Aspect Ratio | Native: 16:10
Supported: 16:9, 4:3 | | Color Processing | 10-bit | | Color Reproduction | Up to 1.07 billion colors | | Projection Lens | Type: Manual focus
F-Number: 1.6
Focal Length: 4.2 mm
Digital Zoom Ratio: 1 to 1.35x | | Light Source | Type: Laser diode
Life: Up to 30,000 hours in ECO Mode | | Throw Ratio | 0.27 to 0.37:1 | | Projection Size | 70 to 130" (177.8 to 330.2 cm) | | Projection Distance | 15.9 to 30.7" (40.5 to 78.1 cm) | | Keystone Correction | Horizontal: ±3°

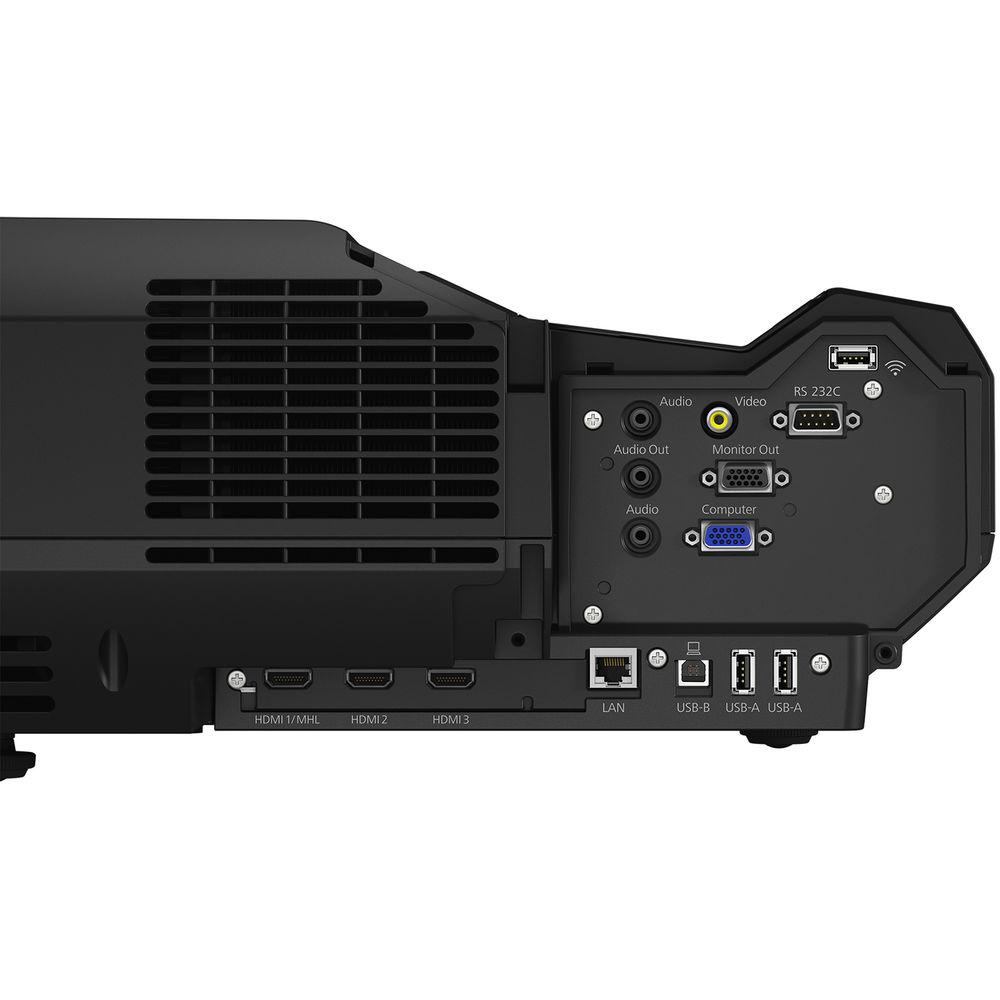

Vertical: ±3° | | Inputs | 2 x HDMI
1 x HDMI with MHL
1 x 15-pin VGA
1 x RCA composite video
2 x 1/8" (3.5 mm) audio
2 x USB Type-A
1 x USB Type-B | | Output | 1 x 15-pin VGA
1 x 1/8" (3.5 mm) audio | | Other Connectors | 1 x RS-232C in
1 x Ethernet LAN | | Fan Noise | Normal Mode: 38 dB
Quiet Mode: 29 dB | | Remote Control | Operating Distance: 19.7' (6 m)
Front Operating Angle, Right/Left/Up/Down: ±30°
Rear Operating Angle, Right/Left: ±30°
Rear Operating Angle, Up/Down: 0 to 60° | | Power Requirements | 100 to 240 VAC ±10%, 50/60 Hz, 2 to 4.6 A | | Power Consumption (Active) | 100 to 120 VAC:
Normal Mode: 448 W
Extended or Quiet Mode: 348 W
220 to 240 VAC:
Normal Mode: 423 W
Extended or Quiet Mode: 332 W | | Power Consumption (Standby) | Communication On: 2 W
Communication Off: 0.3 W | | Dimensions (W x H x D) | 19.4 x 7.4 x 17.2" (49.3 x 18.8 x 43.7 cm) including feet
19.4 x 6.8 x 17.2" (49.3 x 17.3 x 43.7 cm) excluding feet | | Weight | 24.3 lb (11 kg) | | | | Package Weight | 31.75 lb | | Box Dimensions (LxWxH) | 25.5 x 22.25 x 9.5" |
