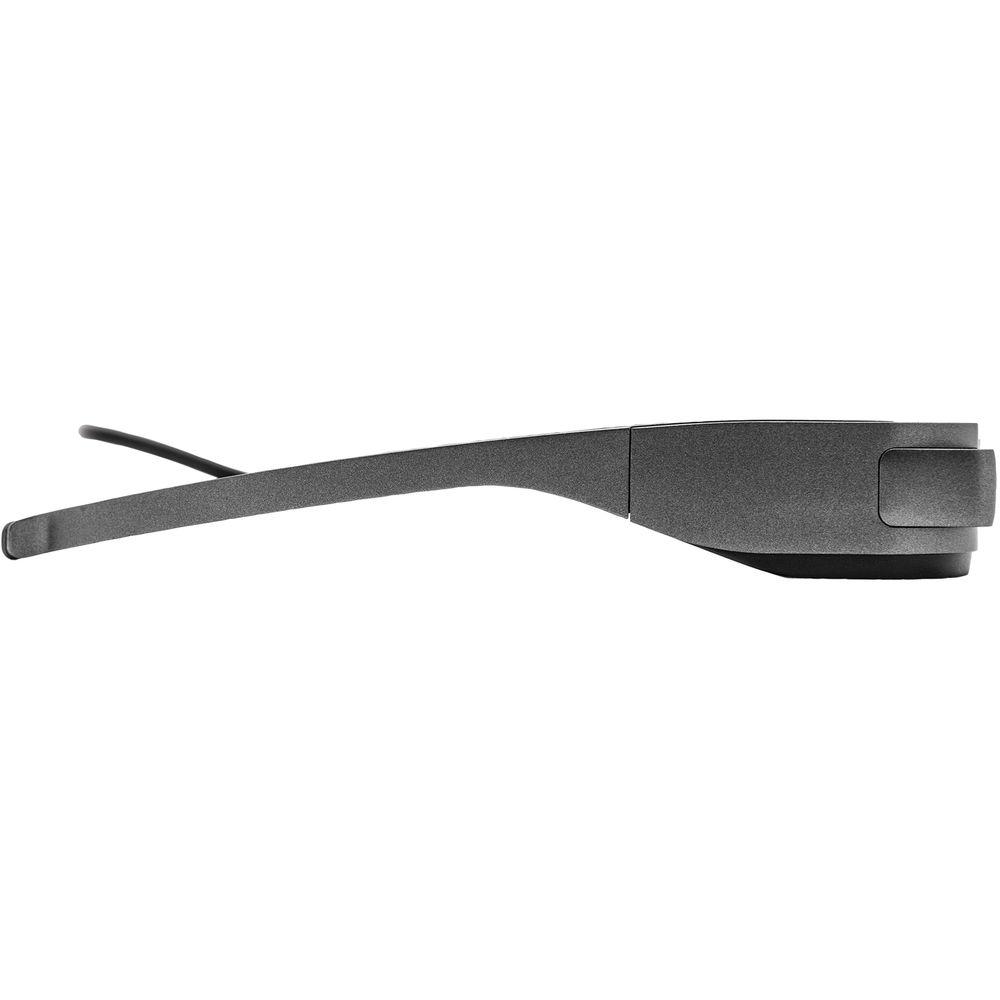

User Manual for Epson Moverio BT-300 Drone FPV Edition Glasses Click to enlarge the picture
Contents of the user manual for the Epson Moverio BT-300 Drone FPV Edition
- Product category: FPV (First Person View) Components Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson FPV (First Person View) Components
 |
User manual for the Epson Moverio BT-300 Drone FPV Edition contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|

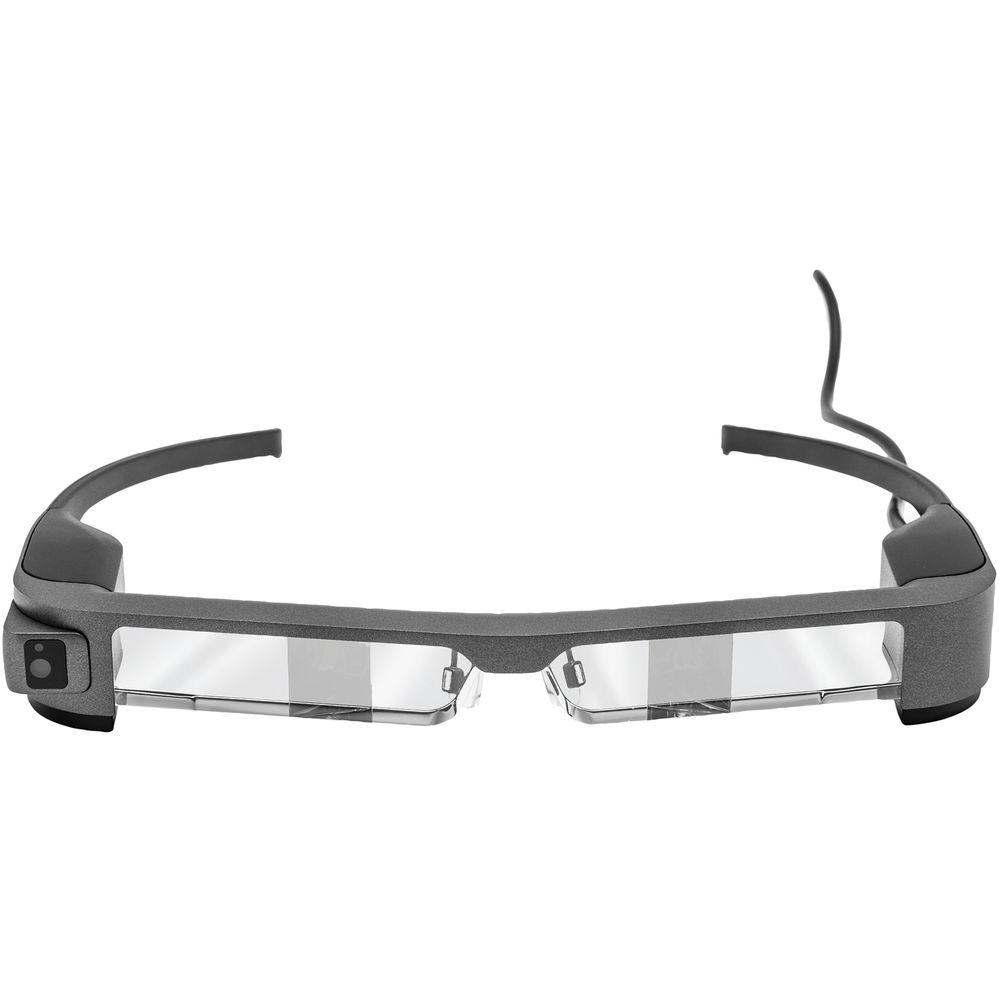

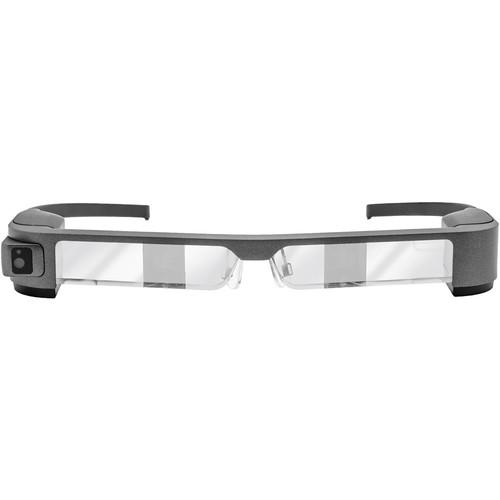

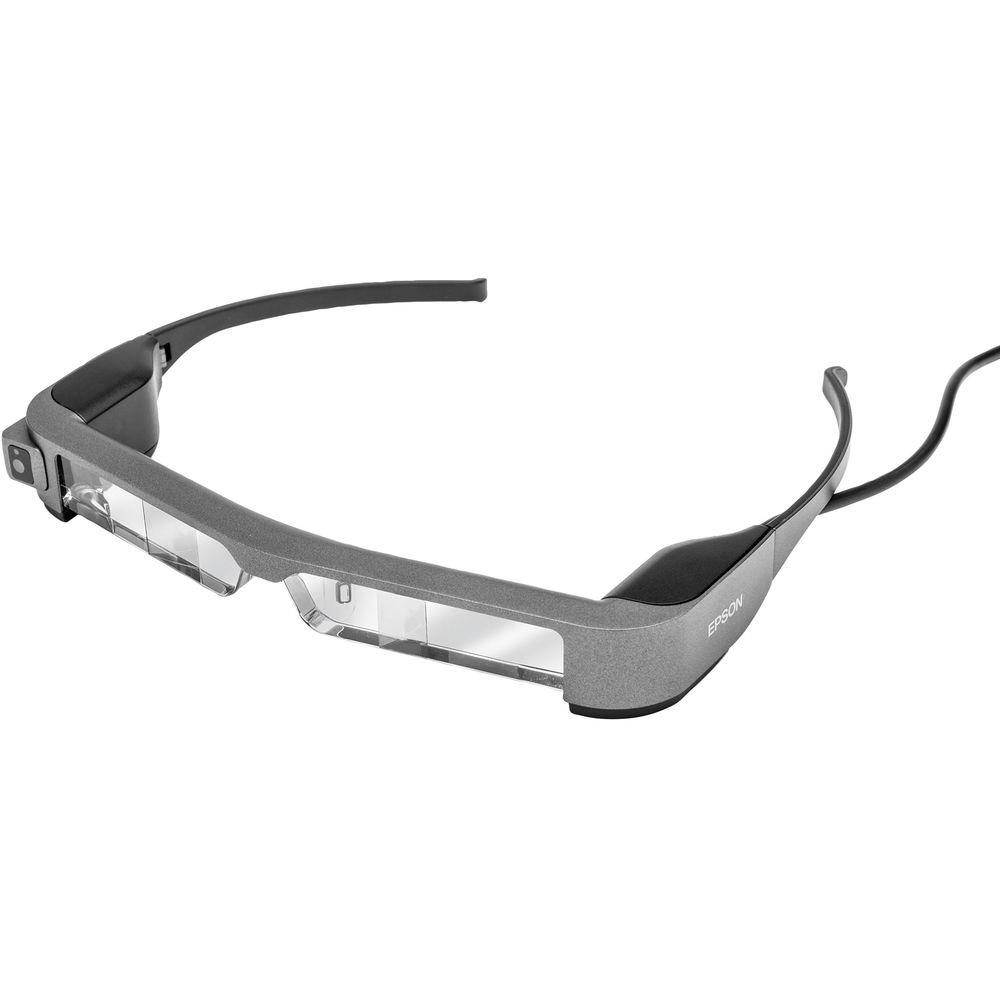

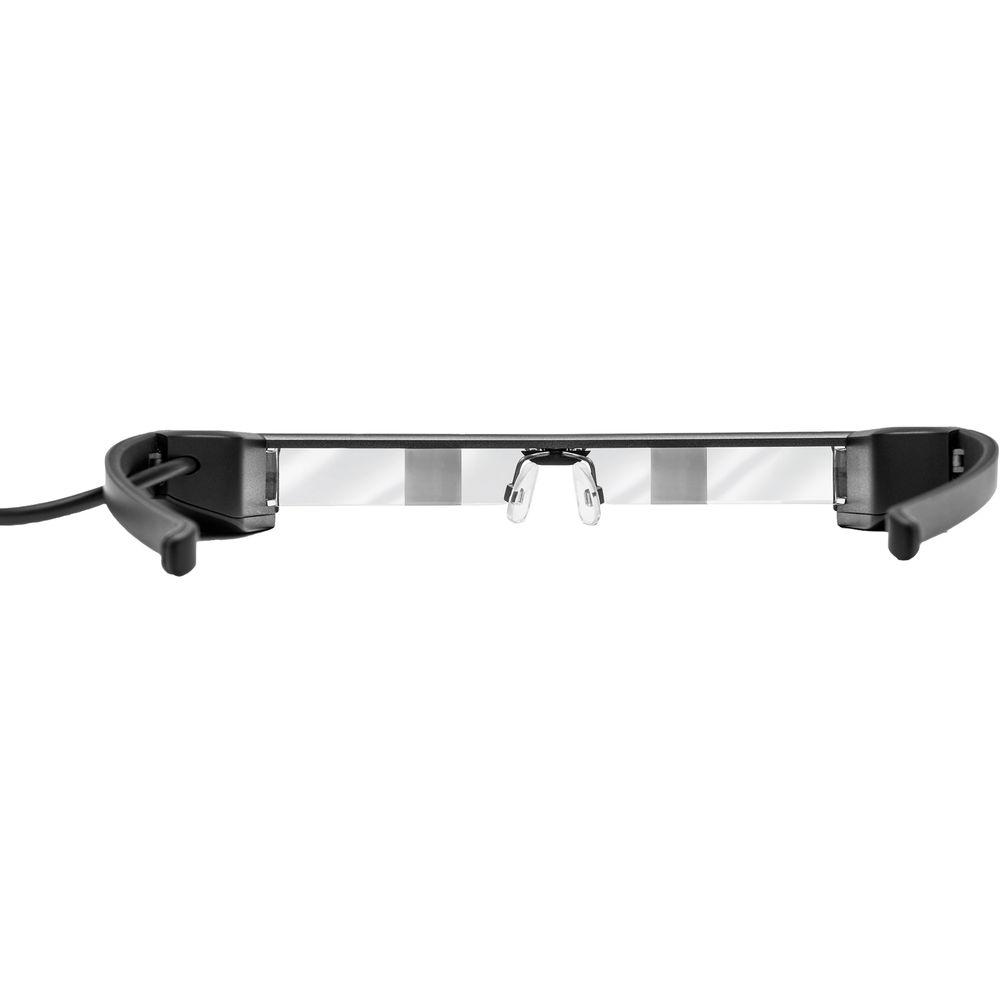

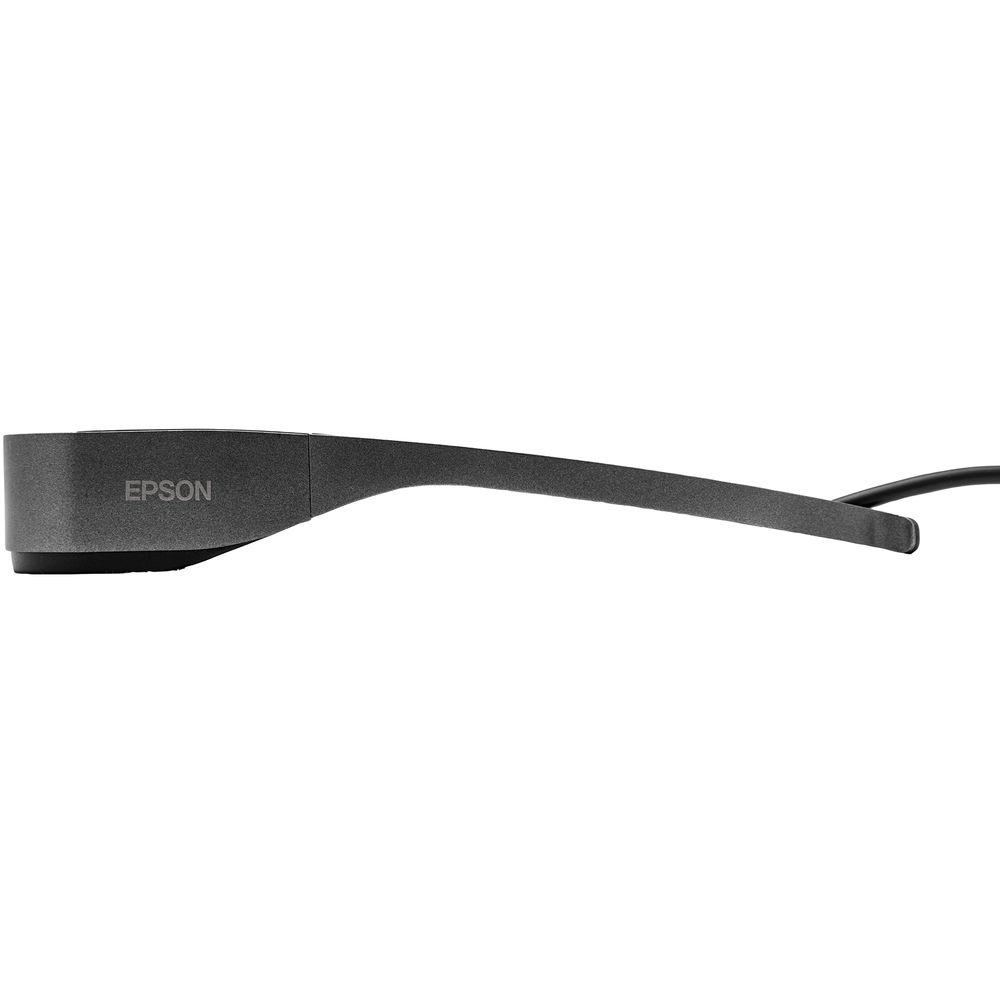

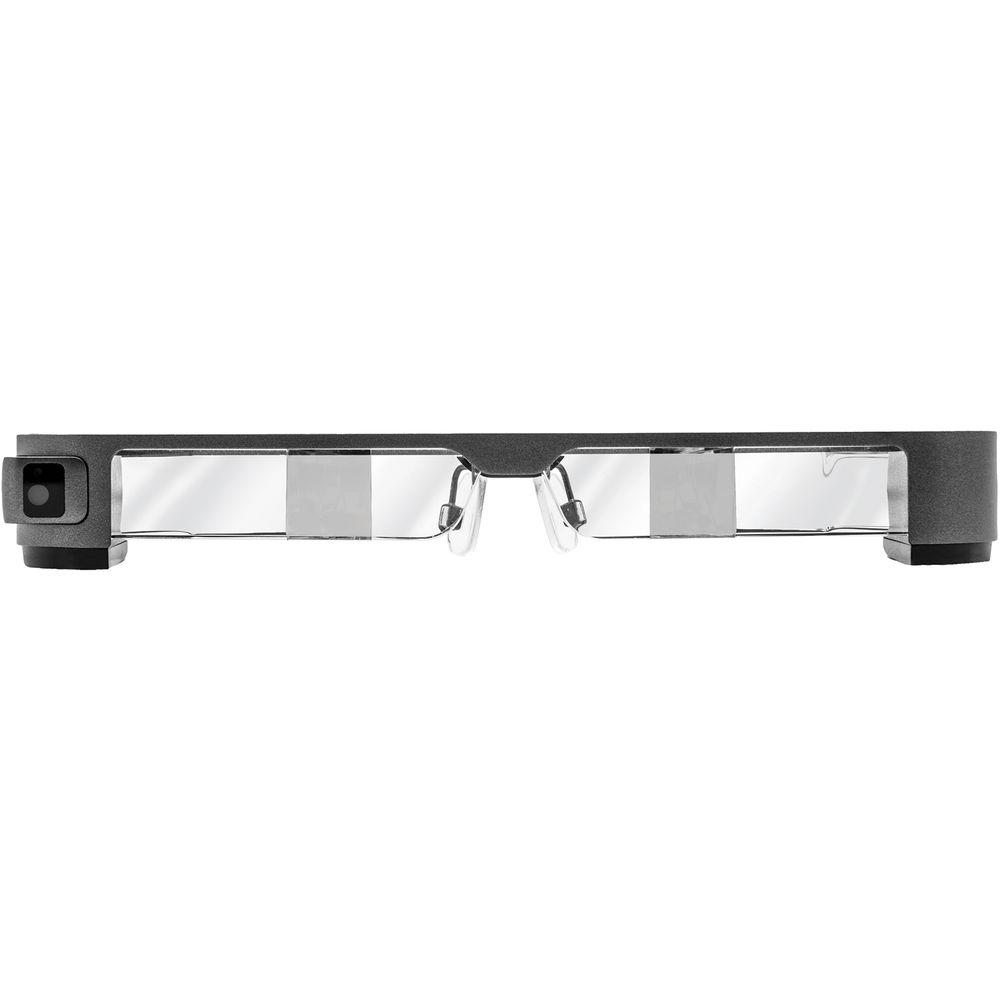

Product description Get the best of both worlds with the Moverio BT-300 Drone FPV Edition Glasses from Epson. Normally when piloting a drone, you have the ability to look up and see your drone while FPV footage streams to a display on your controller, or you can wear a headset to get a fully immersive first-person experience. With Moverio BT-300 you get both! The glasses showcase FPV footage with overlaid flight data but are transparent so you can watch your drone fly and more easily avoid obstacles.
The Moverio BT-300 glasses are a DJI-certified accessory, so you can feel more confident in pairing them with your favorite DJI drone. Custom clips are designed to securely hold the Moverio controller to your DJI Mavic, Phantom, or Inspire remote. The inclusion of a dark lens shade lets you use the Moverio BT-300 glasses even on sunny days. - Lightweight and Prescription-Friendly
- The Si-OLED-powered, binocular Moverio BT-300 glasses are meant to remain comfortable while being worn for extended periods of time, thanks to them weighing only 2.5 oz. They are also designed to fit over a wide range of prescription glasses, so more people can get in on the action.
- DJI Optimized
- With the BT-300 glasses being DJI-certified, they are optimized to work with a host of DJI-compatible apps. DJI GO comes preloaded, and more can be found on the Moverio Apps Market.
- Record Your Drone
- Record your drone's flight from your point of view, to share with others or to review your performance. The front-facing camera captures what you see in up to 1080p Full HD resolution at 30 fps.
- Android-Bases System for More than Flying
- The Moverio BT-300 glasses are a versatile product that can be used for more than just drone piloting. Thanks to Epson's Android-based system, you can use the glasses for browsing the web, streaming videos, or playing games. Please note that they don't support the Google Play Store or other Google Mobile Services directly.
- Portable Design and Expandable Storage

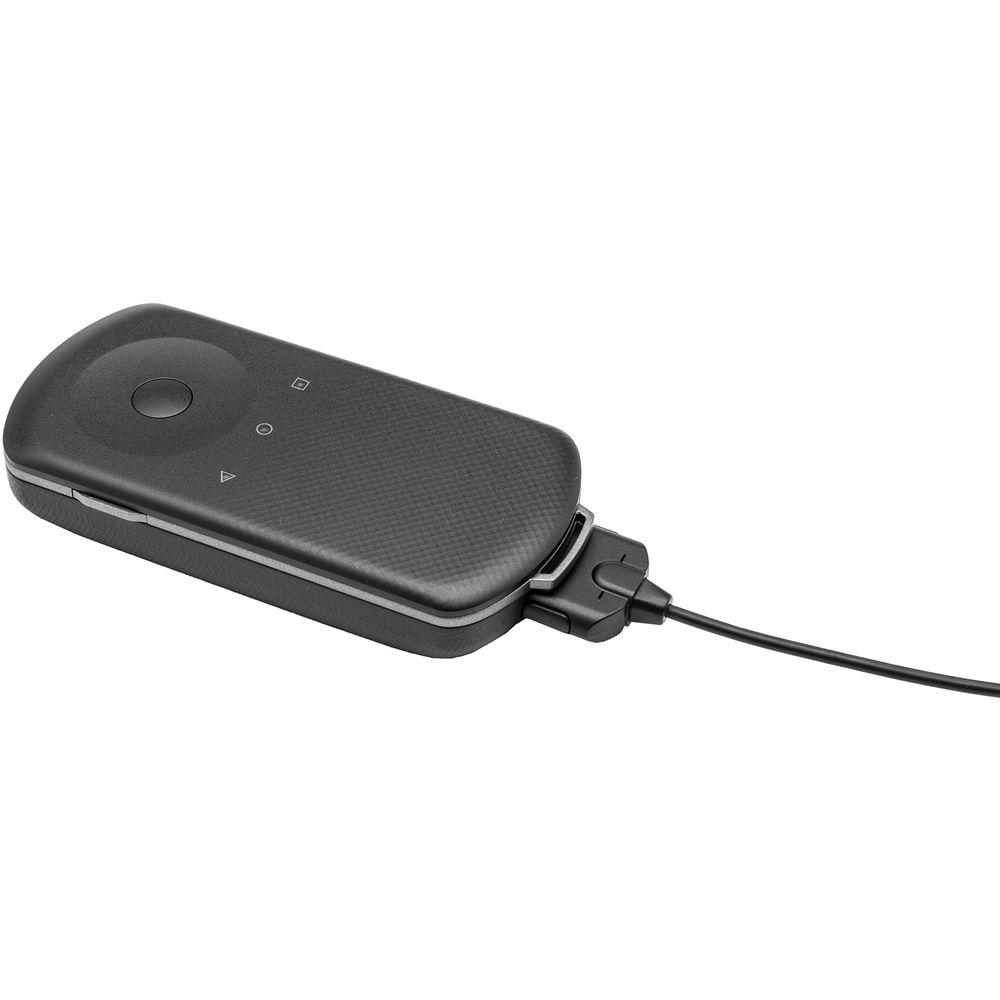

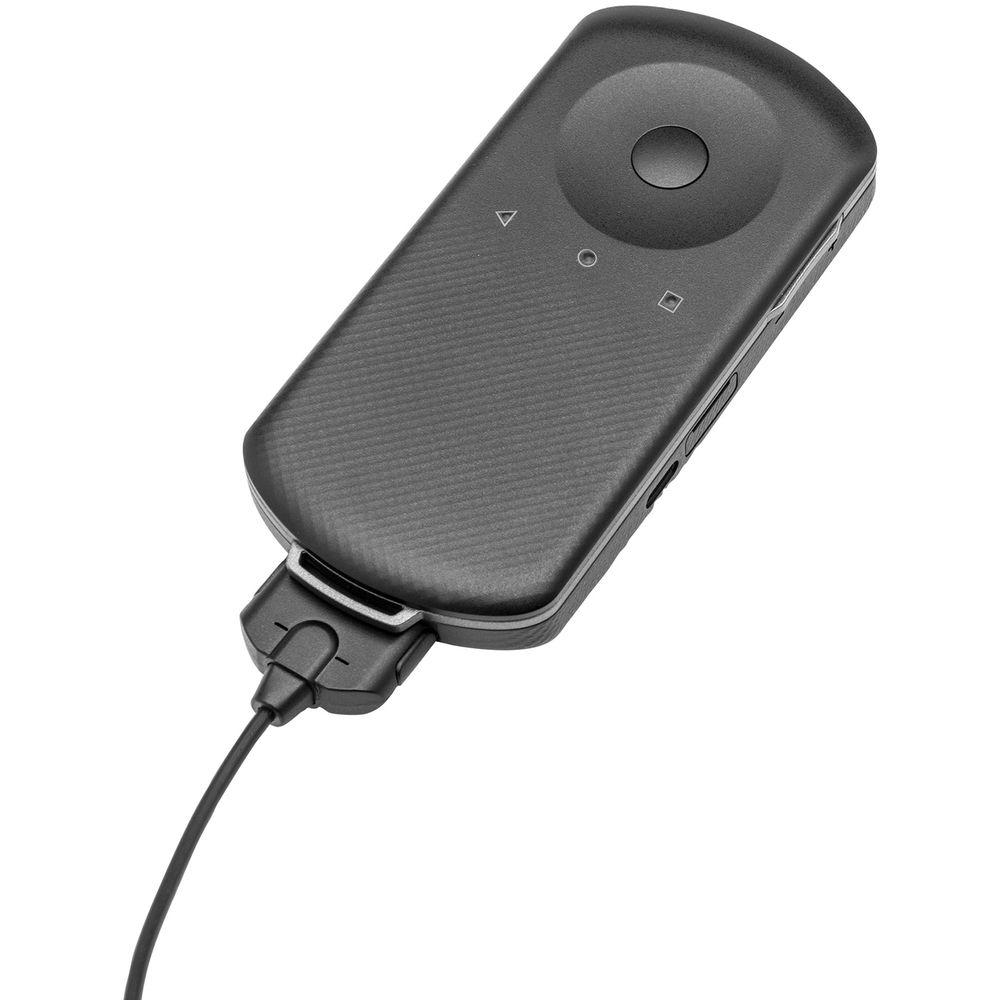

- The BT-300 FPV glasses are designed to give you the freedom to take them where you want. Built into the controller is a rechargeable battery that delivers up to six hours of battery life. When recording footage, you can save it to an (optional) microSD card. The built-in card slot accepts cards up to 32GB in size.
UPC: 010343946804 In the Box Epson Moverio BT-300 Drone FPV Edition Glasses Controller 2 x Sunshade AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson Moverio BT-300 Drone FPV Edition Glasses in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson Moverio BT-300 Specs | | | Display Type | Si-OLED (Silicon-Organic Light-Emitting Diode) | | Power Supply Voltage | Controller: 5 VDC, 900 mA via Micro-USB Terminal
AC Adapter: 100 to 240 VAC ±10%, 50/60 Hz with Micro-USB Cable | | Battery Life | Up to 6 Hours | | Battery Type | Lithium-Ion Polymer (LiPo) | | Dimensions (W x D x H) | Headset: 7.5 x 7.0 x 1.0" / 19.1 x 17.8 x 2.5 cm
Controller: 2.2 x 4.6 x 0.9" / 5.6 x 11.6 x 2.3 cm | | Weight | Headset: 2.5 oz / 70.9 g (Excluding Cable)
Controller: 4.6 oz / 129.0 g | | | | Driving Method | Mono Crystalline Silicon Active Matrix | | Display Size | 0.43" / 0.4 cm (Panel Width) | | Aspect Ratio | 16:9 | | Total Pixel Number | 921,600 Pixels (1280 x 720, RGB) | | Refresh Rate | 30 Hz | | Field of View | 23° (Diagonal) | | Screen Size - Projected Distance | 40° at 8.2' / 2.5 m
320° at 65.6' / 20.0 m | | Color Reproduction | 24-Bit Color (16.77 Million Colors) | | | | Temperature | 41 to 95°F / 5 to 35°C | | Humidity | 20 to 80% | | Operating System | Android 5.1 | | | | Camera | 5 MP | | GPS | Yes, in Controller | | Compass | Yes, 3-Axis in Both Glasses and Controller | | Gyroscope | Yes, 3-Axis in Both Glasses and Controller | | Accelerometer | Yes, 3-Axis in Both Glasses and Controller | | | | CPU | Intel Atom x5 1.44 GHz Quad-Core | | Internal Memory | Approximately 16 GB (Including Android OS) | | RAM | 2 GB | | | | Maximum Audio Output Voltage | 150 mV | | | | Pre-Installed Software | Browser, Calculator, Calendar, Camera, Clock, Contacts, Downloads, Email, Music, Search, Settings, Sound Recorder, Moverio Apps Market, and MovFiler | | | | Function Keys | Power, Home, Recents, Back, Function (Lock, Brightness, 2D/3D), and Volume (+/-) | | Touchpad | Capacitive Multi-Touch | | | | Wireless LAN | Wi-Fi 5 (802.11ac) with Wi-Fi Certified, Miracast (Source/Sink) ODFM, DS-SS | | Bluetooth | Bluetooth Smart Ready Class 2 (2.5 mW, 10 m)
Version 4.1
Supported Profiles: HSP, A2DP, HID, OPP, SPP, AVRCP, and PAN | | | | Picture | JPEG, PNG, BMP, and GIF | | Video | MP4 (MPEG4/H.264+AAC), MPEG2 (H.264+AAC), and VP8 | | Audio | WAV, MP3, and AAC | | 3D Support | Side by Side | | | | Package Weight | 2.74 lb | | Box Dimensions (LxWxH) | 9.4 x 8.9 x 5.0" |
