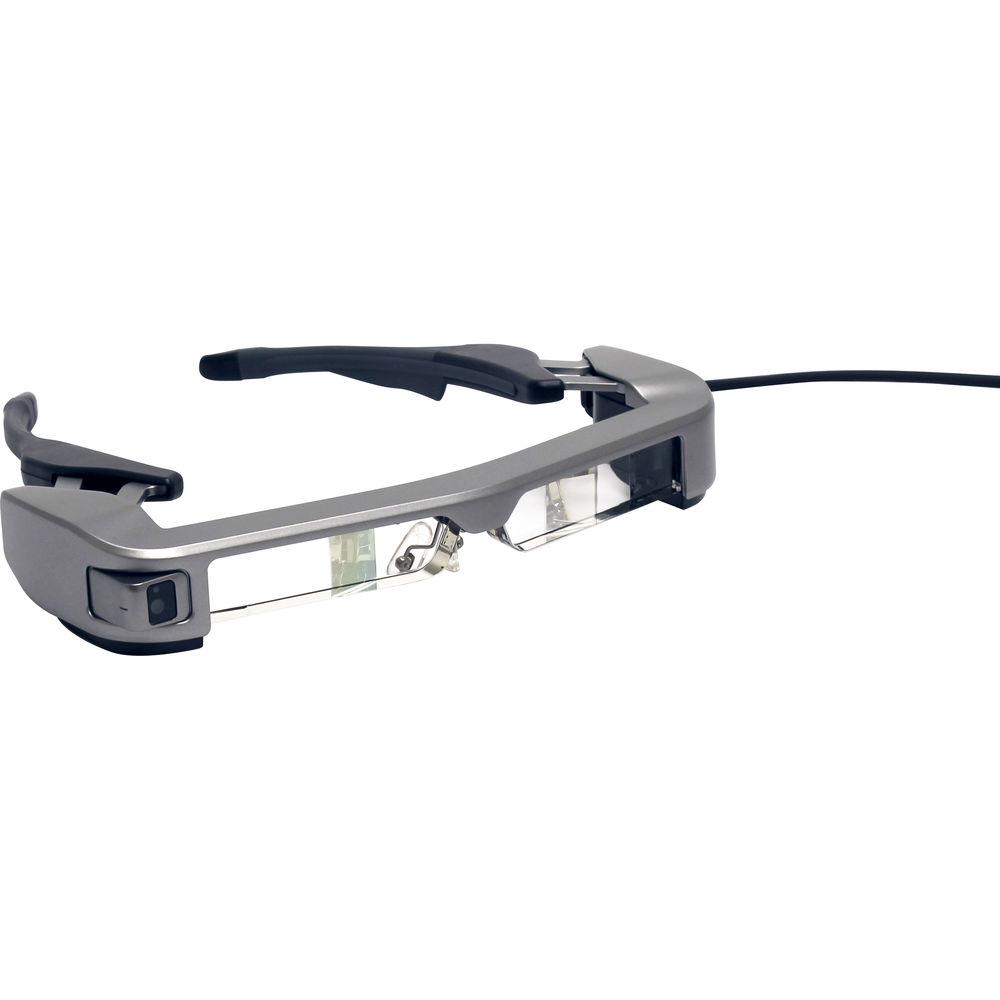

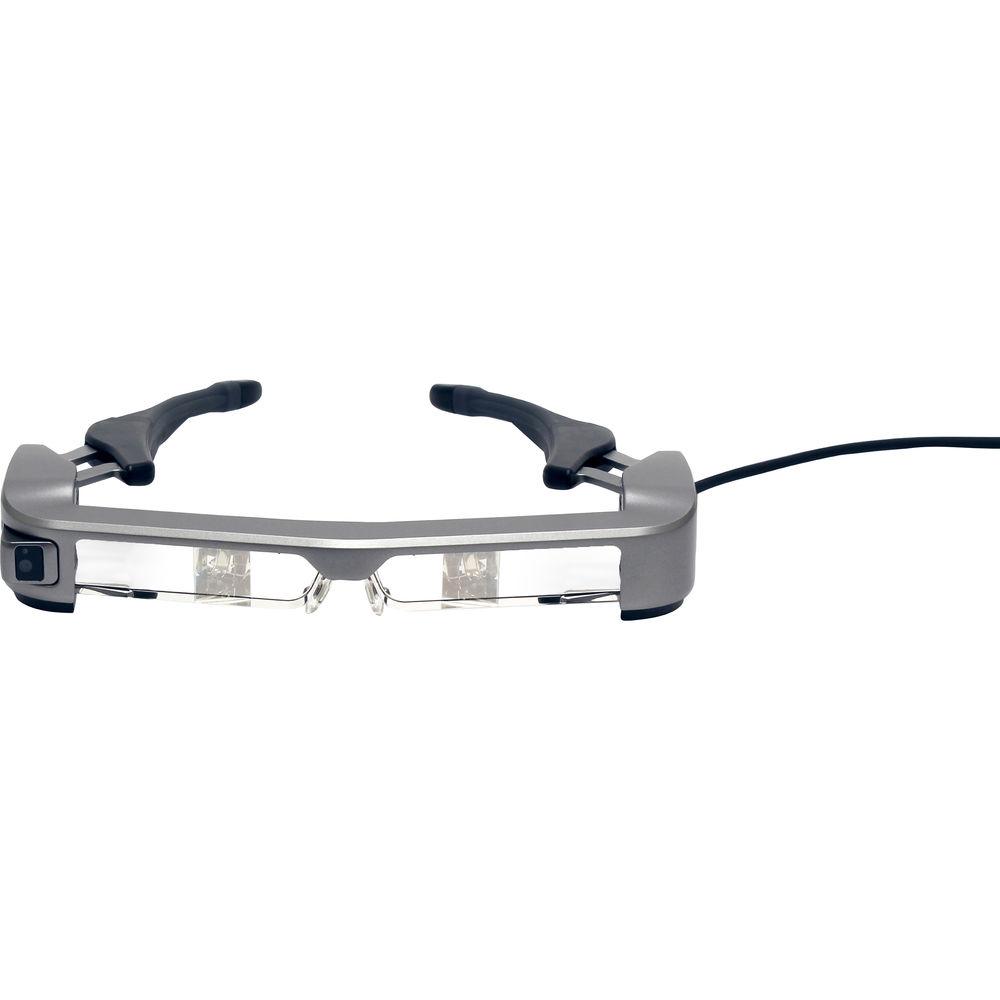

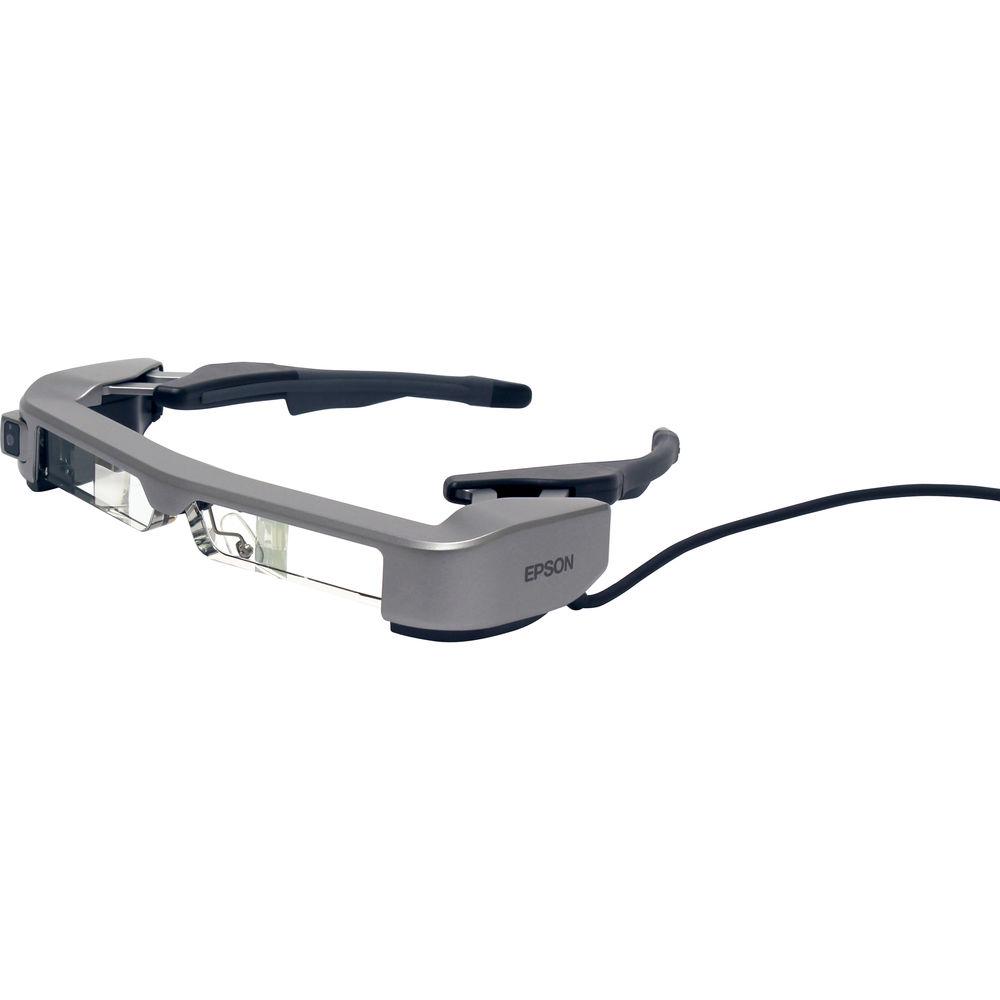

User Manual for Epson Moverio BT-35E Smart Glasses Click to enlarge the picture
Contents of the user manual for the Epson Moverio BT-35E Smart Glasses
- Product category: FPV (First Person View) Components Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson FPV (First Person View) Components
 |
User manual for the Epson Moverio BT-35E Smart Glasses contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|
Product description The Moverio BT-35E Smart Glasses from Epson allow you to connect up to a 1080p60 video source to HDMI or USB Type-C inputs and view the content in up to 720p30 HD resolution. At the same time, you can still see through the transparent glass as if wearing regular see-through glasses. You can connect drone monitors, cameras, game consoles, laptops, Android phones (because they have a USB output), and pretty much any other video source to the glasses and enjoy the content indoors, outdoors, seated, walking, and so on. The glasses can also be worn over eyeglasses that are 5.8" or less in width.
The Moverio BT-35E Smart Glasses come with a compact interface unit that has HDMI and USB Type-C ports for connecting your video source. The glasses feature an integrated cable that also connects to the interface unit to establish a connection between the two, and the interface unit can be clipped to your belt, pocket, backpack strap, or something similar using the included belt clip. For hearing the audio of your video source, there's a headphone port on the integrated cable of the glasses.
Power is provided via an AC adapter that plugs into a micro-USB port on the interface unit. Alternatively, when you connect your video source via the USB Type-C port instead of HDMI, power is delivered from your video source to the glasses along with the video data, allowing you to use the glasses without being connected to a wall outlet. Also, an external USB battery pack (with a 5V, 1.5A output) can be connected for extended power.
The glasses also feature a built-in camera for use by SDK developers. The camera function requires a dedicated SDK software development kit, which can be created through the developer's guide found on the Epson website.
The Moverio BT-35E Smart Glasses have a flexible, hinge-based design that comfortably fits most head sizes, and they're durable for safe daily use. - Key Features
-
- Connect drone monitors, cameras, game consoles, laptops, Android phones, and other video sources up to 1080p60 via HDMI or USB inputs
- View content in up to 720p30 resolution (Si-OLED display)
- See the world around you through the transparent glass
- Can be worn over eyeglasses up to 5.8" in width
- Connect your source to a compact interface unit that can be clipped on a belt, pocket, etc.
- Connect the glasses to the interface unit using an integrated cable
- Headphone port offered on the integrated cable
- USB Type-C port supports video and power (from the video source) over the same cable
- Can also be powered directly via an AC adapter that connects to the interface unit
- External USB battery packs supported
- Built-in camera for use by developers via a dedicated SDK software development kit
- Flexible, hinge-based design comfortably fits most head sizes

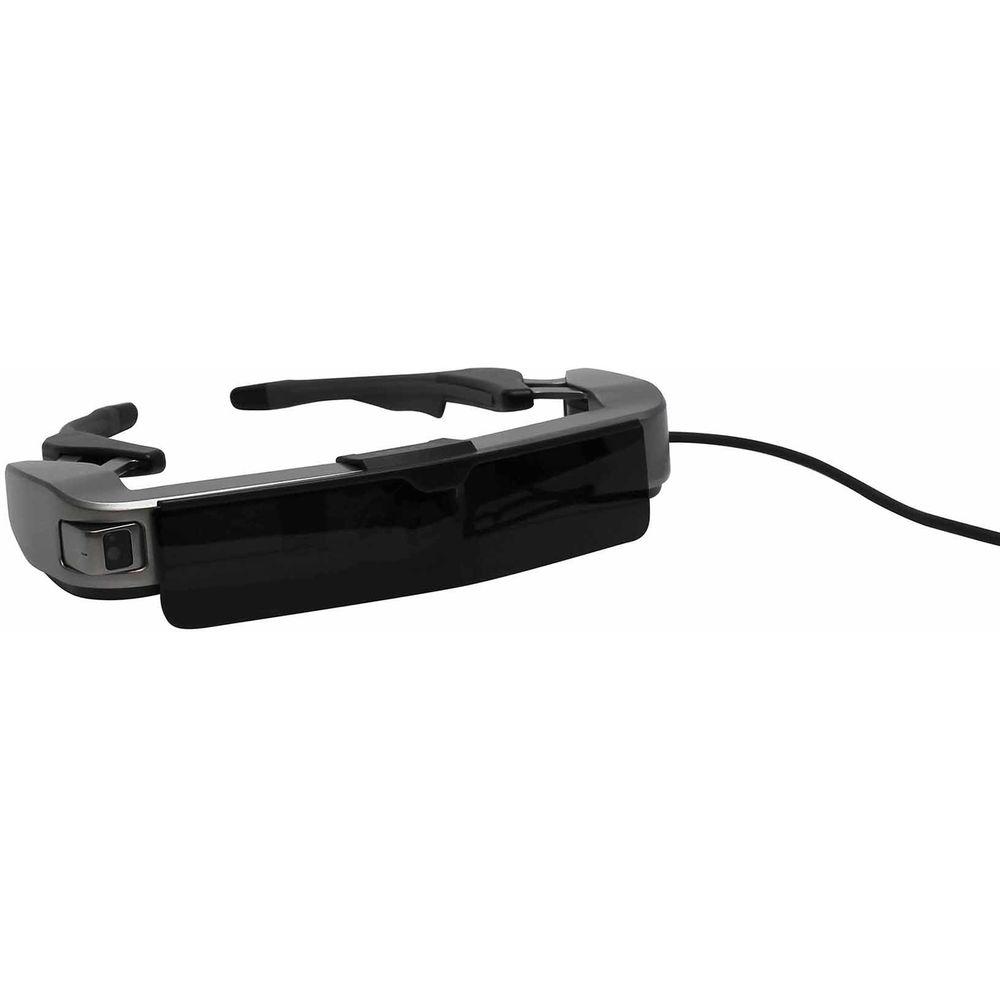

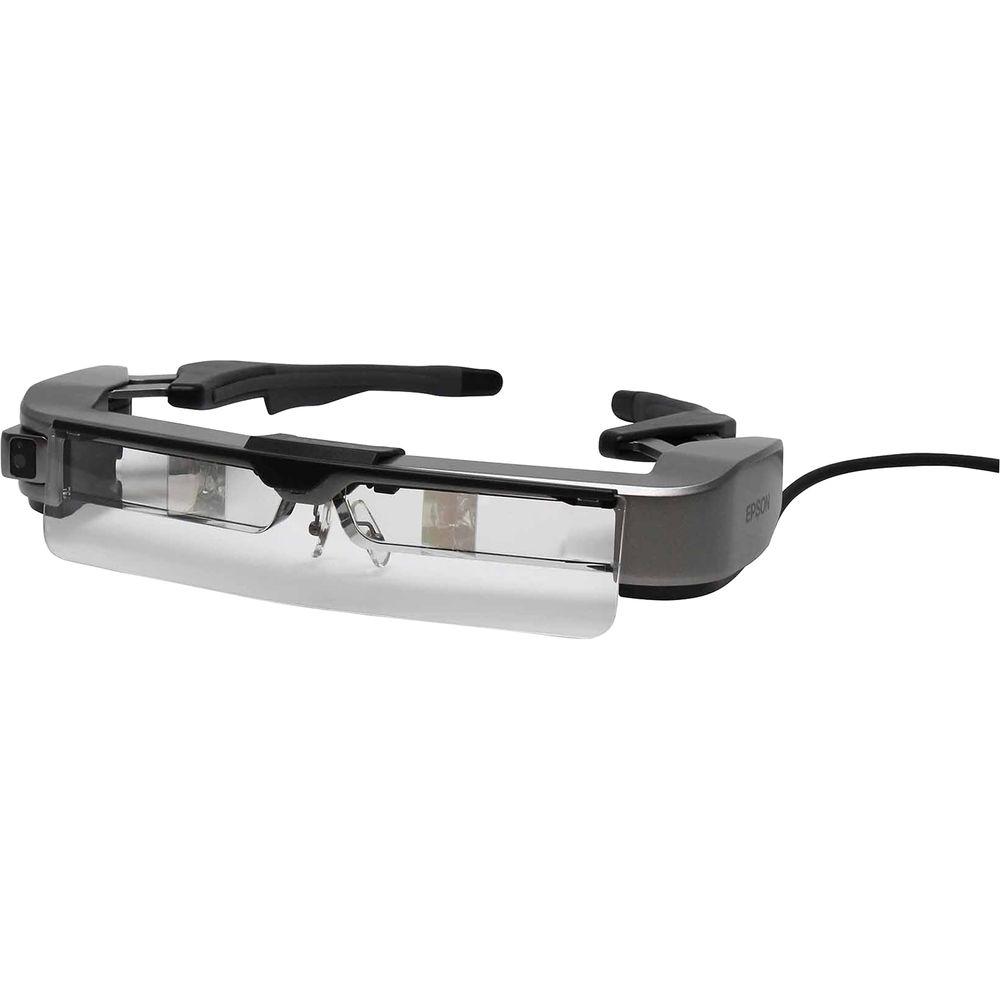

- Clear and shaded safety shields included
- Temple grip/nose pads are replaceable in case they get dirtied or deteriorated
- Ambient light sensor automatically adjusts the brightness of the display based on your surroundings
UPC: 010343943063 In the Box Epson Moverio BT-35E Smart Glasses Interface Unit AC Adapter Micro-USB Cable (for Power Supply) ANSI Shield (Clear) ANSI Shield (Shaded) Belt Clip Cable Retainer Screw Semi-Hard Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson Moverio BT-35E Smart Glasses in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson BT-35E Specs | Display | Two 0.43" / 1 cm Wide (16:9) Si-OLED Panels | | Display Resolution | 1280 x 720 at 30 Hz | | Field of View | Approx. 23° (Diagonal) | | Virtual Screen Size | 40" at 8.2' / 102 cm at 2.5 m | | Color Reproduction | 24-Bit | | Connections | Interface Unit:
1 x 4-Pin Mini Jack (For Headset)
1 x USB Type-C
1 x HDMI Type A 1.4
1 x USB Micro-B (Power Supply Only, 5 V/1.5 A)
Headset:
1 x 4-Pin Mini Connector on Integrated Cable (For Connecting to Interface Unit)
1 x 3.5 mm Audio Port on Integrated Cable | | HDMI Port | Up to 1080p60 Supported
EDID Support
HDCP 1.4
3D Formats Not Supported | | USB Type-C Port | Up to 1080p60 Supported
EDID Support
HDCP 1.3 | | Power Consumption | Operating: Approx. 6.5 W | | Image Sensor | 5 MP (Built-In Camera for Use with SDK Software Development Kit Only) | | Compass | Yes | | Gyroscope | Yes | | Accelerometer | Yes | | Compliance | RoHS Compliant | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 20 to 80% | | Dimensions | Headset:
7.6 x 6.9 x 1.2" / 19.4 x 17.6 x 3.0 cm (Without Shade)
Interface Unit:
3.3 x 2 x 0.6" / 8.5 x 5.2 x 1.5 cm | | Weight | Headset:
4.2 oz / 119 g (Without Shade)
Interface Unit:
1.6 oz / 45 g (Without Belt Clip and Cable Retainer) | | | | Package Weight | 2.775 lb | | Box Dimensions (LxWxH) | 15.4 x 10.3 x 3.6" |
