User Manual for Epson Perfection V850 Pro Scanner Click to enlarge the picture
Contents of the user manual for the Epson Perfection V850 Pro Scanner
- Product category: Flatbed & Document Scanners Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Flatbed & Document Scanners
 |
User manual for the Epson Perfection V850 Pro Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|

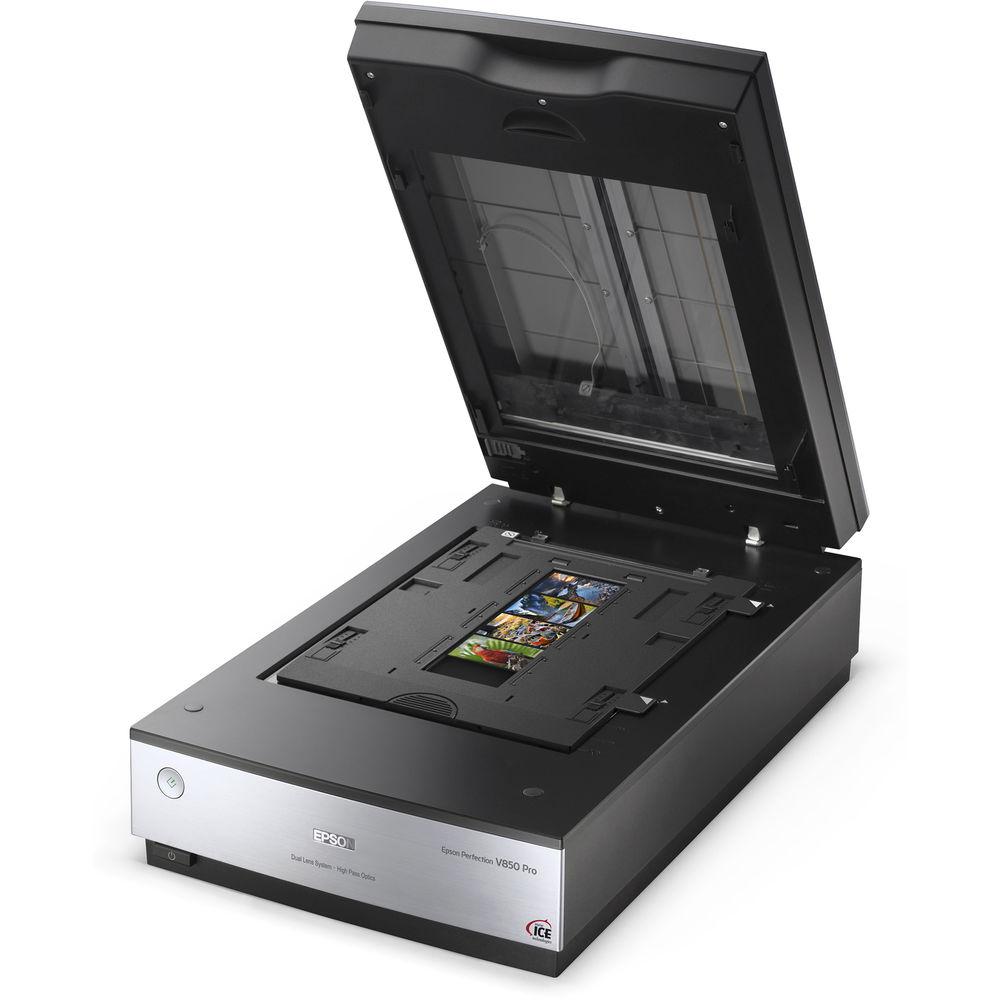

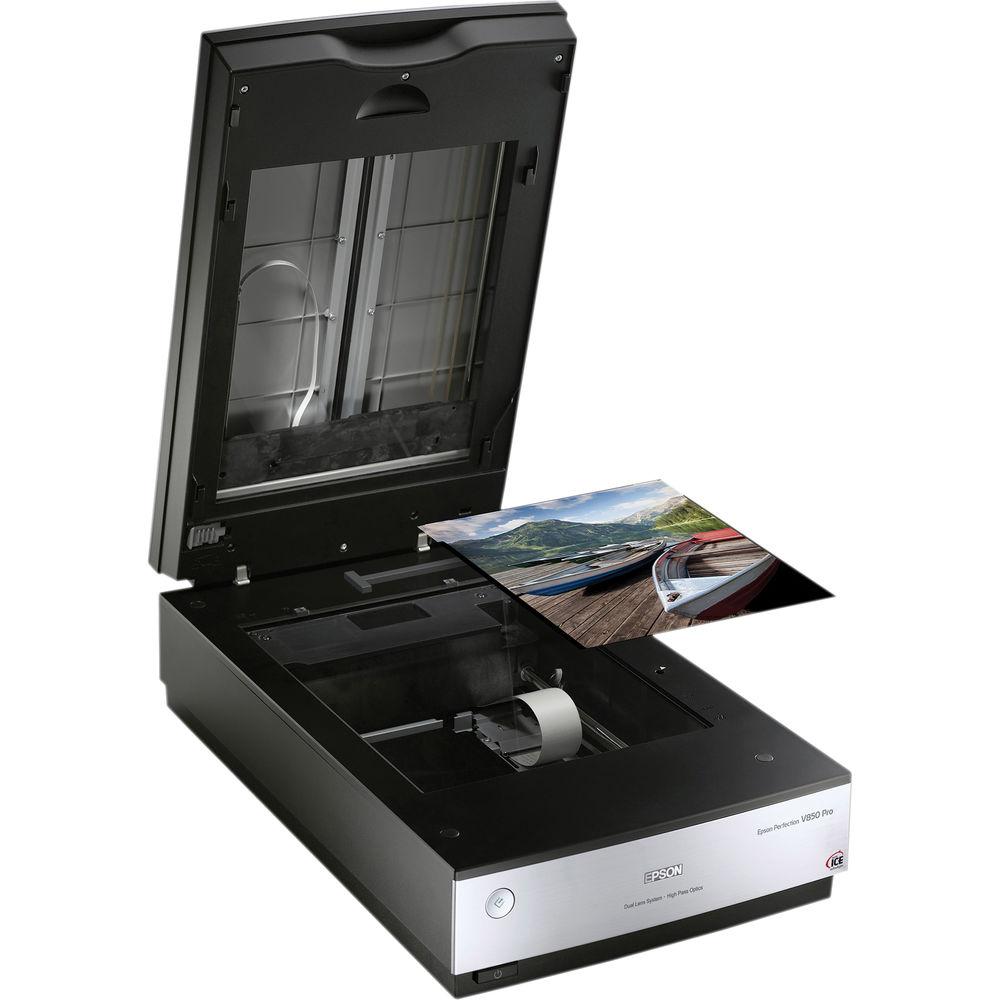

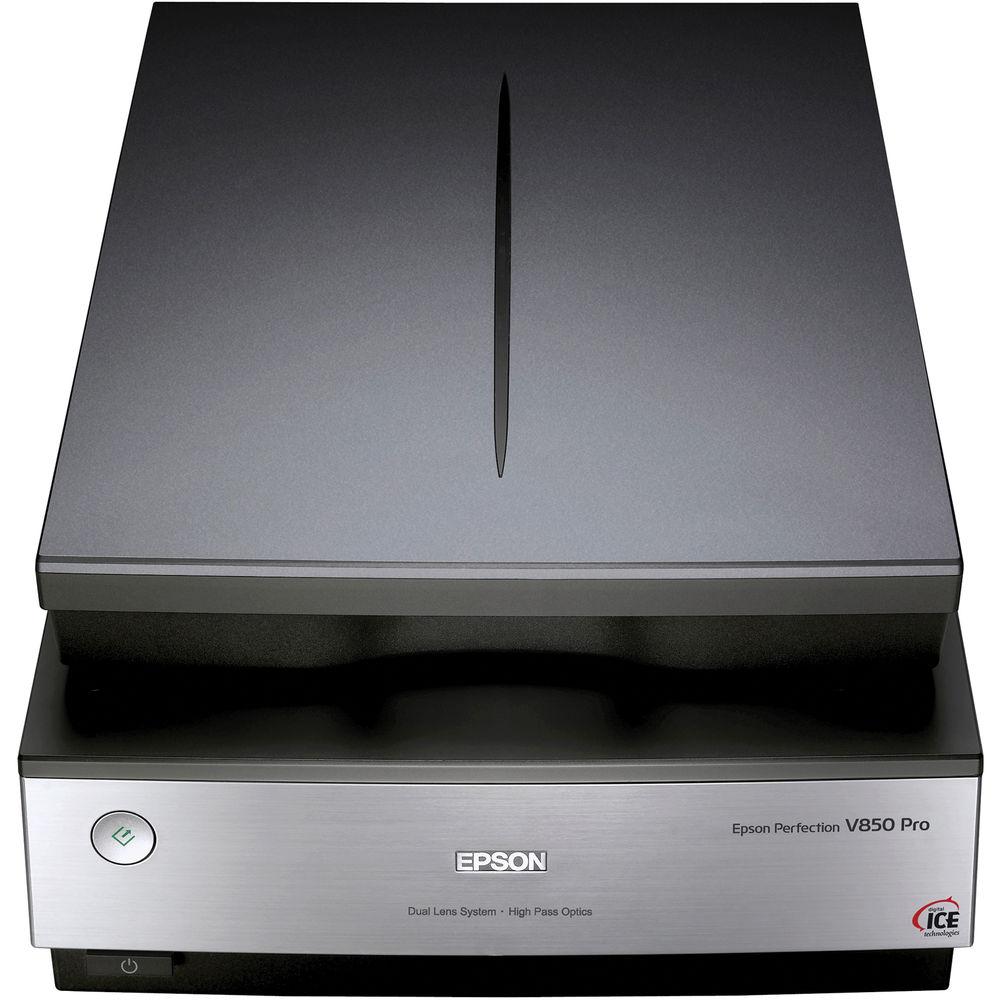

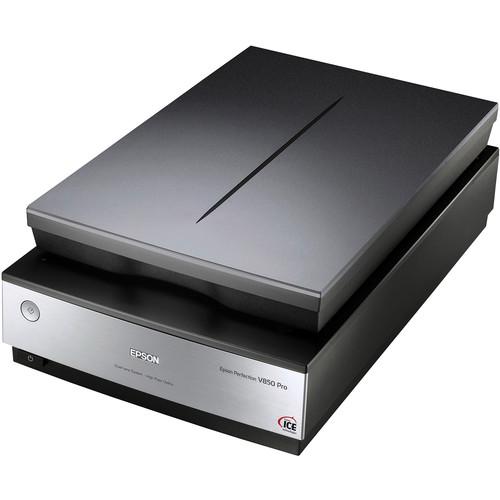

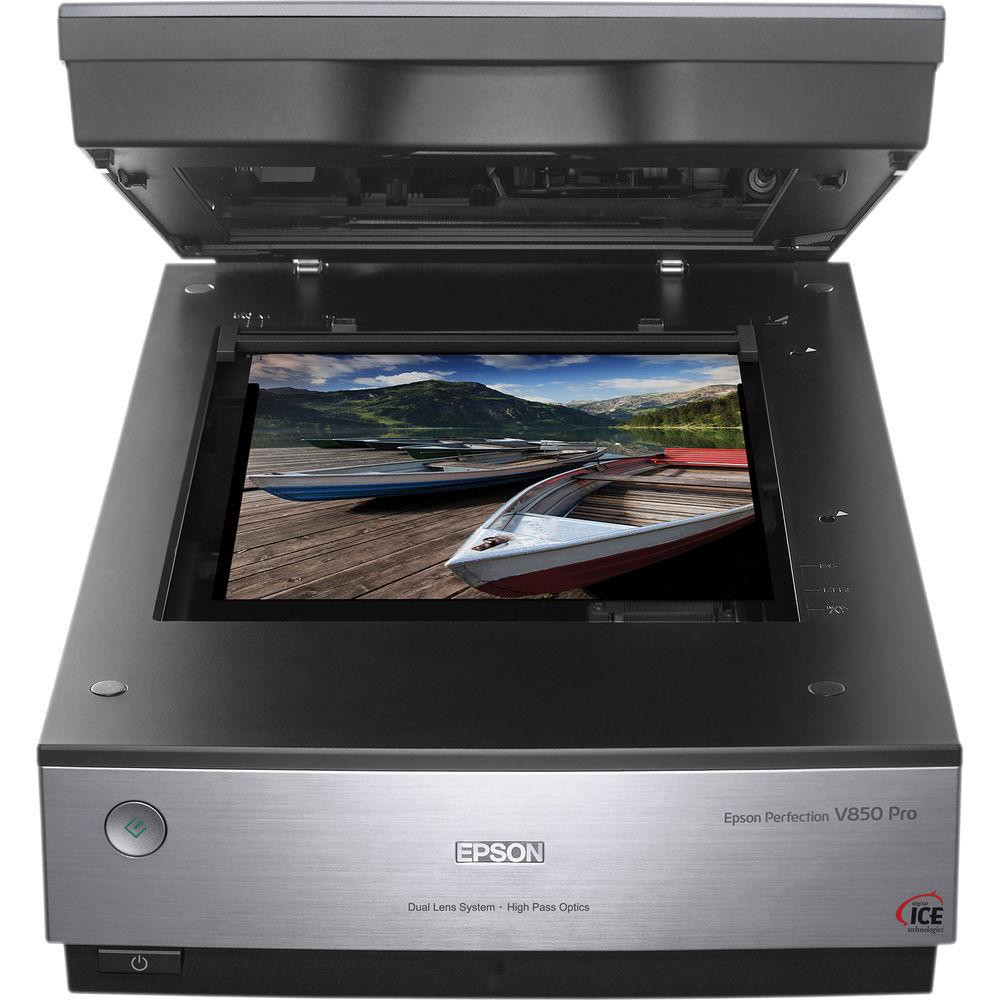

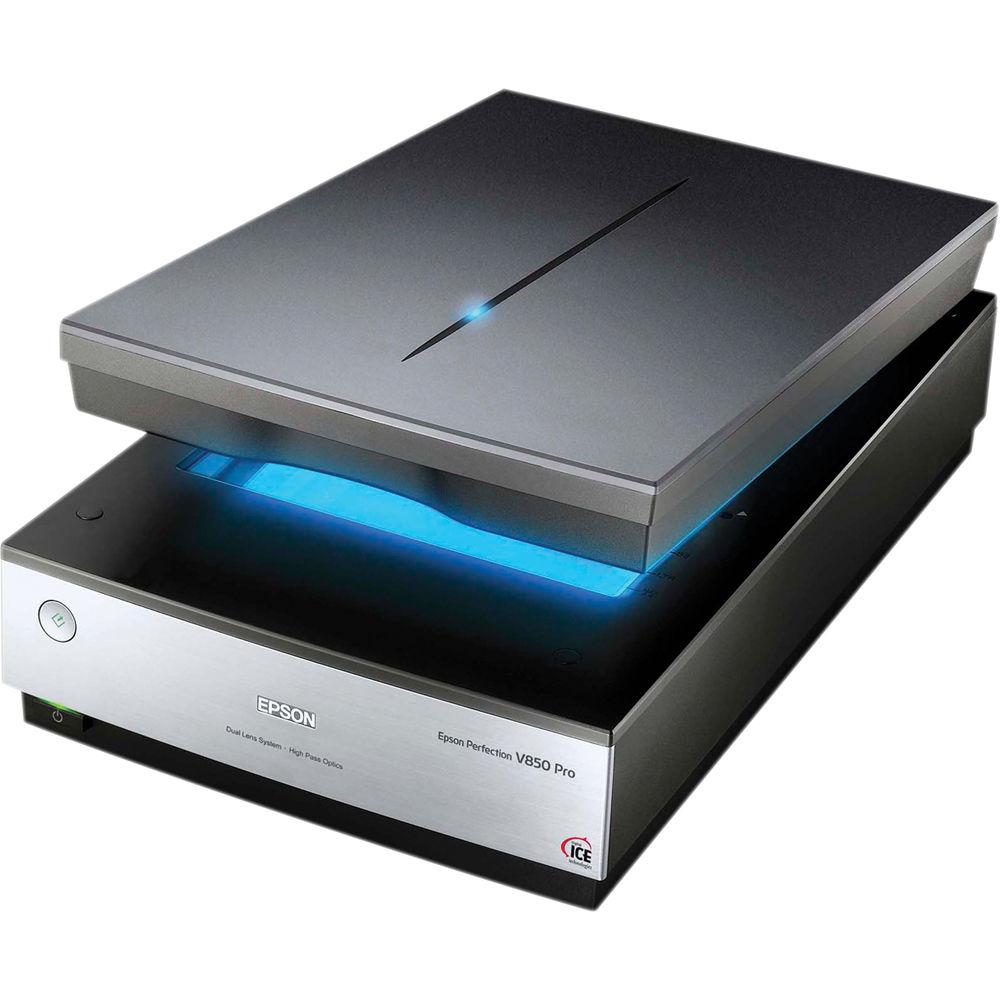

Product description Convert film, slides, prints, and other documents into high resolution digital images with the Perfection V850 Pro Scanner from Epson. The high 6400 dpi optical resolution and 6400 x 9600 dpi scan resolution along with a 48-bit color depth ensure fine detail will be captured and colors will be accurately reproduced. Also, a rating of 4.0 Dmax allows users to capture a wide dynamic range.

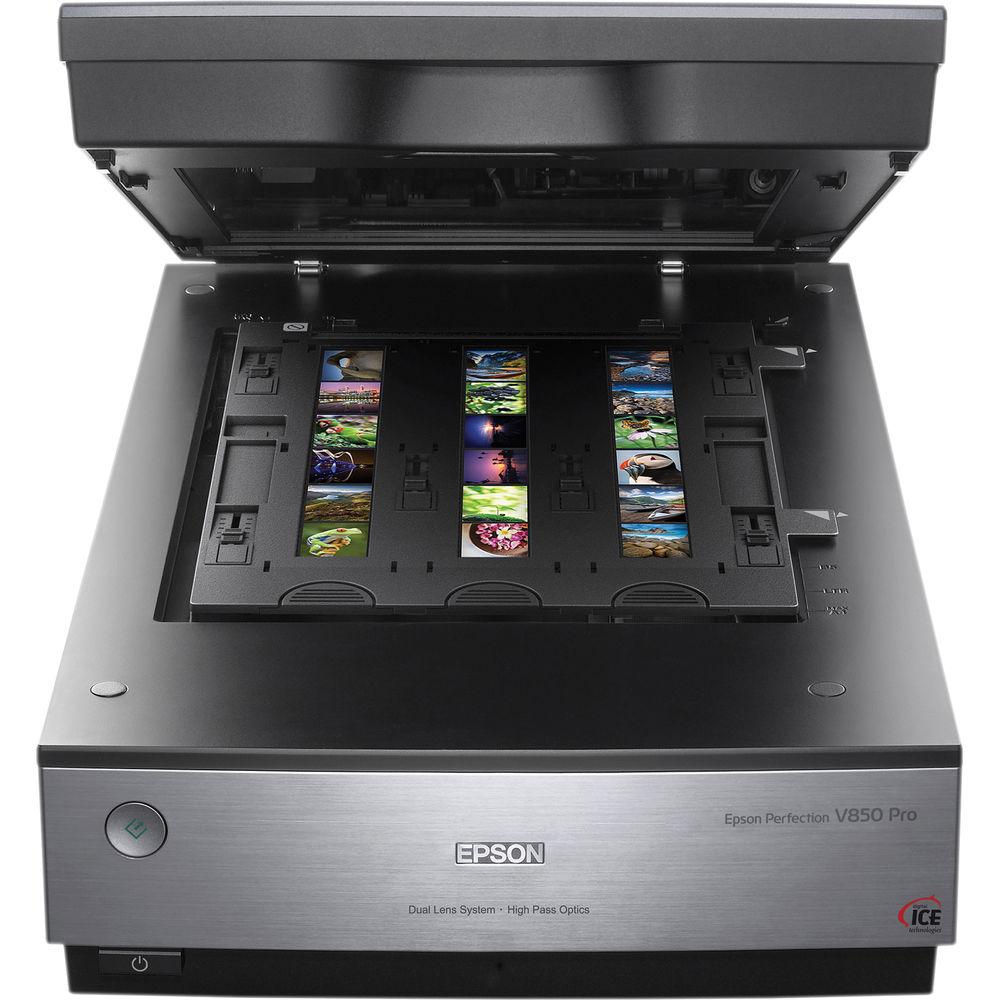

Productivity sees a boost due to the ReadyScan LED light source which can warm up in less than 1 second to immediately start scanning. The V850 features a reflective scan area of 8.5 x 11.7" as well as an 8 x 10" built-in transparency unit for scanning film. Digital ICE technologies further benefit scanning by automatically removing dust, hair, scratches, and fingerprints from film and prints. Included with the scanner are two sets of four film holders - for 35mm slides, 35mm film, 35mm mounted slides, and 4 x 5" film - and a CD with SilverFast SE Plus 8 and X-Rite i1 software. Additionally, the V850 has USB 2.0 connectivity. - 35mm strips, 35mm slides, medium format, and 4 x 5" film holders feature adjustable height control and rigid design for sharp focus and ideal image quality
- Scan up to 8 x 10" film and non-standard formats by placing it directly on the scanner glass
- Output resolution up to 12800 dpi
- Dual lens system automatically selects a 4800 dpi optical resolution lens for reflective photo scanning or a 6400 dpi lens when using film holders
- Epson Scan, Epson Copy Utility, Epson Event Manager, Silver Fast SE Plus 8, and i1 Scanner software included
- Scans color A4 in as fast as 12 seconds
- Scan 35mm negative at 4800 dpi in 59 seconds
UPC: 010343913165 In the Box Epson Perfection V850 Pro Scanner 2 x 35mm Strip Film Holder 2 x 35mm Mounted Slide Film Holder 2 x Medium Format Strip Film Holder 2 x 4 x 5" Film Holder Reflective/Transparent IT8 Targets USB Cable AC Adapter Setup Poster Software CD Driver & Utilities CD Limited 1-Year Warranty User Manual PDF 1.1mb More info from Epson Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson Perfection V850 Pro Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson V850 Specs | | | Scan Sensor | Matrix CCD | | Light Source | White LED, IR LED with ReadyScan LED Technology | | Optical Resolution | 6400 dpi | | Scanning Resolution | 6400 x 9600 dpi | | Output Resolution | 50-6400 dpi in 1 dpi steps, 9600 dpi, 12800 dpi | | Color Depth | Input: 48-bit color
Output: 48-bit color | | Optical Density | 4 Dmax | | | | Reflective Scan Area | 8.5 x 11.7" (21.6 x 29.7 cm)
Digital ICE: 5.9 x 9.7" (15.0 x 24.7 cm) | | Transparency Scan Area | 8 x 10" (20.3 x 25.4 cm) | | Film Formats | 35mm mounted slides
35mm film strips
Medium format strips
4 x 5" film
8 x 10" film | | | | Preview Speed | A4: 6 sec | | Scan Speed | Color A4: 12 sec (speed) / 15 sec (best)
35mm Negative Film, 4800 dpi: 59 sec (best)
35mm Negative Film, 2400 dpi: 32 sec (best)
35mm Positive Film, 4800 dpi: 66 sec (best)
35mm Positive Film, 2400 dpi: 37 sec (best) | | Scanner Features | Grain reduction, dust removal, Print Image Matching II, correction of tonal value with histogram, color palette tool for Easy Color Fix, Backlight Correction, Color Restoration, Unsharp Mask with Noise Reduction, De-Screening with Document Type Optimizer, Digital ICE Technologies | | | | Interface | USB 2.0 | | Drivers | TWAIN compliant | | Compatible Operating Systems | Windows 10, 8.1, 8, 7, Vista, XP
Mac OS X 10.6 or later | | | | Front Panel Controls | Start button | | Power Requirements | 100-120 VAC, 50-60 Hz | | Power Consumption | Operating: 23 W
Ready: 12 W
Sleep: 1.5 W | | Operating Conditions | Temperature: 41 to 95°F (5 to 35°C)
Humidity: 10 to 80% | | Storage Conditions | Temperature: -13 to 140°F (-25 to 60°C)
Humidity: 10 to 85% | | Certifications | ENERGY STAR | | Dimensions (HxWxD) | 19.8 x 12.1 x 6.0" (50.3 x 30.8 x 15.2 cm) | | Weight | 14.6 lb (6.6 kg) | | | | Package Weight | 23.0 lb | | Box Dimensions (LxWxH) | 25.0 x 17.5 x 11.0" |
