User Manual for Epson PowerLite 108 3700-Lumen XGA 3LCD Projector Click to enlarge the picture
Contents of the user manual for the Epson PowerLite 108 3700-Lumen XGA 3LCD
- Product category: Multimedia Projectors Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Multimedia Projectors
 |
User manual for the Epson PowerLite 108 3700-Lumen XGA 3LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|

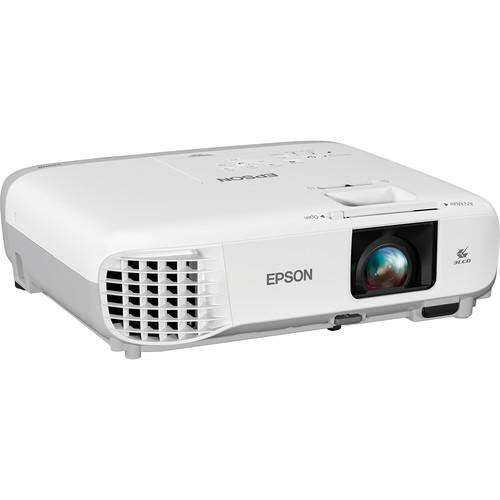

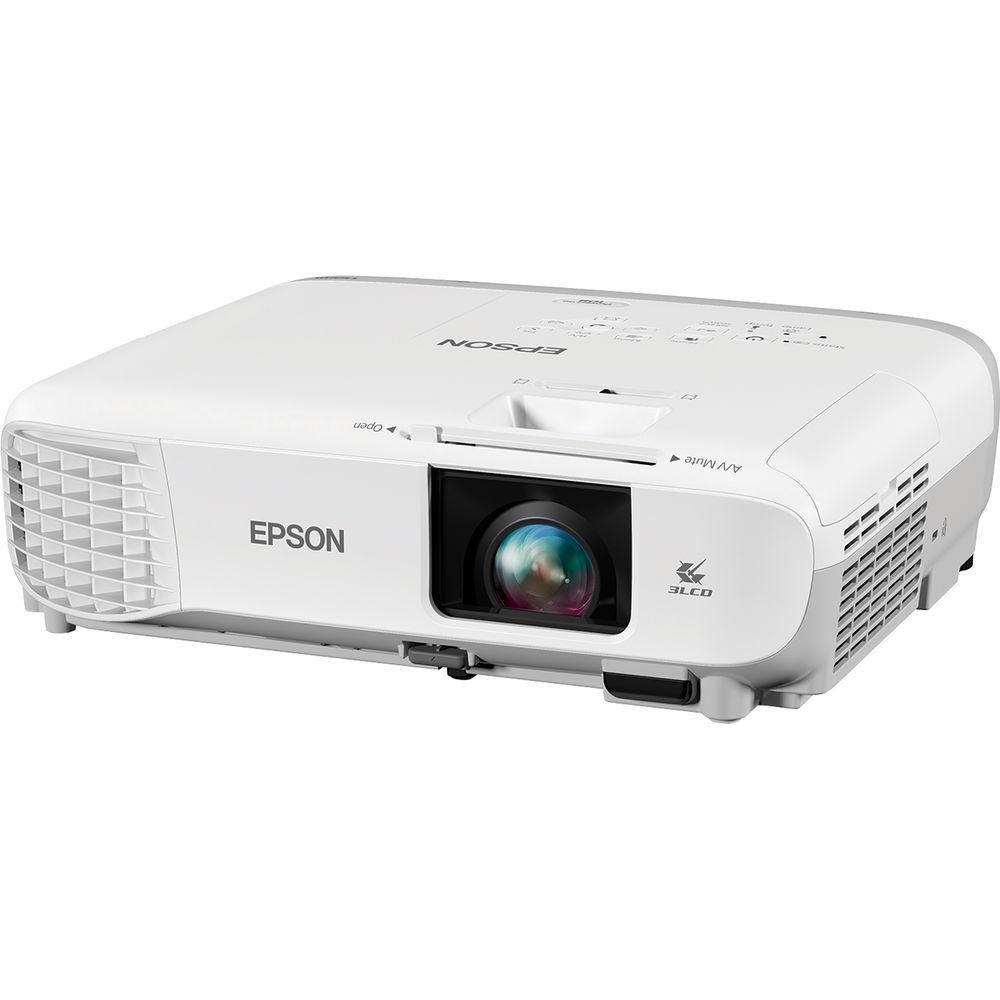

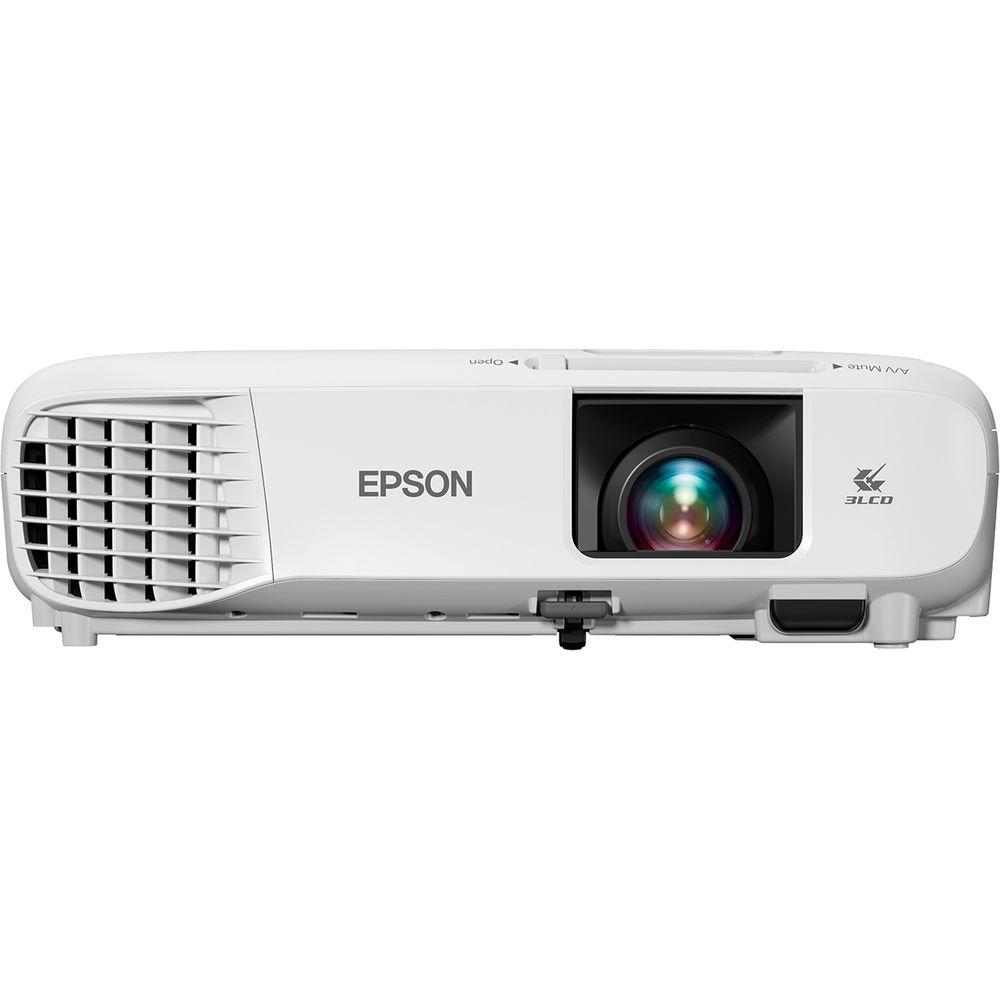

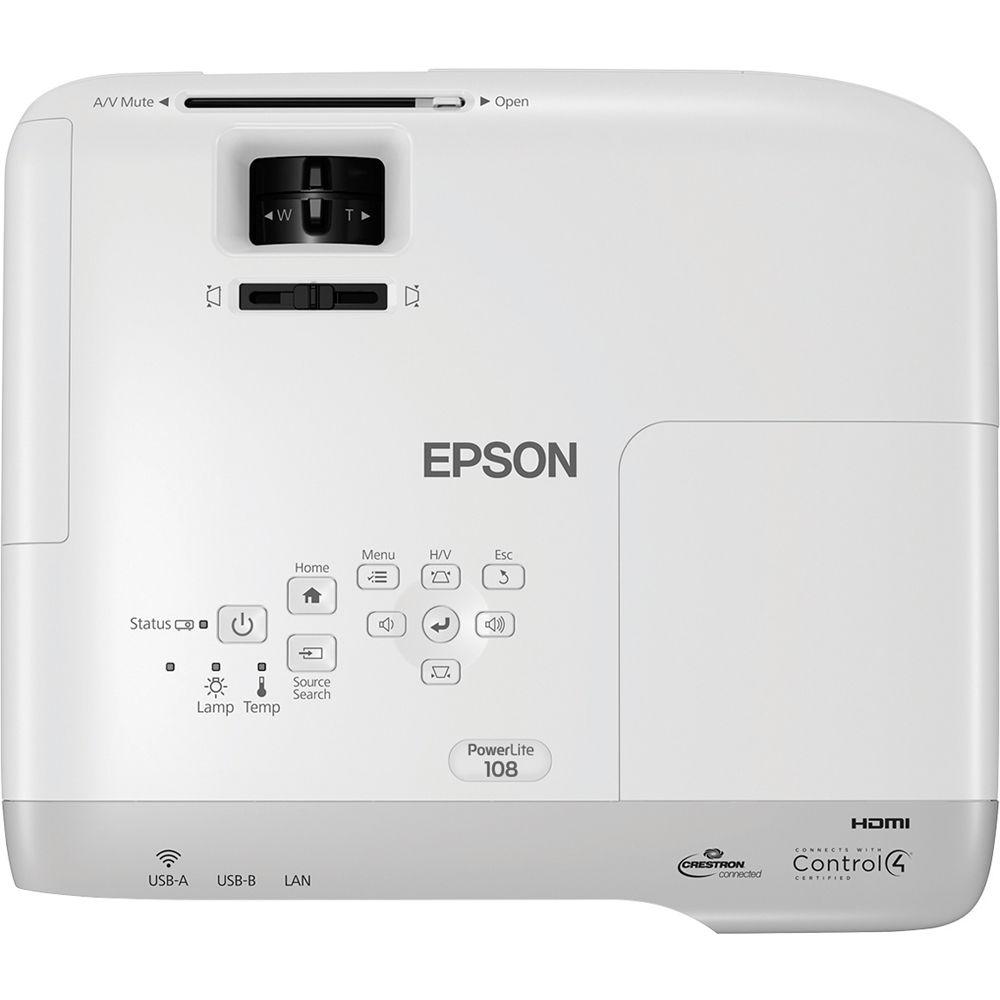

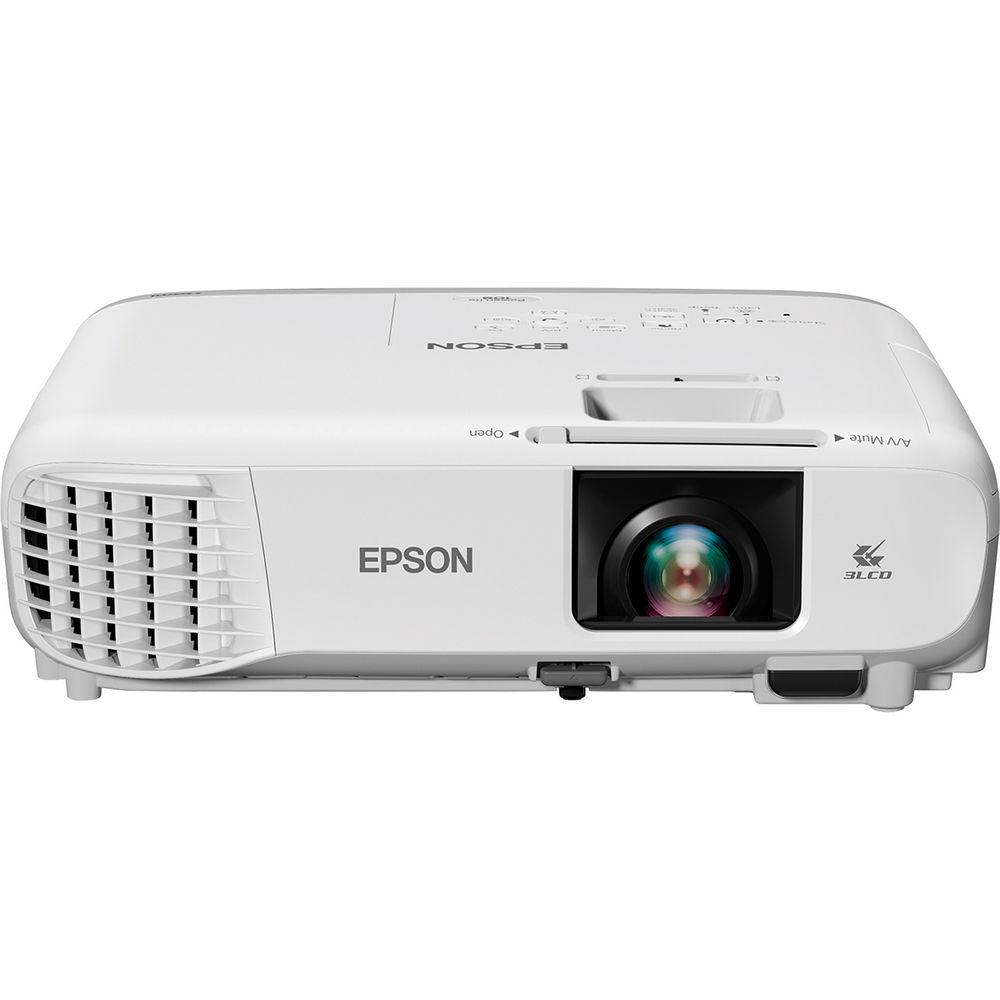

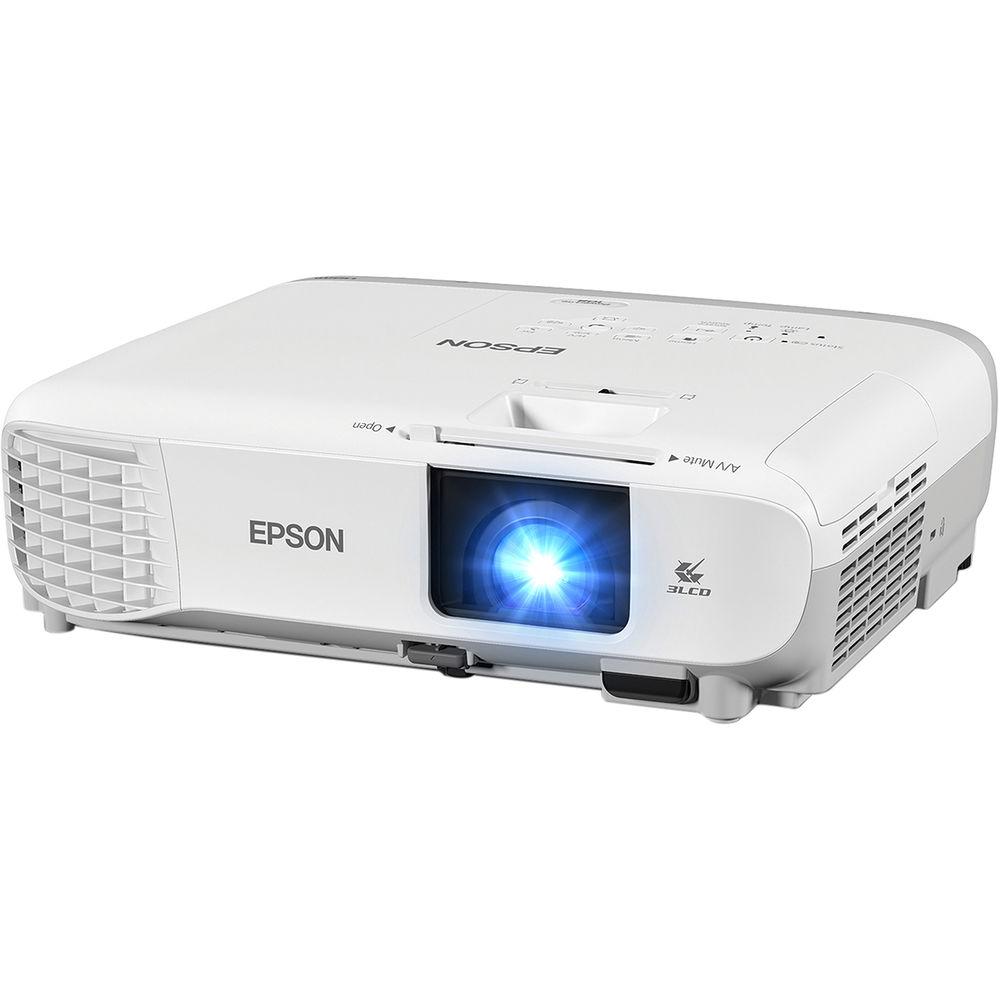

Product description Enjoy bright, vibrant images in most settings with the Epson PowerLite 108 3700-Lumen XGA 3LCD Projector. Its 3700 lumens of brightness, combined with its 15,000:1 dynamic contrast ratio, helps it overcome ambient light in many situations and retain detail in dark areas of the image without compromising overall brightness. Its 1024 x 768 native resolution helps ensure that images and text are clear at most viewing distances.
The PowerLite 108 features RCA video, two VGA, and two HDMI inputs to support various source devices. One HDMI input is MHL-compatible, which allows you to connect your compatible smart device directly to the projector to mirror its screen. A VGA cable and an IR remote control are included for added convenience. - High Color and White Brightness Levels
- View color and white brightness of 3700 lumens.
- Extend Lamp Life in ECO Mode
- The included lamp can last up to 6000 hours in normal mode and up to 12,000 hours in ECO mode.
- HDMI with MHL Connectivity
- Stream HD content (up to 1080p) and mirror your compatible mobile device with MHL connectivity, for instant access to movies, games, and more.
- 3-Chip Processor for Enhanced Color Accuracy
- The 3-chip design is engineered to produce enhanced color brightness with a wider color gamut than single-chip engines.
- Network Control
- The PowerLite 108 features RJ-45 connectivity for remote projector management, presentations over the network, and more.
- Designed for Flexible Setup
- The 1.2x optical zoom ±30° of horizontal and vertical keystone correction, Easy-Slide control, and Quick Corner features help provide enhanced flexibility.
- Built-In Speaker
- The PowerLite 108 features a built-in speaker; so an external speaker setup might not be necessary. The speaker is even active in standby mode, if visuals aren't required for your presentation.
- Optional Wireless LAN Connectivity
- An optional wireless LAN adapter allows you to project from laptops and mobile and streaming devices.
- Two-Way Content Sharing with Optional Wireless LAN Adapter
- Presenters can push content from the projector to wirelessly connected devices and control which devices' screens receive the projected content. Participants can then make notes and send their work back to the projector.
- Compatible with the iProjection App
- Wirelessly project from your iOS or Android mobile device.
- Eco Features
-
- RoHS compliant
- Recyclable design
UPC: 010343935631 In the Box Epson PowerLite 108 3700-Lumen XGA 3LCD Projector Remote Control with Batteries VGA Cable Software CD Password Protect Sticker Power cord Limited 2-Year Warranty on Projector Limited 90-Day Warranty on Lamp More info from Epson Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson PowerLite 108 3700-Lumen XGA 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson POWERLITE Specs | | | Display System | 3-Chip Polysilicon TFT LCD | | Native Chip Resolution | 1024 x 768 (XGA) | | Supported Resolutions | Minimum: VGA - 640 x 480
Maximum: WUXGA - 1600 x 1200 | | Max Brightness | White: 3700 Lumens
Color: 3700 Lumens | | Aspect Ratio | Native: 4:3 | | Dynamic Contrast Ratio | 15,000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | | | Focus | Manual | | Lens | f/1.49 - 1.72 (f = 16.9 - 20.28 mm) | | Optical Zoom | 1.2x | | Throw Distance | 2.49 - 25' / 0.76 - 7.62 m | | Throw Ratio | 1.48 - 1.77:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Auto-Vertical: ± 30°

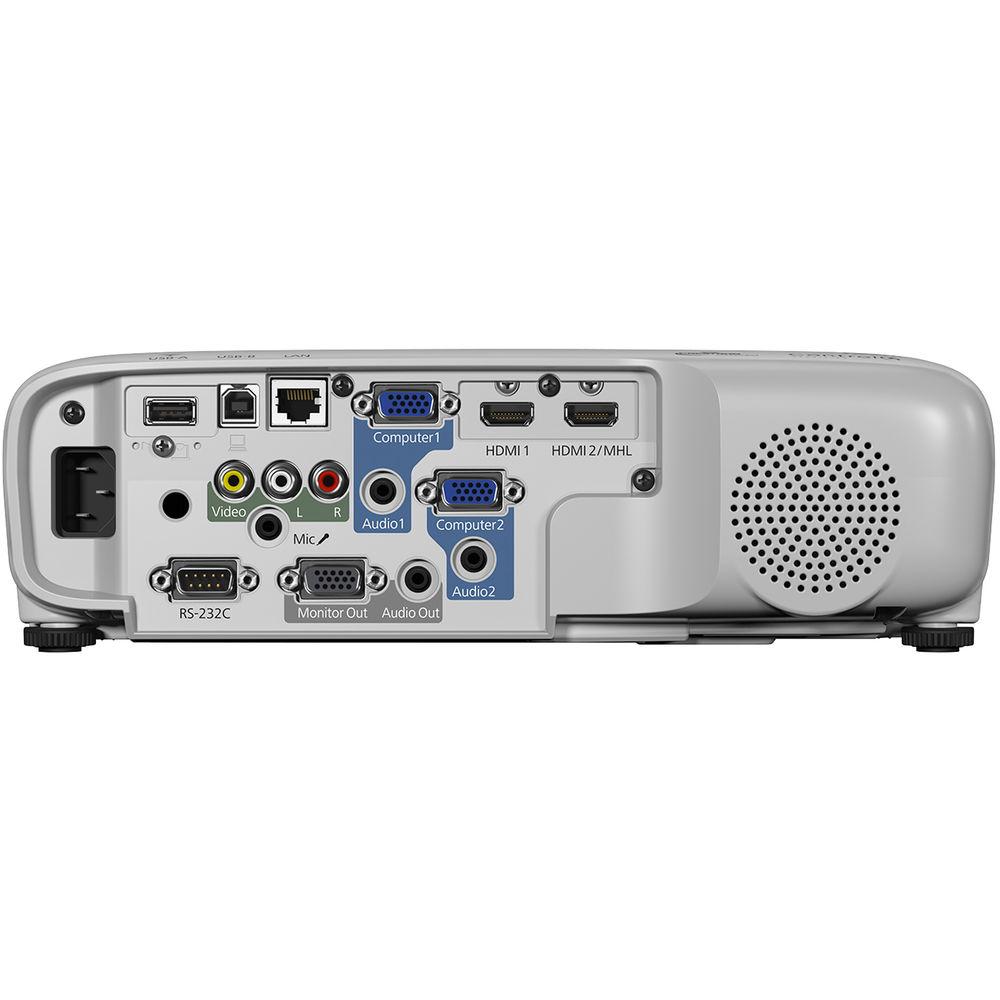

Manual-Horizontal: ± 30° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 16W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
2 x VGA (DE-15) Video (Input)
1 x Composite (RCA) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x USB Type-A Female (Input)
1 x USB Type-B Female (Input)
1 x RCA Stereo (L/R) Audio (Input)
2 x 1/8" (3.5 mm) Mini Audio/Video (Input)
1 x 1/8" (3.5 mm) Mini Microphone (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x Ethernet (RJ45) LAN (Input)
1 x RS-232C (Unspecified Connector) Control (Input) | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | Lamp (1 x UHE) | | Lamp Power | 210 W | | Expected Lamp Life | Full Brightness: 6000 Hours
Low Brightness: 12,000 Hours | | Fan Noise | Full Brightness: 37 dB
Low Brightness: 28 dB | | Security | Cable Lock Slot
Padlock
Security Bar | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 327 W
Low Brightness: 237 W
Standby Mode (Lamp Off): 2 W | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Dimensions (W x H x D) | 11.6 x 3.5 x 10.2" / 29.5 x 8.9 x 25.9 cm With feet
11.6 x 3.4 x 10.2" / 29.5 x 8.6 x 25.9 cm Without feet | | Weight | 6.17 lb / 2.80 kg | | | | Package Weight | 8.9 lb | | Box Dimensions (LxWxH) | 14.8 x 13.8 x 6.4" |
