User Manual for Epson PowerLite 1266 3600-Lumen WXGA 3LCD Projector Click to enlarge the picture
Contents of the user manual for the Epson PowerLite 1266 3600-Lumen WXGA 3LCD
- Product category: Multimedia Projectors Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Multimedia Projectors
 |
User manual for the Epson PowerLite 1266 3600-Lumen WXGA 3LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|
Product description Enjoy bright, vibrant images with the Epson PowerLite 1266 3600-Lumen WXGA 3LCD Projector. Its 3600 lumens of brightness, combined with its 15,000:1 dynamic contrast ratio, help it overcome ambient light in many situations and retain detail in dark areas of the image without compromising overall brightness. Its 1280 x 800 native contrast ratio helps ensure that images and text are clear at most viewing distances.
The PowerLite 1266 features HDMI, VGA, and RCA video inputs to support various source devices. Its HDMI input is MHL-compatible, which allows you to connect your compatible smart device directly to the projector to mirror its screen. A wireless LAN adapter is included for projecting from your compatible smartphone or tablet wirelessly. The projector also accepts video signals via USB from Windows and Mac computers. A carrying case and an IR remote control are included for added convenience. - High Color- and White-Brightness Levels
- Both color and white brightness of 3600 lumens.
- Wireless
- Project from your laptop, tablet, or smartphone wirelessly with the included wireless LAN adapter, allowing you to move around the room freely.
- Portable Design
- The 6.2 lb lightweight design makes it easy to carry room-to-room or otherwise.
- Manual Keystone Correction
- Manual keystone correction adjusts vertically and horizontally to help you achieve a perfectly rectangular image.
- Designed for Fast Wireless Setup
- Scan the on-screen QR code using your phone or tablet for a quick connection.
- Eco Features
-
- RoHS compliant
- Recyclable design
UPC: 010343937130 In the Box Epson PowerLite 1266 3600-Lumen WXGA 3LCD Projector Remote Control with Batteries Wireless LAN Module VGA Cable USB Cable Soft Carrying Case Power Cable Limited 2-Year Warranty on Projector Limited 90-Day Warranty on Lamp More info from Epson Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson PowerLite 1266 3600-Lumen WXGA 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson 1266 Specs | | | Display System | 3-Chip Polysilicon TFT LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Minimum: SVGA - 800 x 600
Maximum: UXGA - 1600 x 1200 | | Max Brightness | 3600 Lumens | | Aspect Ratio | Native: 16:10
Supported: 16:9
Supported: 4:3 | | Dynamic Contrast Ratio | 15,000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | | | Focus | Manual | | Lens | f/1.5 - 1.71 (f = 20.42 - 24.5 mm) | | Optical Zoom | Manual: 1.2x | | Throw Distance | 2.953 - 29.528' / 0.9 - 9 m | | Throw Ratio | 1.38 - 1.68:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Auto-Vertical: ± 30°

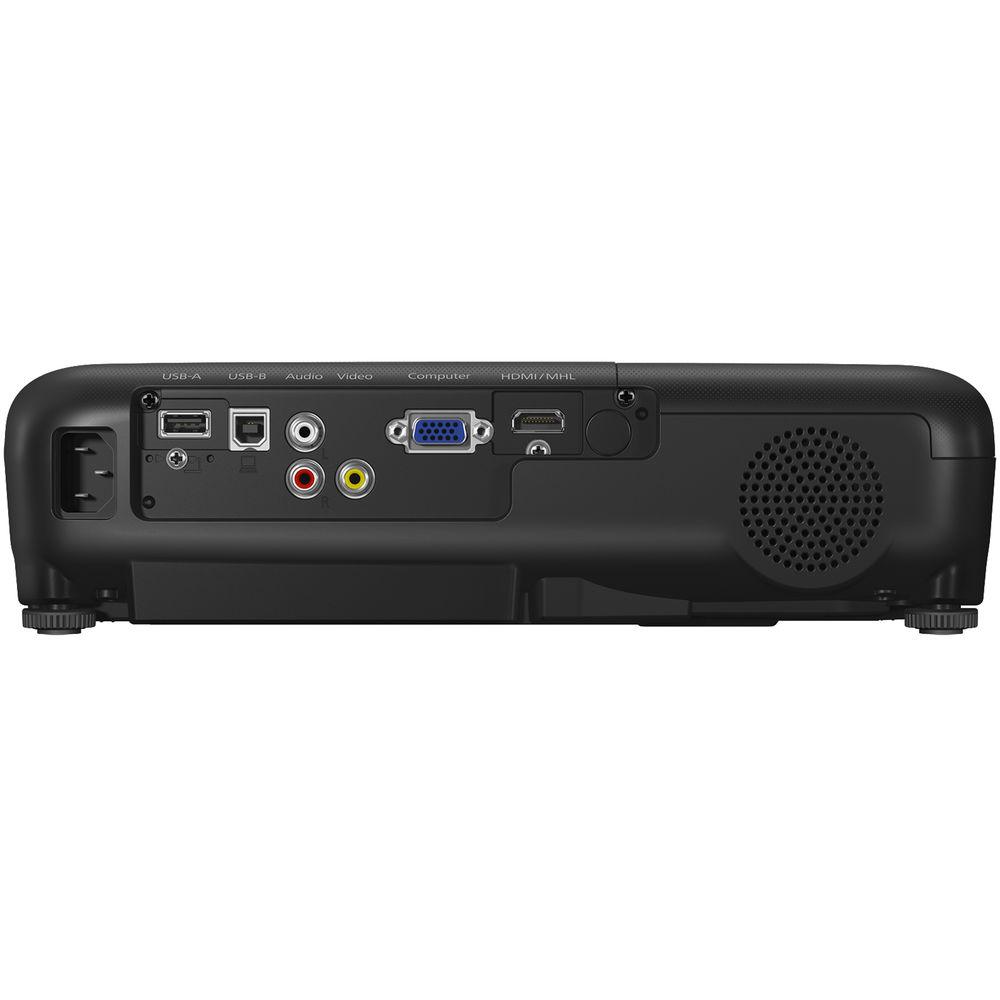

Manual-Horizontal: ± 30° | | Ceiling Mountable | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 2W | | | | Inputs/Outputs | 1 x HDMI with MHL Support Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x Composite (RCA) Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x USB Type-A Female (Input)
1 x USB Type-B Female (Input) | | | | Light Source | Lamp (1 x UHE) | | Lamp Power | 210 W | | Expected Lamp Life | Medium Brightness: 6000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Medium Brightness: 37 dB
Low Brightness: 28 dB | | Security | Password Protection | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 315 W
Low Brightness: 228 W | | Temperature | Operating
41 to 95°F (5 to 35°C) | | Dimensions (W x H x D) | 11.9 x 3.6 x 9.9" / 30.2 x 9.1 x 25.1 cm Including feet
11.9 x 3.4 x 9.8" / 30.2 x 8.6 x 24.9 cm Excluding feet | | Weight | 6.2 lb / 2.81 kg | | | | Package Weight | 8.65 lb | | Box Dimensions (LxWxH) | 15.2 x 13.1 x 6.1" |
