User Manual for Epson PowerLite 1780W 3000-Lumen WXGA 3LCD Projector Click to enlarge the picture
Contents of the user manual for the Epson PowerLite 1780W 3000-Lumen WXGA 3LCD
- Product category: Multimedia Projectors Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Multimedia Projectors
 |
User manual for the Epson PowerLite 1780W 3000-Lumen WXGA 3LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|

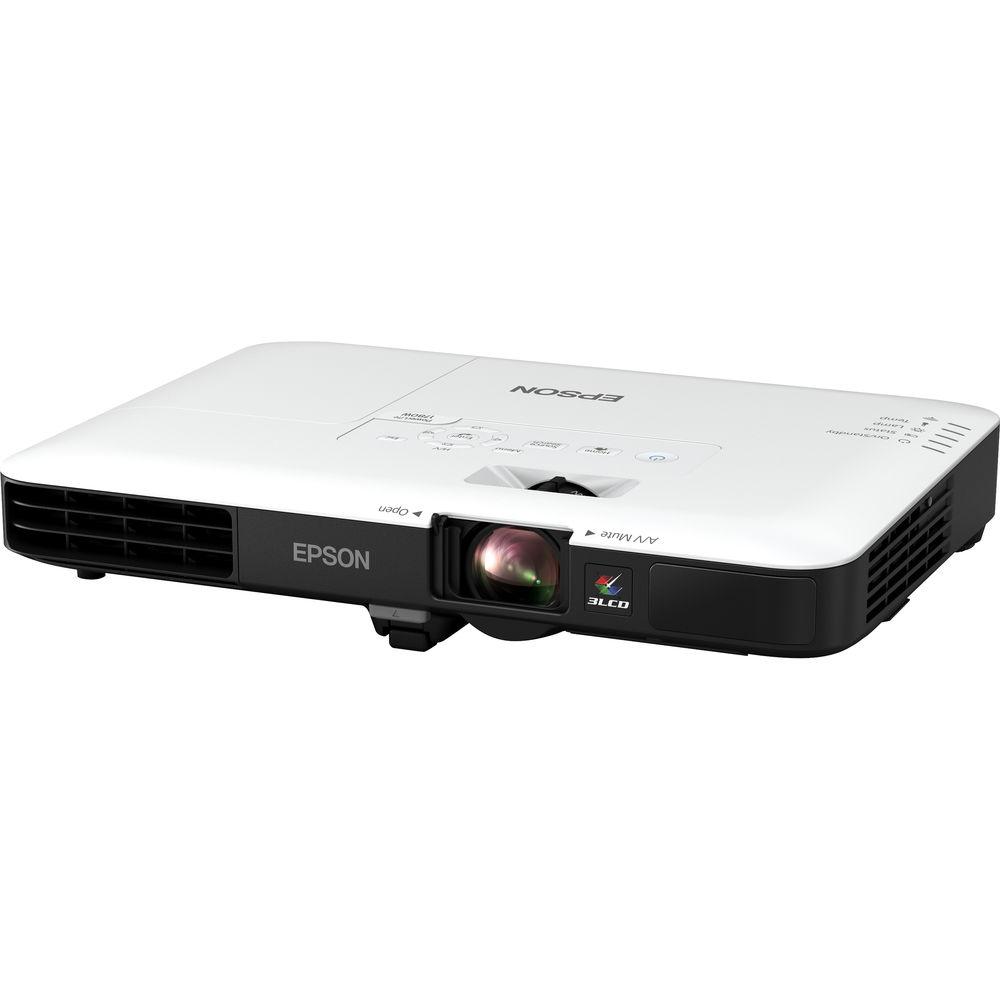

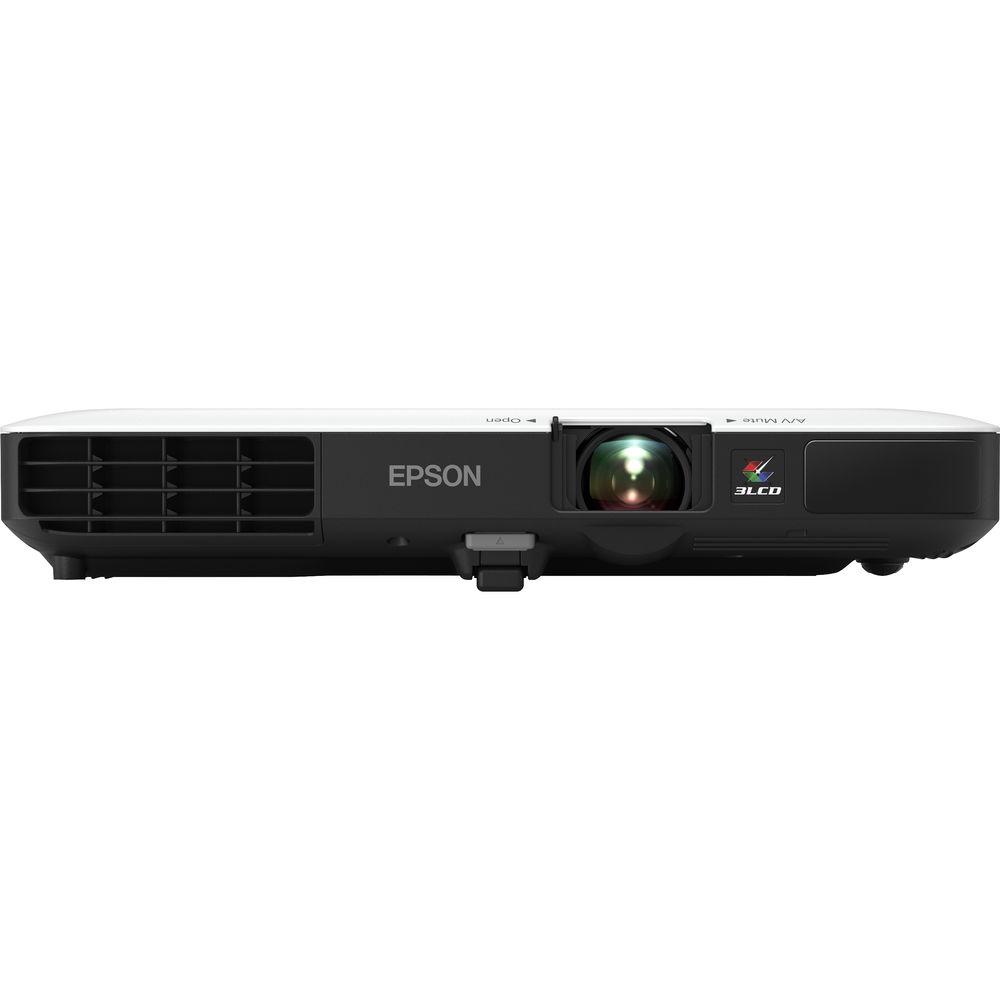

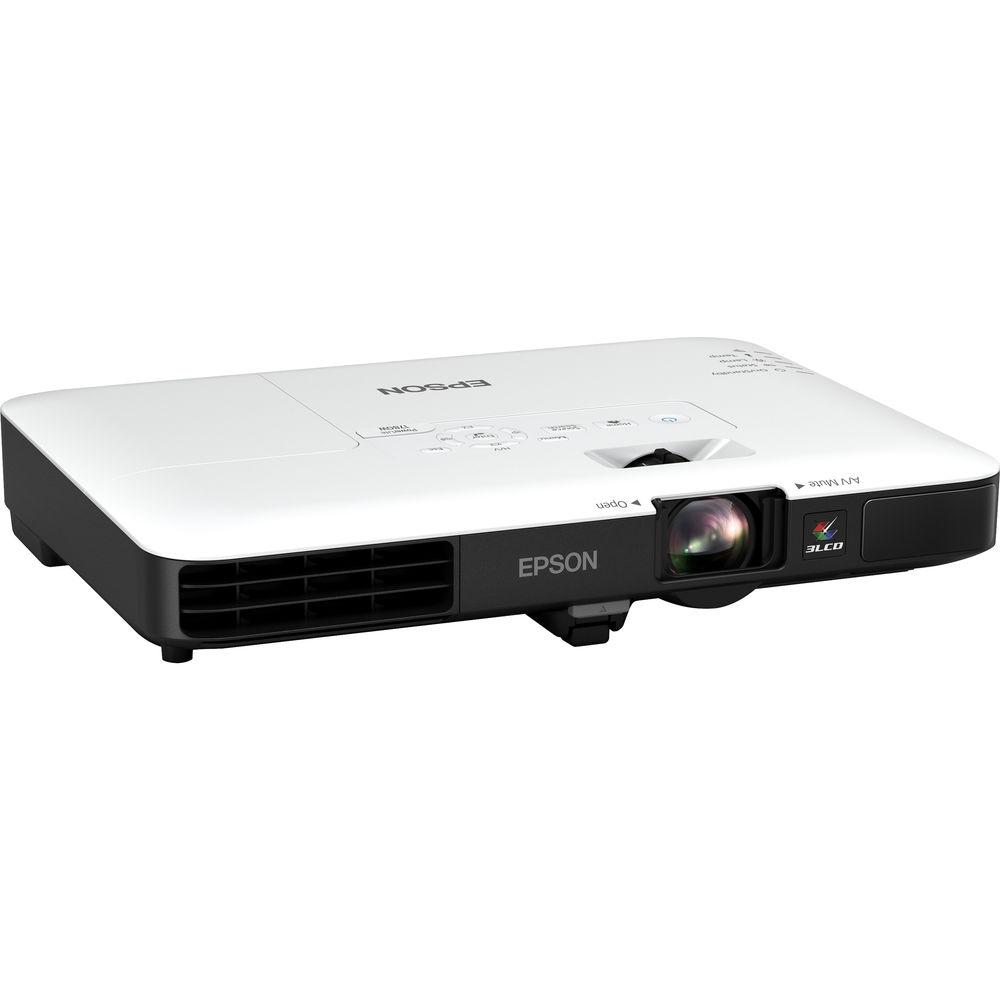

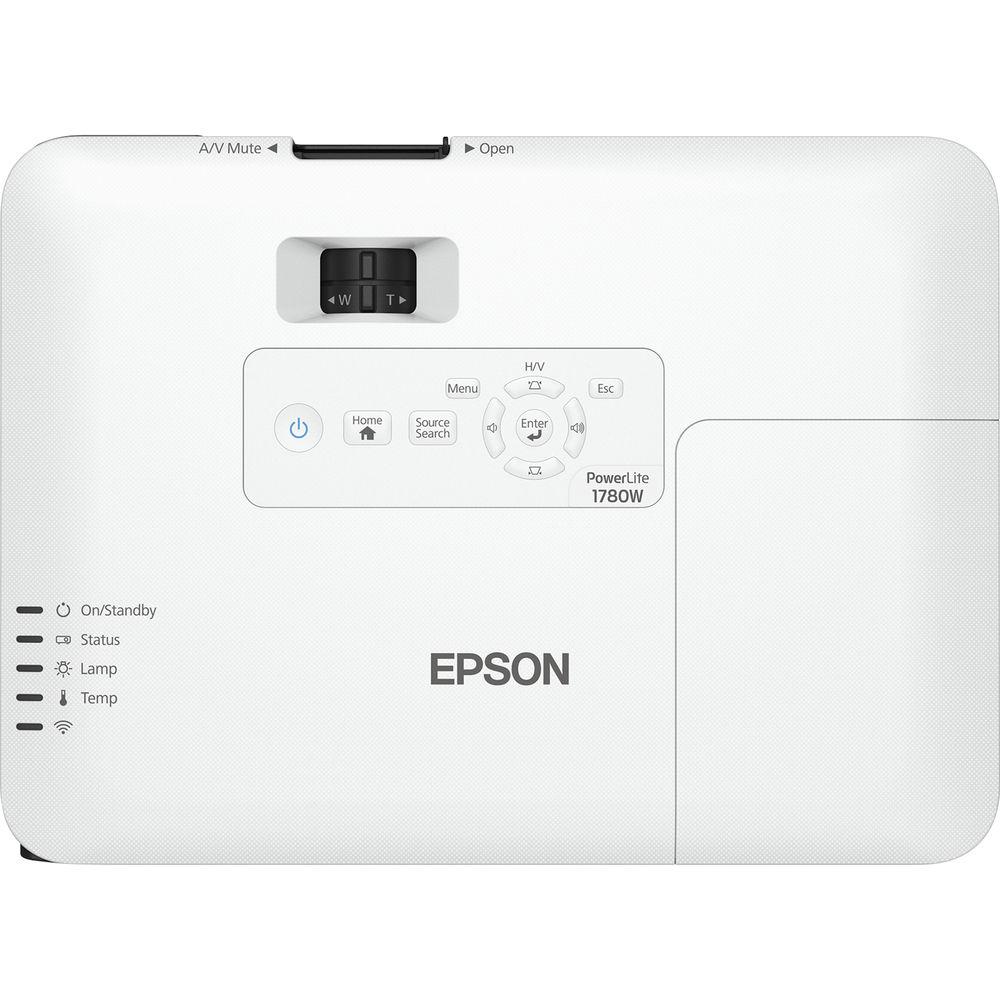

Product description Enjoy bright, vibrant images with the Epson PowerLite 1780W 3000-Lumen WXGA 3LCD Projector. Its 3000 lumens of brightness, combined with its 10,000:1 dynamic contrast ratio, will help it overcome ambient light in many situations and retain detail in dark areas of the image, without compromising overall brightness. Its 1280 x 800 native contrast ratio will help ensure that images and text are clear at most viewing distances.

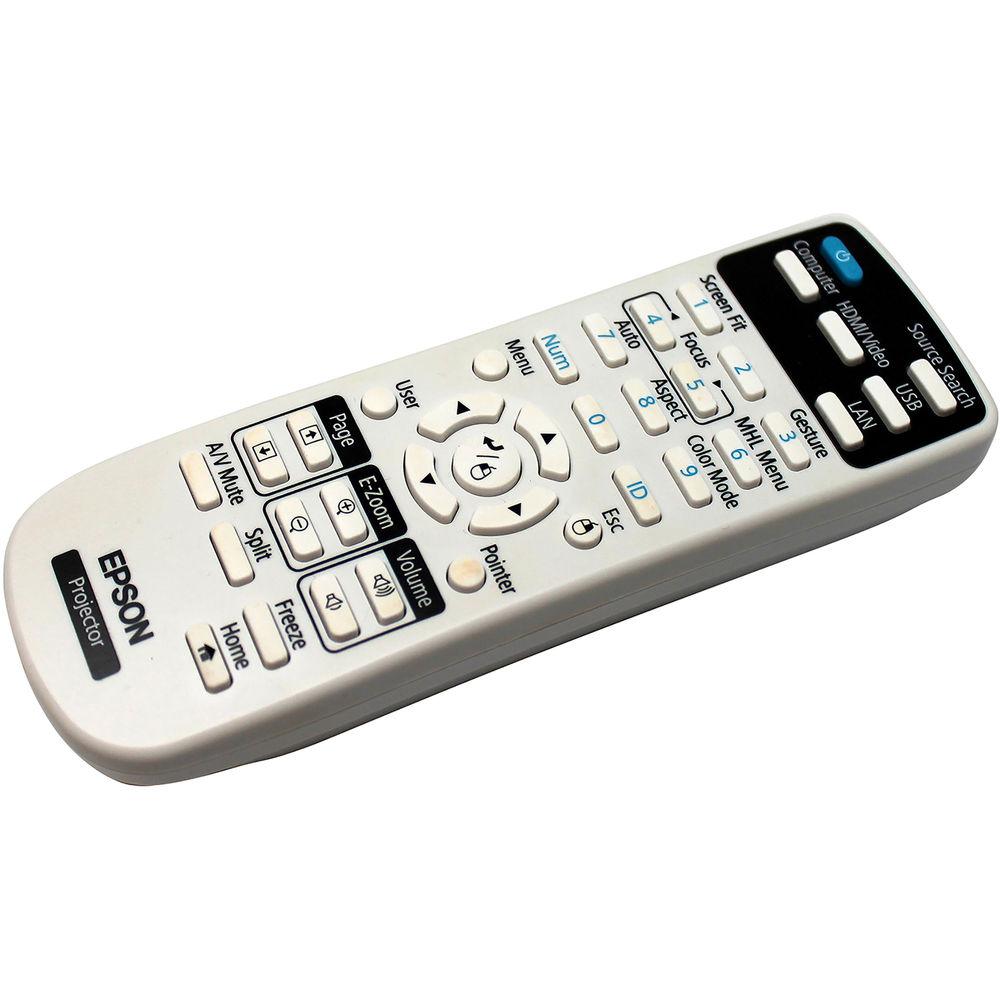

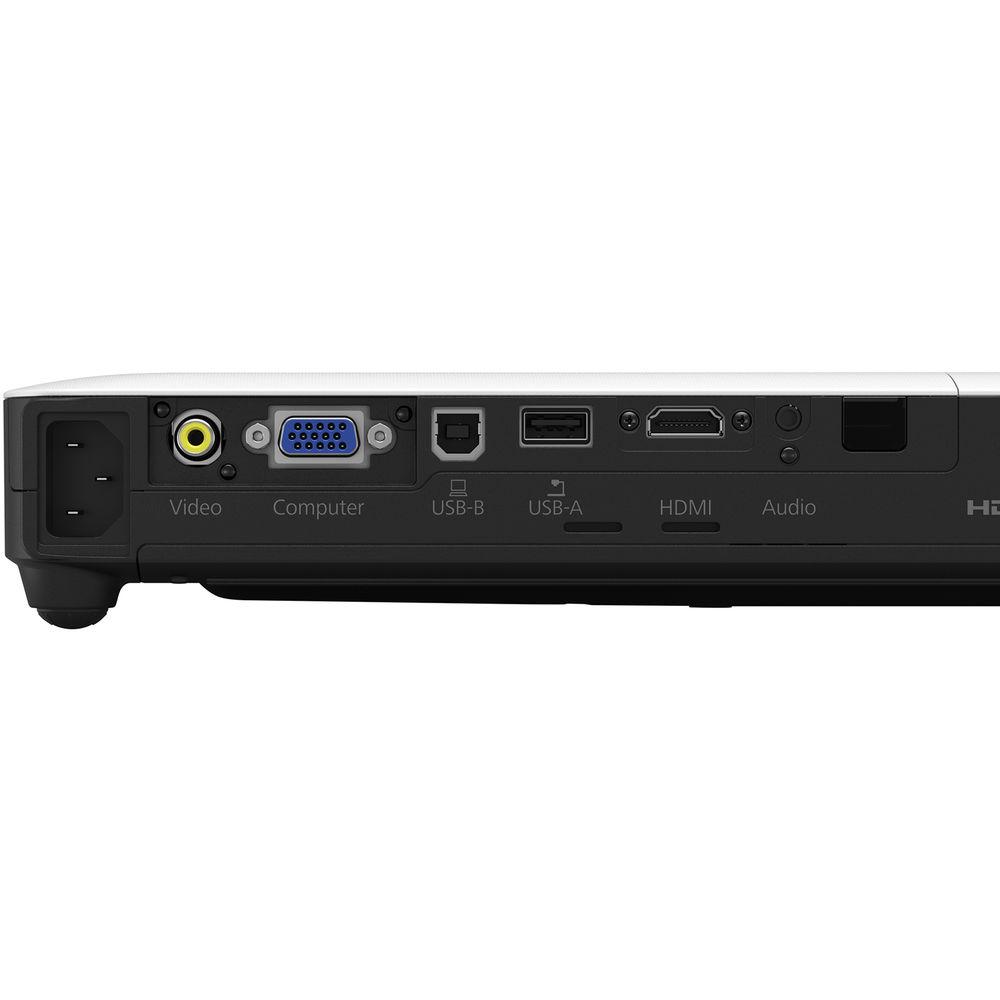

The PowerLite 1780W features HDMI, VGA, and RCA video inputs to support various source devices. Its HDMI input is MHL-compatible, which will allow you to connect your compatible smart device directly to the projector to mirror its screen. The projector also accepts video signals via USB from Windows and Mac computers. A carrying case and an IR remote control are included for added convenience. - High Color and White Brightness Levels
- Both color and white brightness of 3000 lumens.
- 3LCD Color Accuracy
- 3LCD, 3-chip technology is designed to provide enhanced color brightness and a wider color gamut.
- Convenient Streaming Capability
- Share HD videos directly from your smartphone, tablet, or streaming device. The PowerLite 1780W supports Chromecast via HDMI, Roku, and MHL-enabled devices.
- Designed for Fast Wireless Setup
- Just scan the on-screen QR code using your phone or tablet.

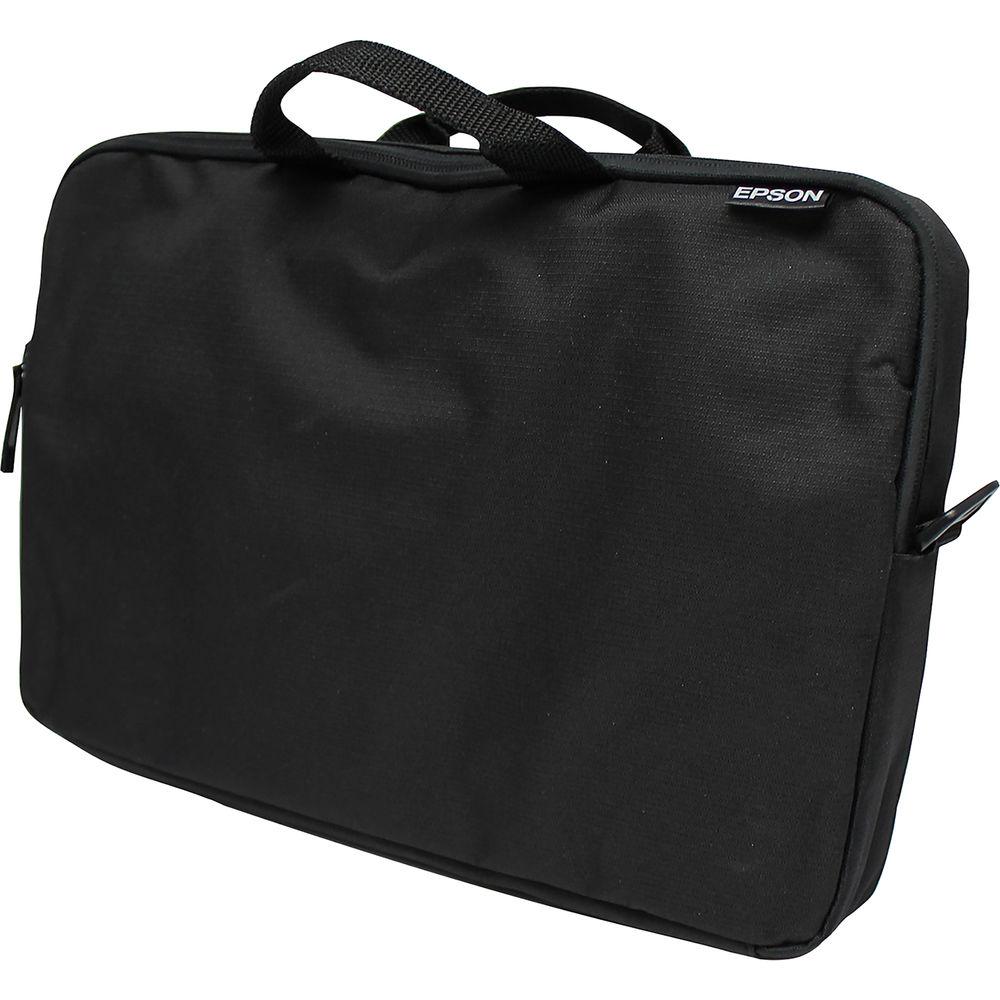

- Included Carrying Case

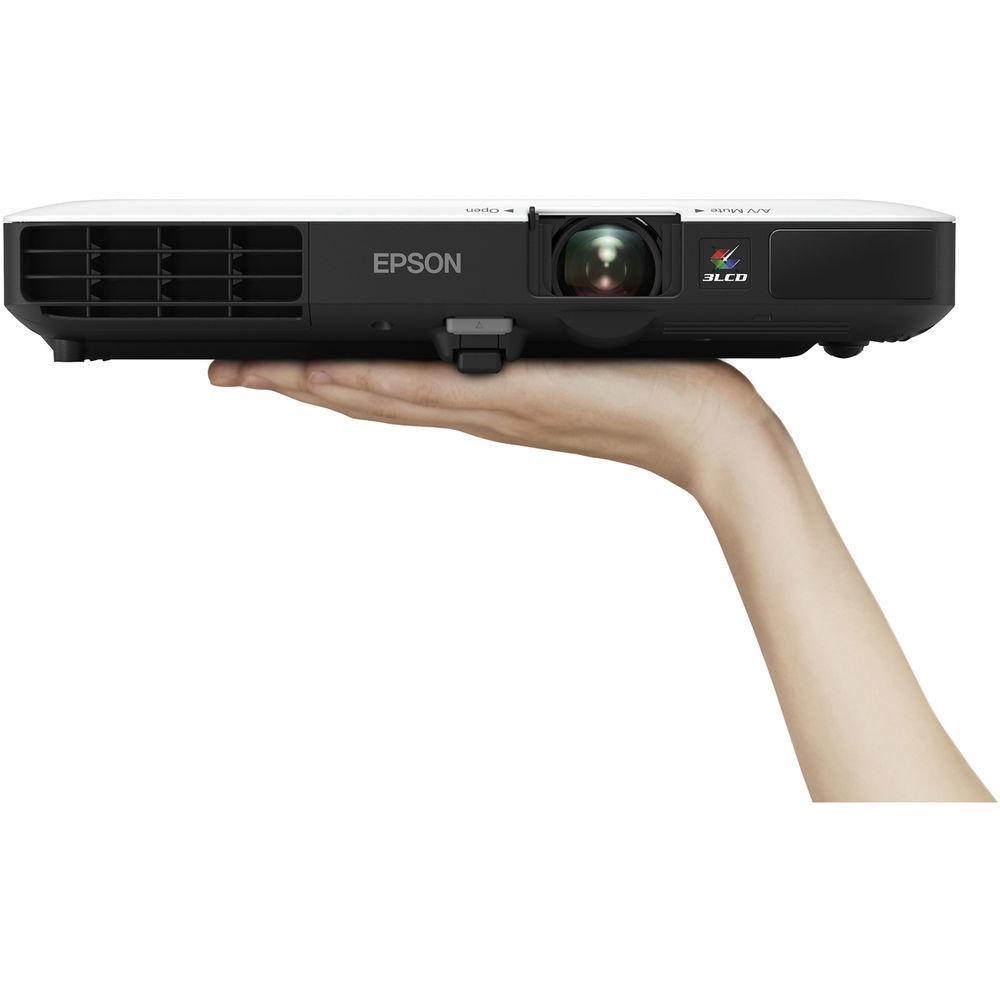

- The PowerLite 1780W features the portability you need for presentations on the go with the included carrying case.
- USB Plug & Play
- Use the included USB cable to instantly project content from a Windows or Mac computer.
- Contrast Ratio
- Up to 10,000:1 contrast ratio for enhanced detail.
- Wireless Ready
- Built-in LAN module for wireless connectivity.
- HDMI Connectivity
- Includes an HDMI audio and video connection for HD quality with just one cable.
- Manual Keystone Correction
- Adjusts vertically and horizontally to easily achieve a rectangular image.
UPC: 010343931008 In the Box Epson PowerLite 1780W 3000-Lumen WXGA 3LCD Projector Remote Control with Batteries VGA Cable USB Cable EasyMP Software CD Soft Carrying Case Power Cable Limited 2-Year Warranty on Projector Limited 90-Day Warranty on Lamp More info from Epson udtqfeuexx Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson PowerLite 1780W 3000-Lumen WXGA 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson 1780W Specs | | | Display System | 3-Chip Polysilicon TFT LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Minimum: VGA - 640 x 480
Maximum: WSXGA+ - 1680 x 1050 | | Max Brightness | 3000 Lumens | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 10,000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | | | Lens | f/1.58 - 1.7 (f = 13.52 - 16.22 mm) | | Optical Zoom | Manual: 1.2x | | Throw Distance | 2.2 - 26.8' / 0.671 - 8.169 m | | Throw Ratio | 1.04 - 1.26:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Auto-Vertical: ± 30°

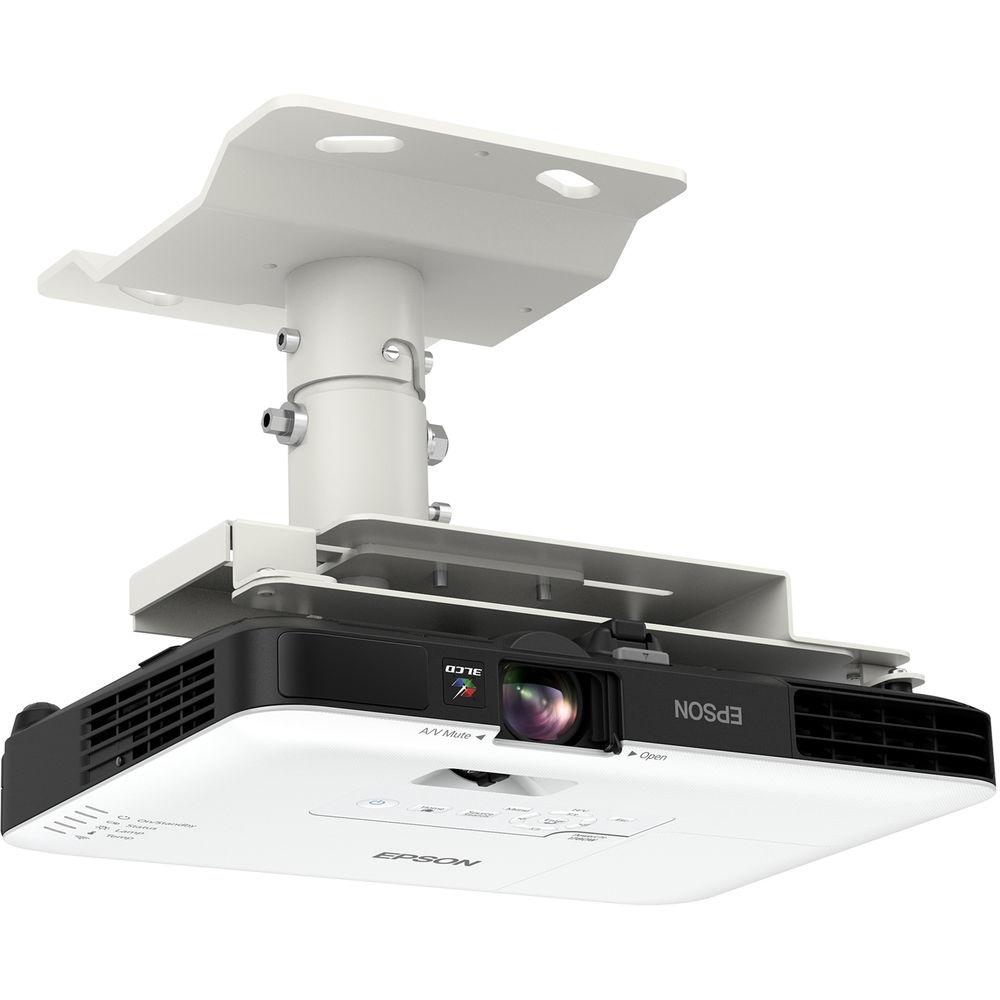

Manual-Horizontal: ± 30° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 1W | | | | Inputs/Outputs | 1 x HDMI with MHL Support Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x Composite (RCA) Video (Input)
1 x USB Type-A Female (Input)
1 x USB Type-B Female (Input) | | Wireless LAN / Wi-Fi | Yes, Built-in | | | | Light Source | Lamp (1 x UHE) | | Lamp Power | 206 W | | Expected Lamp Life | Medium Brightness: 4000 Hours
Low Brightness: 7000 Hours | | Fan Noise | Medium Brightness: 39 dB
Low Brightness: 30 dB | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 290 W
Low Brightness: 208 W | | Temperature | Operating
41 to 95°F (5 to 35°C) | | Weight | 4.0 lb / 1.8 kg | | | | Package Weight | 8.45 lb | | Box Dimensions (LxWxH) | 16.6 x 14.5 x 5.6" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
