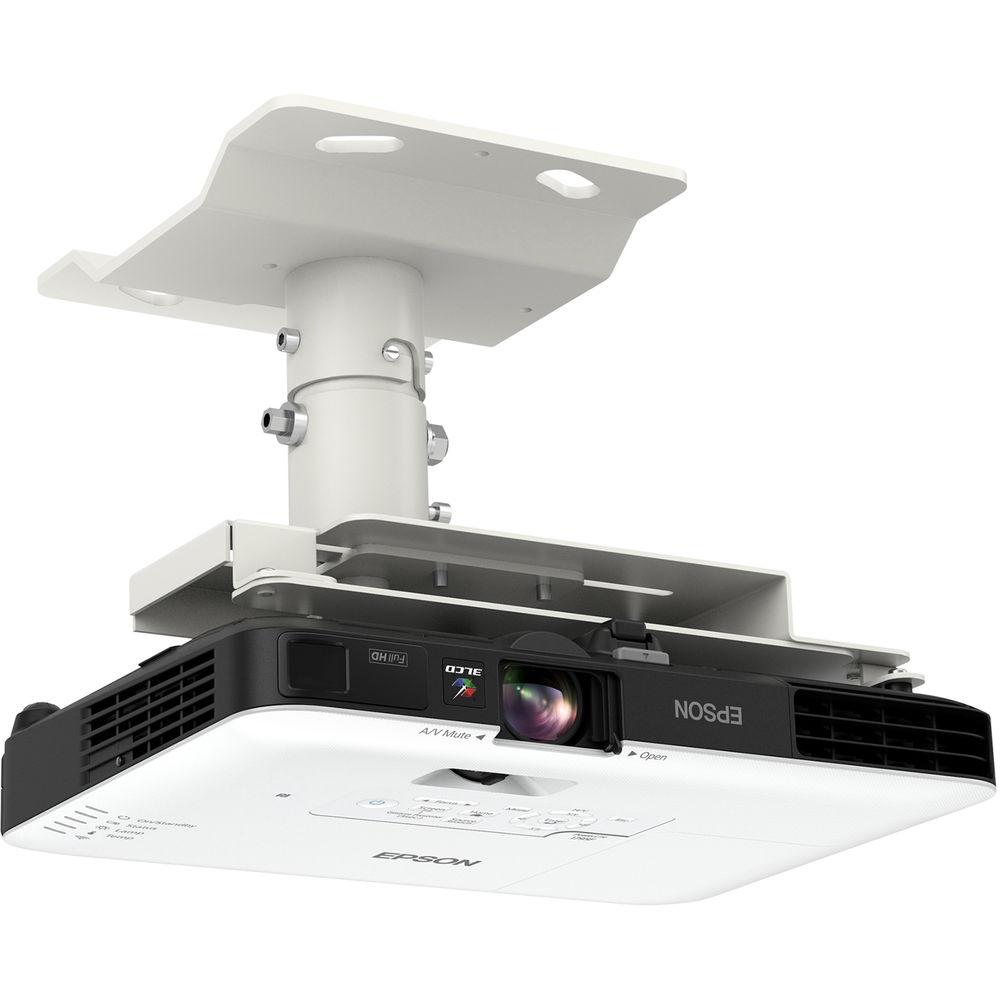

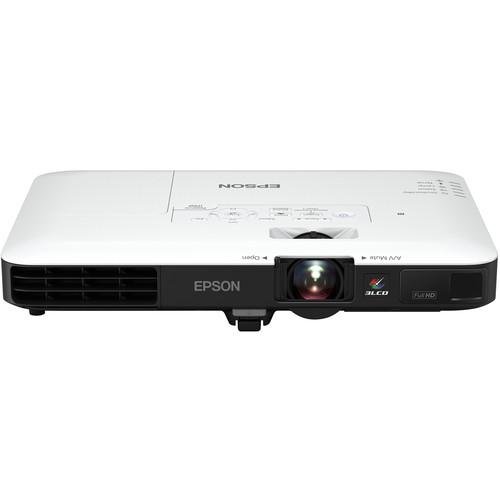

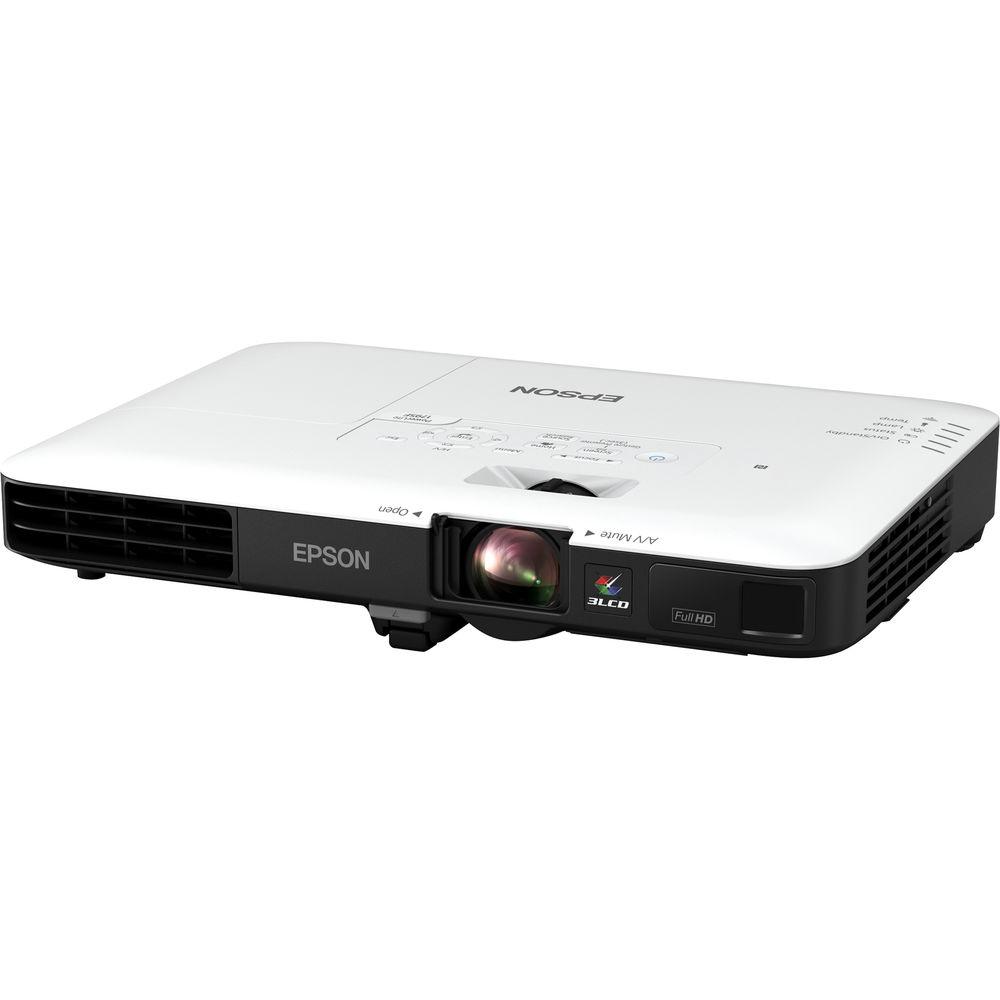

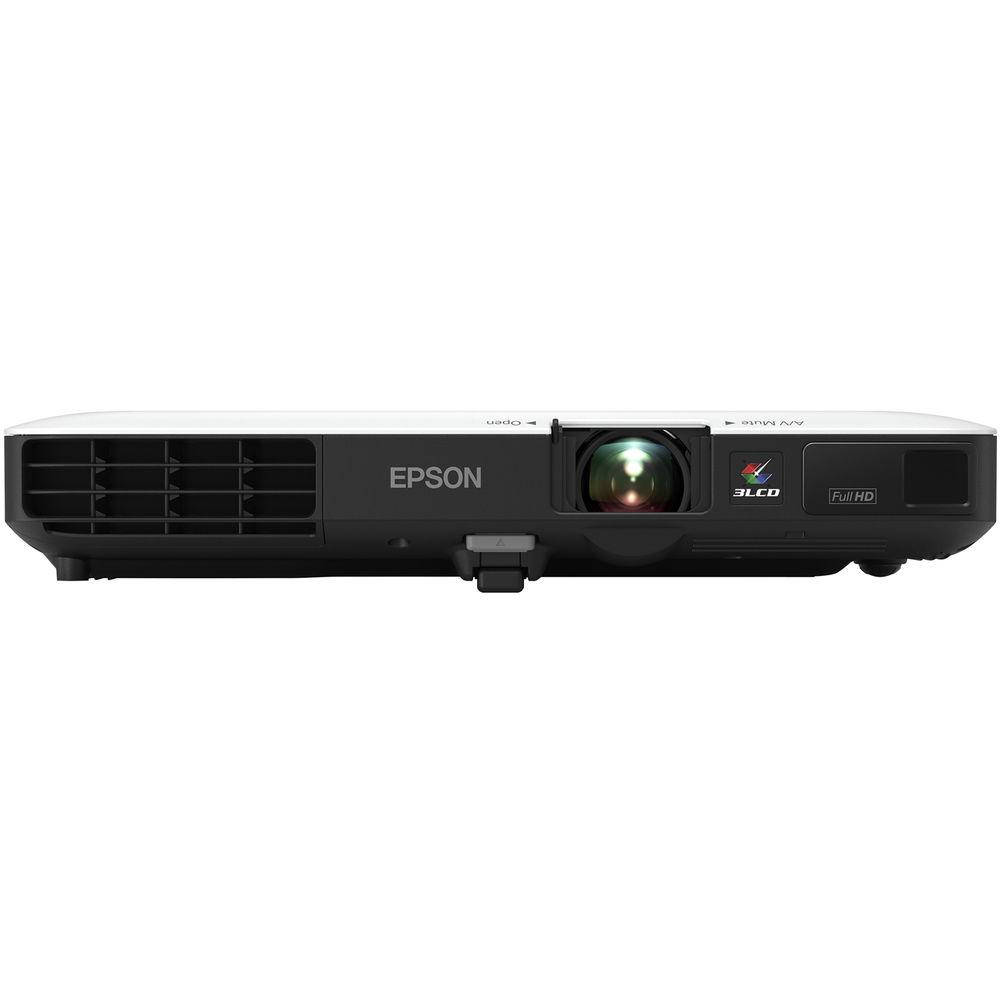

User Manual for Epson PowerLite 1795F 3200-Lumen Full HD 3LCD Projector Click to enlarge the picture
Contents of the user manual for the Epson PowerLite 1795F 3200-Lumen Full HD
- Product category: Multimedia Projectors Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Multimedia Projectors
 |
User manual for the Epson PowerLite 1795F 3200-Lumen Full HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|
Product description Enjoy bright, vibrant images with the Epson PowerLite 1795F 3200-Lumen Full HD 3LCD Projector. Its 3200 lumens of brightness, combined with its 10,000:1 dynamic contrast ratio, will help it overcome ambient light in many situations and retain detail in dark areas of the image without compromising overall brightness. Its 1920 x 1080 native contrast ratio will help ensure that images and text are clear at most viewing distances.
The PowerLite 1795F features HDMI, VGA, and RCA video inputs to support various source devices. Its HDMI input is MHL-compatible, allowing you to connect your compatible smart device directly to the projector to mirror its screen. The projector also accepts video signals via USB from Windows and Mac computers. A carrying case and an IR remote control are included for added convenience. - High Color and White Brightness Levels
- Both color and white brightness of 3200 lumens.
- Contrast Ratio
- Up to 10,000:1 contrast ratio for enhanced detail.
- Wireless Ready
- Built-in LAN module for wireless connectivity.
- HDMI Connectivity
- Includes an HDMI audio and video connection for HD quality with just one cable.
- Auto Screen Fit
- Quickly and easily adjust the image to fit the screen.
- Lightweight and Travel-Friendly

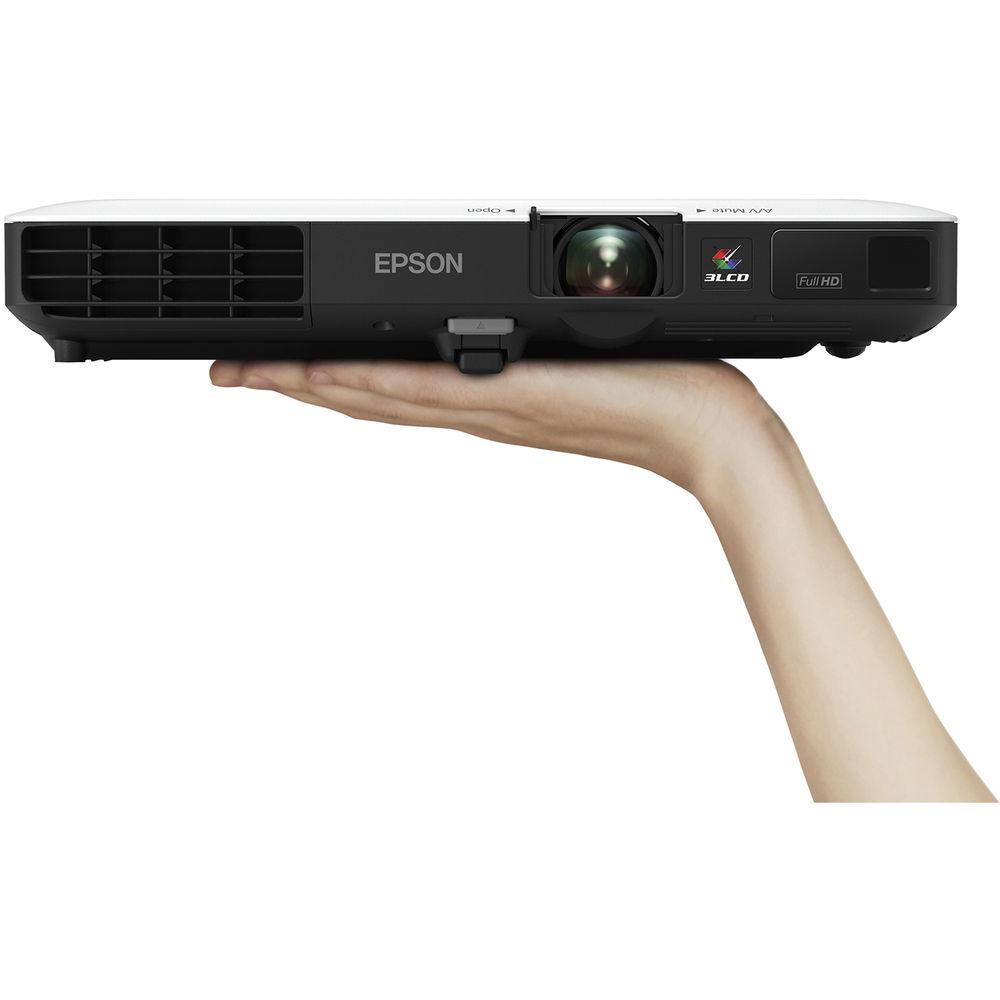

- The PowerLite 1795F weighs just 4 lb and is easy to take on the go with the included carrying case.
- Wireless Connectivity
- Project from your laptop, tablet, or smartphone without plugging into the projector, allowing you to move freely around the room.
- 3LCD Color Accuracy
- 3LCD 3-chip technology is designed to provide enhanced color brightness and a wider color gamut.
- Fast, Easy Image Adjustments
- The PowerLite 1795F features auto horizontal/vertical keystone correction, and Screen Fit to quickly adjust the image to fit the screen, even if the projector is placed off-center.
- Smart Display Functionality
- The PowerLite 1795F supports wireless mirroring for Miracast-enabled devices, as well as Chromecast via HDMI, Roku, and MHL-enabled devices.
- Designed for Fast Wireless Setup
- Just scan the on-screen QR code using your phone or tablet.

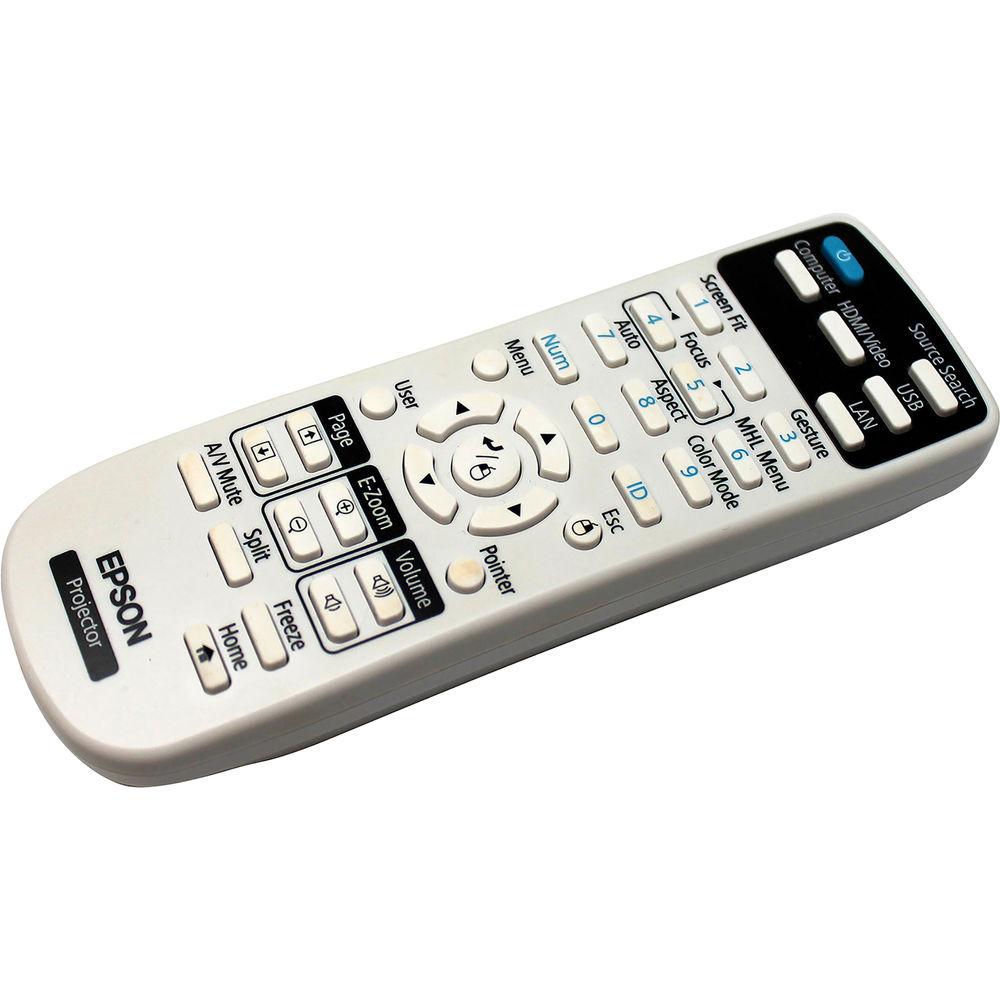

UPC: 010343930964 In the Box Epson PowerLite 1795F 3200-Lumen Full HD 3LCD Projector Remote Control with Batteries VGA Cable USB Cable Soft Carrying Case EasyMP Software CD Limited 2-Year Warranty on Projector Limited 90-Day Warranty on Lamp More info from Epson Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson PowerLite 1795F 3200-Lumen Full HD 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson 1795F Specs | | | Display System | 3-Chip Polysilicon TFT LCD | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Supported Resolutions | Minimum: VGA - 640 x 480
Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 3200 Lumens | | Aspect Ratio | Native: 16:9 | | Dynamic Contrast Ratio | 10,000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | | | Lens | f/1.58 - 1.7 (f = 14.06 - 16.82 mm) | | Optical Zoom | Manual: 1.2x | | Throw Distance | 2.2 - 27.2' / 0.671 - 8.291 m | | Throw Ratio | 1.02 - 1.23:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Auto-Vertical: ± 30°
Auto-Horizontal: ± 20° | | Built-In Speaker | Yes (Mono) | | Speaker Power | 1W | | | | Inputs/Outputs | 1 x HDMI with MHL Support Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x Composite (RCA) Video (Input)
1 x USB Type-A Female (Input)
1 x USB Type-B Female (Input) | | Wireless LAN / Wi-Fi | Yes, Built-in | | | | Light Source | Lamp (1 x UHE) | | Lamp Power | 214 W | | Expected Lamp Life | Medium Brightness: 4000 Hours
Low Brightness: 7000 Hours | | Fan Noise | Medium Brightness: 39 dB
Low Brightness: 30 dB | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 309 W
Low Brightness: 217 W | | Temperature | Operating
41 to 95°F (5 to 35°C) | | Dimensions (W x H x D) | 11.5 x 2.1 x 8.4" / 29.2 x 5.3 x 21.3 cm Including feet
11.5 x 1.7 x 8.4" / 29.2 x 4.3 x 21.3 cm Excluding feet | | Weight | 4.0 lb / 1.8 kg | | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 16.7 x 14.6 x 5.6" |
