User Manual for Epson PowerLite 2040 4200-Lumen XGA 3LCD Projector Click to enlarge the picture
Contents of the user manual for the Epson PowerLite 2040 4200-Lumen XGA 3LCD
- Product category: Multimedia Projectors Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Multimedia Projectors
 |
User manual for the Epson PowerLite 2040 4200-Lumen XGA 3LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|

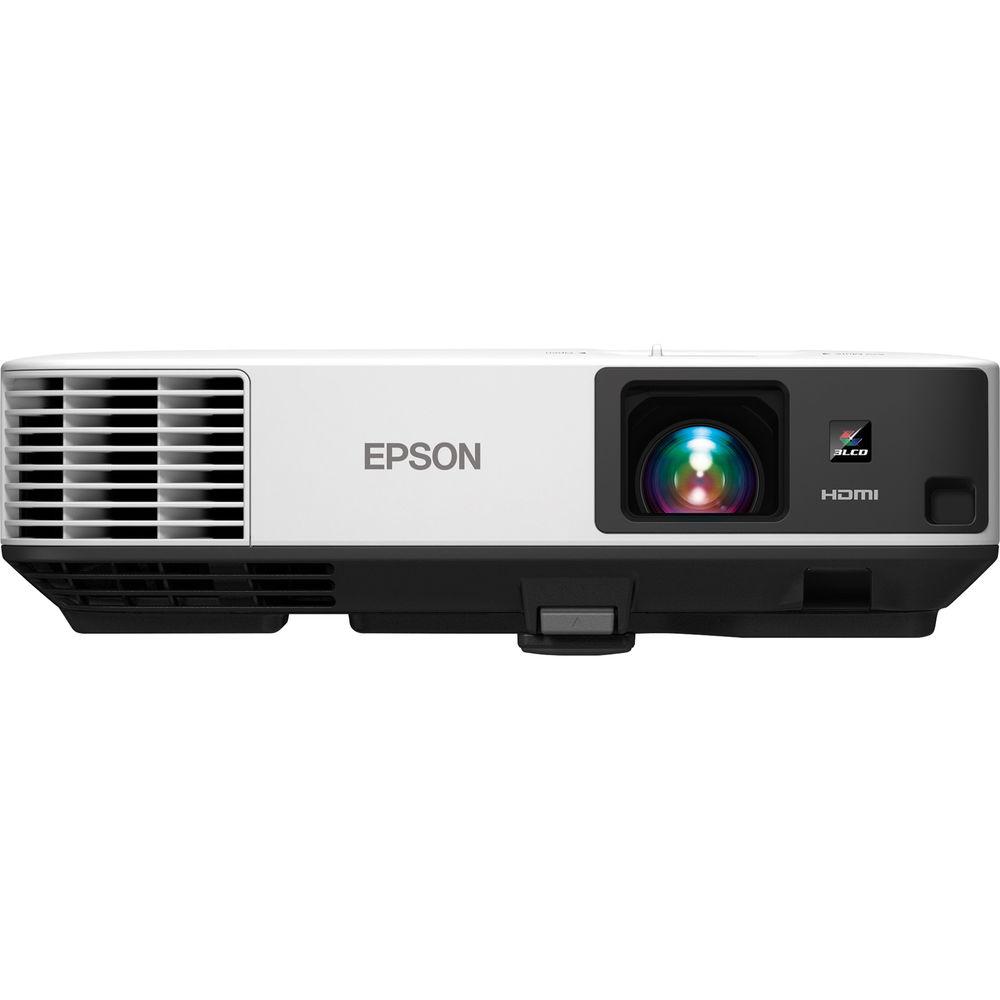

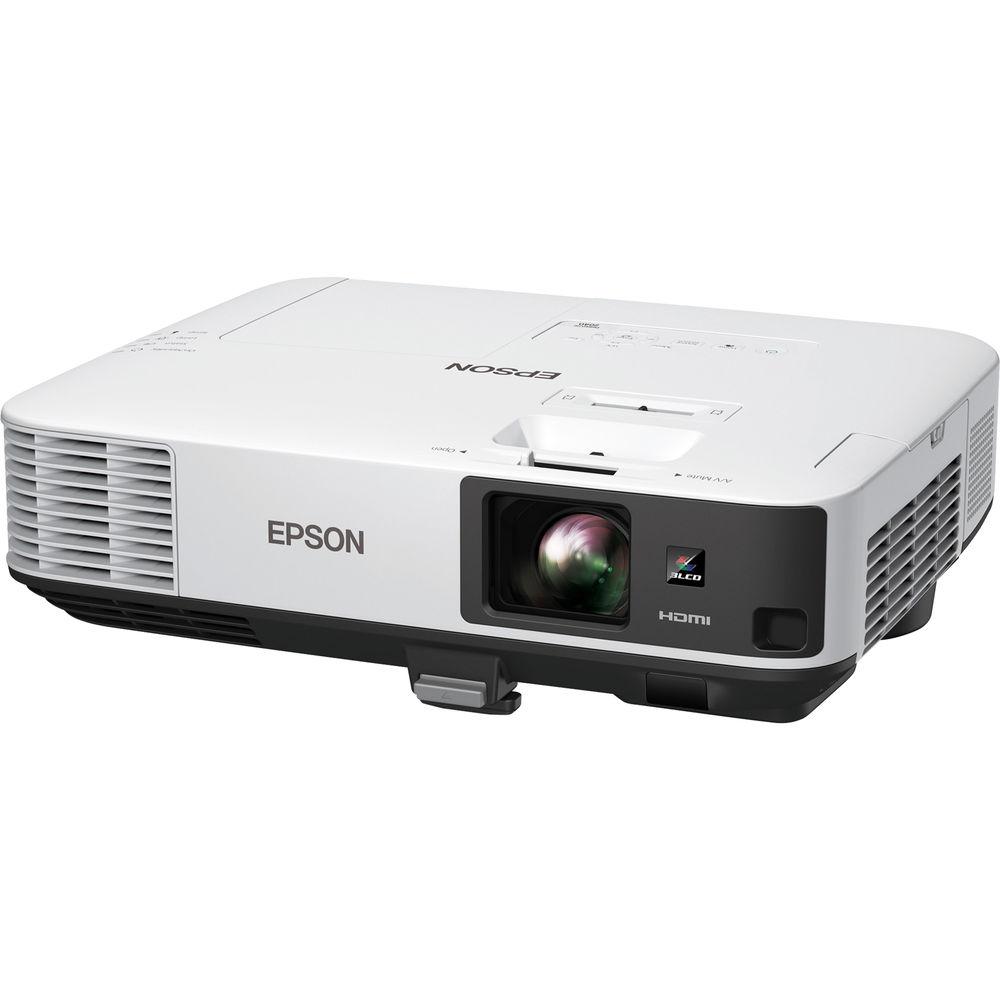

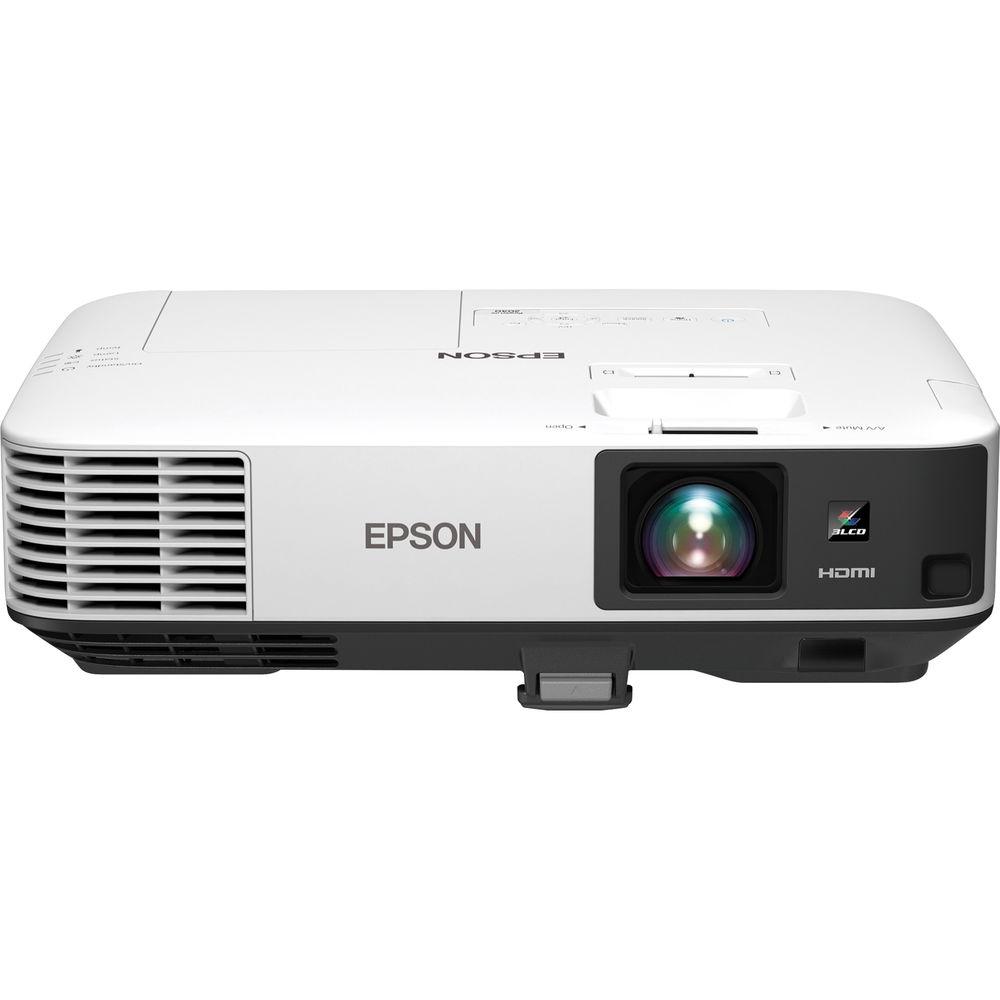

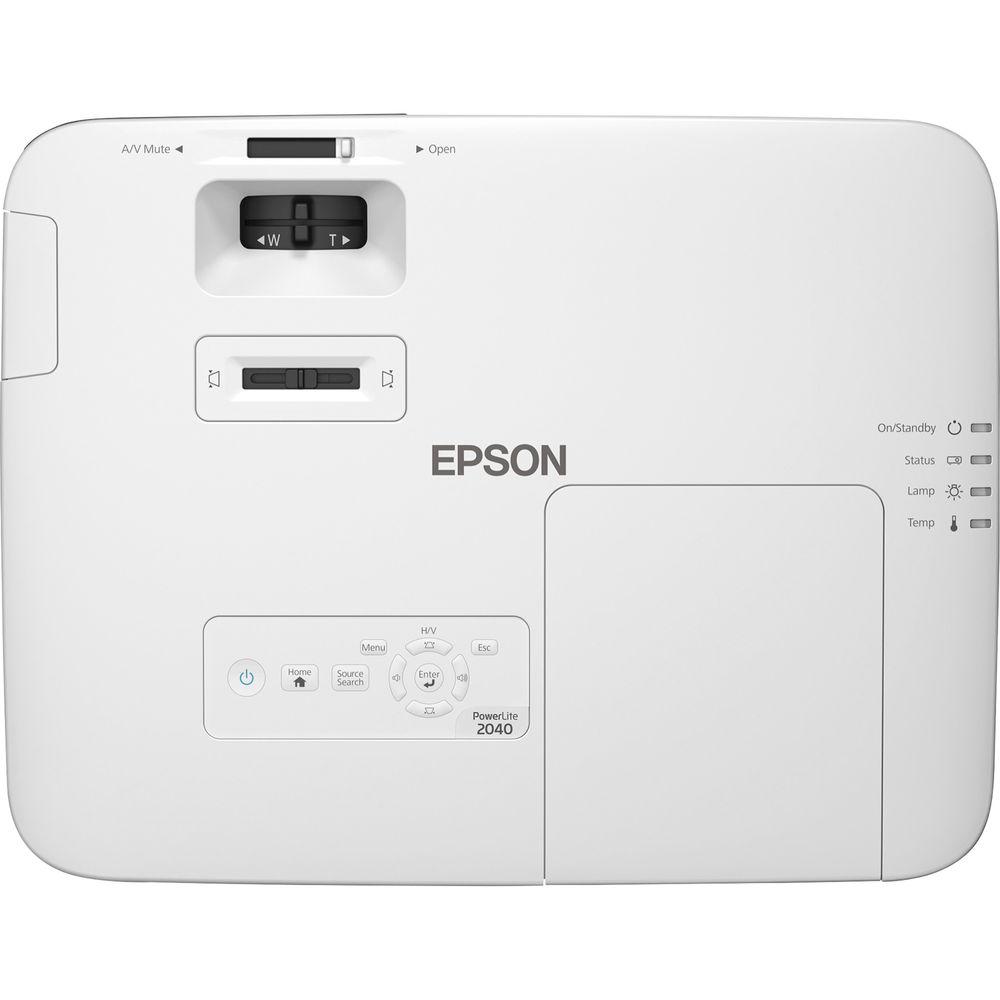

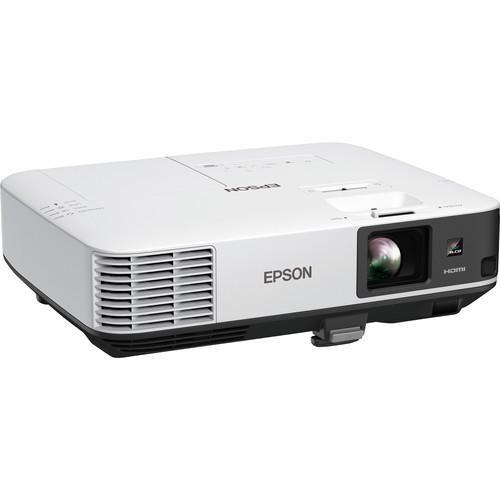

Product description Enjoy bright, vibrant images with the Epson PowerLite 2040 4200-Lumen XGA 3LCD Projector. Its 4200 lumens of brightness, combined with its 15,000:1 dynamic contrast ratio, will help it overcome ambient light in many situations and help retain detail in dark areas of the image without compromising overall brightness. Its 1024 x 768 native resolution will help ensure that text is clear at most viewing distances.

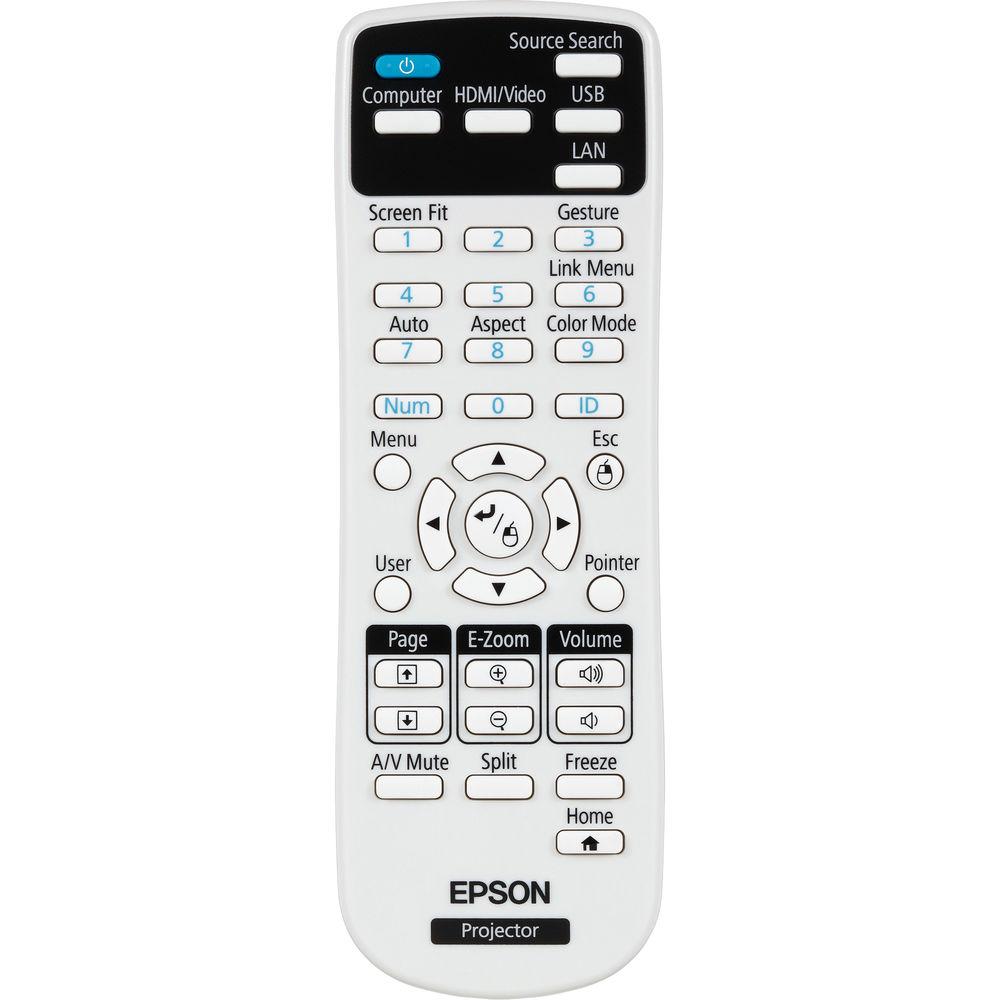

The PowerLite 2040 features VGA, RCA composite, and two HDMI inputs to support various sources. One HDMI input is MHL-compatible, which will allow you to connect your compatible smart device directly to the projector to mirror its screen. You can output the video to another projector or display with the VGA output. Its 3.5mm audio inputs and output allow for audio transmission, for a more immersive experience. An IR remote is included for convenient control. - High Brightness
- The PowerLite 2040 features 4200 lumens of color and white brightness to help overcome ambient light.
- HDMI with MHL connectivity
- View 1080p content and mirror your mobile device with MHL.
- Manual Keystone Correction
- Adjust the image vertically and horizontally to achieve a properly shaped image.
- Accurate Colors
- 3-chip, 3LCD technology provides a wide color gamut.
- Enhanced Detail
- The projector's 15,000:1 dynamic contrast ratio helps enhance clarity for both text and graphics.
- Split Screen Feature
- Simultaneously project two images, video or still, side by side from two different sources.
- Remote Management and Control Tools
- The included software allows for remote monitoring and control of Epson network projectors. The PowerLite 2040 is also compatible with Crestron RoomView management software.
- Eco-Friendly Lamp
- The lamp lasts up to 10,000 hours in ECO Mode.
- Compact Design
- The PowerLite 2040 is compact enough to take room-to-room or install in small to medium-sized spaces.
- Optional Wireless Networking
- Network the projector wirelessly with an optional wireless adapter.
UPC: 010343932418 In the Box Epson PowerLite 2040 4200-Lumen XGA 3LCD Projector Remote Control with Batteries VGA Cable Power Cable Limited 2-Year Warranty on Projector Limited 90-Day Warranty on Lamp More info from Epson efuezdvttetwyrdxservwszfrrswtdwdsbusc Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson PowerLite 2040 4200-Lumen XGA 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson 2040 Specs | | | Display System | 3-Chip Polysilicon TFT LCD | | Native Chip Resolution | 1024 x 768 (XGA) | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | 4200 Lumens | | Aspect Ratio | Native: 4:3 | | Dynamic Contrast Ratio | 15,000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | | | Focus | Manual | | Lens | f/1.5 - 2 (f = 18.2 - 29.2 mm) | | Optical Zoom | Manual: 1.6x | | Throw Distance | 4.46 - 45.4' / 1.359 - 13.838 m | | Throw Ratio | 1.38 - 2.24:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Vertical: ± 30°

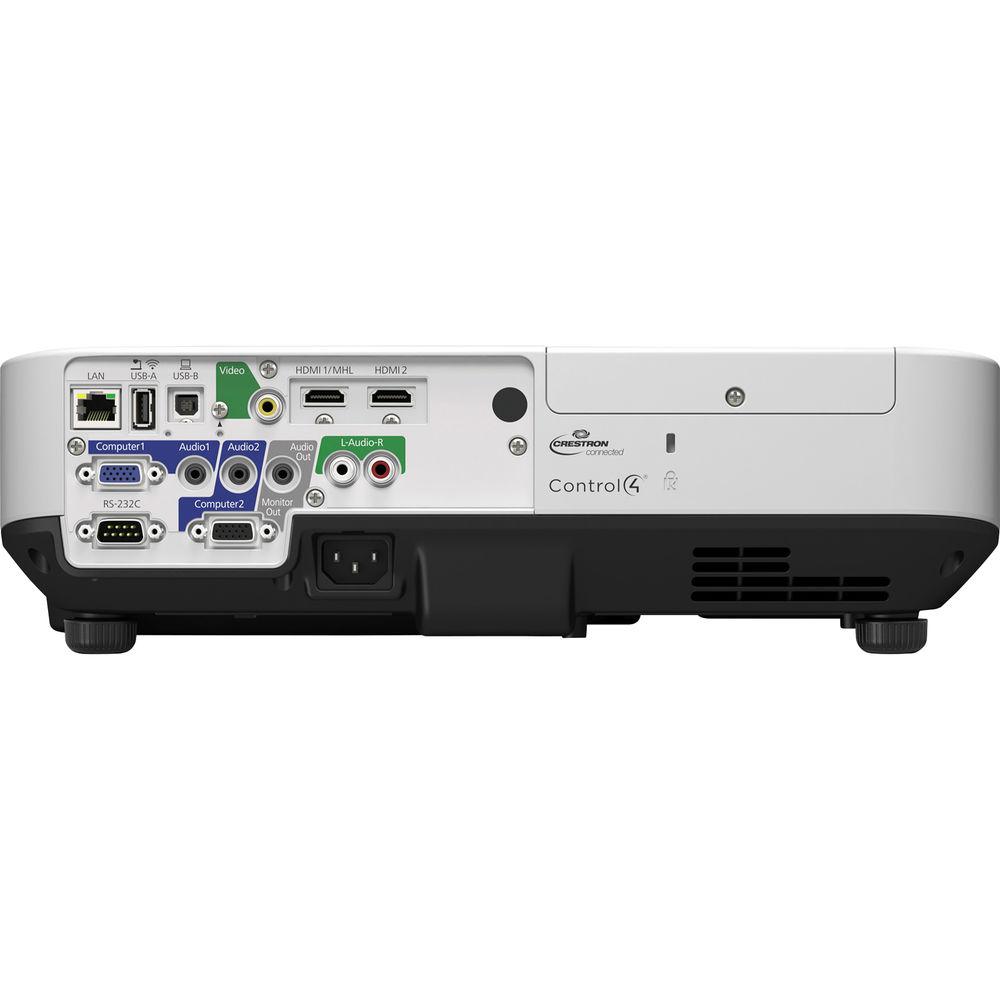

Horizontal: ± 20° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 16W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x Composite (RCA) Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
3 x 1/8" (3.5 mm) Mini Audio (Input)
1 x VGA (DE-15) Video (Output)
1 x Ethernet (RJ45) LAN (Input)
1 x RS-232C (Unspecified Connector) Control (Input) | | Wireless LAN / Wi-Fi | None | | | | Light Source | Lamp (1 x UHE) | | Lamp Power | 300 W | | Expected Lamp Life | Medium Brightness: 5000 Hours
Low Brightness: 10,000 Hours | | Security | Cable Lock Slot | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 333 W
Low Brightness: 235 W
Standby Mode (Lamp Off): 2.4 W
Standby Mode (Lamp Off): 0.21 W | | Temperature | Operating
41 to 95°F (5 to 35°C) | | Dimensions (W x H x D) | 14.9 x 11.5 x 4.6" / 37.8 x 29.2 x 11.7 cm Including feet
14.9 x 11.5 x 4.0" / 37.8 x 29.2 x 10.2 cm Excluding feet | | Weight | 9.3 lb / 4.2 kg | | | | Package Weight | 13.5 lb | | Box Dimensions (LxWxH) | 21.0 x 15.0 x 8.0" |
