User Manual for Epson PowerLite 2155W 5000-Lumen WXGA 3LCD Projector Click to enlarge the picture
Contents of the user manual for the Epson PowerLite 2155W 5000-Lumen WXGA 3LCD
- Product category: Multimedia Projectors Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Multimedia Projectors
 |
User manual for the Epson PowerLite 2155W 5000-Lumen WXGA 3LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|

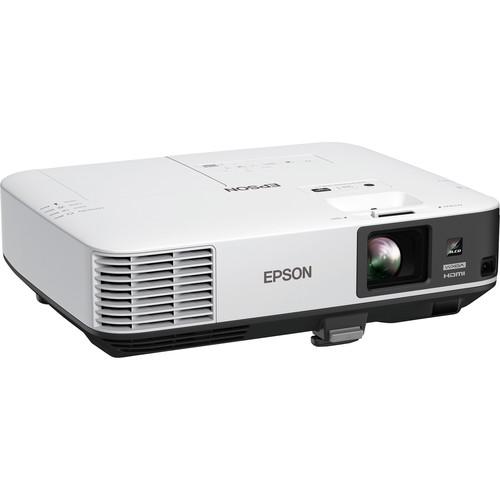

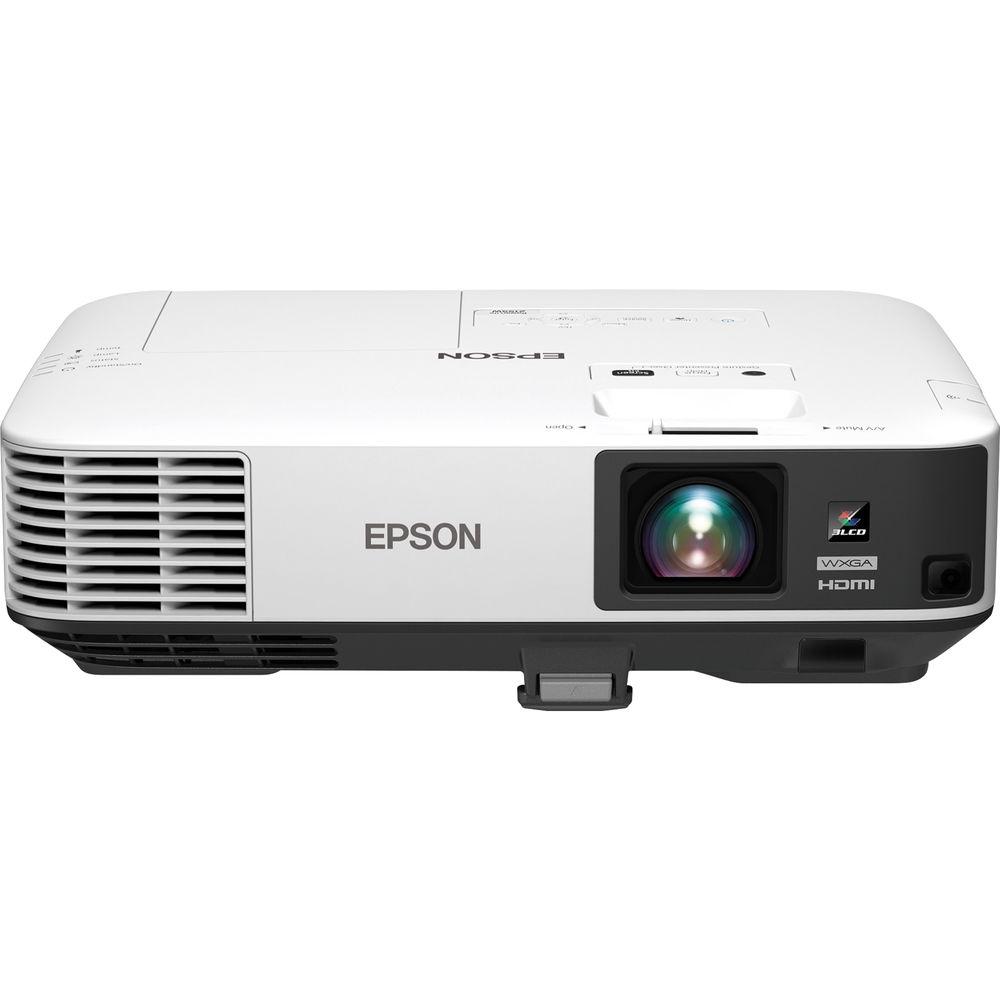

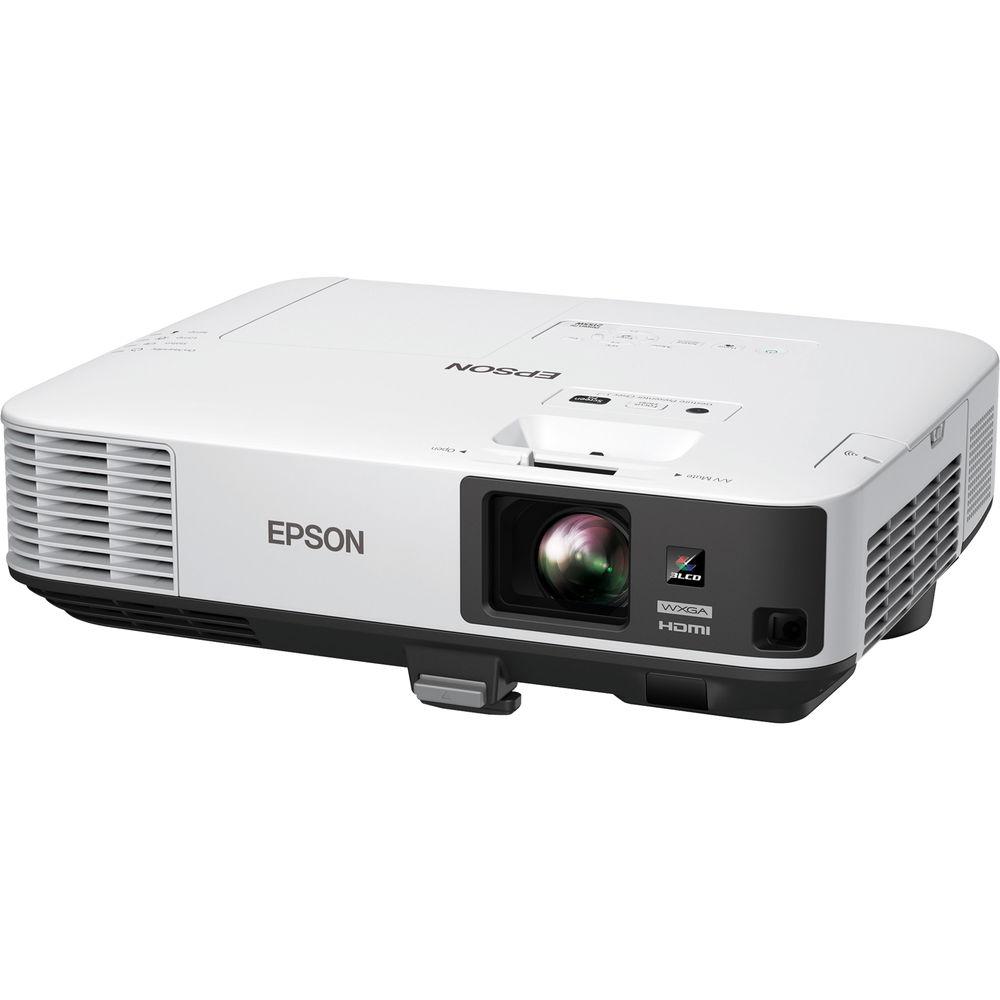

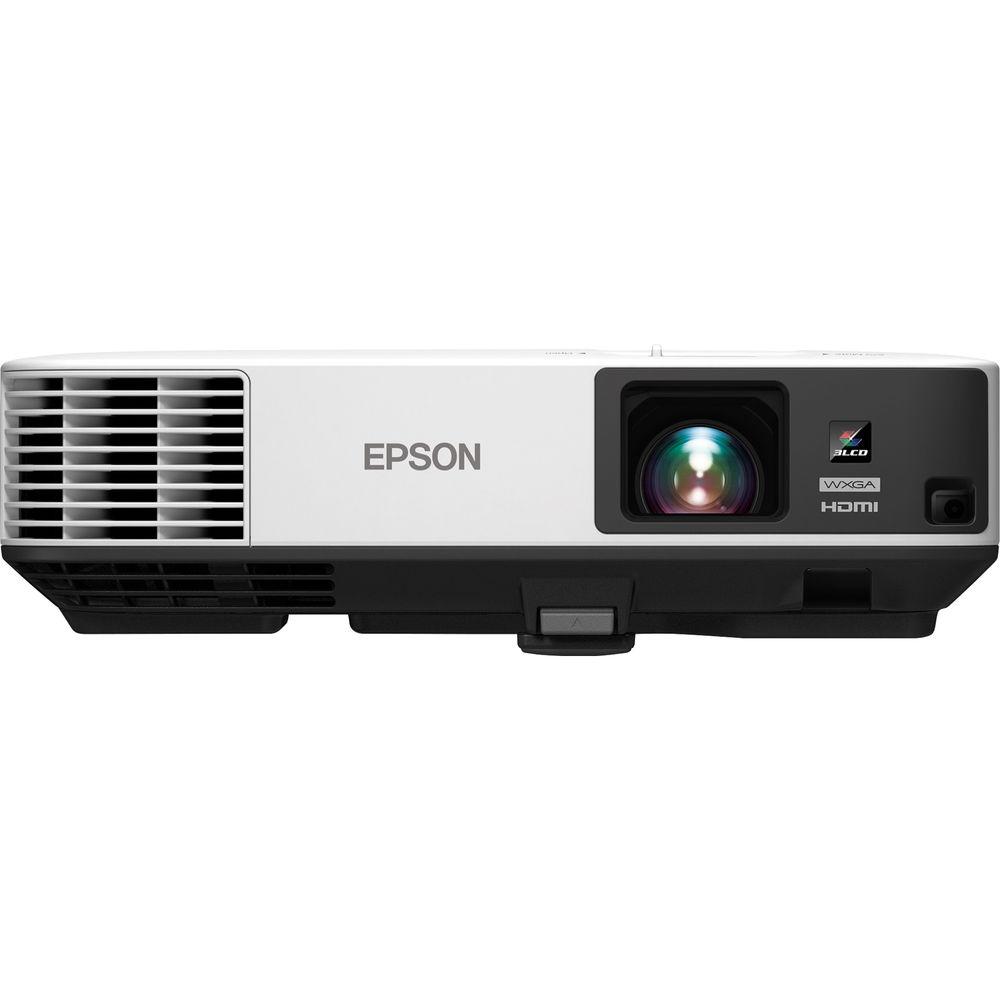

Product description Enjoy bright, vibrant images with the Epson PowerLite 2155W 5000-Lumen WXGA 3LCD Projector. Its 5000 lumens of brightness, combined with its 15,000:1 contrast ratio, will help it overcome ambient light in many situations and help retain detail in dark areas of the image without compromising overall brightness. Its 1280 x 800 native resolution will help ensure that text is clear at most viewing distances.

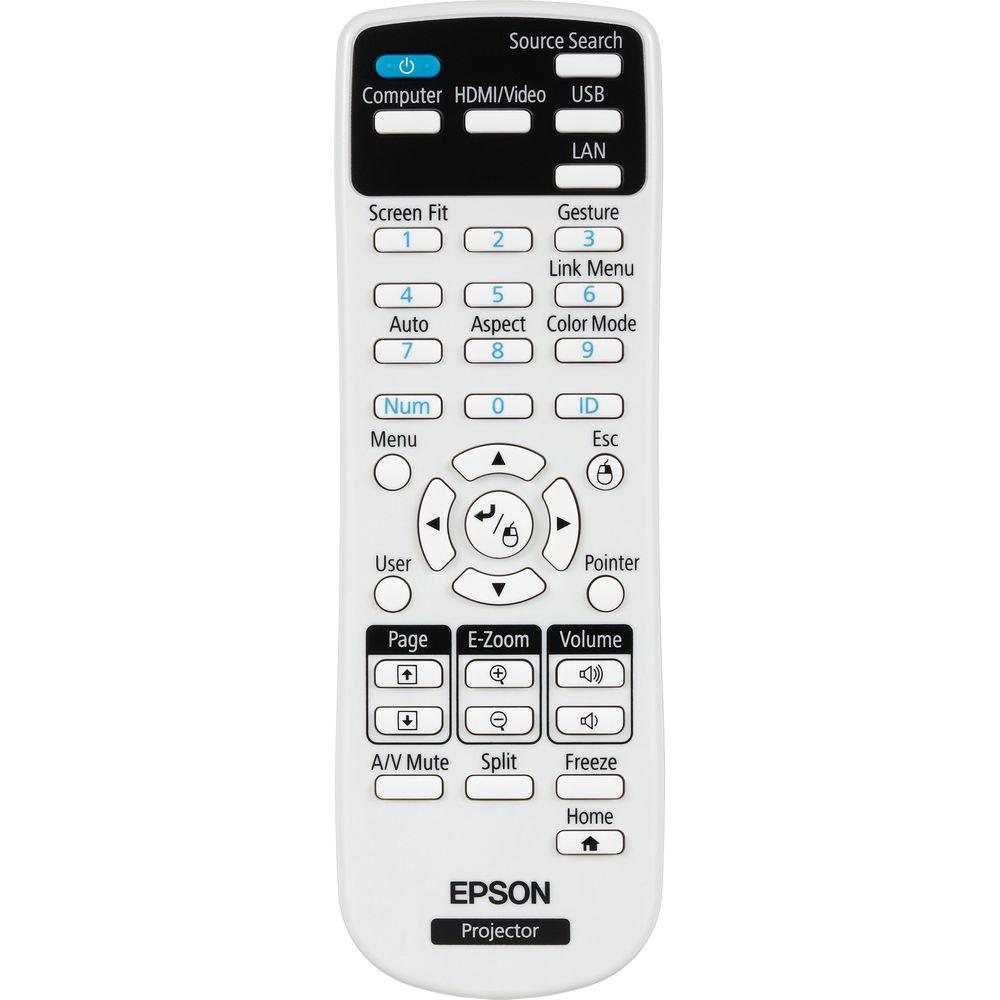

The PowerLite 2155W features VGA, RCA composite, and two HDMI inputs to support various sources. One HDMI input is MHL-compatible, which will allow you to connect your compatible smart device directly to the projector to mirror its screen. You can output the video to another projector or display with the VGA output. Its 3.5mm audio inputs and output allow for audio transmission, for a more immersive experience. An IR remote is included for convenient control, and a wireless LAN module is also included for wireless networking. - High Color and White Brightness Levels
- Both color and white brightness of 5000 lumens.
- Wireless Ready
- The PowerLite 2155W includes a LAN module for wireless connectivity.
- HDMI with MHL Connectivity
- View 1080p content and mirror your compatible mobile device with MHL and standard HDMI, for instant access to movies, games, and more.
- Auto Screen Fit
- The Auto Screen Fit feature is designed to quickly and easily adjust the image to fit the screen.
- 3LCD Color Accuracy
- 3LCD, 3-chip technology is designed to provide enhanced color brightness and a wider color gamut.
- Enhanced Sharpness and Detail
- Up to 15,000:1 contrast ratio for enhanced detail.
- Secure Wireless Networking
- The included wireless LAN adapter is compatible with WEP, WPA, WPA2-PSK, and WPA2-EAP security protocols.
- Split Screen
- Simultaneously project two images (video or still) side-by-side from two different sources.
- Remote Management and Control Tools
- The included software allows for remote monitoring and control of networked Epson projectors. The PowerLite 2155W is also compatible with the Crestron RoomView software.
- Versatile Design with Multiple Inputs
- The PowerLite 2155W features multiple connectivity options, making it suitable for use in small to medium-sized spaces.
UPC: 010343932364 In the Box Epson PowerLite 2155W 5000-Lumen WXGA 3LCD Projector Remote Control 2 x Alkaline AA Batteries Wireless LAN Module VGA Cable Password Protected Sticker Software CD Power Cord Limited 2-Year Warranty on Projector Limited 90-Day Warranty on Lamp More info from Epson Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson PowerLite 2155W 5000-Lumen WXGA 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson 2155W Specs | | | Display System | 3-Chip Polysilicon TFT LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | 5000 Lumens | | Aspect Ratio | Native: 16:10 | | Contrast Ratio | 15000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | | | Focus | Manual | | Lens | f/1.5 - 2 (f = 18.2 - 29.2 mm) | | Optical Zoom | Manual: 1.6x | | Throw Distance | 4.593 - 44.98' / 1.4 - 13.71 m | | Throw Ratio | 1.38 - 2.24:1 | | Projection Size | 29 - 280" / 73.66 - 711.20 cm | | | | Keystone Correction | Vertical: ± 30°

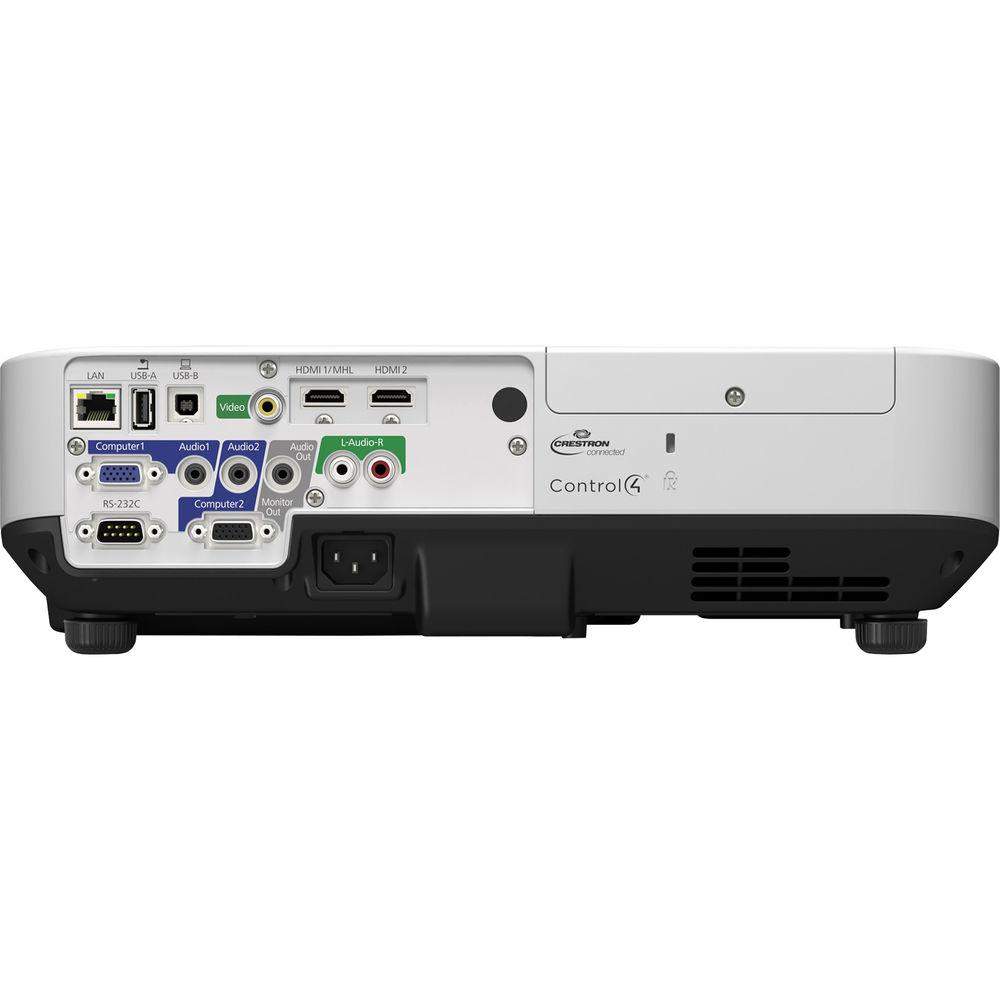

Horizontal: ± 20° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 16W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x Composite (RCA) Video (Input)
3 x 1/8" (3.5 mm) Mini Audio (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x Ethernet (RJ45) LAN (Input)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x VGA (DE-15) Video (Output) | | Wireless LAN / Wi-Fi | Yes, Built-in | | | | Light Source | Lamp (1 x UHE) | | Lamp Power | 300 W | | Expected Lamp Life | Medium Brightness: 5000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Medium Brightness: 39 dB
Low Brightness: 29 dB | | Security | Cable Lock Slot
Password Protection | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 429 W
Low Brightness: 340 W
Standby Mode (Lamp Off): 2.4 W
Standby Mode (Lamp Off): 0.21 W | | Max Operating Altitude | 10000' / 3048 m | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 20 - 80%
Storage
14 to 140°F (-10 to 60°C)
Humidity: 10 - 90% | | Dimensions (W x H x D) | 14.8 x 4.6 x 11.5" / 37.6 x 11.7 x 29.2 cm Including feet
14.8 x 4.0 x 11.5" / 37.6 x 10.2 x 29.2 cm Excluding feet | | Weight | 9.5 lb / 4.3 kg | | | | Package Weight | 14.5 lb | | Box Dimensions (LxWxH) | 20.7 x 15.2 x 8.3" |
