Epson PowerLite 2250U 5000-Lumen WUXGA 3LCD

Search your instruction manual in PDF to download

User Manual for Epson PowerLite 2250U 5000-Lumen WUXGA 3LCD Projector

Click to enlarge the picture
Epson PowerLite 2250U 5000-Lumen WUXGA 3LCD Projector Contents of the user manual for the Epson PowerLite 2250U 5000-Lumen WUXGA 3LCD
  • Product category: Multimedia Projectors Epson
  • Brand: Epson
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Epson Multimedia Projectors

Epson PowerLite 2250U 5000-Lumen WUXGA 3LCD Projector Epson PowerLite 2250U 5000-Lumen WUXGA 3LCD Projector Epson PowerLite 2250U 5000-Lumen WUXGA 3LCD Projector Epson PowerLite 2250U 5000-Lumen WUXGA 3LCD Projector Epson PowerLite 2250U 5000-Lumen WUXGA 3LCD Projector Epson PowerLite 2250U 5000-Lumen WUXGA 3LCD Projector
User manual for the Epson PowerLite 2250U 5000-Lumen WUXGA 3LCD contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Epson product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!



Product description

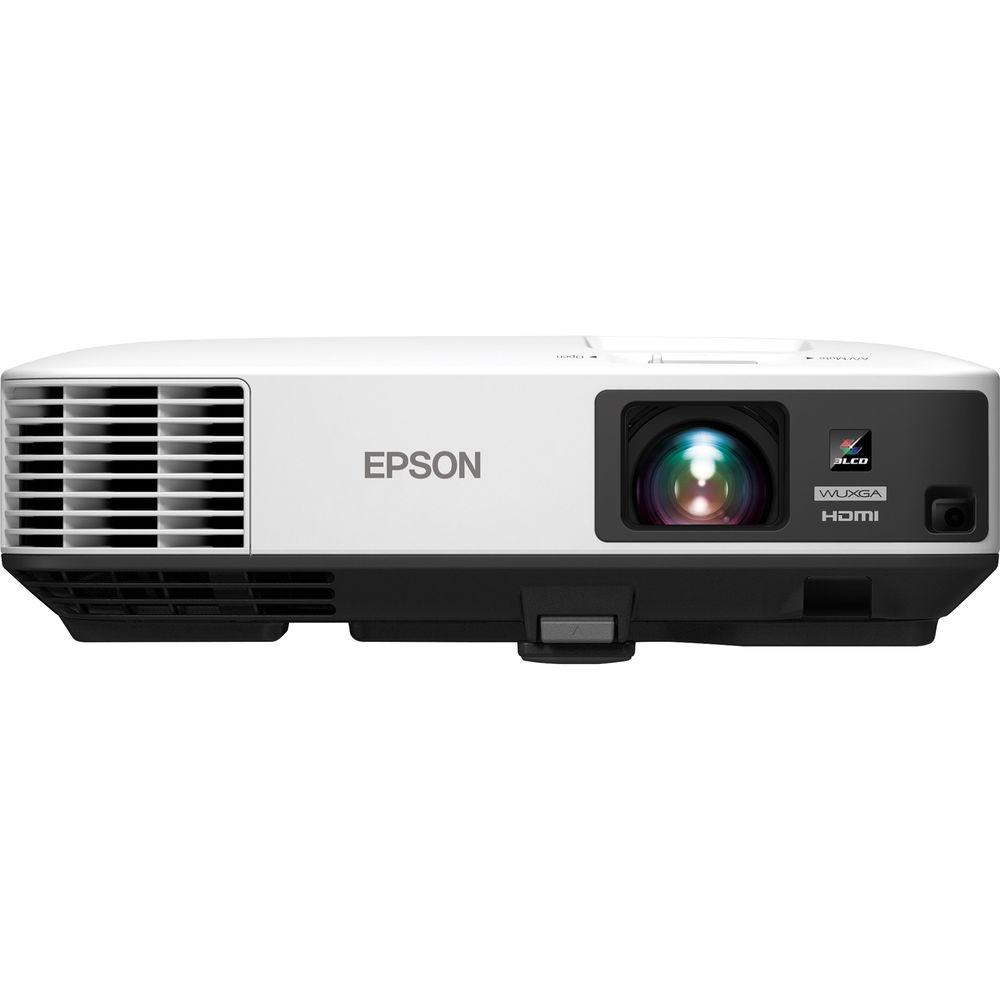

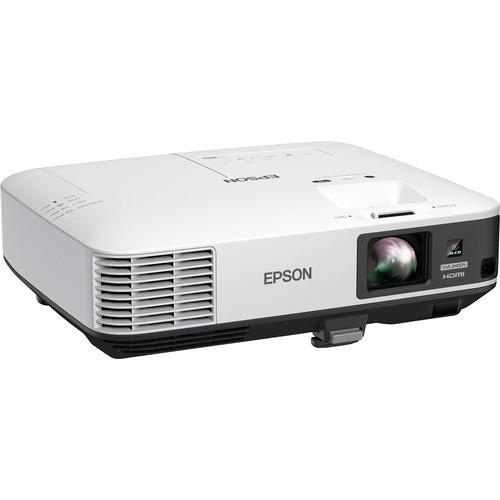

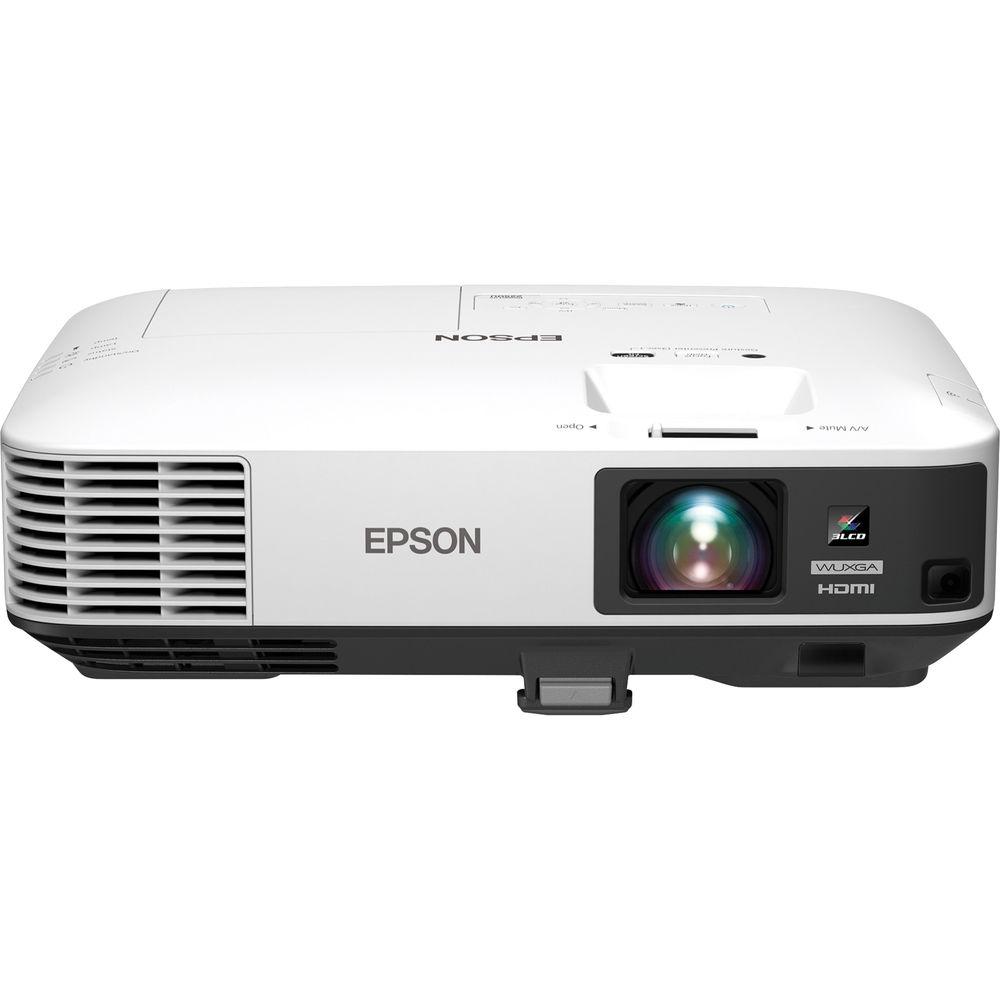

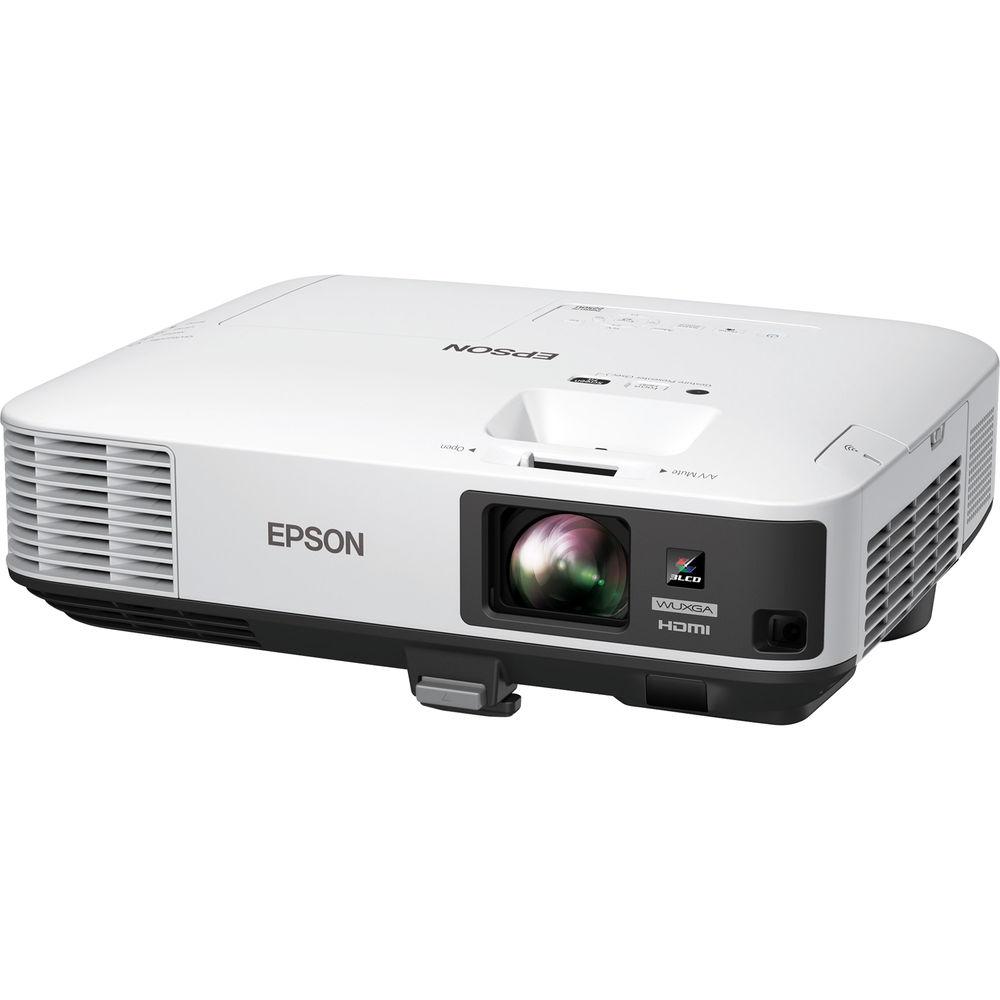

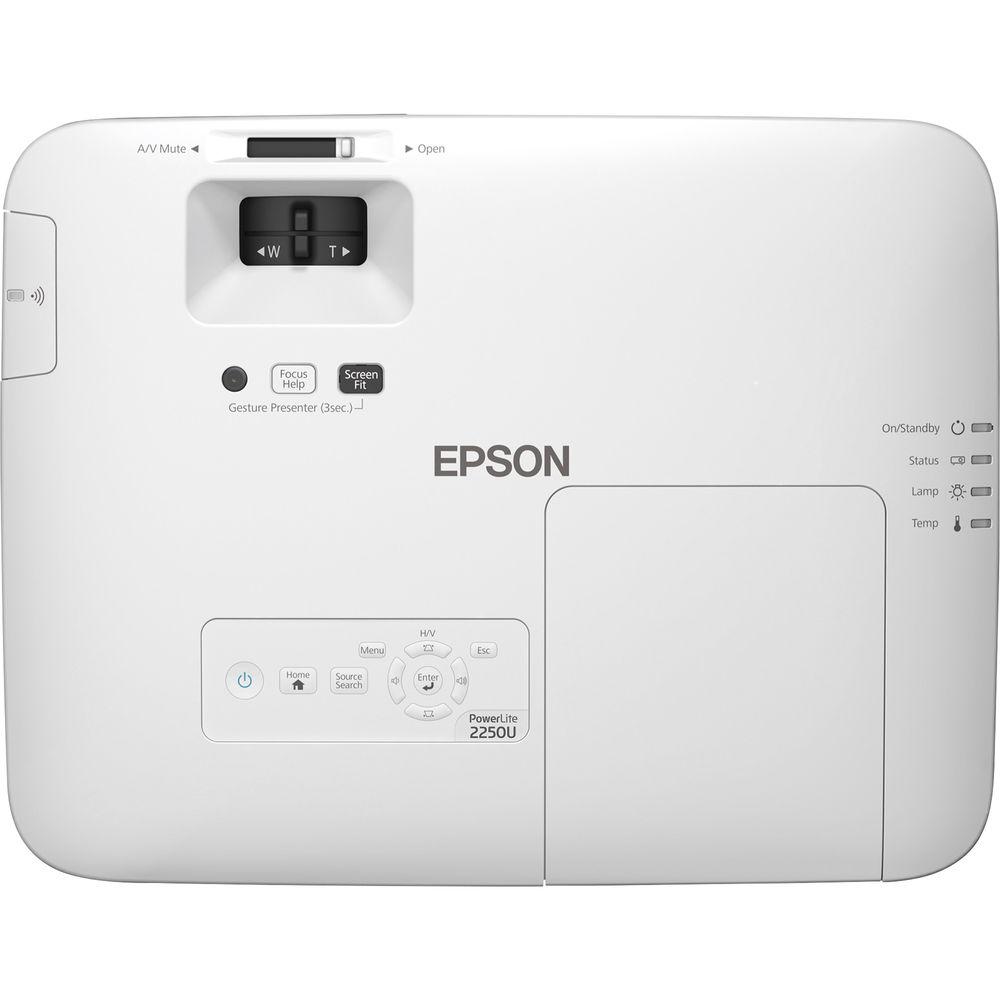

Enjoy bright, vibrant images with the Epson PowerLite 2250U 5000-Lumen WUXGA 3LCD Projector. Its 5000 lumens of brightness, combined with its 15,000:1 contrast ratio, will help it overcome ambient light in many situations and help retain detail in dark areas of the image without compromising overall brightness. Its 1920 x 1200 native resolution will help ensure that text is clear at most viewing distances.

The PowerLite 2250U features VGA, RCA composite, and two HDMI inputs to support various sources. One HDMI input is MHL-compatible, which will allow you to connect your compatible smart device directly to the projector to mirror its screen. You can output the video to another projector or display with the VGA output. Its 3.5mm audio inputs and output allow for audio transmission, for a more immersive experience. An IR remote is included for convenient control, and the included VGA cable will provide instant connectivity.
    High Color and White Brightness Levels
  • Both color and white brightness of 5000 lumens.
    Built-In Speaker
  • The PowerLite 2250U features a built-in speaker to amplify the audio of the presentation.
    HDMI with MHL Connectivity
  • View 1080p content and mirror your compatible mobile device with MHL and standard HDMI, for instant access to movies, games, and more.
    Auto Screen Fit
  • The Auto Screen Fit feature is designed to quickly and easily adjust the image to fit the screen.
    3LCD Color Accuracy
  • 3LCD, 3-chip technology is designed to provide enhanced color brightness and a wider color gamut.
    Enhanced Sharpness and Detail
  • Up to 15,000:1 contrast ratio for enhanced detail.
    Split Screen
  • Simultaneously project two images (video or still) side-by-side from two different sources.
    Remote Management and Control Tools
  • The included software allows for remote monitoring and control of networked Epson projectors. The PowerLite 2250U is also compatible with the Crestron RoomView software.
    Versatile Design with Multiple Inputs
  • The PowerLite 2250U features multiple connectivity options, making it suitable for use in small to medium-sized spaces.
    Optional Wireless Networking
  • The optional wireless LAN adapter is compatible with WEP, WPA, WPA2-PSK, and WPA2-EAP security protocols.
UPC: 010343932340 In the Box Epson PowerLite 2250U 5000-Lumen WUXGA 3LCD Projector

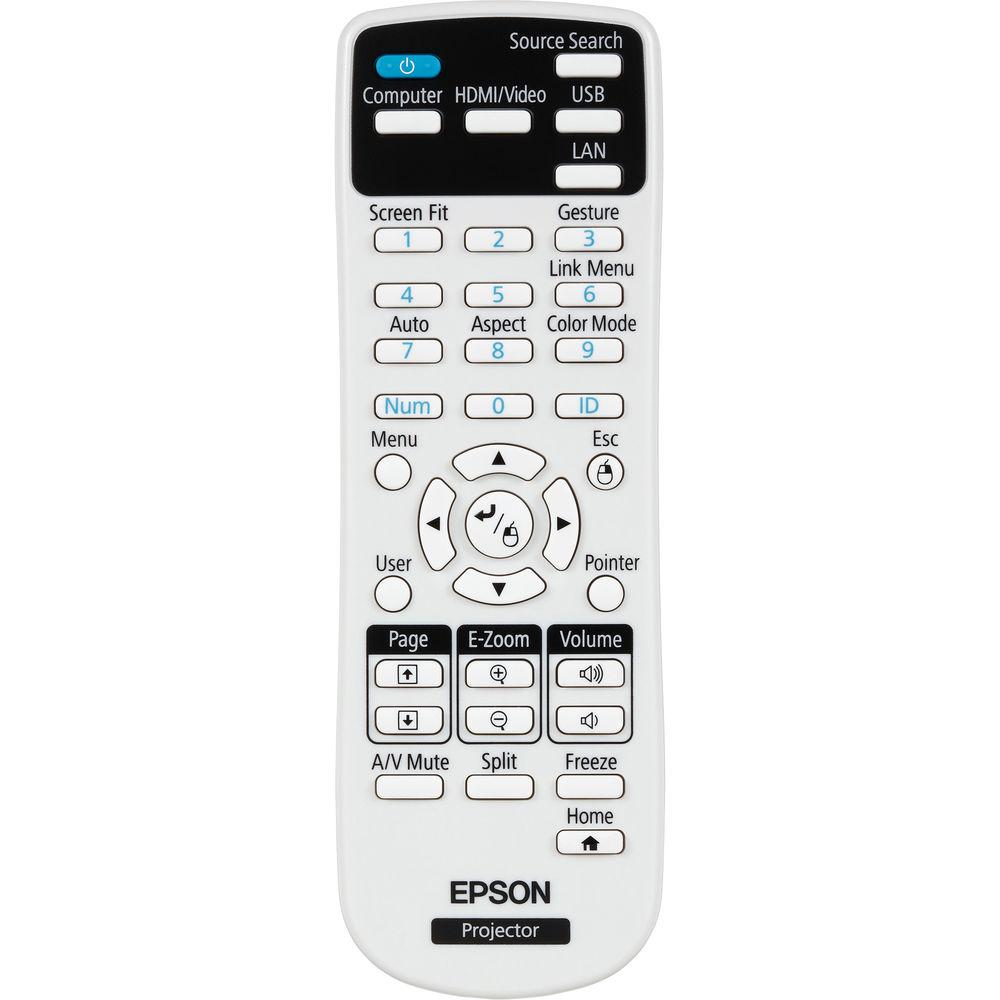

  • Remote Control
  • 2 x Alkaline AA Batteries
  • VGA Cable
  • Password Protected Sticker
  • Software CD
  • Power Cord
  • Limited 2-Year Warranty on Projector
  • Limited 90-Day Warranty on Lamp
  • More info from Epson Table of Contents




    Upload User Manual

    Have you got an user manual for the Epson PowerLite 2250U 5000-Lumen WUXGA 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Epson 2250U Specs

    Display System 3-Chip Polysilicon TFT LCD
    Native Chip Resolution 1920 x 1200 (WUXGA)
    Max Brightness 5000 Lumens
    Aspect Ratio Native: 16:10
    Contrast Ratio 15000:1
    Color Depth 10-Bit (1.07 Billion Colors)
    Focus Manual
    Lens f/1.5 - 2 (f = 23 - 38.4 mm)
    Optical Zoom Manual: 1.6x
    Throw Distance 4.921 - 29.528' / 1.5 - 9 m
    Throw Ratio 1.38 - 2.28:1
    Projection Size 50 - 300" / 127.00 - 762.00 cm
    Keystone Correction Vertical: ± 30°
    Horizontal: ± 20°
    Ceiling Mountable Yes
    Rear Screen Projection Yes
    Built-In Speaker Yes (Mono)
    Speaker Power 16W

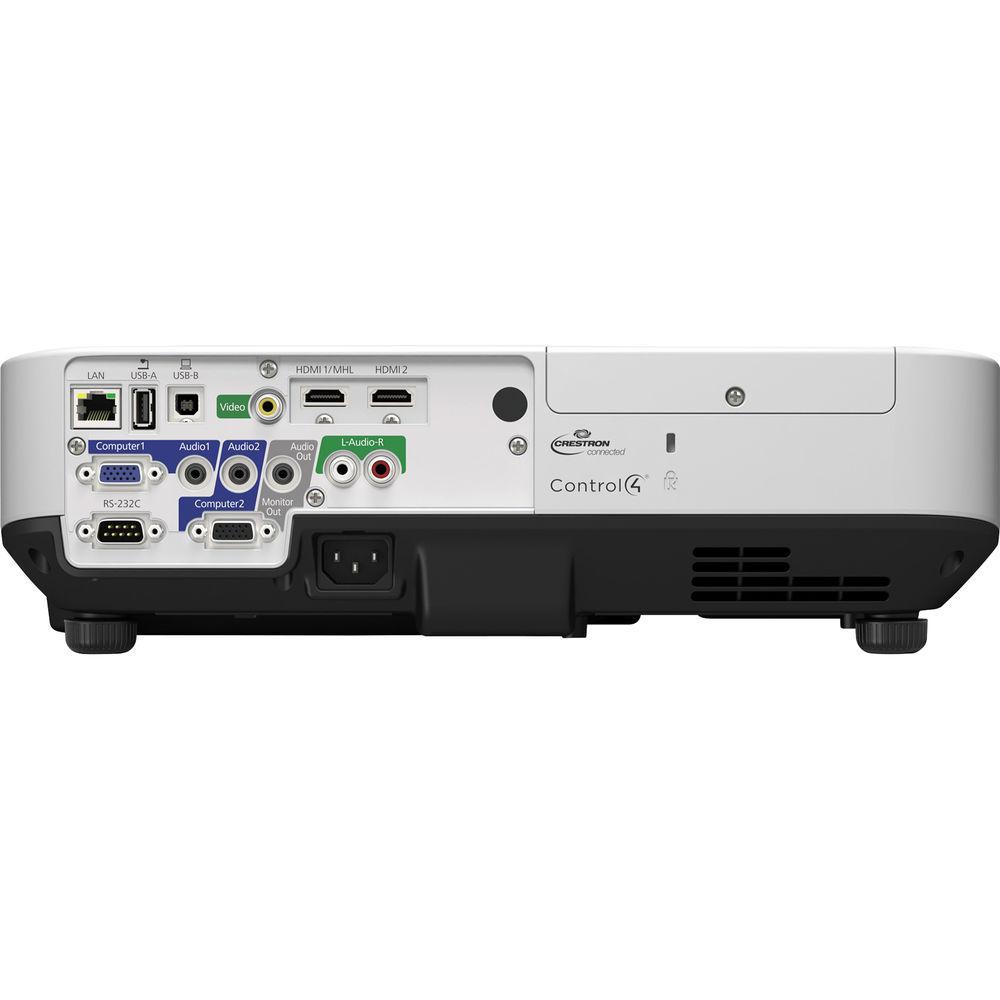

    Inputs/Outputs 1 x HDMI Audio/Video (Input)
    1 x HDMI with MHL Support Audio/Video (Input)
    1 x VGA (DE-15) Video (Input)
    1 x Composite (RCA) Video (Input)
    3 x 1/8" (3.5 mm) Mini Audio (Input)
    1 x RCA Stereo (L/R) Audio (Input)
    1 x Ethernet (RJ45) LAN (Input)
    1 x RS-232C (Unspecified Connector) Control (Input)
    1 x VGA (DE-15) Video (Output)
    Wireless LAN / Wi-Fi None
    Light Source Lamp (1 x UHE)
    Lamp Power 300 W
    Expected Lamp Life Medium Brightness: 5000 Hours
    Low Brightness: 10,000 Hours
    Fan Noise Medium Brightness: 39 dB
    Low Brightness: 29 dB
    Security Cable Lock Slot
    Password Protection
    AC Input Power 120 to 240 VAC, 50 / 60 Hz
    Power Consumption Medium Brightness: 429 W
    Low Brightness: 340 W
    Standby Mode (Lamp Off): 2.4 W
    Standby Mode (Lamp Off): 0.21 W
    Max Operating Altitude 10000' / 3048 m
    Temperature Operating
    41 to 104°F (5 to 40°C)
    Humidity: 20 - 80%
    Storage
    14 to 140°F (-10 to 60°C)
    Humidity: 10 - 90%
    Dimensions (W x H x D) 14.9 x 4.9 x 11.5" / 37.8 x 12.4 x 29.2 cm Including feet
    14.9 x 4.3 x 11.5" / 37.8 x 10.9 x 29.2 cm Excluding feet
    Weight 10.2 lb / 4.6 kg
    Package Weight 15.1 lb
    Box Dimensions (LxWxH) 20.8 x 15.1 x 8.3"
