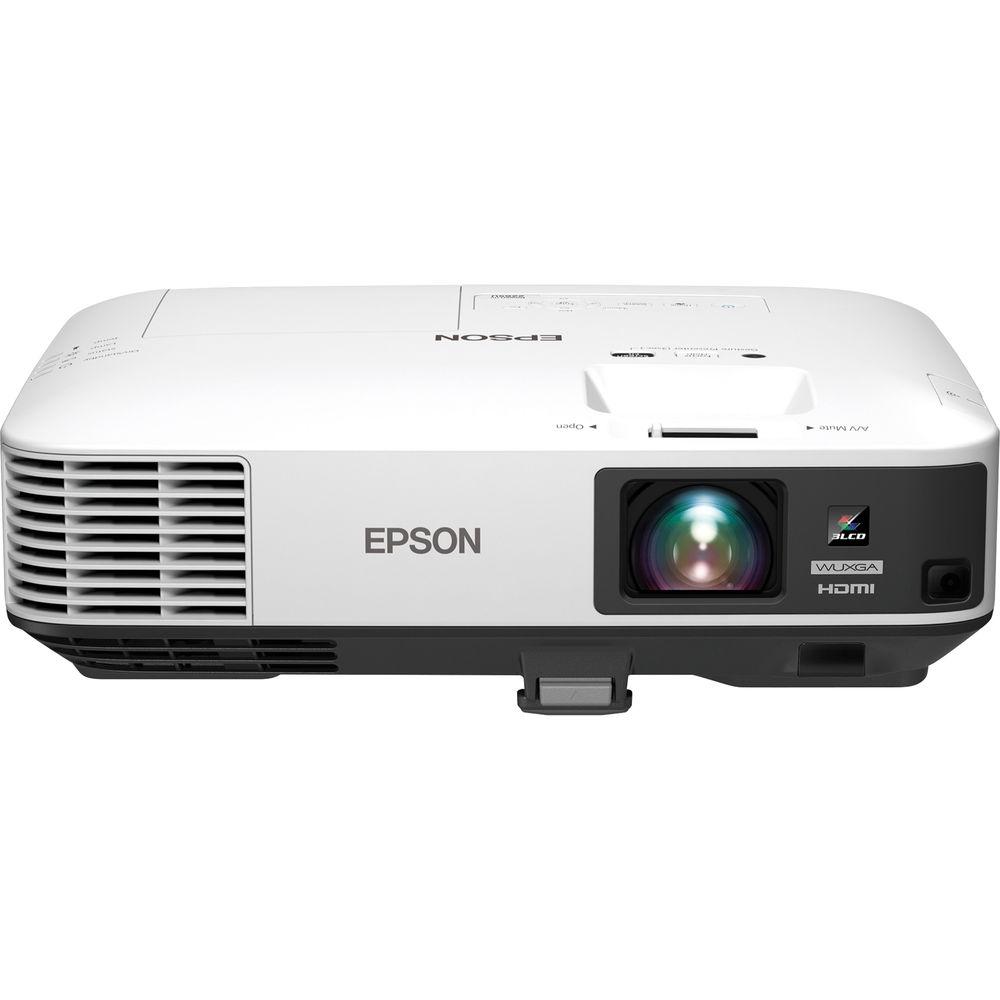

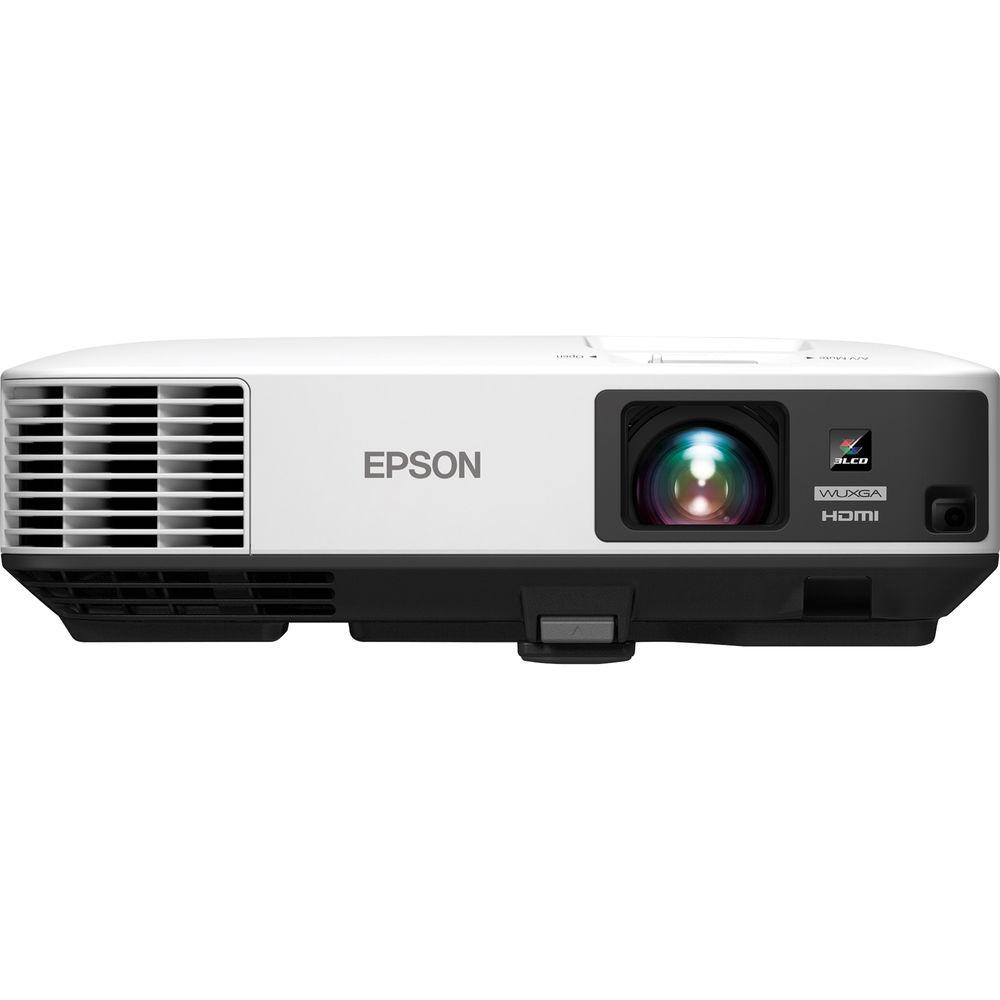

Product description Enjoy bright, vibrant images with the Epson PowerLite 2265U 5500-Lumen WUXGA 3LCD Projector. Its 5500 lumens of brightness, combined with its 15,000:1 contrast ratio, will help it overcome ambient light in many situations, helping it retain detail in dark areas of the image without compromising overall brightness. Its 1920 x 1200 native resolution will help ensure that text is clear at most viewing distances.

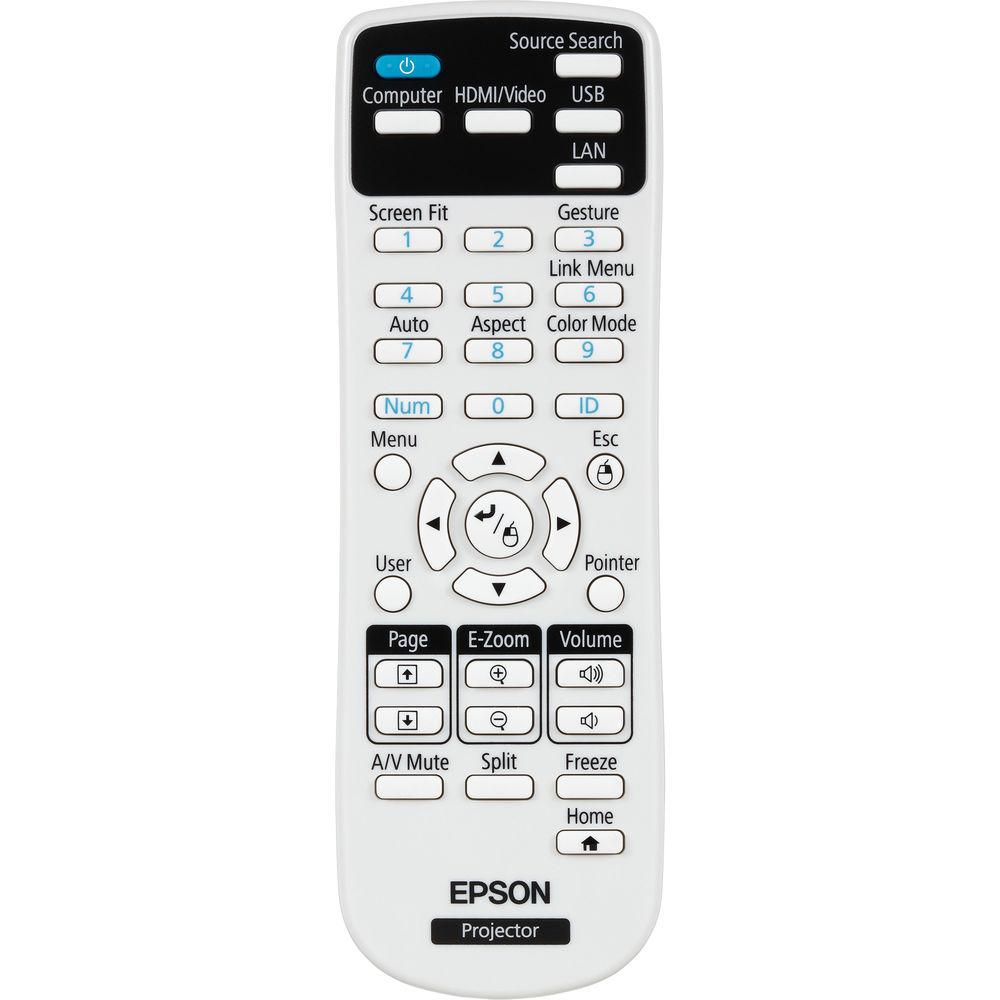

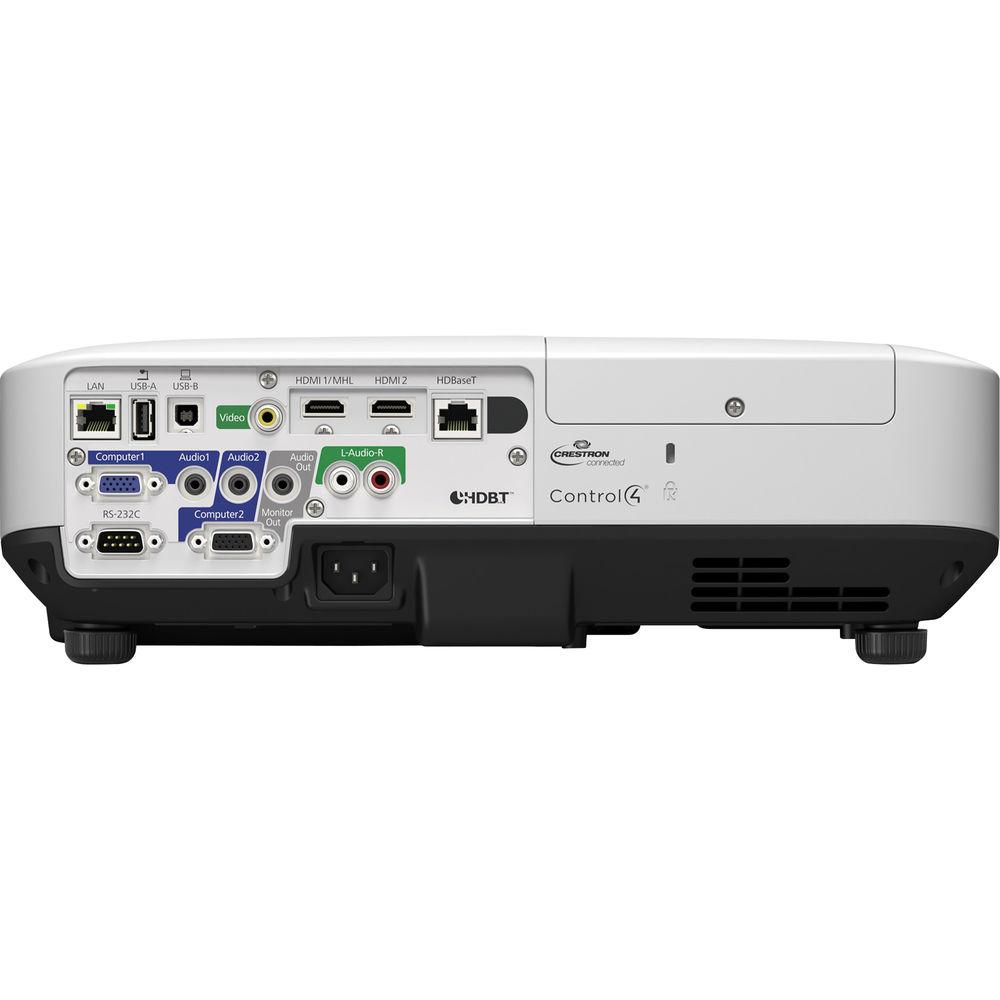

The PowerLite 2265U features VGA, RCA composite, and two HDMI inputs to support various sources. One HDMI input is MHL-compatible, which will allow you to connect your compatible smart device directly to the projector to mirror its screen. You can output the video to another projector or display with the VGA output. Its 3.5mm audio inputs and output allow for audio transmission, for a more immersive experience. An IR remote is included for convenient control, and a wireless LAN module is also included for wireless networking. - High Color and White Brightness Levels
- Both color and white brightness of 5500 lumens.
- Wireless Ready
- The PowerLite 2265U includes a LAN module for wireless connectivity.
- HDBaseT
- HDBaseT technology combines HDMI, Ethernet, and RS-232 into one cable.
- HDMI with MHL Connectivity
- View 1080p content and mirror your compatible mobile device with MHL and standard HDMI, for instant access to movies, games, and more.
- Auto Screen Fit
- The Auto Screen Fit feature is designed to quickly and easily adjust the image to fit the screen.
- 3LCD Color Accuracy
- 3LCD, 3-chip technology is designed to provide enhanced color brightness and a wider color gamut.
- Enhanced Sharpness and Detail
- Up to 15,000:1 contrast ratio for enhanced detail.
- Stream Content from Your Smartphone or Tablet
- The PowerLite 2265U can mirror your mobile device either via MHL or wirelessly using Miracast with the included wireless module.
- Secure Wireless Networking
- The included wireless LAN adapter is compatible with WEP, WPA, WPA2-PSK, and WPA2-EAP security protocols.
- Split Screen
- Simultaneously project two images (video or still) side-by-side from two different sources.
- Remote Management and Control Tools
- The included software allows for remote monitoring and control of networked Epson projectors. The PowerLite 2265U is also compatible with the Crestron RoomView software.
In the Box Epson PowerLite 2265U 5500-Lumen WUXGA 3LCD Projector Remote Control 2 x Alkaline AA Batteries Wireless LAN Module VGA Cable Software CD Password Protected Sticker Power Cord Limited 2-Year Warranty on Projector Limited 90-Day Warranty on Lamp Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson PowerLite 2265U 5500-Lumen WUXGA 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson 2265U Specs | | | Display System | 3-Chip Polysilicon TFT LCD | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Max Brightness | 5500 Lumens | | Aspect Ratio | Native: 16:10 | | Contrast Ratio | 15000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | | | Focus | Manual | | Lens | f/1.5 - 2 (f = 23 - 38.4 mm) | | Optical Zoom | Manual: 1.6x | | Throw Distance | 4.921 - 29.199' / 1.5 - 8.9 m | | Throw Ratio | 1.38 - 2.28:1 | | Projection Size | 50 - 300" / 127.00 - 762.00 cm | | | | Keystone Correction | Vertical: ± 30°

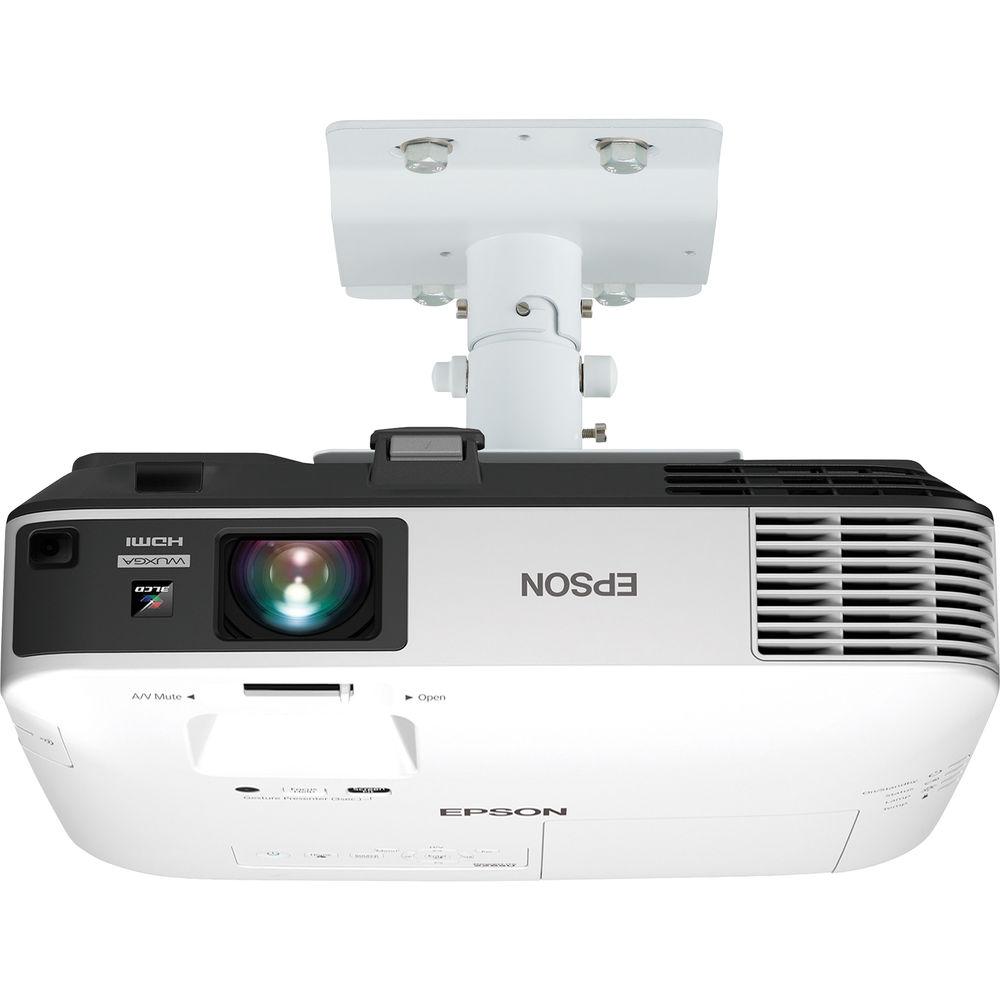

Horizontal: ± 20° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 16W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x Composite (RCA) Video (Input)
3 x 1/8" (3.5 mm) Mini Audio (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x VGA (DE-15) Video (Output)
1 x Ethernet (RJ45) LAN (Input)
1 x RS-232C (Unspecified Connector) Control (Input) | | Wireless LAN / Wi-Fi | Yes, Built-in | | | | Light Source | Lamp (1 x UHE) | | Lamp Power | 300 W | | Expected Lamp Life | Medium Brightness: 5000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Medium Brightness: 39 dB
Low Brightness: 29 dB | | Security | Cable Lock Slot
Password Protection | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 429 W
Low Brightness: 340 W
Standby Mode (Lamp Off): 2.4 W
Standby Mode (Lamp Off): 0.21 W | | Max Operating Altitude | 10000' / 3048 m | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 20 - 80%
Storage
14 to 140°F (-10 to 60°C)
Humidity: 10 - 90% | | Dimensions (W x H x D) | 14.8 x 4.9 x 11.5" / 37.6 x 12.4 x 29.2 cm Including feet
14.8 x 4.3 x 11.5" / 37.6 x 10.9 x 29.2 cm Excluding feet | | Weight | 10.4 lb / 4.7 kg | | | | Package Weight | 15.2 lb | | Box Dimensions (LxWxH) | 20.9 x 15.0 x 8.2" |
