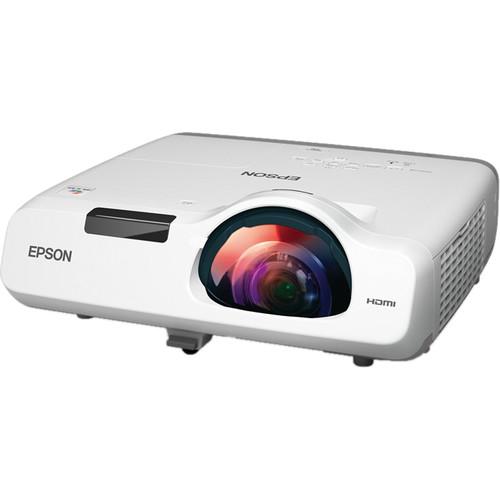

User Manual for Epson PowerLite 530 3200-Lumen XGA Short Throw 3LCD Projector Click to enlarge the picture
Contents of the user manual for the Epson PowerLite 530 3200-Lumen XGA Short
- Product category: Multimedia Projectors Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Multimedia Projectors
|
User manual for the Epson PowerLite 530 3200-Lumen XGA Short contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|
Product description Brighten up your classroom presentations with the Epson PowerLite 530 3200-Lumen XGA Short Throw 3LCD Projector. Its white and color brightness of 3200 lumens makes images visible in most ambient light, while its 1024 x 768 native resolution and 16,000:1 contrast ratio help make those images clear and distinct. Its 0.54 to 0.74:1 throw ratio allows you to place the projector near the screen, preventing shadows from passers-by while you're presenting.
The PowerLite 530 will connect to most devices with its HDMI, S-video, composite video, and two VGA inputs. If you plan on using multiple projectors, the PowerLite 530 has a VGA output to daisy chain the signal. Also featured is an analog audio input and output with a built-in 16W mono speaker. For interactive applications, the PowerLite 530 will pair with the Epson SMART Board M680 and 880 interactive whiteboards using SMART Notebook software and SMART Ink. It is controllable via Ethernet, RS-232, or the included IR remote. - Short Throw Distance
- Project 77" images from a short distance. Designed to be ideal for use with interactive or standard whiteboards.
- Moderator Function
- Multi-computer projection and Moderator function allows up to 50 devices to connect over a network and select up to four to project simultaneously.
- Optional Wireless Connectivity
- Can be used wirelessly with an optional high-speed LAN module.
- Large Presentations in Small Spaces
- The short throw distance saves space, allowing you to project a 77" image with minimal shadows and glare.
- Enhanced Color and Brightness
- Three-chip, 3LCD technology for enhanced color and brightness.
- Long-Lasting Lamps
- The lamp is designed to last up to 10,000 hours in Eco mode.
- Convenient Collaboration for BYOD Classrooms
- With the optional wireless LAN module, you can wirelessly share and compare students' work from multiple devices simultaneously with Moderator device management software. Users can project from iOS and Android devices with the free Epson iProjector App.
- Manage Projectors and Present Remotely
- The included software is designed to make network connectivity easy.
- Designed for SMART Board M680 and 880 Interactive Whiteboards
-
- Connect and control your projector via the SMART Extended Control Panel (ECP) with the separately sold SMART Cable Adapter Kit.
- Compatible with SMART Notebook software and SMART Ink tools.
UPC: 010343928640 In the Box Epson PowerLite 530 3200-Lumen XGA Short Throw 3LCD Projector Remote Control with Batteries VGA Cable Null Modem Serial Cable Lens Cover Password Protection Sticker Power Cord Limited 2-Year Warranty on Projector Limited 90-Day Warranty on Lamp Brochure PDF 903kb More info from Epson Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson PowerLite 530 3200-Lumen XGA Short Throw 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson 530 Specs | | | Display System | 3-Chip Polysilicon TFT LCD | | Native Chip Resolution | 1024 x 768 (XGA) | | Supported Resolutions | Maximum: UXGA - 1600 x 1200 | | Max Brightness | 3200 Lumens | | Aspect Ratio | Native: 4:3 | | Contrast Ratio | 16000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | | | Focus | Manual | | Lens | f/1.60 (f = 6.4 mm) | | Throw Distance | 4.265 - 8.858' / 1.3 - 2.7 m | | Throw Ratio | 0.54 - 0.74:1 | | Projection Size | 50 - 108" / 127.00 - 274.32 cm | | | | Keystone Correction | Manual-Vertical: ± 15°
Manual-Horizontal: ± 15° | | Digital Zoom | 1.35x | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 16W | | | | Inputs/Outputs | 2 x VGA (DE-15) Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Composite (RCA) Video (Input)
2 x RCA Stereo (L/R) Audio (Input)
1 x USB Type-B Female (Input)
1 x USB Type-A Female (Input)
1 x HDMI Audio/Video (Input)
1 x Ethernet (RJ45) LAN (Input)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x VGA (DE-15) Video (Output)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x 1/8" (3.5 mm) Mini Microphone (Input) | | | | Light Source | Lamp (1 x UHE) | | Lamp Power | 215 W | | Expected Lamp Life | Medium Brightness: 5000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Full Brightness: 29 dB
Medium Brightness: 37 dB | | Security | Cable Lock Slot
Padlock
Password Protection | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 315 W
Low Brightness: 230 W
Medium Brightness: 1.9 W
Low Brightness: 0.22 W | | Temperature | Operating
41 to 95°F (5 to 35°C) | | Dimensions (W x H x D) | 13.5 x 5.2 x 12.4" / 34.3 x 13.2 x 31.5 cm Including feet
13.5 x 3.7 x 12.4" / 34.3 x 9.4 x 31.5 cm Excluding feet | | Weight | 8.2 lb / 3.7 kg | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 19.0 x 15.0 x 8.0" |
