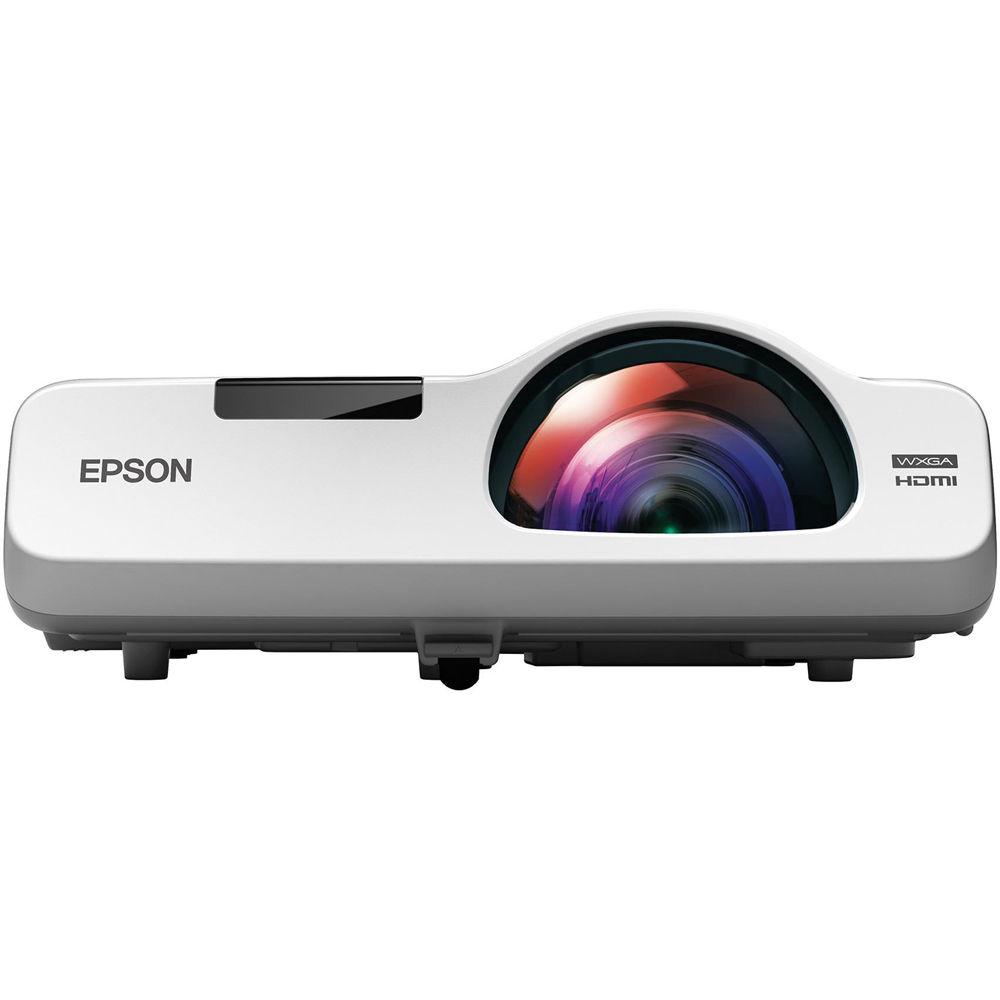

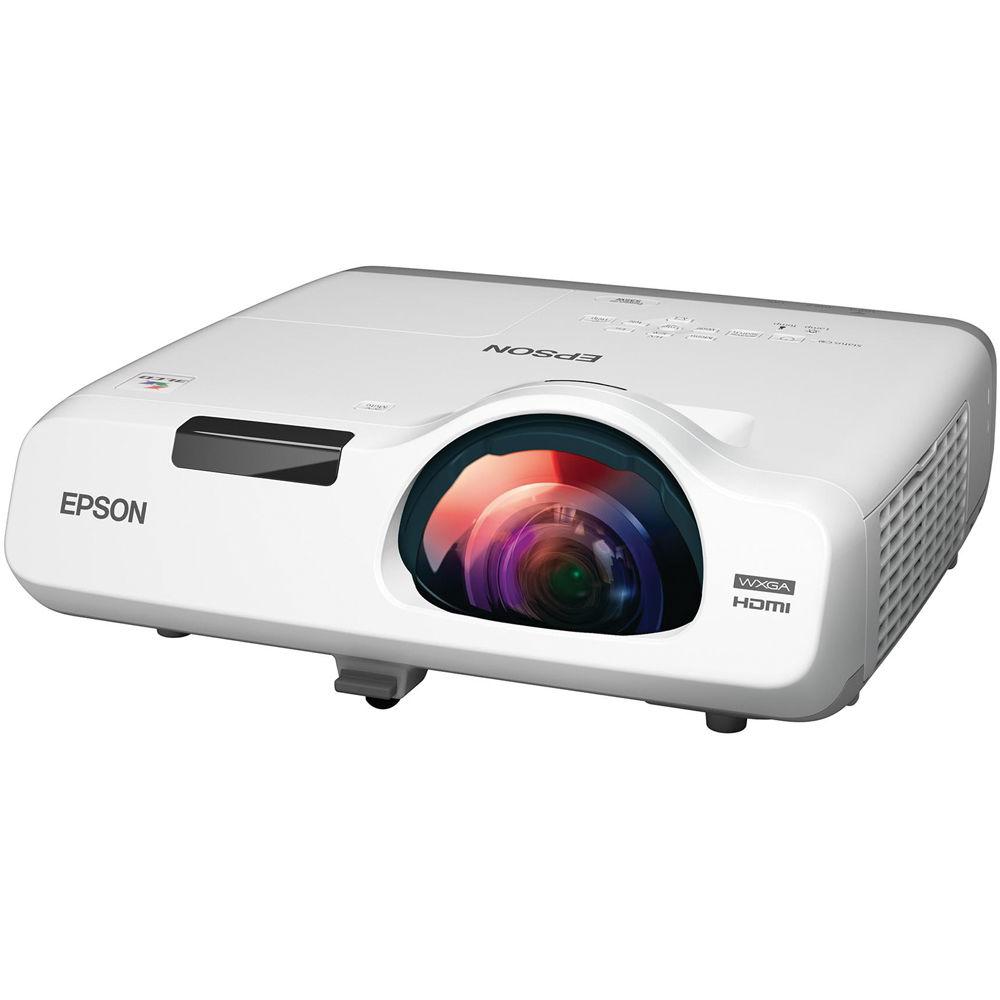

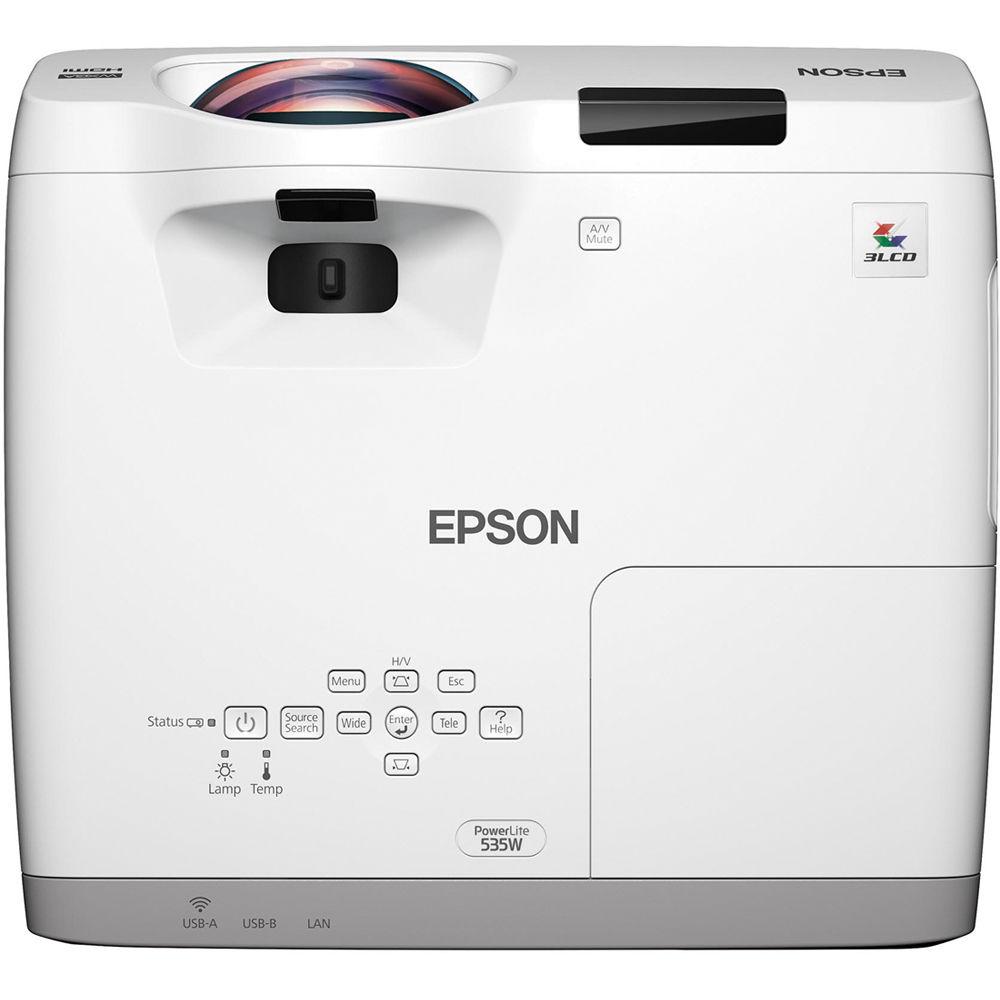

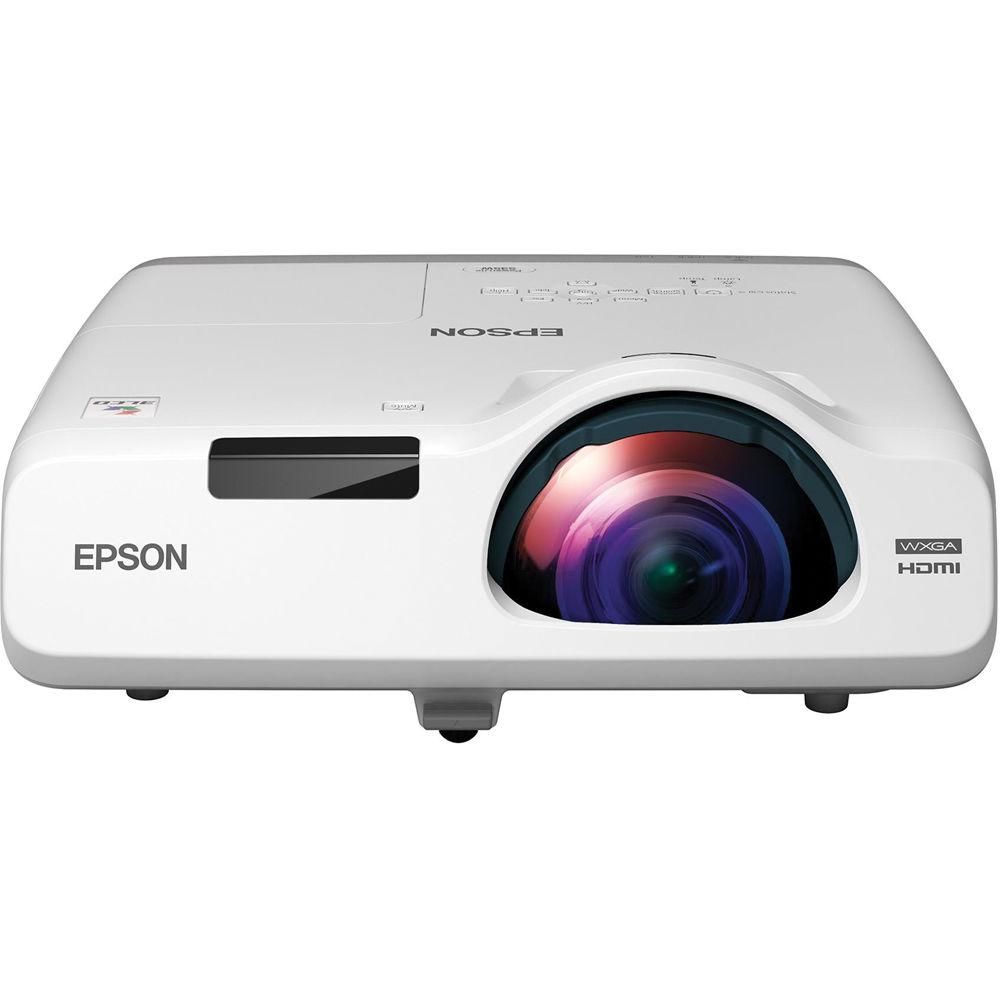

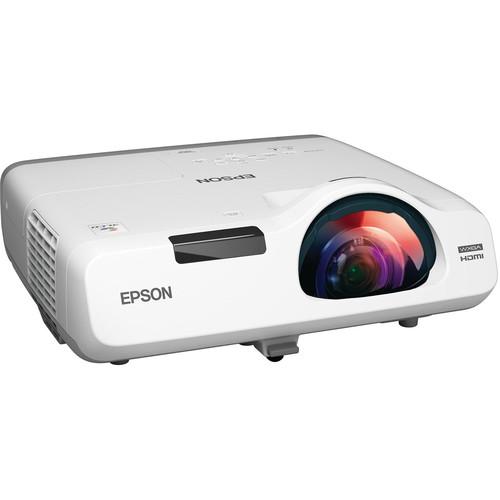

Epson PowerLite 535W 3LCD Short Throw

User Manual for Epson PowerLite 535W 3LCD Short Throw Projector

• Product category: Multimedia Projectors Epson
• Brand: Epson
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Epson Multimedia Projectors

Product description

Short-Throw Design

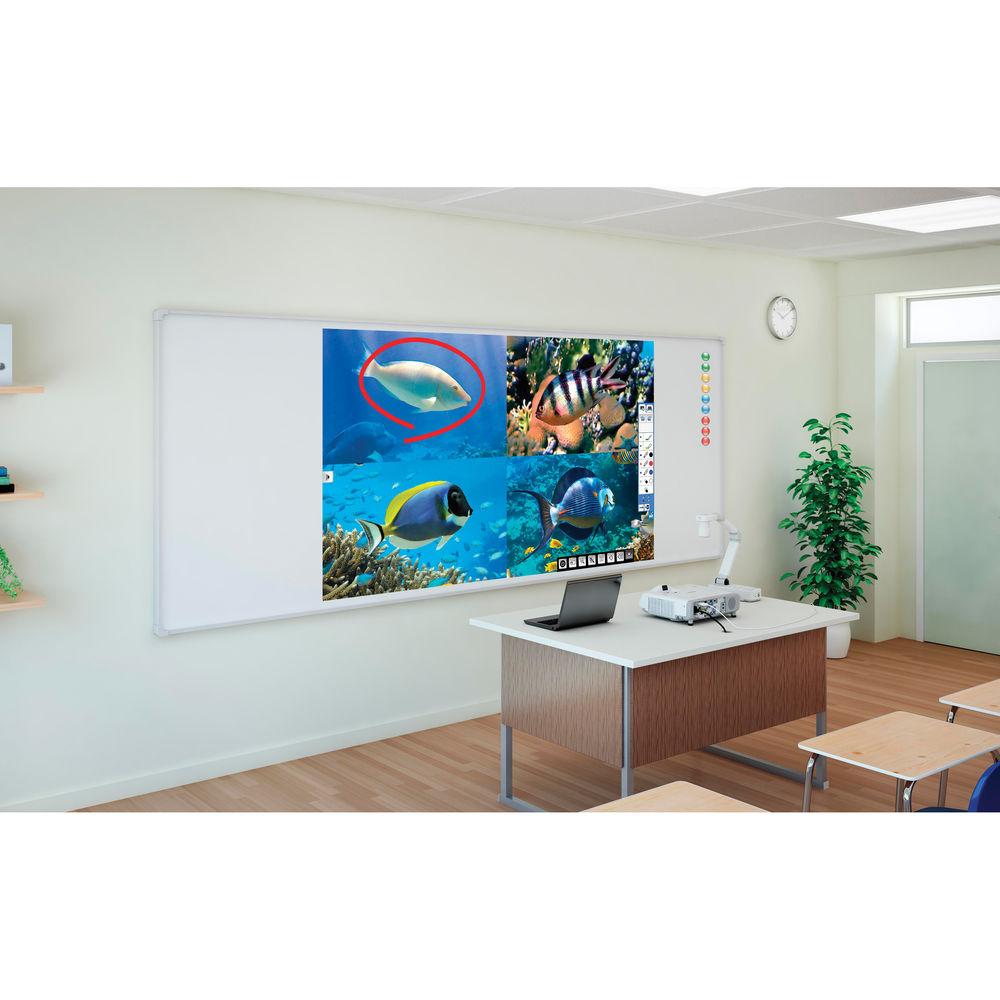

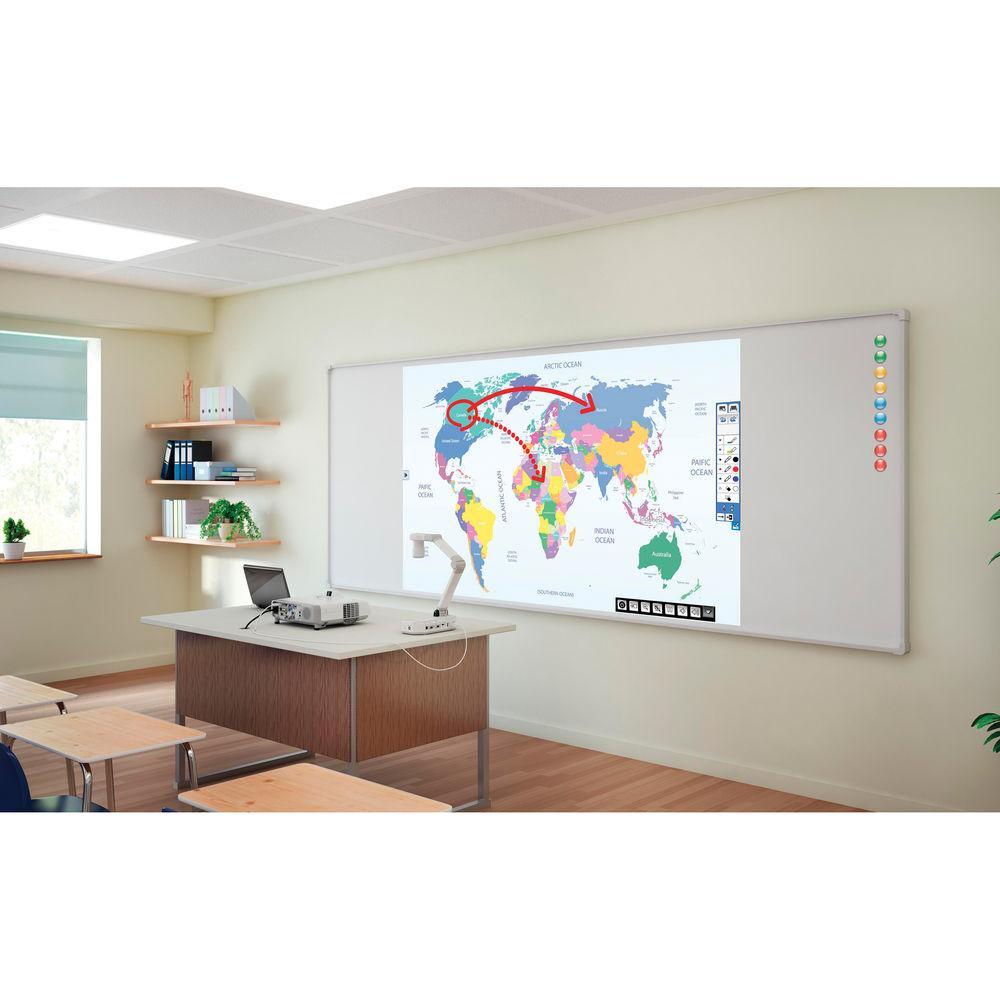

• A 0.48:1 throw ratio means, for example, that this projector can throw a 100"-wide image when placed 48" from the screen. This is considered a short-throw projector - ideal for classrooms, rear projection, and other installations where the projector has to be placed near the screen

3400 Lumens Lamp
• A single lamp provides 3400 lumens brightness in Normal mode, and is estimated to last 5000 hours (up to 10,000 hours if continually used in the low-brightness ECO mode). To determine the ideal brightness level for your application, you will need to take into account the screen width, distance from the projector to the screen (throw distance), amount of ambient light near the screen, and the reflectivity (gain) of the screen surface used

16:10 Native Aspect Ratio
• This projector features a 16:10 native aspect ratio. This is considered a widescreen format, and comes very close to the 16:9 standard of HDTV. This format is ideal if you plan to show HD video, and can still be used for presentations - though, in the case of PowerPoints, some extra space may be leftover on the sides. The projector can show 4:3, too; however, black bars (pillaring) will have to be applied, or the image will have to be stretched or cropped to fit

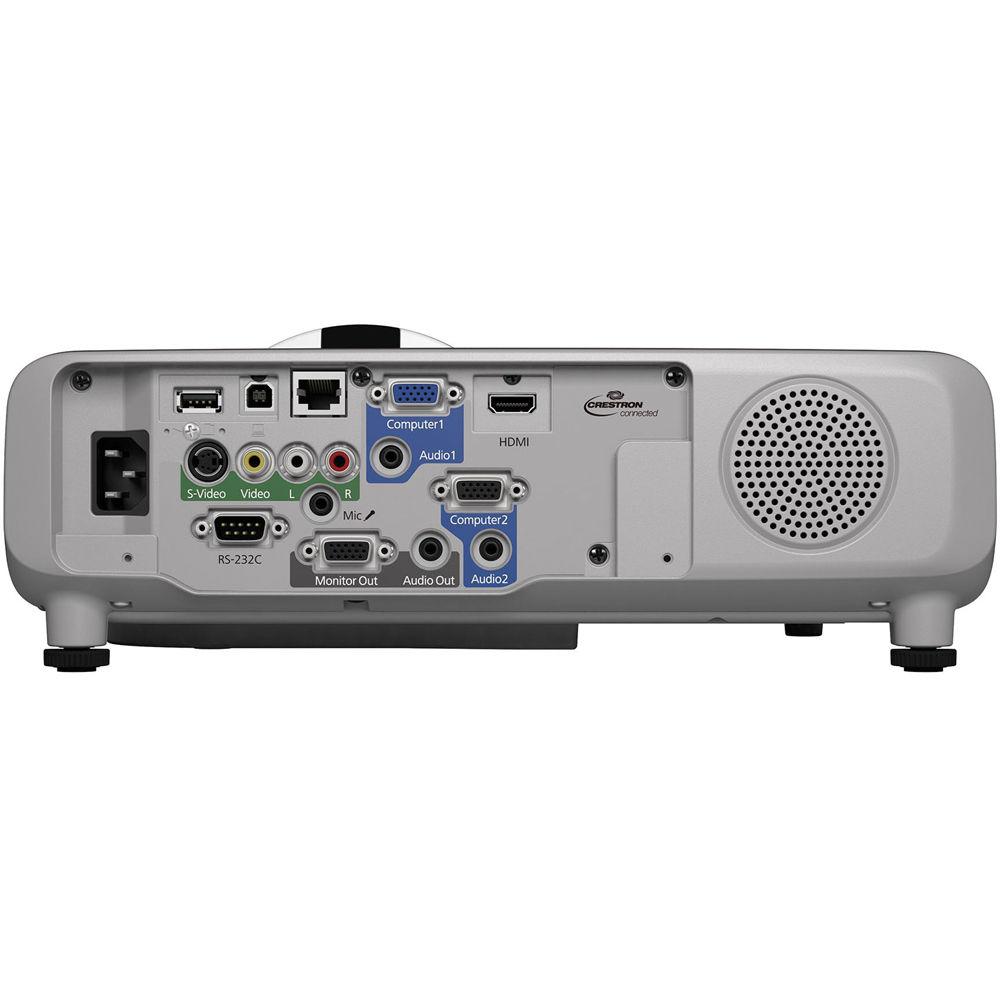

USB Connectivity
• There are two USB ports, a type-A female and a type-B female. Between them, you can project from a flash drive or other USB storage device, connect a USB document camera, use the projector remote as a presentation mouse, and project from a computer using USB. You can also use the type-A port to connect Epson's optional Wi-Fi dongle

Moderator Function and BYOD Support
• Multi-PC projection and Moderator function allows up to 50 devices to connect over a network to share content to the projector - making this a true bring your own device (BYOD) solution. Up to four devices can project simultaneously

Optional Wi-Fi Dongle
• In addition to the built-in Ethernet port, wireless connectivity is possible when using Epson's Wi-Fi dongle (V12H005M09, available separately). To project wirelessly, use the Epson iProjection App for iOS and Android, or a Windows computer with Wi-Fi

16W Speaker and Microphone Input
• For standalone usage where no separate sound system is available, the PowerLite 535W features a built-in 16-watt speaker. A microphone input means the presenter can patch their mic directly into the projector, rather than using the mic input on a computer or document camera

Pre-Set Templates

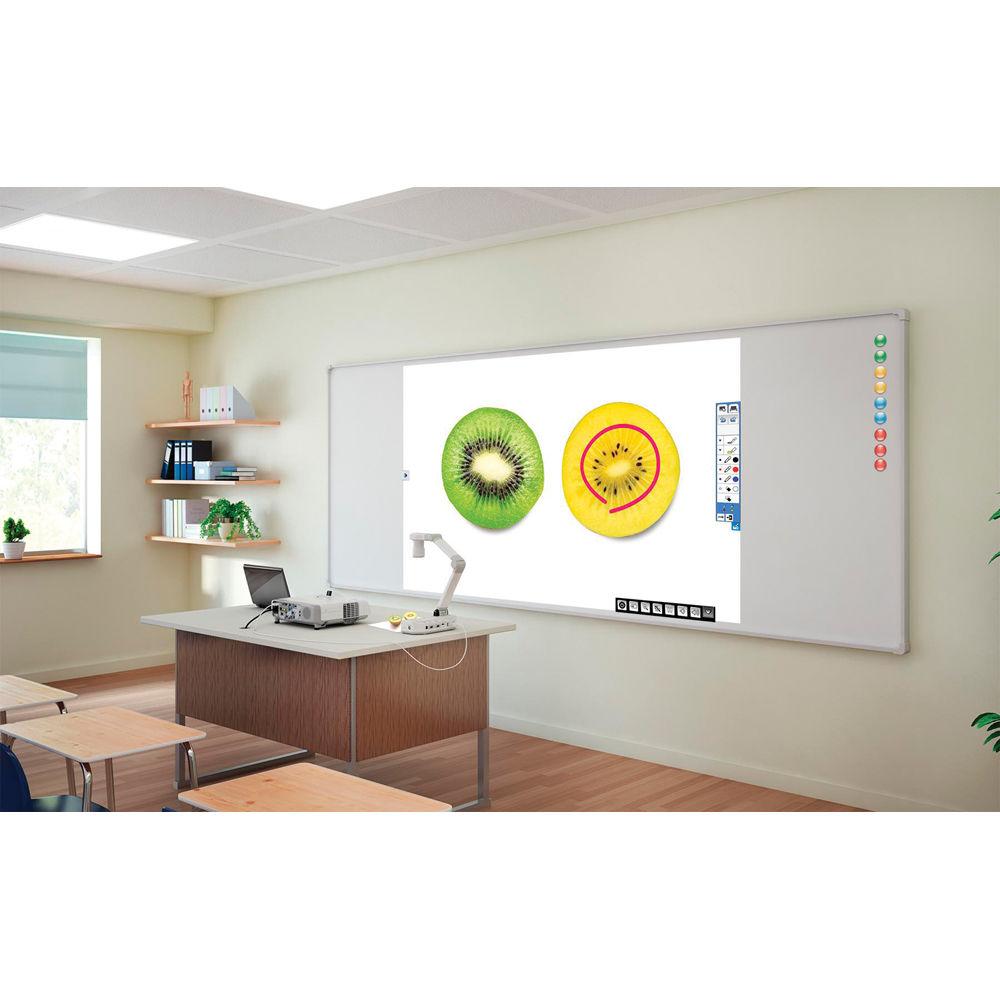

• Choose from four pre-set templates or create a custom template to project lines or grids onto whiteboards or chalkboards

Quick Corner
• This digital correction feature allows you to move any of the four corners of an image independently at setup, to adjust each corner for a perfectly rectangular picture, even when the projector is not squarely aligned with the screen

Closed Captioning Support
• Built-in closed captioning helps educational institutions meet ADA 508 requirements for students with hearing impairments
