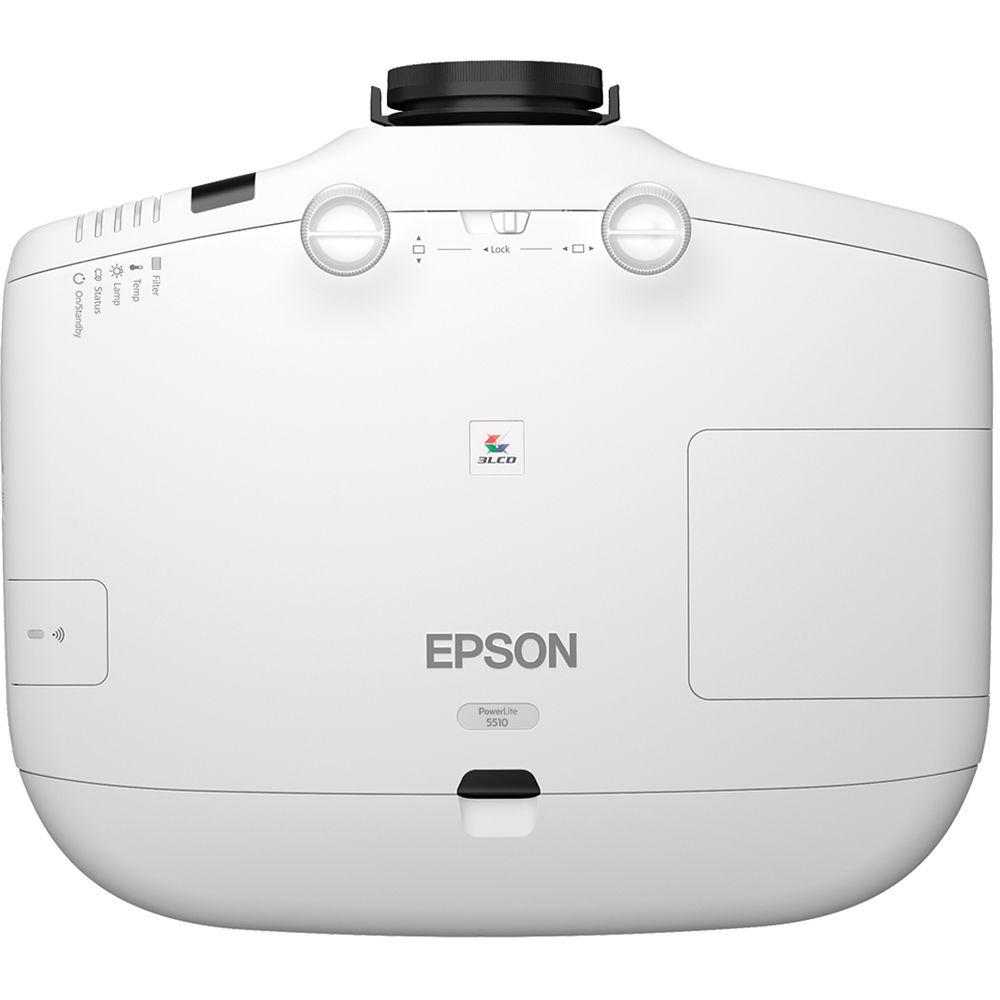

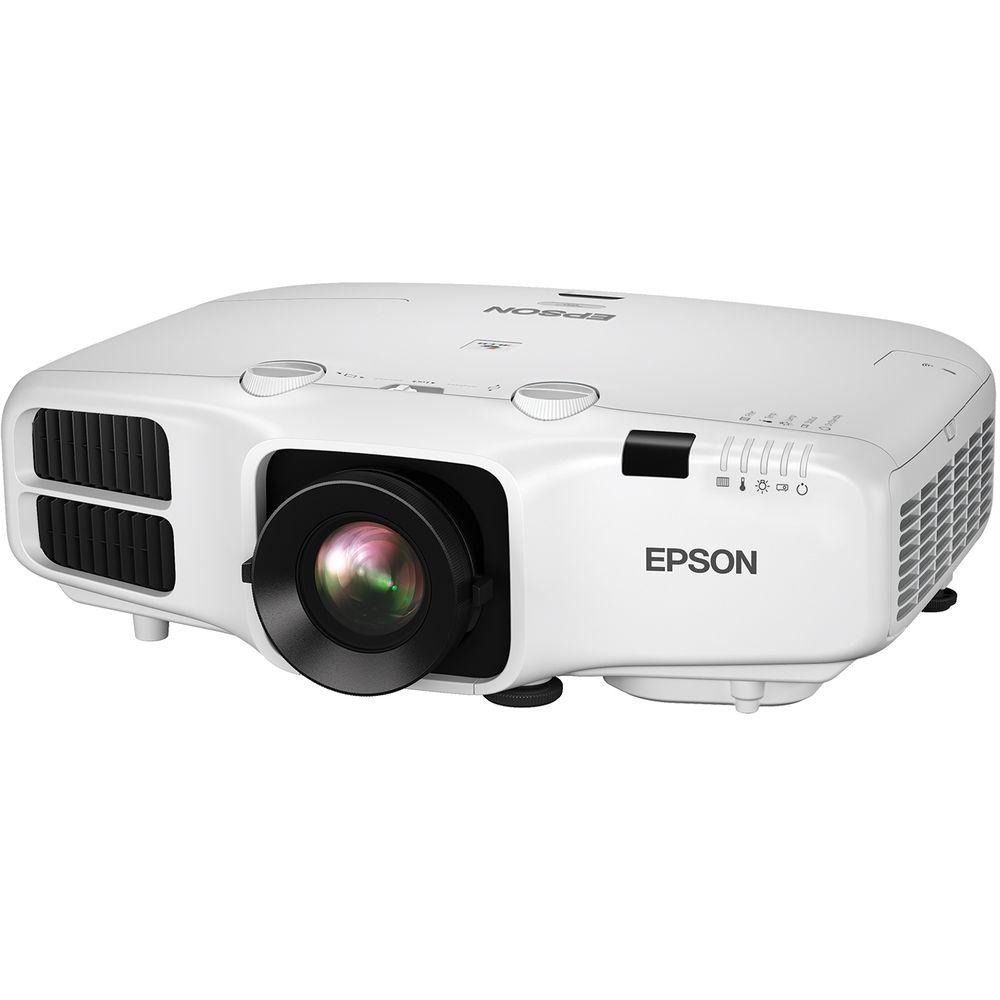

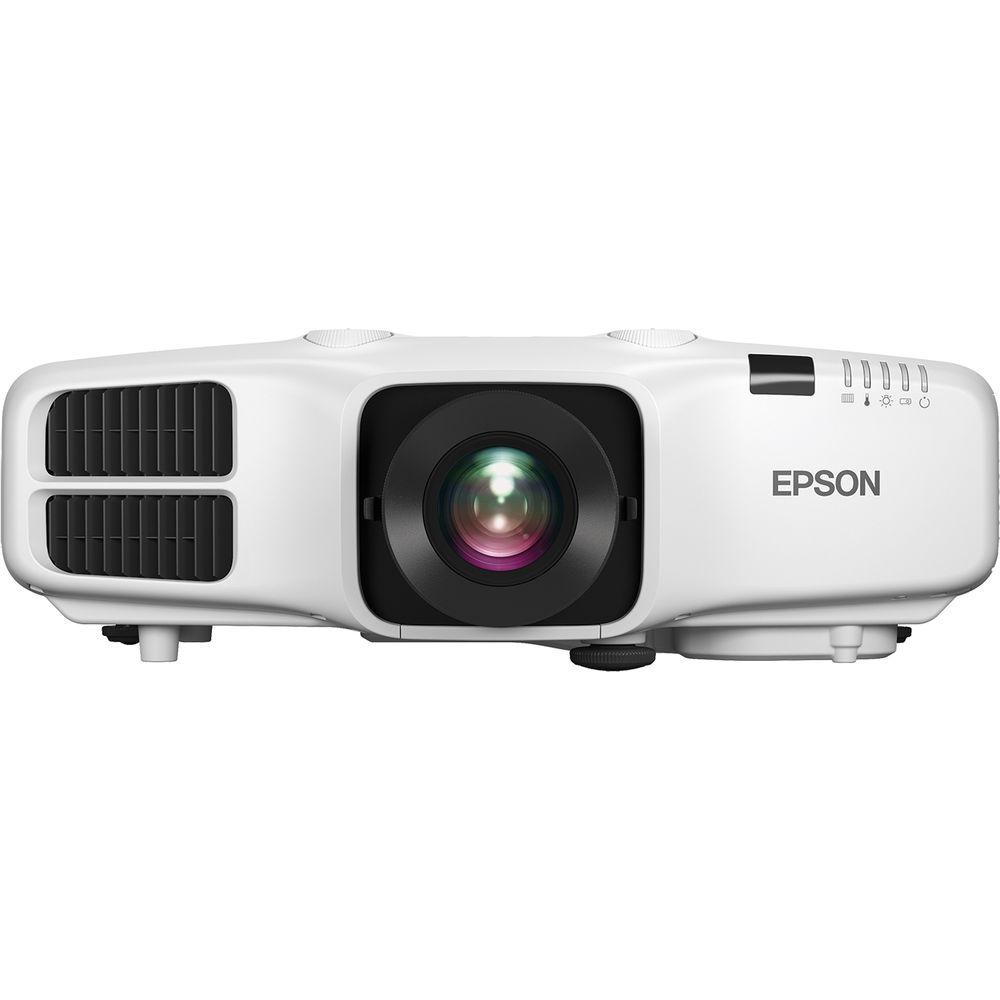

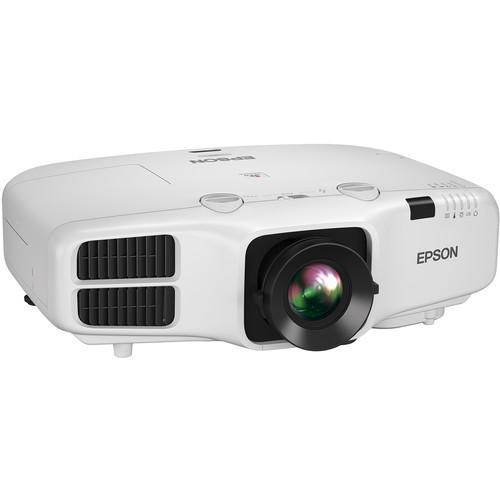

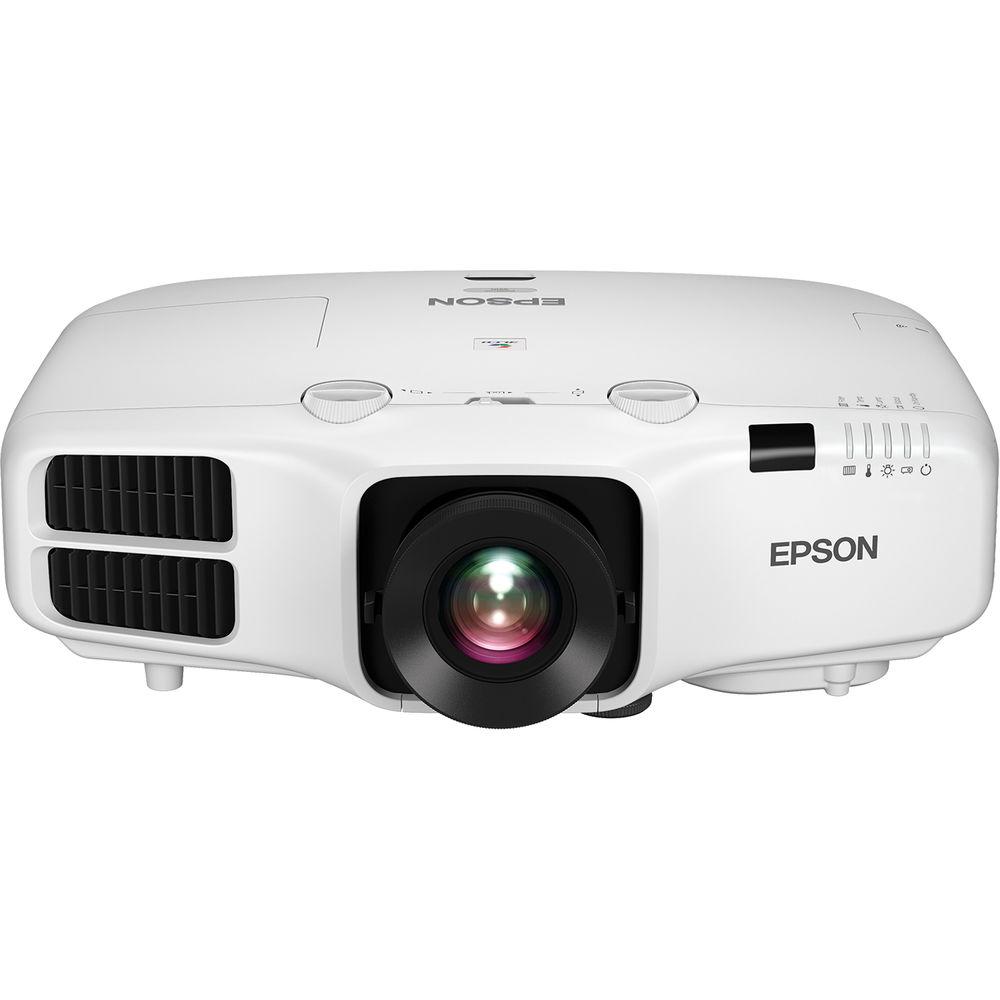

User Manual for Epson PowerLite 5510 5500-Lumen XGA 3LCD Projector Click to enlarge the picture
Contents of the user manual for the Epson PowerLite 5510 5500-Lumen XGA 3LCD
- Product category: Multimedia Projectors Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Multimedia Projectors
 |
User manual for the Epson PowerLite 5510 5500-Lumen XGA 3LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|
Product description Enjoy bright, vibrant images with the Epson PowerLite 5510 5500-Lumen XGA 3LCD Projector. Its 5500 lumens of brightness, combined with its 15,000:1 dynamic contrast ratio, will help it overcome ambient light in many situations and help retain detail in dark areas of the image without compromising overall brightness. Its 1024 x 768 native resolution will help ensure that text is clear at most viewing distances.

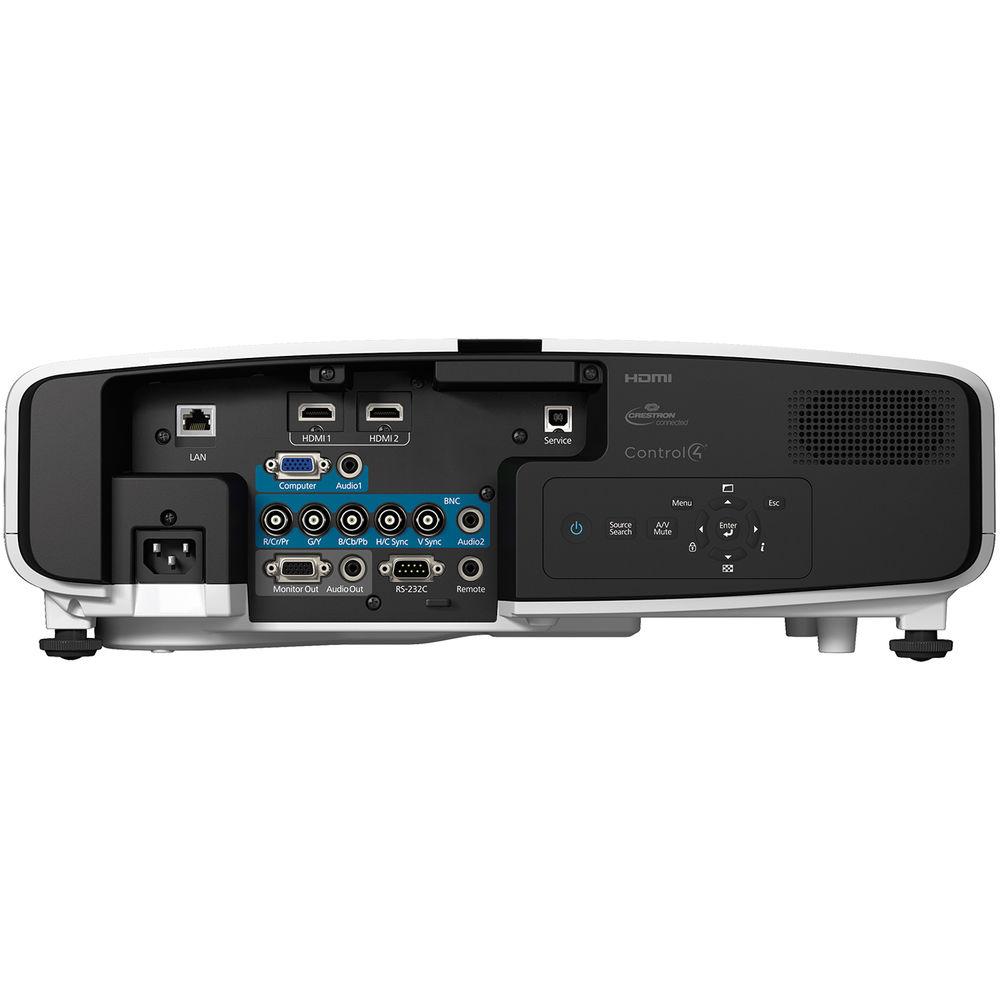

The PowerLite 5510 features VGA, BNC component, and two HDMI inputs to support various source types. You can output the video to another projector or display with the VGA output. Its 3.5mm audio inputs and output allow for audio transmission to provide a more immersive experience. A VGA cable is included for instant connectivity, and an IR remote is included for convenient control. - High Color and White Brightness Levels
- Both color and white brightness of 5500 lumens.
- Lens Shift
- Up to ±58% vertical and ±38% horizontal lens shift, plus lens shift lock.
- HDMI Connectivity
- View HD content via HDMI for single-cable connectivity.
- Split Screen
- Simultaneously project two images side-by-side from two different sources.
- Enhanced Detail
- Up to 15,000:1 contrast ratio for enhanced detail in dark areas of the image.
- Versatile Connectivity Options
- The PowerLite 5510 features multiple connectivity options, making it suitable for integration with nearly any system.
- Remote Management and Control Tools
- The included software allows for remote monitoring and control of networked Epson projectors. The PowerLite 5510 is also compatible with the Crestron RoomView software.
- Integration Compatibility
- The PowerLite 5510 is compatible with Crestron RoomView and Extron systems.
- Optional Wireless Networking
- Present wirelessly with the optional wireless module.
UPC: 010343932623 In the Box Epson PowerLite 5510 5500-Lumen XGA 3LCD Projector Remote Control with Batteries VGA Cable EasyMP Software CD Lens Lock Screw Power Cable Limited 2-Year Warranty on Projector Limited 90-Day Warranty on Lamp More info from Epson Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson PowerLite 5510 5500-Lumen XGA 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson 5510 Specs | | | Display System | 3-Chip Polysilicon TFT LCD | | Native Chip Resolution | 1024 x 768 (XGA) | | Supported Resolutions | Full HD 1080p - 1920 x 1080 | | Max Brightness | 5500 Lumens | | Uniformity | 87% | | Aspect Ratio | Native: 4:3
Supported: 16:9
Supported: 16:10 | | Dynamic Contrast Ratio | 15,000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 92 kHz
Vertical: 50 to 85 Hz | | | | Focus | Manual | | Lens | f/1.5 - 2.15 (f = 21.34 - 37.99 mm) | | Lens Shift | Horizontal: ± 38%
Vertical: ± 58% | | Optical Zoom | Manual: 2x | | Throw Ratio | 1.27 - 2.59:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Horizontal: ± 30°
Vertical: ± 30° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | | | Inputs/Outputs | 2 x HDMI Audio/Video (Input)
1 x Component (3BNC) Video (Input)
1 x VGA (DE-15) Video (Input)
2 x 1/8" (3.5 mm) Mini Audio (Input)
1 x VGA (DE-15) Video (Output)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x Ethernet (RJ45) LAN (Input)
1 x RS-232C (Unspecified Connector) Control (Input)
2 x USB Service (Input)
1 x 1/8" (3.5 mm) Mini Control (Input) | | Wireless LAN / Wi-Fi | None | | | | Light Source | Lamp (1 x UHE) | | Lamp Power | 300 W | | Expected Lamp Life | Medium Brightness: 10,000 Hours
Low Brightness: 5000 Hours | | Fan Noise | Medium Brightness: 38 dB
Low Brightness: 28 dB | | Security | Cable Lock Slot | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 462 W
Low Brightness: 324 W
Standby Mode (Lamp Off): 3 W
Standby Mode (Lamp Off): 0.5 W | | Temperature | Operating
32 to 113°F (0 to 45°C) | | Dimensions (W x H x D) | 8.5 x 6.2 x 13.9" / 21.6 x 15.7 x 35.3 cm Including feet
14.8 x 4.3 x 11.4" / 37.6 x 10.9 x 29.0 cm Excluding feet and lens | | Weight | 15.2 lb / 6.9 kg With standard lens | | | | Package Weight | 23.0 lb | | Box Dimensions (LxWxH) | 24.5 x 21.8 x 9.4" |
