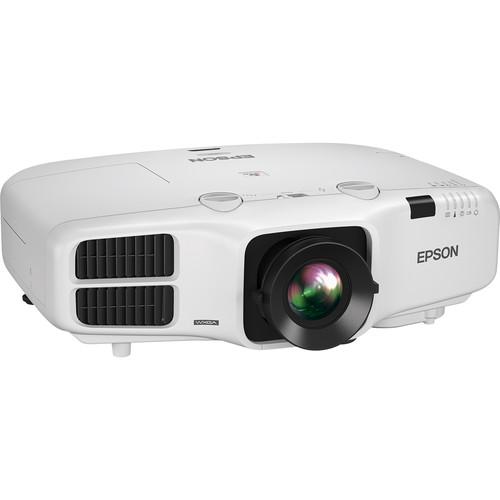

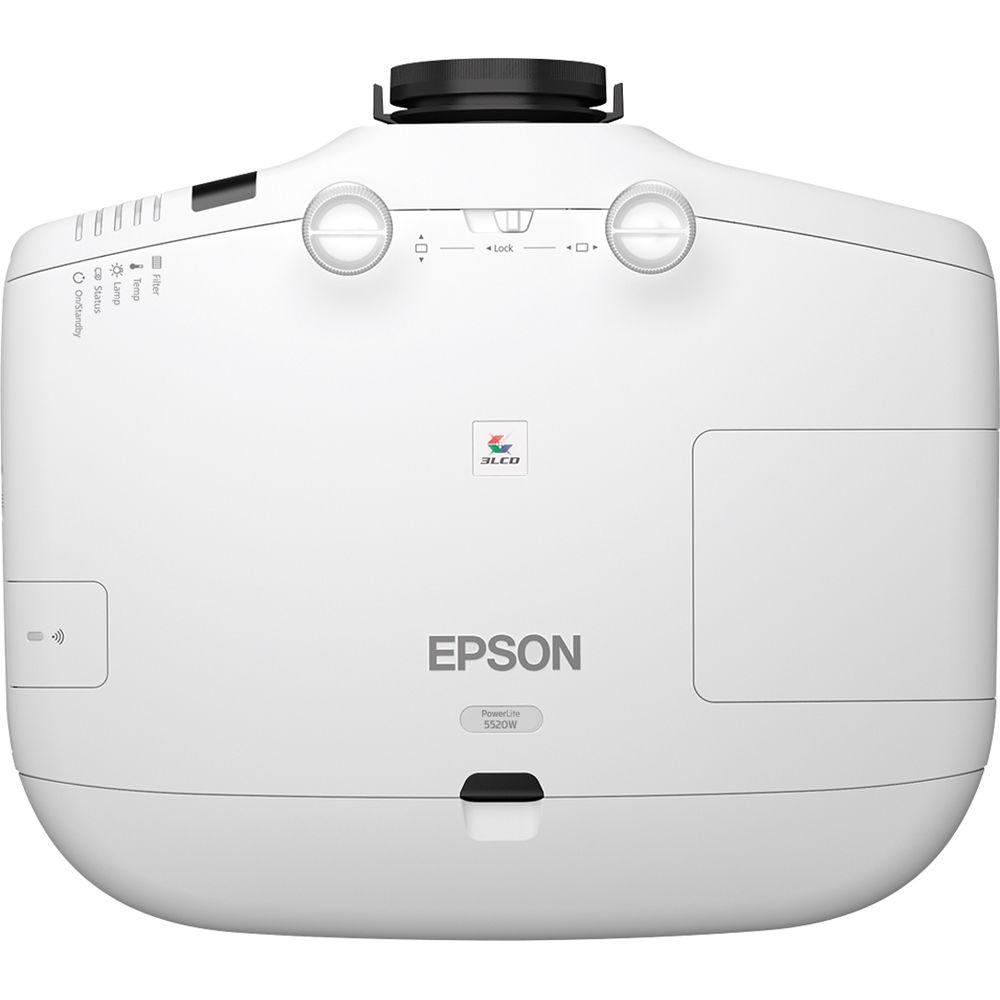

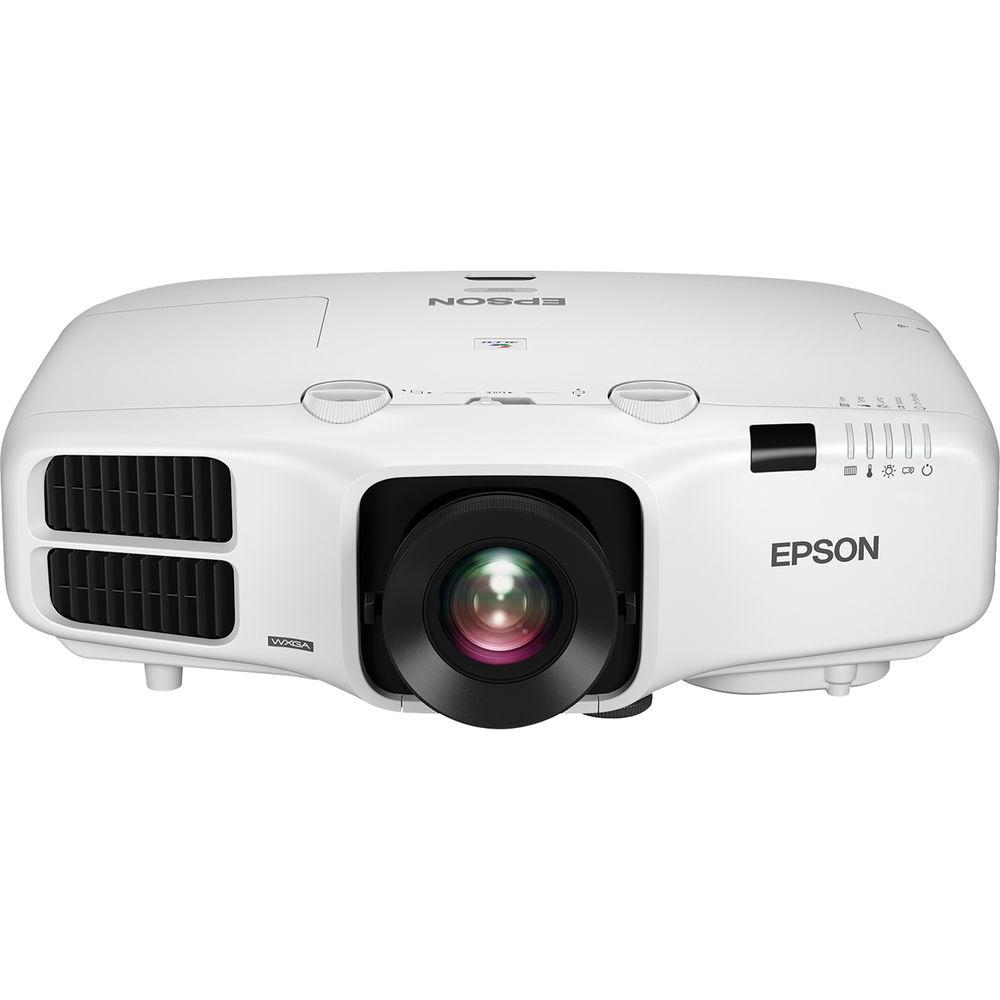

User Manual for Epson PowerLite 5520W 5500-Lumen WXGA 3LCD Projector Click to enlarge the picture
Contents of the user manual for the Epson PowerLite 5520W 5500-Lumen WXGA 3LCD
- Product category: Multimedia Projectors Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Multimedia Projectors
 |
User manual for the Epson PowerLite 5520W 5500-Lumen WXGA 3LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|

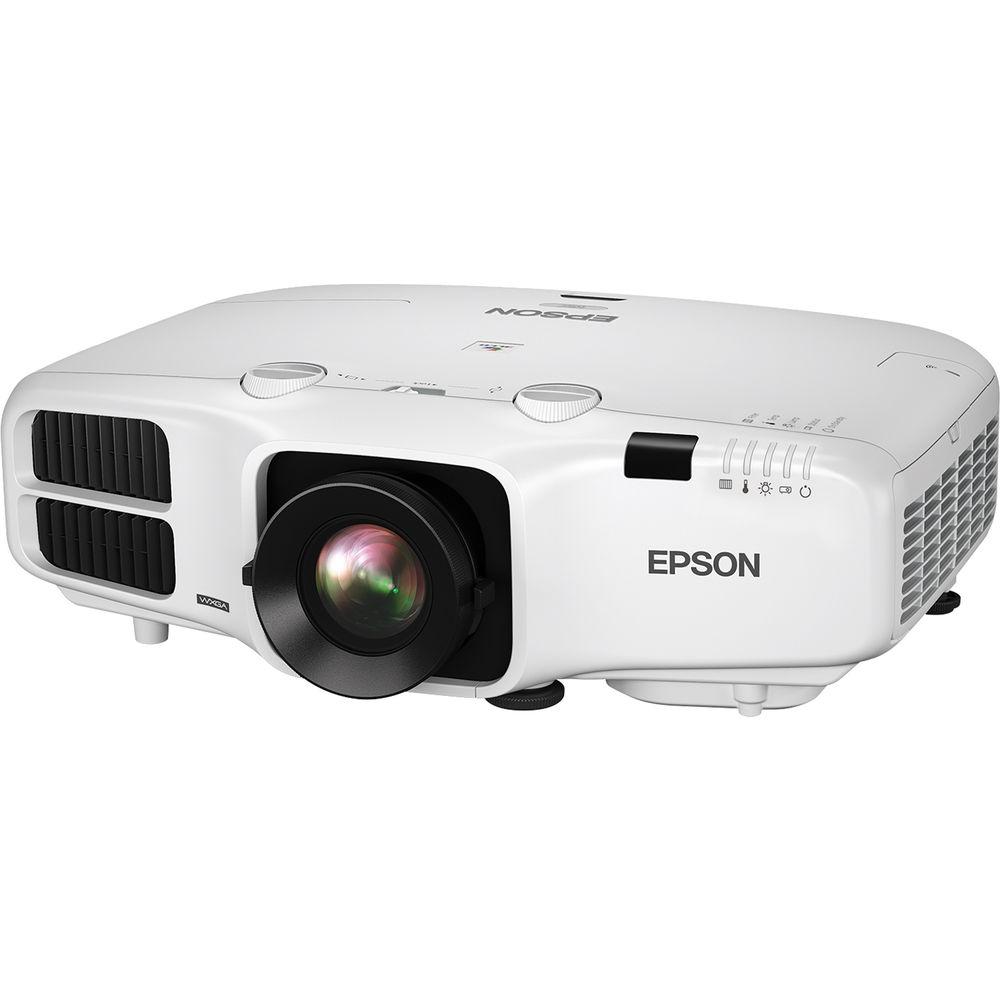

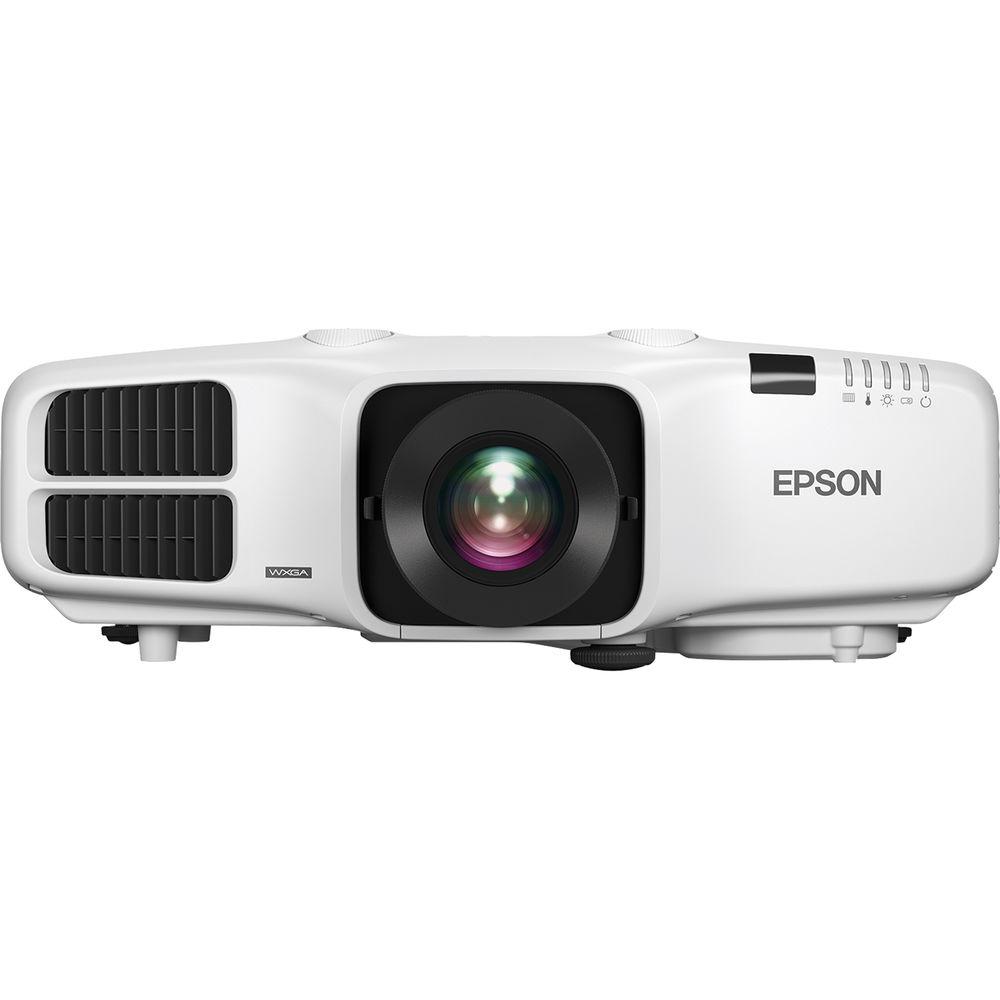

Product description Enjoy bright, vibrant images with the Epson PowerLite 5520W 5500-Lumen WXGA 3LCD Projector. Its 5500 lumens of brightness, combined with its 15,000:1 dynamic contrast ratio, will help it overcome ambient light in many situations and help retain detail in dark areas of the image, without compromising overall brightness. Its 1280 x 800 native resolution will help ensure that text is clear at most viewing distances.

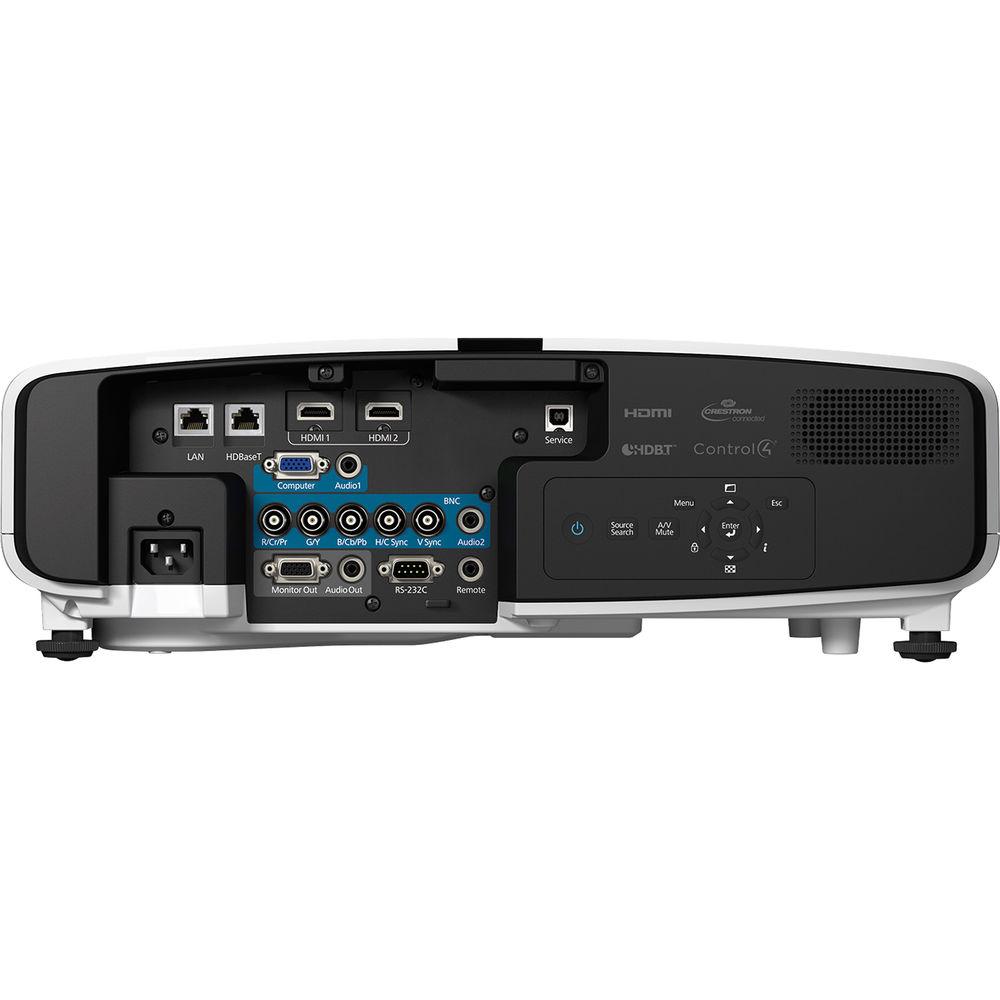

The PowerLite 5520W features VGA, BNC component, and two HDMI inputs to support various sources. One HDMI input is MHL-compatible, which will allow you to connect your compatible smart device directly to the projector to mirror its screen. You can output the video to another projector or display with the VGA output. An HDBaseT connection is also onboard as a single-cable option for HDMI audio and video, Ethernet, and RS-232 control. Its 3.5mm audio inputs and output allow for audio transmission, for a more immersive experience. An IR remote is included for convenient control, and the included VGA cable will provide instant connectivity. - High Color and White Brightness Levels
- Both color and white brightness of 5500 lumens.
- Lens Shift

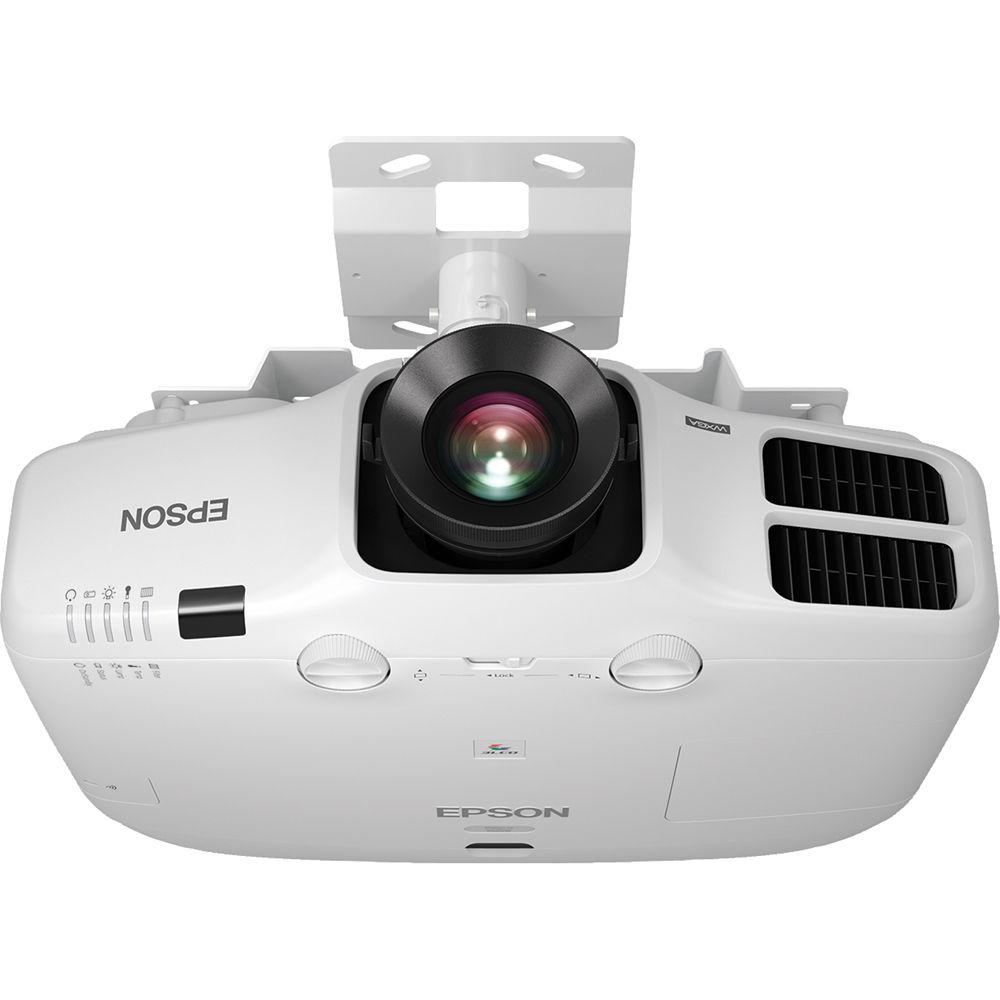

- Equipped with ±10% horizontal and ±50% vertical lens shift for flexible installation options.
- HDMI Connectivity
- Connect with HDMI for digital HD quality with audio and video in one cable.
- HDBaseT
- HDBaseT combines HDMI, Ethernet, and RS-232 into one cable.
- 3LCD Color Accuracy
- 3LCD, 3-chip technology is designed to provide enhanced color brightness and a wider color gamut.
- Enhanced Sharpness and Detail
- Up to 15,000:1 dynamic contrast ratio for enhanced detail.
- Remote Management and Control Tools
- The included software allows for remote monitoring and control plus Message Broadcasting and built-in scheduling for networked Epson projectors. The PowerLite 5520W is also compatible with the Crestron RoomView and Extron software.
- Optional Wireless Networking
- The optional wireless LAN adapter is compatible with WEP, WPA, WPA2-PSK, and WPA2-EAP security protocols.
UPC: 010343932616 In the Box Epson PowerLite 5520W 5500-Lumen WXGA 3LCD Projector Remote Control 2 x AA Alkaline Batteries VGA Cable EasyMP Software CD Cable Cover Lens Lock Screw Power Cable Limited 2-Year Warranty on Projector Limited 90-Day Warranty on Lamp More info from Epson fdrquuftraztcstwvwrrtzd Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson PowerLite 5520W 5500-Lumen WXGA 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson 5520W Specs | | | Display System | 3-Chip Polysilicon TFT LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Full HD 1080p - 1920 x 1080 | | Max Brightness | 5500 Lumens | | Aspect Ratio | Native: 16:10
Supported: 16:9
Supported: 4:3 | | Dynamic Contrast Ratio | 15,000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 92 kHz
Vertical: 50 to 85 Hz | | | | Focus | Manual | | Lens | f/1.5 - 2.15 (f = 21.34 - 37.99 mm) | | Lens Shift | Vertical: ± 50%
Horizontal: ± 10% | | Optical Zoom | Manual: 2x | | Throw Distance | 53.1 - 590.9" / 1.349 - 15.009 m | | Throw Ratio | 1.26 - 2.3:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Horizontal: ± 30°
Vertical: ± 30° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes | | | | Inputs/Outputs | 1 x HDBaseT (RJ45) Audio/Video (Input)
1 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x Component (3BNC) Video (Input)
2 x 1/8" (3.5 mm) Mini Audio (Input)
1 x VGA (DE-15) Video (Output)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x Ethernet (RJ45) LAN (Input)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x USB Control (Input)
1 x USB Service (Input)
1 x 1/8" (3.5 mm) Mini Remote (Input) | | Wireless LAN / Wi-Fi | None | | | | Light Source | Lamp (1 x UHE) | | Lamp Power | 300 W | | Expected Lamp Life | Medium Brightness: 5000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Medium Brightness: 38 dB
Low Brightness: 28 dB | | Security | Cable Lock Slot | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 462 W
Low Brightness: 324 W
Standby Mode (Lamp Off): 3 W
Standby Mode (Lamp Off): 0.5 W | | Temperature | Operating
32 to 113°F (0 to 45°C) | | Dimensions (W x H x D) | 18.5 x 6.2 x 13.9" / 47.0 x 15.7 x 35.3 cm Including feet
18.5 x 5.2 x 12.6" / 47.0 x 13.2 x 32.0 cm Excluding feet and lens | | Weight | 15.2 lb / 6.9 kg With standard lens | | | | Package Weight | 23.75 lb | | Box Dimensions (LxWxH) | 24.6 x 21.8 x 9.3" |
