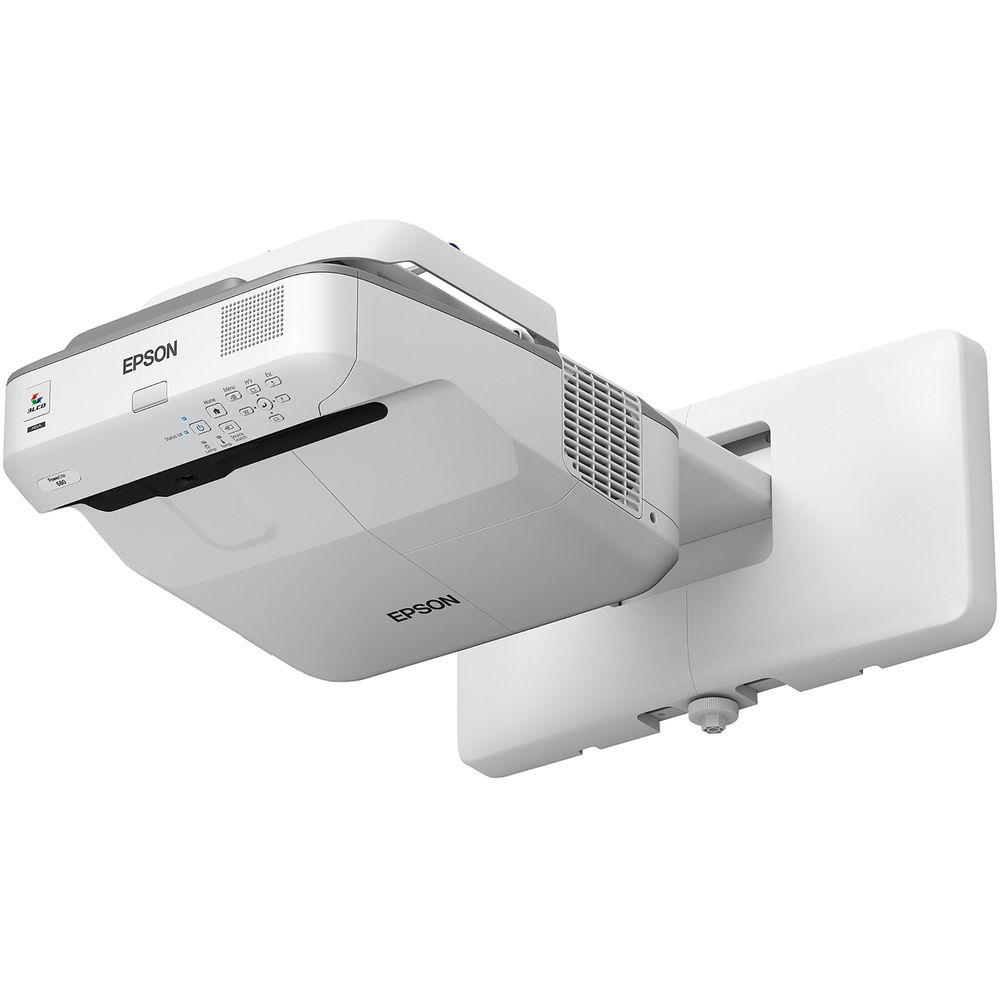

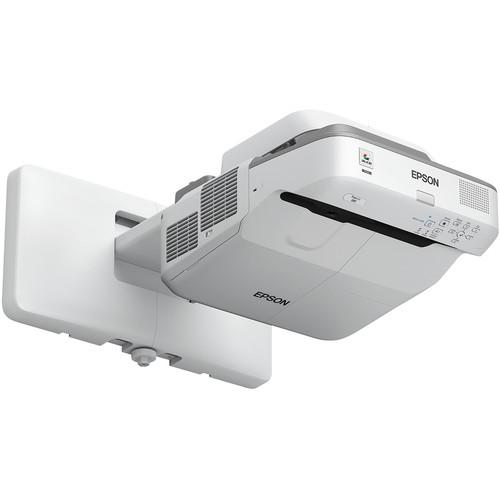

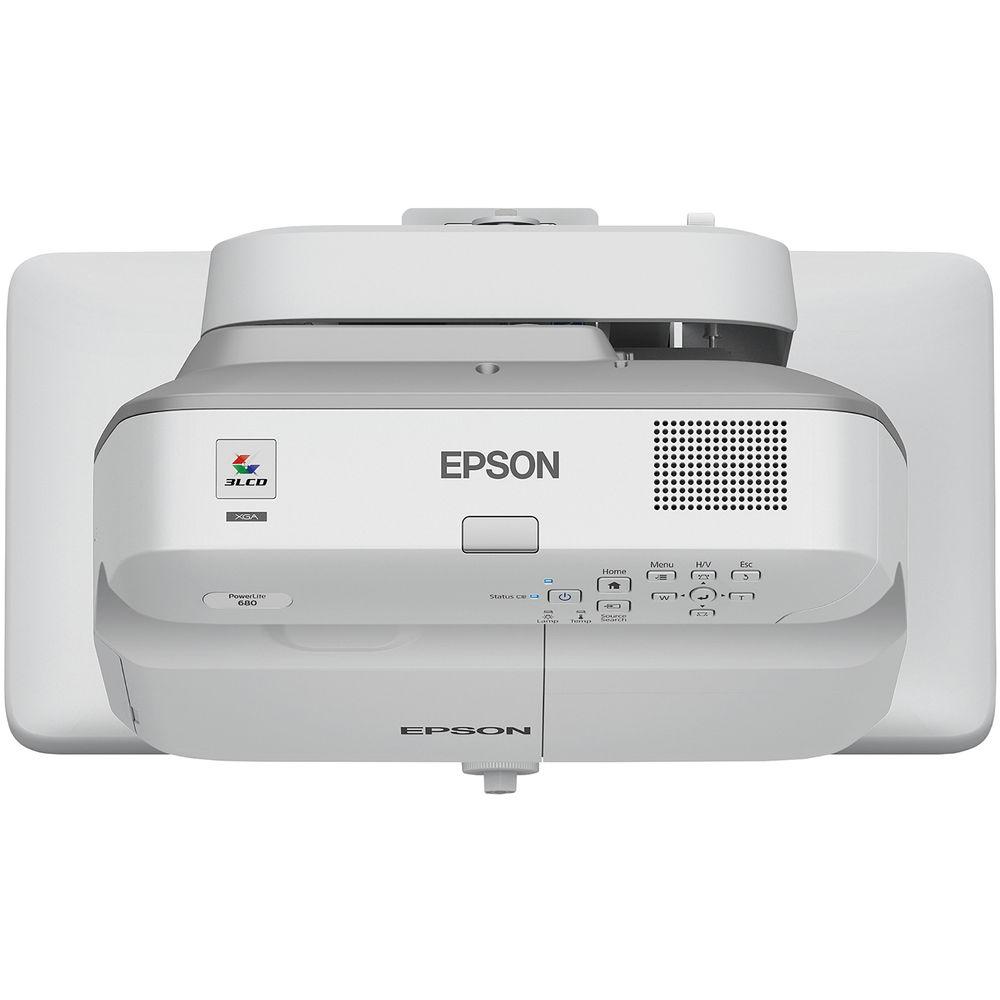

User Manual for Epson PowerLite 680 3500-Lumen XGA Ultra-Short Throw 3LCD Projector Click to enlarge the picture
Contents of the user manual for the Epson PowerLite 680 3500-Lumen XGA Ultra-Short
- Product category: Multimedia Projectors Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Multimedia Projectors
 |
User manual for the Epson PowerLite 680 3500-Lumen XGA Ultra-Short contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|
Product description Enjoy virtually shadow-free presentations with the Epson PowerLite 680 3500-Lumen XGA Ultra-Short Throw 3LCD Projector. It features an ultra-short 0.32 to 0.43:1 throw ratio and can be mounted to the wall very close to your screen with an optional mount to minimize the likelihood of someone passing between the projector and the screen. Its XGA (1024 x 768) native resolution is well suited for data formats.
The PowerLite 680 sports an RCA composite video, two VGA, and three HDMI inputs, allowing you to connect a multitude of analog and digital sources. One of the HDMI ports is MHL-compatible for connecting a similarly equipped smart device, and one VGA input can instead function as an output for daisy-chaining multiple projectors or displays. An analog audio input is also onboard, along with a 16W speaker, ensuring that the audio you want accompanying your presentation is heard; its analog audio output will enable you to route the audio to an external sound system if you prefer. The PowerLite 680 is Ethernet and RS-232 controllable and is designed to integrate with the SMART Board M680 and 880 interactive whiteboards. - Specifically designed for use with the SMART Board M680 and 880 interactive whiteboards
- Designed for seamless integration with your SMART Board – connect and control your display via the SMART Extended Control Panel (ECP)
- The 3-chip, 3LCD design offers enhanced color brightness with 3500 lumens of color and white brightness
- Lamp designed to last up to 10,000 hours in ECO Mode
- XGA (1024 x 768) resolution with a 4:3 native aspect ratio
- Achieve a 77" image from less than 7" away with virtually no shadow interference, thanks to the ultra-short-throw design
- Manage your display and send announcements remotely over your network with the included software
- Versatile connectivity options, with three HDMI inputs, one of which is MHL-capable for mirroring your compatible mobile devices
- Support for Chromebook, iOS, Android, Mac, and Windows devices connected on the same network; a wireless LAN adapter is available separately
UPC: 010343930933 In the Box Epson PowerLite 680 3500-Lumen XGA Ultra-Short Throw 3LCD Projector Remote Control with Batteries Projector Software CDs Template Sheet Projector Feet 15' Power Cord Limited 2-Year Warranty on Projector Limited 90-Day Warranty on Lamp More info from Epson cqzustwxybfbwreec Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson PowerLite 680 3500-Lumen XGA Ultra-Short Throw 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson PowerLite 680 Specs | | | Display System | 3-Chip Polysilicon TFT LCD | | Native Chip Resolution | 1024 x 768 (XGA) | | Supported Resolutions | Minimum: VGA - 640 x 480
Maximum: WUXGA - 1600 x 1200 | | Max Brightness | 3500 Lumens | | Aspect Ratio | Native: 4:3 | | Dynamic Contrast Ratio | 14,000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | | | Focus | Manual | | Lens | f/1.6 (f = 3.7 mm) | | Lens Shift | None | | Optical Zoom | None | | Throw Distance | 13.386 - 23.622" / 34 - 60 cm | | Throw Ratio | 0.32 - 0.43:1 | | Projection Size | 55.4 - 92.7" / 140.72 - 235.46 cm | | | | Keystone Correction | Manual-Vertical: ± 3°

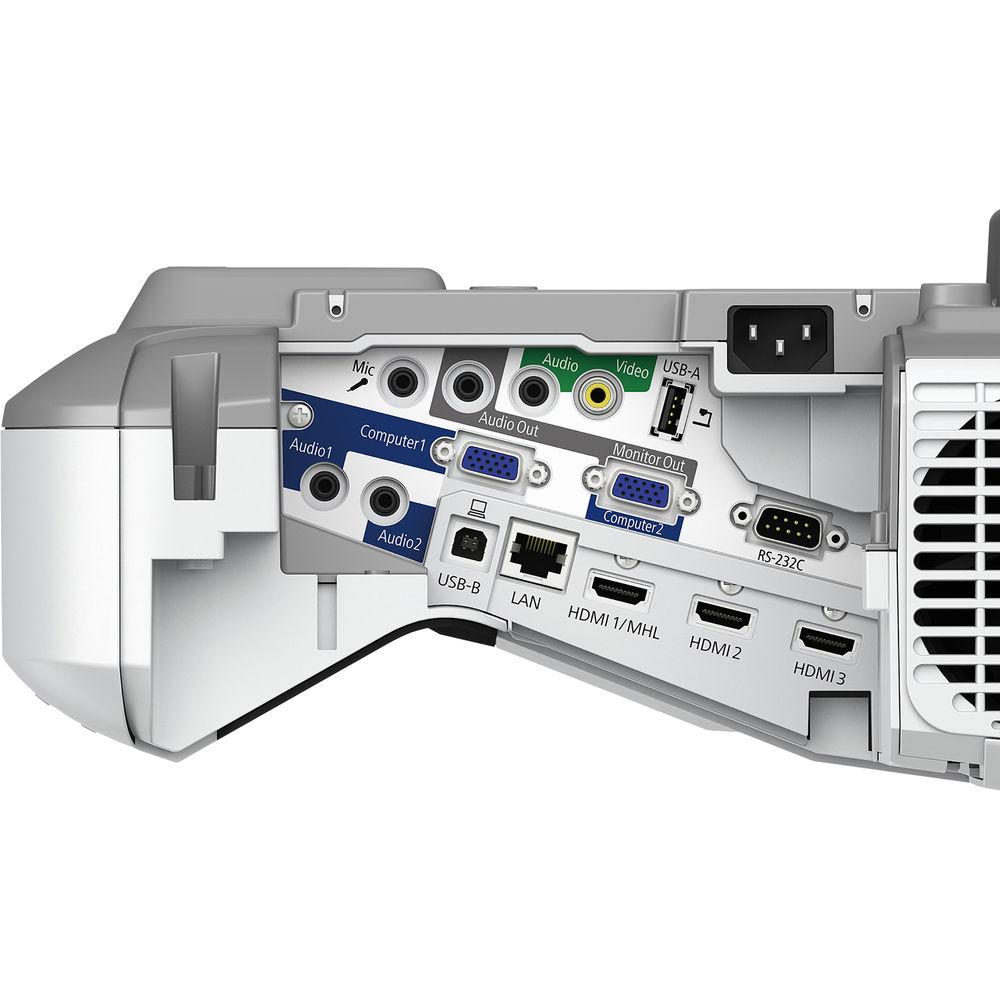

Manual-Horizontal: ± 3° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 16W | | | | Inputs/Outputs | 2 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Input/Output)
1 x Composite (RCA) Video (Input)
3 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Microphone (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x Ethernet (RJ45) LAN (Input)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x USB Type-B Female (Input)
1 x USB Power (Output) | | Internal Storage | None | | Wireless LAN / Wi-Fi | None | | | | Light Source | Lamp (1 x UHE) | | Lamp Power | 250 W | | Expected Lamp Life | Medium Brightness: 5000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Medium Brightness: 35 dB
Low Brightness: 30 dB | | Security | Cable Lock Slot
Padlock
Password Protection | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 373 W
Low Brightness: 324 W
Standby Mode (Lamp Off): 2.2 W
Standby Mode (Lamp Off): 0.23 W | | Temperature | Operating
41 to 104°F (5 to 40°C) | | Dimensions (W x H x D) | 14.5 x 7.4 x 15.8" / 36.8 x 18.8 x 40.1 cm With feet
14.5 x 5.9 x 15.8" / 36.8 x 15.0 x 40.1 cm Without feet | | Weight | 12.6 lb / 5.72 kg | | | | Package Weight | 19.0 lb | | Box Dimensions (LxWxH) | 21.0 x 19.0 x 9.7" |
