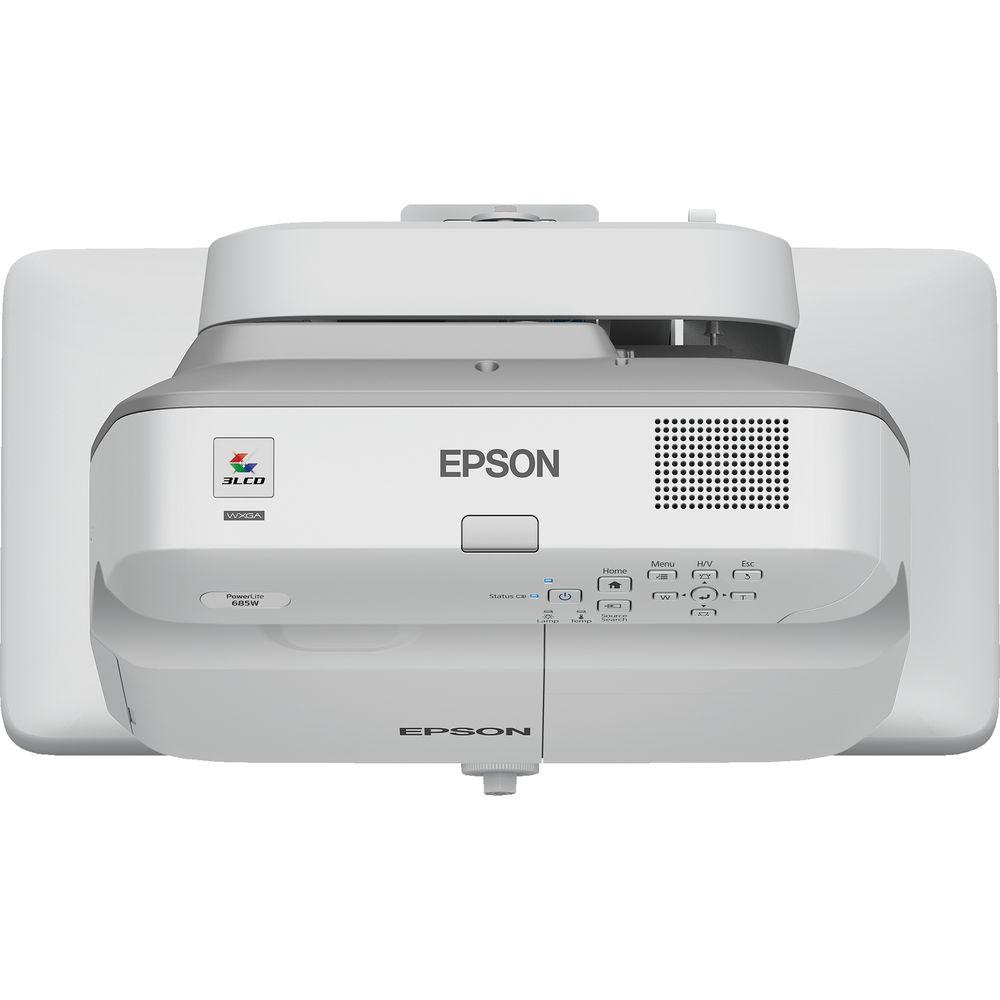

Product description Enjoy virtually shadowless images with the Epson PowerLite 685W 3500-Lumen WXGA Ultra-Short Throw 3LCD Projector. It features an ultra-short 0.28 to 0.37:1 throw ratio, which will allow it to be mounted only 11" from your screen or whiteboard and project an image as large as 100", reducing the risk of possible shadows. Its 3500 lumens of brightness, combined with its 14,000:1 contrast ratio, will help it overcome ambient light in many situations and help retain detail in dark areas of the image without compromising overall brightness. The 1280 x 800 native resolution will help ensure that text is clear at most viewing distances.
The PowerLite 685W features USB, RCA composite, and three HDMI inputs to support various sources. One HDMI input is MHL-compatible, which will allow you to connect your compatible smart device directly to the projector to mirror its screen. The USB input allows you to project directly from a Windows or Mac computer. You can output the video to another projector or display with the VGA output. Its 3.5mm audio inputs and output allow for audio transmission, for a more immersive experience. An IR remote is included for convenient control. - High Color and White Brightness Levels
- Both color and white brightness of 3500 lumens.
- Ultra-Short Throw Projector

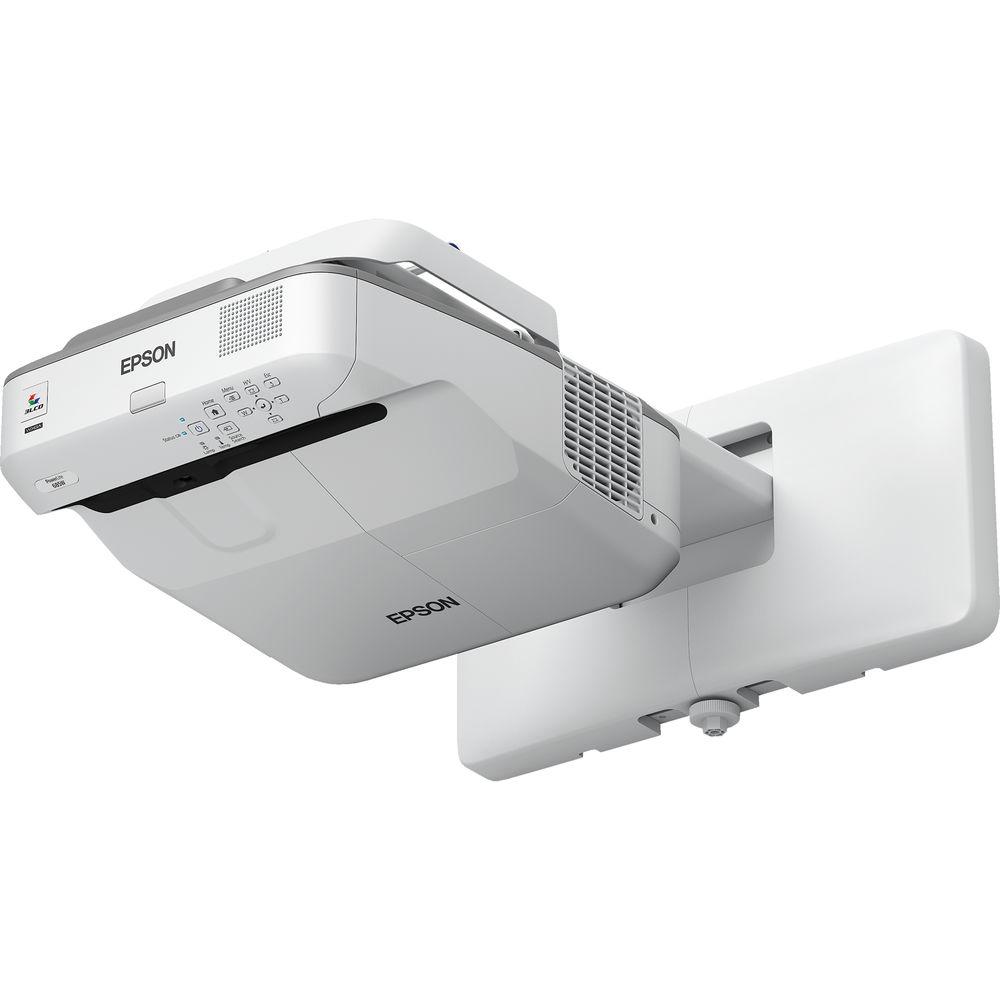

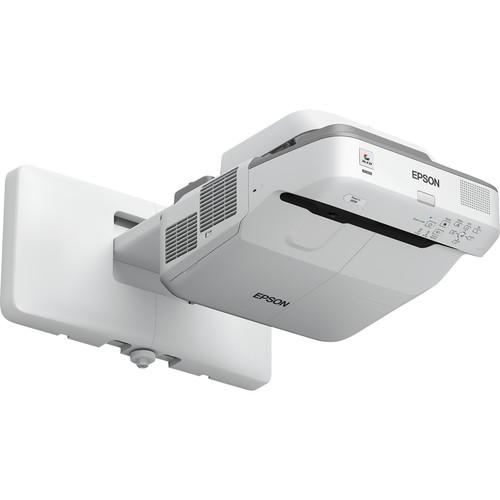

- Can be mounted only 11" from the board or screen for a projected image as large as 100" diagonal, with virtually no shadow interference.
- Split Screen
- Simultaneously project two images (video or still) side-by-side from two different sources.
- Built-In Speaker
- The PowerLite 685W features a microphone input and built-in 16W speaker to amplify the audio of the presentation. You can also pass the signal through to external speakers, even in standby mode.
- USB Plug & Play
- Instantly project images from a Windows or Mac computer using a USB connection.
- 3LCD Color Accuracy
- 3LCD, 3-chip technology is designed to provide enhanced color brightness and a wider color gamut.
- Simultaneously Display and Control Multiple Device Screens
- Wirelessly share content from up to four devices including Chromebooks, iOS, Android, Mac, and Windows devices, with Moderator software.
- Manage Your Display and Sent Announcements Remotely
- Designed for easy network connectivity with included software.
- Versatile Connectivity
- With three HDMI inputs, the PowerLite 685W supports multiple HD A/V devices; one HDMI input supports MHL for connecting compatible mobile devices.
UPC: 010343924642 In the Box Epson PowerLite 685W 3500-Lumen WXGA Ultra-Short Throw 3LCD Projector Remote Control with Batteries Template Sheet Projector Feet Projector Software CDs 15' Power Cord Limited 2-Year Warranty on Projector Limited 90-Day Warranty on Lamp More info from Epson Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson PowerLite 685W 3500-Lumen WXGA Ultra-Short Throw 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson 685W Specs | | | Display System | 3-Chip Polysilicon TFT LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: UXGA - 1600 x 1200 | | Max Brightness | 3500 Lumens | | Aspect Ratio | 16:10 | | Contrast Ratio | 14000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | | | Focus | Manual | | Lens | f/1.6 (f = 3.7 mm) | | Throw Distance | 13.386 - 23.622" / 34 - 60 cm | | Throw Ratio | 0.28 - 0.37:1 | | Projection Size | 60 - 100" / 152.40 - 254.00 cm | | | | Keystone Correction | Manual-Vertical: ± 3°

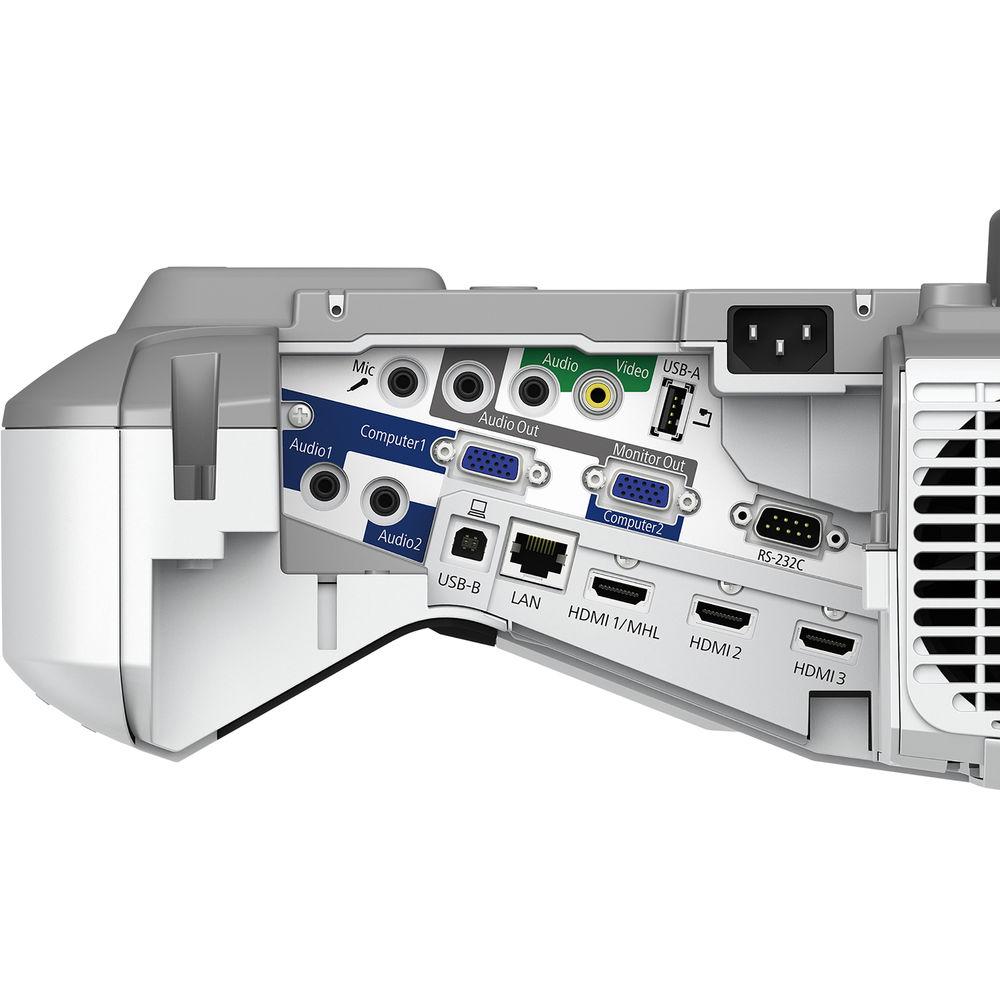

Manual-Horizontal: ± 3° | | Digital Zoom | 1.35x | | Ceiling Mountable | None | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 16W | | | | Inputs/Outputs | 2 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
1 x USB Type-B Female (Input)
1 x Composite (RCA) Video (Input)
3 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Microphone (Input)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x VGA (DE-15) Video (Output)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x USB Power (Output)
1 x Ethernet (RJ45) LAN (Input) | | Wireless LAN / Wi-Fi | None | | | | Light Source | Lamp (1 x UHE) | | Lamp Power | 250 W | | Expected Lamp Life | Medium Brightness: 5000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Medium Brightness: 35 dB
Low Brightness: 29 dB | | Security | Cable Lock Slot
Padlock
Password Protection | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 373 W
Low Brightness: 324 W
Standby Mode (Lamp Off): 2.2 W
Standby Mode (Lamp Off): 0.23 W | | Temperature | Operating
41 to 104°F (5 to 40°C) | | Dimensions (W x H x D) | 14.5 x 7.4 x 15.8" / 36.8 x 18.8 x 40.1 cm Including feet
14.5 x 5.9 x 15.8" / 36.8 x 15.0 x 40.1 cm Excluding feet | | Weight | 12.6 lb / 5.7 kg | | | | Package Weight | 19.5 lb | | Box Dimensions (LxWxH) | 21.4 x 19.3 x 10.2" |
