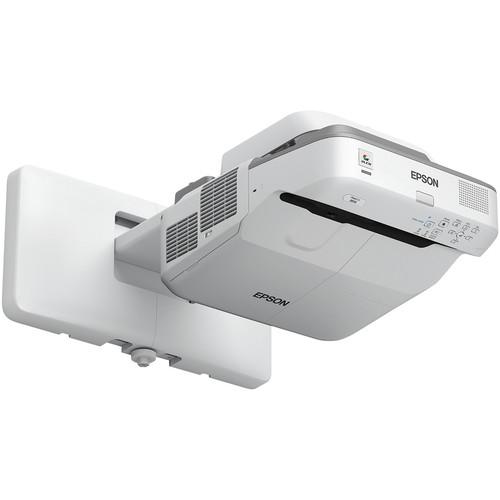

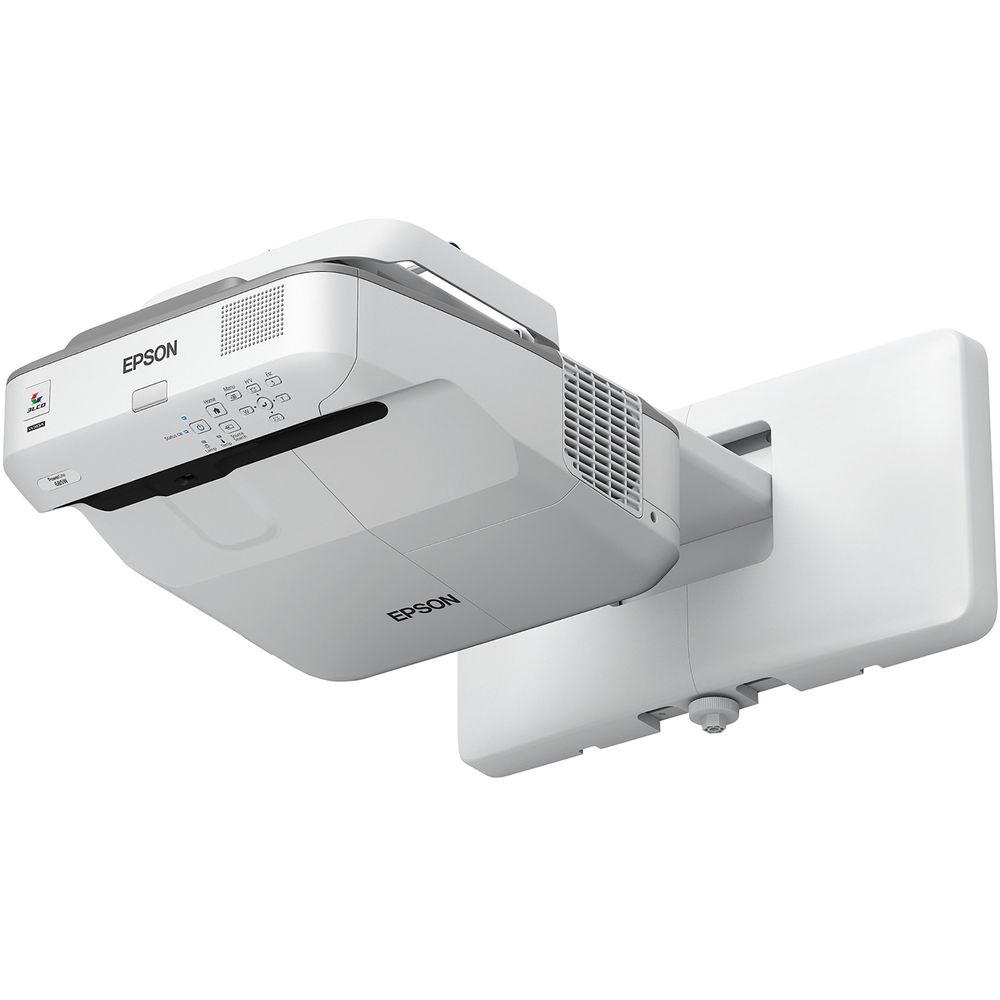

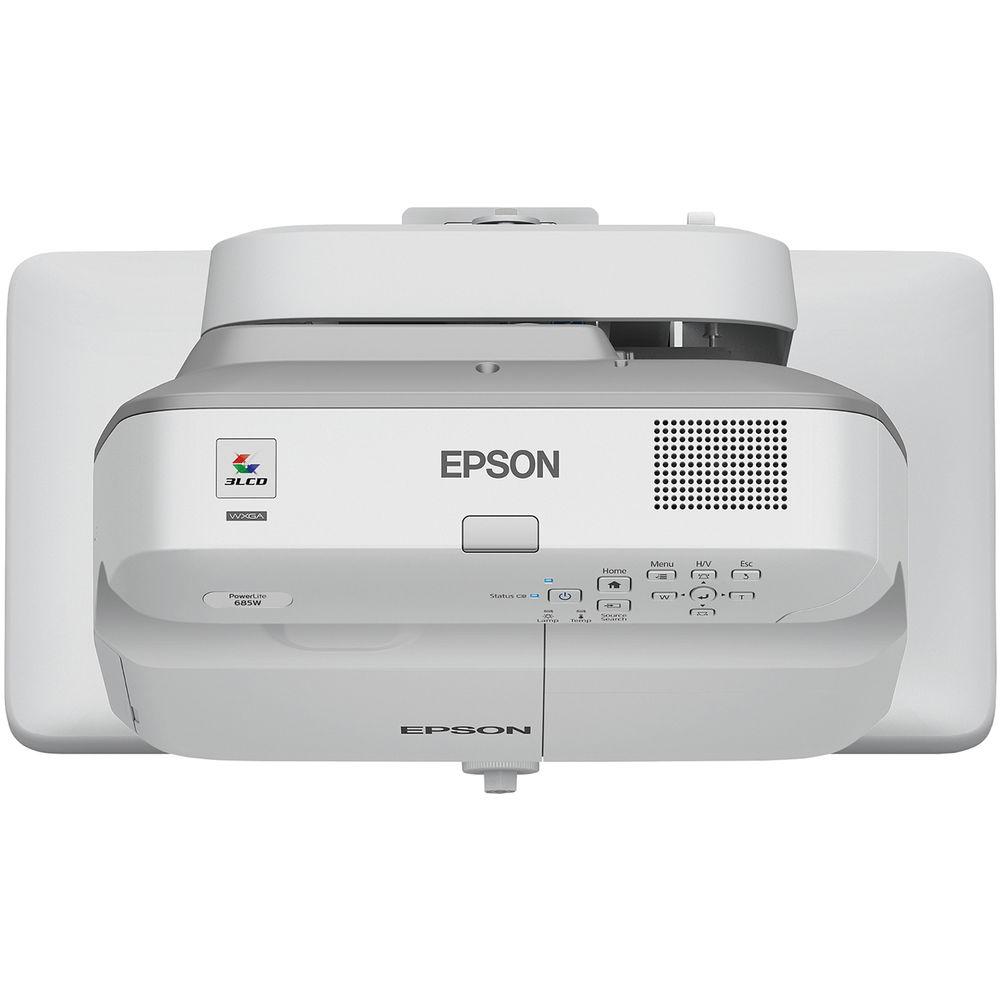

User Manual for Epson PowerLite 685W 3500-Lumen WXGA Ultra-Short-Throw 3LCD Projector Click to enlarge the picture
Contents of the user manual for the Epson PowerLite 685W 3500-Lumen WXGA Ultra-Short-Throw
- Product category: Multimedia Projectors Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Multimedia Projectors
 |
User manual for the Epson PowerLite 685W 3500-Lumen WXGA Ultra-Short-Throw contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|
Product description Enjoy large images from short distances with the Epson PowerLite 685W 3500-Lumen WXGA Ultra-Short-Throw 3LCD Projector. Its ultra-short 0.28 to 0.37:1 throw ratio can produce up to a 100" image from under 2' away, virtually eliminating shadows caused by presenters or passers-by. Its 3500 lumens of brightness, combined with its 14,000:1 dynamic contrast ratio, helps it overcome ambient light in many situations and retain detail in dark areas of the image without compromising overall brightness. The 1280 x 800 native resolution helps ensure that images and text are clear at most viewing distances.
The PowerLite 685W features RCA, two VGA, and three HDMI inputs to support a variety of source devices. One HDMI input is MHL-compatible for projecting from your compatible mobile device, and one VGA input can instead act as an output to daisy-chain multiple projectors or displays. An IR remote is included as an added convenience. - Designed to Produce Bright, Colorful Images
- The PowerLite 685W offers 3500 lumens of color and white brightness for enhanced image quality.
- Ultra-Short Throw Distance
- The ultra-short throw distance allows you to project images up to 100" from less than 2' away.
- HDMI Connectivity with MHL
- Display HD content from your compatible mobile device with MHL compatibility.
- iProjection Compatible
- When used with the optional wireless LAN adapter, you can wirelessly project from your Windows, Mac, or Chromebook computer, or your Android or iOS device, and connect to and manage up to 50 devices simultaneously.
- Designed for Long Lamp Life
- The E-TORL lamp lasts up to 5000 hours in normal mode and up to 10,000 hours in ECO mode.
- Additional Features
-
- Compatible with the M685 and 885 SMART Board interactive whiteboards, including control via the SMART Extended Control Panel (ECP)
- Manage your display and send announcements remotely with network connectivity and included software
- RoHS-compliant, recyclable design
UPC: 010343930926 In the Box Epson PowerLite 685W 3500-Lumen WXGA Ultra-Short-Throw 3LCD Projector Remote Control with Batteries Audio Adapter Cable for SMART Board Null Modem Serial Cable Software CDs Template Sheet Projector Feet Password Protection Sticker 15' Power Cord Limited 2-Year Warranty on Projector Limited 90-Day Warranty on Lamp More info from Epson Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson PowerLite 685W 3500-Lumen WXGA Ultra-Short-Throw 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson 685W Specs | | | Display System | 3-Chip LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: UXGA - 1600 x 1200 | | Max Brightness | White: 3500 Lumens
Color: 3500 Lumens | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 14,000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | | | Focus | Manual | | Lens | f/1.6 (f = 3.7 mm) | | Optical Zoom | None | | Throw Distance | 13.386 - 23.622" / 0.34 - 0.6 m | | Throw Ratio | 0.28 - 0.37:1 | | Projection Size | 60 - 100" / 152.40 - 254.00 cm | | | | Keystone Correction | Manual-Vertical: ± 3°

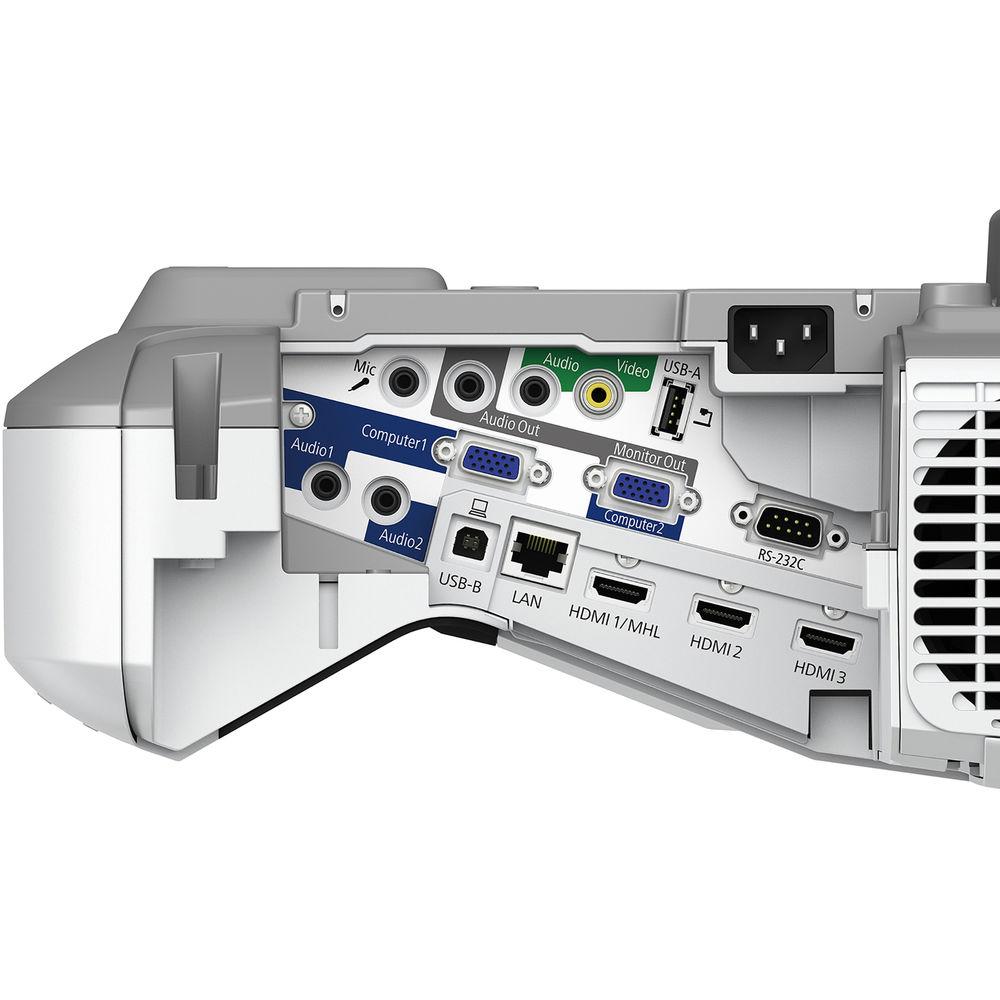

Manual-Horizontal: ± 3° | | Digital Zoom | 1.35x | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 16W | | | | Inputs/Outputs | 2 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Input/Output)
1 x Composite (RCA) Video (Input)
3 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Microphone (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x Ethernet (RJ45) LAN (Input)
1 x USB Type-A Female (Input/Output)
1 x USB Type-B Female (Input)
1 x RS-232C (Unspecified Connector) Control (Input) | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | Lamp (1 x UHE) | | Lamp Power | 250 W | | Expected Lamp Life | Full Brightness: 5000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Full Brightness: 35 dB
Low Brightness: 29 dB | | Security | Cable Lock Slot
Padlock
Password Protection | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 373 W
Low Brightness: 324 W
Standby Mode (Lamp Off): <2.2 W | | Max Operating Altitude | 9843' / 3000 m | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 - 80% | | Storage Humidity | 10 - 90% | | Dimensions (W x H x D) | 14.5 x 7.4 x 15.8" / 36.8 x 18.8 x 40.1 cm Including feet
14.5 x 5.9 x 15.8" / 36.8 x 15.0 x 40.1 cm Excluding feet | | Weight | 12.6 lb / 5.7 kg | | | | Package Weight | 16.0 lb | | Box Dimensions (LxWxH) | 21.0 x 19.0 x 10.0" |
