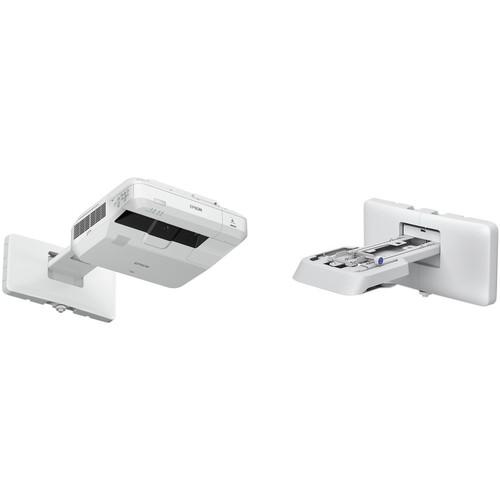

User Manual for Epson PowerLite 700U 4000-Lumen WUXGA Ultra-Short Throw Laser LCD Projector and Wall Mount Kit Click to enlarge the picture
Contents of the user manual for the Epson PowerLite 700U 4000-Lumen WUXGA Ultra-Short
- Product category: Multimedia Projectors Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Multimedia Projectors
|
User manual for the Epson PowerLite 700U 4000-Lumen WUXGA Ultra-Short contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|
Product description Enjoy interactive projection virtually free of shadows with the Kit of the Epson PowerLite 700U 4000-Lumen WUXGA Ultra-Short Throw Laser LCD Projector and a wall mount. The included mount allows you to adjust the projector horizontally and vertically to achieve your desired image alignment, and is designed to minimize the chances of unwanted glare as well as shadows thrown by presenters. This allows the presenter to touch, draw, annotate, and otherwise interact with the presentation material without obstructing it. - Epson PowerLite 700U 4000-Lumen WUXGA Ultra-Short Throw Laser Projector The PowerLite 700U 4000-Lumen WUXGA Ultra-Short Throw Laser Projector from Epson offers Full HD WUXGA resolution, a projection size of up to 130", and a brightness rating of 4000 lumens (color and white brightness). The laser light source can operate for up to 20,000 hours maintenance-free. The PowerLite 700U features HDMI, VGA, and RCA video inputs to support various source devices. A VGA cable and an IR remote control are included for added convenience.
- Contrast ratio up to 2,500,000:1, for deep blacks and brilliant, vivid colors
- HDMI audio and video connection for HD quality with just one cable
- Compatible with Crestron, AMX, Extron, and PJLink
- Recyclable product, RoHS compliant
UPC: 010343937581 - Epson Adjustable Wall Mount for Select Ultra-Short Throw Laser Displays The Adjustable Wall Mount from Epson is designed for use with the PowerLite 700U and BrightLink 710Ui/1470Ui series ultra-short throw laser displays. It consists of a wall plate, a telescopic mount arm, and a 3-point axis. The wide mounting plate and telescopic extension arm offer convenient and flexible installation between 70 to 100" for BrightLink models and up to 130" for PowerLite 700U. It's ultra-short throw design assures there is less shadow interference and glare, which ensures a more optimal presenting and viewing experience.
- Two-position mount arm for projecting 16:10 content from 45-65" (BrightLink 475Wi/485Wi) or 4:3 content from 40-57" (BrightLink 480i)
- Includes all necessary tools and screws for assembly
UPC: 010343937611 In the Box - PowerLite 700U 4000-Lumen WUXGA Ultra-Short Throw Laser Projector fderctrewbavyuydr
- 15' Power Cord
- Remote Control And Batteries
- VGA Cable
- Projector Feet
- Limited 3-Year Warranty
- Adjustable Wall Mount for Select Ultra-Short Throw Laser Displays
Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson PowerLite 700U 4000-Lumen WUXGA Ultra-Short Throw Laser LCD Projector and Wall Mount Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Epson PowerLite 700U 4000-Lumen WUXGA Ultra-Short Throw Laser Projector
| | | Display System | 3-Chip Polysilicon TFT LCD | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Supported Resolutions | VGA - 640 x 480
SVGA - 800 x 600
XGA - 1024 x 768
SXGA2 - 1280 x 960
SXGA3 - 1280 x 1024
WXGA 60-1 - 1366 x 768
WXGA+ - 1440 x 900
SXGA+ - 1400 x 1050
WXGA++ - 1600 x 900
WSXGA+ - 1680 x 1050 | | Max Brightness | White: 4000 Lumens
Color: 4000 Lumens | | Aspect Ratio | 16:10 | | Contrast Ratio | 2500000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | | | Focus | Manual | | Lens | f/1.6 (f = 4.2 mm) | | Throw Ratio | 0.27 - 0.37:1 | | Projection Size | 70 - 130" / 1.78 - 3.30 m | | | | Keystone Correction | Manual-Vertical: ± 3°
Manual-Horizontal: ± 3° | | Digital Zoom | 1.35x | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 16W | | Projection Tilt Option | Yes | | | | Inputs/Outputs | 1 x USB 2.0 (USB Type-B) Control
2 x USB 2.0 (USB Type-A) Control | | Memory Card Slot | None | | | | Expected Lamp Life | Full Brightness: 20,000 Hours | | Fan Noise | Full Brightness: 38 dB
Low Brightness: 27 dB | | Security | Cable Lock Slot
Padlock
Password Protection | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 448 W
Low Brightness: 348 W
Standby Mode (Lamp Off): 0.3 W | | Operating Temperature | 12 to 104°F / -11 to 40°C | | Dimensions (W x H x D) | 19.4 x 7.4 x 17.2" / 49.3 x 18.8 x 43.7 cm with feet
19.4 x 6.7 x 17.2" / 49.3 x 17.0 x 43.7 cm without feet | | Weight | 24.3 lb / 11.02 kg | | | | Box Dimensions (LxWxH) | 26.0 x 22.25 x 10.0" | - Epson Adjustable Wall Mount for Select Ultra-Short Throw Laser Displays
| Compatibility | BrightLink 710Ui WUXGA Ultra-Short Throw Interactive Laser Display
BrightLink Pro 1470Ui WUXGA Ultra-Short Throw Interactive Laser Display
PowerLite 700U Ultra-Short Throw Laser Display | | | | Box Dimensions (LxWxH) | 20.0 x 12.0 x 11.0" |
