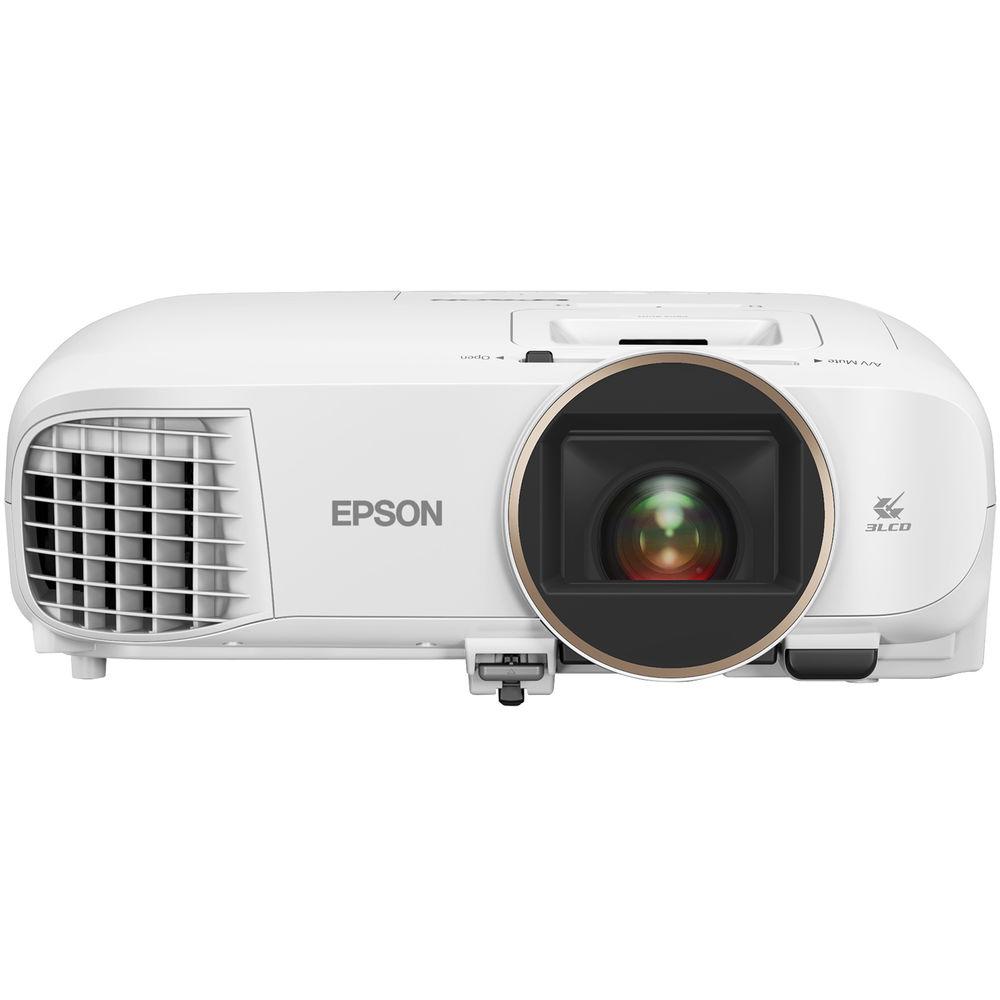

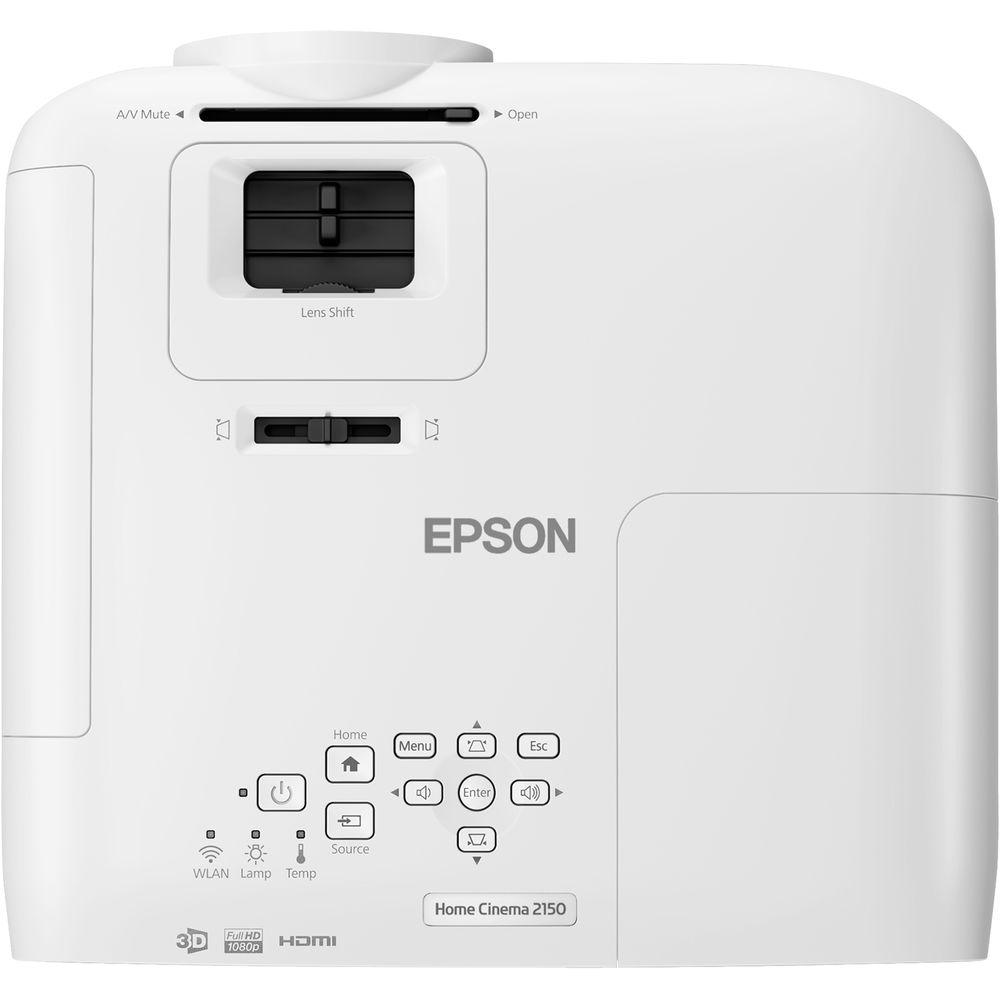

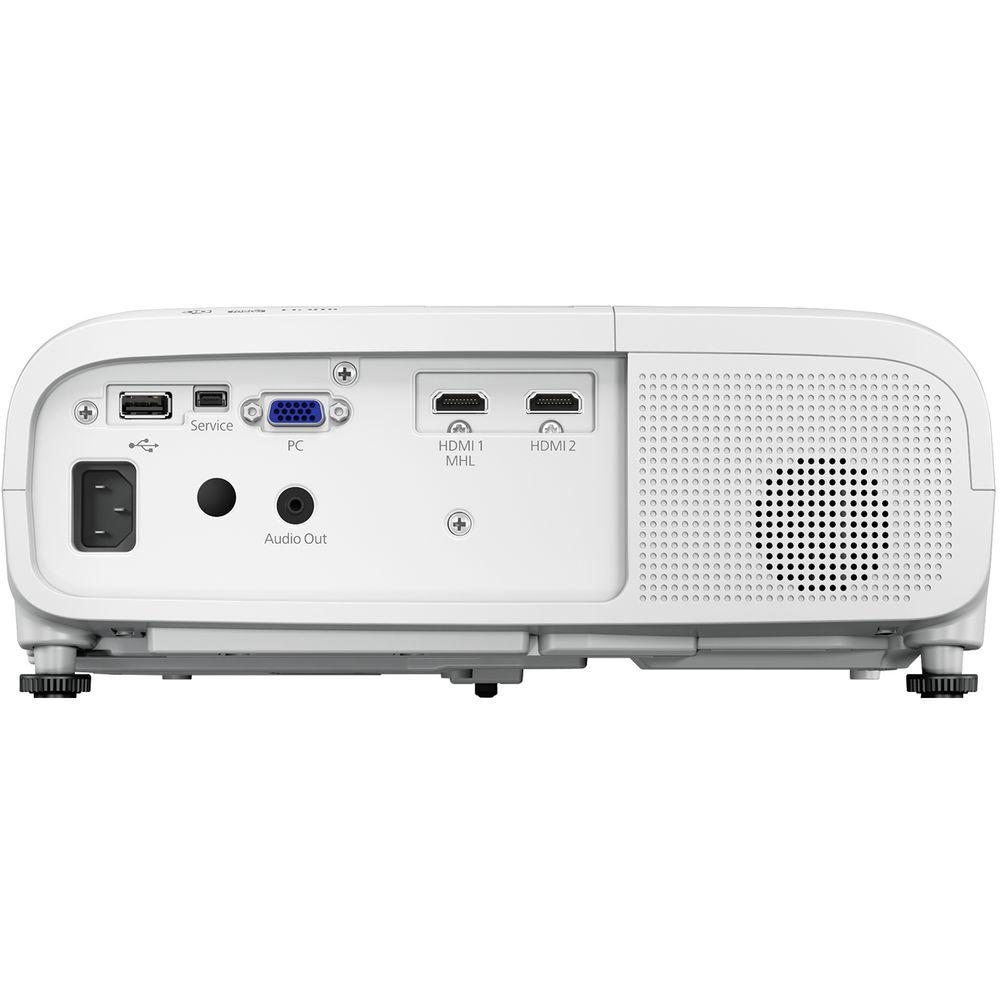

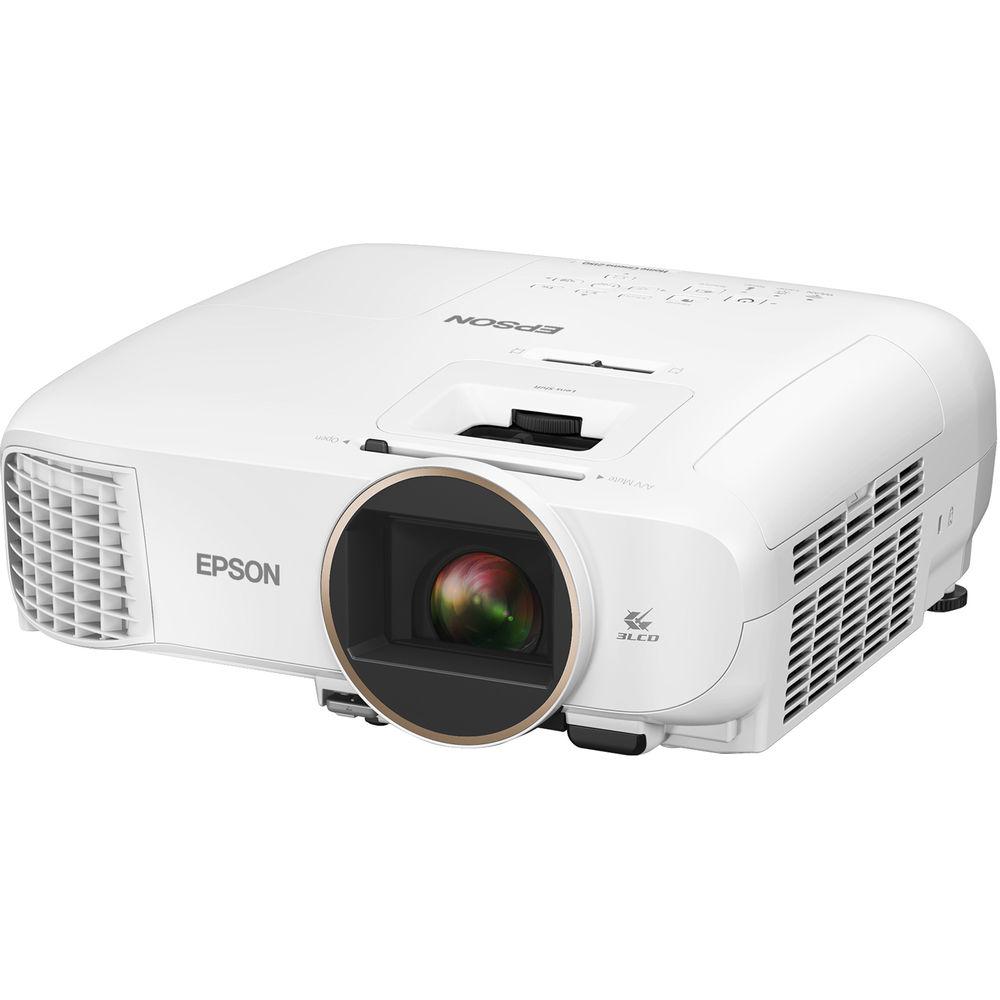

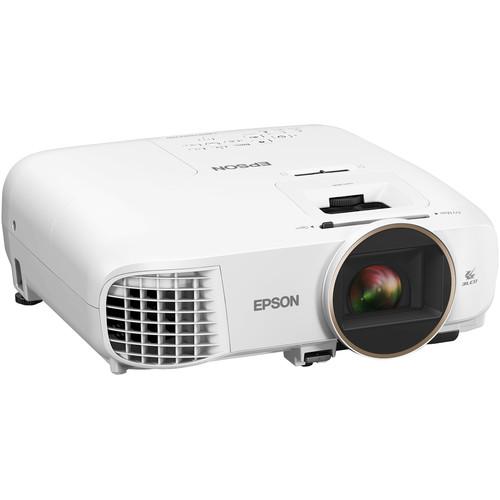

User Manual for Epson PowerLite Home Cinema 2150 Full HD 3LCD Projector with WiDi Click to enlarge the picture
Contents of the user manual for the Epson PowerLite Home Cinema 2150 Full
- Product category: Home Theater Projectors Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Home Theater Projectors
 |
User manual for the Epson PowerLite Home Cinema 2150 Full contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|
Product description Buying Guide to Projectors Read More frteszczruvbdacvswwfcdxaddeywzzfuuef The Epson PowerLite Home Cinema 2150 Full HD 3LCD Projector produces 2500 lumens of white and color brightness with a low noise level of only 29 dB when using ECO mode. It features a 60,000:1 dynamic contrast ratio for enhanced detail in dark images. The projector delivers Full HD 1920 x 1080p native resolution and is equipped with a 3LCD optical engine and a 200W lamp that provides up to 7500 hours of life in ECO mode.
The projector offers easy setup features including ±30° vertical and horizontal keystone correction, up to 1.6x zoom, and lens shift technology. It provides VGA and two HDMI inputs to connect both standard definition and HD sources. One HDMI input is MHL-compatible for connecting devices such as compatible smartphones or tablets with a wire. The 2150 provides wireless connectivity as well via integrated WiDi technology with additional support for Miracast streaming. - 2500 Lumens of White and Color Brightness
- Suitable for a variety of lighting conditions
- 1080p Resolution
- Full HD resolution for an enhanced cinematic experience
- Stream from Compatible Devices
- With WiDi and Miracast compatibility, you can stream from devices like Chromecast, Roku, Apple TV, Amazon Fire TV, and more
- Lens Shift
- Vertical lens shift provides enhanced placement flexibility for a quick and easy setup
- Built-In Speaker
- A speaker is built-in to obviate the need for an external system
- Frame Interpolation
- Frame interpolation creates interstitial frames to help make fast-moving video seem smooth and fluid
- Eco Features
- RoHS-compliant, recyclable design
UPC: 010343937222 In the Box Epson PowerLite Home Cinema 2150 Full HD 3LCD Projector with WiDi Remote Control 2 x AA Batteries Power Cord Limited 2-Year Warranty Limited 90-Day Warranty More info from Epson Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson PowerLite Home Cinema 2150 Full HD 3LCD Projector with WiDi in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson 2150 Specs | Projection System | 3LCD | | Driving Method | Polysilicon TFT Active Matrix | | Projection Method | Front
Rear
Ceiling mount | | Brightness | White: 2500 lumens
Color: 2500 lumens | | Dynamic Contrast Ratio | 60,000:1 | | Native Resolution | Full HD 1080p (1920 x 1080) | | 3D Capability | Yes | | Pixel Count | 6,220,800 (1920 x 1080 x 3) | | Aspect Ratio | Native: 16:9
Supported: 16:10, 4:3 | | Color Reproduction | 10-bit, up to 1.07 billion colors | | Projection Lens | Type: Manual optical focus, optical zoom
F-Number: 1.51 to 1.99
Focal Length: 18.2 to 29.2mm
Zoom Ratio: 1 to 1.6 | | Lens Shift | Vertical | | Lamp Type | 200 W UHE | | Lamp Life | Normal Mode: Up to 4000 hours
ECO Mode: Up to 7500 hours | | Throw Ratio | 1.33 to 2.16:1 | | Projection Size | 30 to 300" (76.2 to 762 cm) | | Projection Distance | 2.86 to 29.2' (0.87 to 8.9 m) | | Keystone Correction | Vertical, Auto: ±30°
Horizontal, Manual: ±30° | | Wi-Fi | Yes, with WiDi and Miracast support | | Inputs | 1 x HDMI with MHL
1 x HDMI
1 x 15-pin VGA
1 x USB Type-A (1A power, slideshow, firmware)
1 x micro USB (service) | | Outputs | 1 x 1/8" (3.5 mm) audio | | Fan Noise | Normal Mode: 37 dB
ECO Mode: 29 dB | | Speaker | 10 W mono | | Remote Control | Operating Distance: 19.7' (6 m)
Operating Angle, R/L: ±30°
Operating Angle, U/D: ±15° | | Operating Temperature | 41 to 95°F (5 to 35°C) | | Power Requirements | 100 to 240 VAC ±10%, 50/60 Hz | | Power Consumption | Normal Mode: 312 W
ECO Mode: 237 W
Standby, Energy Saving: 0.2 W | | Dimensions (W x H x D) | Including Feet: 12.2 x 4.8 x 11.2" (30.99 x 12.19 x 28.45 cm)
Excluding Feet: 12.2 x 4.2 x 11.2" (30.99 x 10.67 x 28.45 cm) | | Weight | 7.7 lb (3.49 kg) | | | | Package Weight | 10.8 lb | | Box Dimensions (LxWxH) | 15.0 x 14.9 x 7.0" |
