User Manual for Epson PowerLite Home Cinema 5040UBe Full HD 3LCD Projector with Wireless Adapter Click to enlarge the picture
Contents of the user manual for the Epson PowerLite Home Cinema 5040UBe Full
- Product category: Home Theater Projectors Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Home Theater Projectors
 |
User manual for the Epson PowerLite Home Cinema 5040UBe Full contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|
Product description Buying Guide to Projectors Read More The Epson PowerLite Home Cinema 5040UBe Full HD 3LCD Projector delivers 2500 lumens of white and color with a low noise level of only 20 dB when using ECO mode. It is HDR compatible and features a 1,000,000:1 dynamic contrast ratio for enhanced color quality and black levels. The projector delivers Full HD 1920 x 1080p native resolution with support for 4K content. It's equipped with a 3LCD optical engine and a 250W lamp that provides up to 5,000 hours of life in ECO mode.
The projector offers easy setup features including ±30° vertical keystone correction, 2.1x zoom, and lens shift technology. It provides VGA and two HDMI inputs to connect both standard definition and HD sources. It is controllable via RS-232 or the included IR remote.
The 5040UBe provides wireless connectivity as well. It includes a WirelessHD transmitter that allows you to mount the projector anywhere you want without running extra wires. The transmitter is equipped with four HDMI inputs, which all support 4K HDCP 2.2 standards, allowing you to connect your 4K Blu-ray player or other UHD source. - 4K Enhancement Technology
- This projector accepts a 4K input and supports HDCP 2.2 for enhanced detail from 4K content
- Wirelessly Transmit 4K Content
- Eliminate cables and clutter while expanding connectivity; the included WirelessHD transmitter has four HDMI inputs that support 4K HDCP 2.2 standards
- HDR Compatible
- Enjoy HDR content with a wide range of brightness levels for enhanced color
- 2500 Lumens of White and Color Brightness
- Suitable for a variety of lighting conditions
- Expansive Color Gamut
- Designed for brilliant, color-rich performance that displays the entire sRGB color space, plus DCI in Digital Cinema Mode
- Dramatic Ultra Black Levels
- An enhanced iris design delivers up to a 1,000,000:1 dynamic contrast ratio
- Cinema Lens
- Designed and manufactured in Japan, the cinema lens features a 16-piece glass structure designed for 4K performance
- Epson Image Enhancement Technology
- Epson's Image Enhancement Technology features Super-resolution and improved Detail Enhancement to help sharpen and refine images for more lifelike smoothness and clarity
- Powered Lens Position Memory
- Preset up to 10 positions for motorized focus, zoom, and lens shift; features 2.1x zoom and wide lens shift
- 3-Dimensional Picture
- Bright 3D Drive allows for 3D projection
- Eco-Friendly
- RoHS compliant
UPC: 010343921849 In the Box Epson PowerLite Home Cinema 5040UBe Full HD 3LCD Projector with Wireless Adapter Remote Control 2 x Alkaline AA Batteries WirelessHD Transmitter 2 x HDMI Cable Clips Terminal Cover Power Cord AC Adapter and Cord for WirelessHD Transmitter Limited 2-Year Warranty Limited 90-Day Warranty Brochure PDF 896.7kbvezaeaedfrcsecbbwqcsrsvwxstevwwtybzz More info from Epson Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson PowerLite Home Cinema 5040UBe Full HD 3LCD Projector with Wireless Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson 5040UBe Specs | | | Display System | 3-Chip Polysilicon TFT LCD | | Native Chip Resolution | 1920 x 1080 | | Supported Resolutions | Maximum: 3840 x 2160 | | Max Brightness | White: 2500 Lumens
Color: 2500 Lumens | | Aspect Ratio | 16:9 | | Dynamic Contrast Ratio | 1,000,000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | | | Focus | Auto | | Lens | f/2 - 3 (f = 23 - 47 mm) | | Lens Shift | Horizontal: ± 47%
Vertical: ± 96% | | Optical Zoom | Powered: | | Throw Distance | 4.9 - 62.3' / 1.5 - 18.9 m | | Projection Size | 50 - 300" / 127 - 762 cm | | | | Keystone Correction | Vertical: ± 30° | | Digital Zoom | 2.1x | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | | | Inputs/Outputs | 1 x 12 V Trigger Control
1 x RS-232 (1/8" (3.5 mm) Mini) Control
1 x VGA (DE-15) Video Input
2 x HDMI (HDMI Type-A) Audio, Video Input | | Memory Card Slot | None | | | | Light Source | Lamp ( x UHE) | | Lamp Power | 250 W | | Expected Lamp Life | Low Brightness: 5000 Hours
Full Brightness: 3500 Hours
Medium Brightness: 4000 Hours | | Fan Noise | Full Brightness: 31 dB
Low Brightness: 20 dB | | Security | Cable Lock Slot
Keypad Lock | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Standby Mode (Lamp Off): 2.3 W
Full Brightness: 373 W

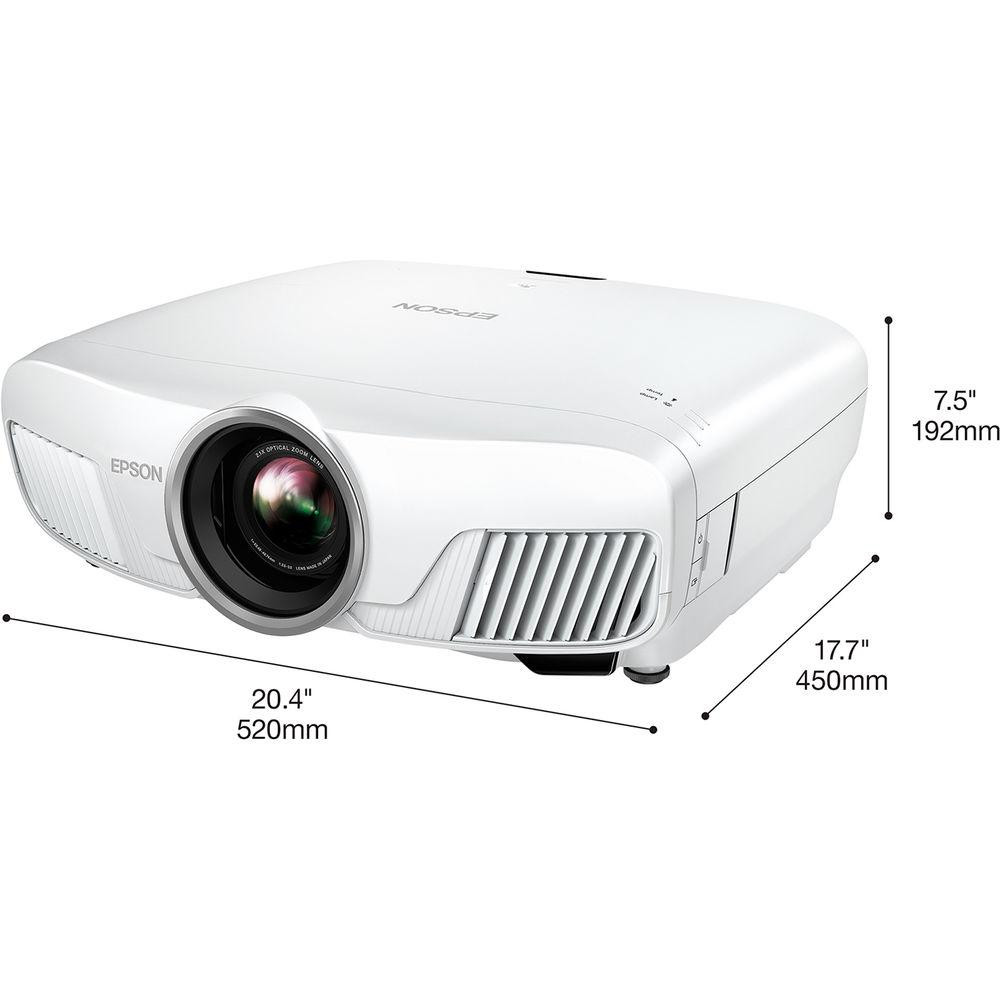

Low Brightness: 283 W | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 - 80% | | Storage Humidity | 10 - 90% | | Dimensions (W x H x D) | 20.5 x 6.7 x 17.7" / 520.7 x 170.1 x 449.5 mm | | Weight | 24.7 lb / 11.2 kg | | | | Package Weight | 35.0 lb | | Box Dimensions (LxWxH) | 26.0 x 20.0 x 10.0" |
