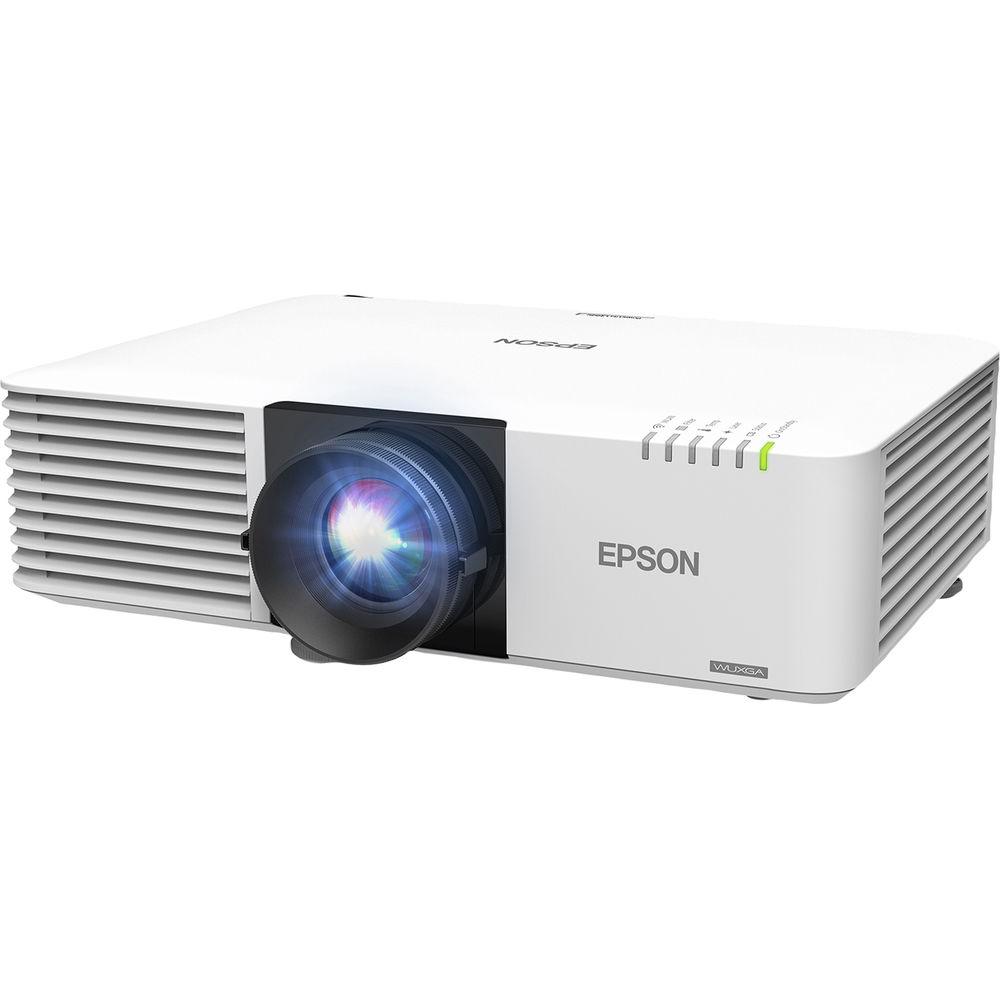

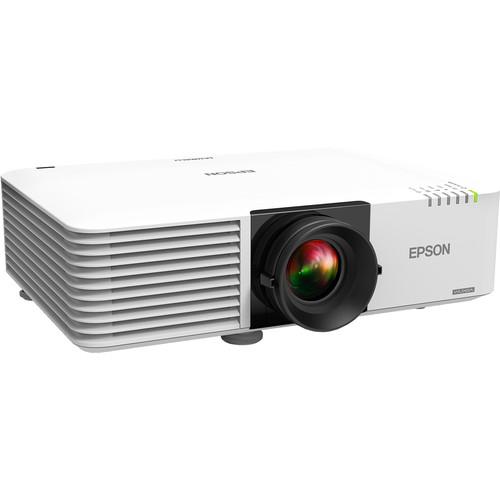

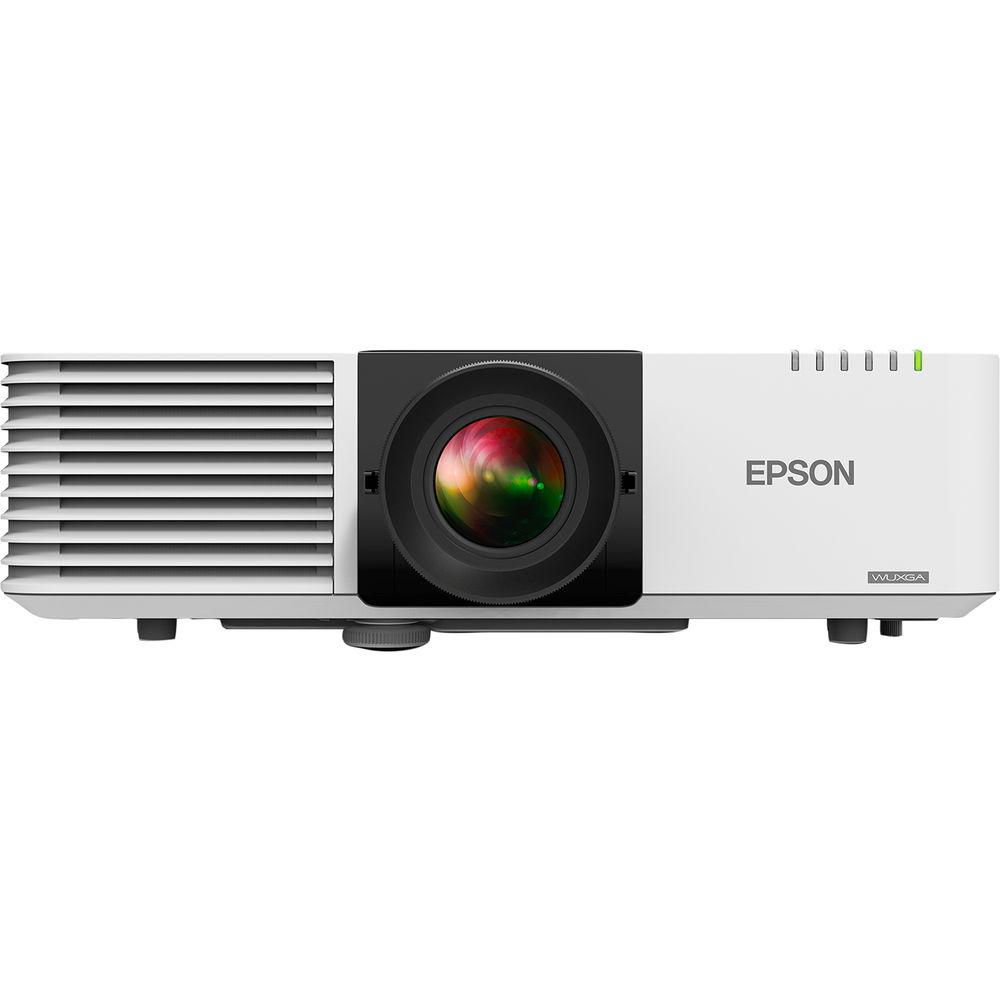

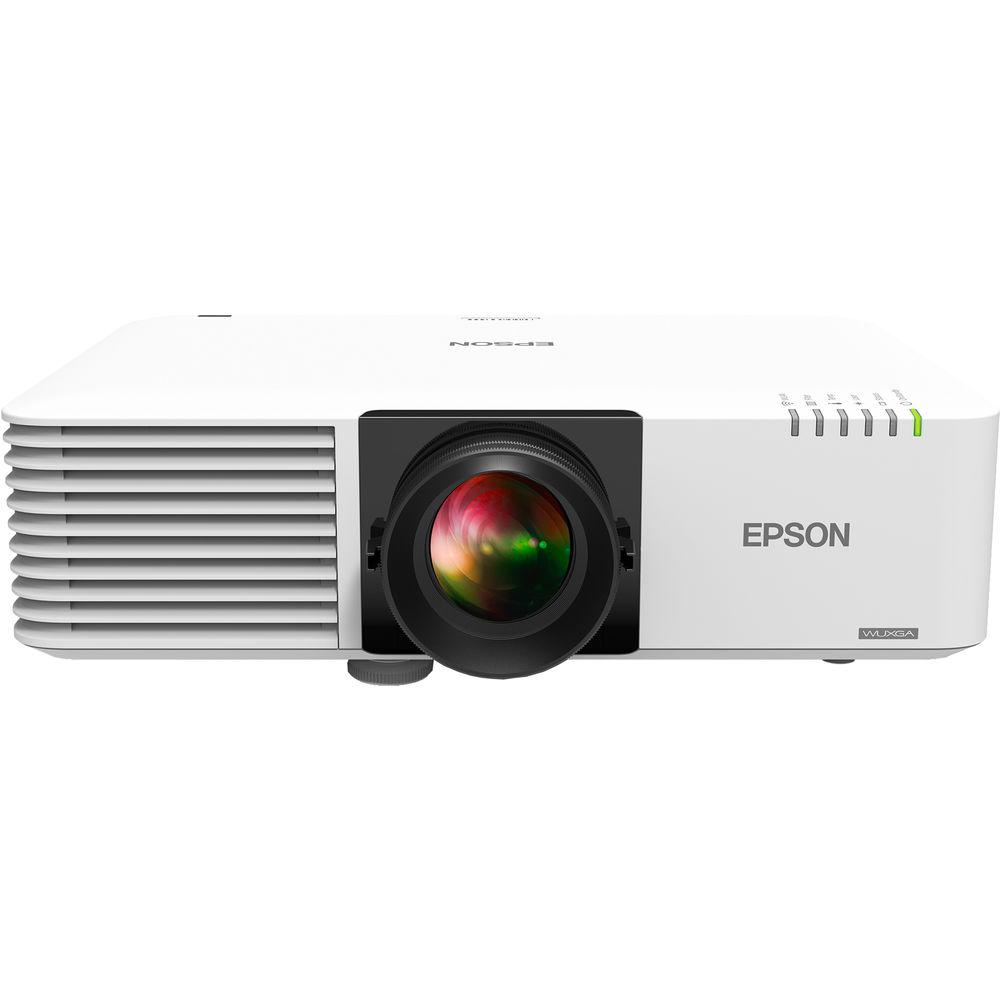

User Manual for Epson PowerLite L400U 4500-Lumen WUXGA 3LCD Laser Projector Click to enlarge the picture
Contents of the user manual for the Epson PowerLite L400U 4500-Lumen WUXGA 3LCD
- Product category: Multimedia Projectors Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Multimedia Projectors
 |
User manual for the Epson PowerLite L400U 4500-Lumen WUXGA 3LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|

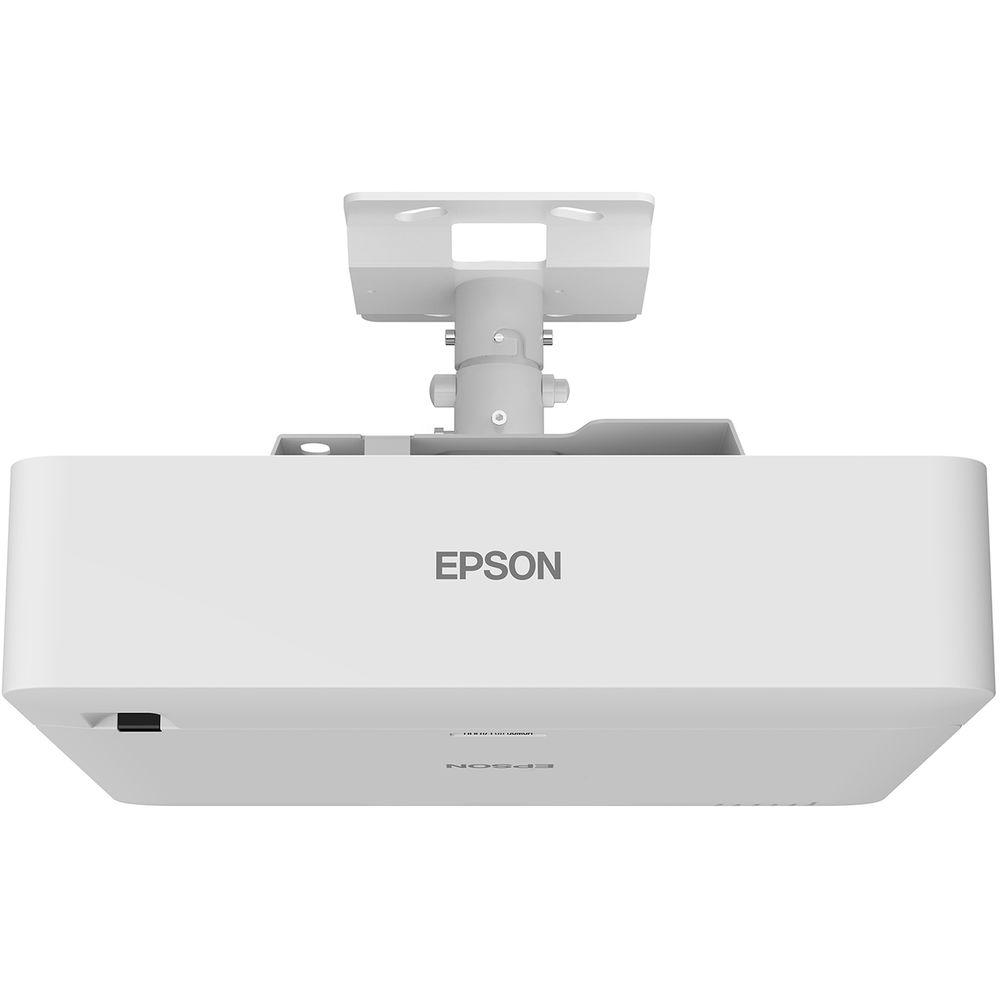

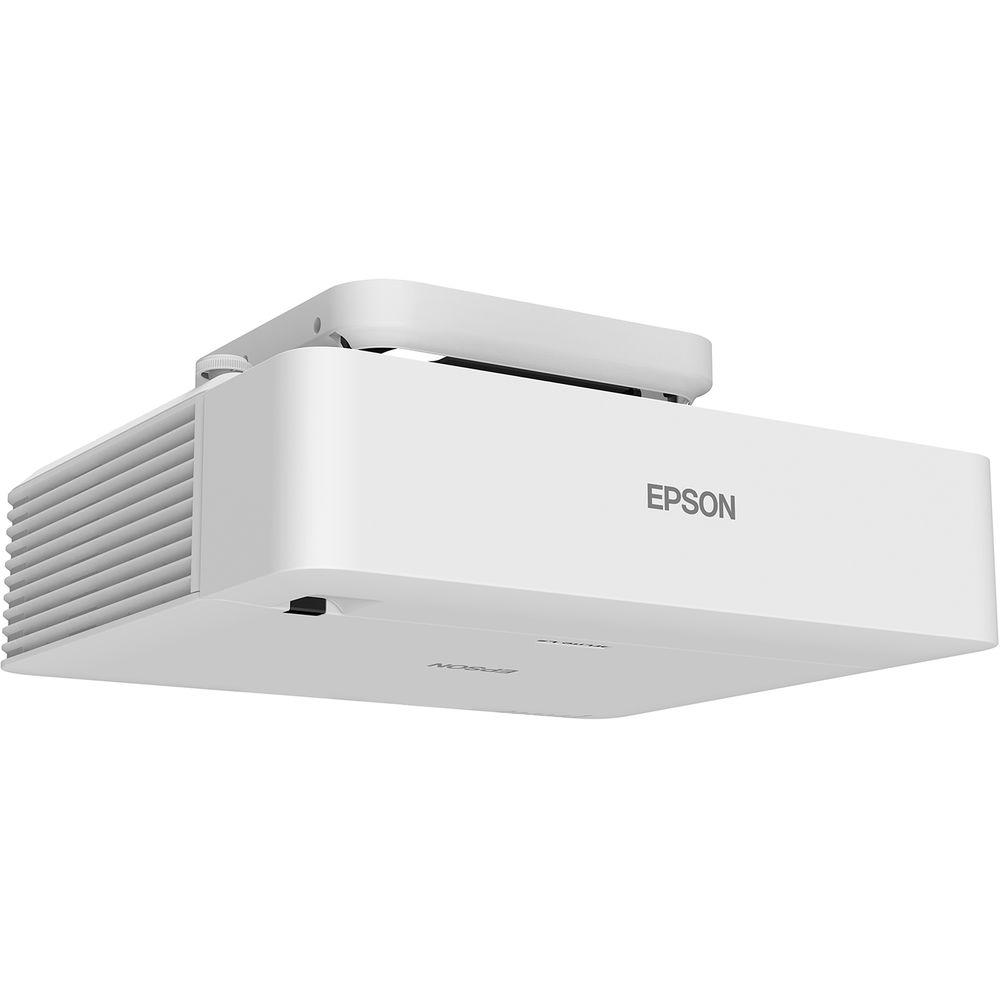

Product description Enjoy bright, vibrant images with the Epson PowerLite L400U 4500-Lumen WUXGA 3LCD Laser Projector. Its 4500 lumens of brightness, combined with its 2,500,000:1 dynamic contrast ratio, will help it overcome ambient light in many situations and retain detail in dark areas of the image without compromising overall brightness. Its 1920 x 1200 native resolution helps ensure that images and text are clear at most viewing distances.
The PowerLite L400U features two VGA and two HDMI inputs to support various source devices. One VGA input can alternatively function as an output, enabling you to daisy-chain your video signal to additional projectors or displays. As an added convenience, a VGA cable and an IR remote control are included. - Display Features
-
- Designed for bright, vivid color with up to 4500 lumens of color and white brightness
- Full HD images up to 500" with a native WUXGA (1920 x 1200) resolution
- Laser light source lasts up to 20,000 hours and provides instant on/off capability
- RGB liquid crystal shutter projection system
- Enhanced detail with a 2,500,000:1 dynamic contrast ratio
- Dichroic mirror separation and prism combine projection method
- D10 VA LCD with C²Fine
- Cross-stripe pixel arrangement
- Micro lens array
- 192 to 240 Hz refresh rate
- Network Control & Management Features
-
- Message broadcasting
- Email notification
- SNMP
- Web remote & control
- Secure HTTP
- Compatible with PJLink (Class2), AMX Device Discovery, Crestron Integrated Partner, Crestron Connected, Extron IP Link, and Extron XTP for simplified access and maintenance
- Optional wireless networking and wireless content sharing with Epson iProjection when used with the separately sold wireless module
- Additional Features
-
- Virtually maintenance-free operation for the life of the optical engine
- Connectivity options include VGA, Ethernet, 1/8" audio, 2x HDMI, and more
- 360° flexibility with geometric correction tools such as horizontal and vertical keystone, arc correction, Quick Corner, and more
- Constant Brightness Mode fine-tunes the brightness setting to help maximize run time
- Foot adjustment: front/rear -2 to +10°, left/right ±1.5°
- A/V mute
- Contents playback
- Image modes: Dynamic, Presentation, Cinema, sRGB, DICOM simulation mode, Multi-projection
- Split screen
- Customizable logo
- Sleep mode with timer
- Auto power on (off, HDMI1, VGA)
- Quick startup
- High Altitude Mode
- Auto Source Search
- QR code display
- Firmware updates via LAN or USB
- 7-second startup (with the Epson logo); <5 second startup via auto power on
- Instant Off
- 20,000-hour air filter maintenance cycle (Normal Mode, 77°F)
- Wireless remote functional up to 26.2' away
- Remote front operating angle: L/R ±60°, U/D -20 to 30°
- Remote rear operating angle: L/R ±30°, U/D 10 to 50°
- RoHS compliant
- Recyclable design
UPC: 010343943612 In the Box Epson PowerLite L400U 4500-Lumen WUXGA 3LCD Laser Projector Remote Control with Batteries VGA Cable Cable Cover Power Cord Limited 3-Year Warranty More info from Epson Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson PowerLite L400U 4500-Lumen WUXGA 3LCD Laser Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson L400U Specs | | | Display System | 3-Chip 0.67" Polysilicon TFT LCD | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Max Brightness | White: 4500 Lumens
Color: 4500 Lumens | | Uniformity | 86% | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 2,500,000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 92 kHz
Vertical: 24 to 85 Hz | | | | Focus | Manual | | Lens | f/1.5 - 1.7 (f = 20 - 31.8 mm) | | Optical Zoom | Manual: 1.6x | | Throw Distance | 4.724 - 78.215' / 1.44 - 23.84 m | | Throw Ratio | 1.35 - 2.2:1 | | Projection Size | 50 - 500" / 1.27 - 12.70 m | | | | Keystone Correction | Vertical: ± 30°

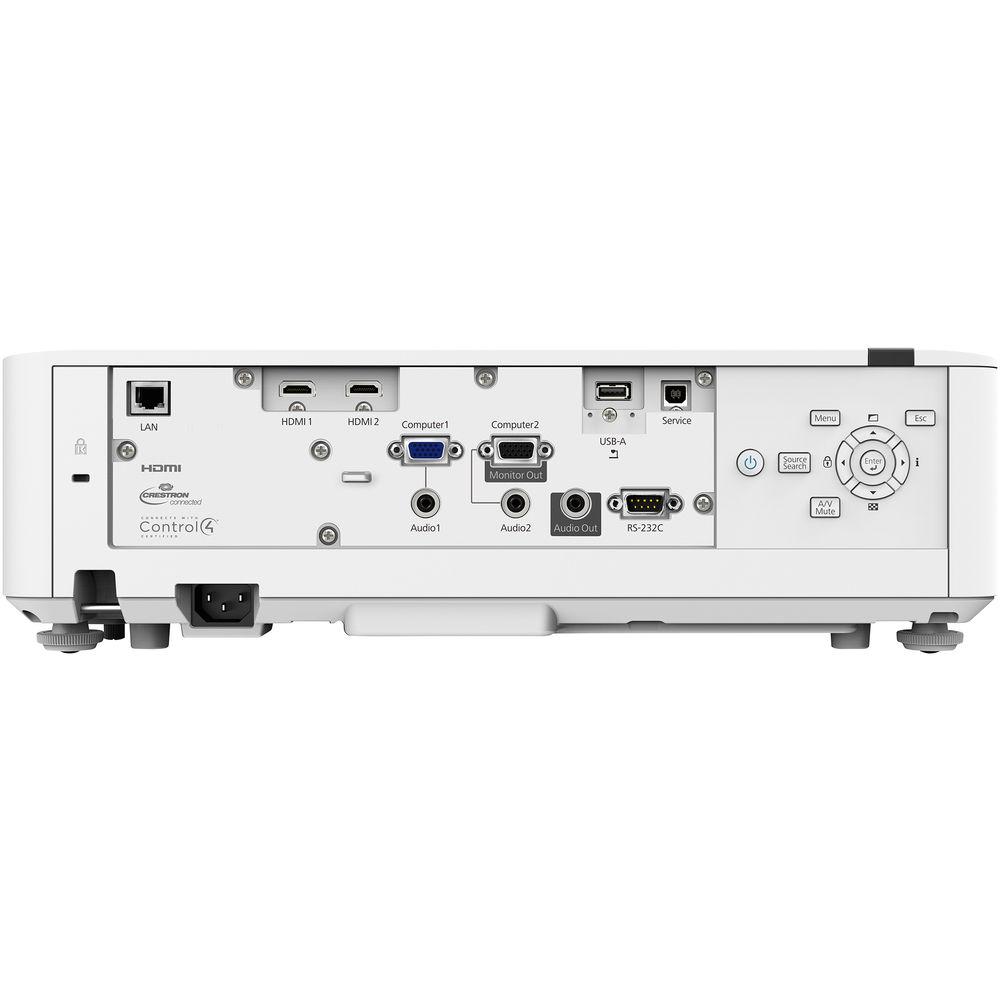

Horizontal: ± 30° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | Projection Tilt Option | Yes | | | | Inputs/Outputs | 2 x HDMI (HDMI Type-A) Audio, Video Input
1 x VGA (DE-15) Video Input
1 x VGA (DE-15) Video Input/Output
2 x 1/8" (3.5 mm) Mini Audio Input
1 x 1/8" (3.5 mm) Mini Audio Output
1 x USB 2.0 (USB Type-A) Data Input
1 x USB 2.0 (USB Type-B) Service Input
1 x RS-232 (DE-9) Control Input/Output
1 x Ethernet (RJ45) LAN Input/Output | | Memory Card Slot | None | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | Laser Phosphor | | Lamp Power | 185 W | | Expected Lamp Life | Full Brightness: 20,000 Hours
Low Brightness: 30,000 Hours | | Fan Noise | Full Brightness: 29 dB
Low Brightness: 22 dB | | Security | Cable Lock Slot
Padlock | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 324 W
Low Brightness: 245 W
Standby Mode (Lamp Off): 2 W | | Max Operating Altitude | 4921' / 1499 m | | Dimensions (W x H x D) | 17.3 x 12.0 x 4.7" / 43.9 x 30.5 x 11.9 cm Excluding feet
17.3 x 12.0 x 5.4" / 43.9 x 30.5 x 13.7 cm Including feet | | Weight | 17.1 lb / 7.76 kg Approximately | | | | Package Weight | 22.4 lb | | Box Dimensions (LxWxH) | 20.75 x 19.5 x 8.25" |
