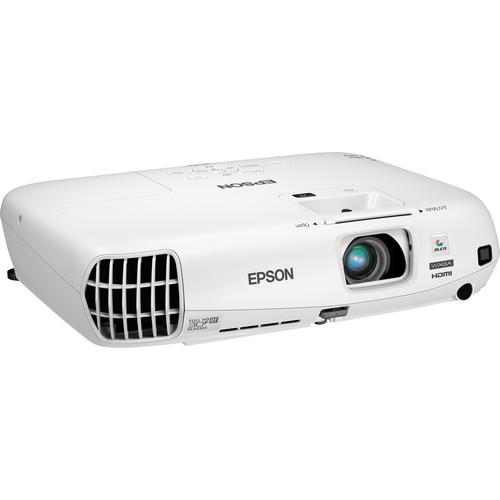

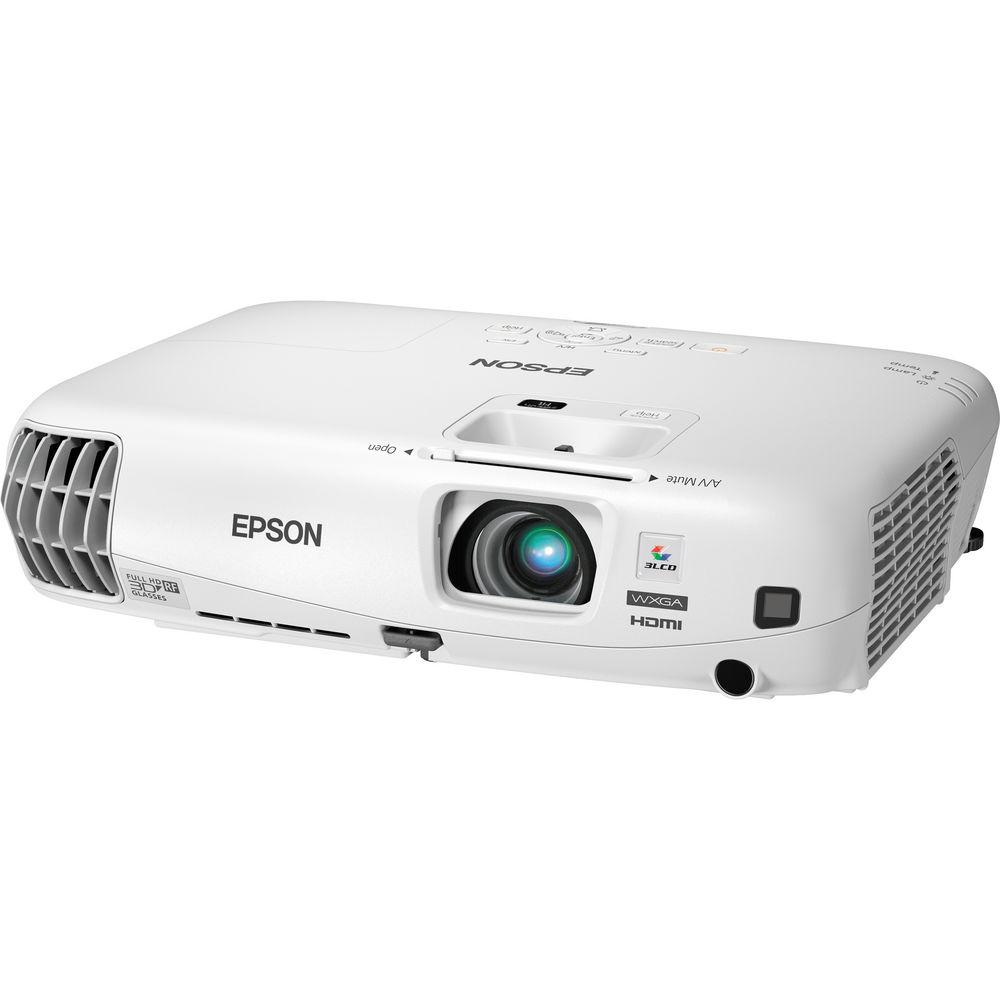

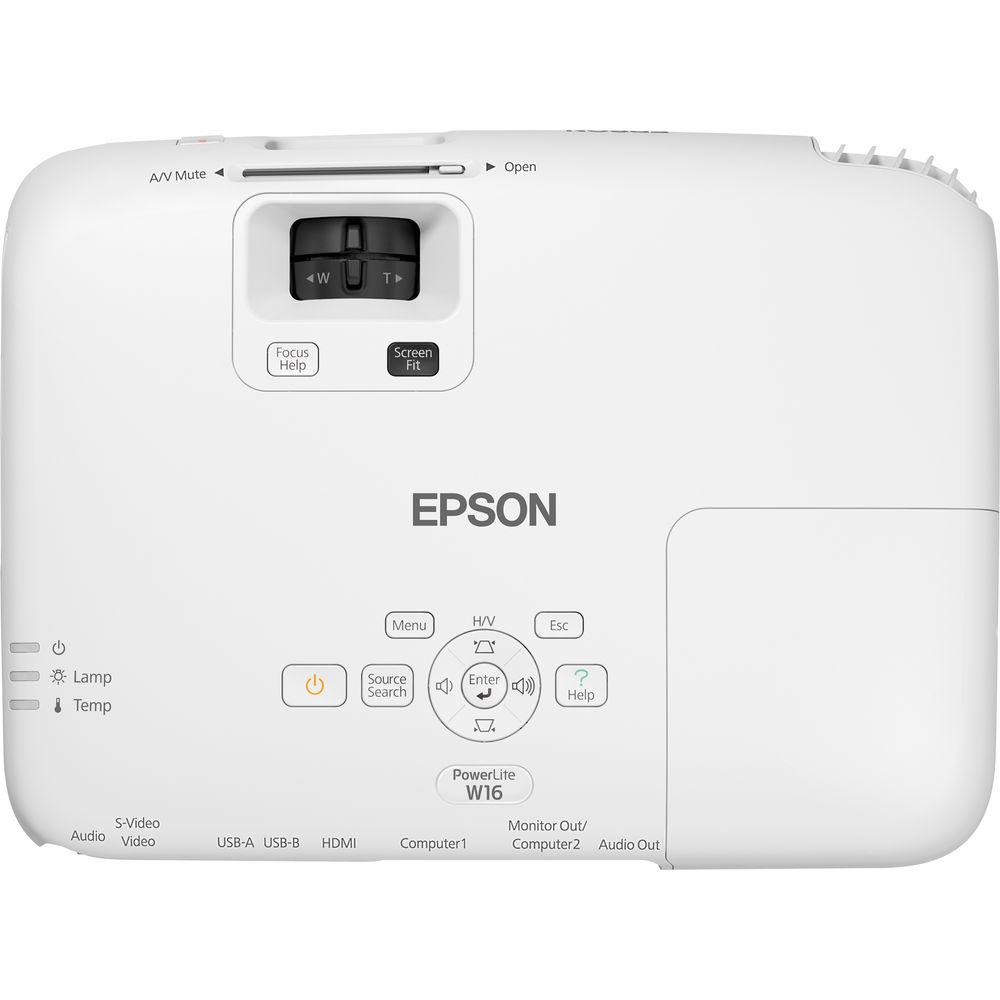

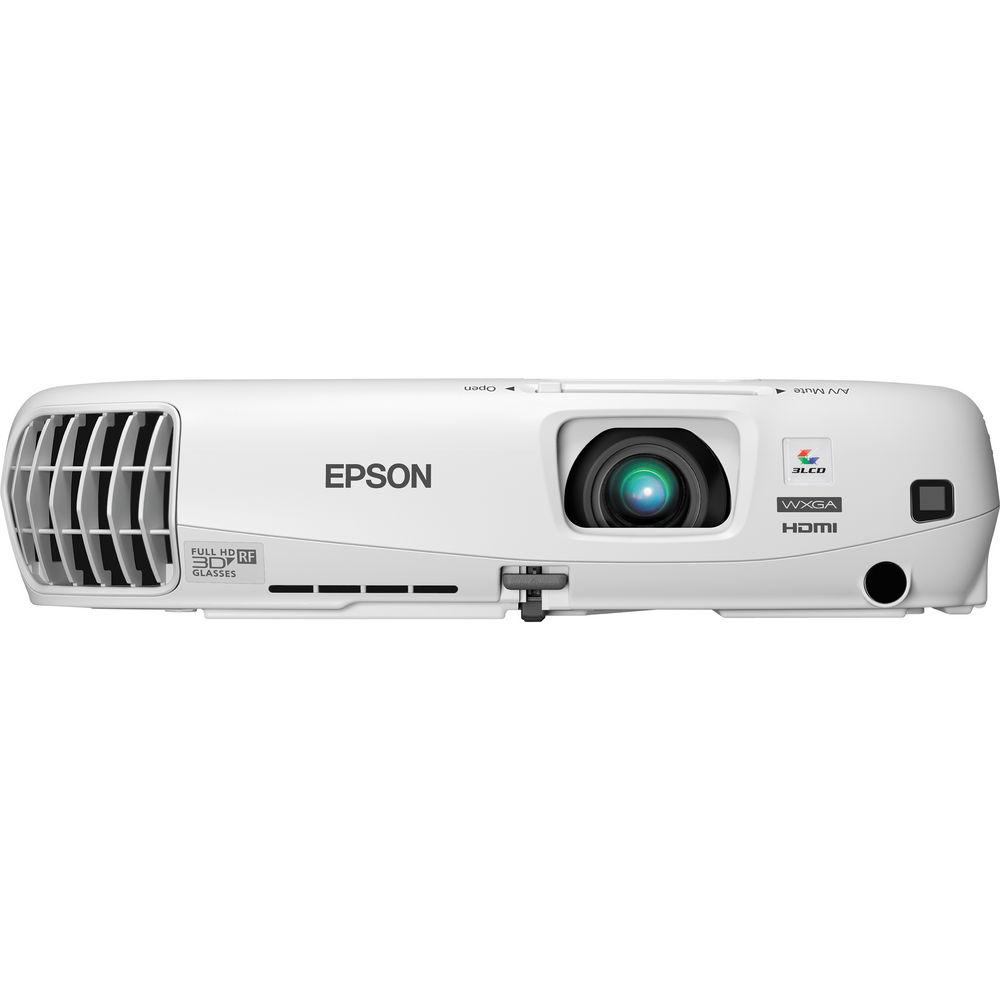

User Manual for Epson PowerLite W16 3D WXGA 3LCD Multi-Region Projector Click to enlarge the picture
Contents of the user manual for the Epson PowerLite W16 3D WXGA 3LCD
- Product category: Multimedia Projectors Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Multimedia Projectors
 |
User manual for the Epson PowerLite W16 3D WXGA 3LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|
Product description The Epson PowerLite W16 3D WXGA 3LCD Multi-Region Projector delivers 3000 lumens of white brightness and 3000 lumens of color brightness with a low noise level of only 29 dB using the Eco operating mode. It supports multiple 3D formats via HDMI connectivity and a 3000:1 active 3D contrast ratio or 5000:1 2D contrast ratio. The projector features WXGA 1280 x 800 native resolution with support for resolutions up to WSXGA+ 60 (1680 x 1050) as well. It's also equipped with a 3LCD, 3-chip RGB liquid crystal shutter projection system and a 200W E-TORL lamp that provides up to 5000 hours of life. The projector supports easy setup features including automatic horizontal and vertical keystone correction, Quick Corner adjustment and Auto Screen Fit. For connectivity, you can choose from a variety of inputs including HDMI, VGA, component via VGA, S-video and more. Other features include a built-in 2W speaker, support for Mac OS, multiple security measures, USB plug-and-play connectivity, and an included remote control with an operating distance up to 19.7' (6m). The remote supports left/right operating angles up to 30°, as well as up/down operating angles up to 15°. Key Features - Dual Brightness Measurements for Color & White Light
- Features 3000 lumens of color brightness (color light output) and 3000 lumens of white brightness (white light output)
- 3D Picture Support
- The projector supports 2D and 3D Full HD projection (with active shutter glasses) that puts you right in the middle of 1290 x 1080p content. 3D formats include Auto, Side-by-Side, Top and Bottom, 2D and Frame Packing. Plus, there's a built-in, RF type 3D emitter that supports projection within a distance of 32.8' (10m)
- WXGA Native Resolution
- Equipped with high-definition 1280 x 800 widescreen WXGA native resolution and a 16:10 native aspect ratio
- HDMI Connectivity
- Includes a digital HDMI audio/video connection for HD quality with just one cable. Plus, the HDMI port supports multiple 3D formats - no external 3D converter box necessary
- Auto Screen Fit
- Quickly and easily adjust the image to fit the screen with the Auto Screen Fit function
- Quick Corner Adjustment
- Quick Corner allows you to adjust the corners independently from each other for a perfectly rectangular image
Other Features - The 3LCD, 3-chip technology supports 3x brighter colors and reliable performance
- Automatic horizontal and vertical keystone correction
- Supports versatile connectivity for the classroom, including HDMI, computer/VGA inputs, monitor output, audio input, audio output, USB and RS-232c
- 3-in-1 USB plug-and-play instantly displays your presentations, transmits audio and uses your remote control as a mouse to control your presentation
- The projector features an energy-efficient E-TORL lamp with up to a 5000 hour lamp life in Eco-mode
UPC: 010343904019 In the Box Epson PowerLite W16 3D WXGA 3LCD Multi-Region Projector Carrying Case Power Cord VGA Cable Remote Control 2 x AA Batteries (for Remote) User's Guide CD 2-Year Limited Warranty 90-Day Limited Lamp Warranty User Manual PDF 2.4mbcrequuybyvctayetfces More info from Epson Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson PowerLite W16 3D WXGA 3LCD Multi-Region Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson V11H493020 Specs | | | Display System | 3-Chip Polysilicon TFT LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | VGA - 640 x 480
SVGA - 800 x 600
XGA - 1024 x 768
SXGA - 1152 x 864
SXGA2 - 1280 x 960
SXGA3 - 1280 x 1024
WXGA 60-2 - 1360 x 768
WXGA+ - 1440 x 900
SXGA+ - 1400 x 1050
WXGA++ - 1600 x 900
UXGA - 1600 x 1200
WSXGA+ 60 - 1680 x 1050 | | Max Brightness | 3000 Lumens | | Aspect Ratio | Native: 16:10 | | Contrast Ratio | 5000:1 | | DLP Link 3D | Yes | | Color Depth | 8-Bit (16.78 Million Colors) | | | | Focus | Manual | | Lens | f/1.58 - 1.72 (f = 16.9 - 20.3 mm) | | Optical Zoom | 1.2x | | Throw Ratio | 1.30 - 1.56:1 | | Projection Size | 33 - 318" / 83.82 - 807.72 cm | | | | Keystone Correction | Auto-Vertical: ± 30°

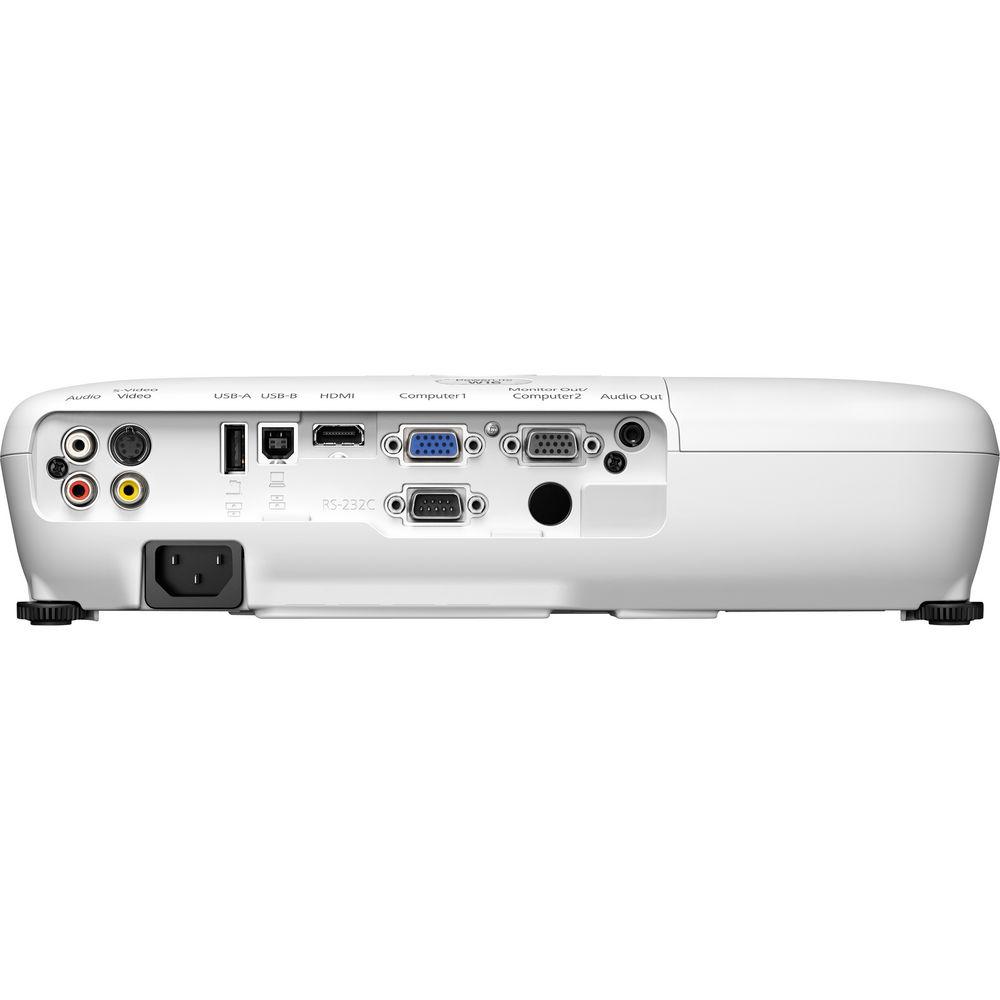

Auto-Horizontal: ± 20° | | Picture-in-Picture | Yes | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 2W | | | | Inputs/Outputs | 2 x VGA (DE-15) Video (Input)
1 x HDMI Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Composite (RCA) Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x VGA (DE-15) Video (Output)
1 x USB Type-A Female
1 x USB Type-B Female
1 x RS-232C (Unspecified Connector) Control | | | | Light Source | Lamp (1 x E-TORL) | | Lamp Power | 200 W | | Expected Lamp Life | Low Brightness: 5000 Hours
Medium Brightness: 4000 Hours | | Fan Noise | Low Brightness: 29 dB
Medium Brightness: 36 dB | | Security | Cable Lock Slot
Padlock
Password Protection | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Low Brightness: 237 W
Medium Brightness: 289 W
Medium Brightness: 3.2 W
Low Brightness: 0.36 W | | Temperature | Operating
41 to 95°F (5 to 35°C) | | Dimensions (W x H x D) | 12.8 x 3.1 x 9.6" / 32.5 x 7.9 x 24.4 cm including feet
12.8 x 3.0 x 9.6" / 32.5 x 7.6 x 24.4 cm excluding feet | | Weight | 6.0 lb / 2.7 kg | | | | Package Weight | 11.15 lb | | Box Dimensions (LxWxH) | 15.7 x 12.9 x 9.7" |
