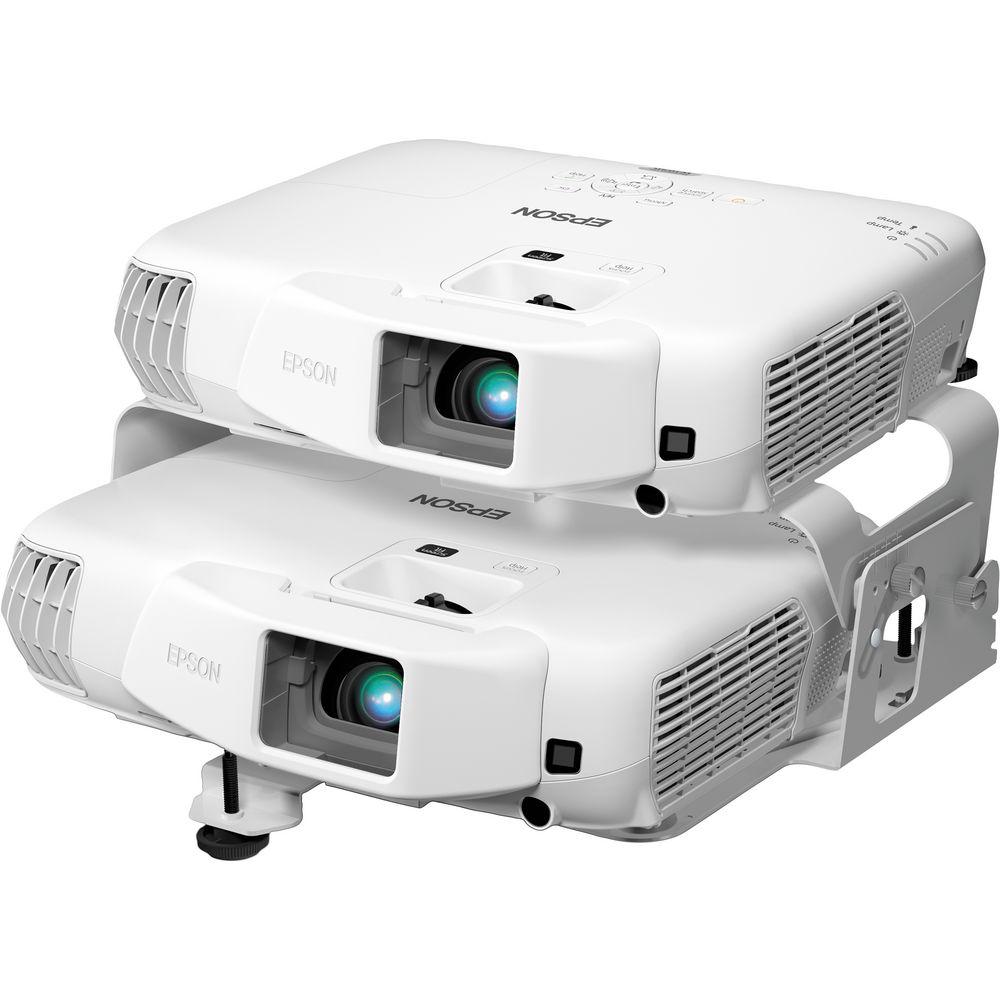

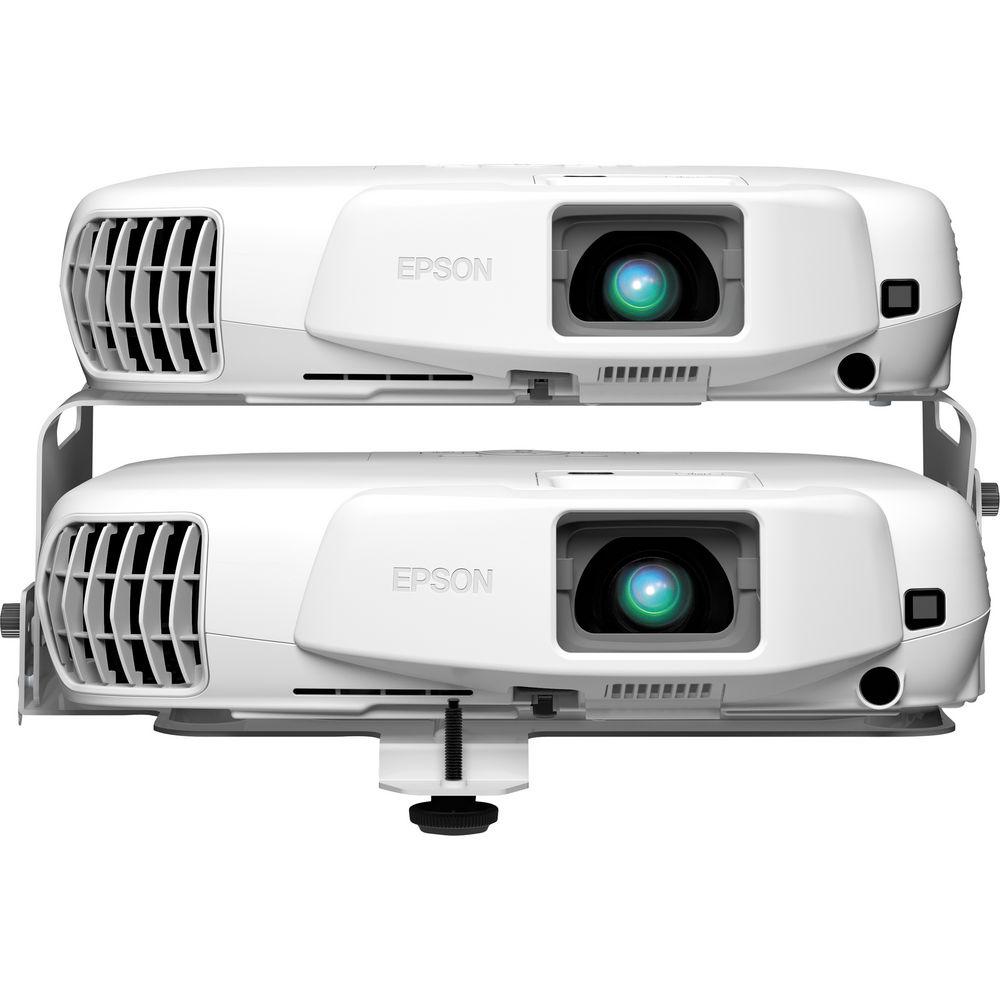

Product description The 2-pack PowerLite W16SK 3D 3LCD Dual Projection System from Epson features 2 powerful projectors stacked together for bright videos and images in large classrooms or rooms with ambient light. You can use this system to share 2D content in a big way or you can use it with affordable passive 3D glasses (1 pair included) for 3D content. Passive 3D projection offers an economical way to bring engaging 3D content to an entire classroom. Moreover, there are no batteries or electronics to worry about. This projection system makes it easy to deliver larger-than-life lessons with captivating 3D capability that redefines the learning environment.
One brightness measurement (lumens) is not enough. If color brightness is lower than white brightness, images may be dark and dull, and lose detail. Get consistent, true-to-life color with this dual projection system, whether you’re projecting images with deep, dark colors or a white screen with text. This projector delivers up to 6,000 lumens (3,000 x 2 projectors) in 2D mode of color brightness and up to 6,000 lumens (3,000 x 2 projectors) in 2D mode of white brightness. Moreover, it uses 3LCD, 3-chip technology for good images with true-to-life color. It provides 20 years of road-tested reliability.
Featuring WXGA resolution (1280 x 800, 16:10 aspect ratio), the PowerLite W16SK Projection System is suitable for use with widescreen computers, and is good for projecting widescreen content. Note: 6,000 lumens based on specification for single projectors. Color light output & white light output measured in accordance with IDMS 15.4 and ISO 21118 respectively. Color & white brightness vary depending on usage conditions; polarizing filters & keystoning will lower brightness. - Energy-Efficient E-TORL Lamp
-
- Delivers more lumens per watt and lasts up to 5,000 hours
- Minimizes both light diffraction and light leakage
- E-TORL lamps maximize your presentation time
1 Please Note: Lamp life will vary depending upon mode selected, environmental conditions, and usage. Lamp brightness decreases over time. close - Good Widescreen Performance
-
- 30% more image area than a 4:3 image
- 10% more image area than a 16:9 image
- Allows you to display 4:3 and 16:9 content
- High-Definition Video and Audio with HDMI Digital Connectivity
-
- Delivers both audio and brilliant video content with just 1 cable
- Compatible with laptops, and Blu-ray and media players
- Supports Multiple 3D Formats
-
- Supports multiple 3D formats such as Side-by-Side, Top-and-Bottom, and Frame Packing
- Eliminates the need for an external converter box
- Convenient Control and Energy-Saving Features
-
- Instant Off: No cool-down time required; it’s ready to shut down when you are
- A/V Mute: Pause your presentation to direct focus elsewhere or take a quick break
- Sleep Mode: Set from 1 to 30 minutes to save energy when no signal is detected
- Direct Power On/Off: Power the projector on / off with the flip of a wall switch
- Built-In Closed Captioning
-
- Essential for Education: Helps meet ADA508 requirements for students with hearing impairment
- Helps Save Money: No need to pay for an additional decoder and installation
- Effective and Easy to Use: Easily enabled or disabled through the projector remote or menu
2 Please Note: Available in 2D mode only, with NTSC signal (Composite, S-video) close - Eco Features
-
- RoHS compliant
- Recyclable product
- Epson America, Inc. is a SmartWay Transport Partner
- Additional Features / Benefits
-

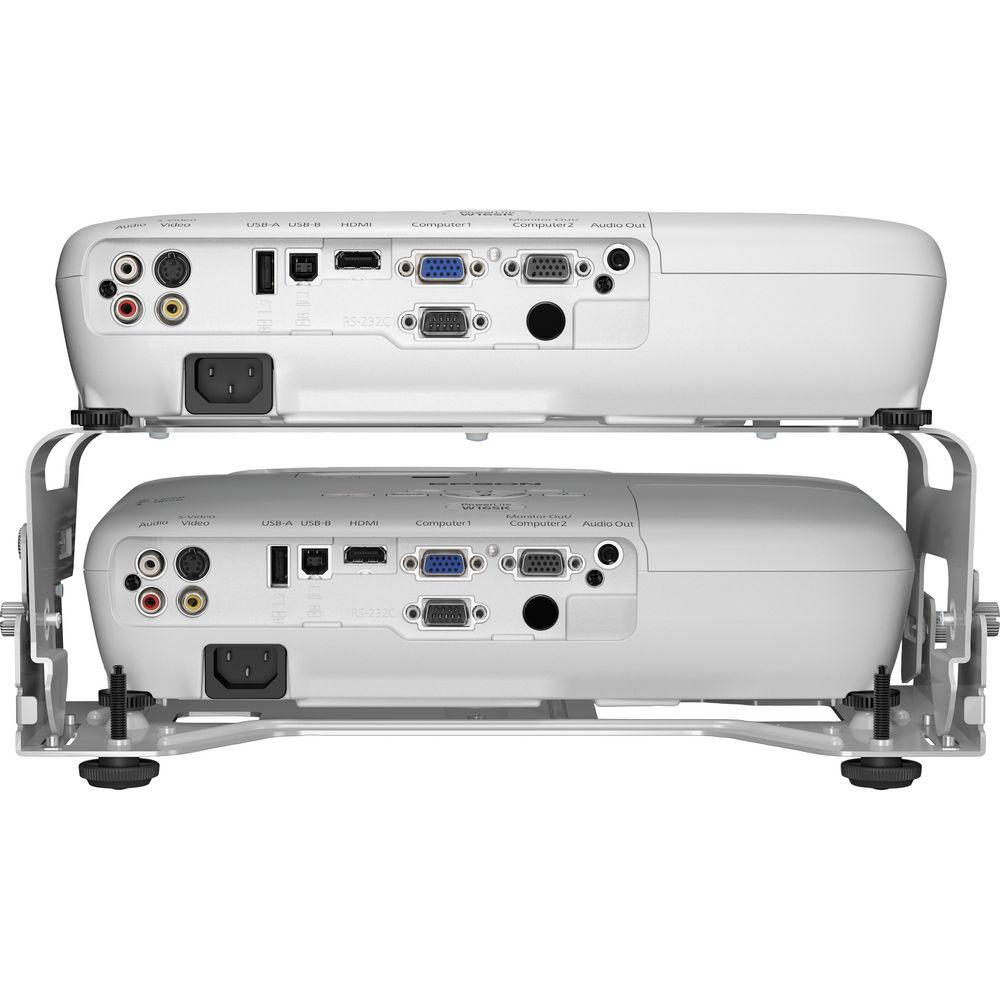

- Versatile Connectivity for any Classroom: HDMI, computer / VGA inputs, monitor output, audio input, audio output, USB and RS-232c
- Positioning Flexibility: ±15° vertical and horizontal keystone image correction
- Energy-Efficient E-TORL Lamp: Up to 5,000-hour lamp life
UPC: 010343904026 In the Box Epson PowerLite W16SK 3D 3LCD Dual Projection System (2-Pack) Dual Projector Stacking Mount Kit Pair of Passive 3D Glass 2 x Polarizing Filter 2 x Power Cable USB Cable to Link Both Projectors for Passive 3D Remote Control with 2 AA Batteries Limited 2-Year Warranty on Projector Limited 90-Day Warranty on Lamp User Manual PDF 2.8mbsebbuvareadudesfxwddxautvwqryuusyxsve More info from Epson Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson PowerLite W16SK 3D 3LCD Dual Projection System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson V11H494020 Specs | | | Display System | 3-Chip RGB Liquid Crystal Shutter Projection System LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | VGA - 640 x 480
SVGA - 800 x 600
XGA - 1024 x 768
SXGA - 1152 x 864
SXGA2 - 1280 x 960
SXGA3 - 1280 x 1024
WXGA 60-2 - 1360 x 768
WXGA+ - 1440 x 900
SXGA+ - 1400 x 1050
WXGA++ - 1600 x 900
UXGA - 1600 x 1200
WSXGA+ 60 - 1680 x 1050 | | Max Brightness | 3000 Lumens | | Aspect Ratio | Native: 16:10
Supported: 16:9
Supported: 4:3 | | Contrast Ratio | 5000:1 | | DLP Link 3D | Yes | | Color Depth | 8-Bit (16.78 Million Colors) | | | | Lens | f/1.58 - 1.72 (f = 16.9 - 20.3 mm) | | Optical Zoom | 1.2x | | Throw Distance | 8.2 - 15.4' / 2.499 - 4.694 m The listed projected is distance is for white screen. The silver screen is: 8.2 to 12.5' (2.5 to 3.8m). | | Throw Ratio | 1.42 - 1.56:1 | | | | Keystone Correction | Auto: ± 15°
Auto: ± 10° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes | | Speaker Power | 2W | | | | Inputs/Outputs | 3 x VGA (DE-15) Video
1 x S-Video (4-Pin DIN) Video
1 x Component (3RCA) Video
1 x RCA Stereo (L/R) Audio (Input)
1 x USB Type-A Female
1 x USB Type-B Female
1 x HDMI Audio/Video
1 x RS-232C (Unspecified Connector) Control/Service | | | | Light Source | Lamp (1 x UHE) | | Lamp Power | 200 W | | Expected Lamp Life | Low Brightness: 5000 Hours
Medium Brightness: 4000 Hours | | Fan Noise | Low Brightness: 32 dB
Medium Brightness: 39 dB | | Security | Padlock
Password Protection Kensington security lock port and security cable hole | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 289 W
Low Brightness: 237 W
Low Brightness: 0.36 W
Medium Brightness: 3.2 W | | Temperature | Operating
41 to 95°F (5 to 35°C) | | Dimensions (W x H x D) | 12.8 x 3.1 x 9.6" / 325.1 x 78.7 x 243.8 mm Single
14.6 x 8.8 x 13.8" / 370.8 x 223.5 x 350.5 mm Dual / Stacked | | Weight | 17.4 lb / 7.9 kg | | | | Package Weight | 23.7 lb | | Box Dimensions (LxWxH) | 16.3 x 15.0 x 14.6" |
