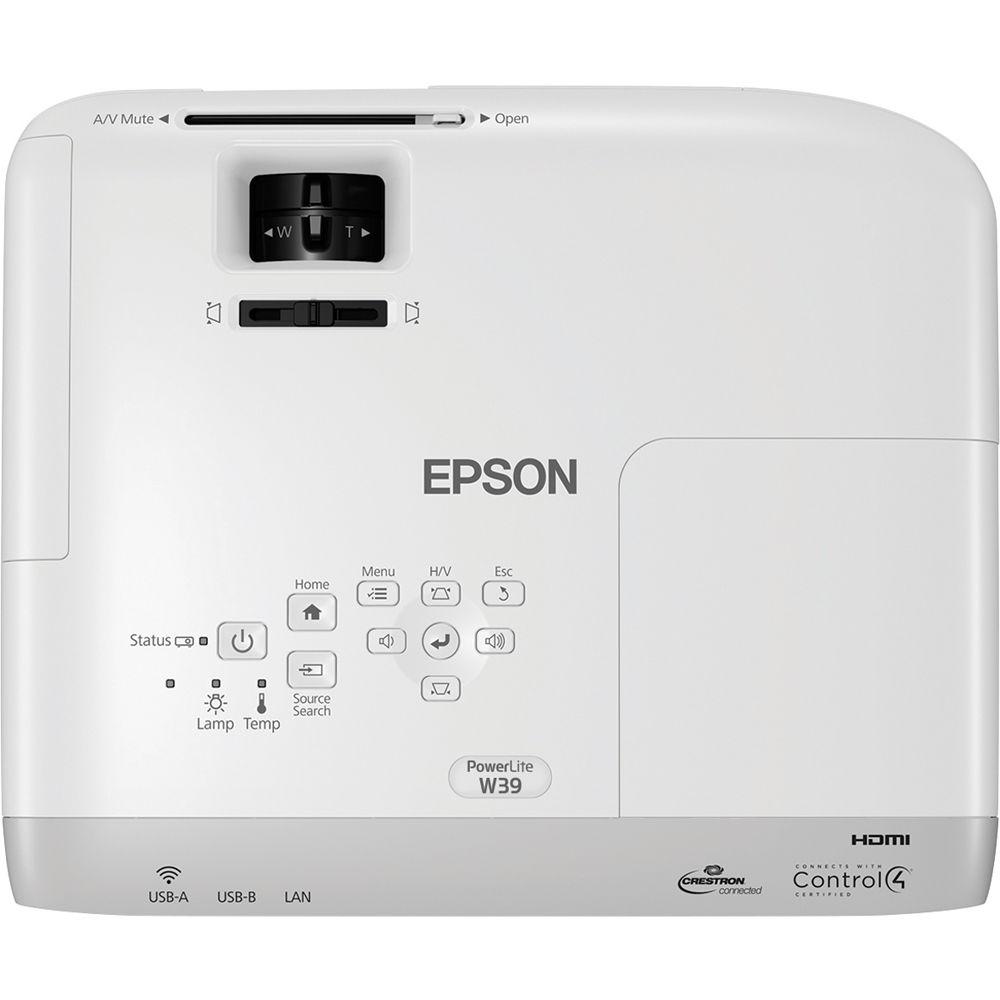

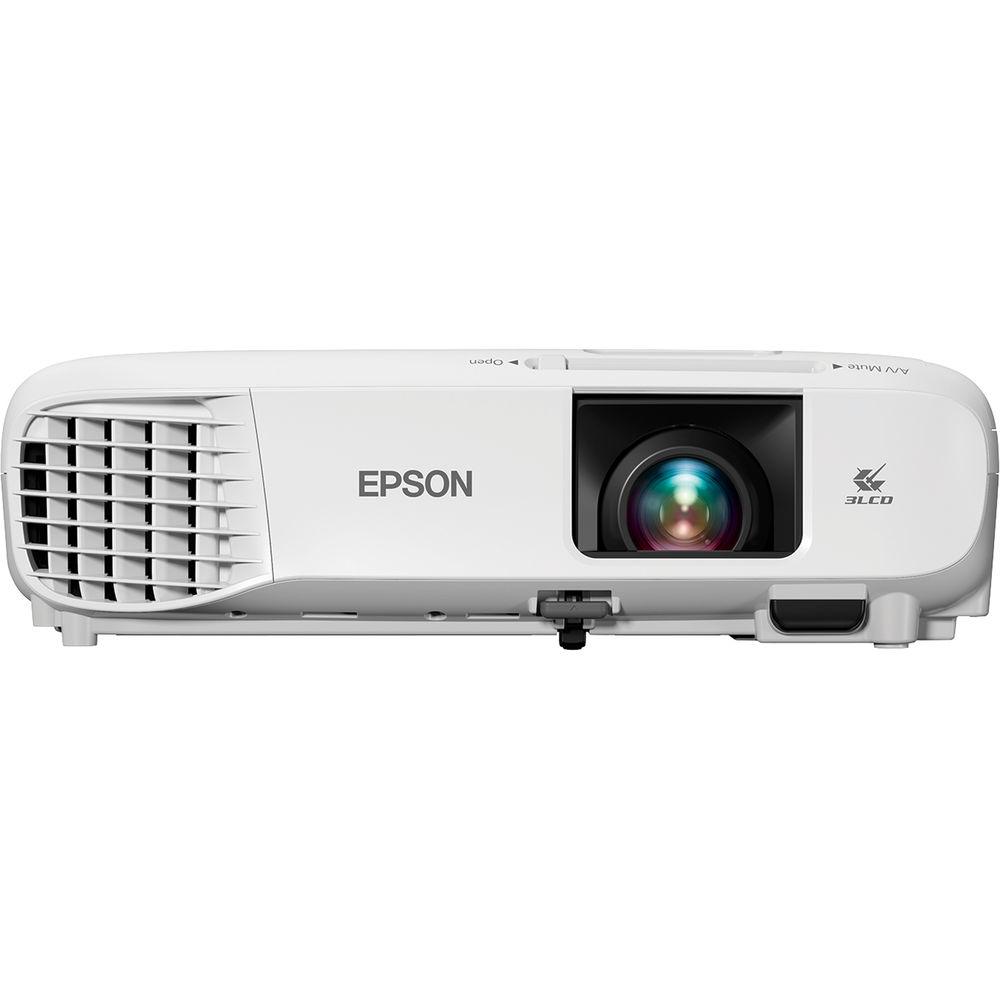

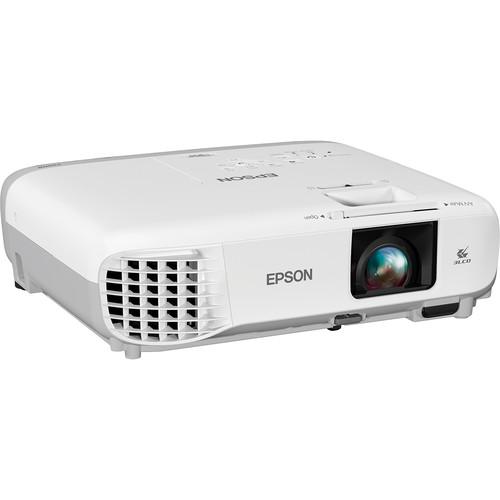

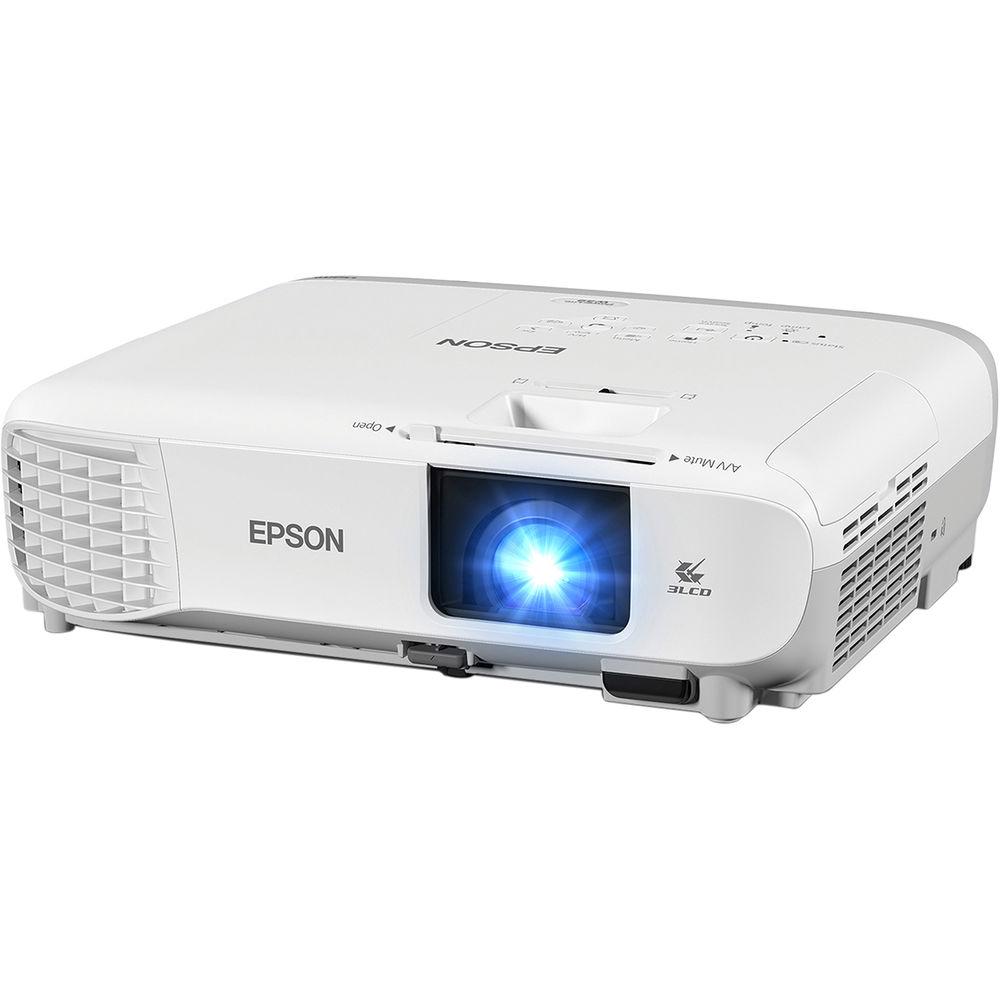

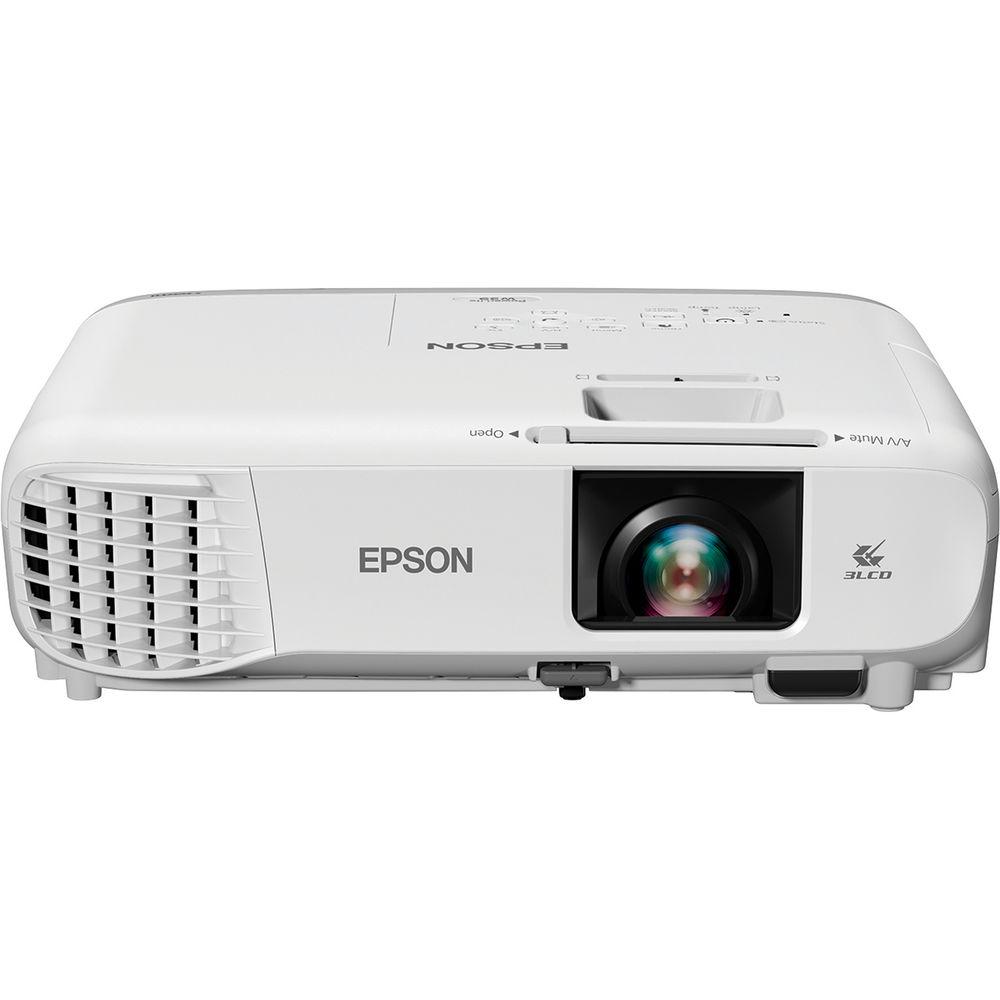

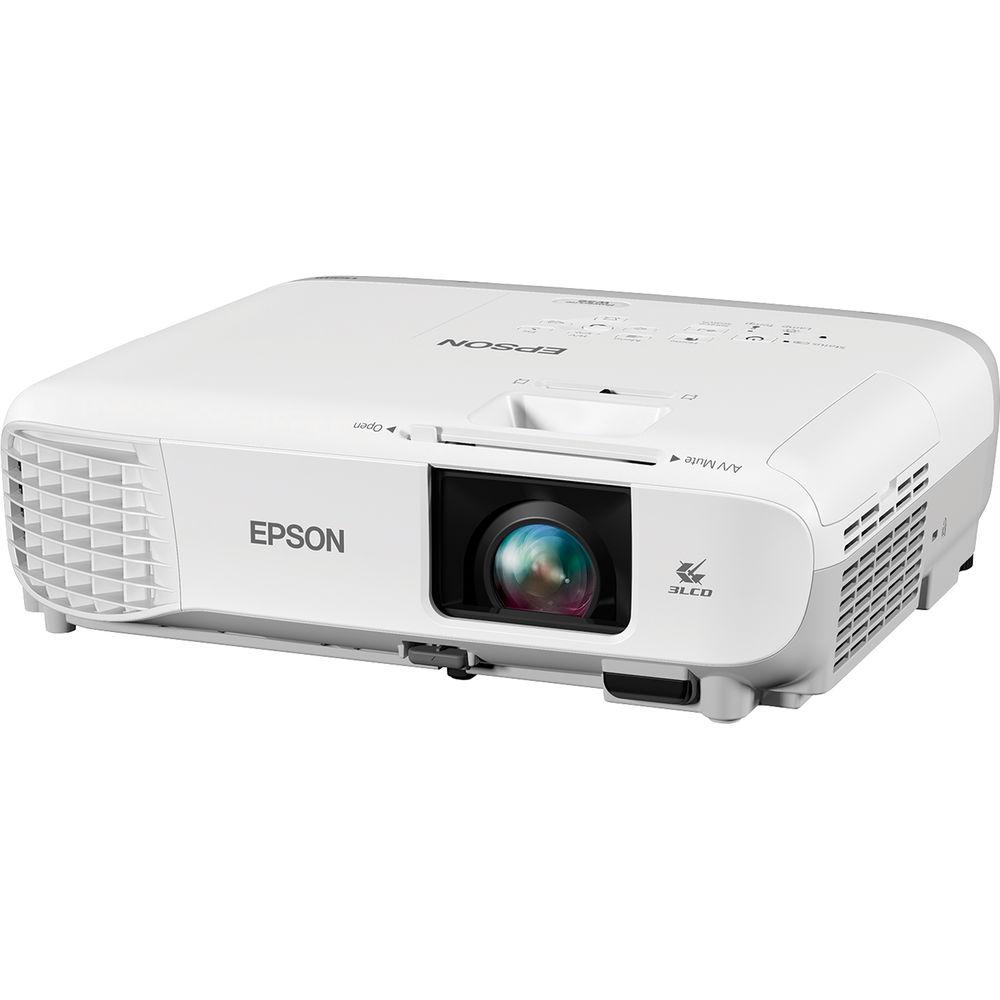

User Manual for Epson PowerLite W39 3500-Lumen WXGA 3LCD Projector Click to enlarge the picture
Contents of the user manual for the Epson PowerLite W39 3500-Lumen WXGA 3LCD
- Product category: Multimedia Projectors Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Multimedia Projectors
 |
User manual for the Epson PowerLite W39 3500-Lumen WXGA 3LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|
Product description Enjoy bright images in most settings with the Epson PowerLite W39 3500-Lumen WXGA 3LCD Projector. Its 3500 lumens of brightness, combined with its 15,000:1 dynamic contrast ratio, helps it overcome ambient light in many situations and retain detail in dark areas of the image without compromising overall brightness. Its 1280 x 800 native resolution helps ensure that text documents are clear at most viewing distances. The PowerLite W39 features RCA video, two HDMI, and two VGA inputs to support various source devices. A VGA cable and an IR remote control are included for added convenience. - High Color and White Brightness Levels
- View color and white brightness of 3500 lumens.
- Extend Lamp Life in ECO Mode
- The included lamp can last up to 6000 hours in normal mode and up to 12,000 hours in ECO mode.
- Built-In Speaker and Audio Pass-Through
- The PowerLite W39 features a built-in speaker, so an external speaker setup might not be necessary. The audio pass-through is active in standby mode, if you're using an external speaker setup and visuals aren't required for your presentation.
- 3-Chip Processor for Enhanced Color Accuracy
- The 3-chip design is engineered to produce enhanced color brightness with a wider color gamut than single-chip engines.
- Designed for Flexible Setup
- The 1.2x optical zoom, ±30° vertical and horizontal keystone correction, Easy-Slide, and Quick Corner features help provide enhanced setup flexibility.
- Network Control
- The W39 has an Ethernet port for wired connectivity for remote projector management, presentation over the network, and more.
- Optional Wireless LAN Connectivity
- An optional wireless LAN adapter allows you to project from laptops and mobile and streaming devices.
- Two-Way Content Sharing with Optional Wireless LAN Adapter
- Presenters can push content from the projector to wirelessly connected devices and control which devices' screens receive the projected content. Participants can then make notes and send their work back to the projector.
- Compatible with the iProjection App
- Wirelessly project from your iOS or Android mobile device.
- Eco Features
-
- RoHS compliant
- Recyclable design
UPC: 010343935617 In the Box Epson PowerLite W39 3500-Lumen WXGA 3LCD Projector Remote Control with Batteries VGA Cable Software CD Power Cable Limited 2-Year Warranty on Projector Limited 90-Day Warranty on Lamp More info from Epson Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson PowerLite W39 3500-Lumen WXGA 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson w39 Specs | | | Display System | 3-Chip Polysilicon TFT LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: UXGA 60 - 1600 x 1200 | | Max Brightness | White: 3500 Lumens
Color: 3500 Lumens | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 15,000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | | | Focus | Manual | | Lens | f/1.49 - 1.72 (f = 16.9 - 20.28 mm) | | Optical Zoom | 1.2x | | Throw Distance | 2.756 - 26.673' / 0.84 - 8.13 m | | Throw Ratio | 1.3 - 1.56:1 | | Projection Size | 30 - 320" / 76.20 - 812.80 cm | | | | Keystone Correction | Auto-Vertical: ± 30°

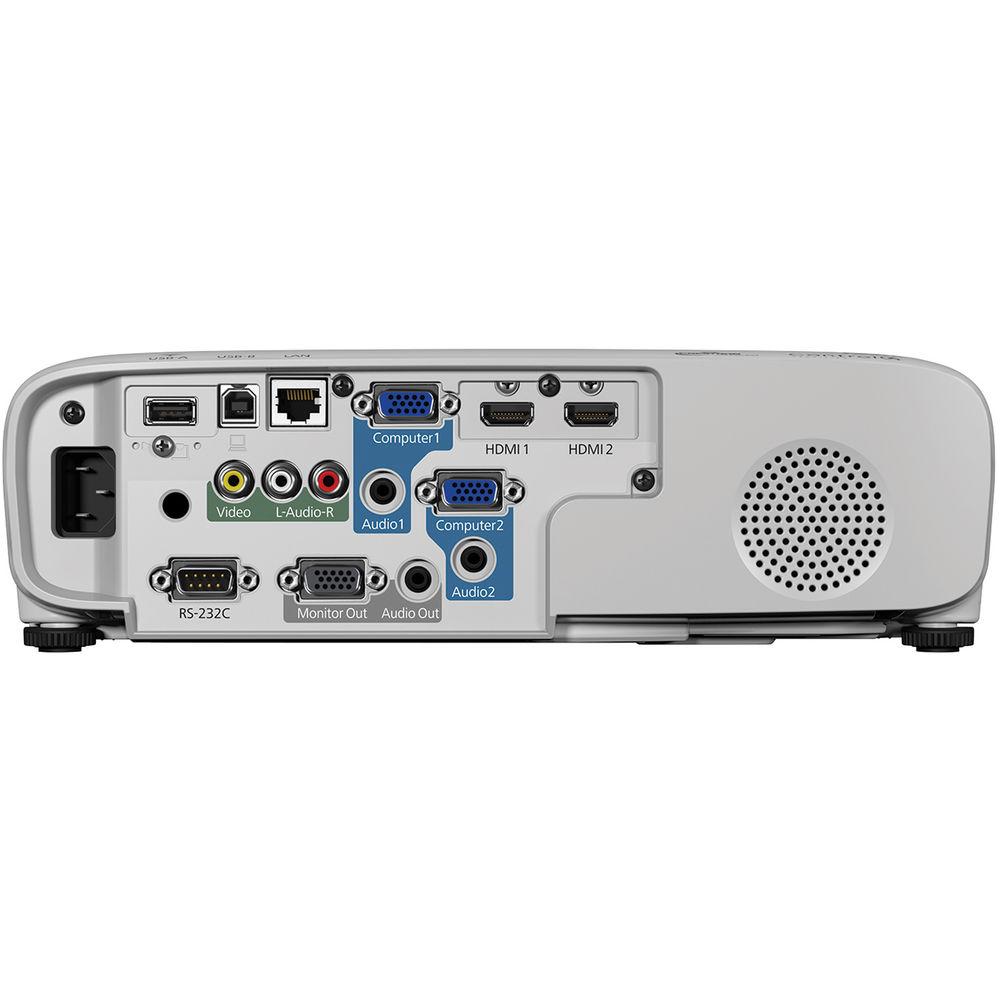

Manual-Horizontal: ± 30° | | Digital Zoom | None | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 5W | | | | Inputs/Outputs | 2 x HDMI Audio/Video (Input)
2 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x Composite (RCA) Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
2 x 1/8" (3.5 mm) Mini Audio (Input)
1 x USB Type-A Female (Input)
1 x USB Type-B Female (Input)
1 x Ethernet (RJ45) LAN (Input)
1 x RS-232C (Unspecified Connector) Control (Input) | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | Lamp (1 x UHE) | | Lamp Power | 210 W | | Expected Lamp Life | Full Brightness: 6000 Hours
Low Brightness: 12,000 Hours | | Fan Noise | Full Brightness: 37 dB
Low Brightness: 28 dB | | Security | Cable Lock Slot
Padlock
Security Bar | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 326 W
Low Brightness: 237 W
Standby Mode (Lamp Off): 2 W | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Dimensions (W x H x D) | 11.8 x 3.4 x 9.8" / 30.0 x 8.6 x 24.9 cm Excluding feet
11.8 x 3.6 x 9.8" / 30.0 x 9.1 x 24.9 cm Including feet | | Weight | 5.95 lb / 2.70 kg | | | | Package Weight | 8.5 lb | | Box Dimensions (LxWxH) | 14.8 x 13.8 x 6.3" |
