User Manual for Epson PP-100IIBD Discproducer Click to enlarge the picture
Contents of the user manual for the Epson PP-100IIBD Discproducer
- Product category: Optical Media Duplicators & Printers Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Optical Media Duplicators & Printers
|
User manual for the Epson PP-100IIBD Discproducer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|

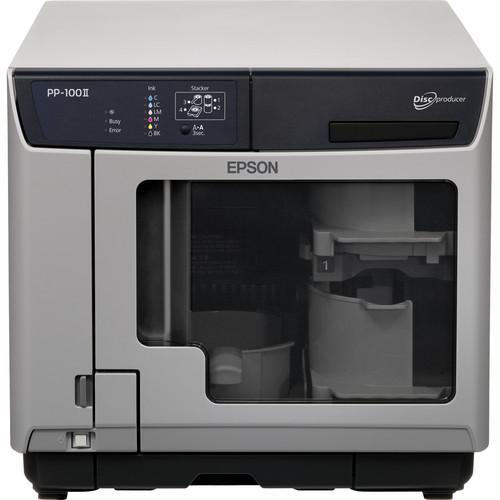

Product description The Epson PP-100IIBD Discproducer offers fast, reliable automated CD, DVD, and Blu-ray production. It has a fast publishing speed of up to 30 CDs, 15 DVDs, or 8 Blu-ray discs every hour. The PP-100IIBD does this with a high-speed USB 3.0 connection. Also, it can hold up to 50 discs for batch processing.
The PP-100IIBD's maintenance cartridge and CD/DVD drives can be replaced by the user to extend its working lifespan beyond 70,000 discs. The 6-cartridge individual ink system keeps the cost-per-produced-disc low. This also provides the ink for quality 1440 x 1440 dpi printing. And for accuracy there is the AcuGrip robotic arm to ensure only one disc is grabbed at a time.
As it is compact and fully stackable, the Discproducer also has valuable space-saving benefits for organizations with large-scale disc publishing needs. Total Disc Maker software is included, which provides advanced functions such as the read back file location tool, for filename or content backup as well as auto copying a full stack of 50 discs. Additionally, the merge print feature allows for printing of database content on each disc during batch production. UPC: 010343906372 In the Box Epson PP-100IIBD Discproducer 6 x Ink Cartridges Software CD USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson PP-100IIBD Discproducer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson PP-100IIBD Specs | Publishing Speed | CD: 30 discs/hour
DVD: 15 discs/hour
Blu-ray: 8 discs/hour | | Output | 5 disc tray | | Capacity | 50 discs | | Batch Size | 100 discs | | Printing | Fast: Up to 65 discs/hour
Quality: Up to 45 discs/hour | | Print Head | Micro Piezo | | Print Direction | Bidirectional, unidirectional | | Nozzle | 180 black, 180 per color | | Printing Resolution | Fast Mode: 1440 x 720 dpi
Quality Mode: 1440 x 1440 dpi | | Ink Type | Dye ink | | Colors | Cyan, magenta, yellow, light cyan, light magenta, black | | Number of Colors | 6 | | Print Area | Outside Diameter Setting: 70 to 119 mm | | Range | Inside Diameter Setting Range: 18 to 50 mm
Guaranteed Print Area: 45 to 116 mm | | Number of Drives | 2 | | Writing Speed | CD: 40x
DVD-R, DVD+R: 12x
DVD-R DL, DVD+R DL: 8x
Blu-ray, Blu-ray DL: 6x | | Media Types | CD-R, DVD-R, DVD+R, DVD-R DL, DVD+R DL, Blu-ray, Blu-ray DL | | Size | Outside Diameter: 120 mm
Inside Diameter 15 mm | | Interface | USB 3.0 | | Noise Level | Operation: 45 dB | | Power Consumption | In Use: 52 W
Standby: 27 W | | Operating Systems Supported | Windows 7, Windows 8, Windows Server 2003 (32/64bit), Windows Server 2008 (32/64bit), Windows Server 2012 (64bit), Windows Vista, and Windows XP | | Dimensions (W x D x H) | 14.8 x 19.4 x 13.7" (377.0 x 493.0 x 348.0 mm) | | Weight | 52.9 lb (24.0 kg) | | | | Package Weight | 75.02 lb | | Box Dimensions (LxWxH) | 28.5 x 24.25 x 20.5" |
