User Manual for Epson PP-50II Discproducer Click to enlarge the picture
Contents of the user manual for the Epson PP-50II Discproducer
- Product category: Optical Media Duplicators & Printers Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Optical Media Duplicators & Printers
 |
User manual for the Epson PP-50II Discproducer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|

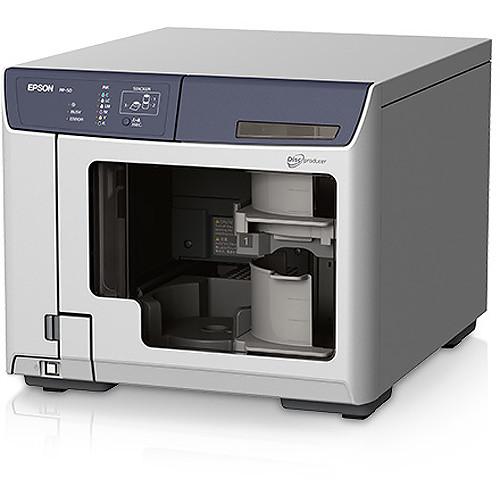

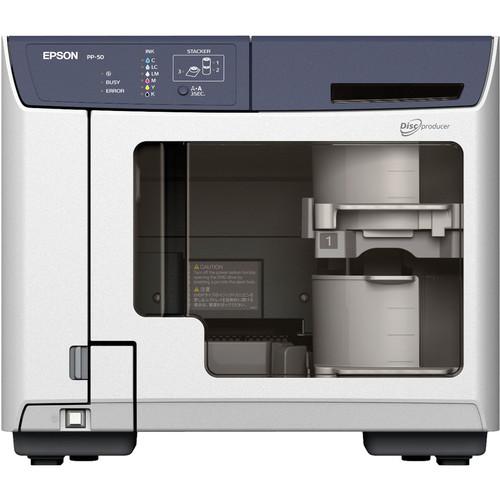

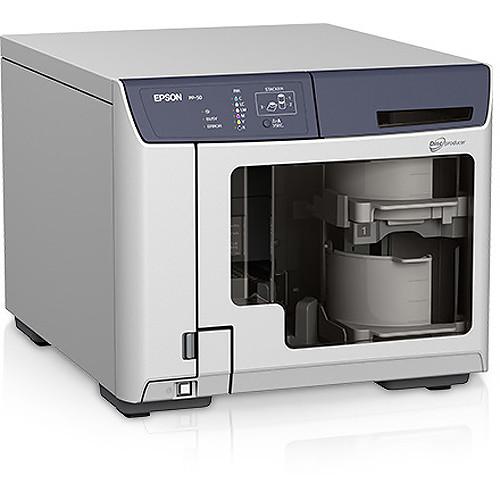

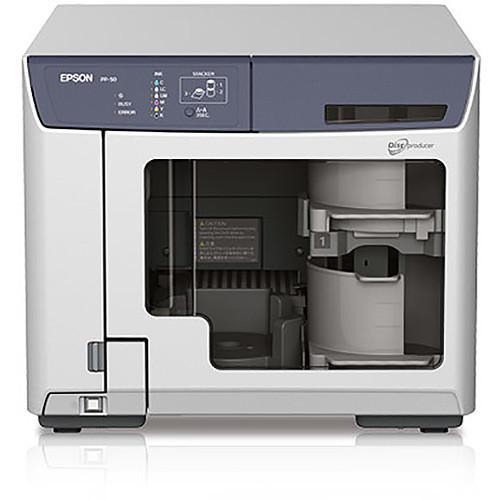

Product description The Epson PP-50II Discproducer offers fast, reliable automated CD and DVD production. It has a fast publishing speed of up to 15 CDs or 8 DVDs every hour. The PP-50II does this with a high-speed USB 3.0 connection. Also, it can hold up to 50 discs for batch processing.

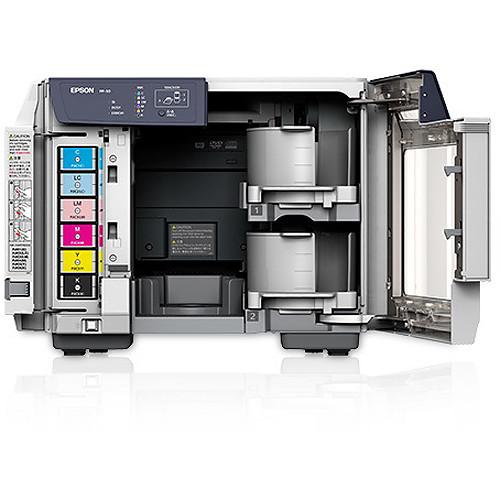

The PP-50II's 6-cartridge individual ink system keeps the cost-per-produced-disc low. This also provides the ink for quality 1440 x 1440 dpi printing. And for accuracy there is the AcuGrip robotic arm to ensure only one disc is grabbed at a time. It also offers individual ink level sensors and status readings for all functions.
As it is compact and fully stackable, the Discproducer also has valuable space-saving benefits for organizations with large-scale disc publishing needs. Total Disc Maker software is included, which provides advanced functions such as the read back file location tool, for filename or content backup as well as auto copying a full stack of 50 discs. Additionally, the merge print feature allows for printing of database content on each disc during batch production.
Included with the Discproducer is Total Disc Maker software that includes disc editing, label editing, and publishing functions. There is also optional Total Disc Bridge software for developers to use their own applications with the Discproducer. UPC: 010343910812 In the Box Epson PP-50II Discproducer 6 x Ink Cartridges Software CD USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson PP-50II Discproducer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson PP-50II Specs | Publishing Speed | CD: 15 discs/hour
DVD: 8 discs/hour | | Capacity | 50 discs | | Output | Low Volume Mode: Up to 20 discs
Standard Mode: Up to 50 discs | | Printing | Fast: Up to 60 discs/hour
Quality: Up to 40 discs/hour | | Print Head | Micro Piezo | | Print Direction | Bidirectional, unidirectional | | Nozzle | 180 black, 180 per color | | Printing Resolution | Fast Mode: 1440 x 720 dpi
Quality Mode: 1440 x 1440 dpi | | Ink Type | Dye ink | | Colors | Cyan, magenta, yellow, light cyan, light magenta, black | | Number of Colors | 6 | | Yield | Approximately 1,000 discs | | Pad | Lifetime: Approximately 30,000 discs | | Print Area | Outside Diameter Setting: 70 to 119 mm | | Range | Inside Diameter Setting Range: 18 to 50 mm
Guaranteed Print Area: 45 to 116 mm | | Number of Drives | 1 | | Writing Speed | CD: 40x
DVD-R, DVD+R: 12x
DVD-R DL, DVD+R DL: 8x | | Media Types | CD-R, DVD-R, DVD+R, DVD-R DL, DVD+R DL | | Size | Outside Diameter: 120 mm
Inside Diameter 15 mm | | Interface | USB 3.0 | | Operating Systems Supported | Windows 8 (32/64-bit), 7 (32/64-bit), Vista SP1 (32/64-bit) or later, XP SP2 (32-bit) or later, 2000 SP4 (32/64-bit), Server 2008 R2 (32/64-bit), Server 2008 SP2 (32/64-bit) or later, Server 2003/2003 R2 SP2 (32-bit) or later
Mac OS X 10.7, 10.8 | | Minimum Computer Requirements | 1.4 GHz Pentium 4 processor or higher (2.0 GHz for Windows Server 2008)
Intel Duo T2700/Intel Core2 Duo E6300 or higher (Windows Server 2008, 7, Vista, XP)
2 GB RAM or more (1 GB for Vista)
30 GB 7200rpm or larger hard disk drive (50 GB for Windows Server 2008)
Graphic Environment: XGA or more; 65,536 colors or more | | Dimensions (W x D x H) | 14.8 x 18.3 x 12.8" (37.7 x 46.5 x 32.4 cm) | | Weight | 46.2 lb (21.0 kg) | | | | Package Weight | 55.8 lb | | Box Dimensions (LxWxH) | 28.0 x 20.5 x 20.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 07 owners. Add your rating and experience with the product.
