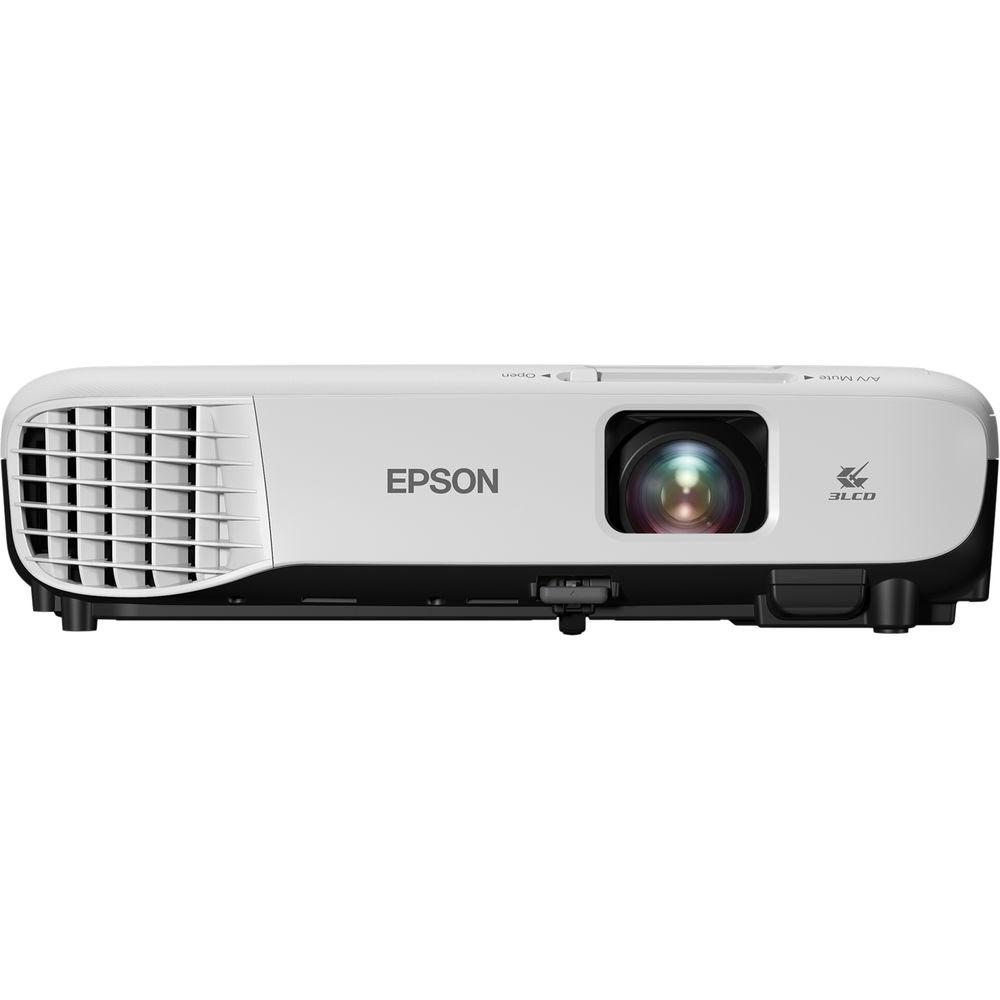

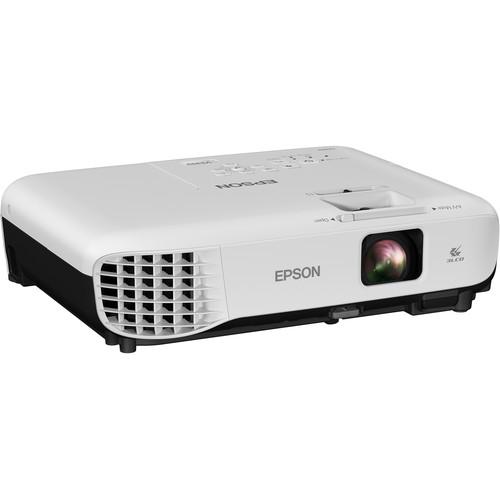

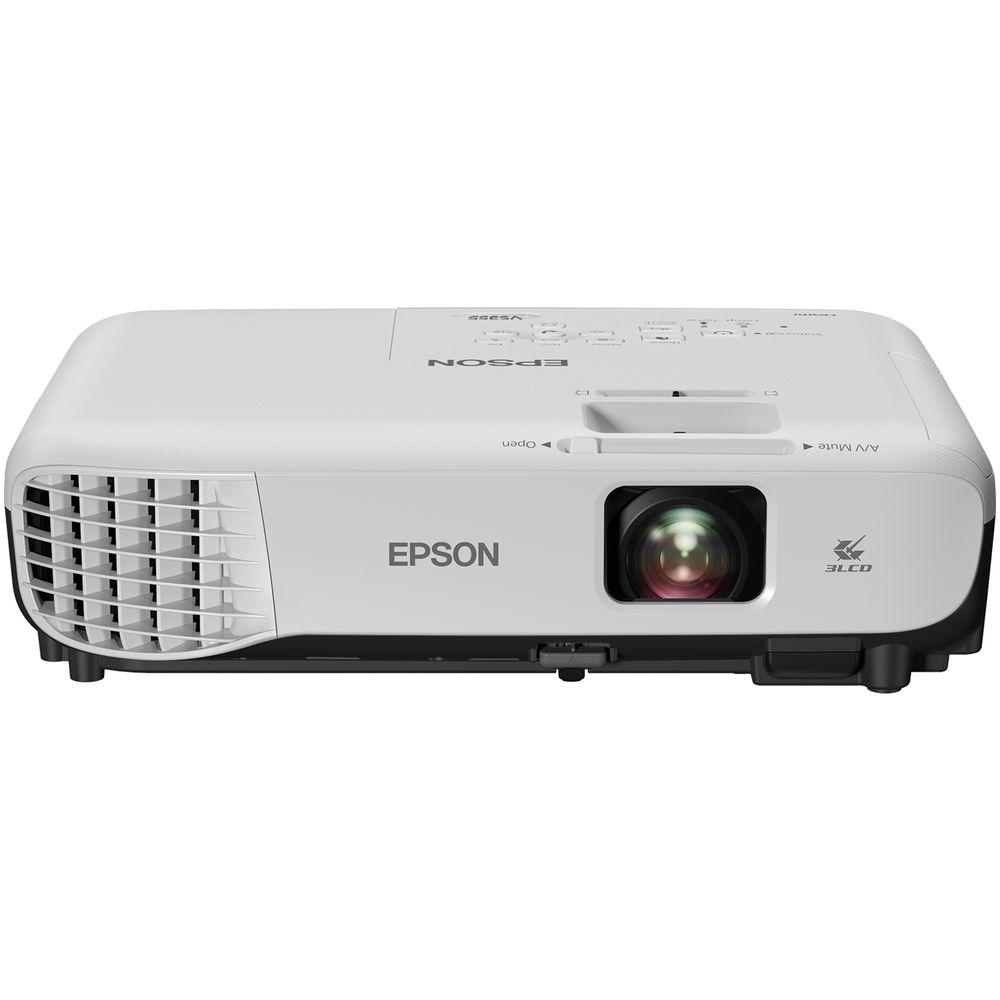

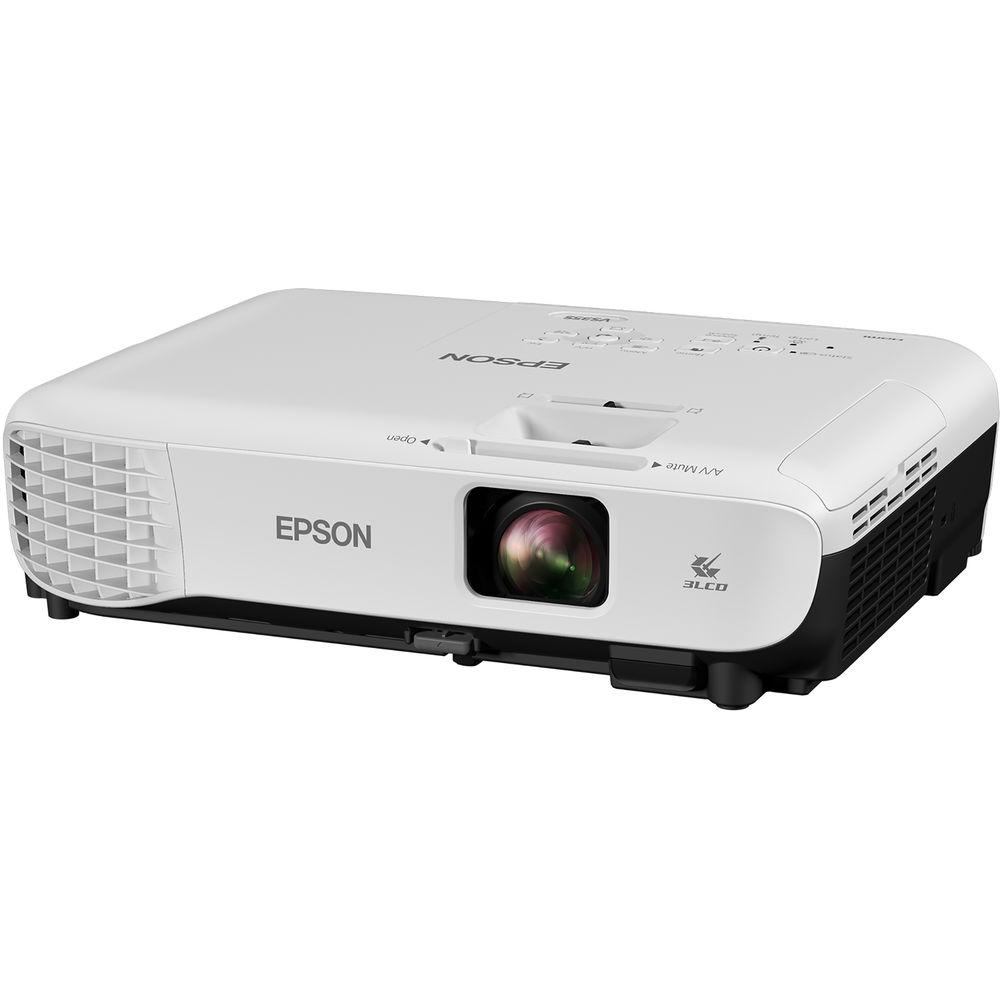

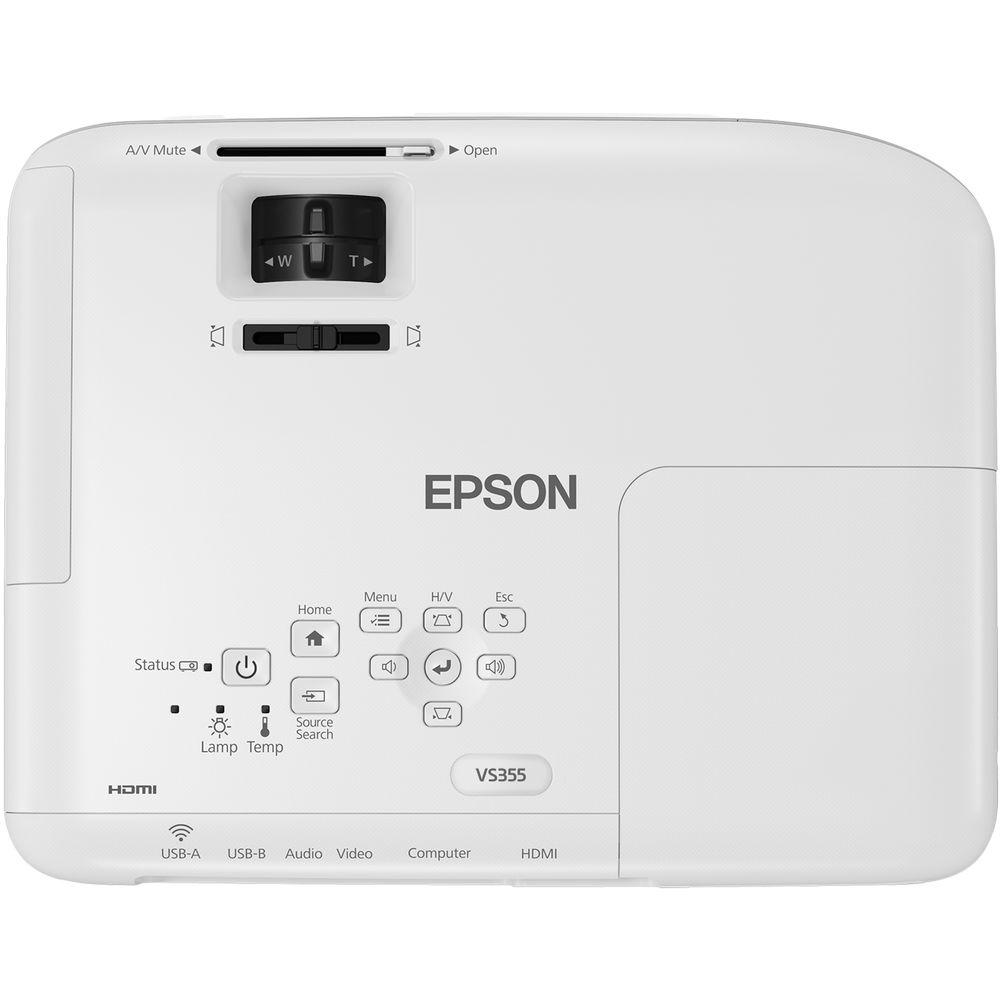

User Manual for Epson VS355 3300-Lumen WXGA 3LCD Projector Click to enlarge the picture
Contents of the user manual for the Epson VS355 3300-Lumen WXGA 3LCD Projector
- Product category: Multimedia Projectors Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Multimedia Projectors
 |
User manual for the Epson VS355 3300-Lumen WXGA 3LCD Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|
Product description Enjoy bright, vibrant images with the Epson VS355 3300-Lumen WXGA 3LCD Projector. Its 3300 lumens of brightness, combined with its 15,000:1 dynamic contrast ratio, will help it overcome ambient light in many situations and retain detail in dark areas of the image, without compromising overall brightness. Its 1280 x 800 native resolution will help ensure that text is clear at most viewing distances.

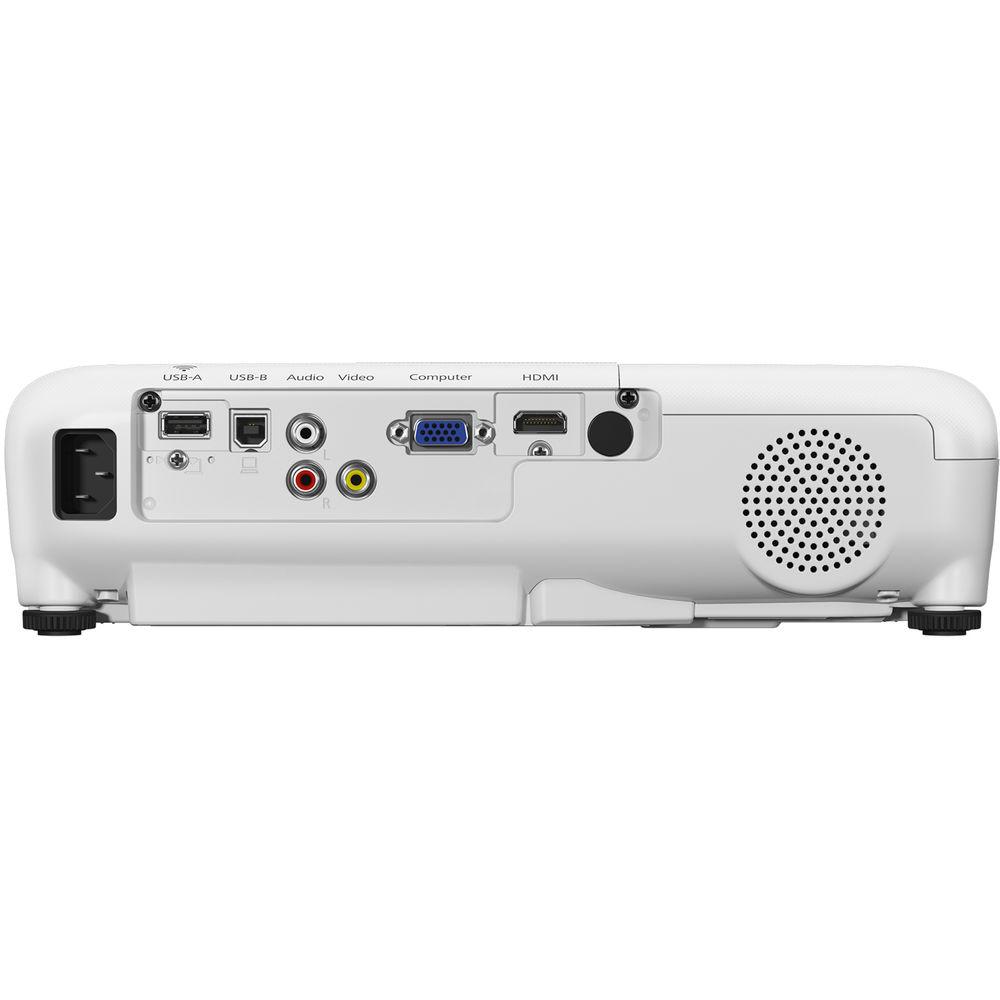

The VS355 features HDMI, VGA, S-video, and RCA video inputs to support various source devices. The projector also accepts video signals via USB from Windows and Mac computers. A VGA cable and an IR remote control are included for added convenience. - 3300 lumens of color and white brightness provide accurate color even in rooms with ambient light.
- WXGA (1280 x 800) resolution makes the VS355 suitable for projecting HD presentations and video, even from widescreen laptops.
- Designed for fast, easy setup with simple image adjustments and controls.
- Enhanced color brightness with a wider color gamut.
- Supports HDMI for enhanced compatibility.
UPC: 010343936751 In the Box Epson VS355 3300-Lumen WXGA 3LCD Projector Remote Control with Batteries VGA Cable Power Cable Limited 1-Year Warranty on Projector Limited 90-Day Warranty on Lamp More info from Epson Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson VS355 3300-Lumen WXGA 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson VS355 Specs | | | Display System | 3-Chip Polysilicon TFT LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: SXGA+ - 1400 x 1050 | | Max Brightness | 3300 Lumens | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 15,000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | | | Focus | Manual | | Lens | f/1.49 - 1.72 (f = 16.9 - 20.28 mm) | | Lens Shift | None | | Optical Zoom | Manual: 1.2x | | Throw Distance | 2.953 - 29.856' / 0.9 - 9.1 m | | Throw Ratio | 1.38 - 1.68:1 | | Projection Size | 30.00 - 320.00" / 76.20 - 812.80 cm | | | | Keystone Correction | Auto-Vertical: ± 30°
Manual-Horizontal: ± 30° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 1W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Composite (RCA) Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x USB Type-A Female (Input)
1 x USB Type-B Female (Input) | | Internal Storage | None | | Wireless LAN / Wi-Fi | None | | | | Light Source | Lamp (1 x UHE) | | Lamp Power | 210 W | | Expected Lamp Life | Medium Brightness: 6000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Medium Brightness: 37 dB
Low Brightness: 28 dB | | Security | Password Protection | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 291 W
Low Brightness: 214 W | | Temperature | Operating
41 to 95°F (5 to 35°C) | | Dimensions (W x H x D) | 11.9 x 3.2 x 9.3" / 30.2 x 8.1 x 23.6 cm Including feet
11.9 x 3.0 x 9.2" / 30.2 x 7.6 x 23.4 cm Excluding feet | | Weight | 5.5 lb / 2.49 kg | | | | Package Weight | 7.72 lb | | Box Dimensions (LxWxH) | 14.7 x 13.3 x 5.7" |
