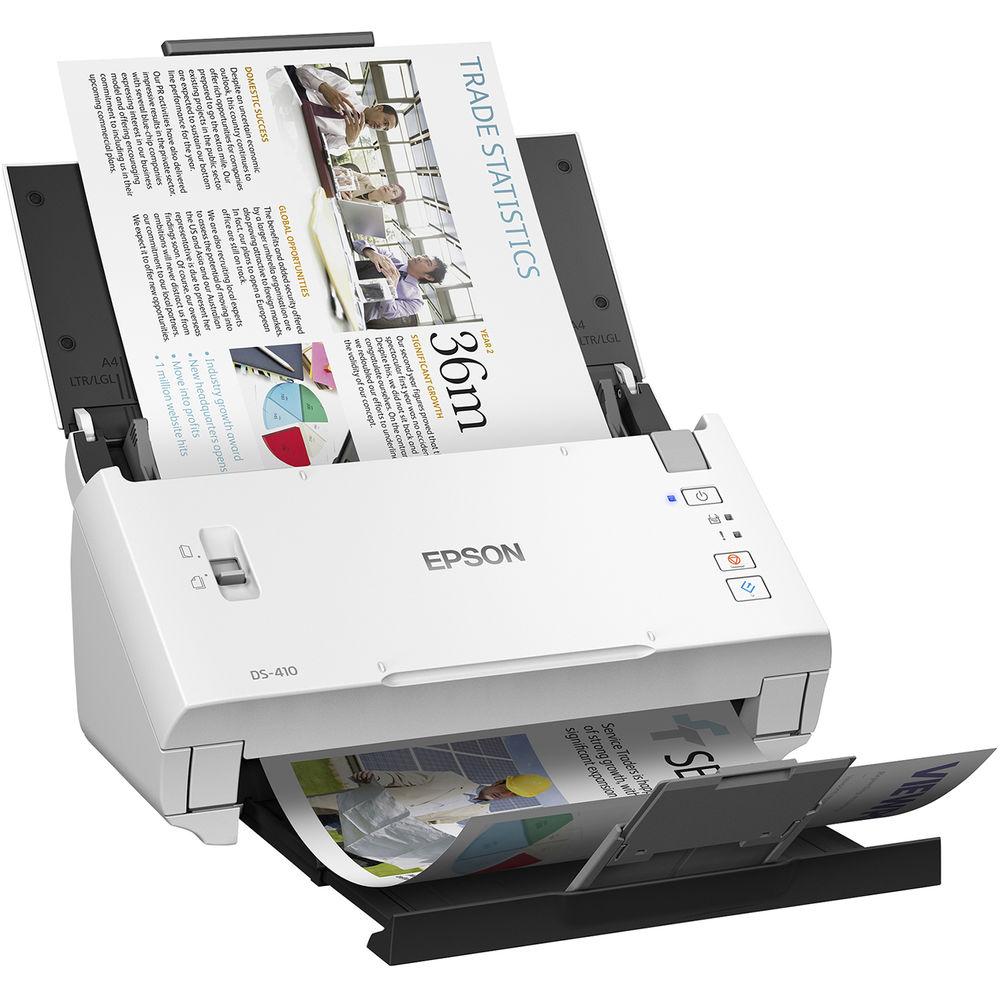

User Manual for Epson WorkForce DS-410 Document Scanner Click to enlarge the picture
Contents of the user manual for the Epson WorkForce DS-410 Document Scanner
- Product category: Flatbed & Document Scanners Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Flatbed & Document Scanners
 |
User manual for the Epson WorkForce DS-410 Document Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|

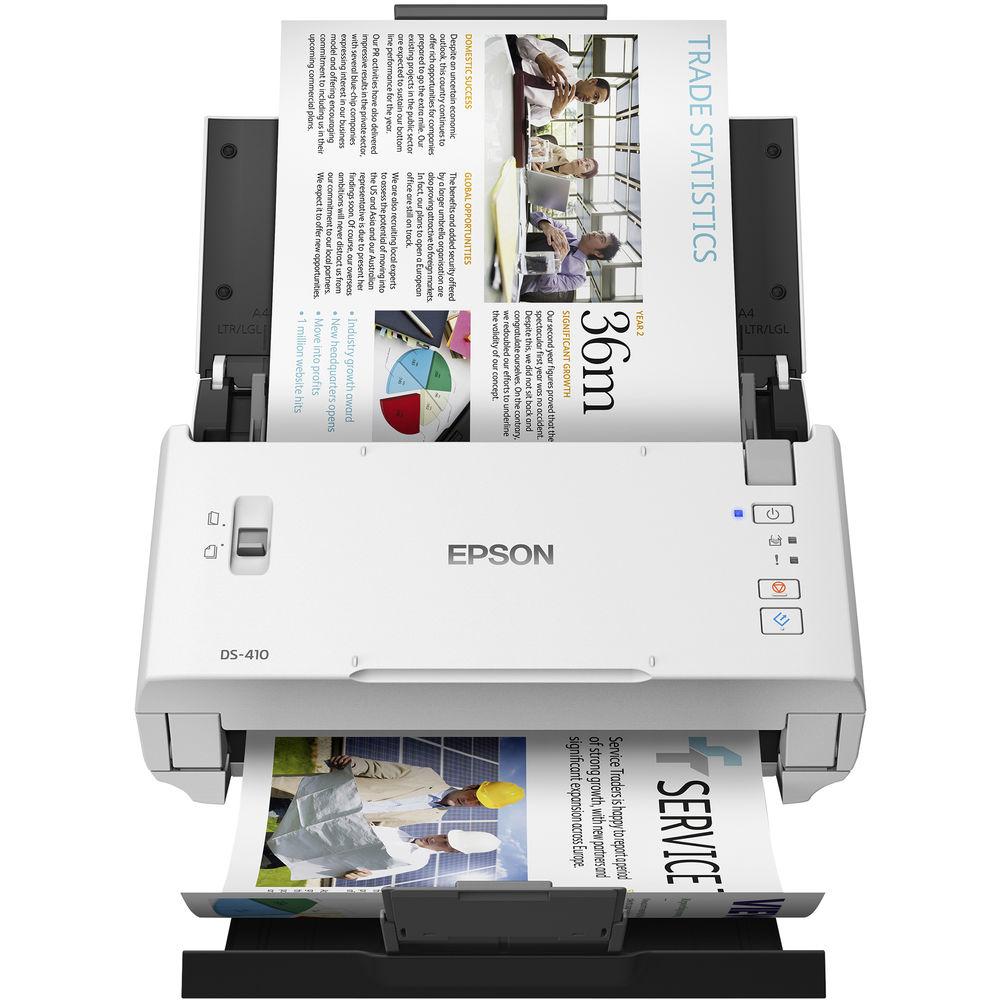

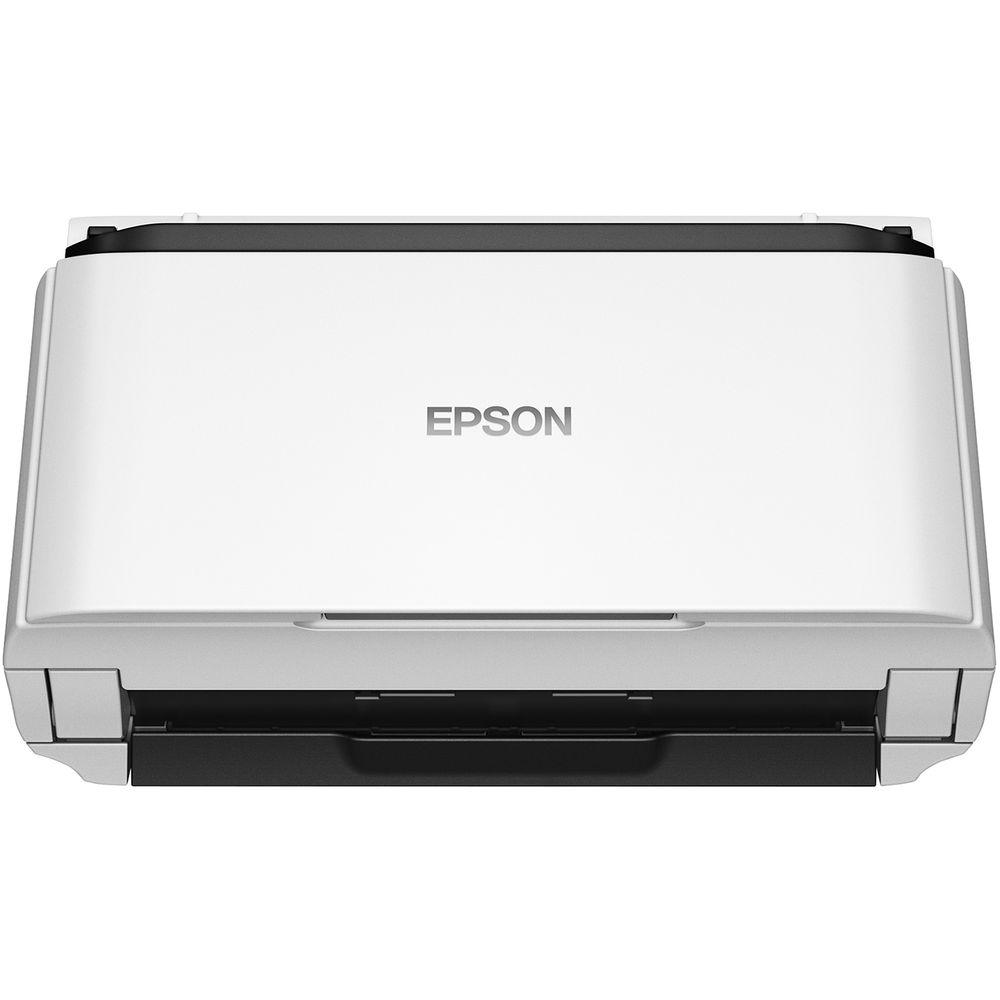

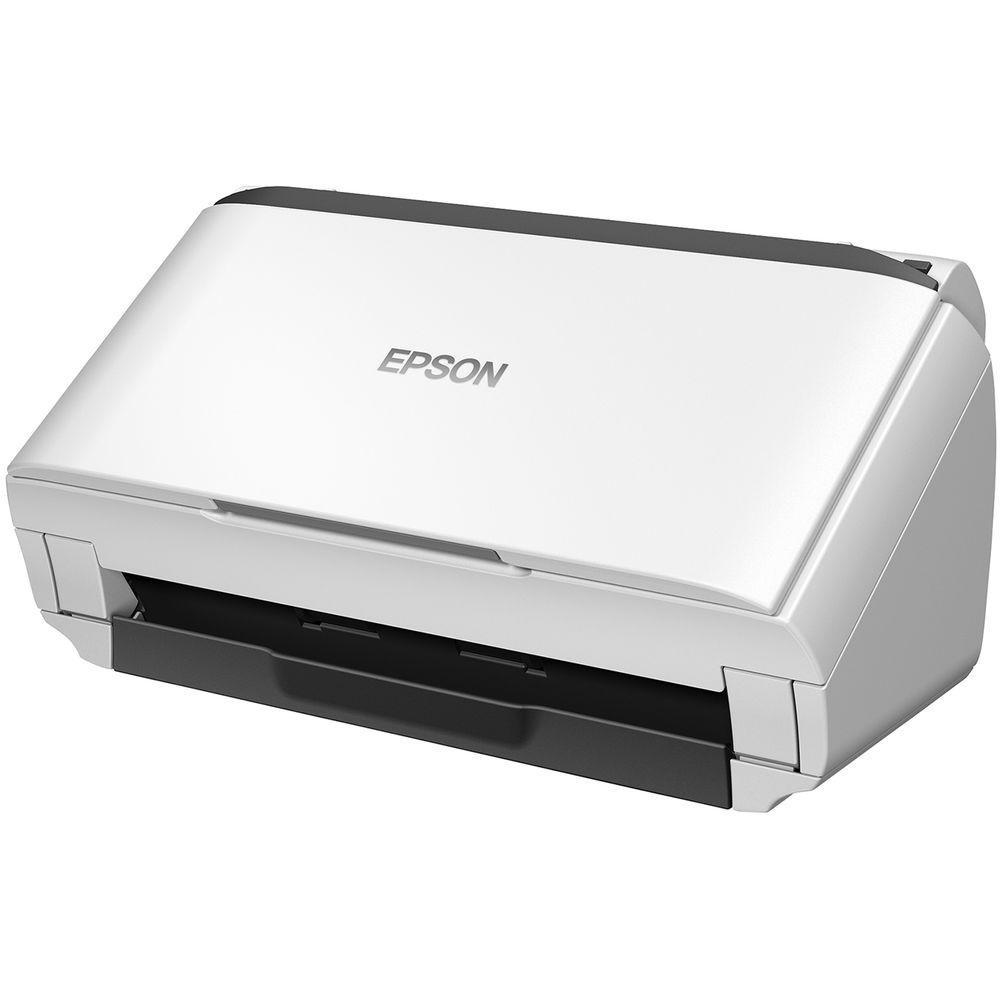

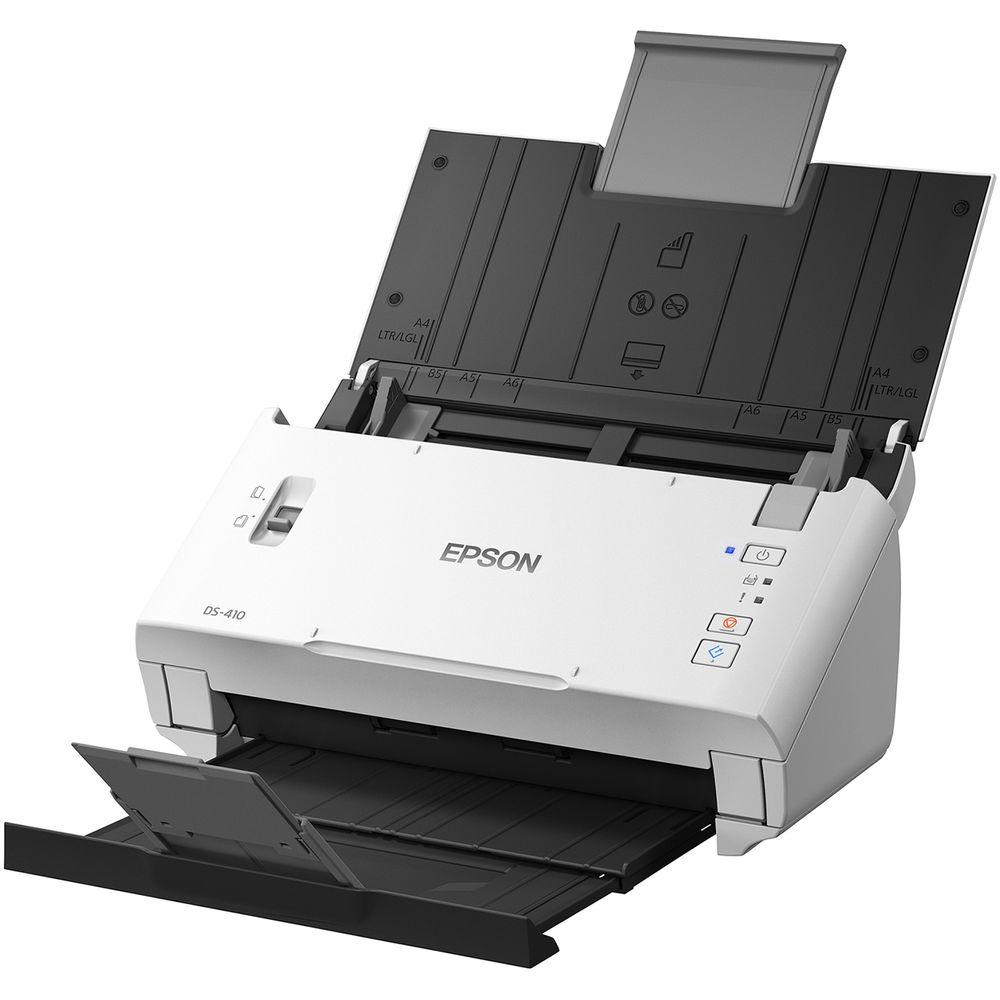

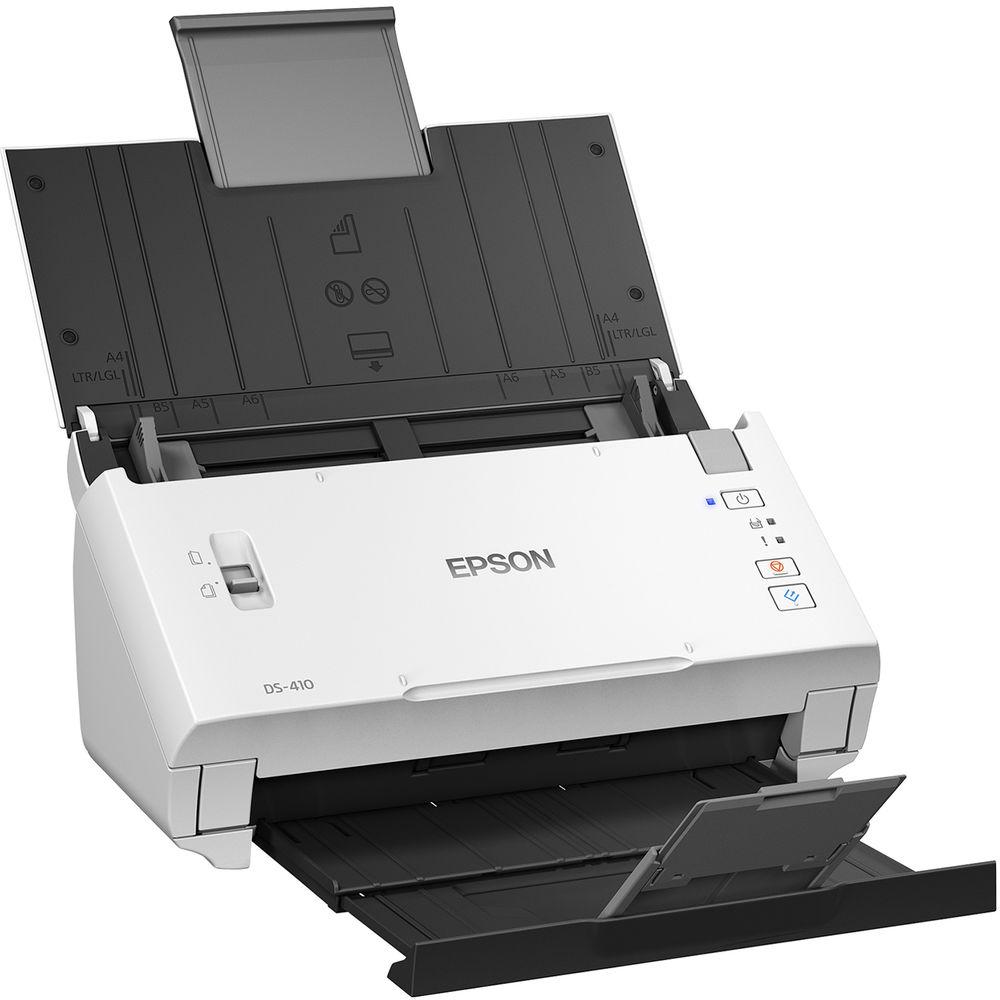

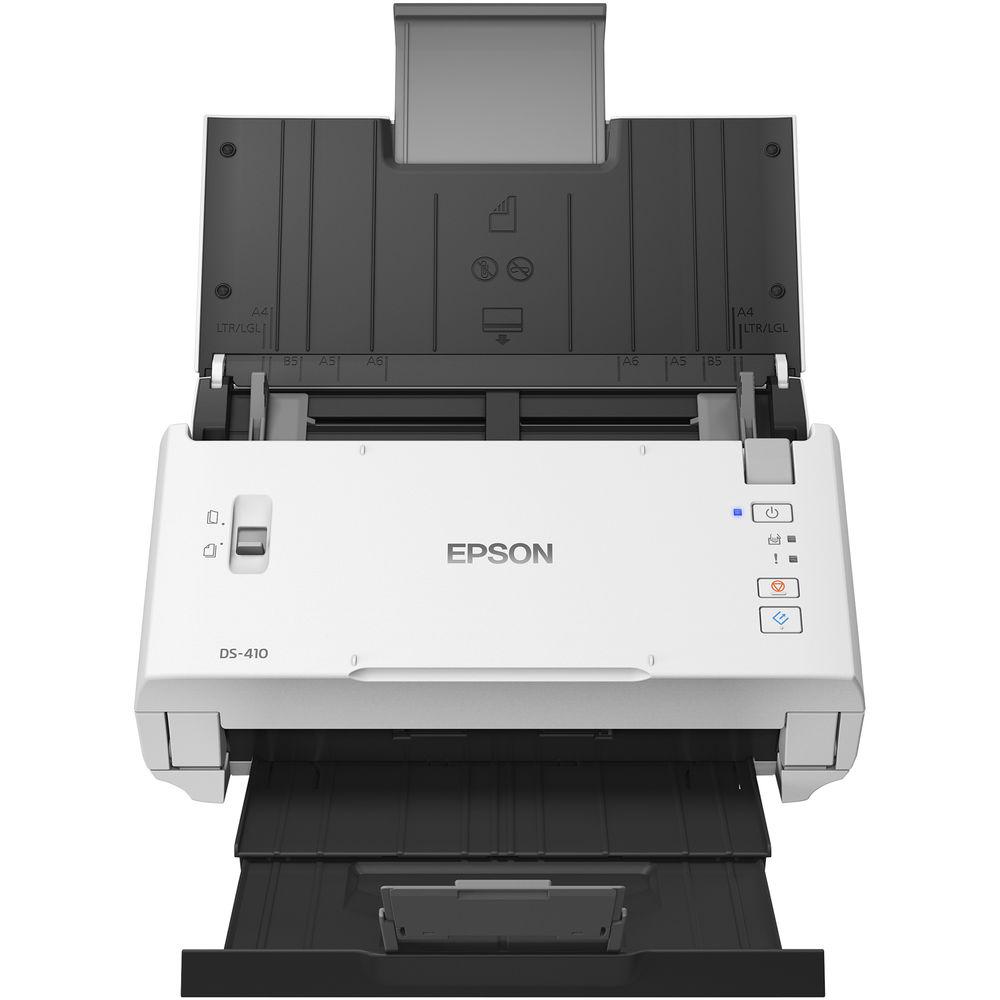

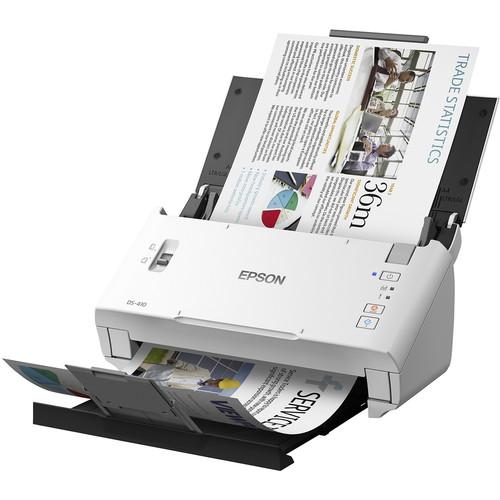

Product description Able to easily fit onto a desk and featuring scan speeds of up to 26 ppm, the WorkForce DS-410 Document Scanner from Epson will dramatically improve your digitizing process. The scanner features an optical resolution of 600 dpi, which can be interpolated up to 1200 x 1200 dpi, for sharp, clear imagery, while internal 48-bit processing ensures accurate, vivid colors. The scanner also works with a range of media types and sizes from 2 x 2" up to 8.5 x 14" via the 50-sheet ADF. Another benefit of the ADF is single-pass duplexing at up to 52 ipm, for extremely fast scanning.
For added versatility, the DS-410 offers long document scanning for banners up to 120" long as well as the ability to scan folded 11 x 17" documents using an optional carrier sheet. Business cards and embossed plastic ID cards can also be scanned with this unit. In order to ensure that media is loaded properly, Double-feed Protection and Paper Protection is present to minimize the chances of misfeeds. The printer is also quite durable with a rated daily duty cycle of 3000 pages. Additionally, the DS-410 is equipped with standard USB 2.0 connectivity and includes both TWAIN and ISIS drivers for maximum compatibility. Additionally, to further enhance productivity, the printer comes with file management and OCR software that will let you organize and upload documents to many cloud services as well as create editable and searchable documents. - Using a Contact Image Sensor with a 600 dpi optical resolution and a 3-color RGB LED, the DS-410 can create sharp, colorful imagery. The scanner also benefits from a 48-bit internal color depth and maximum output resolution of 1200 dpi for highly accurate and detailed scans.
- Scan speeds of up to 26 ppm, or 52 ipm in duplexing, are available at 300 dpi in black and white or color. At 600 dpi this speed is 21 ppm / 42 ipm for black-and-white and 7 ppm / 14 ipm for color and grayscale.
- The 50-sheet single-pass ADF accepts paper from 2 x 2" up to 8.5 x 120" in size with a weight of 50-210 gsm.

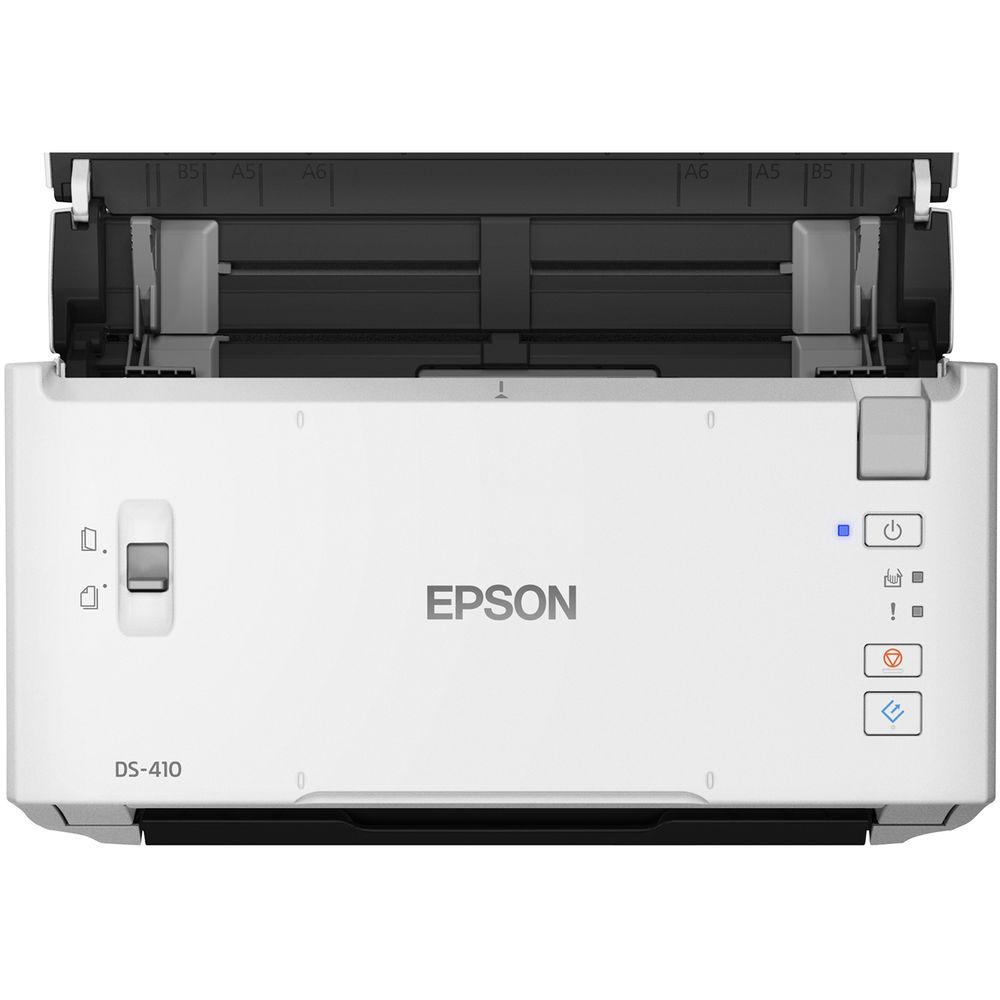

- Operation is simplified with three push buttons on the front of the unit.
- The DS-410 is durable with a rated daily duty cycle of 3000 sheets and a roller assembly rated to last for 100,000 sheets.
- USB 2.0 connectivity is available along with TWAIN and ISIS drivers for maximum compatibility.
- Other features built into the scanner include Double-feed Detection by image, Paper Protection, rigid plastic ID card scanning (including embossed cards), business card scanning, oversized folded document scanning with optional carrier sheet, 30 user-definable scan job settings, and a Kensington-type security lock.
- Runs on a 100-240 VAC power supply with a maximum power consumption of 15W when operation, 4.1W when ready, 0.6W when in sleep mode, and 0.2W when off.
- Epson Scan 2, Document Capture Pro, ABBYY FineReader OCR, NewSoft Presto! BizCard OCR, and OpenText Cativa ISIS software is included.
UPC: 010343935846 In the Box Epson WorkForce DS-410 Document Scanner USB 2.0 Cable AC Adapter and Power Cable Limited 3-Year Warranty More info from Epson Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson WorkForce DS-410 Document Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson Workforce DS-410 Specs | Maximum dpi Resolution | 1200 dpi | | Optical Resolution | 600 dpi | | Duplex Speed | 52 ipm (Color) | | Simplex Speed | 26 ppm (Color) | | Maximum Document Width | 8.5" / 21.6 cm | | Maximum Document Length | 120" / 304.8 cm | | Color Depth | 48-Bit (Internal)
24-Bit (External) | | Grayscale Bit-Depth | 16-Bit (Internal)
8-Bit (External) | | Duplex Scanning | Yes | | Single Pass Duplex | Yes | | Multi-Feed Detection | Yes | | Scan Modes | Color, Grayscale, Monochrome | | Document Feeding | ADF | | Life Expectancy | 3000 Sheets per Day | | Connectivity | USB 2.0 | | Wireless Connectivity | None | | File Formats | BMP, JPEG, Multi-Page TIFF, PDF, PNG, TIFF | | Media Types | Business Card, Plain Paper, Plastic ID Card | | Paper Weight | 13 to 56 lb / 50 to 210 gsm | | Maximum Paper Thickness | 49 mil / 1.24 mm | | Operating System Compatibility | macOS/OS X, Windows | | Light Source | LED | | Image Sensor | 2 x Contact Image Sensor (CIS) | | Control Panel | 3 Buttons | | Drivers | TWAIN, ISIS | | Duty Cycle | 3000 Scans | | Maximum Sheet Capacity | 50 | | Automatic Image Corrections | Yes | | Environmental Compliance | RoHS | | Operating Humidity | 10 to 80% | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Humidity | 10 to 85% | | Storage Temperature | -13 to 140°F / -25 to 60°C | | Maximum Power Consumption | 15 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1 A | | DC Input Power | 24 VDC at 1 A | | Power Source | AC Adapter | | Dimensions | 6.1 x 7.8 x 6.0" / 15.4 x 19.7 x 15.2 cm | | Weight | 5.5 lb / 2.5 kg | | | | Package Weight | 8.2 lb | | Box Dimensions (LxWxH) | 15.3 x 9.9 x 9.3" |
