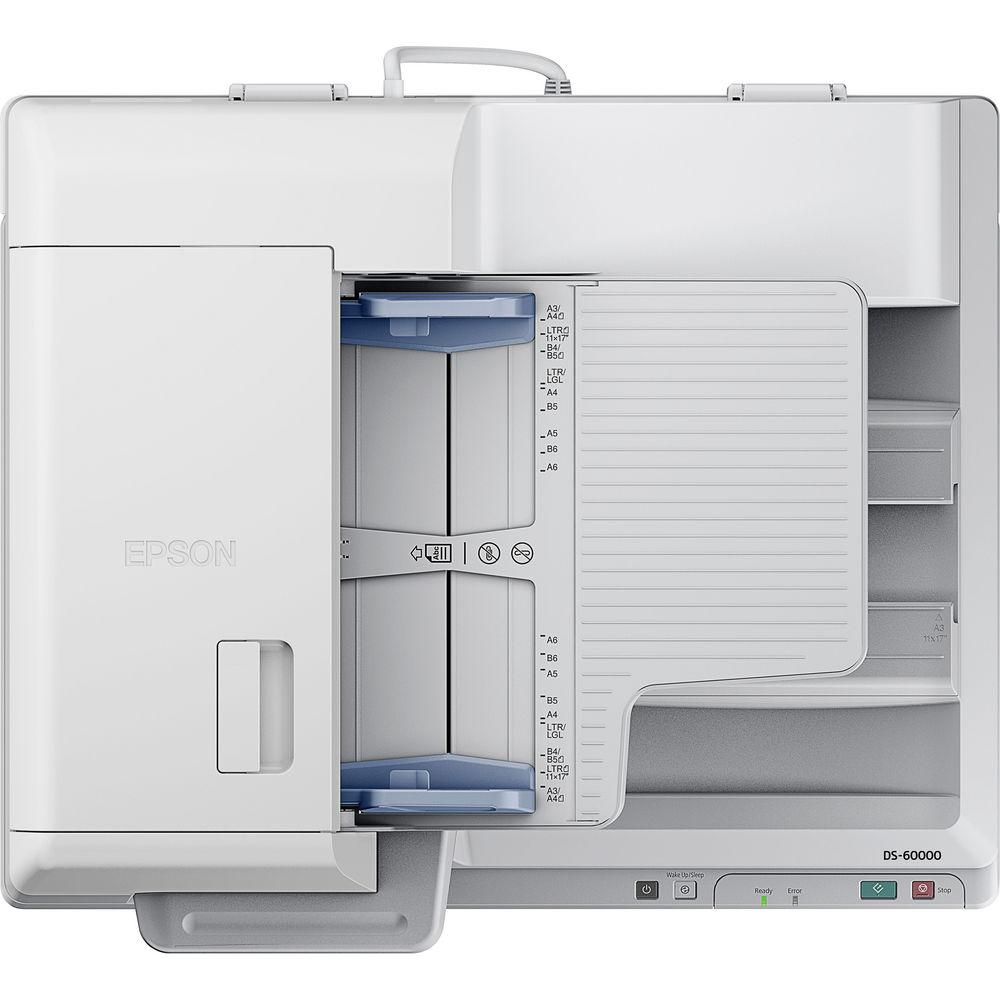

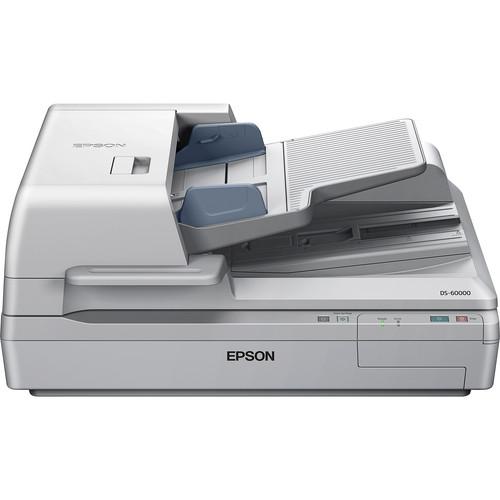

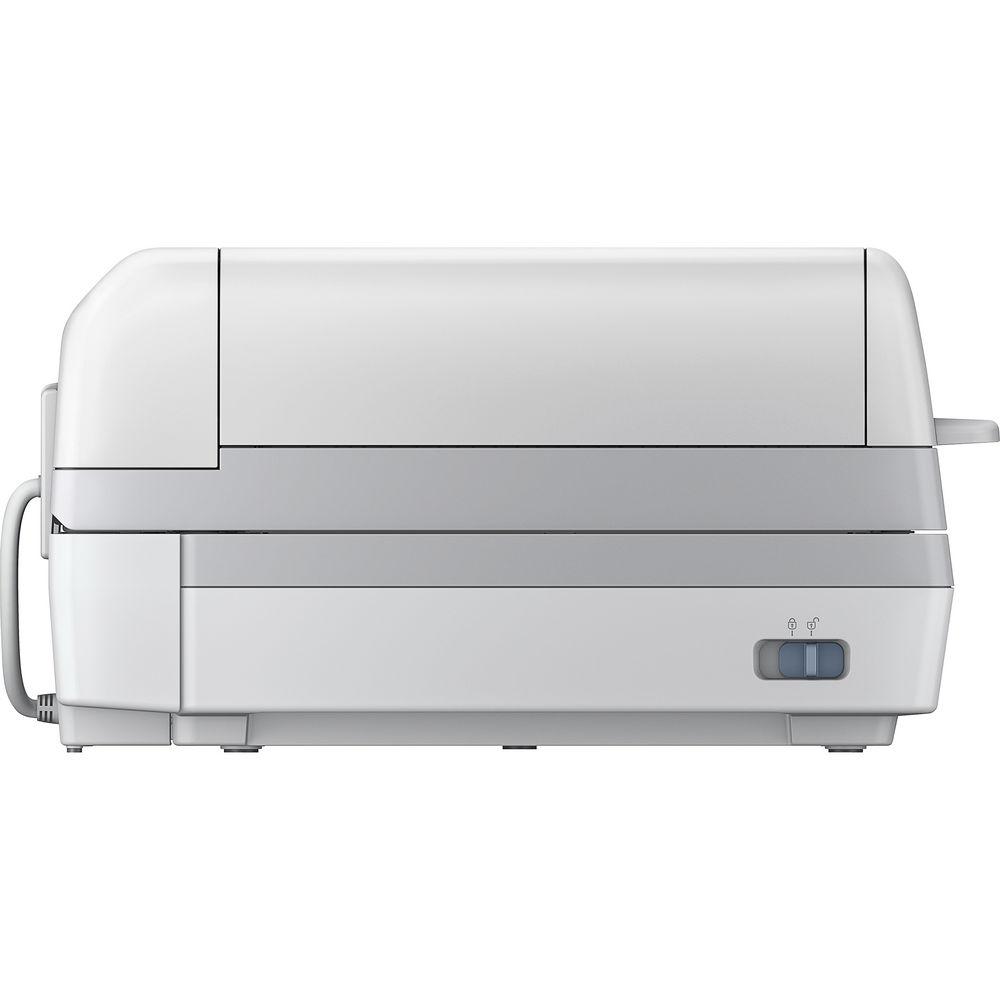

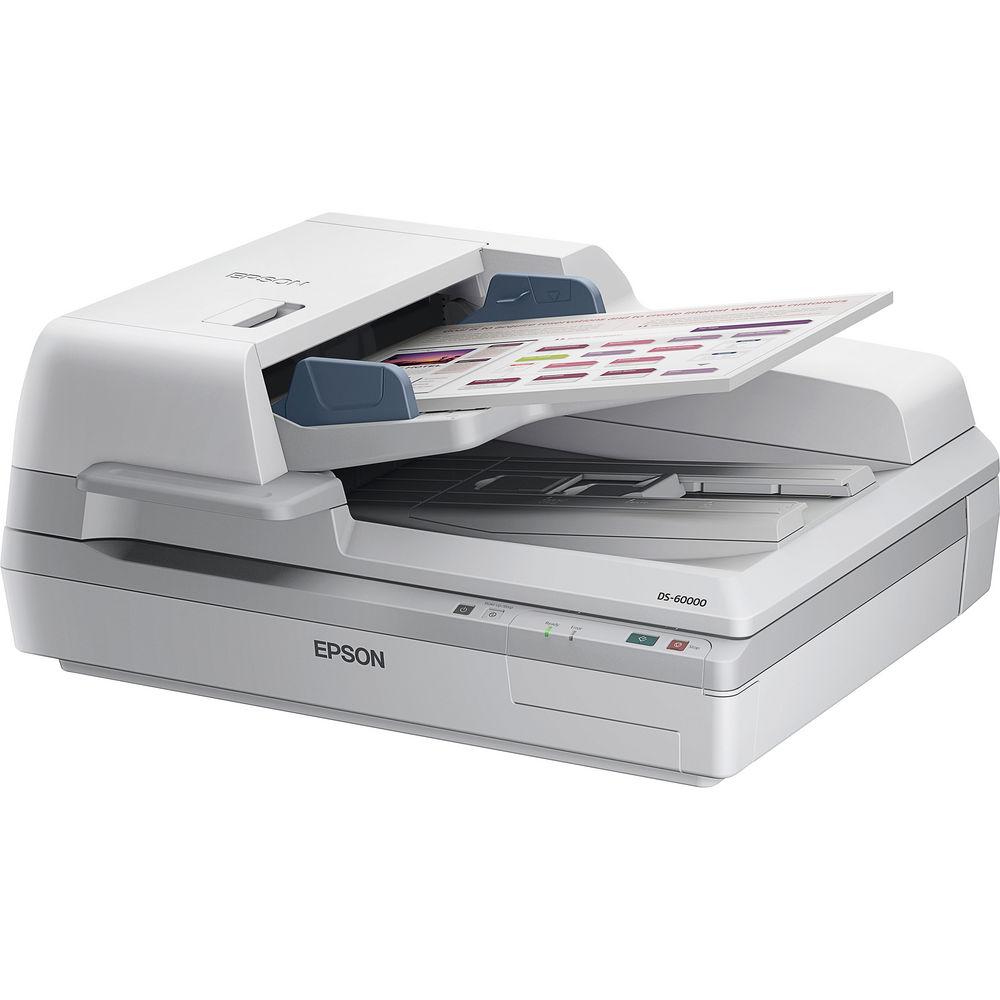

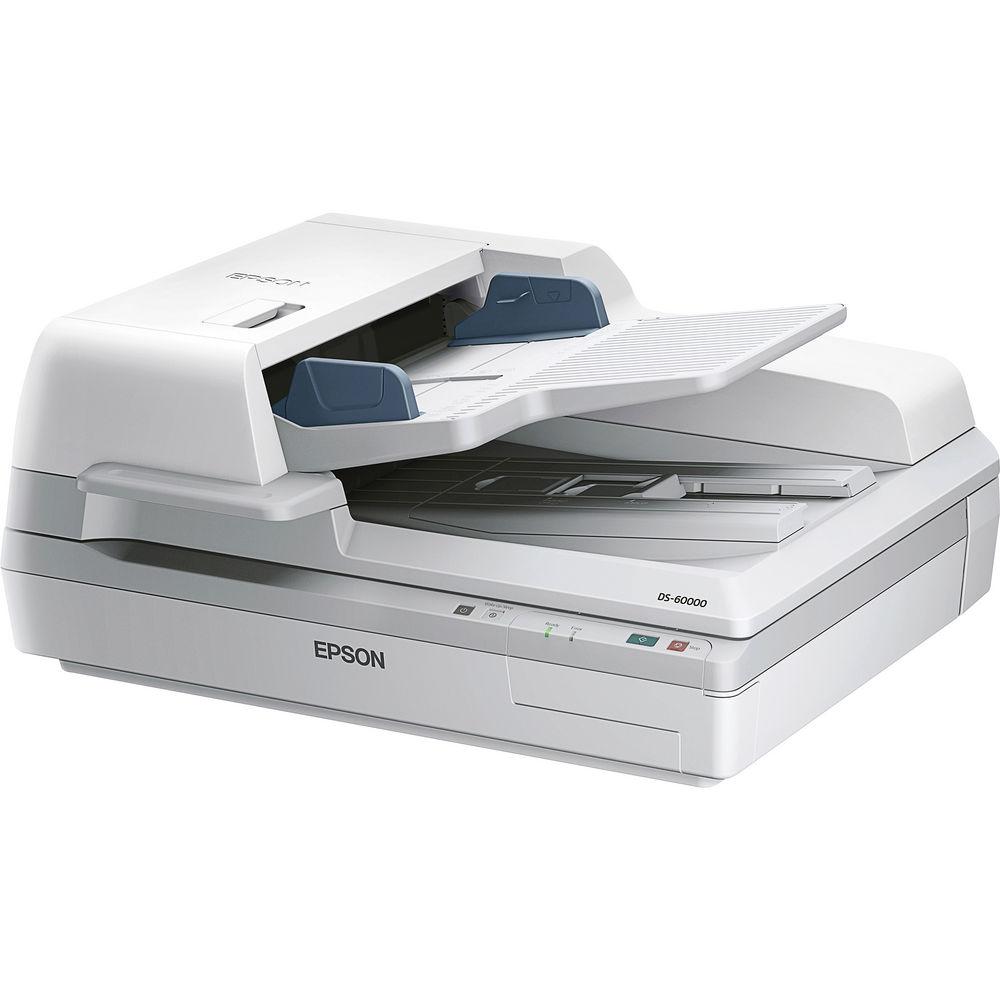

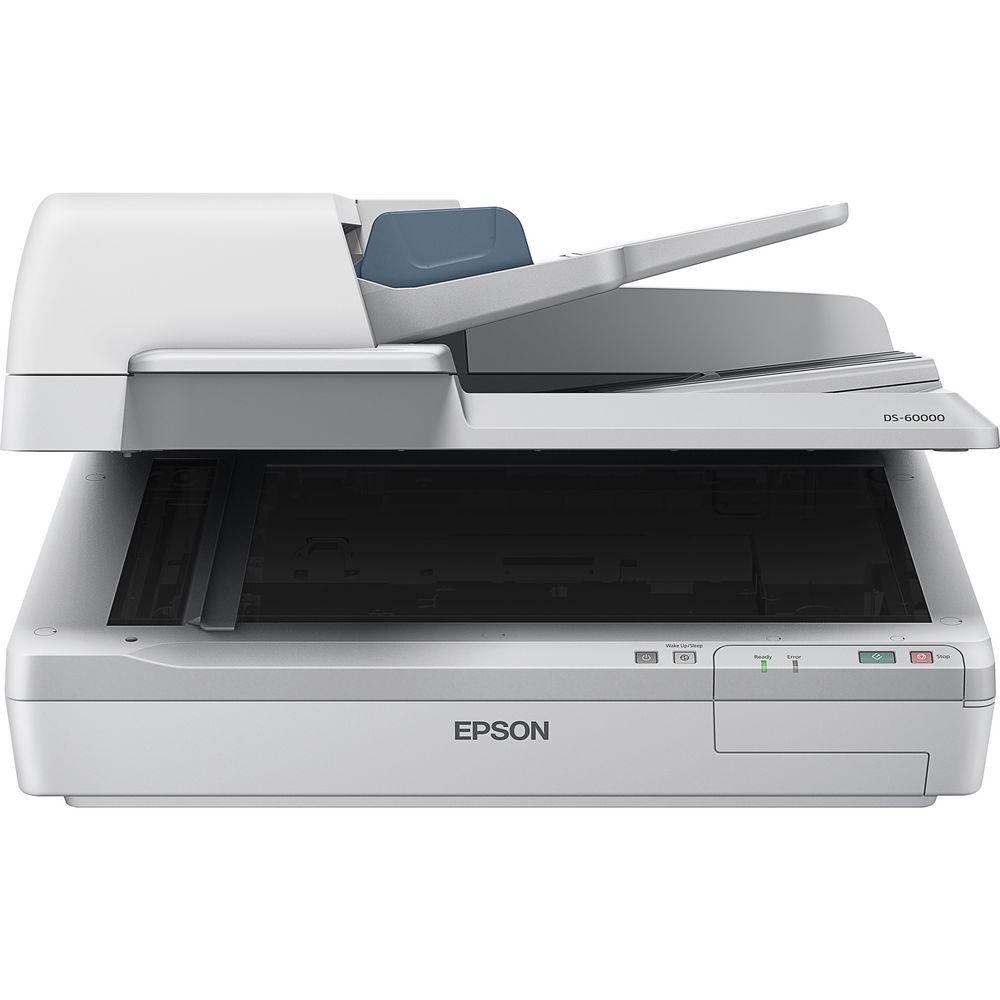

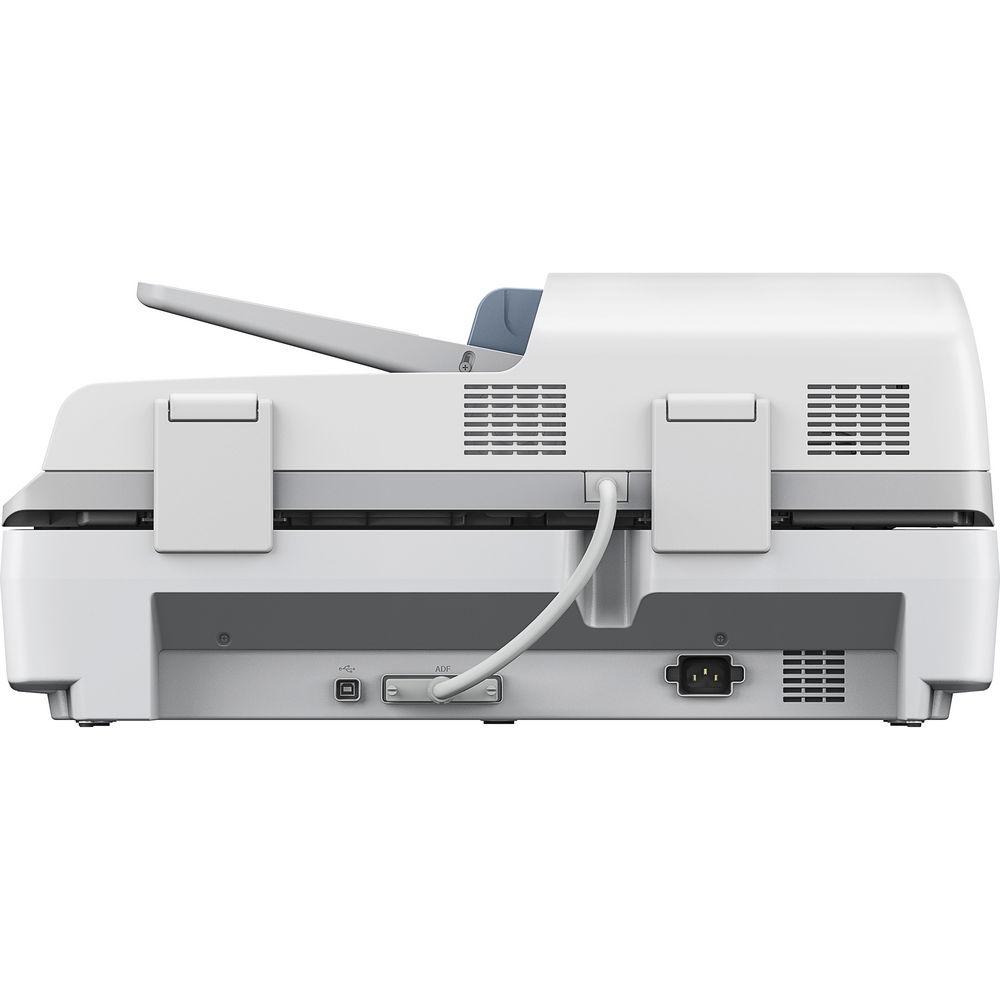

User Manual for Epson Workforce DS-60000 Scanner Click to enlarge the picture
Contents of the user manual for the Epson Workforce DS-60000 Scanner
- Product category: Flatbed & Document Scanners Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Flatbed & Document Scanners
 |
User manual for the Epson Workforce DS-60000 Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|
Product description The WorkForce DS-60000 Document Scanner from Epson captures documents as small as a business card and as large as 11x100". The four-line CCD sensor features a 600x600dpi for capturing full image detail in both grayscale and color. The 200-page ADF lets you scan two-sided documents in 1 step and can handle page sizes as large as 11.7x100". The scanner features programmable one-touch scanning buttons which let you create as many as 30 custom scan operations as well as image enhancement features such as color dropout. The scanner is compatible with both Windows and Mac operating systems and comes with a software suite that includes OCR software which converts your scanned documents into editable text. In addition to saving a scan as an image file, you can also create a searchable PDF file from your scans. Easily convert all your papers to searchable PDFs, cut paper clutter and easily find what you need by searching your documents. Also included is software that allows you to scan directly to cloud services such as Evernote and Google Docs so you can easily access your scans from any web-connected device such as a smartphone, tablet, or laptop. - Accurate Results: four-line CCD (RGB and black) and 600dpi provide vivid color and sharp text
- Capture Large, Two-Sided Documents In A Single Scan: scan documents as small as 2.7x4.7" (business card) up to 11.7x100" via the ADF or up to 11.7x17" via the flatbed
- Work More Efficiently: Built-in 200-sheet Automatic Document Feeder, plus auto duplex scanning
- Ultrasonic Double-Feed Detector: Automatically stops the scanning process if two pages feed together. There's no need to restart the scan - just separate the pages and continue
- Scan Directly To Popular Cloud Services: Scan to SharePoint, Evernote, Google Docs, and more
- Scan To A Searchable PDF: Save scanned documents as PDF files with searchable text
- Do More With The Included Productivity Software: Includes Epson Scan, Document Capture Pro (Windows only) and ABBYY FineReader Sprint OCR
- One-Touch Scanning: Create up to 30 user-programmable jobs
- Use With Windows Or Mac: Includes TWAIN and ISIS drivers and offers Hi-Speed USB 2.0 connectivity for quick, easy setup
- Convenient, Network Scanning Capabilities: Use the optional networking module and included Document Capture Pro software to scan to any PC on the local network
UPC: 010343886476 In the Box Epson Workforce DS-60000 Scanner USB Cable Power Cord Setup Sheet Scanner Software CD:- EPSON Scan
- Document Capture Pro
- ABBYY FineReader Sprint
Limited 1-Year Warranty Brochure PDF 451.6kbvqtzwaszyytuxrwradrbtbwtbry More info from Epson Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson Workforce DS-60000 Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson DS-60000 Specs | Maximum dpi Resolution | 600 dpi | | Duplex Speed | 80 ipm (Color)
80 ipm (Grayscale) | | Simplex Speed | 40 ppm (Color)
40 ppm (Grayscale) | | Maximum Document Width | 11" / 27.9 cm | | Maximum Document Length | 17" / 43.2 cm | | Color Depth | 24-Bit (External)

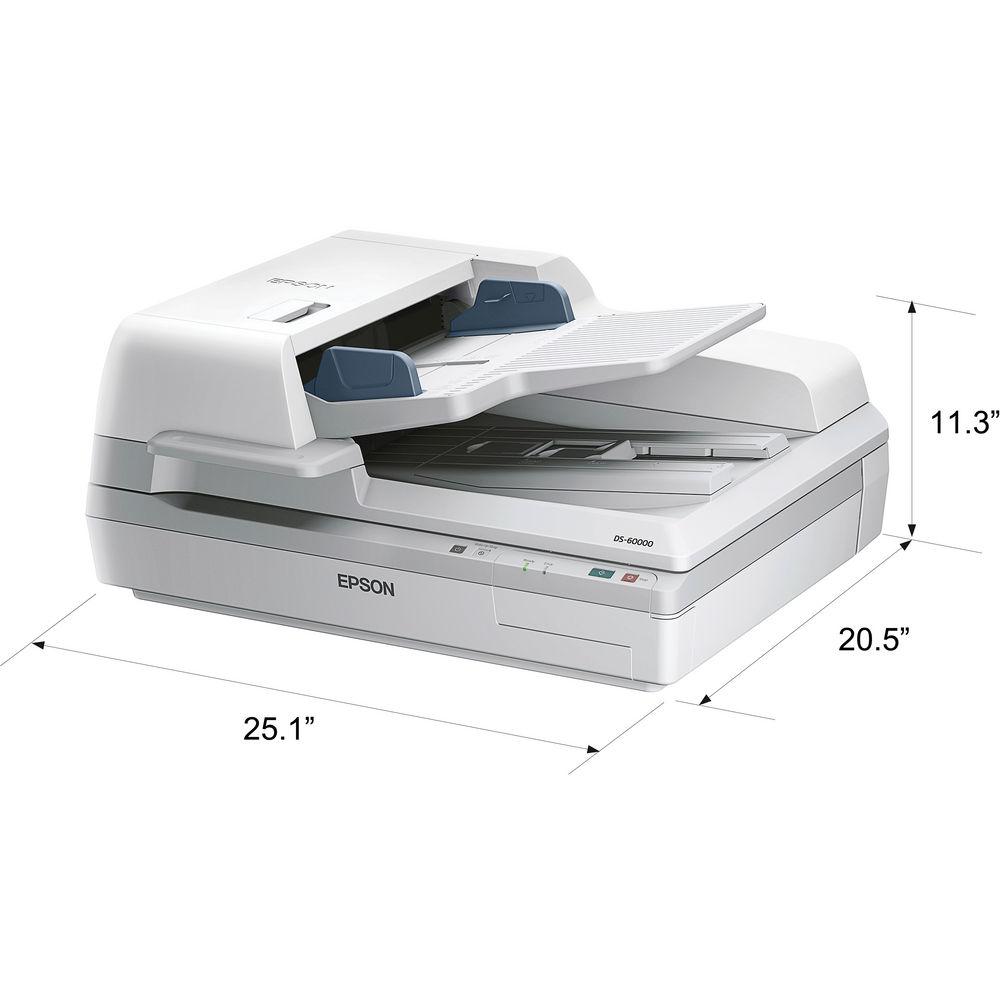

48-Bit (Internal) | | Document Feeding | ADF, Flatbed | | Life Expectancy | 300000 Sheets per Day | | Connectivity | USB 2.0 | | Operating System Compatibility | macOS/OS X, Windows | | Light Source | LED | | Control Panel | LCD Touchscreen, 4 Buttons | | Maximum Sheet Capacity | 200 | | Operating Humidity | 10 to 80% | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Humidity | 10 to 85% | | Storage Temperature | -13 to 140°F / -25 to 60°C | | Maximum Power Consumption | 79 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Dimensions | 25.2 x 18.4 x 5.5" / 64.0 x 46.8 x 15.6 cm | | Weight | 33.0 lb / 14.8 kg | | | | Package Weight | 76.8 lb | | Box Dimensions (LxWxH) | 34.3 x 29.3 x 21.0" |
