User Manual for Epson WorkForce DS-6500 Document Scanner Click to enlarge the picture
Contents of the user manual for the Epson WorkForce DS-6500 Document Scanner
- Product category: Flatbed & Document Scanners Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Flatbed & Document Scanners
 |
User manual for the Epson WorkForce DS-6500 Document Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|

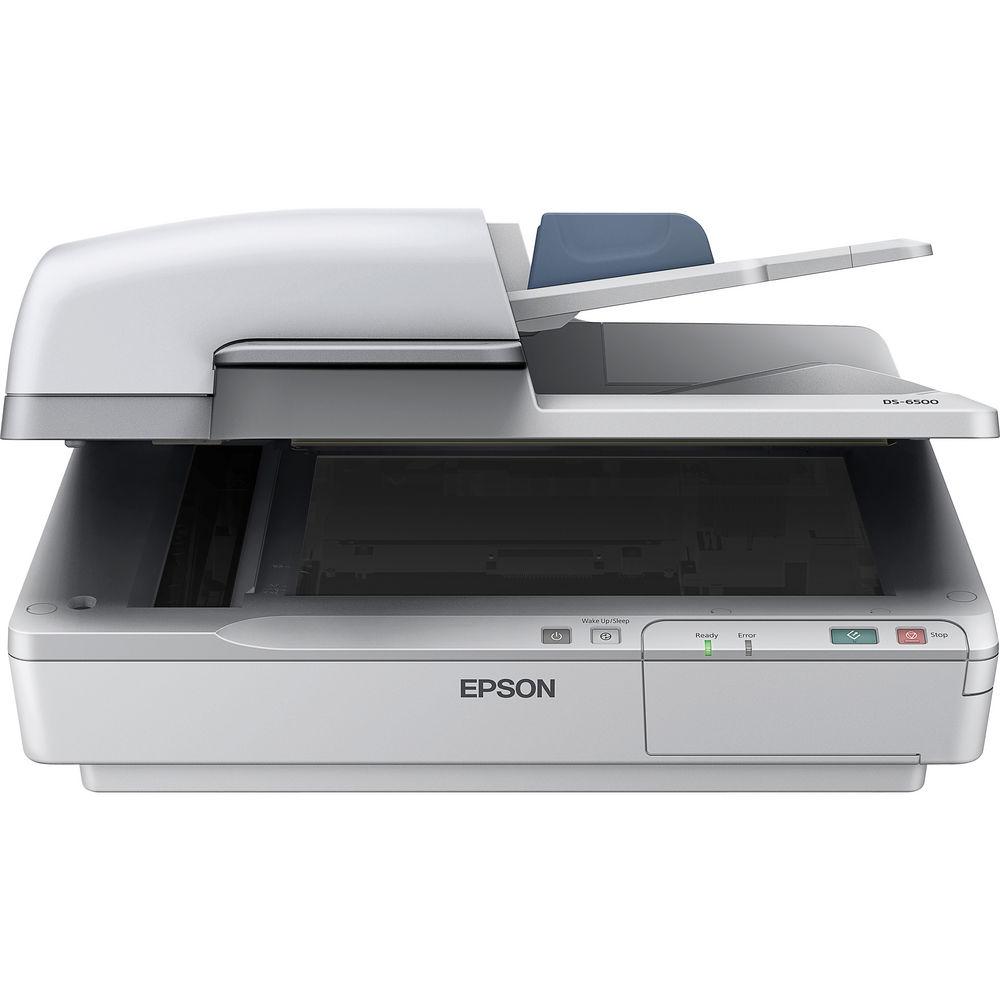

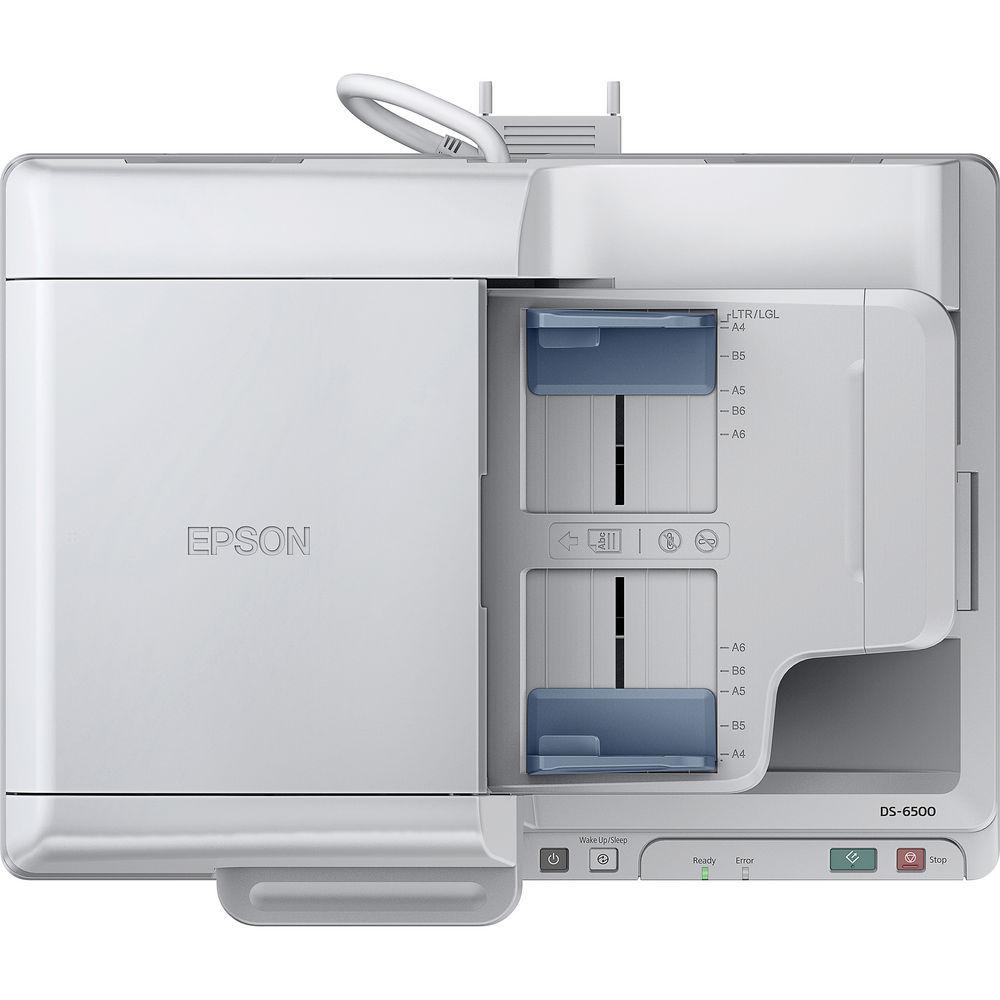

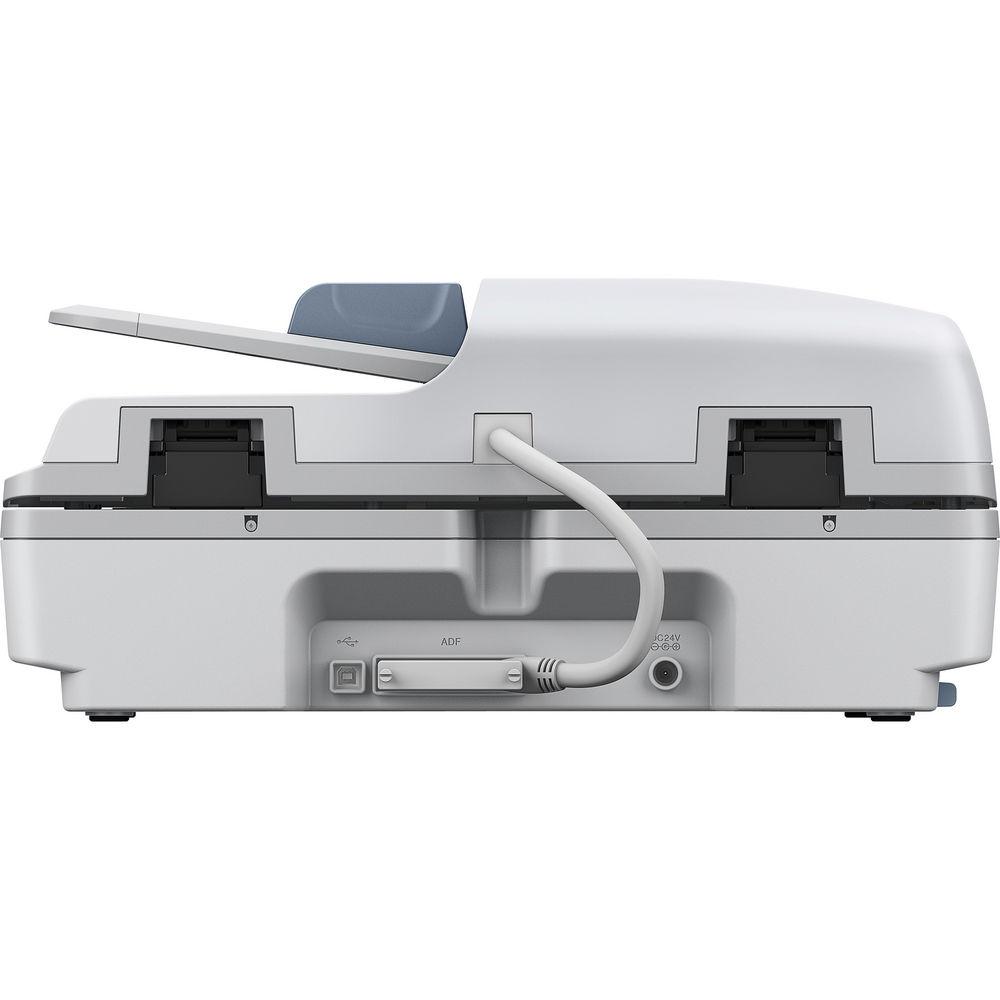

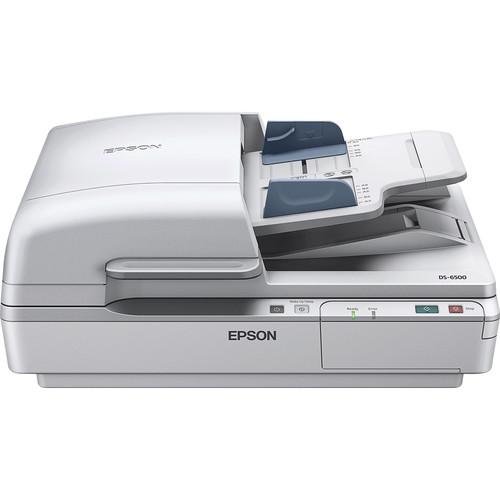

Product description The WorkForce DS-6500 Document Scanner from Epson features a 1200x1200dpi and up to a 25ppm scan speed. The scanner's 100-page duplex ADF can handle pages as large as 8.5x40" and as small as 4.0x6.0". Easily scan multipage two-sided documents in one easy step. The unit's one-touch scanning options lets you create up to 30 programmable jobs for a smooth workflow and easy transitioning between different scan types. The scanner's ultrasonic double-feed detector ensures no pages get skipped for stress-free operation. Additionally, the scanner's built in book spine shadow correction detects and removes dark areas that typically appear near the book spine. The DS-6500 comes with ABBYY FineReader Sprint OCR software that turns your scans into editable text. The software also gives you the option to save your scans as searchable PDF files. Besides scanning to a drive on your computer, the scanner software provides the ability to scan documents directly to popular cloud services such as Evernote or Google Docs. - Accurate Text Scanning: four line CCD sensor (RGB and black) for crisp, sharp text; included book spine correction eliminates distortion when scanning bound materials
- Get More Done: one-pass, duplex scanning at speeds of up to 25 ppm/50 ipm
- Capture Large, Two-Sided Documents In One Step: Use the ADF to scan documents from 4.0x6.0" to 8.5x40.0" via the ADF or up to 8.5 x 11.7" via the flatbed
- Work Smarter & More Efficiently: built-in 100-sheet ADF, plus auto duplex scanning
- Front Panel One-Touch Scan Buttons: Create up to 30 user-programmable jobs
- Ultrasonic Double-Feed Detector: automatically stops the scan job if two pages have fed together
- Scan To Cloud Services: scan to SharePoint, Evernote, Google Docs and more
- Scan To Searchable PDF: save scanned documents as PDF, PDF-A or jpeg files and more
- Productivity Software: The scanner includes EPSON Scan, Document Capture Pro (Windows only) and ABBYY FineReader Sprint OCR
UPC: 010343886452 In the Box Epson WorkForce DS-6500 Document Scanner USB Cable AC Adapter Power Cable Software CD:- EPSON Scan
- EPSON Event Manager (Mac)
- ABBYY FineReader Sprint
- Document Capture Pro (Windows)
Setup Sheet Limited 1-Year Warranty More info from Epson Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson WorkForce DS-6500 Document Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

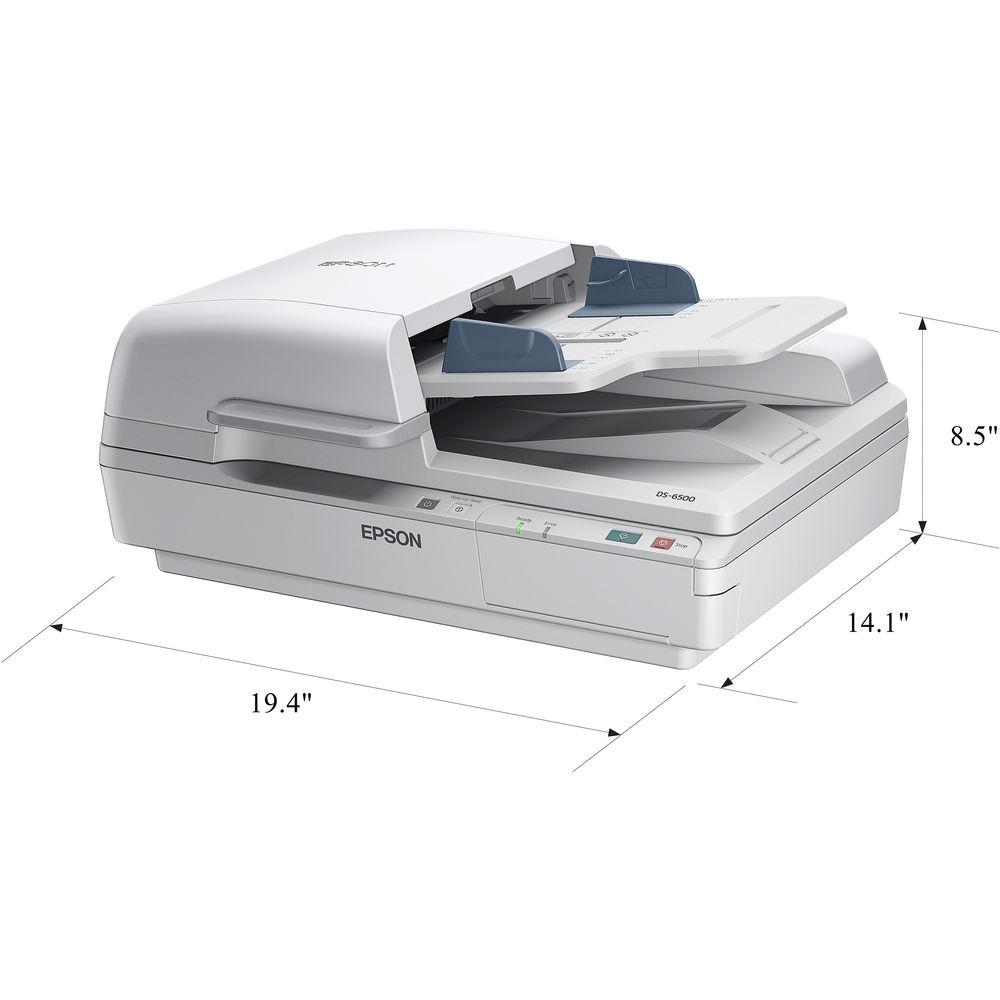

Technical parametersEpson DS-6500 Specs | Maximum dpi Resolution | 4800 dpi | | Duplex Speed | 50 ipm (Color) | | Simplex Speed | 25 ppm (Color) | | Maximum Document Width | 8.5" / 21.6 cm | | Maximum Document Length | 40" / 101.6 cm | | Color Depth | 48-Bit (External)
48-Bit (Internal) | | Grayscale Bit-Depth | 16-Bit (External)
16-Bit (Internal) | | Document Feeding | ADF, Flatbed | | Life Expectancy | 300000 Sheets per Day | | Connectivity | USB 2.0 | | Paper Weight | 14 to 34 lb | | Operating System Compatibility | macOS/OS X, Windows | | Light Source | LED | | Control Panel | LCD Touchscreen, 4 Buttons | | Drivers | TWAIN, WIA, ISIS | | Duty Cycle | 3000 Scans | | Maximum Sheet Capacity | 100 | | Operating Humidity | 10 to 80% | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Humidity | 10 to 85% | | Storage Temperature | -13 to 140°F / -25 to 60°C | | Maximum Power Consumption | 45 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Dimensions | 19.4 x 14.1 x 8.5" / 49.3 x 35.8 x 21.6 cm | | Weight | 22.5 lb / 10.21 kg | | | | Package Weight | 27.75 lb | | Box Dimensions (LxWxH) | 23.3 x 19.6 x 12.7" |
